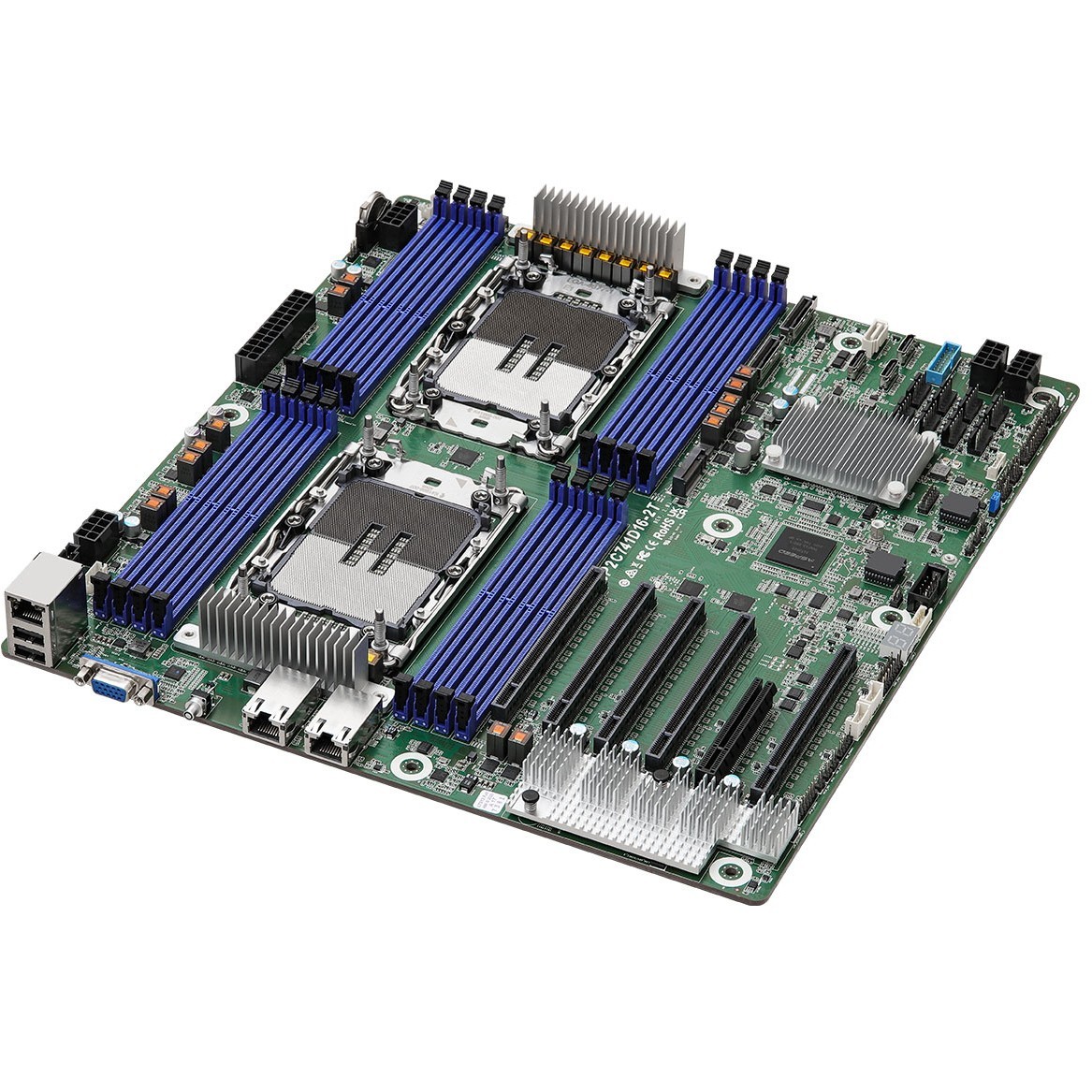

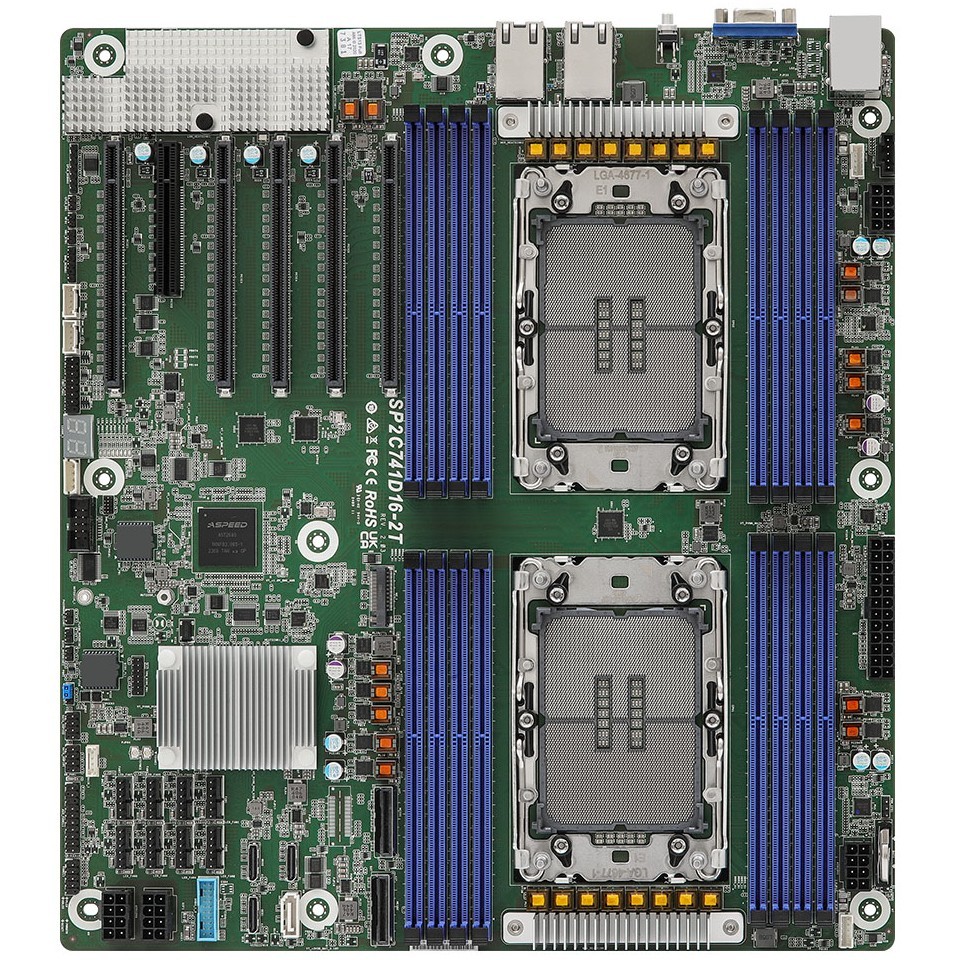

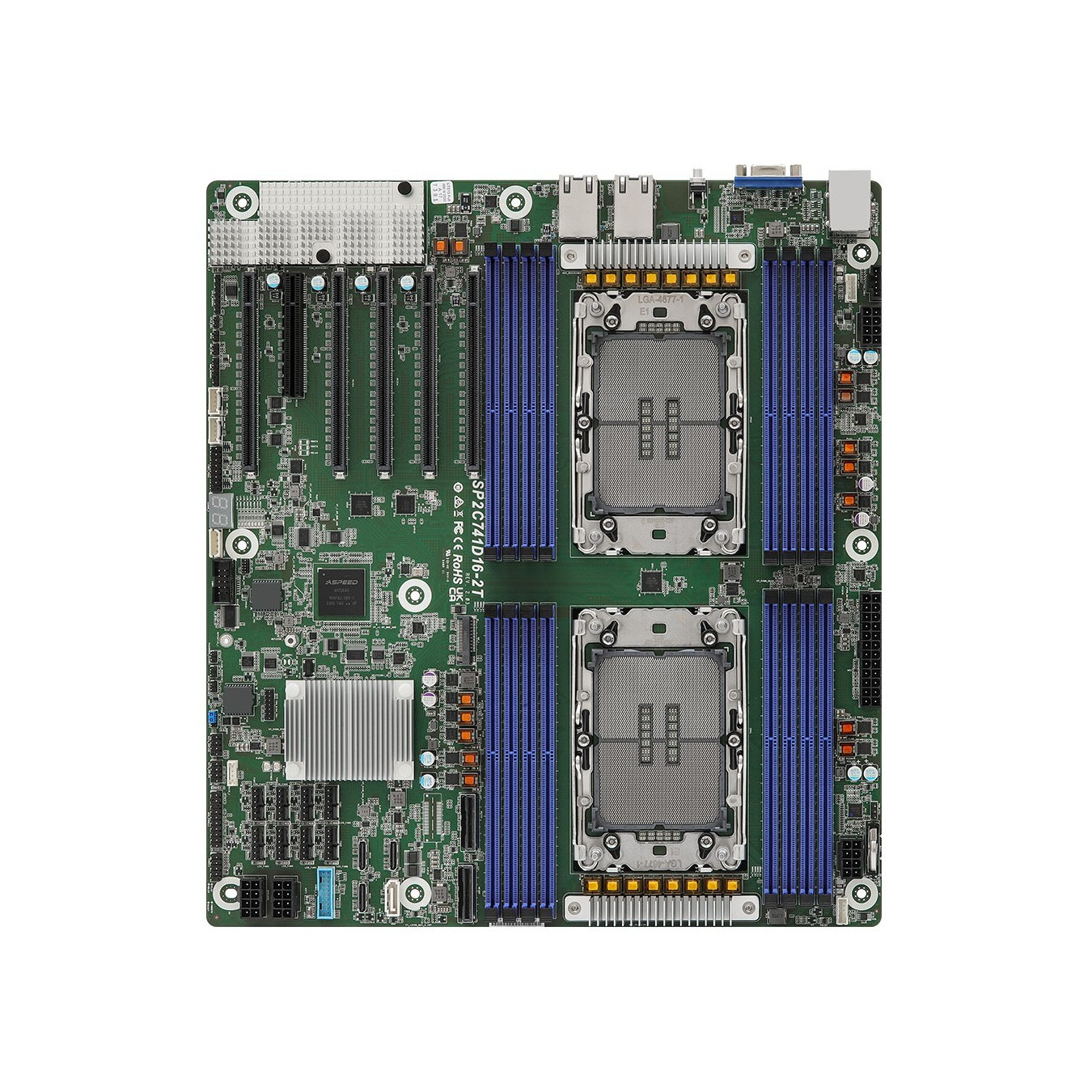

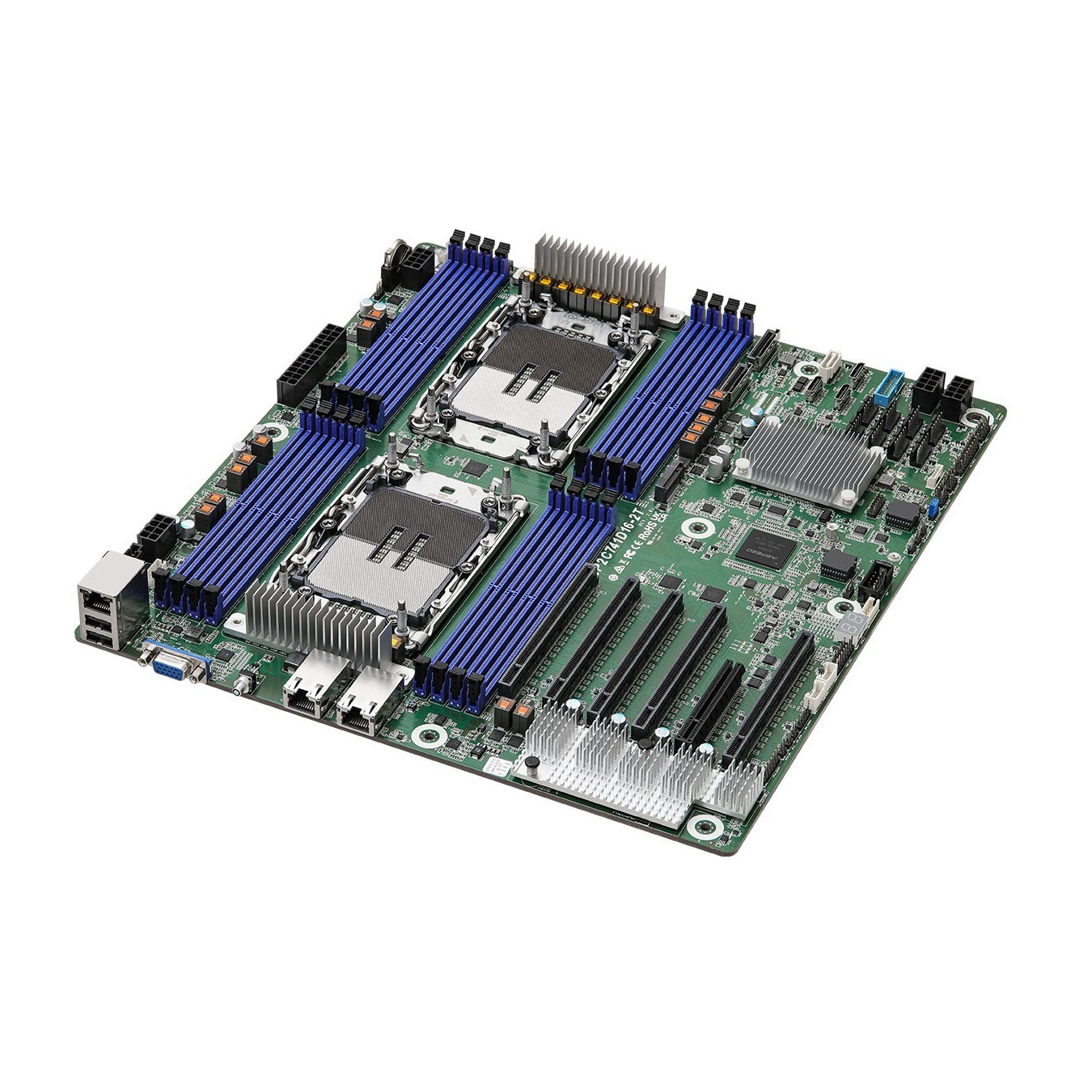

ASRock SP2C741D16-2T - Dual LGA4677 Xeon Server Motherboard, EEB, 16x DDR5 up to 5600MHz
Dual-socket LGA4677 EEB server motherboard (ASRock SP2C741D16-2T) for Intel Xeon. 16x DDR5 slots (1.1V, up to 5600MHz), PCIe Gen5 (5x x16, 1x x8), 2x LAN, 4x SATA III, AST2600 BMC
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Memory Type | DDR5 |
|---|---|
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
Asrock SP2C741D16-2T. Processor manufacturer: Intel. Processor socket: LGA 4677 (Socket E). Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM. Memory voltage: 1.1 V. Supported memory clock speed (max): 5600 MHz. On-board graphics card model: Aspeed AST2600. Motherboard form factor: EEB. Motherboard chipset family: Intel. Compatible operating systems: Microsoft® Windows® - Server 2022 (64 bit) Linux - Red Hat Enterprise Linux Server 8.4 ( 64.... BIOS type: UEFI AMI. BIOS memory size: 512 Mbit
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4677 (Socket E) |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 16 |
| Memory voltage | 1.1 V |
| Supported memory clock speed (max) | 5600 MHz |
| On-board graphics card model | Aspeed AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Feature | Ethernet LAN |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 5 |
| PCI Express OCuLink connectors (NVMe support) | 3 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 4.0 |
| System Management BIOS (SMBIOS) version | 3.4 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 307 mm |
| Depth | 337.8 mm |
