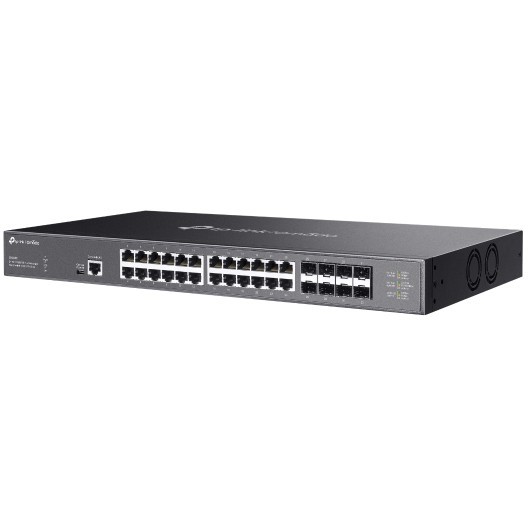

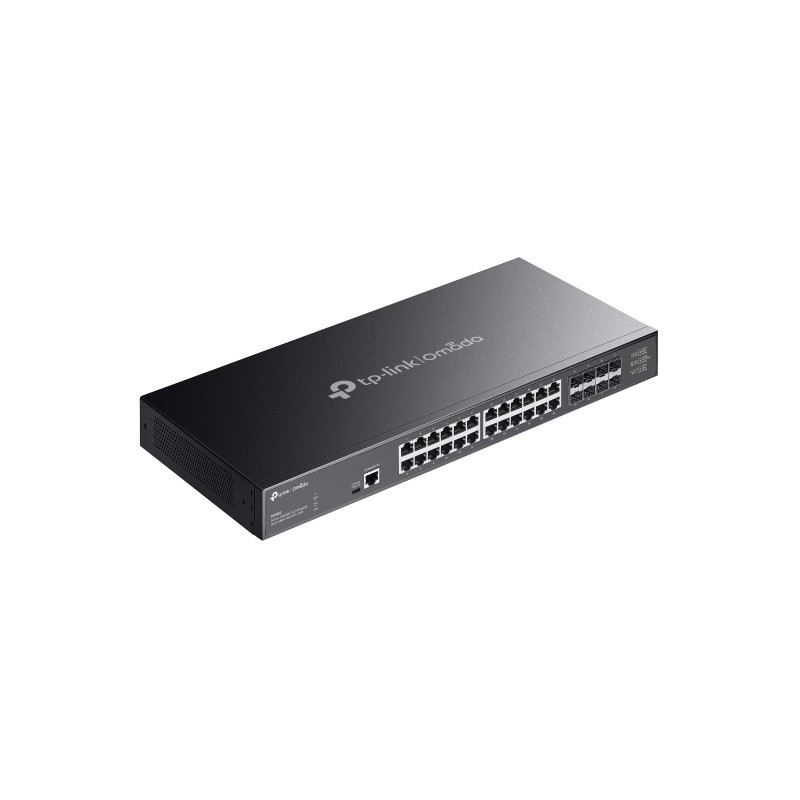

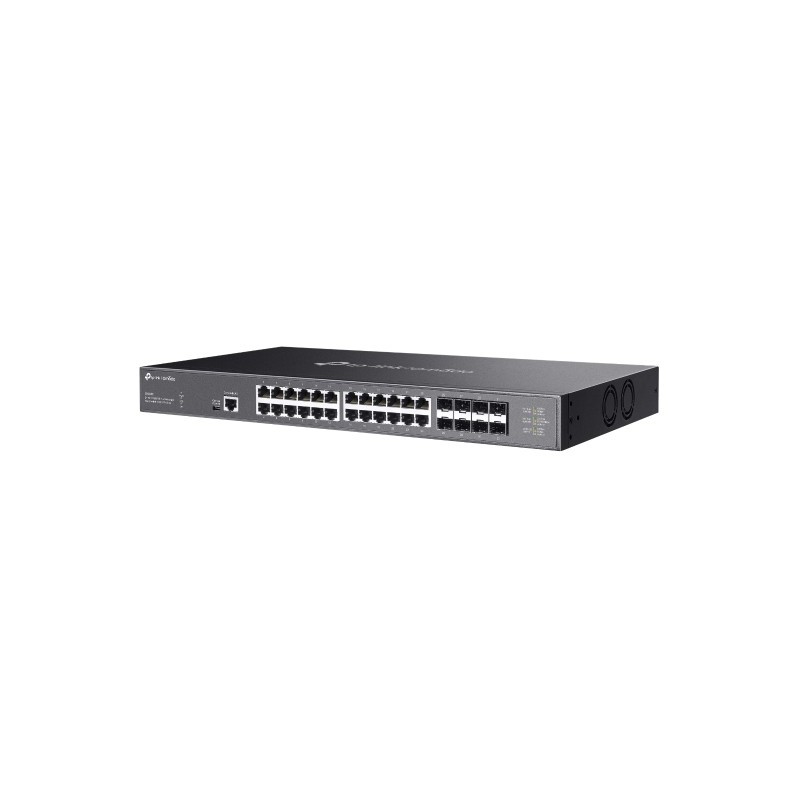

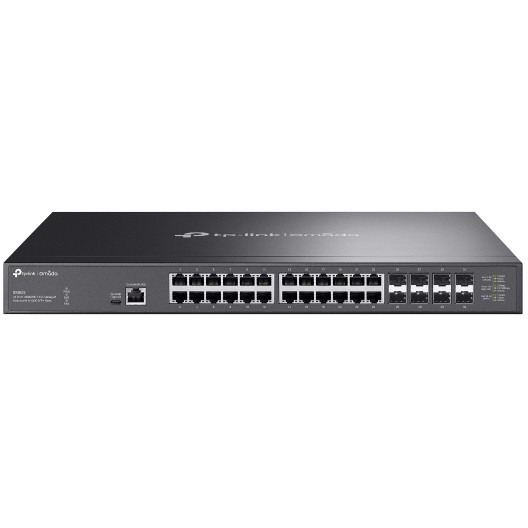

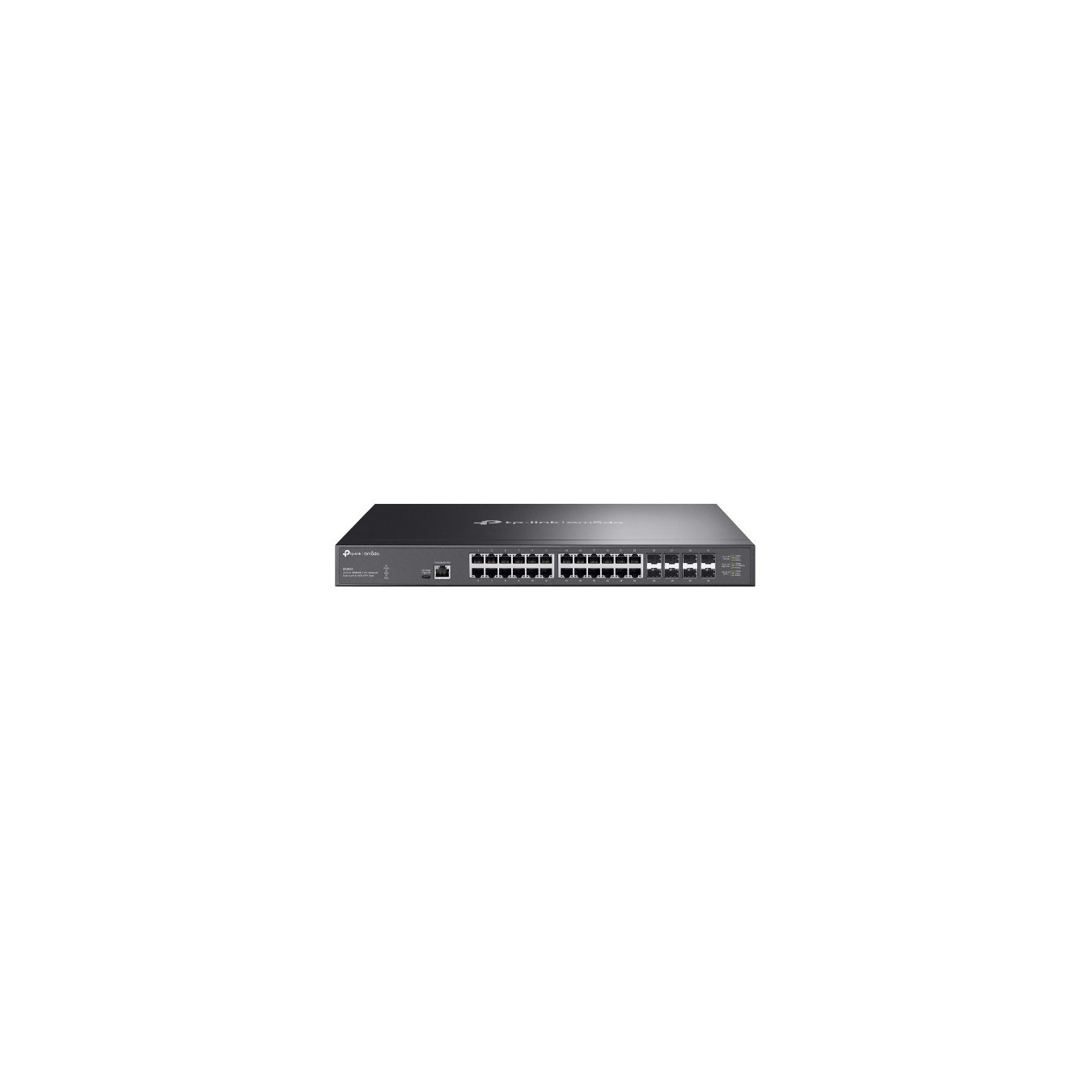

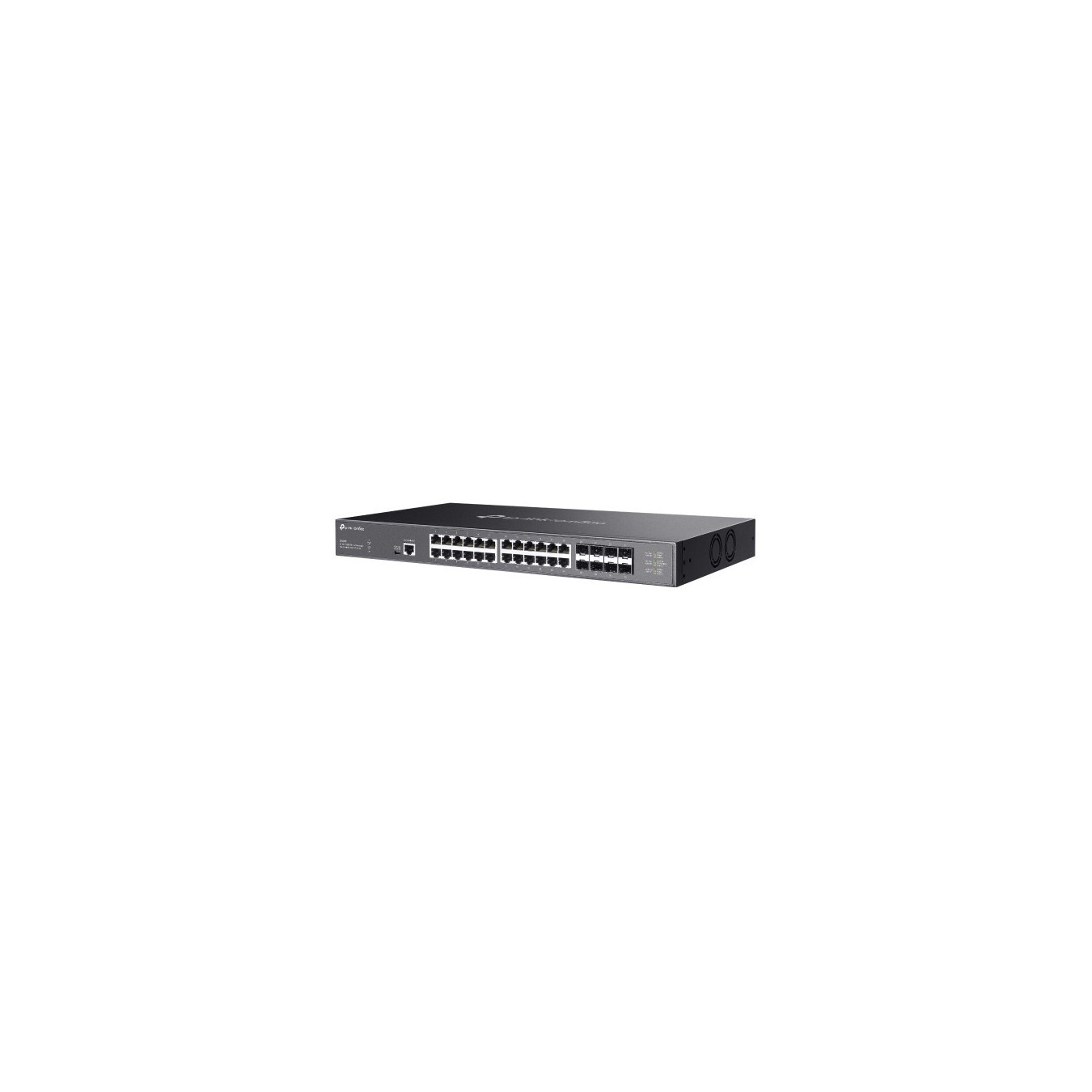

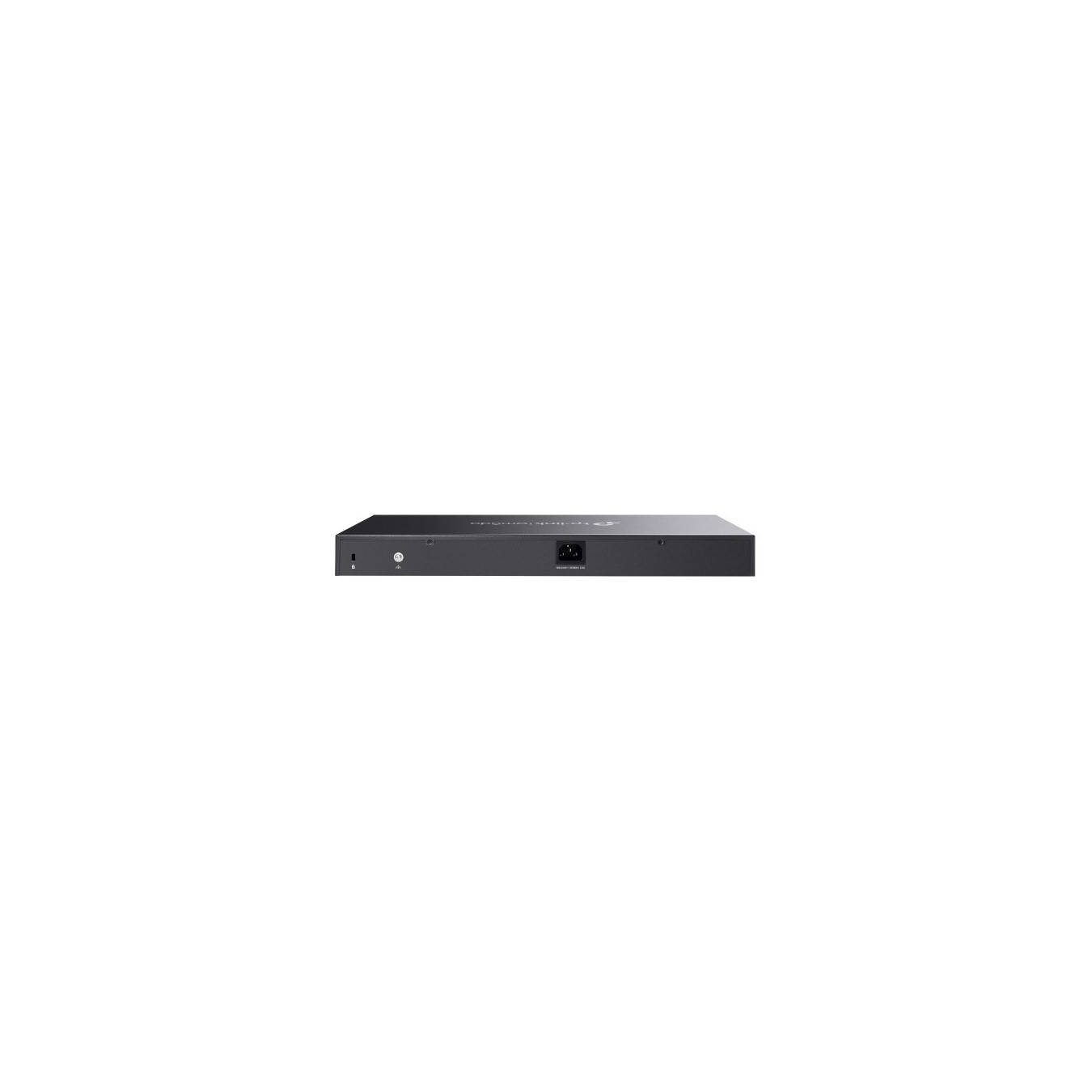

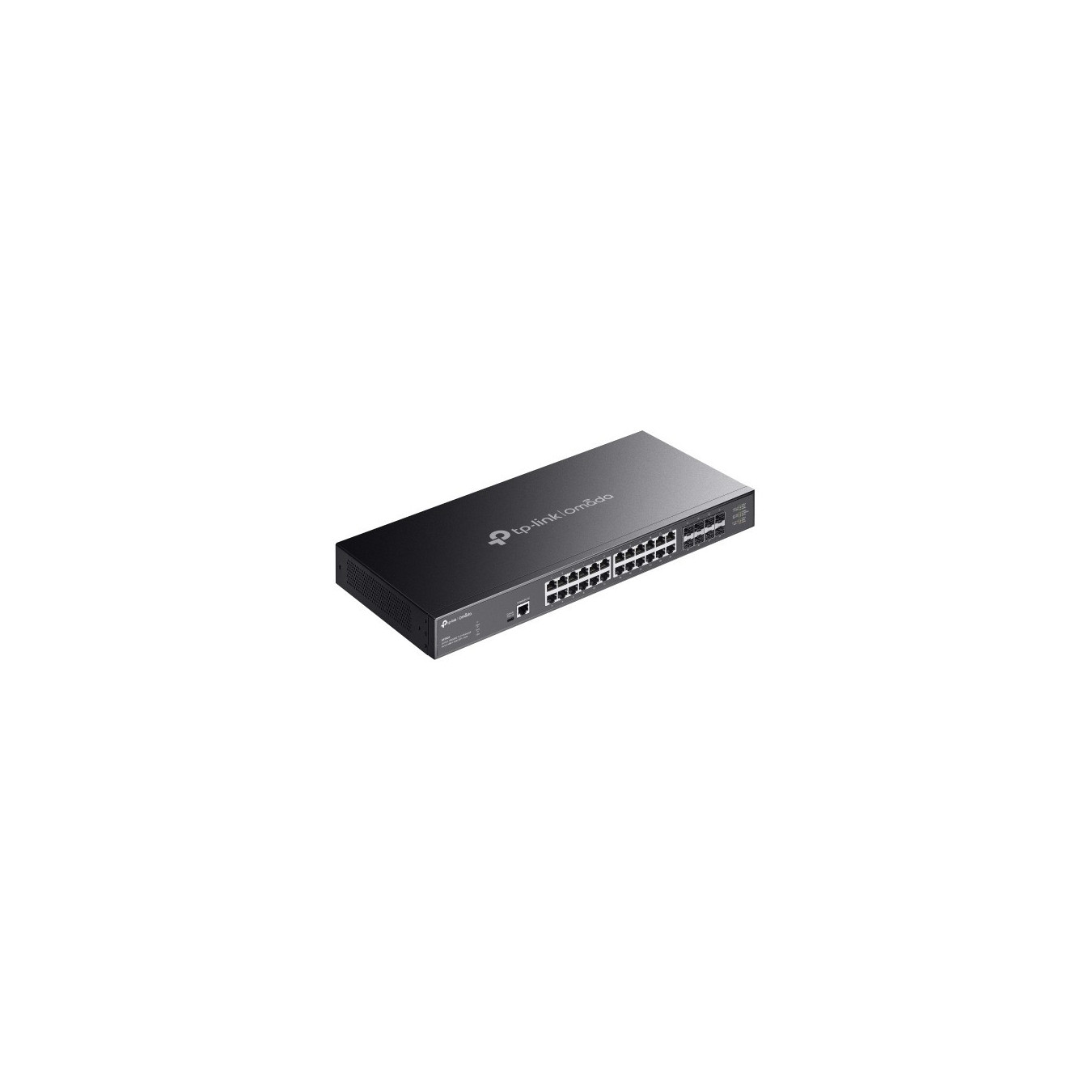

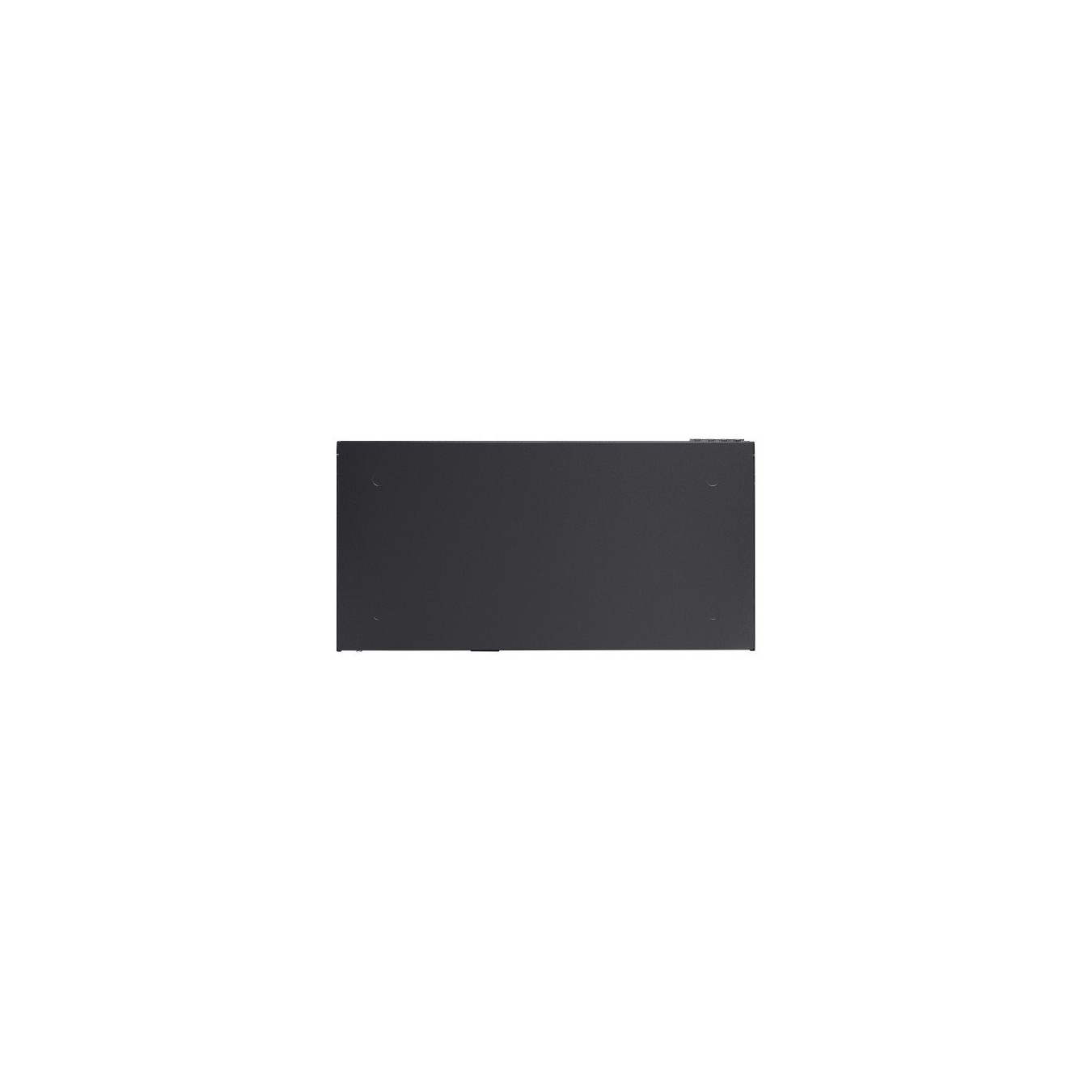

TP-Link Omada SX3832 - 24x 10GBASE-T RJ45, 8x 10G SFP+, L2+ Managed Switch, 1U Black
L2+ managed 1U rack switch with 24x 10GBASE-T RJ45, 8x 10G SFP+ slots, 640 Gbit/s switching, 240 Mpps, AC powered, dual fans; ideal for high-density networks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots. Switch type: Managed. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 24. Console port: RJ-45/USB Type-C. MAC address table: 32000 entries. Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.3az. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 8 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.3az |
| Ethernet LAN data rates | 10.100 Mbit/s |
| Virtual LAN features | MAC address-based VLAN. Multicast VLAN. Private VLAN. Voice VLAN |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 24 MB |
| DHCP features | DHCP relay. DHCP server. DHCP snooping. DHCPv6 snooping |
| Authentication | Auto VLAN. MAC-based authentication. Port-based authentication |
| Authentication type | AAA. RADIUS. TACACS+ |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 106.5 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 363.23 BTU/h |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Cables included | AC. LAN (RJ-45) |
