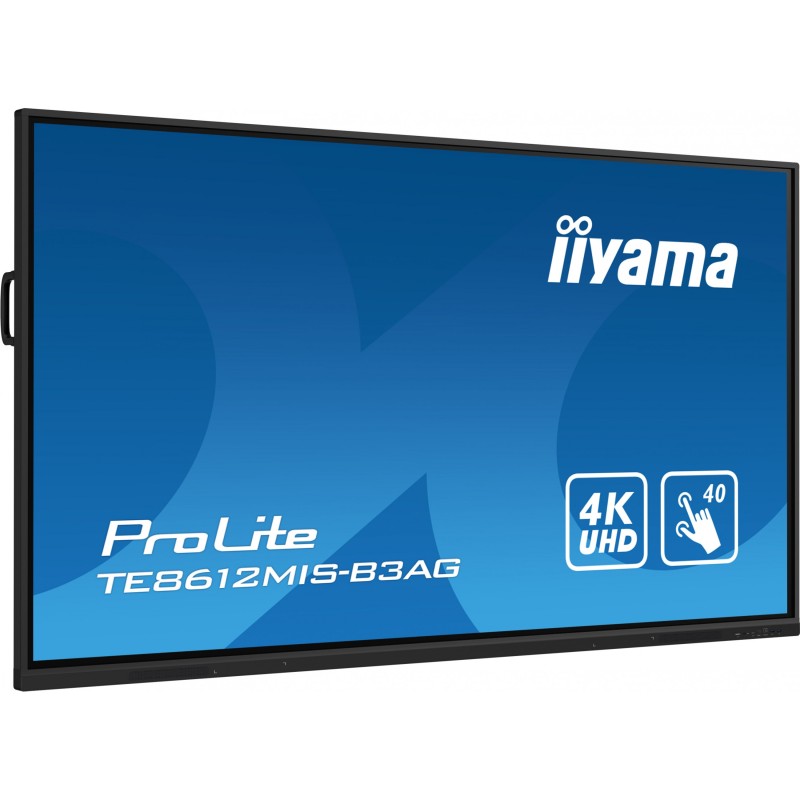

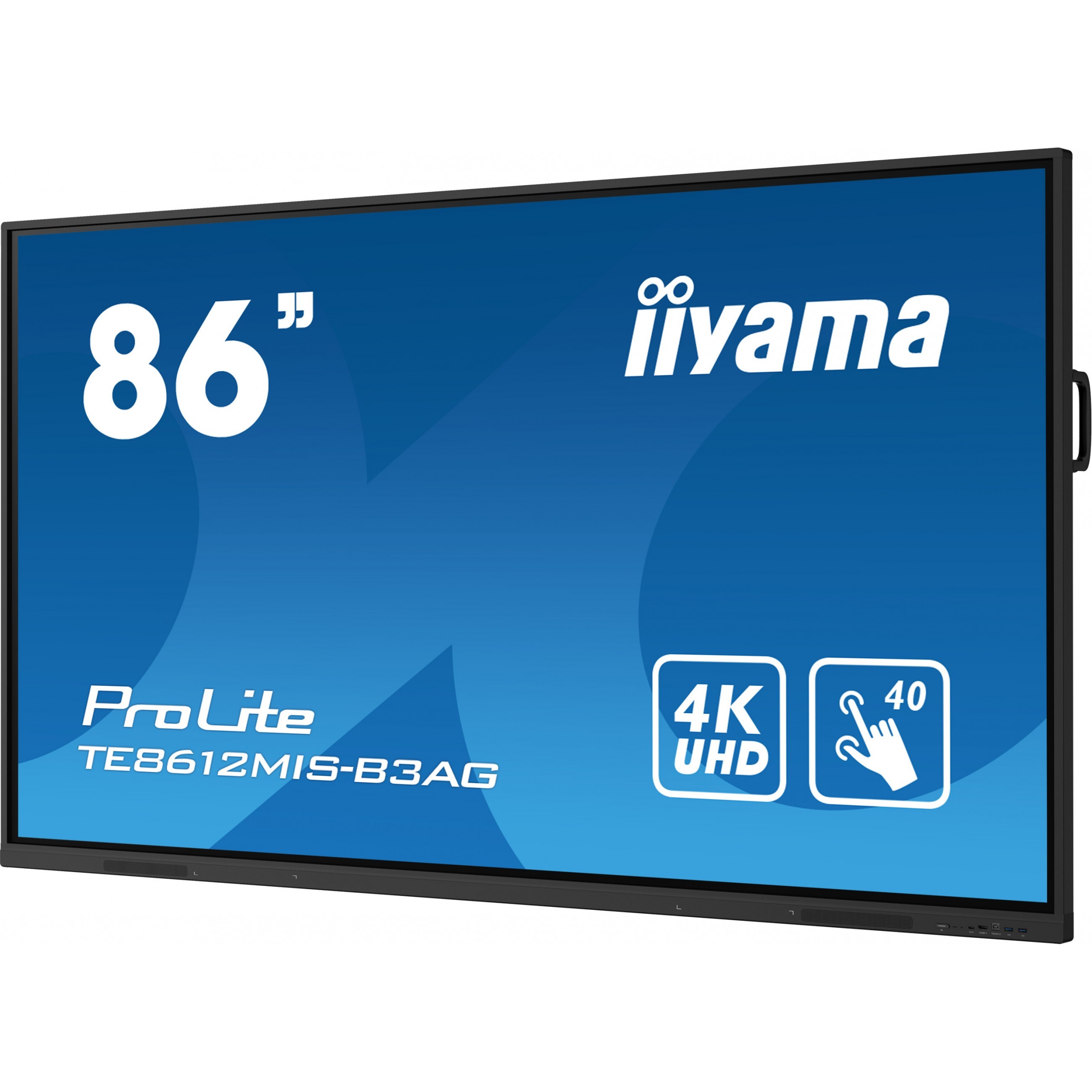

iiyama ProLite TE8612MIS-B3AG - 86" 4K UHD Interactive Touchscreen, VA, Android 11, 8GB/32GB, USB-C/HDMI, Black, 24/7
86" iiyama ProLite TE8612MIS-B3AG 4K UHD (3840x2160) interactive touchscreen with PureTouch-IR, 40 touchpoints, Android 11, 8GB RAM/32GB storage, Wi-Fi, HDMI, USB-C, 24/7
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Resolution | 3840x2160 (4K) |
|---|---|
| Monitors - Panel Type | VA |
| Monitors - Refresh Rate | 60 Hz |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
| Monitors - USB Hub | USB-A + USB-C |
iiyama 86" Interactive 4K UHD Touchscreen elevating interactive collaboration. Product design: Kiosk design. Display diagonal: 2.18 m (86"). Display technology: LCD. Display resolution: 3840 x 2160 pixels. Display brightness: 400 cd/m². HD type: 4K Ultra HD. Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
| Panel type | VA |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Feature | Wi-Fi module included |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 8000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 30 - 135 kHz |
| Surface hardness | 7H |
| Glass thickness | 3 mm |
| Glass film | AG/AR Film |

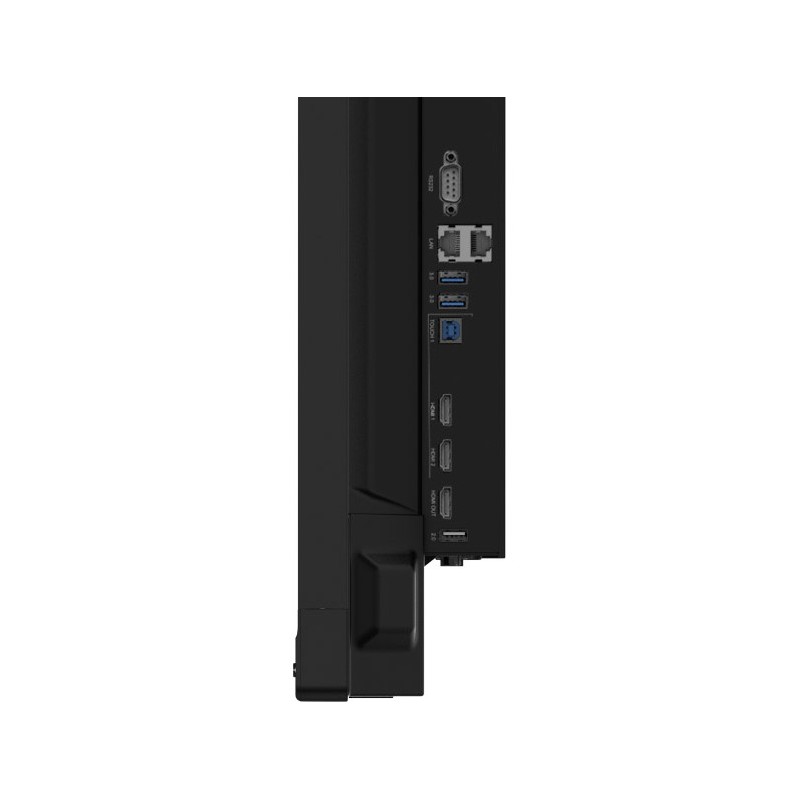

| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB ports quantity | 5 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| Remote (IR) input | 1 |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

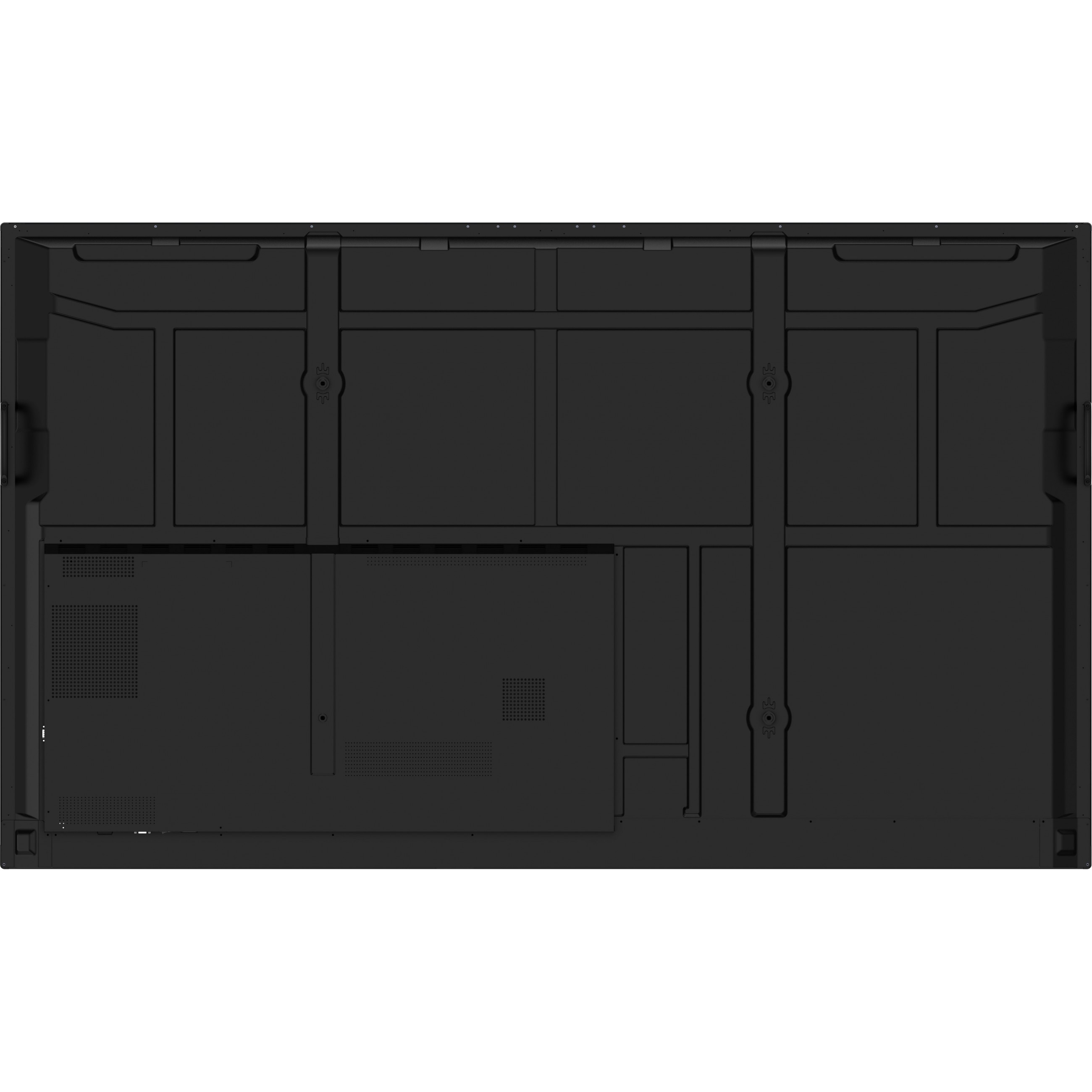

| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 3 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Purpose | Commercial |
| On Screen Display (OSD) languages | Czech. Danish. German. English. Spanish. Finnish. French. Italian. Polish. Russian. Slovenian |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 208 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | A55 |
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Width (with stand) | 1957 mm |
| Depth (with stand) | 100 mm |
| Height (with stand) | 1160 mm |
| Weight (with stand) | 58.6 kg |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1283 mm |
| Package volume | 75900 cm³ |
| Cables included | HDMI. Power. USB |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Certification | CB. CE. TÜV-Bauart. EAC. RoHS support. ErP. WEEE. REACH. EPA 8.0 |
