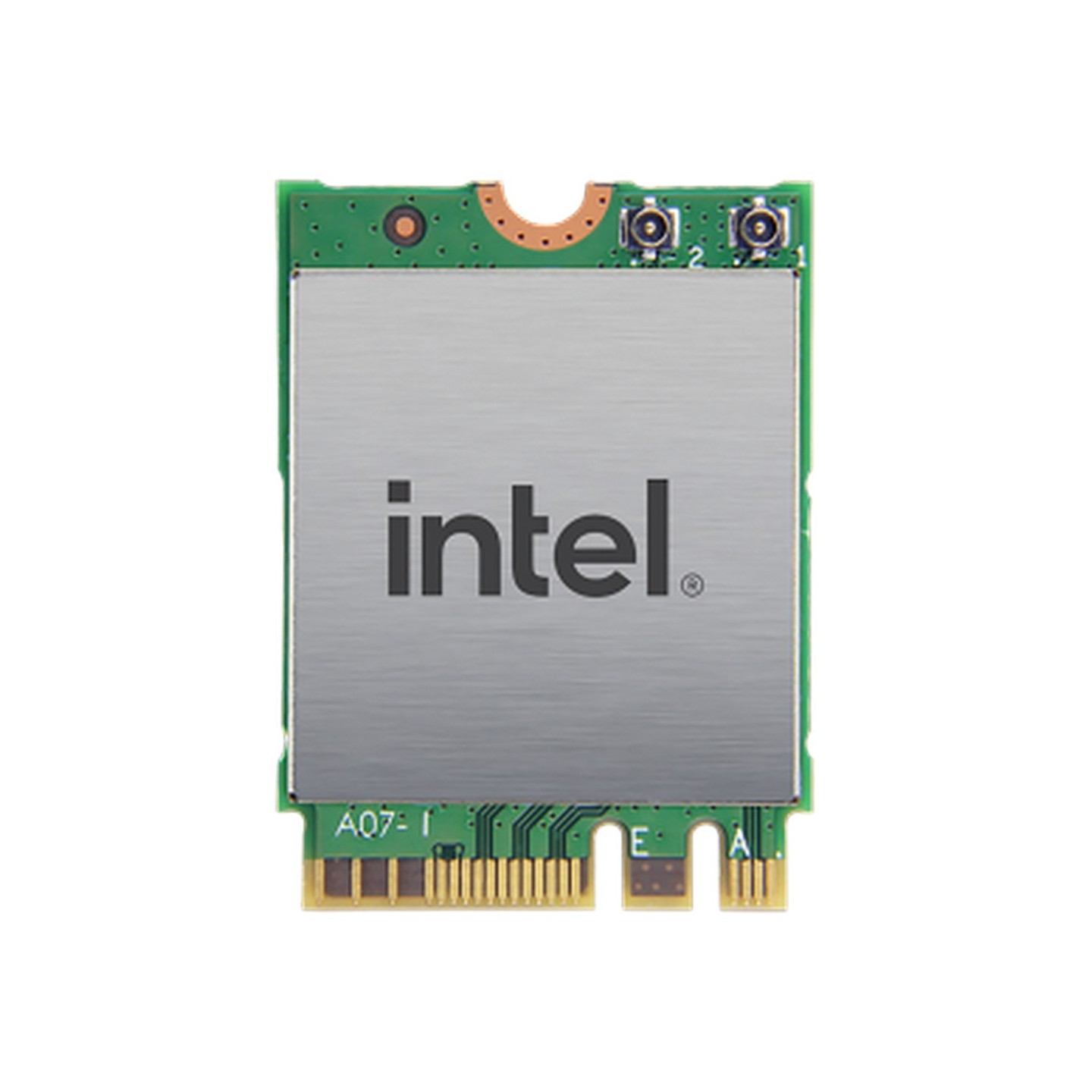

Intel Wi-Fi 6 AX200 M.2 2230 - Dual-Band 802.11ax 2400 Mbps, Bluetooth 5.0, Internal WLAN Module
Internal M.2 2230 Intel Wi-Fi 6 AX200 module — Dual-band 2.4/5 GHz up to 2400 Mbps, Bluetooth 5.0; PCIe WLAN / USB BT interface. Supports Windows 10 x64, Linux, ChromeOS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PCIe Network Cards - PCIe Version | 3.0 |
|---|---|
| PCIe Network Cards - PCIe Lanes | x1 |
| PCIe Network Cards - Low-Profile Bracket | Not Included |
| PCIe Network Cards - OS Compatibility | Multi-OS |
Intel Wi-Fi 6 AX200 (Gig+). Internal. Connectivity technology: Wireless. Host interface: PCI Express. Interface: WLAN. Maximum data transfer rate: 2400 Mbit/s. Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: 2x2
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
| Maximum data transfer rate | 2400 Mbit/s |
| Feature | Supported Under vPro |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Security algorithms | 64-bit WEP. 128-bit AES. 128-bit WEP. 256-bit AES. AES-CCMP. AES-GCMP. EAP-AKA. EAP-SIM. EAP-TLS. EAP-TTLS. MSCHAPv2. PEAP. TKIP. WPA2. WPA3. WPS |
| Bluetooth version | 5 |
| Component for | PC/Laptop |
| Antenna type | 2x2 |
| Package size | 22 x 30 x 2.4 mm |
| Compatible operating systems | Windows 10. 64-bit*|Linux* |
| Windows operating systems supported | Windows 10 x64 |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 80 °C |
| Width | 22 mm |
| Depth | 30 mm |
| Height | 2.4 mm |
| Weight | 2.83 g |
| Harmonized System (HS) code | 85176990 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 80 °C |
| Interface type | Wi-Fi(PCIe). BT(USB) |
| Launch date | Q2'19 |
| Product brief URL | https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf |
| Product type | Wireless |
| Status | Launched |
| Processor family | Intel Wi-Fi 6 Products |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Compliance | FIPS. FISMA |
| Product series | Intel® Wireless Products |
| Product codename | Cyclone Peak |
