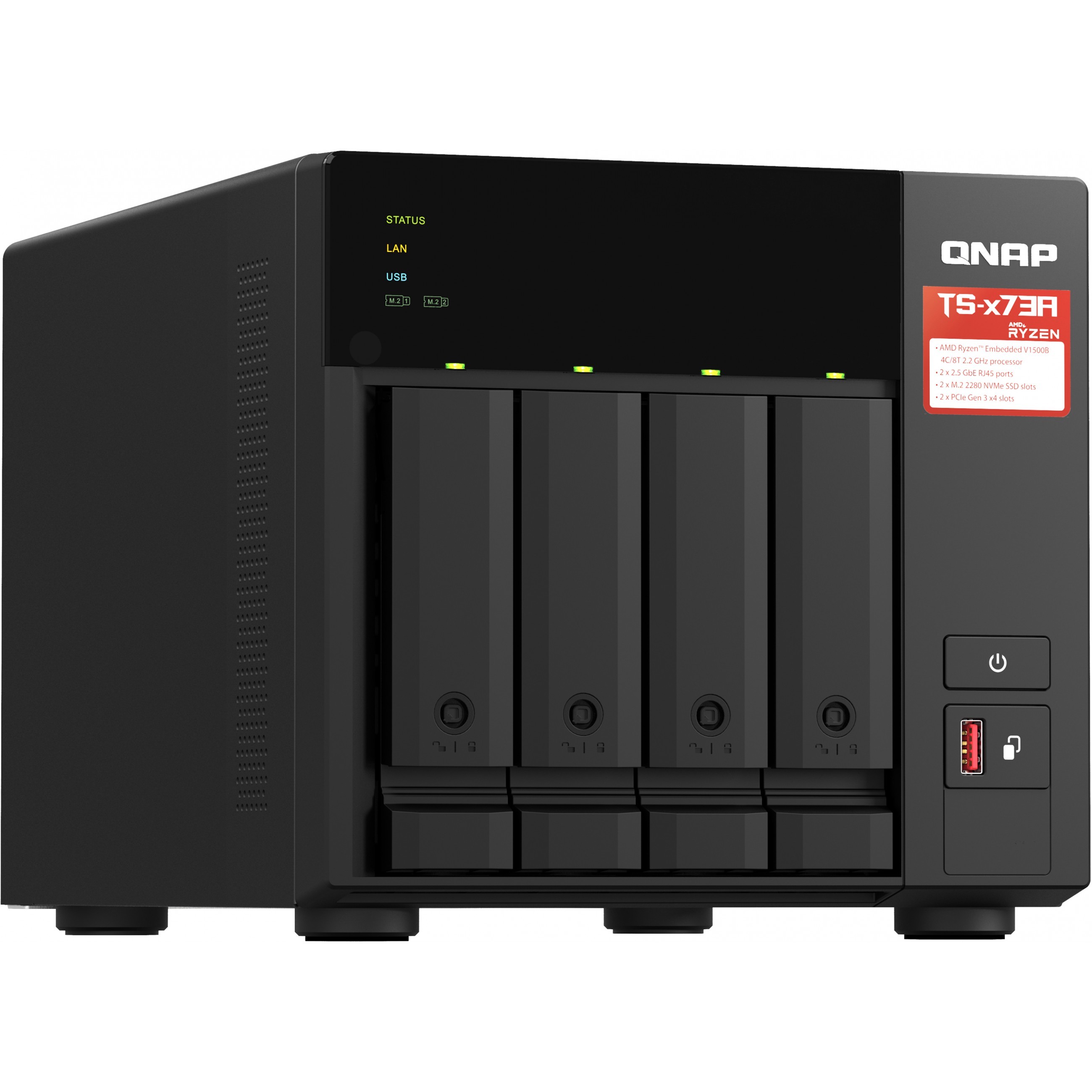

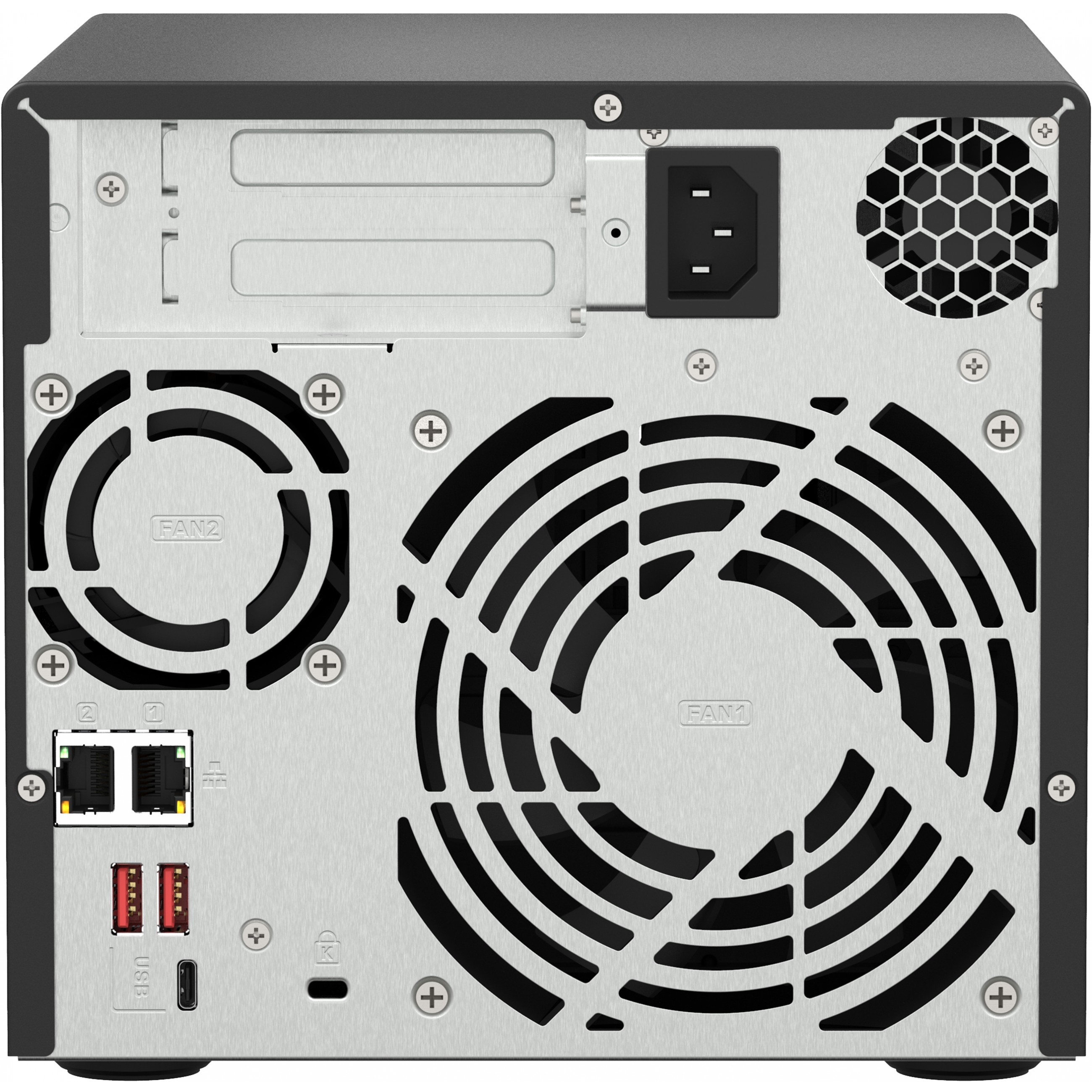

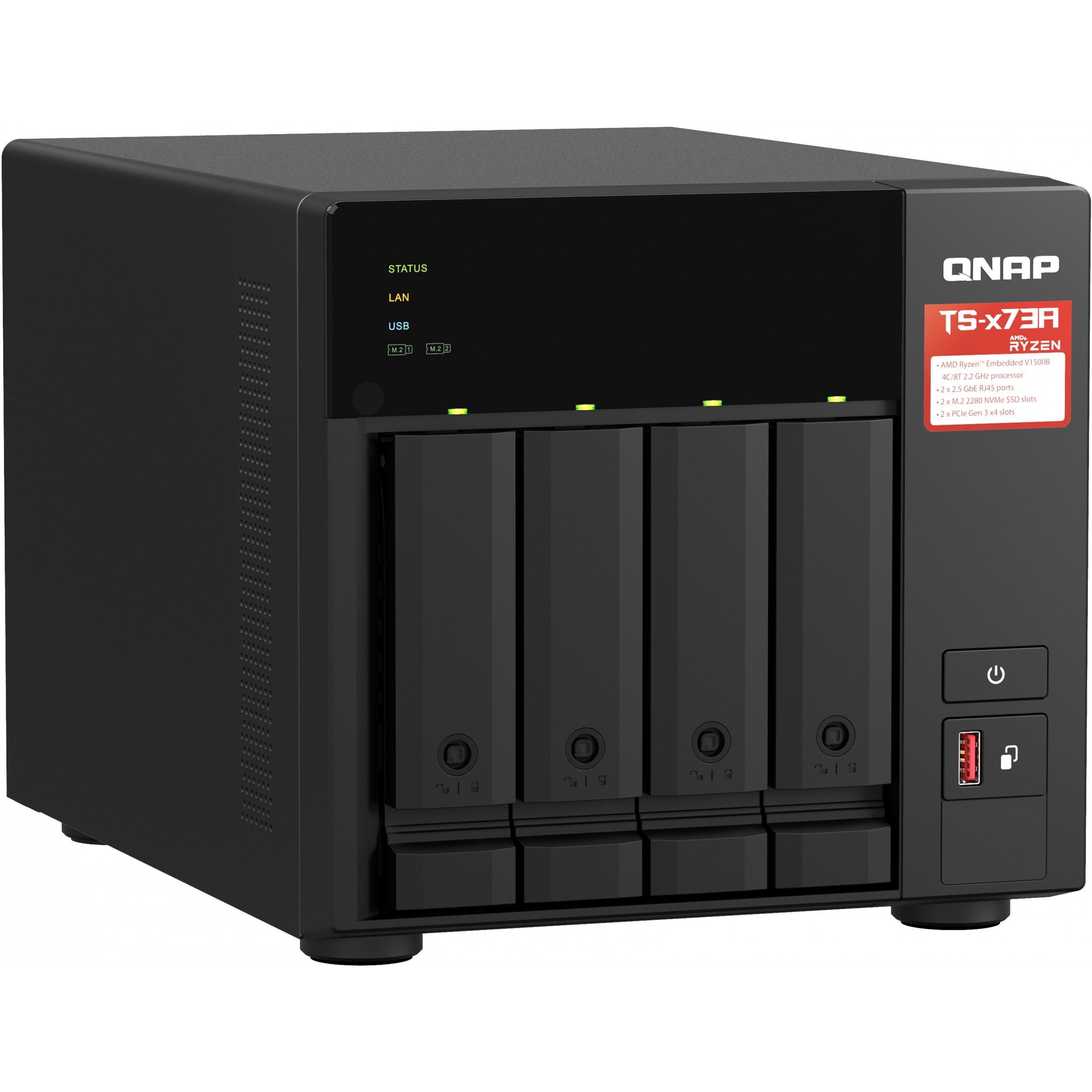

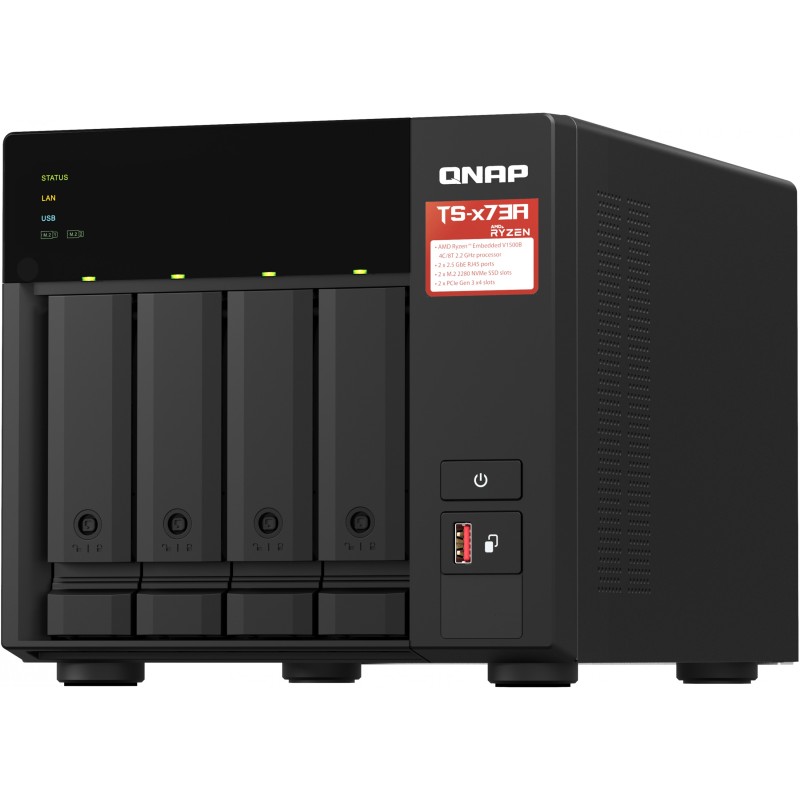

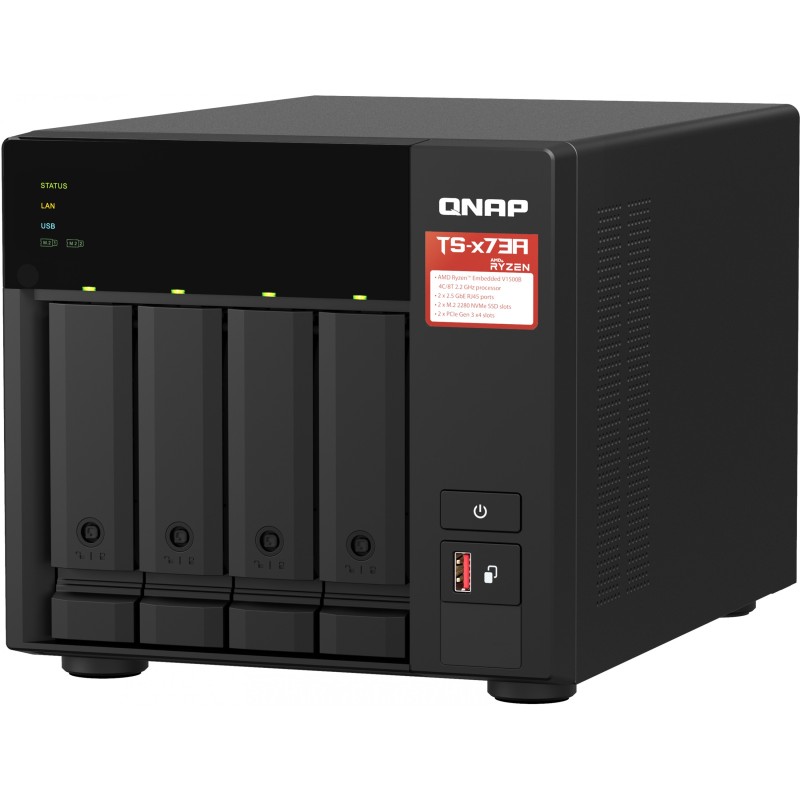

QNAP TS-473A NAS + QSW-1105-ST Switch - 4-bay Black, 8GB DDR4, AMD Ryzen V1500B 2.2GHz, Dual 2.5GbE, 5-port 2.5GbE
Bundle: QNAP TS-473A 4-bay NAS (AMD Ryzen V1500B 2.2GHz, 8GB DDR4, dual 2.5GbE, 2x M.2 NVMe, RAID support) + QSW-1105-ST 5-port 2.5GbE switch.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - Bays | 4 |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - Memory (Installed) | 8 GB |
| NAS (Network Attached Storage) - RAID Levels | RAID 5 |
| NAS (Network Attached Storage) - LAN | 2x2.5GbE |
| NAS (Network Attached Storage) - M.2 Slots | 2 |
| NAS (Network Attached Storage) - USB | USB 3.0 + USB-C |
QNAP TS-473A + QSW-1105-5T Bundle Pack. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded. Processor model: V1500B. Processor frequency: 2.2 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | M.2. Serial ATA. Serial ATA II. Serial ATA III |
| Storage drive sizes supported | 2.5.3.5.M.2 |
| Number of system drives installed | 1 |
| System drive capacity | 5 GB |
| Number of M.2 (M & B) slots | 2 |
| Feature | Linux operating systems supported |
| RAID levels | 0. 1. 5. 6. 10. JBOD |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 4 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| On-board graphics card model | Not available |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Concurrent connections | 2000 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| Fan diameter 2 | 6 cm |
| LED indicators | LAN. Power. SSD. Status. USB |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. USB drive. iSCSI LUN |
| Noise level | 21.4 dB |
| Security algorithms | 256-bit AES. FIPS 140-2. SSH. SSL/TLS |
| Browser supported | Mozilla Firefox. Microsoft Edge. Google Chrome. Apple Safari |
| Operating system installed | QNAP Turbo System |
| Windows operating systems supported | Windows 10. Windows 7. Windows 8 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Server operating systems supported | Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 29.792 W |
| Power consumption (HDD standby) | 19.576 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Output current | 3.5 A |
| Width | 199.3 mm |
| Depth | 280.8 mm |
| Height | 188.2 mm |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 1 |
| Number of screws | 24 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
