Chieftec Vita AZ-01B-OP PRO Mini mATX Tower Case Black USB-C 330mm GPU (Boxed)
Chieftec PRO Mini AZ-01B-OP compact mATX/ITX tower (black). Supports 330mm GPU, 165mm CPU cooler, USB-C/A front I/O, 1x120mm rear fan. Noise-insulated panels, 3x2.5/3.5" bays, radiators up to 360mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 1 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 301–330 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |

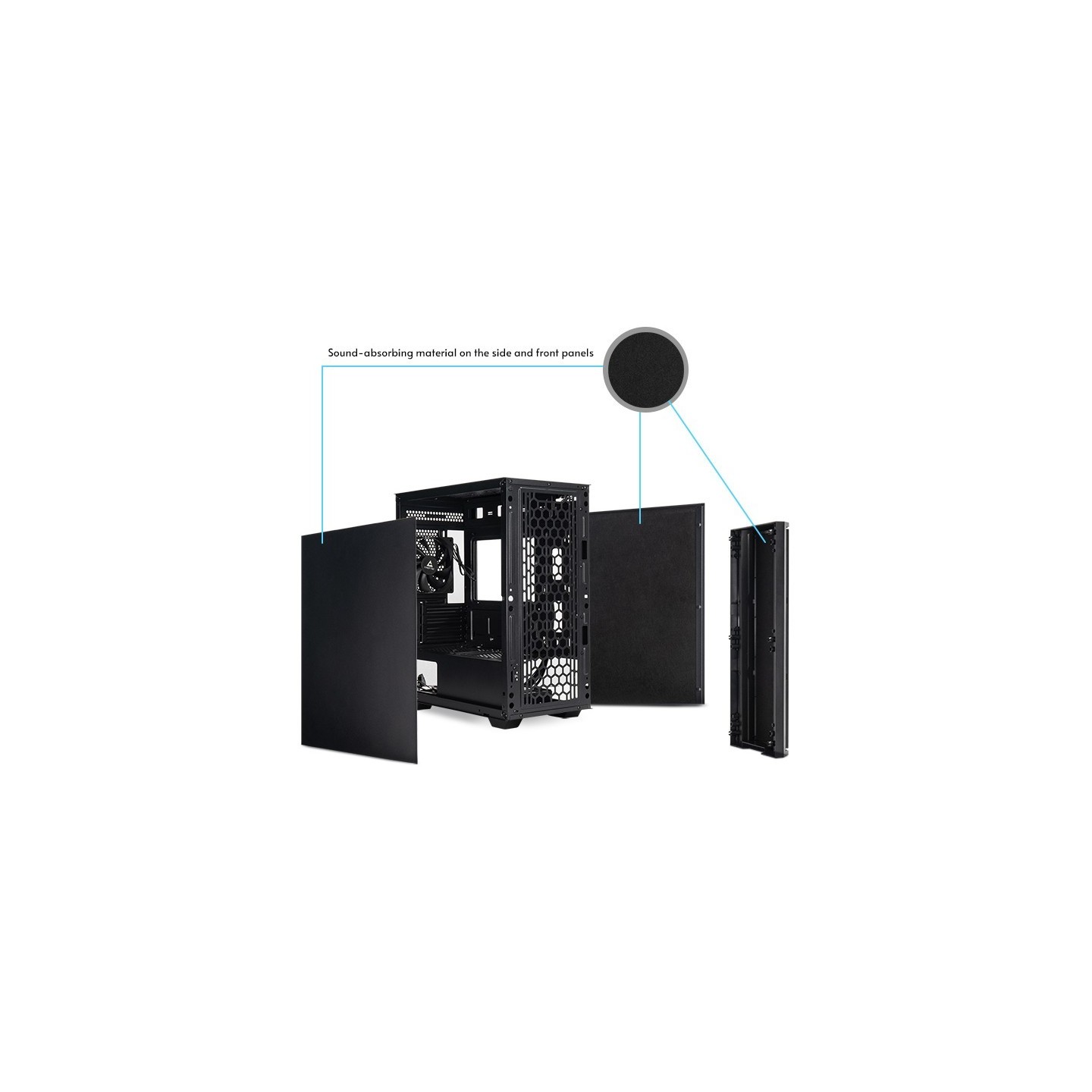

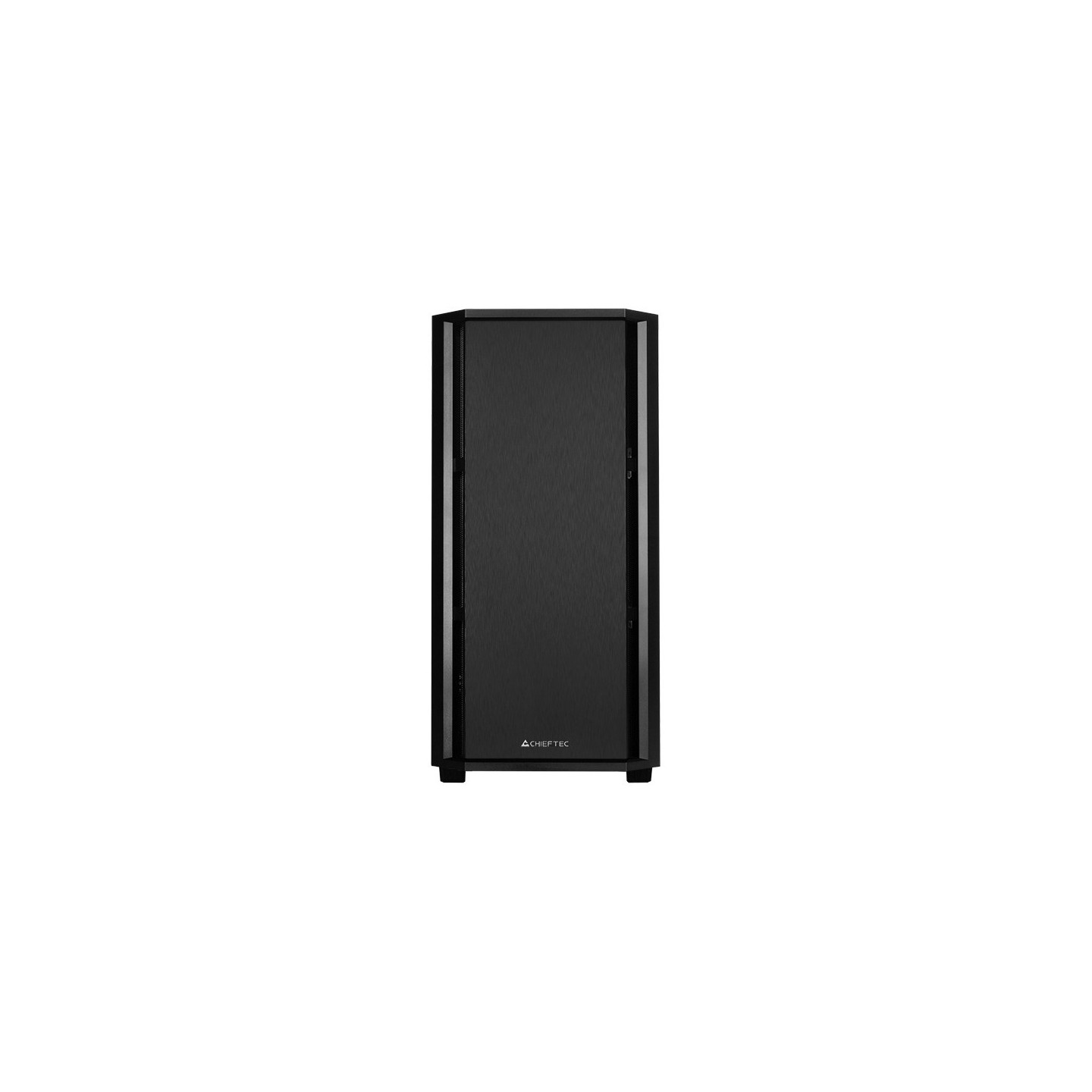

The Chieftec Vita AZ-01B-OP, also known as PRO Mini, is a compact mini-tower PC case designed for Micro-ATX and Mini-ITX motherboards. It features a modern brushed front panel and full noise-insulating material on side and front panels for quiet operation, ideal for performance builds seeking low noise levels.

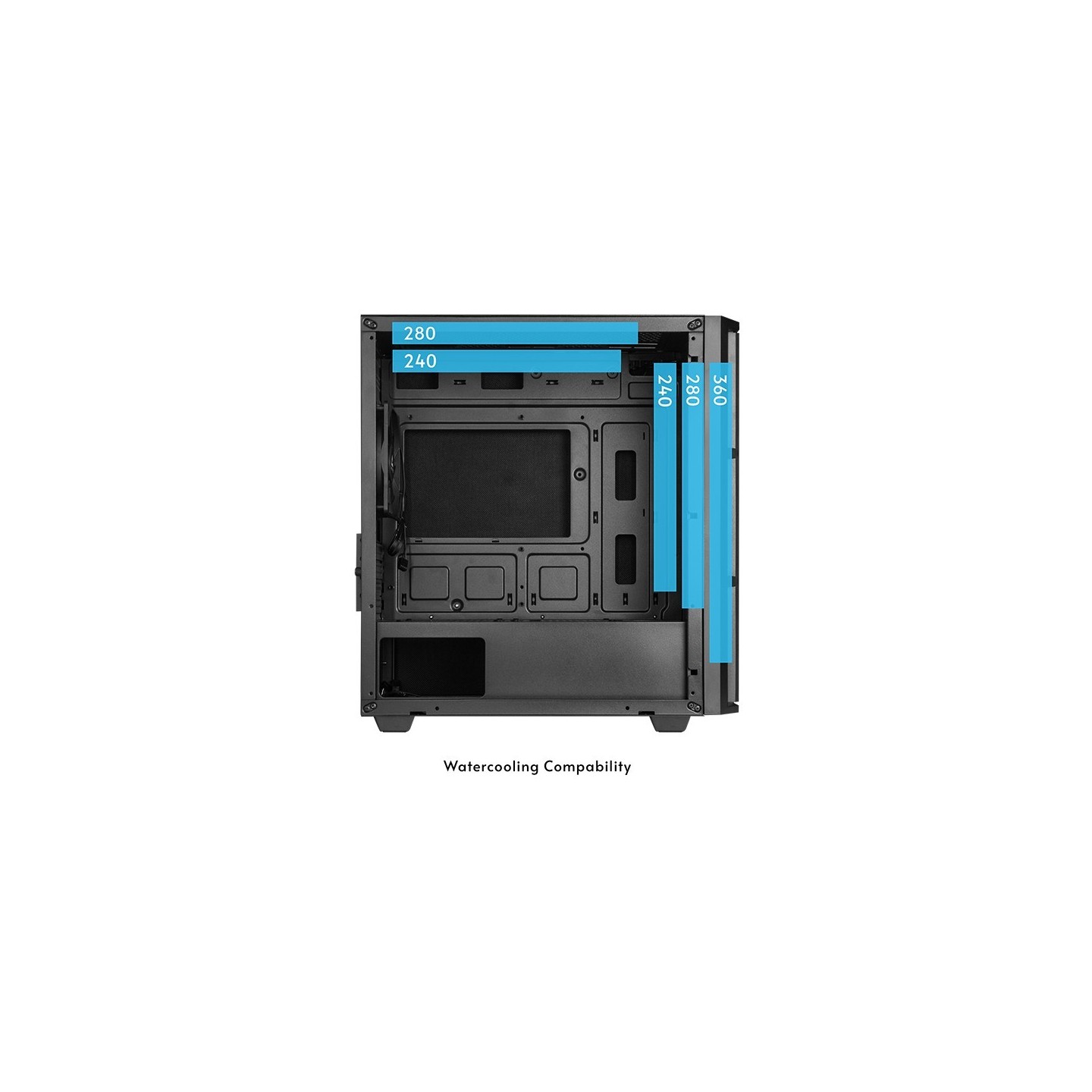

With support for graphics cards up to 330mm long and CPU coolers up to 165mm high, it accommodates high-end components. The case includes one pre-installed 120mm rear fan and supports extensive cooling options: up to 3 front fans (120/140mm), 2 top fans, and radiators up to 360mm front or 280mm top. Front I/O includes USB-C, USB 3.2 Gen1 Type-A, USB 2.0, and audio jacks.
- Motherboard: Micro-ATX, Mini-ITX
- Drives: 1x 3.5", 2x 2.5"
- Expansion: 4 slots
- Dimensions (case): 212x420x360mm
- Weight (net): 5.15kg
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | Micro ATX, Mini-ITX |
| Number of 3.5 | 1 |
| Number of 2.5 | 2 |
| Number of storage drives supported | 3 |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 165 mm |
| Maximum graphics card length | 330 mm |
| Maximum PSU length | 180 mm |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120, 140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120, 140 mm |
| Front radiator sizes supported | 240, 280, 360 mm |
| Top radiator sizes supported | 240, 280 mm |
| Supported HDD sizes | 2.5 |
| Width | 212 mm |
| Depth | 360 mm |
| Height | 420 mm |
| Weight | 5.15 kg |
| Package weight | 6 kg |
| Noise insulation | Side and front panels |
| Material thickness | 0.6 mm |
