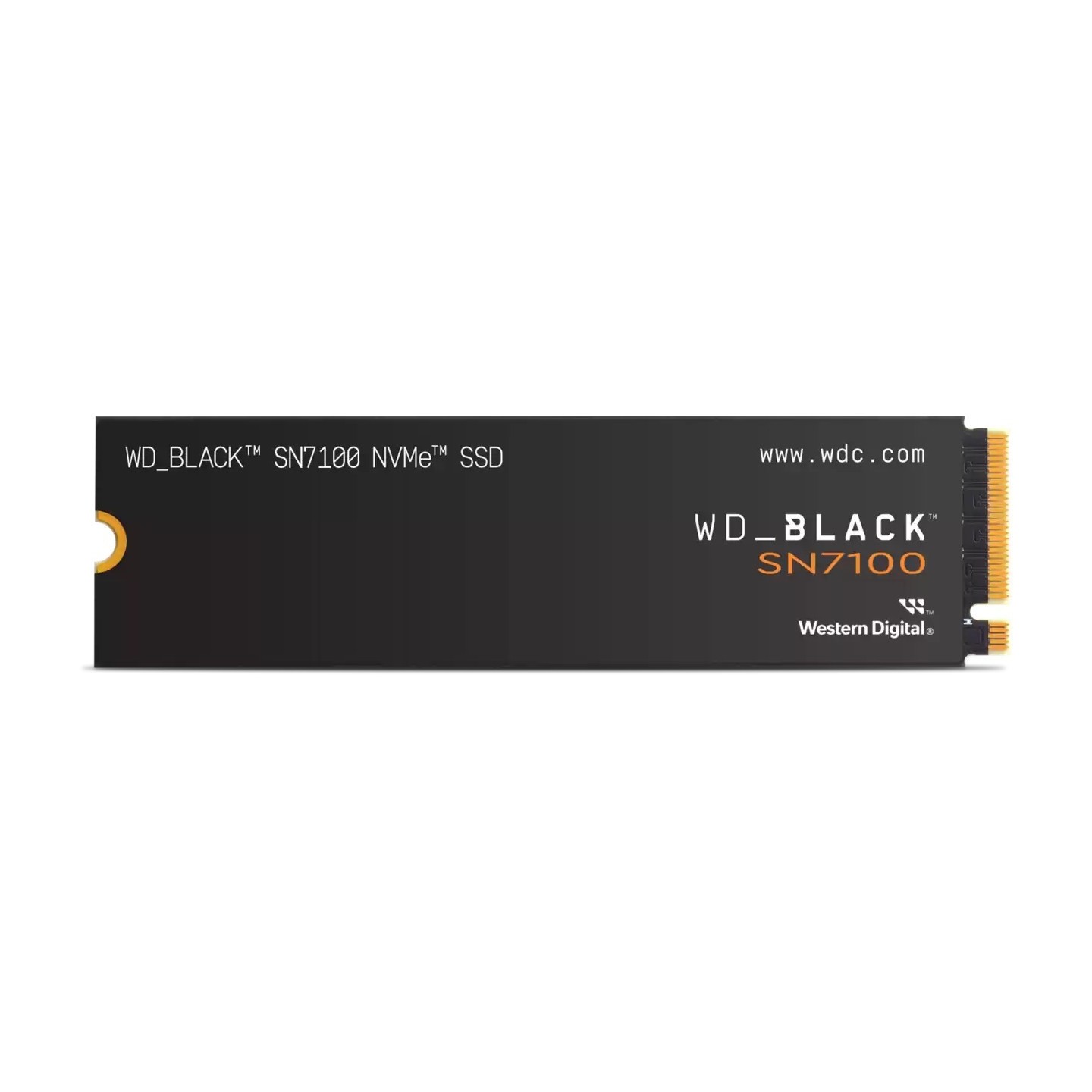

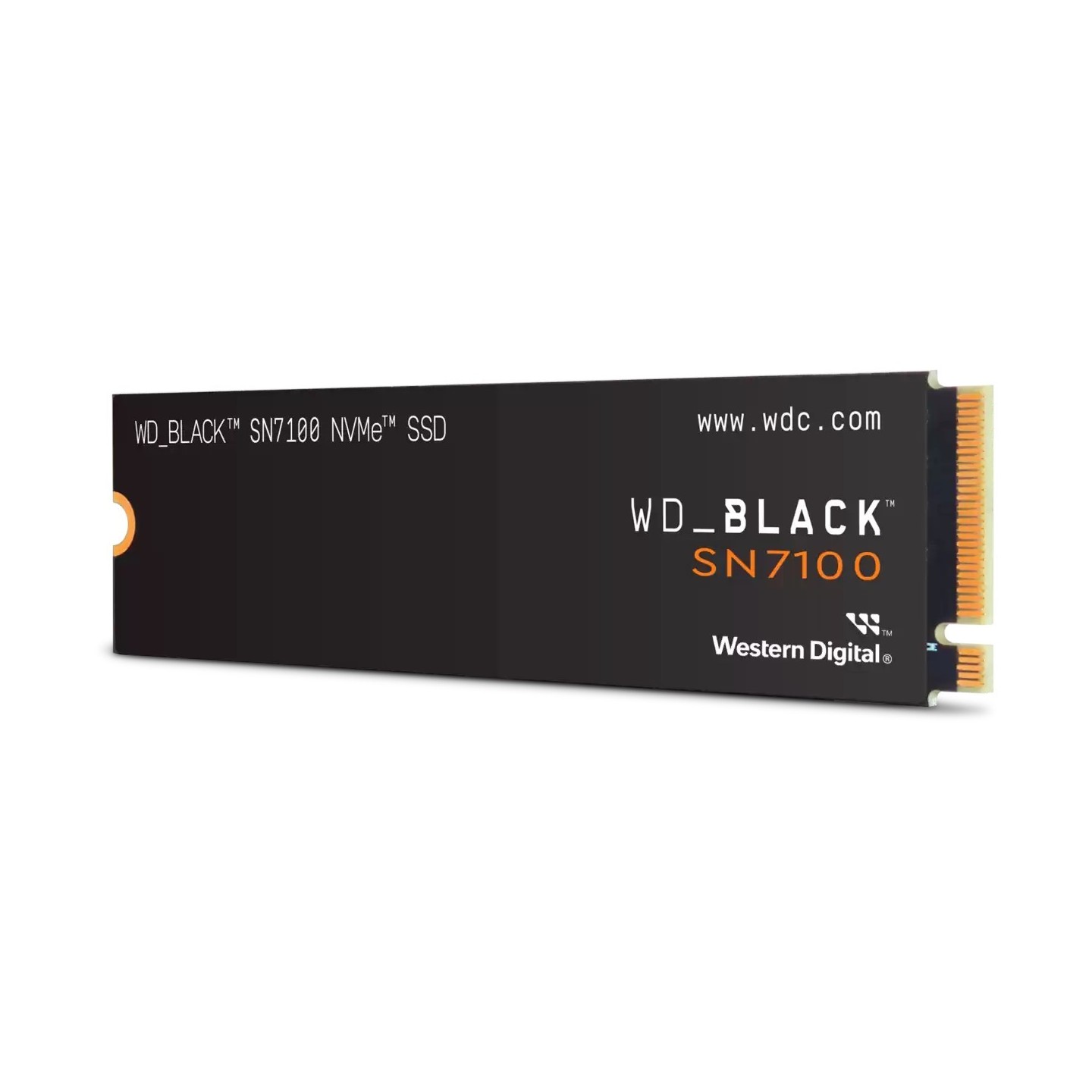

WD Black SN7100 500GB M.2 2280 NVMe PCIe Gen4 x4 6800/5800 MB/s - WDS500G4X0E (Boxed)
WD Black SN7100 500GB M.2 2280 NVMe PCIe 4.0 x4 SSD. Up to 6800 MB/s read, 5800 MB/s write. DRAM-less gaming SSD for laptops/handhelds with 760K/1.2M IOPS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 256GB - 512GB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 5001 to 7000 MB s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - Interface | PCIe 4.0 (Gen4) |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
The WD Black SN7100 (WDS500G4X0E-00CJA0) is a high-performance M.2 2280 NVMe SSD designed for gaming laptops, handhelds, and PCs. Featuring PCIe Gen4 x4 interface and SanDisk's next-gen TLC 3D NAND, it delivers sequential speeds up to 6800 MB/s read and 5800 MB/s write for the 500GB model, with random performance of 760,000 IOPS read and 1,200,000 IOPS write.
This DRAM-less SSD punches above its weight, competing with DRAM-equipped rivals thanks to optimized firmware and HMB technology. Ideal for fast game loading, content creation, and on-the-go gaming. Backwards compatible with older PCIe generations and Windows 10+. 5-year warranty.
- Capacity: 500 GB
- Endurance: ~300 TBW (estimated)
- Power: ~3.9W max
- Dimensions: 22 x 80 x 2.38 mm, 5.8 g
- No heatsink included
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| Feature | NVMe |
| Component for | PC/Game console |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 6800 MB/s |
| Write speed | 5800 MB/s |
| Random read (4KB) | 760000 IOPS |
| Random write (4KB) | 1200000 IOPS |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 5.8 g |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| NVMe Version | 2.0 |
| DRAM Cache | None (DRAM-less) |
| Max Power Consumption | 3.9 W |
| Endurance (TBW) | ~300 TBW |
| Warranty | 5 years |
