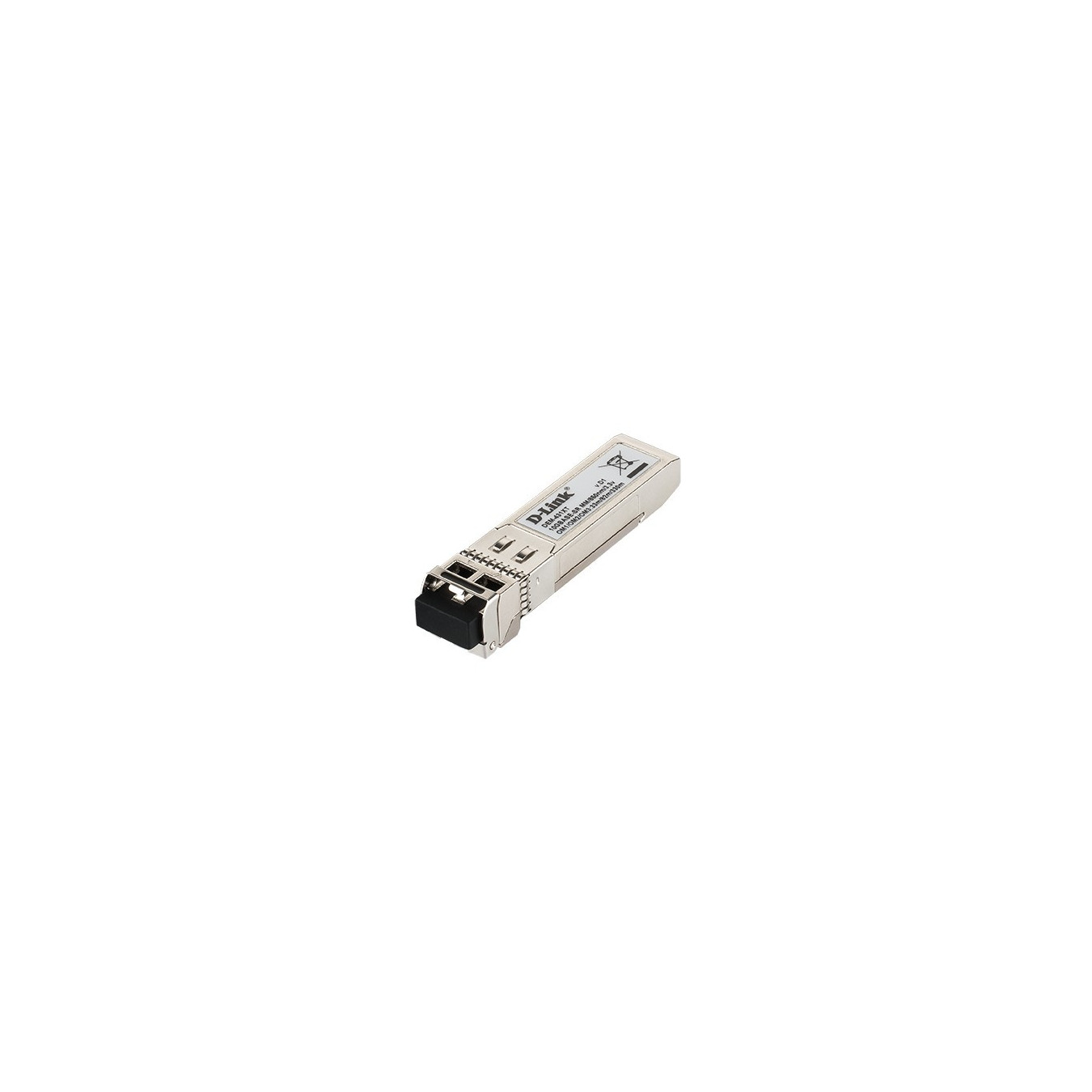

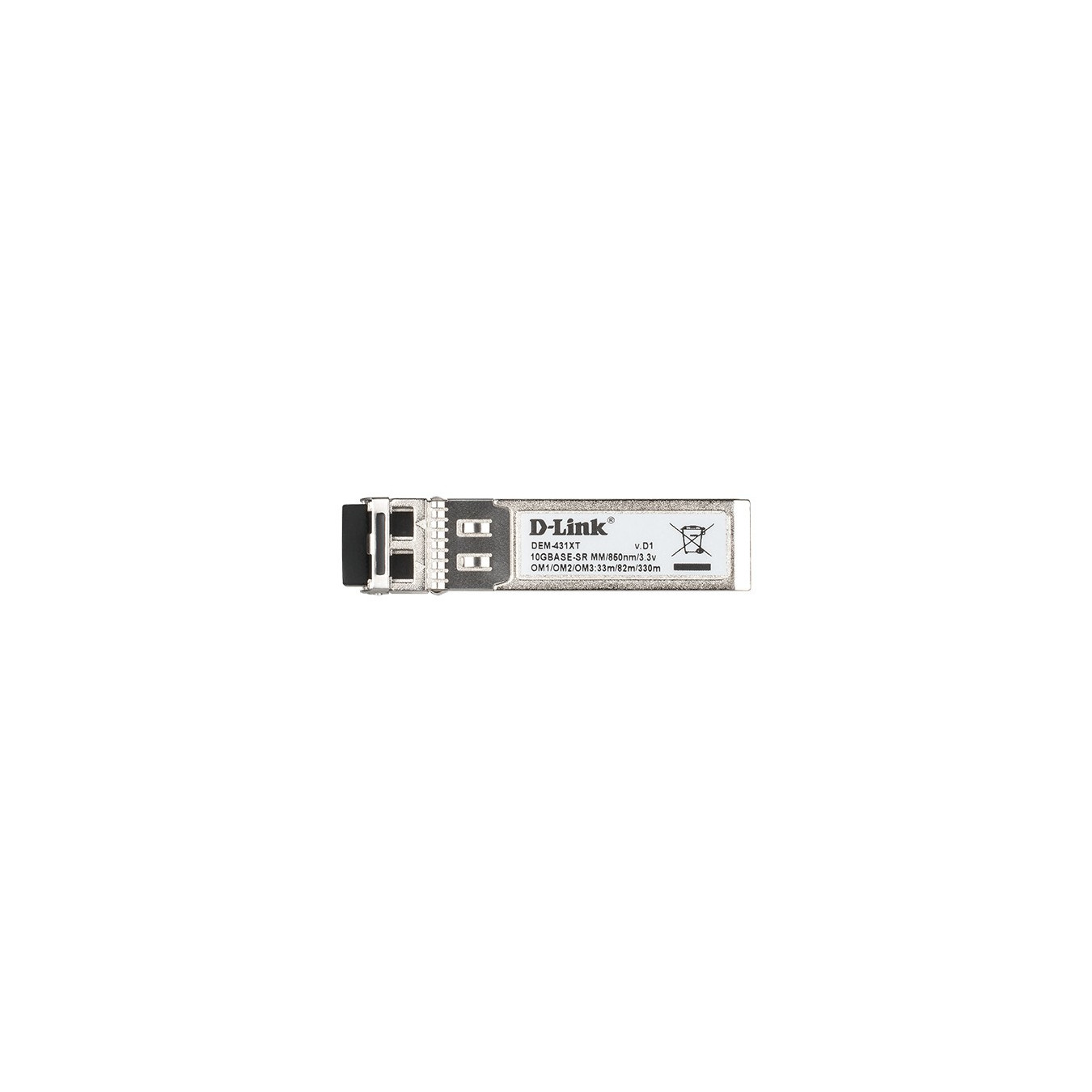

D-Link DEM-431XT - 10G SFP+ SR Transceiver (LC Duplex, Multimode, 850nm, 550m, Gold)
D-Link DEM-431XT 10GBase-SR SFP+ transceiver; LC duplex, multimode (50/125 & 62.5/125µm), 850nm, up to 550m, hot-pluggable, RoHS compliant.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - Interface | SFP+ |
|---|---|
| SFP/SFP+ Modules - Fiber Type | Multimode (MMF) |
| SFP/SFP+ Modules - Coding/Brand | Generic |
D-Link 10GBase-SR SFP+ Transceiver. 80/300m. SFP transceiver type: Fiber optic. Maximum data transfer rate: 10000 Mbit/s. Interface type: SFP+. Product colour: Gold. Metallic. Mean time between failures (MTBF): 3960000 h. Maximum voltage: 3.3 V. Maximum current: 300 A. Compliance certificates: RoHS. Safety: UL. TUV. CDRH. Certification: CE. FCC. VCCI. C-Tick. MSA. Width: 14.8 mm. Depth: 11.8 mm. Height: 56.5 mm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Feature | Hot-Plug support |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125.62.5/125 µm |
| SFP transceiver standard | SR |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -6.5 dBmW |
| Tx power (max) | -1 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | -1 dBmW |
| Link budget | 10.1 dB |
| Networking standards | IEEE 802.3ae |
| Fiber ethernet cabling technology | 10GBASE |
| Duplex system | Full |
| Product colour | Gold. Metallic |
| Mean time between failures (MTBF) | 3960000 h |
| Maximum voltage | 3.3 V |
| Maximum current | 300 A |
| Compliance certificates | RoHS |
| Safety | UL. TUV. CDRH |
| Certification | CE. FCC. VCCI. C-Tick. MSA |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 14.8 mm |
| Depth | 11.8 mm |
| Height | 56.5 mm |
| Weight | 18 g |
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 272 kg |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Products per pallet (air) | 3000 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 272 kg |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85369010 |
