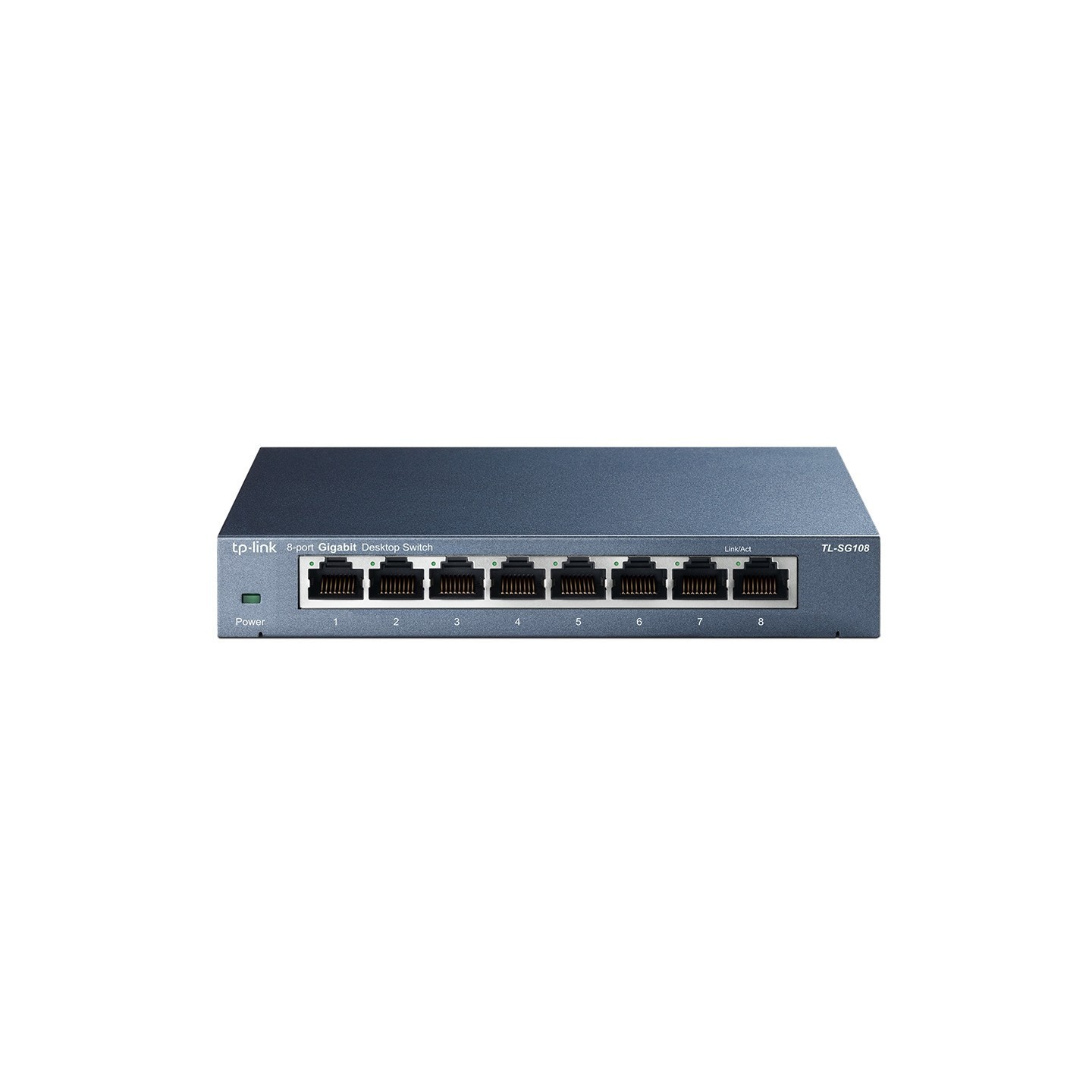

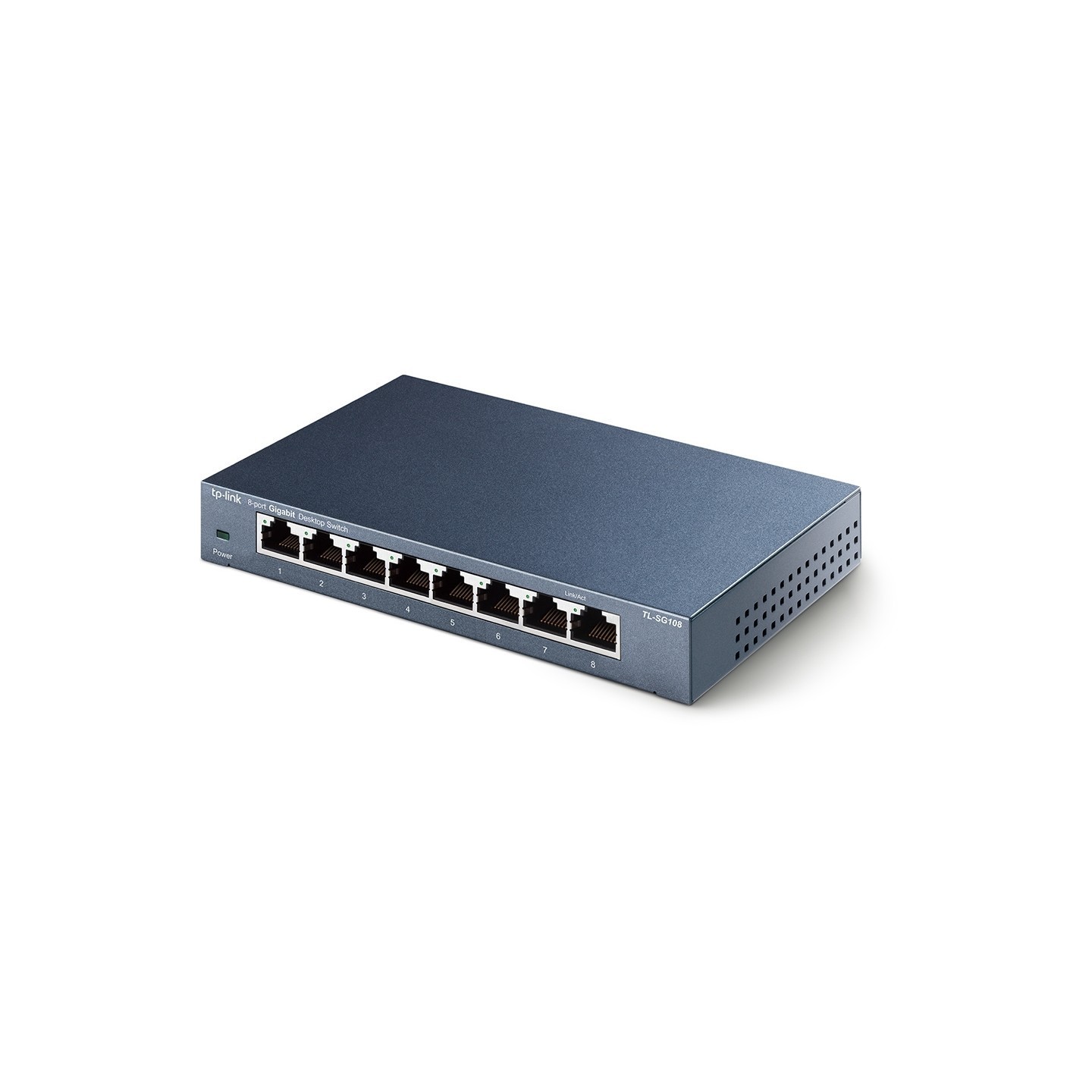

TP-Link TL-SG108 - 8-Port Gigabit Unmanaged Desktop Switch (Metal, Black)
Unmanaged 8-port Gigabit desktop switch (10/100/1000 Mbps) with metal housing and DC-in power; plug-and-play, 16 Gbit/s switching capacity for home & small office.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | No |
TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x. Power connector: DC-in jack
| Switch type | Unmanaged |
| Feature | User guide |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p. IEEE 802.3ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Supported data transfer rates | 10/100/1000Mbps |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4000 entries |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Switching protocols | CSMA/CD |
| Product colour | Black |
| Power source | DC |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 3.31 W |
| Connectivity technology | Wired |
| Bandwidth | 16 Gbit/s |
| Packet transfer speed | 14880pps/148800pps/1488000pps |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Package width | 130 mm |
| Package depth | 191 mm |
| Package height | 92 mm |
| Package weight | 510 g |
| Certification | CE. FCC. RoHS |
| Harmonized System (HS) code | 85176990 |
