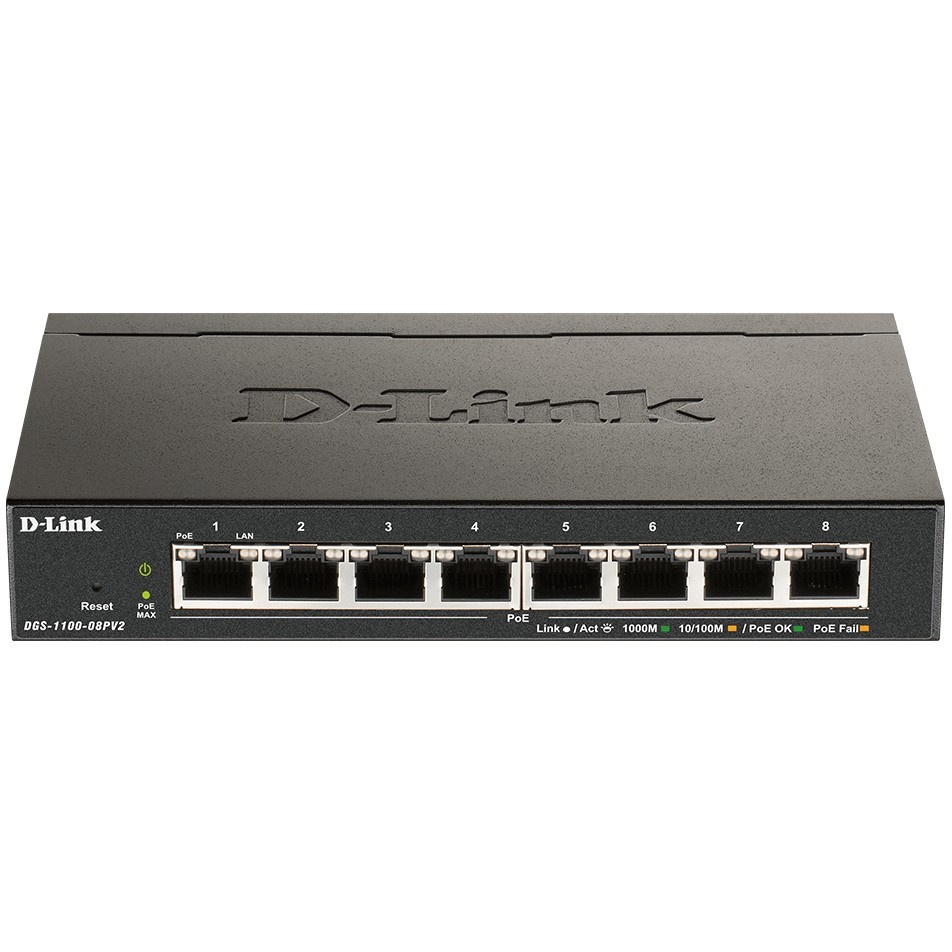

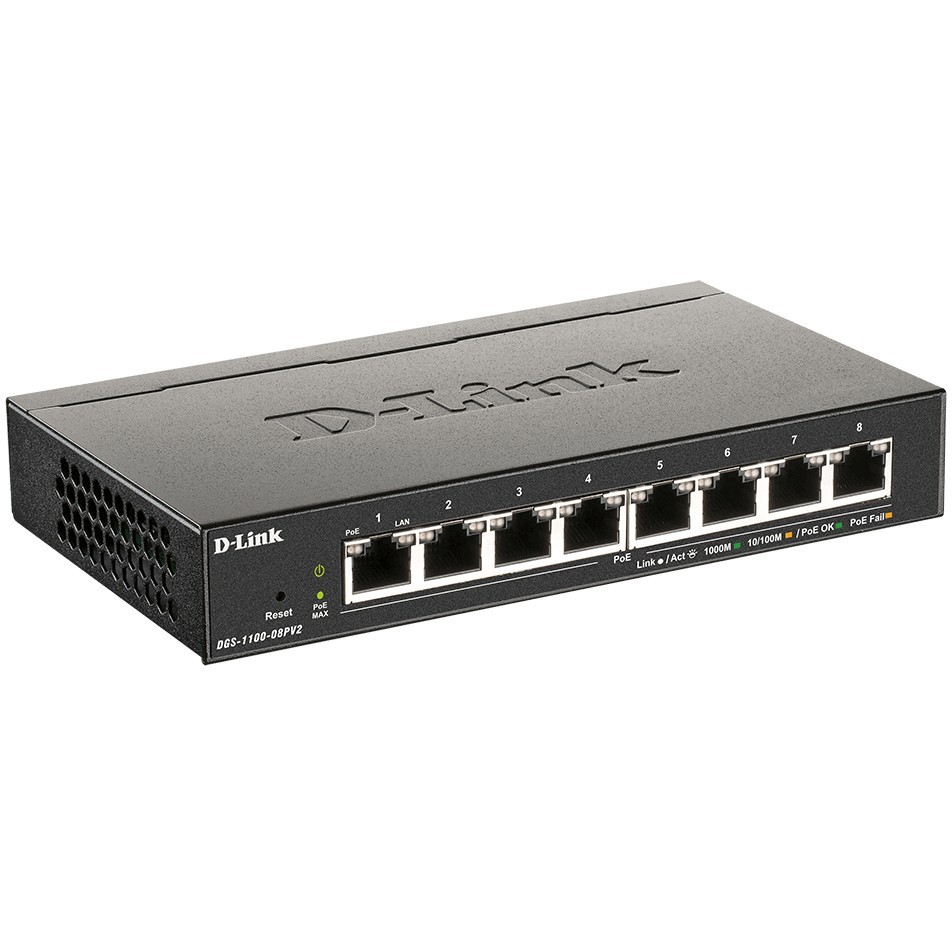

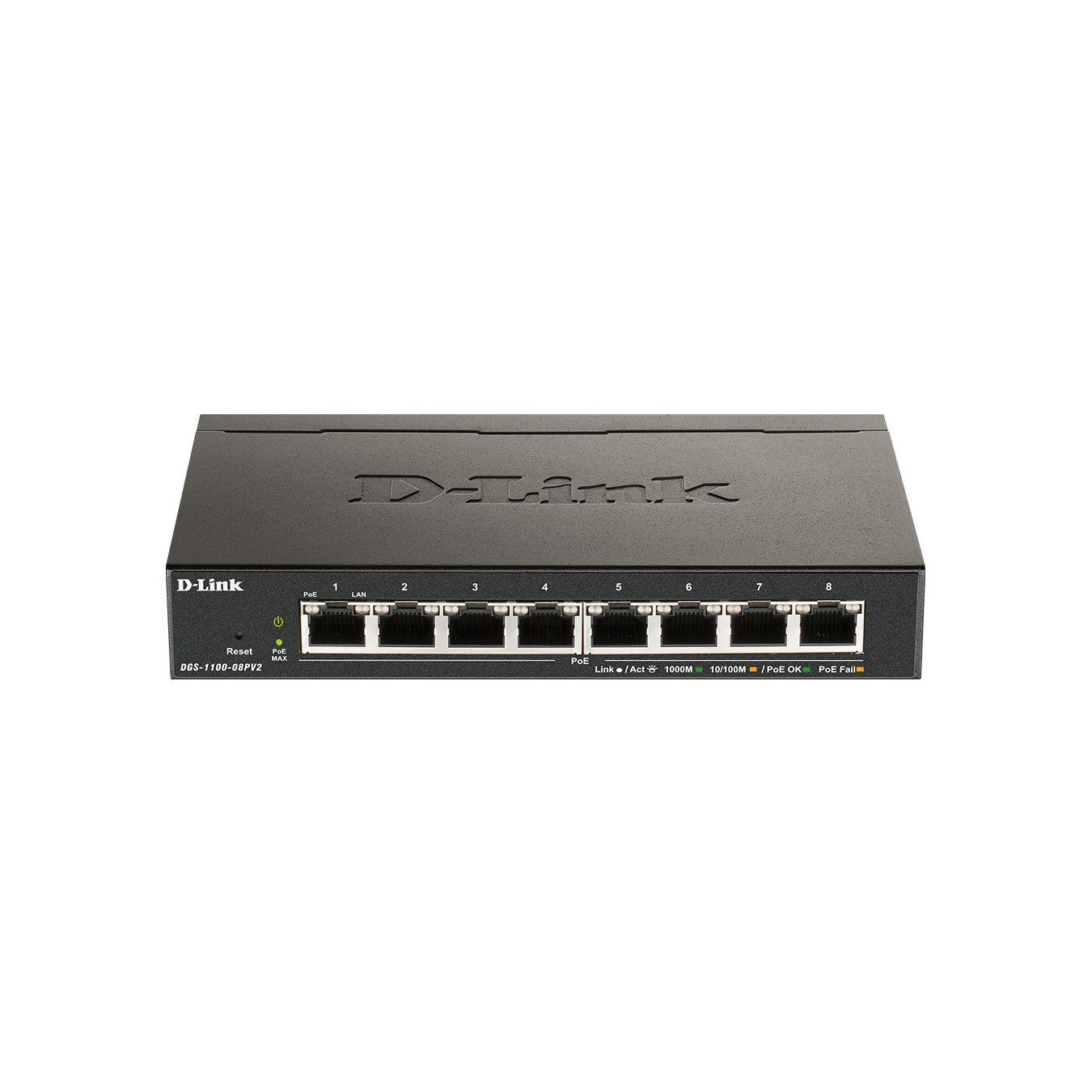

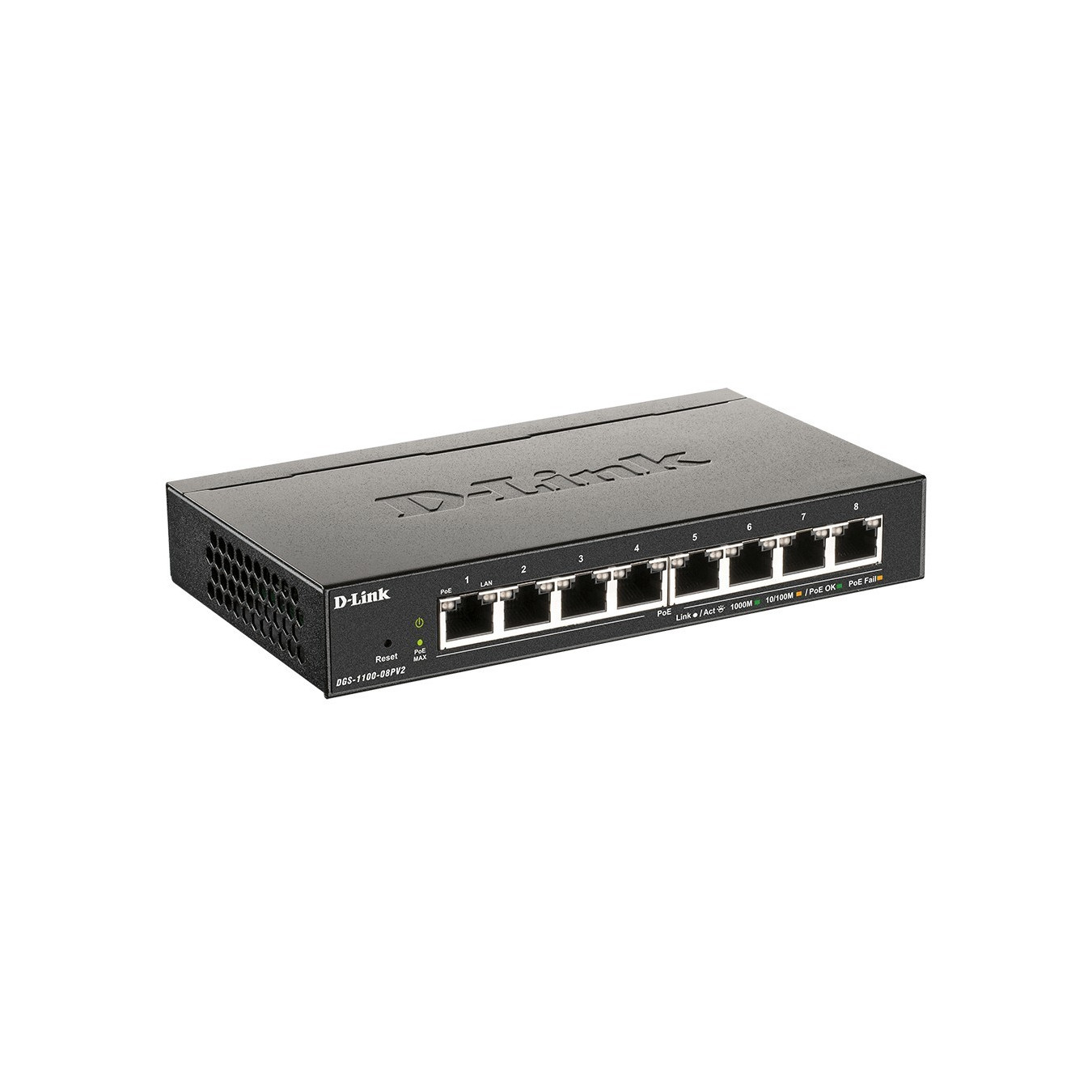

D-Link DGS-1100-08PV2 - 8-Port Gigabit Managed L2/L3 PoE+ Switch (Black, 64W PoE Budget)
D-Link DGS-1100-08PV2 — 8× Gigabit RJ45 managed L2/L3 PoE+ switch. 30W per port, 64W total PoE budget, 16 Gbps switching, VLAN/QoS, compact black design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | No |
D-Link DGS-1100-08PV2. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE.... Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | Port-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4096 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Queue scheduling algorithms | SP. Weighted Round Robin (WRR) |
| Product colour | Black |
| Flash memory | 2 MB |
| Mean time between failures (MTBF) | 786841 h |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 77.9 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 64 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 265.85 BTU/h |
| Width | 171 mm |
| Depth | 97.8 mm |
| Height | 28.6 mm |
| Weight | 430 g |
| Compliance certificates | CE. RoHS |
| Certification | FCC Class B. CE Class B. VCCI Class B. BSMIcUL. CE LVD. CB. BSMI |
