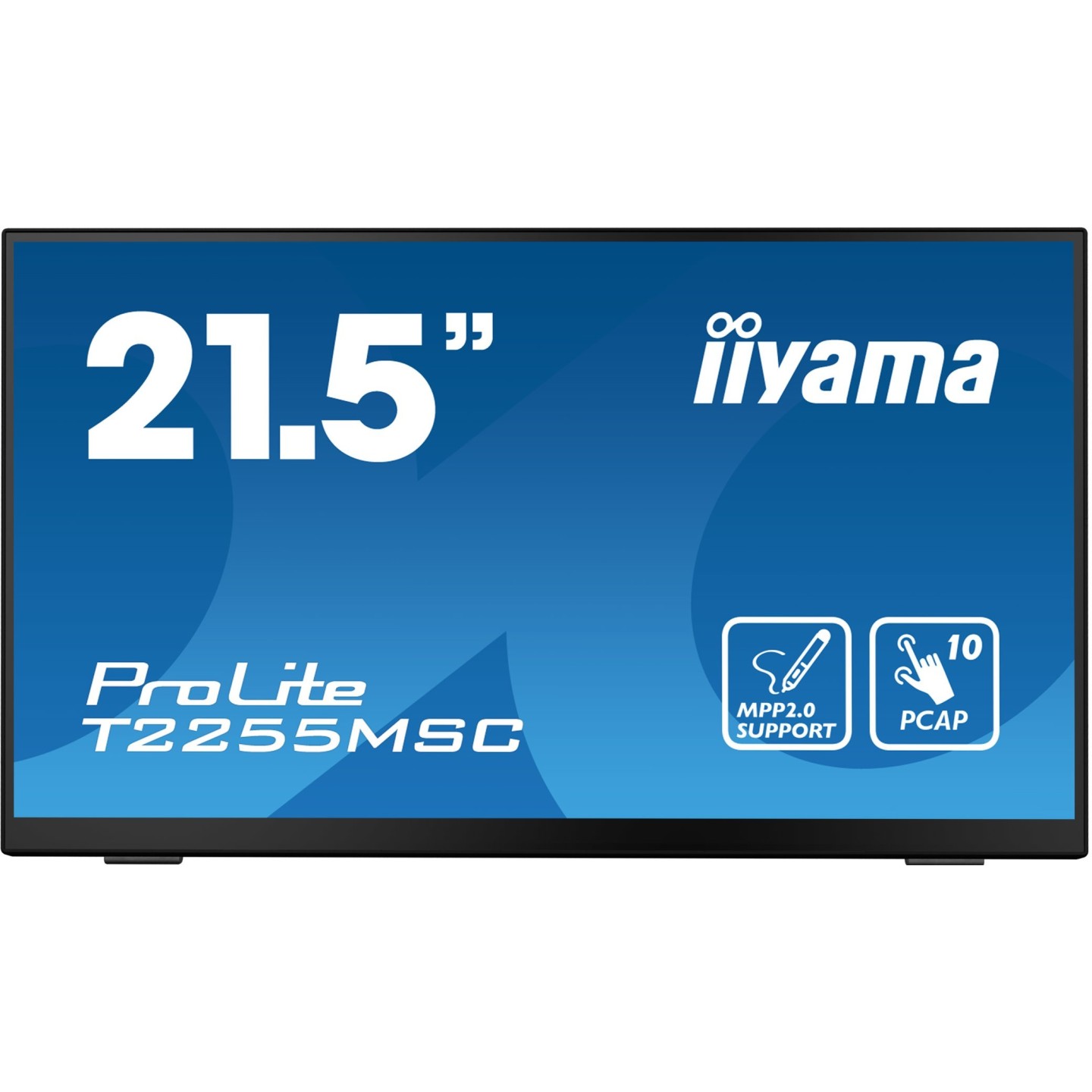

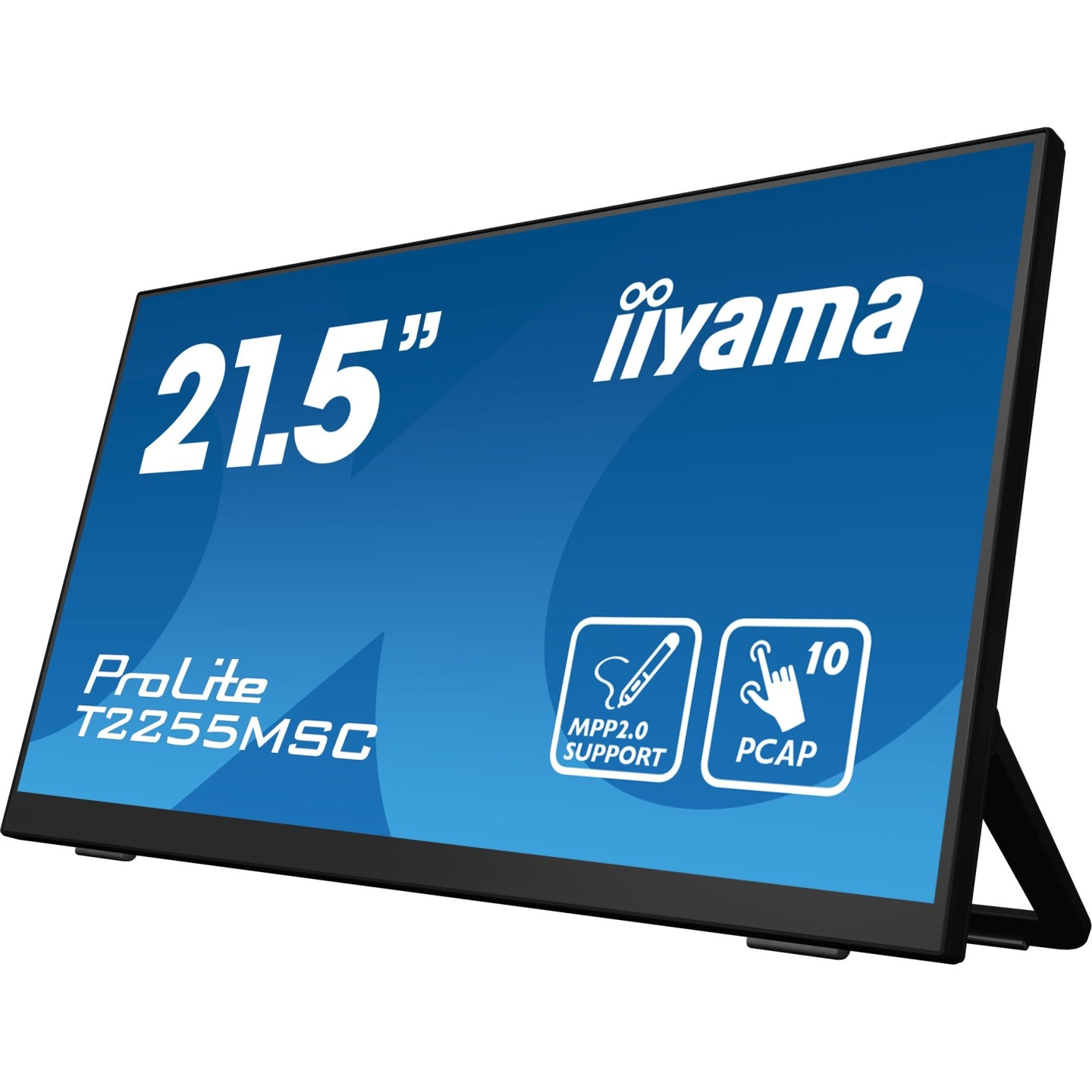

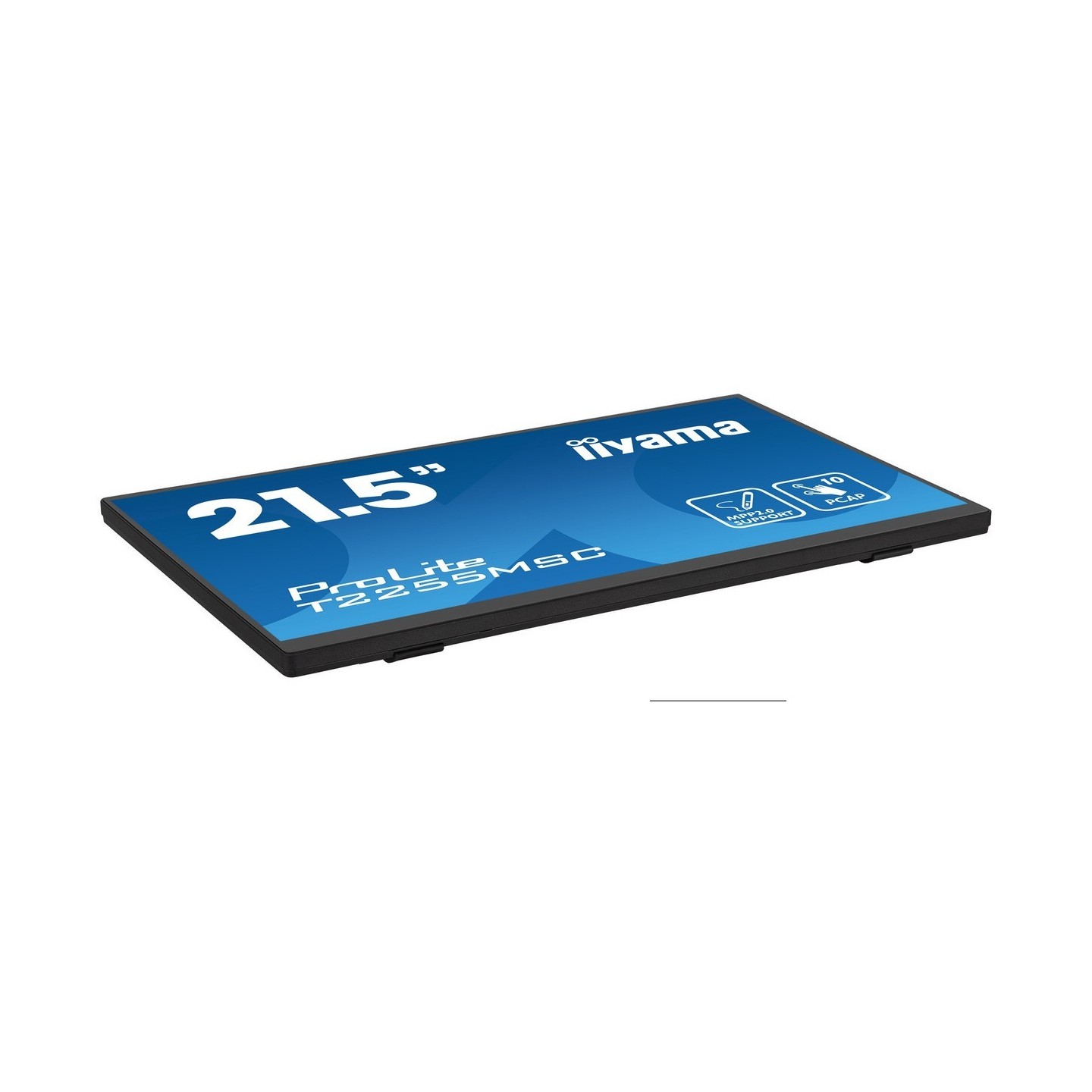

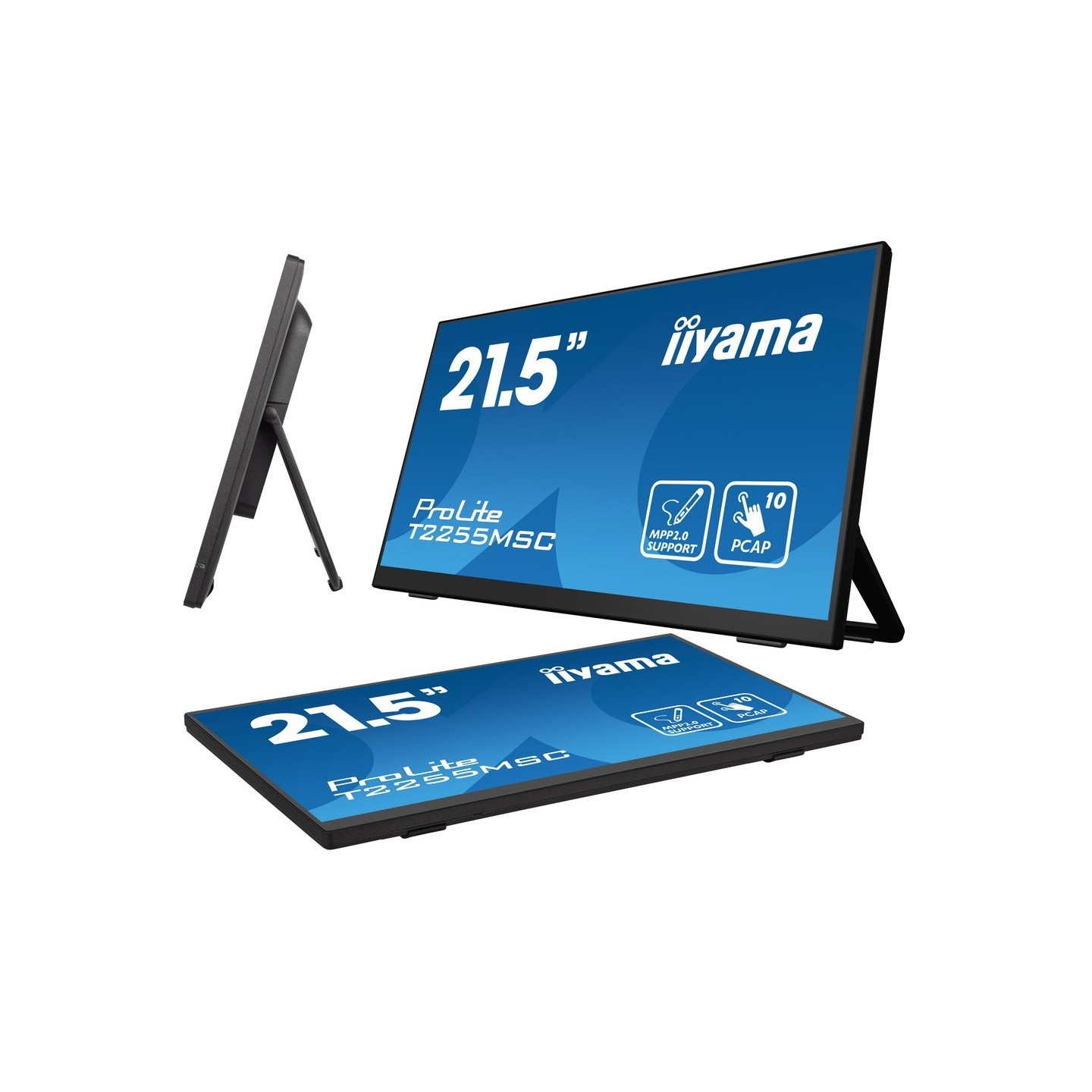

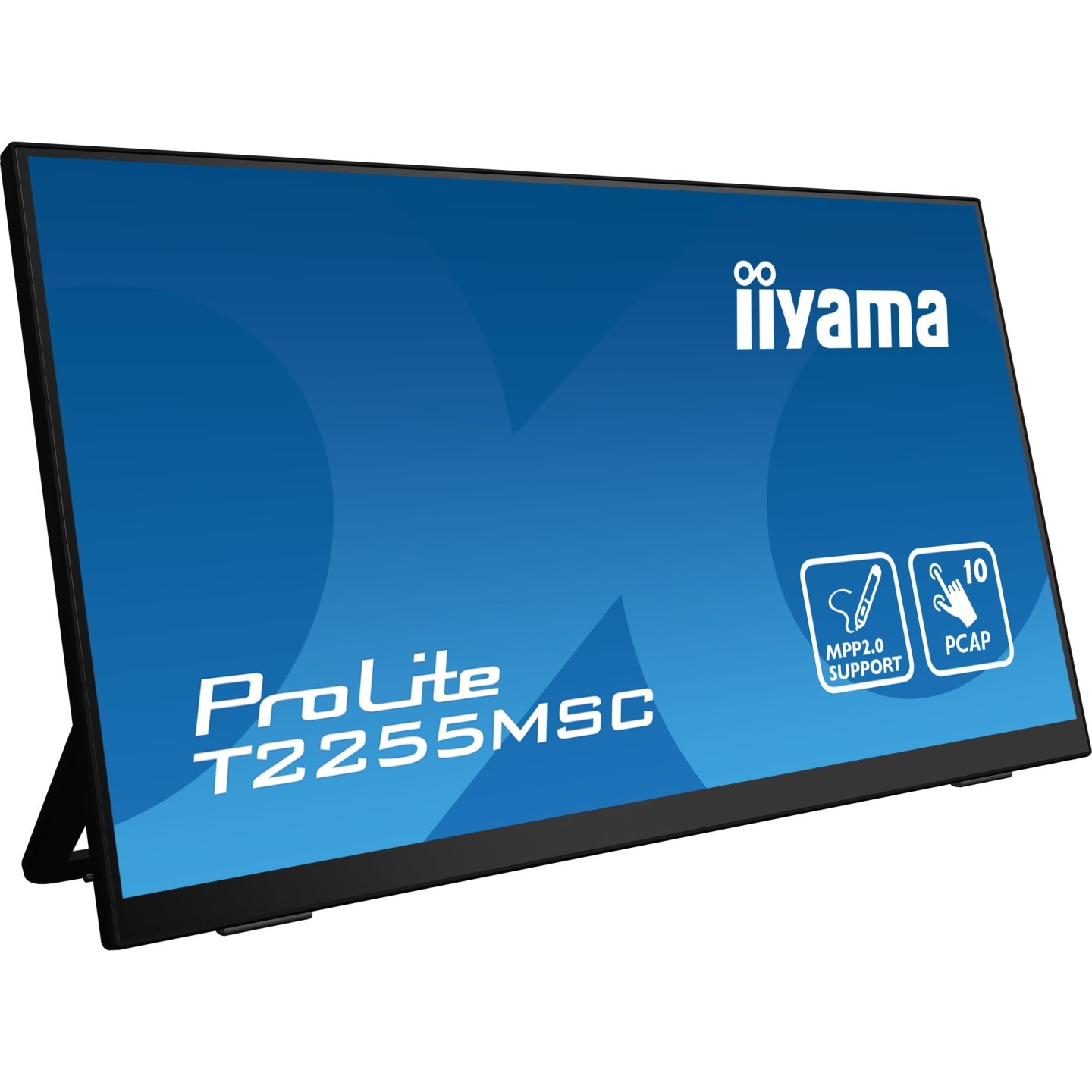

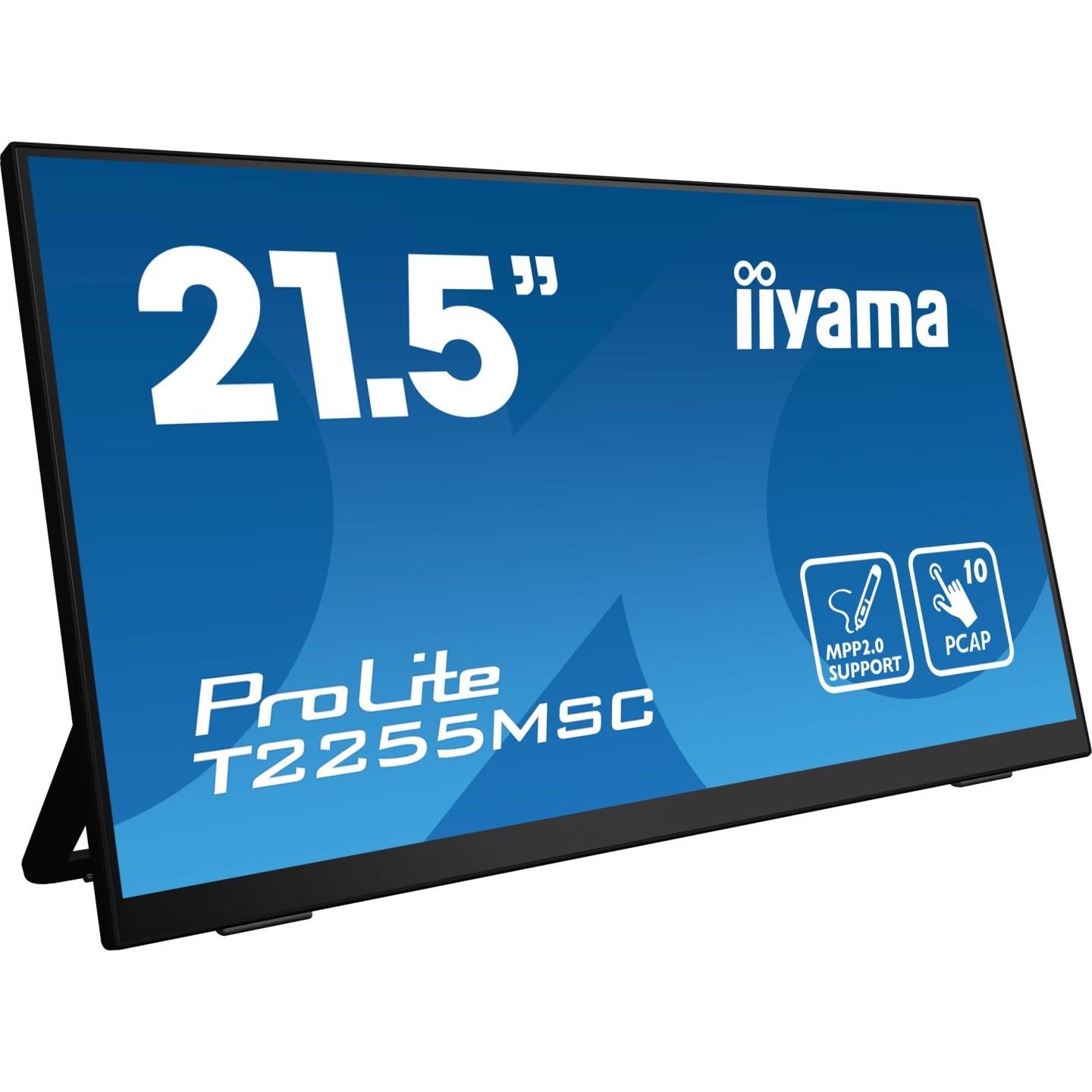

iiyama ProLite T2255MSC-B1 21.5" FHD PCAP 10pt Touch IPS Monitor (Boxed)
21.5" IPS touchscreen monitor with 1920x1080 FHD resolution, 10-point PCAP multi-touch, 400 cd/m² brightness, 5ms response time, anti-fingerprint glass, MPP 2.0 stylus support, HDMI/DisplayPort connectivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Screen Size | Under 23 inches |
|---|---|
| Monitors - Resolution | Full HD (1080p) |
| Monitors - Panel Type | IPS |
| Monitors - Response Time (GtG) | 5 ms |
| Monitors - Form Factor | Flat |
| Monitors - Refresh Rate | 60Hz |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | DisplayPort 1.2 HDMI 1.4 |
| Monitors - Sync Technology | None |
| Monitors - Special Features | Speakers USB Hub VESA Mount |
The iiyama ProLite T2255MSC-B1 is a professional-grade 21.5" touchscreen monitor designed for interactive applications, creative work, and collaborative environments. Featuring an IPS LCD panel with Full HD (1920x1080) resolution and optical-bonded edge-to-edge glass, this monitor delivers exceptional color accuracy and wide 178° viewing angles. The 10-point projective capacitive (PCAP) touch technology enables precise, responsive multi-touch interaction with support for up to 10 simultaneous touch points.
With a brightness of 400 cd/m² and 1000:1 contrast ratio, the T2255MSC-B1 ensures excellent visibility even in brightly lit environments. The display features a 5ms response time and includes anti-fingerprint coating for a smoother touch experience and easier maintenance. Active stylus support via Microsoft Pen Protocol (MPP) 2.0 allows for precise drawing and writing with tilt functionality. The flexible stand offers adjustable tilt angles from -15° to 70°, and the monitor includes VESA mounting compatibility for alternative installation options.
Connectivity options include 1x HDMI and 1x DisplayPort for video input, plus a USB 3.2 Gen 1 hub with 2 downstream Type-A ports for peripheral connectivity. The monitor features built-in stereo speakers (2x 3W RMS) and supports multiple OSD languages. Power consumption is efficient at 16W typical operation, with standby at 1.5W.
- 10-point PCAP multi-touch with 2mm positional accuracy

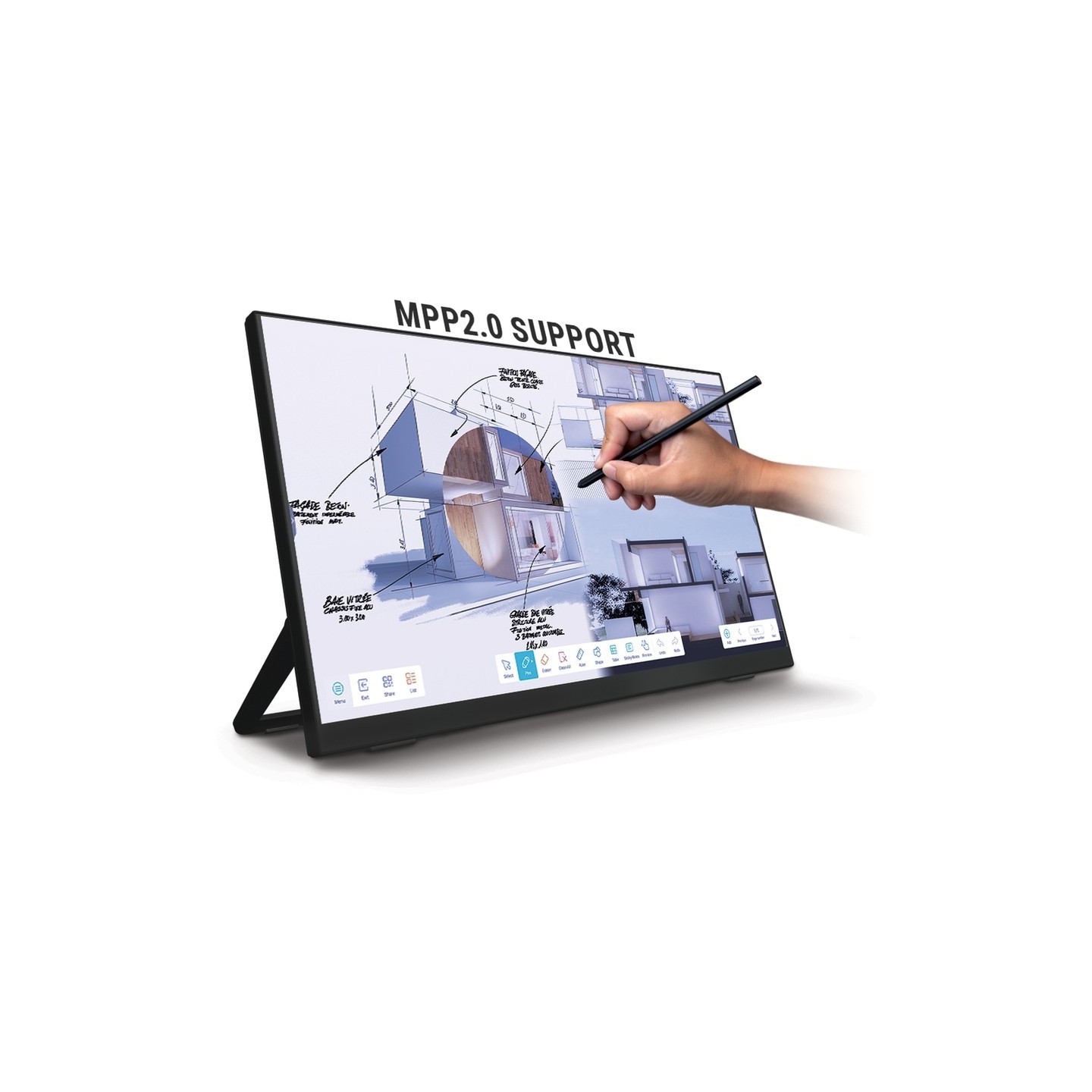

- MPP 2.0 active stylus support with tilt functionality
- Anti-fingerprint optical-bonded glass surface
- IPS panel with 178° horizontal and vertical viewing angles
- USB 3.2 Gen 1 hub with 2 Type-A ports
- Built-in stereo speakers (3W RMS total)
- VESA 100x100mm mounting compatible
- Energy efficiency class D (SDR)
| Display Diagonal | 21.5 |
| Display Resolution | 1920 x 1080 pixels (Full HD) |
| Panel Type | IPS LCD |
| Aspect Ratio | 16:9 |
| Brightness (Typical) | 400 cd/m² |
| Brightness (With Touch) | 360 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time (GtG) | 5 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle (Horizontal) | 178° |
| Viewing Angle (Vertical) | 178° |
| Pixel Pitch | 0.249 x 0.249 mm |
| Touch Technology | Projective Capacitive (PCAP) - Optical Bonded |
| Touch Points | 10 (HID, with supported OS) |
| Positional Accuracy | 2 mm |
| Active Stylus Support | Microsoft Pen Protocol (MPP) 2.0 |
| Surface Hardness | 7H |
| Anti-Fingerprint Coating | Yes |
| Bezel Design | Edge-to-edge glass, thin bezel |
| Light Transmittance | 90% |
| Horizontal Sync Range | 30 - 83 kHz |
| Viewable Area | 478.7 x 260 mm (18.8 x 10.2 inches) |
| Video Inputs | 1x HDMI, 1x DisplayPort |
| USB Hub | USB 3.2 Gen 1 (3.1 Gen 1) with 2x Type-A downstream ports |
| Audio | 2 built-in speakers, 3W RMS total |

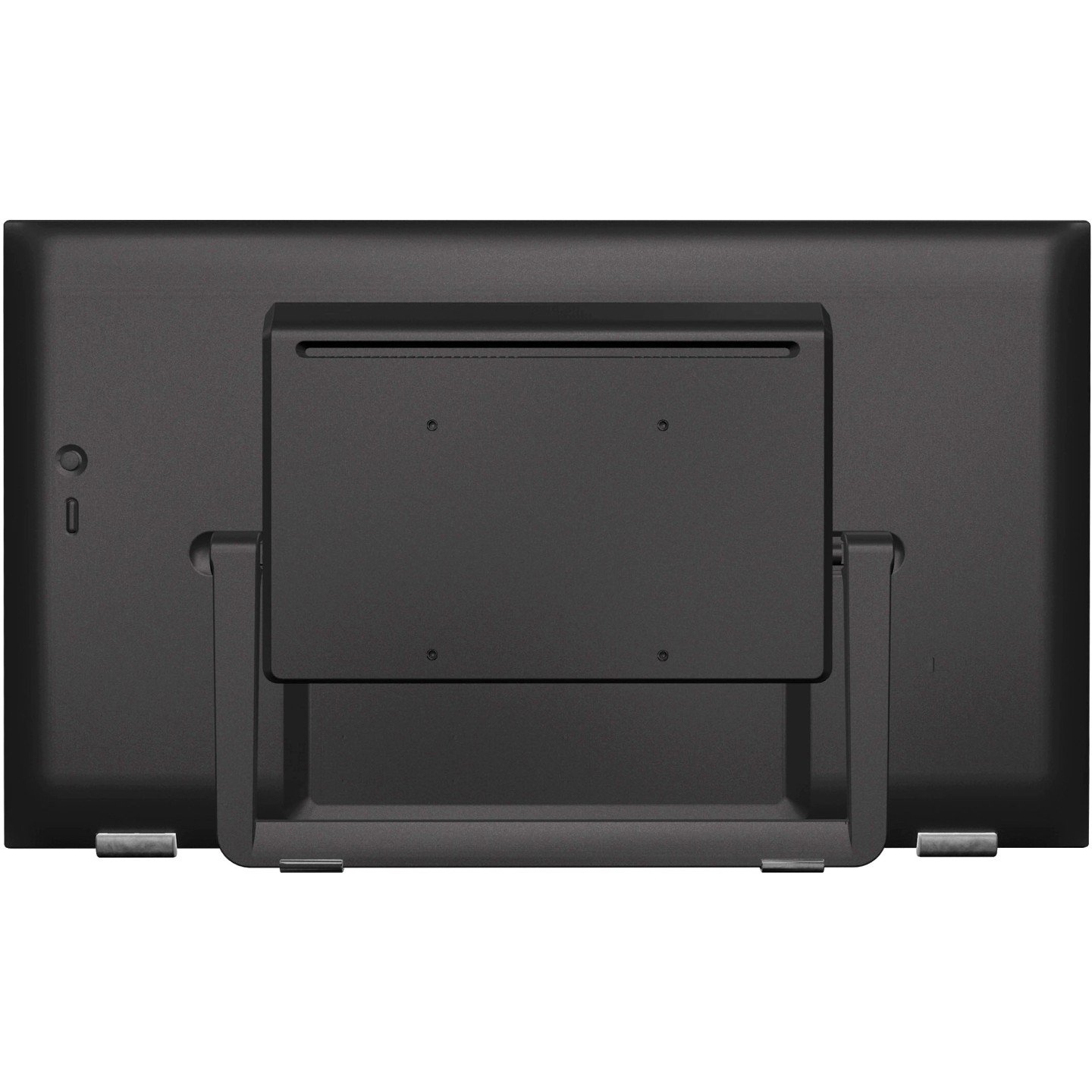

| VESA Mounting | 100 x 100 mm |

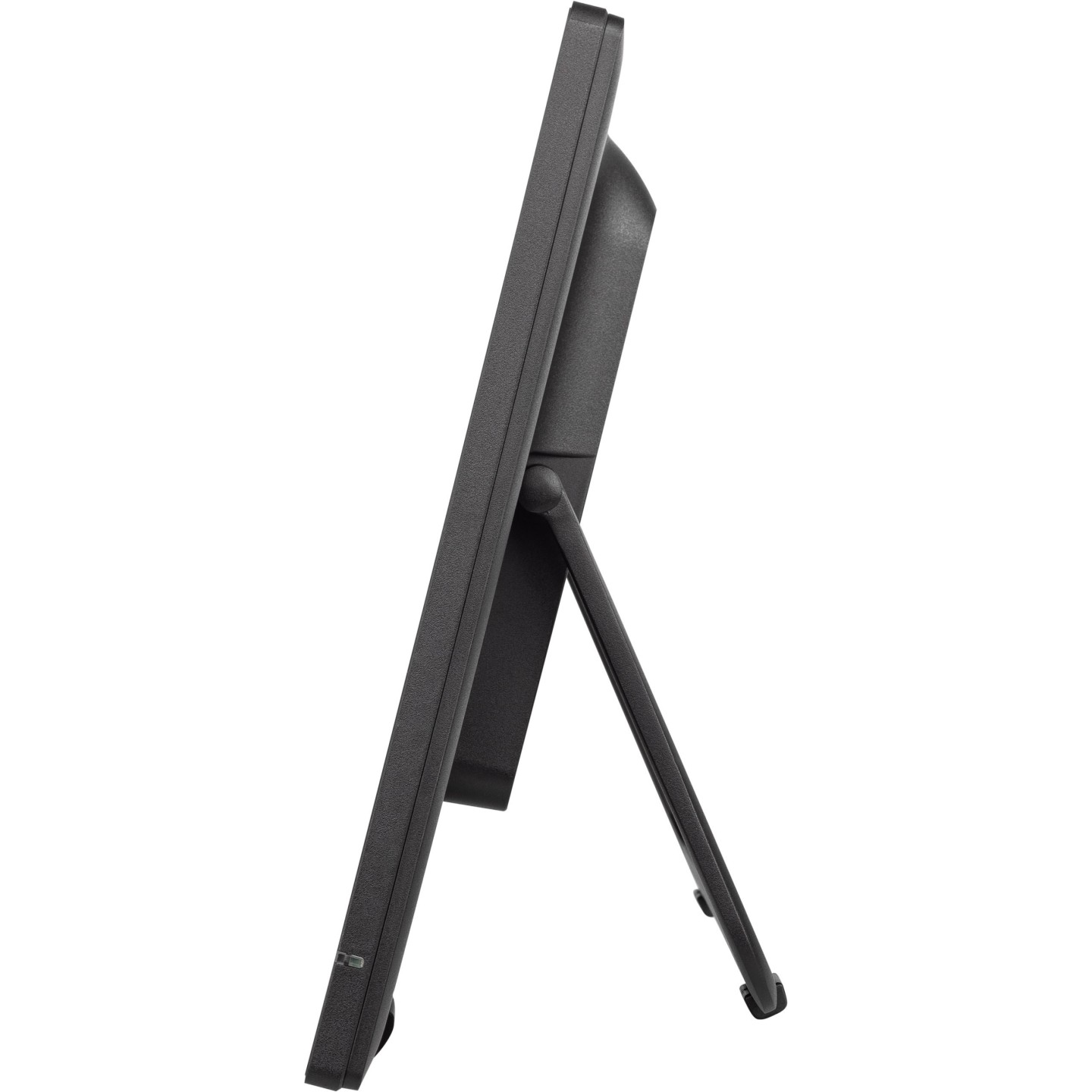

| Tilt Angle Range | -15° to 70° |
| Stand Type | Flexible adjustable stand |
| Product Color | Black (matte finish) |
| OSD Languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese |
| Power Consumption (Typical) | 16 W |
| Power Consumption (Standby) | 1.5 W |
| Power Consumption (Off) | 0.3 W |
| Energy Consumption (SDR per 1000 hours) | 12 kWh |
| Energy Efficiency Class (SDR) | D |
| EPREL Code | 1497508 |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Supply Type | Internal |
| Width (With Stand) | 493.5 mm |
| Depth (With Stand) | 48.5 mm |
| Height (With Stand) | 289.5 mm |
| Weight (With Stand) | 3.2 kg |
| Cables Included | HDMI, Power, USB |
| Plug and Play | Yes |
