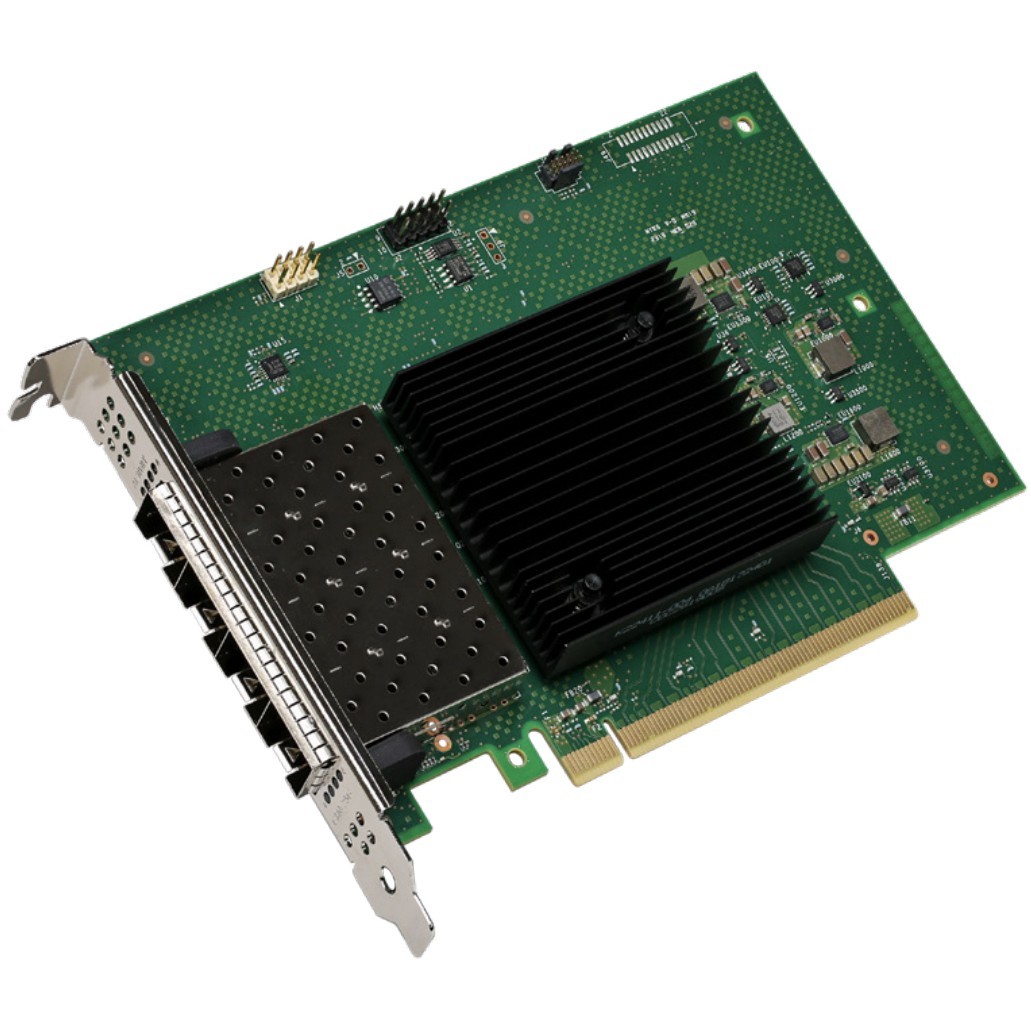

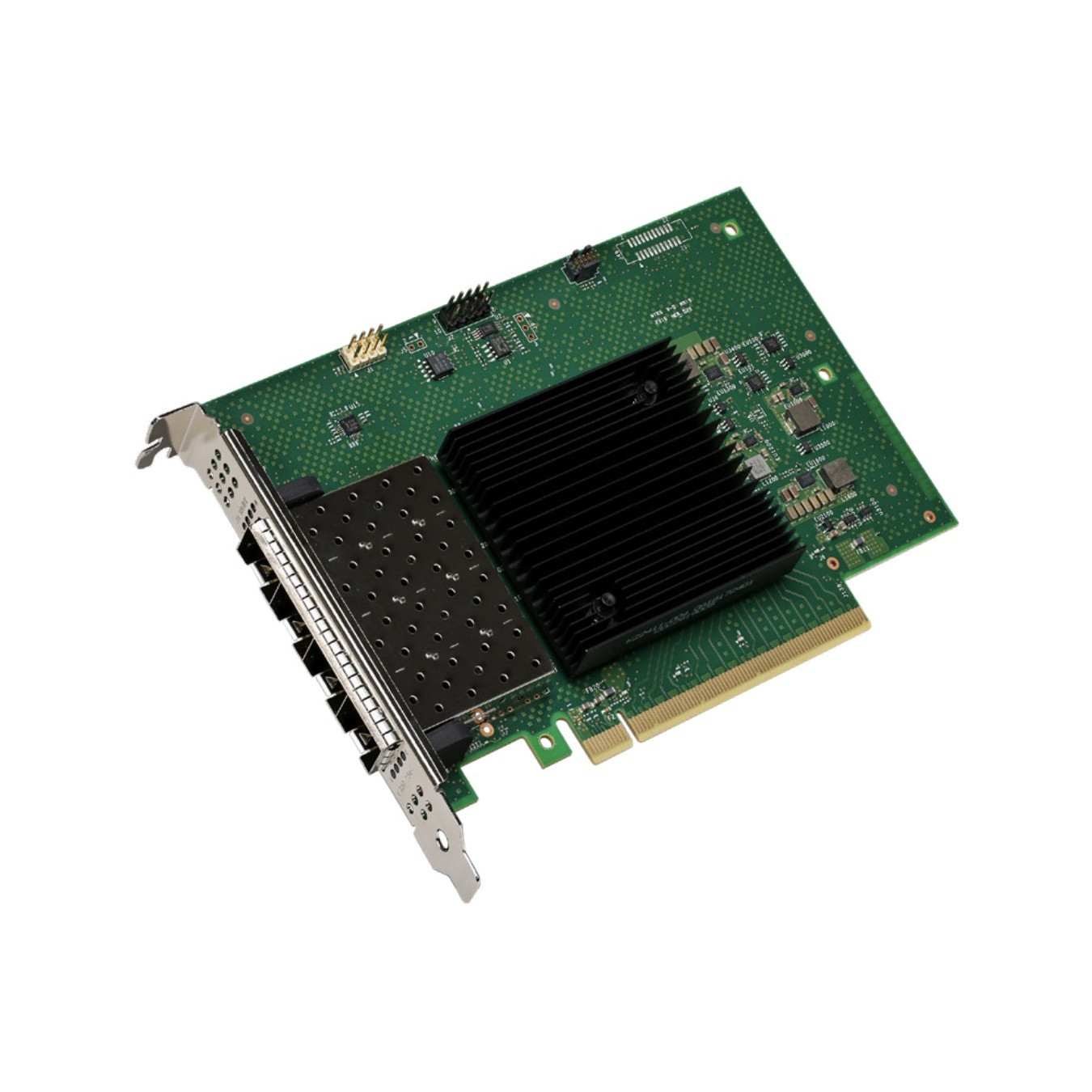

Intel Ethernet Adapter E810-XXVDA4 - 4x SFP28 25GbE PCIe 4.0 Server NIC - Full-Height
Intel E810-XXVDA4 4-port SFP28 server NIC, 25GbE per port, PCIe 4.0 x16, Intel E810 controller; supports DAC, optics and AOCs for high-performance server networking.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PCIe Network Cards - Port Speed | 25GbE |
|---|---|
| PCIe Network Cards - PCIe Version | 4.0 |
| PCIe Network Cards - Low-Profile Bracket | Not Included |
| PCIe Network Cards - OS Compatibility | Multi-OS |
Intel Ethernet Network Adapter E810-XXVDA4. Internal. Connectivity technology: Wired. Host interface: PCI Express. Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP28 |
| PCI version | 4.0 |
| Maximum data transfer rate | 25000 Mbit/s |
| Ethernet LAN data rates | 1000.10000.25000 Mbit/s |
| LAN controller | Intel E810 |
| Component for | Server/workstation |
| Feature | Intel Virtualization Technology for Connectivity (VT-c) |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Width | 167 mm |
| Depth | 111 mm |
| Harmonized System (HS) code | 85176990 |
| Cable type | SFP28 ports - DAC. Optics. and AOC's |
| Market segment | Server |
| Speed & slot width | 16.0 GT/s. x16 Lane |
| Interface type | PCIe v4.0 (16 GT/s) |
| Product type | Network Interface Card |
| Launch date | Q3'20 |
| Network interface card cable medium | Copper. Fiber |
| Network interface card type | Server |
| Status | Launched |
| Processor family | 800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE) |
| Storage Over Ethernet | iSCSI. NFS |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel(R) Ethernet Controller E810 |
| Cabling type | SFP28 ports - DAC. Optics. and AOC's |
| Bracket height | Full-Height (FH) |
| Product series | 800 Series Network Adapters (up to 100GbE) |
