Lenovo ThinkPad Universal USB-C Dock 135W 3x4K HDMI+2xDP GigE 3xUSB-A+USB-C Black (Boxed)
Lenovo ThinkPad Universal USB-C Dock (40AY0090EU) w/135W adapter. Supports 3x 4K@60Hz displays (HDMI 2.0 + 2x DP 1.4), GigE, 3x USB-A 3.1G2, 2x USB-A 2.0, USB-C 10Gbps, audio jack. Up to 100W PD. Win/Linux. Black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 8 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 140W+ |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Compact Design External Power Supply Kensington Lock Slot MST Support Plug and Play |

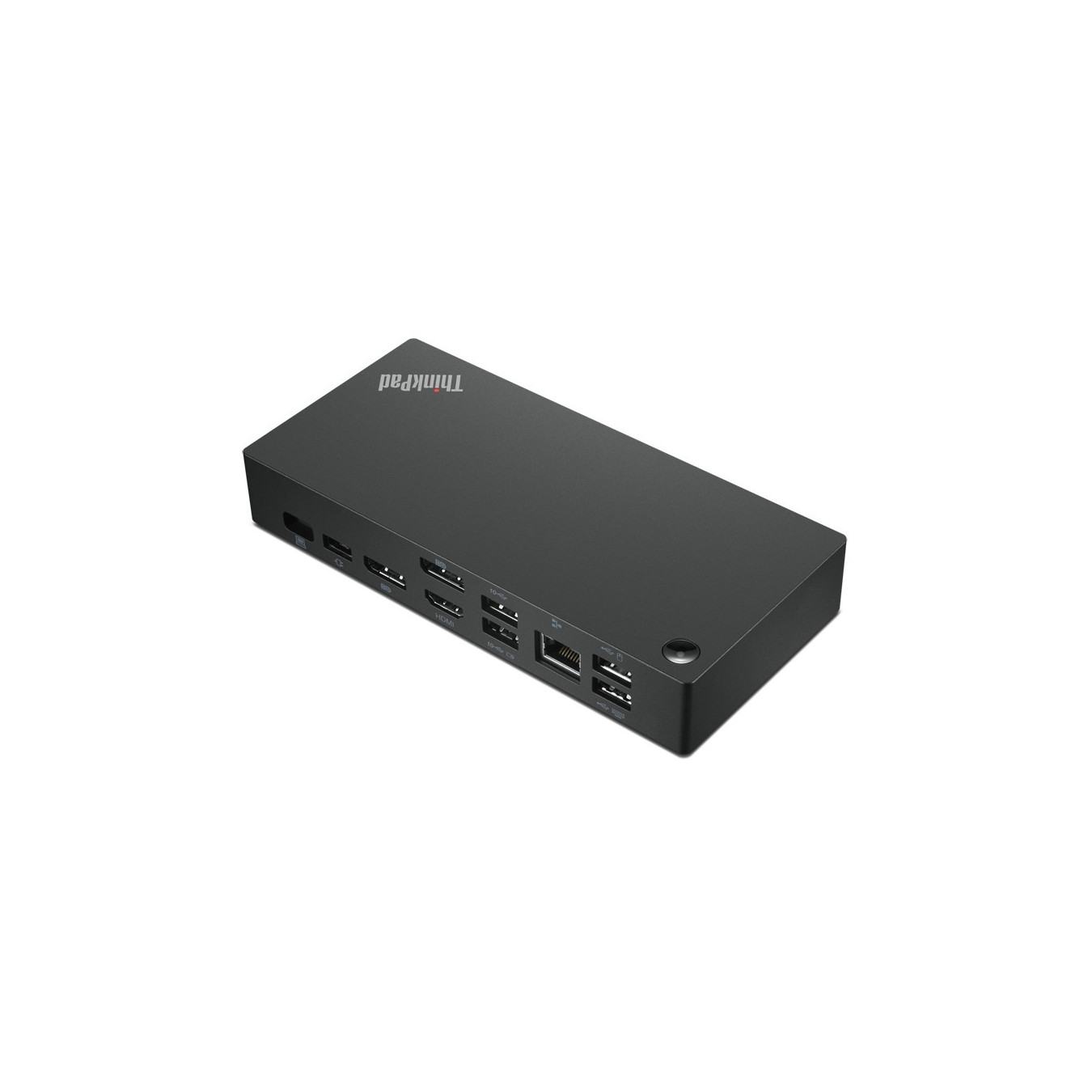

The Lenovo ThinkPad Universal USB-C Dock (MPN: 40AY0090EU) with 135W power adapter transforms your USB-C laptop into a full workstation. Connect via a single 1m USB-C cable for multi-monitor setups, rapid data transfer, and device charging.

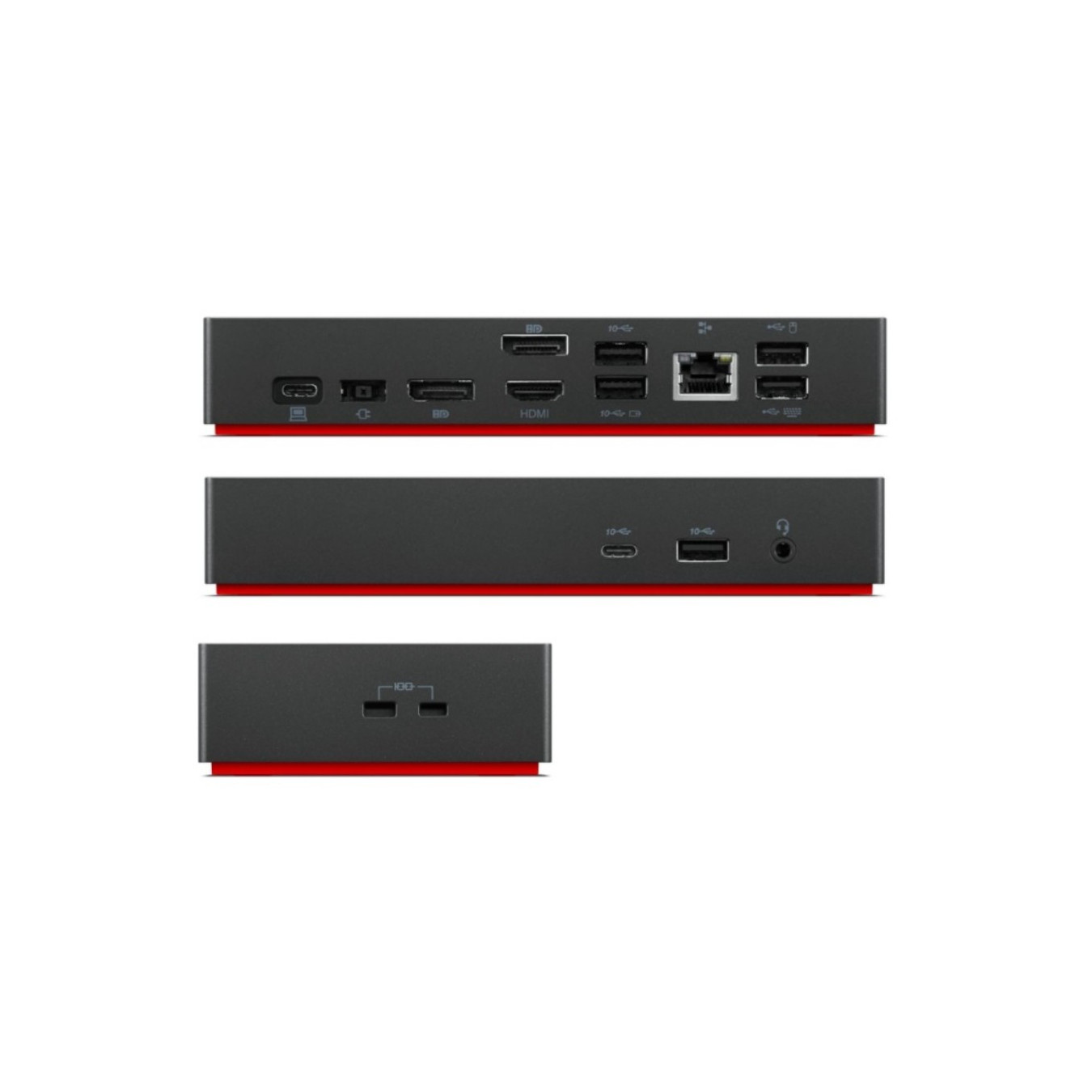

Key connectivity includes 2x DisplayPort 1.4 and 1x HDMI 2.0 supporting up to three 4K@60Hz displays (PC-dependent). Ports: 3x USB-A 3.2 Gen 2 (10Gbps) (one always-on), 2x USB-A 2.0, 1x USB-C 10Gbps (5V/3A), Gigabit Ethernet, and 3.5mm combo audio jack. Delivers up to 100W power delivery to compatible notebooks. Features Kensington and Nano-SIM lock slots for security.
- ✅ Supports Windows 7/10/11 and Linux
- ✅ Plug-and-play, no drivers needed for basic use
- ✅ Compact black design: 171x80x31mm, 340g (dock only)
- ✅ Box includes: Dock, 135W adapter, power cord, USB-C cable
- ✅ Certifications: FCC, CE, RoHS, etc.
| MPN | 40AY0090EU |
| Connectivity technology | Wired |
| Host interface | USB-C |
| Docking Interface | USB-C |
| Docking Cable Length | 1 m USB-C Cable |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 (10 Gbps, 1 with Always-On Charging) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 (10 Gbps, 5V / 3A) |
| HDMI ports quantity | 1 (HDMI 2.0) |
| DisplayPorts quantity | 2 (DisplayPort 1.4) |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels @60Hz (multi-monitor) |
| Number of displays supported | 3 |
| Audio ports | 1 x 3.5 mm Combo |
| Cable lock slot type | Kensington, Nano-Saver |
| Product colour | Black |
| Power source type | USB / External 135W adapter |
| Power connector | USB Type-C |
| Power supply | 135 W |
| System Charging | Max 100W with 135W Power Adapter |
| Windows operating systems supported | Windows 7, Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Width | 171 mm |
| Depth | 80 mm |
| Height | 31 mm |
| Weight | 340 g |
| Quantity per pack | 1 pc(s) |
| Package width | 210 mm |
| Package depth | 158 mm |
| Package height | 75 mm |
| Package weight | 955 g |
| Cables included | USB Type-C |
| Shipment Group | Dock, 135W Power Adapter, Power Cord, USB-C Cable, Document |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV-Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
