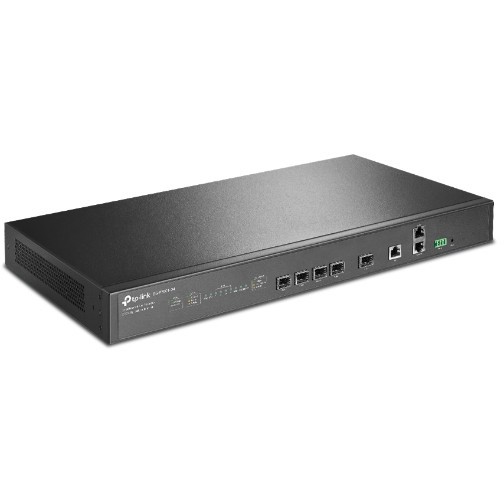

TP-Link DeltaStream GPON Terminal - TL-DS-P7001-04 - 4x GPON, 2x Gigabit LAN, 1x SFP, 2.5GbE uplink, 100–240V
4-port pizza-box GPON terminal TL-DS-P7001-04 — 1:128 split, 20 km reach, 2x Gigabit RJ45, 1x SFP, 2.5 Gbit uplink, 100–240V AC / 38.4–72V DC, 58W max.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - LAN Ports | 2 |
|---|
TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal. GPON split ratio (max): 1:128. Maximum operating distance (GPON): 20000 m. Upstream ports: Gigabit Ethernet. AC input voltage: 100 - 240 V. AC input frequency: 50 - 60 Hz. DC voltage range: 38.4 - 72 V. Width: 440 mm. Depth: 180 mm. Height: 44 mm
| Feature | Access Control List (ACL) |
| GPON split ratio (max) | 1:128 |
| Maximum operating distance (GPON) | 20000 m |
| Upstream ports | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| GPON ports quantity | 4 |
| SFP/SFP+ slots quantity | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC voltage range | 38.4 - 72 V |
| Power consumption (max) | 58 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
