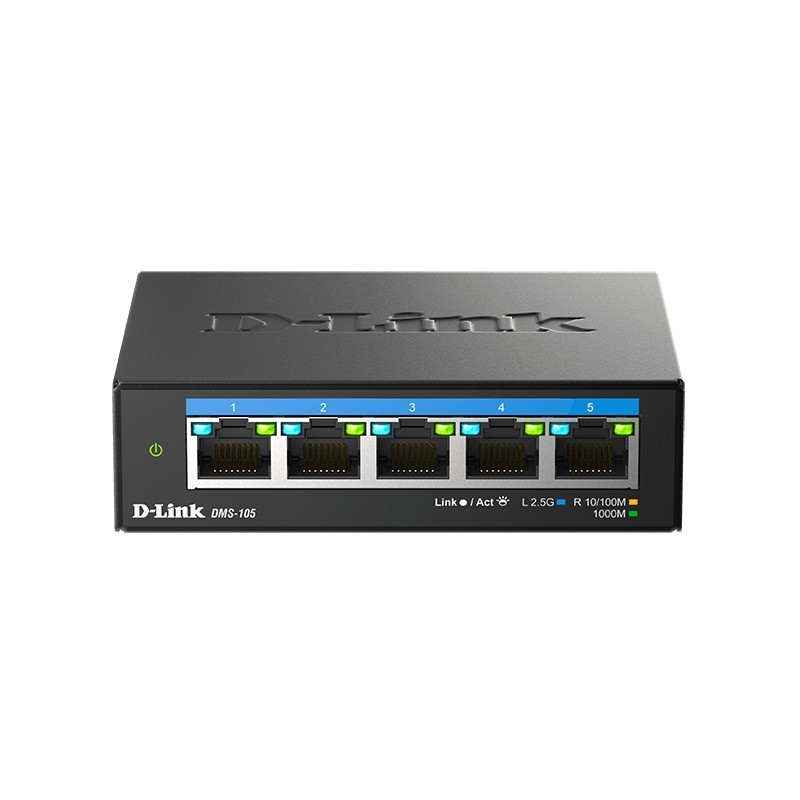

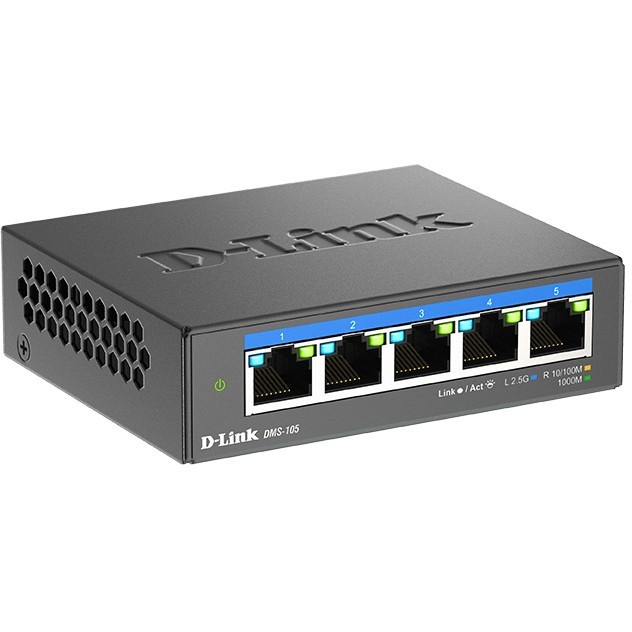

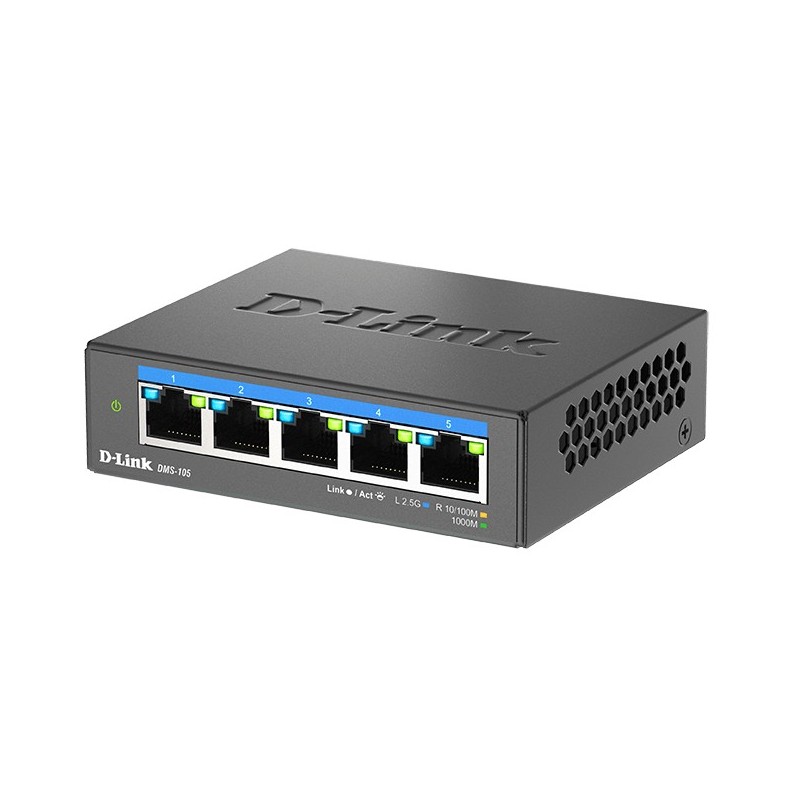

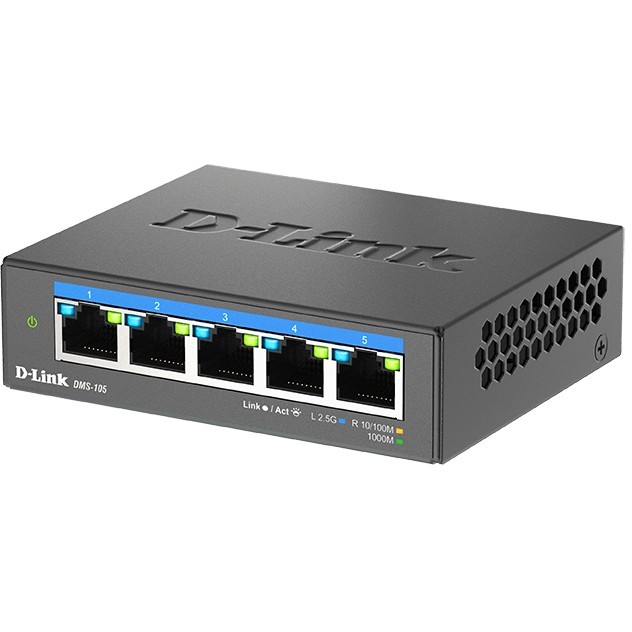

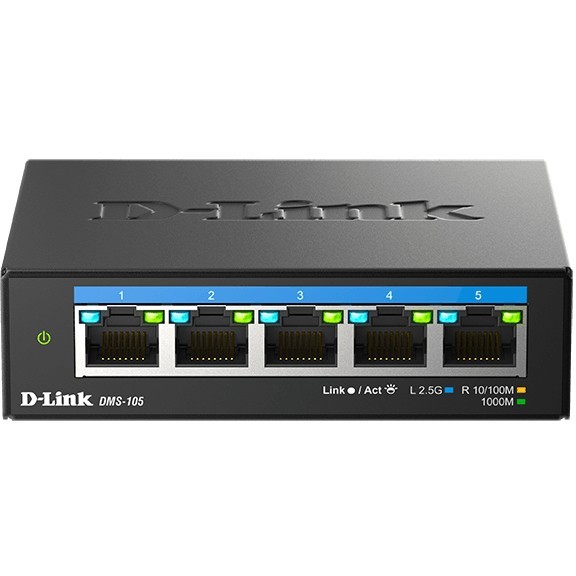

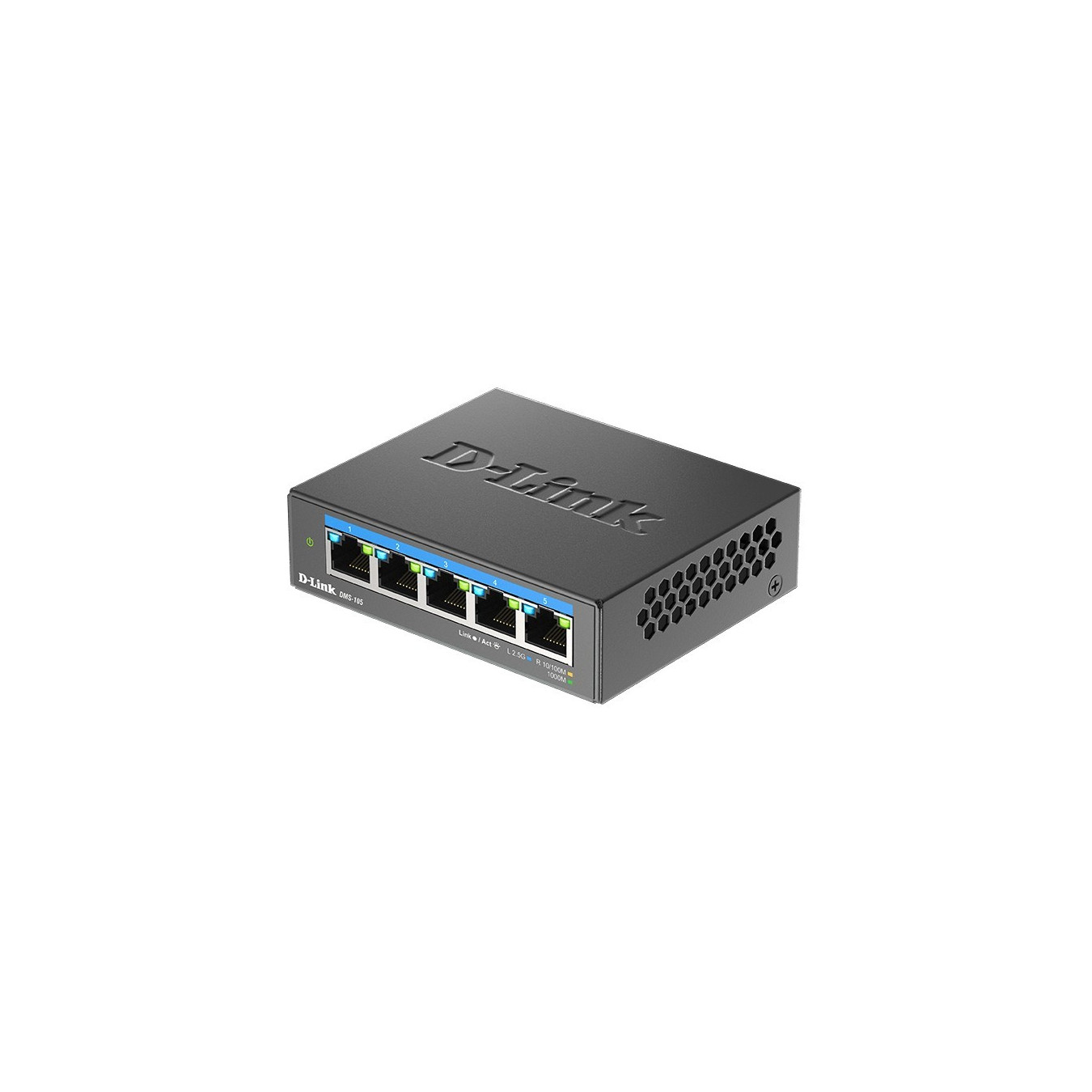

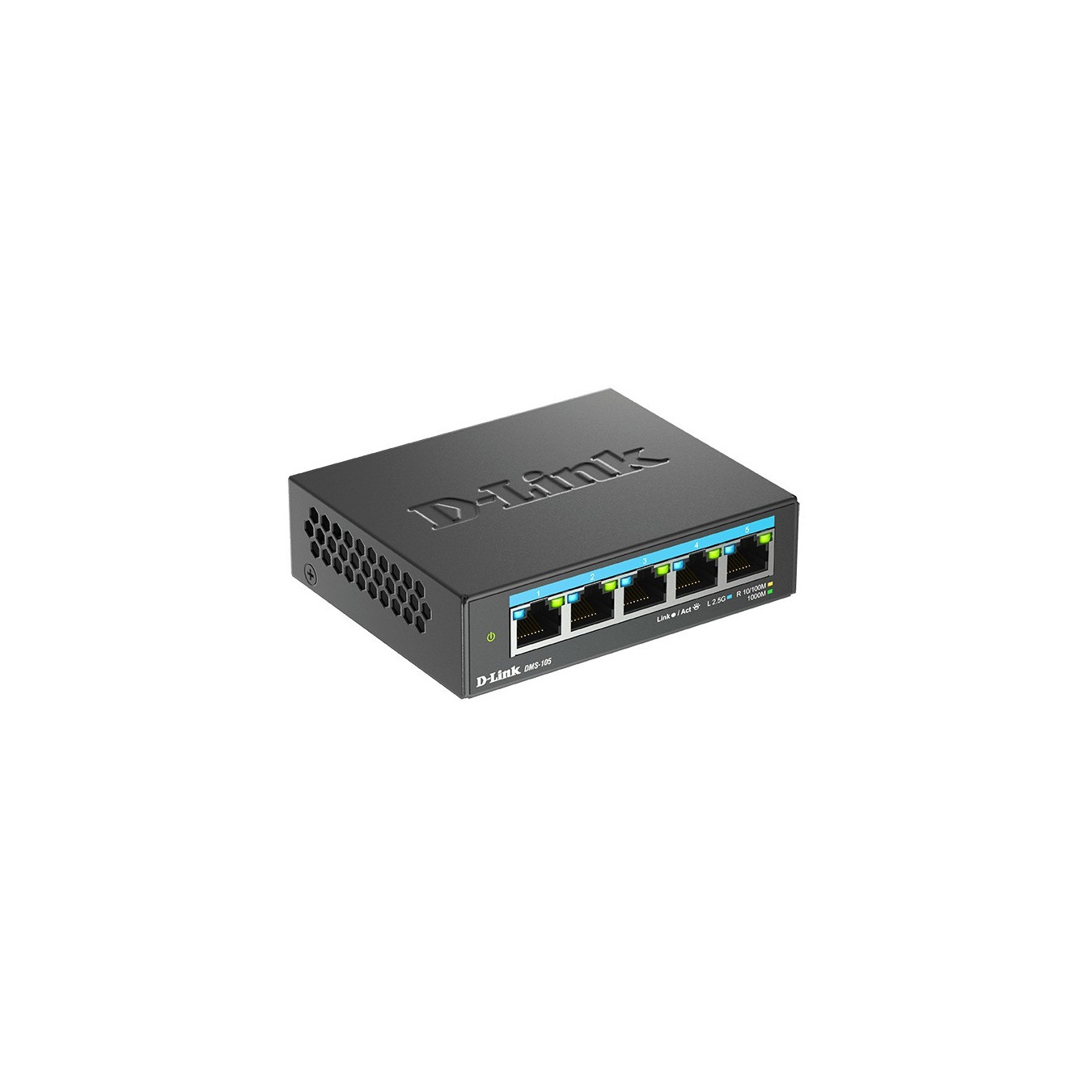

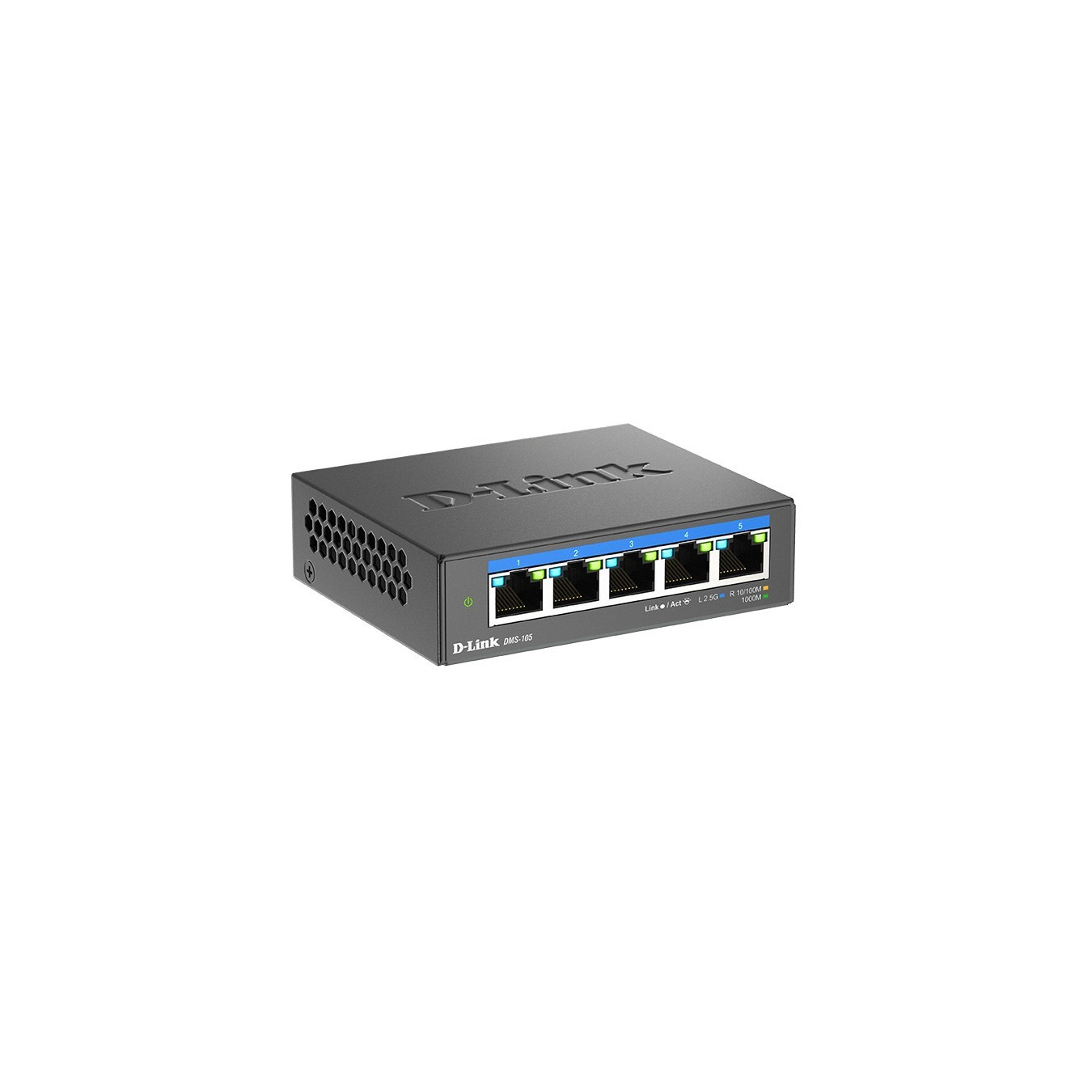

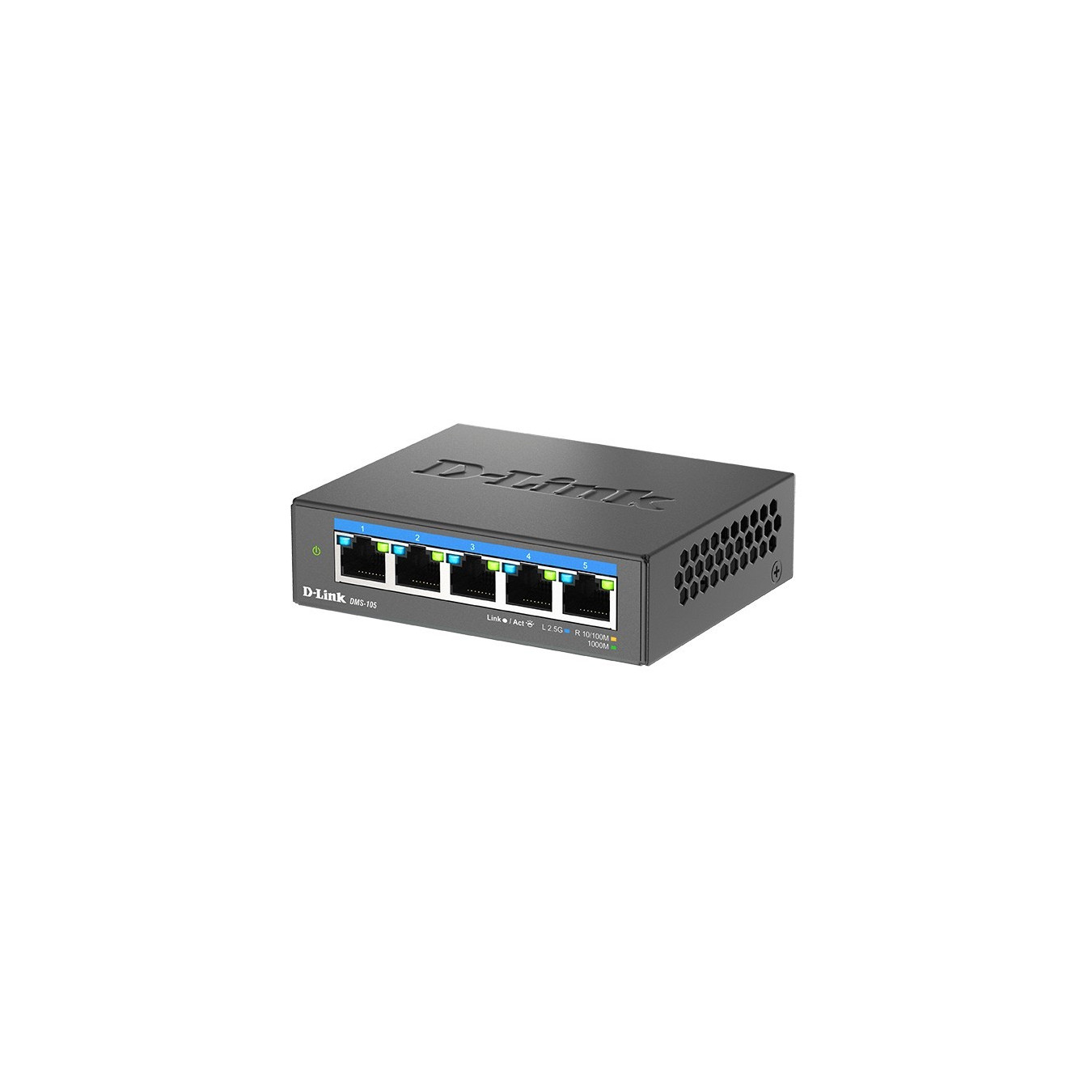

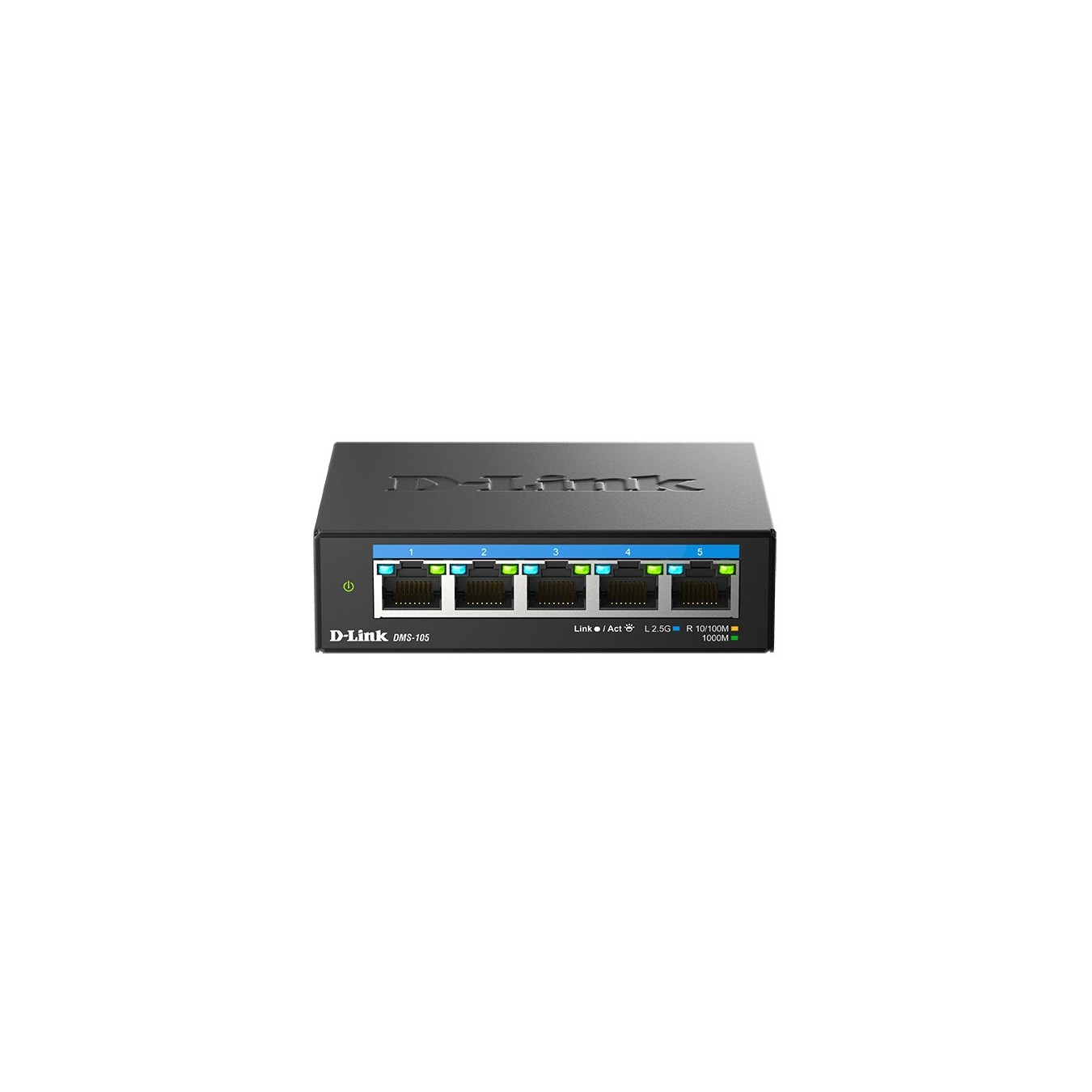

D-Link DMS-105 - 5-Port 2.5G Unmanaged Multi-Gig Desktop Switch - Black
D-Link DMS-105 5-port 2.5G unmanaged L2 desktop switch. 25 Gbps switching capacity, 18.6 Mpps, fanless, low power (≈4.9 W), DC 12V, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch. Switch type: Unmanaged. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries. Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x. DC input voltage: 12 V
| Switch type | Unmanaged |
| Switch layer | L2 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.1p. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| MAC address table | 4000 entries |
| Packet buffer memory | 8.1 MB |
| Product colour | Black |
| LED indicators | Activity. Link. Power |
| Mean time between failures (MTBF) | 765190 h |

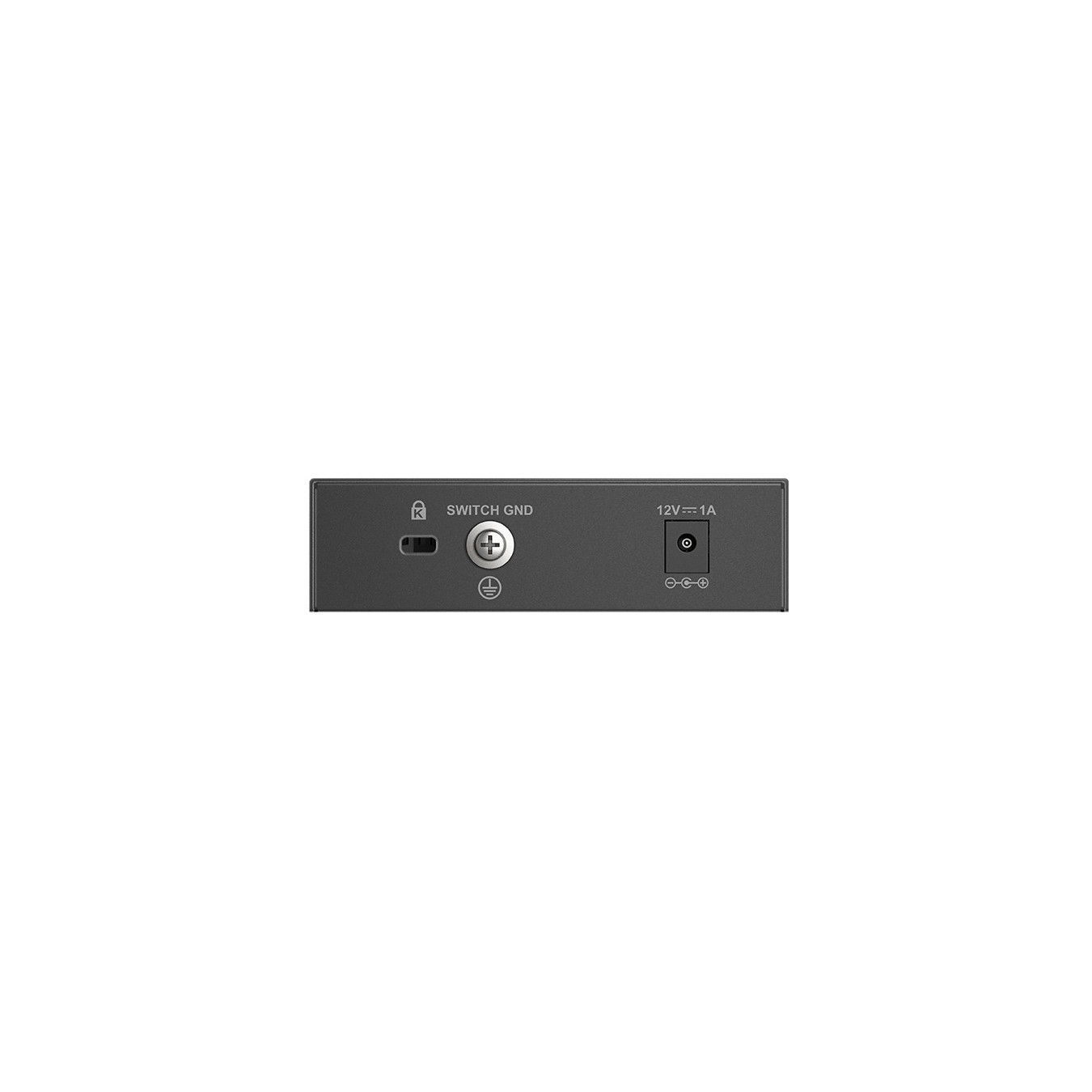

| Power source | DC |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 4.918 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 16.78 BTU/h |
| Width | 100.5 mm |
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 238.6 g |
| Compliance certificates | BSMI. CE. Low Voltage Directive (LVD). RoHS |
