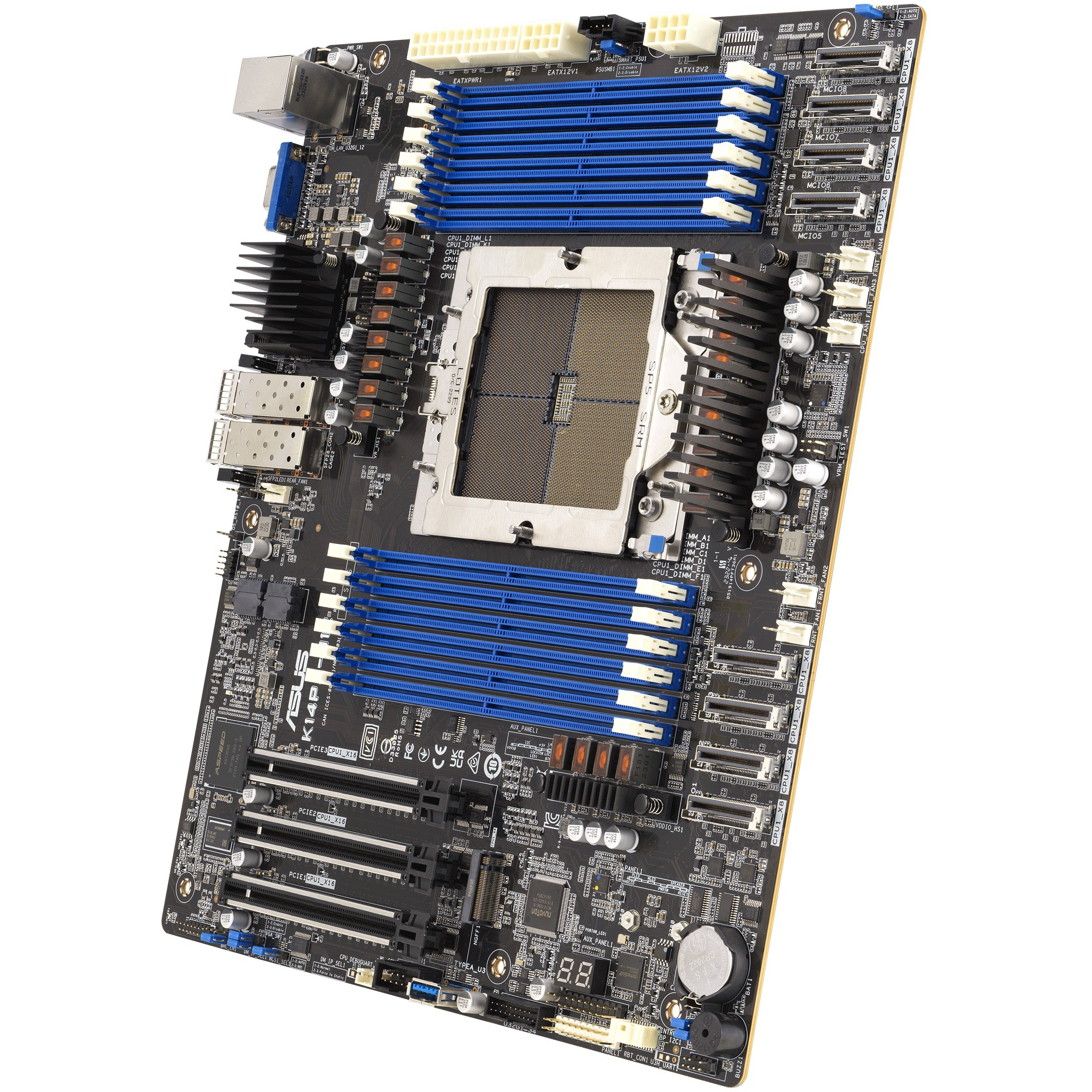

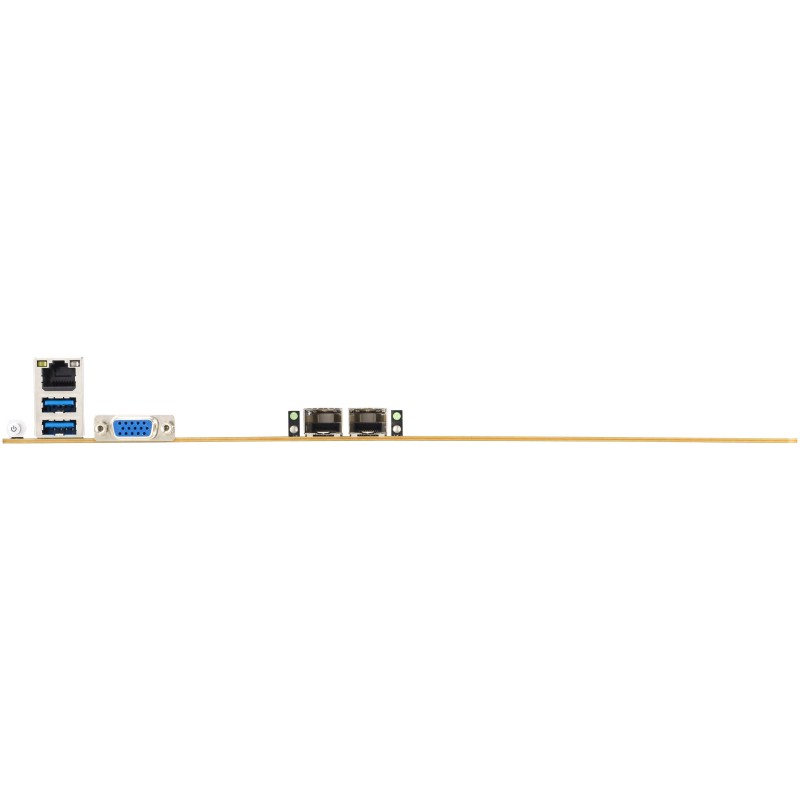

ASUS K14PA-U12 - ASMB11 CEB Server Motherboard - Socket SP5, AMD EPYC 9004, DDR5 4800MHz up to 3.07TB, Dual 25GbE
ASUS K14PA-U12 ASMB11 SSI CEB server board for AMD EPYC 9004 (Socket SP5). DDR5 (12 slots) up to 3.07TB @4800MHz, 3x PCIe5 x16, 1x M.2, dual 25GbE, AST2600 BMC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | sTRX5/sTR5 |
|---|---|
| Motherboards - Memory Type | DDR5 |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 1 |
ASUS K14PA-U12/ASMB11. Processor manufacturer: AMD. Processor socket: Socket SP5. Compatible processor series: AMD EPYC 9004. Supported memory types: DDR5-SDRAM. Maximum internal memory: 3.07 TB. Supported memory clock speeds: 4800 MHz. Supported storage drive interfaces: M.2. Graphics card family: ASPEED. Graphics card: AST2600. On-board graphics card model: Aspeed AST2600. Ethernet interface type: 25 Gigabit Ethernet
| Processor manufacturer | AMD |
| Processor socket | Socket SP5 |
| Compatible processor series | AMD EPYC 9004 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 12 |
| Supported memory clock speeds | 4800 MHz |
| Maximum internal memory | 3.07 TB |
| Supported memory module capacities | 16GB. 24GB. 32GB. 48GB. 64GB. 96GB. 128GB. 256GB |
| Supported storage drive interfaces | M.2 |
| Feature | Ethernet LAN |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card model | Aspeed AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 25 Gigabit Ethernet |
| Component for | Server |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | AMD |
| PCI Express x16 (Gen 5.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Package width | 425 mm |
| Package depth | 395 mm |
| Package height | 81 mm |
| Package weight | 2.2 kg |
| Width | 409 mm |
| Depth | 376 mm |
| Height | 63 mm |
| Weight | 1.4 kg |
