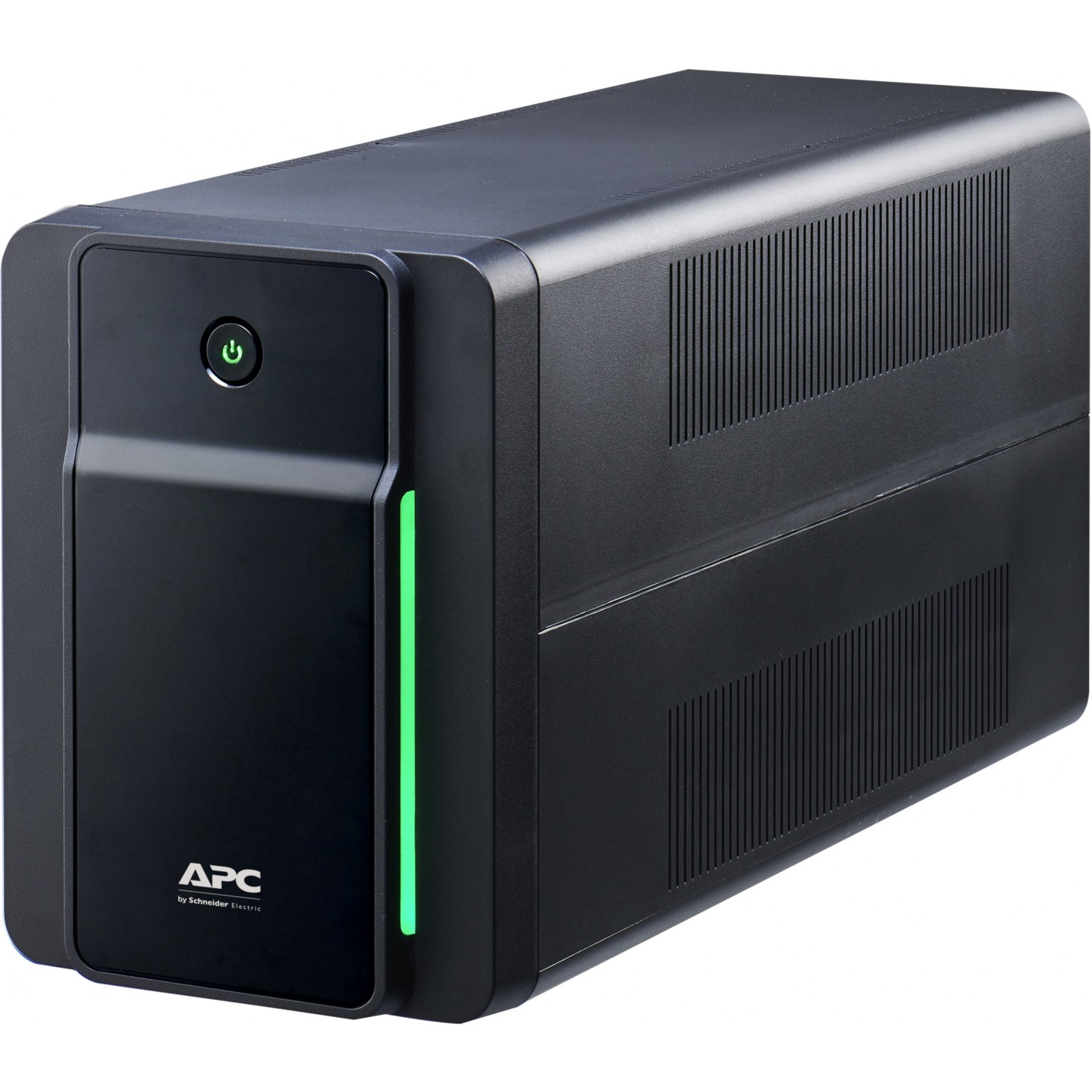

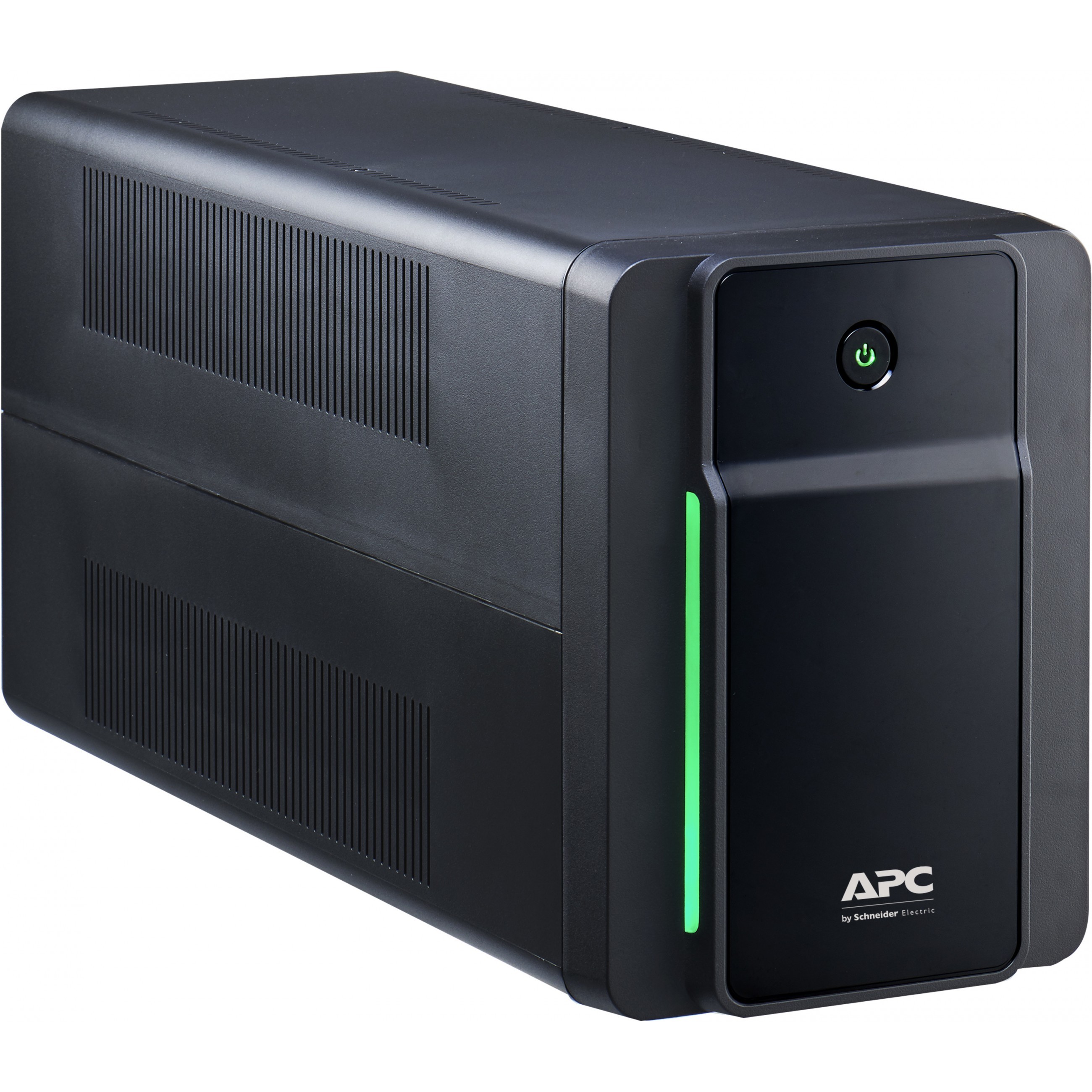

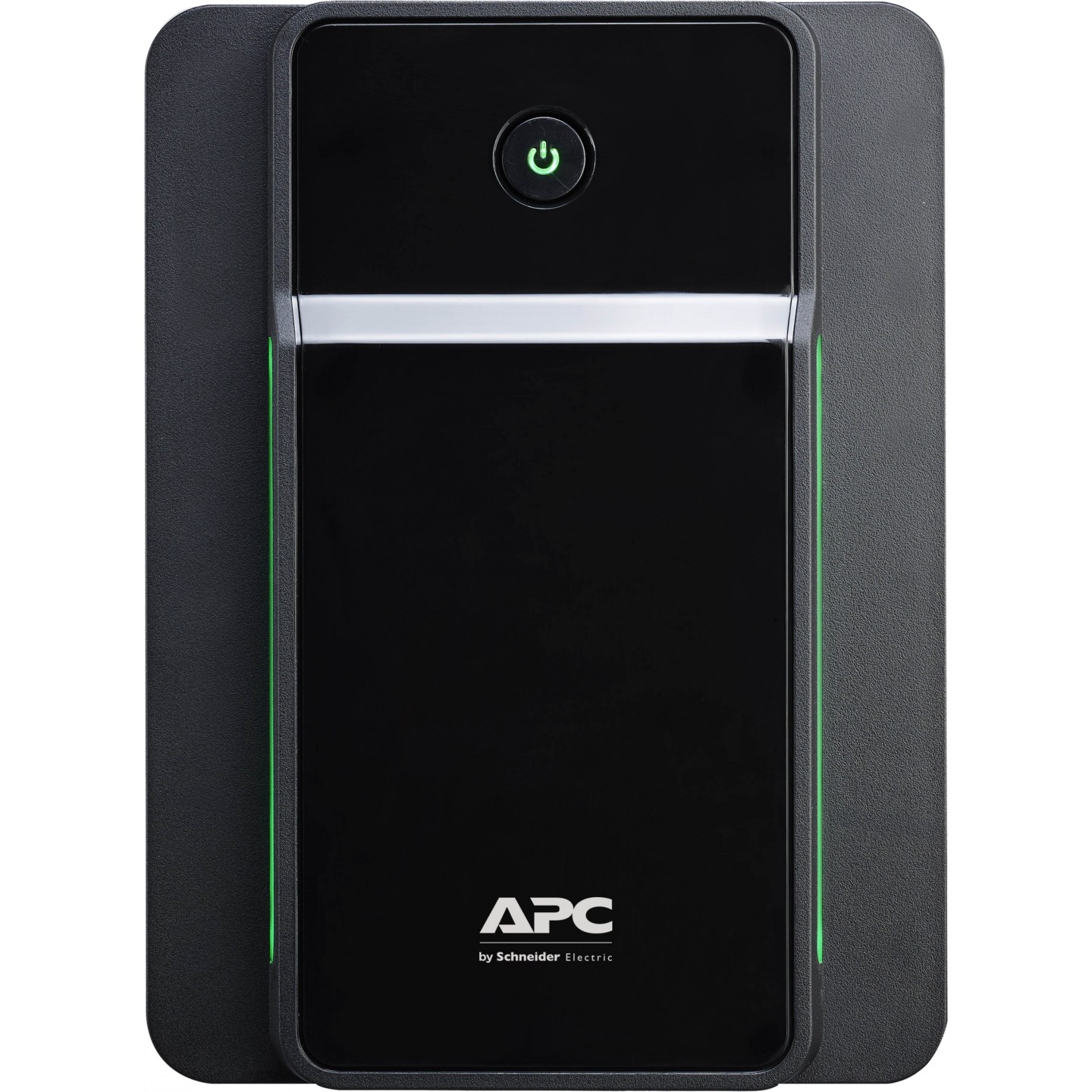

APC Back-UPS BX2200MI - 2200VA (1200W) Line-Interactive Tower UPS, 6× IEC C13, AVR, Black
Line-Interactive tower UPS 2200VA/1200W with AVR and sine waveform, 6× IEC C13 outlets, USB Type-B comm port, sealed VRLA battery — ~1 min full-load, ~8.5 min half-load.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Type | Line-Interactive |
|---|---|
| UPS & Power Backup - Output Power (W) | 1200 W |
| UPS & Power Backup - Form Factor | Tower |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 6 |
APC Back-UPS. 2200VA. Tower. 230V. 6x IEC C13 outlets. AVR. UPS topology: Line-Interactive. Output power capacity: 2.2 kVA. Output power: 1200 W. AC outlet types: C13 coupler. Power plug: C19 coupler. AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Typical backup time at full load: 1 min. Typical backup time at half load: 8.5 min. Form factor: Compact. Product colour: Black. Cable length: 1.2 m. Compliance certificates: RoHS. Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1200 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |
| Feature | Manual |
| Surge energy rating | 273 J |
| Response time | 6 ms |
| Input power factor | 0.54 |
| Noise level | 40 dB |
| Audible alarm modes | Low battery alarm |

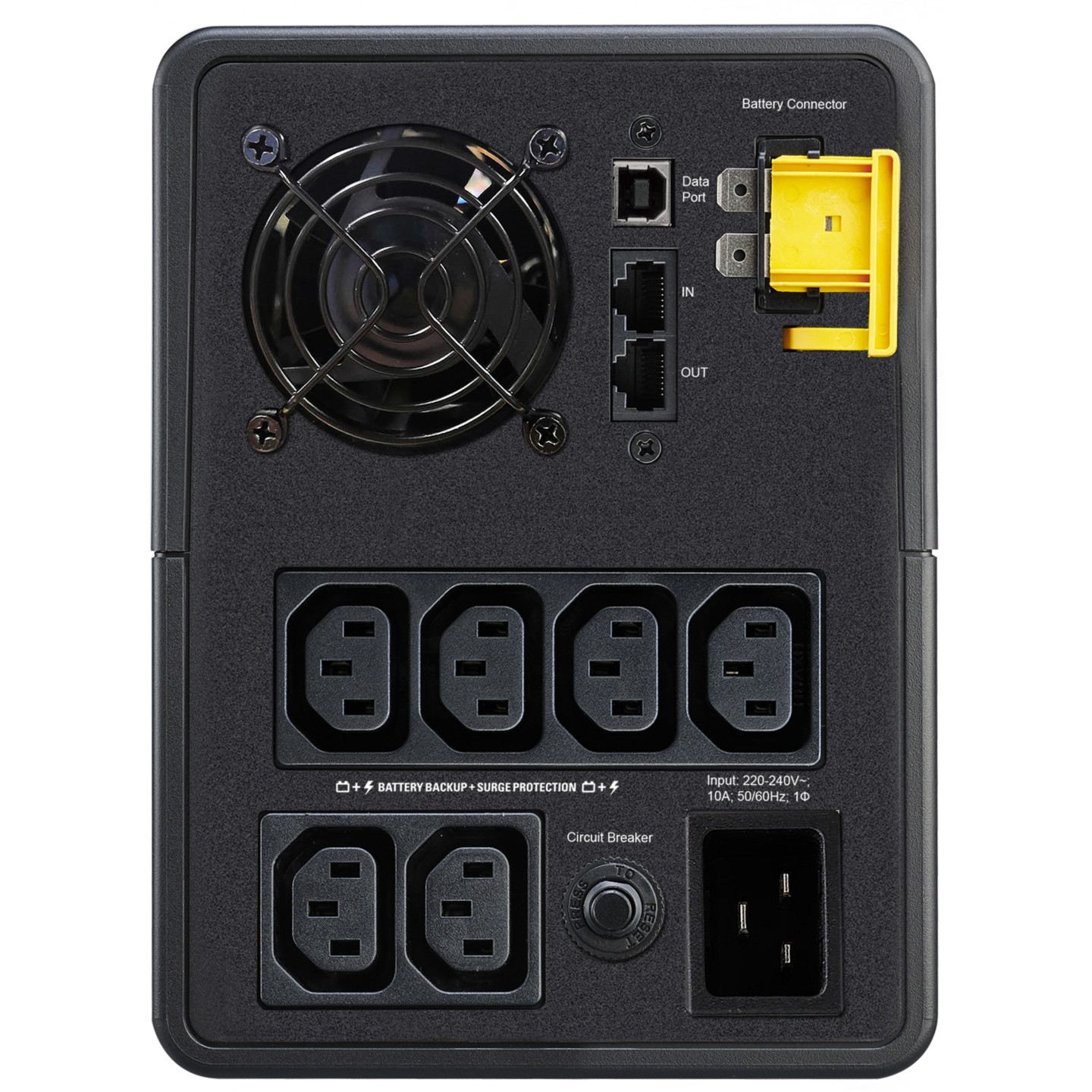

| AC outlet types | C13 coupler |
| Power plug | C19 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Battery technology | Sealed Lead Acid (VRLA) |

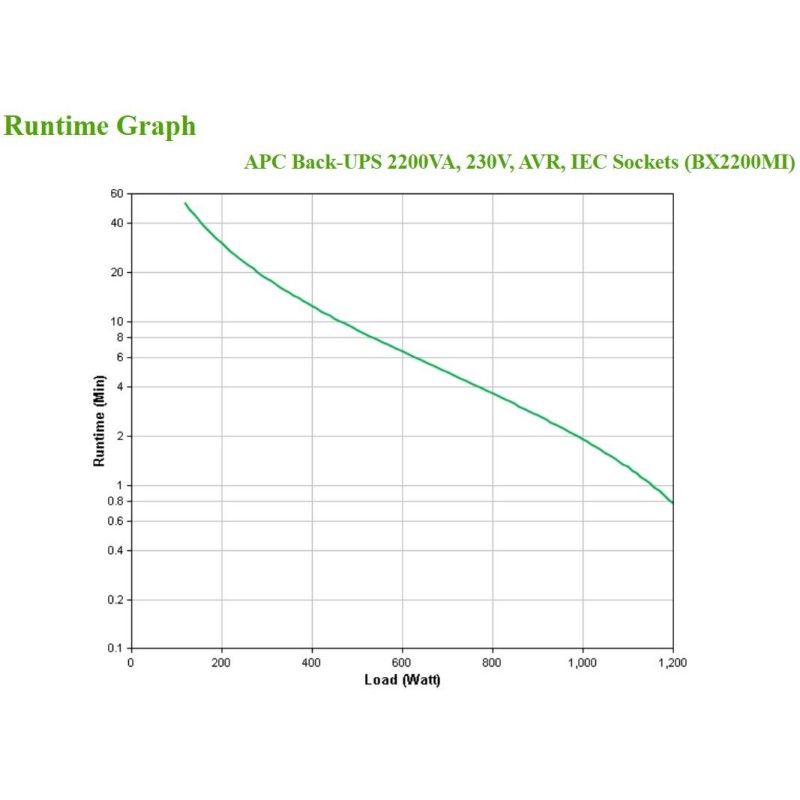

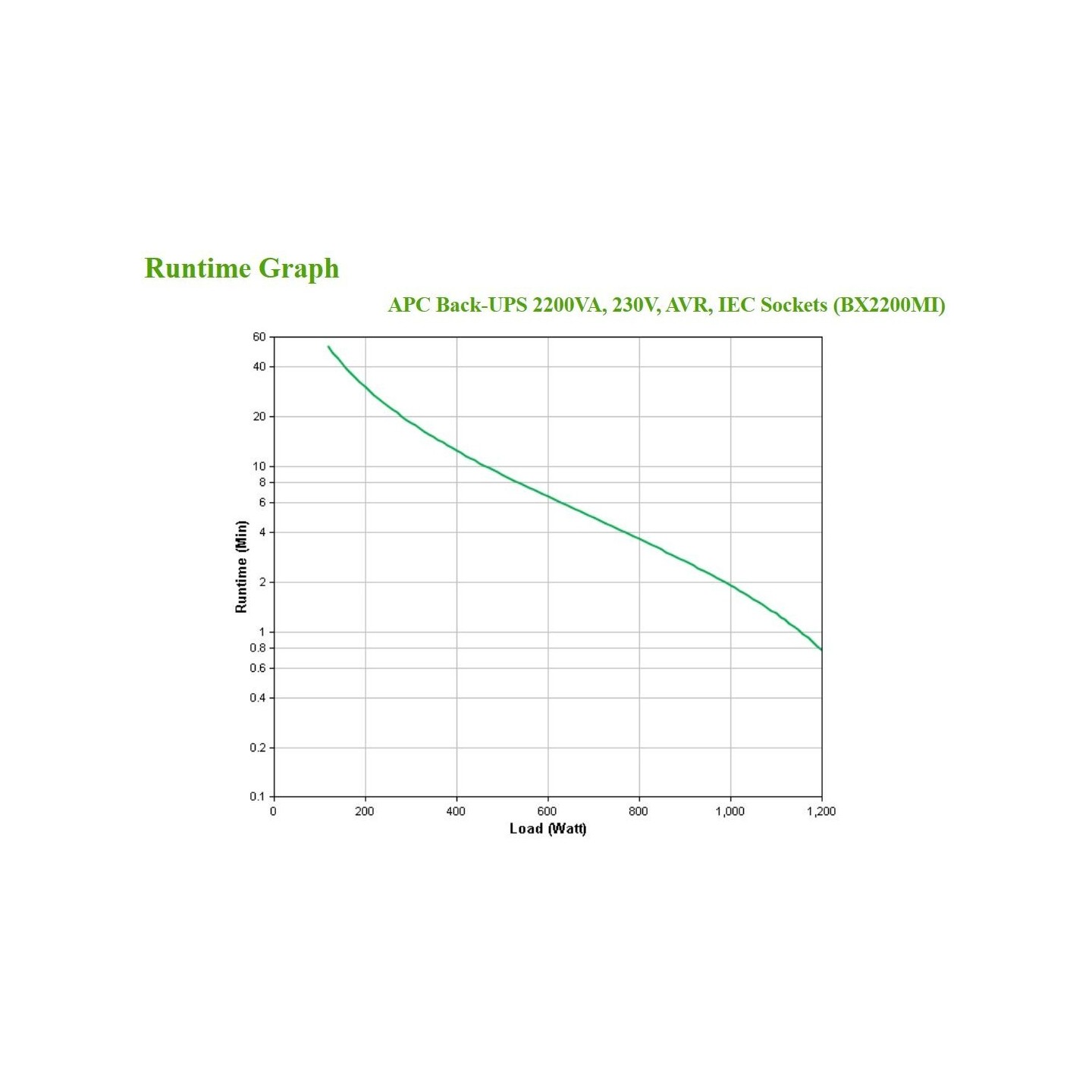

| Typical backup time at full load | 1 min |
| Typical backup time at half load | 8.5 min |
| Battery life (max) | 2 year(s) |
| Battery recharge time | 8 h |
| Form factor | Compact |
| Cable length | 1.2 m |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Compliance certificates | RoHS |
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Cables included | Input power cable |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 12.3 kg |
| Package width | 235 mm |
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 13.3 kg |
| Harmonized System (HS) code | 85078000 |
