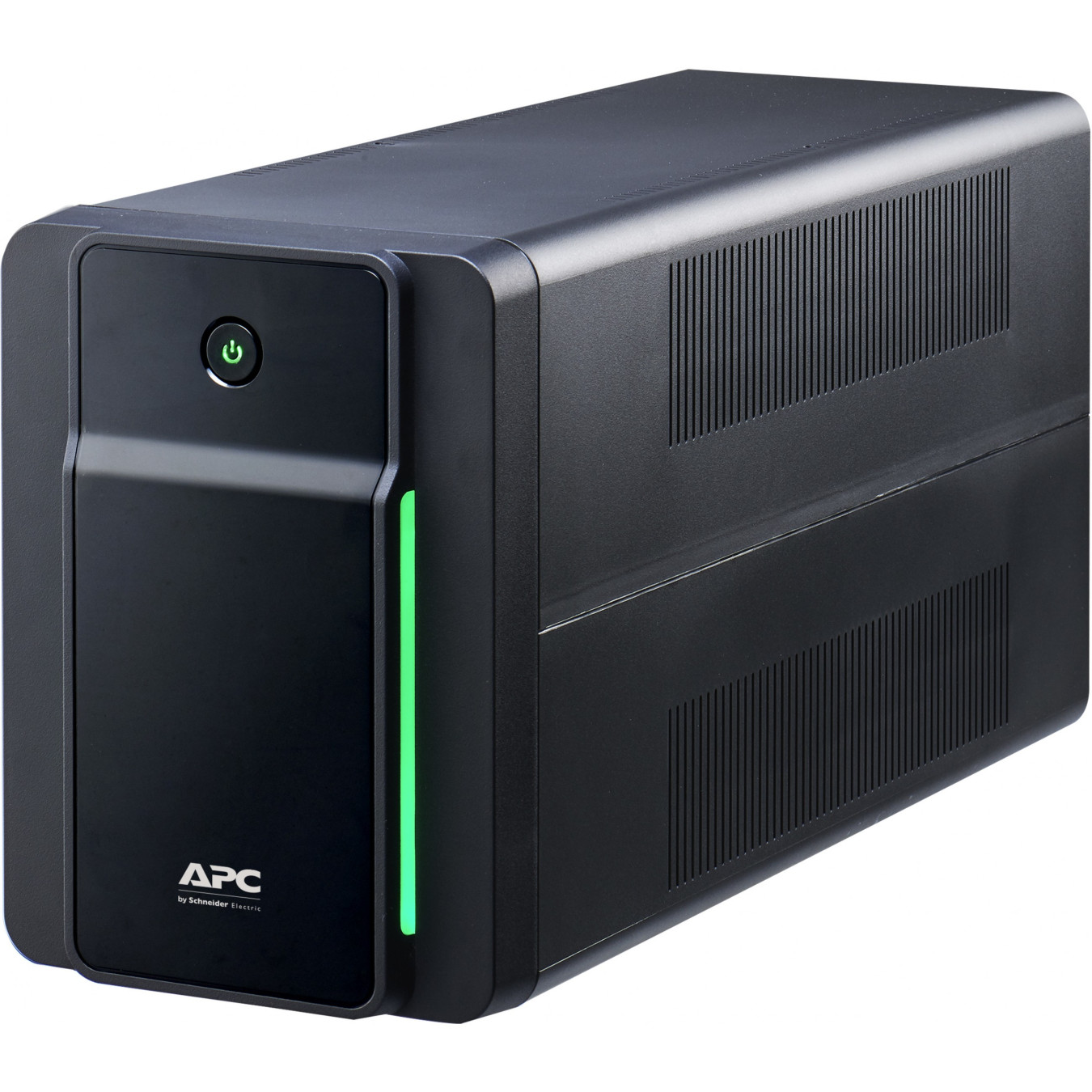

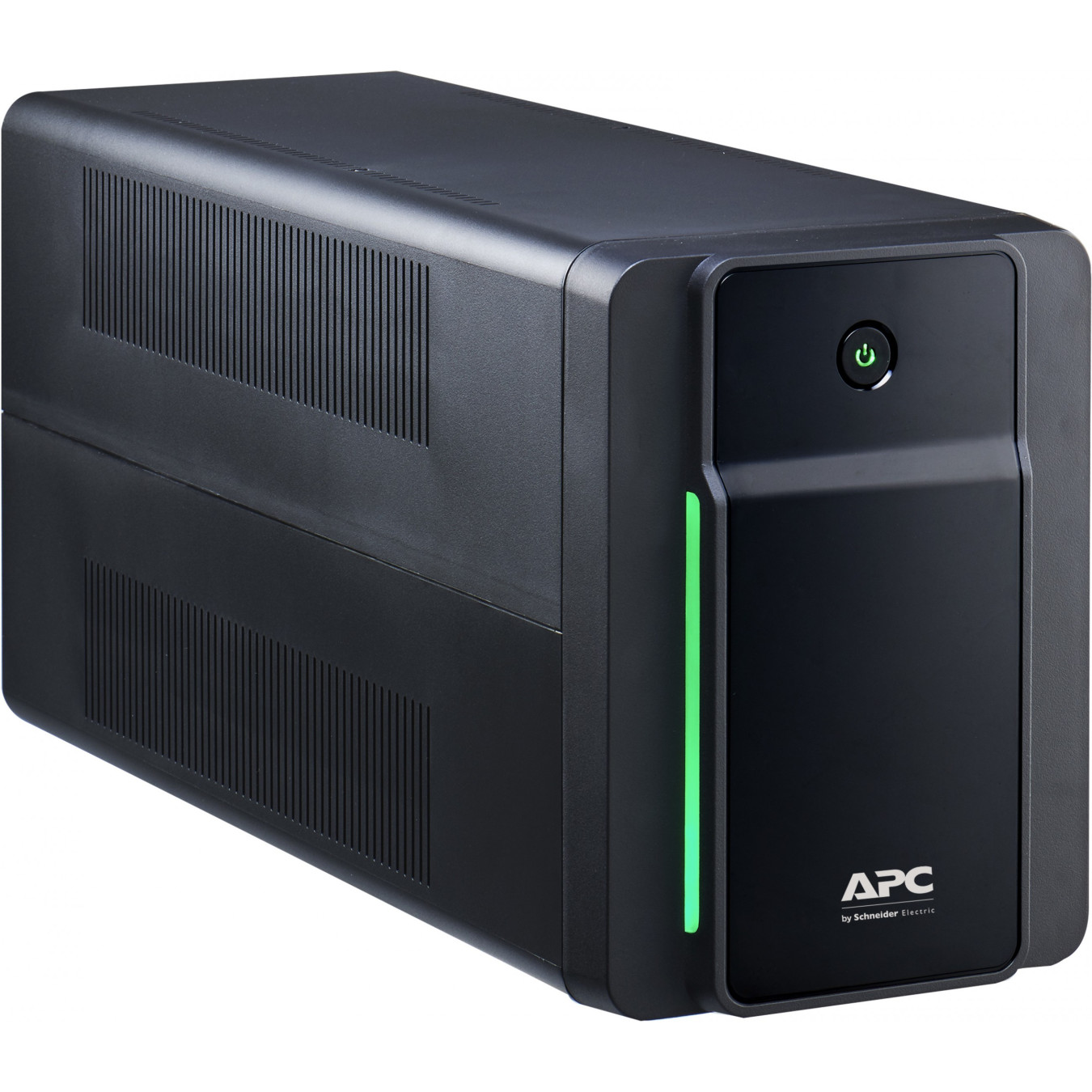

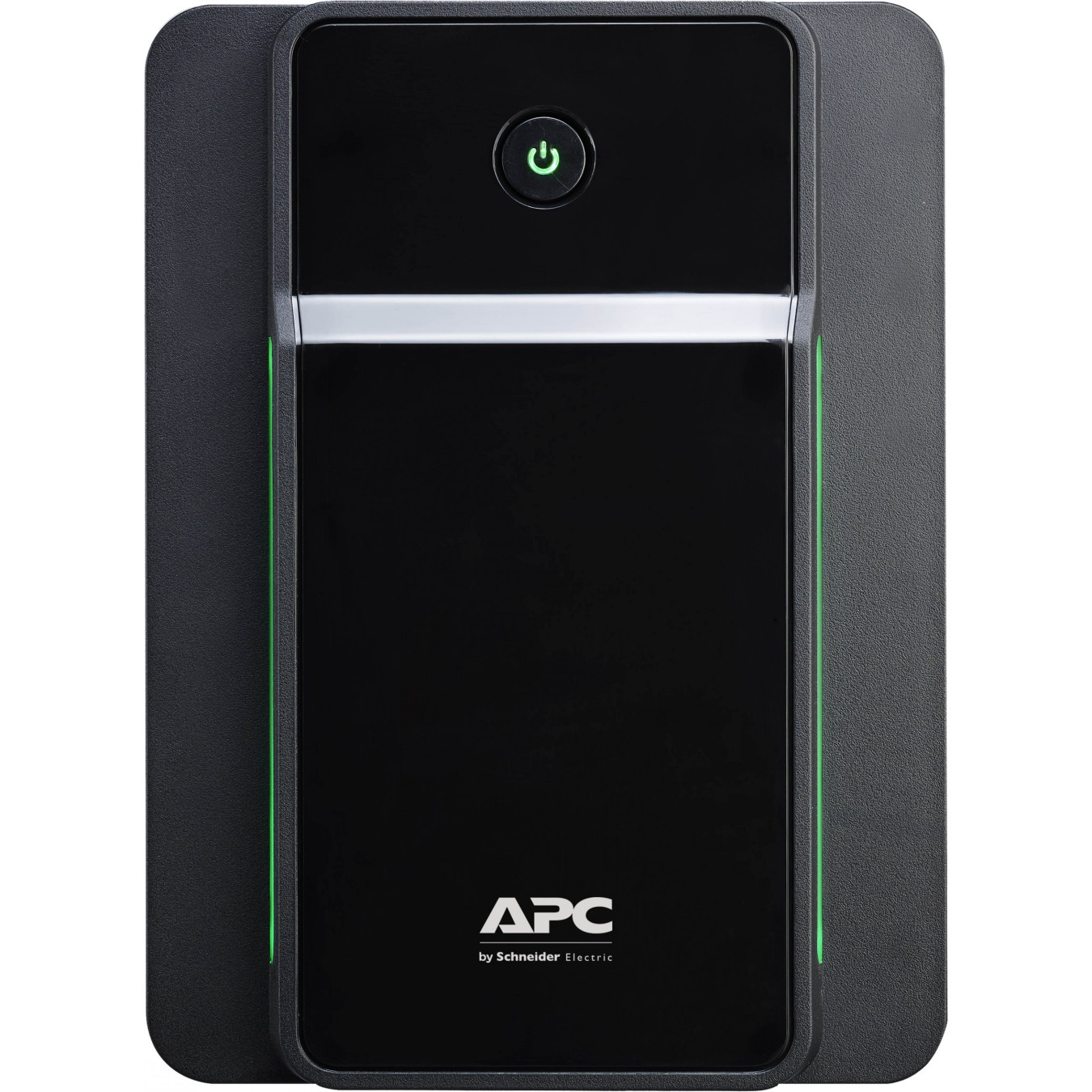

APC Back-UPS BX2200MI 2200VA/1200W Line-Interactive Tower UPS 6x IEC C13 AVR (Boxed)
Line-interactive tower UPS 2200VA/1200W with AVR, stepped sine wave output, 6x IEC C13 outlets, USB monitoring. Sealed VRLA battery: ~1min full/8.5min half-load backup. Black, compact design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 2000 - 2999 VA |
| UPS & Power Backup - Power Output (Watts) | 1000 to 1499 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | IEC C20 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 6 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation |

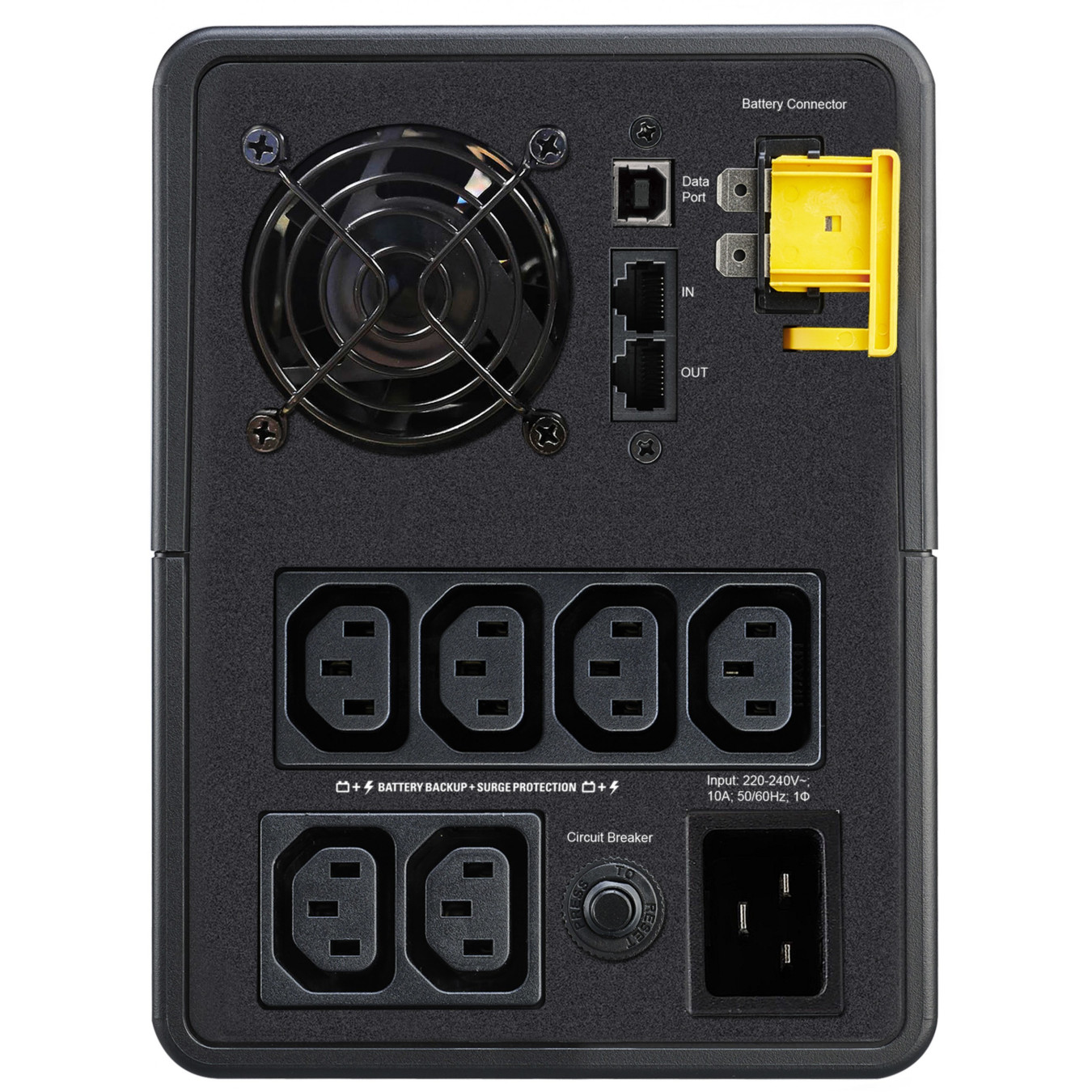

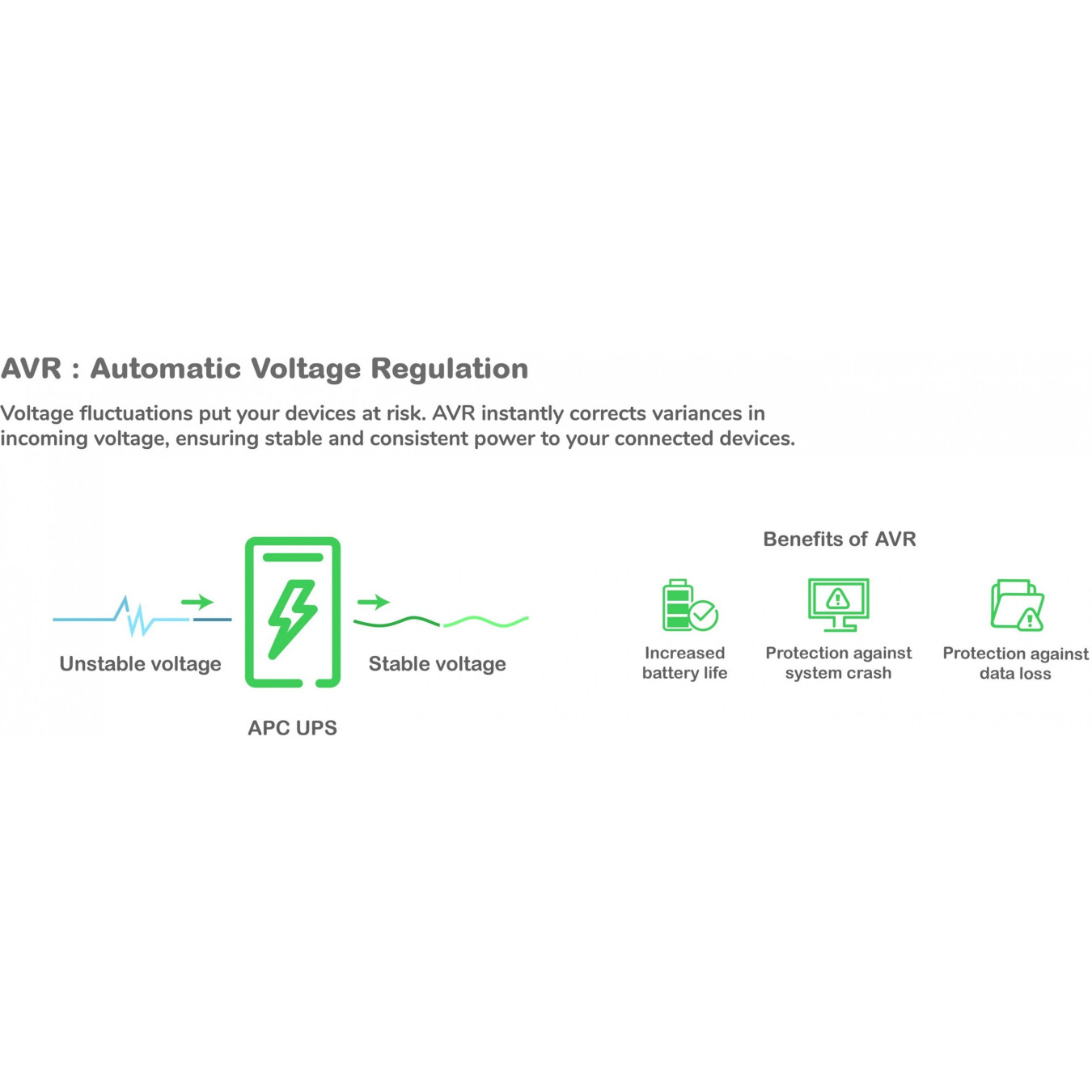

The APC Back-UPS BX2200MI is a reliable 2200VA/1200W line-interactive tower UPS designed for home and small office use. It features Automatic Voltage Regulation (AVR) to stabilize fluctuating input voltages from 140-300V, protecting connected equipment from power surges and brownouts. The UPS provides 6x IEC C13 outlets powered by a C19 input coupler, with a surge energy rating of 273J and typical transfer time of 6ms.

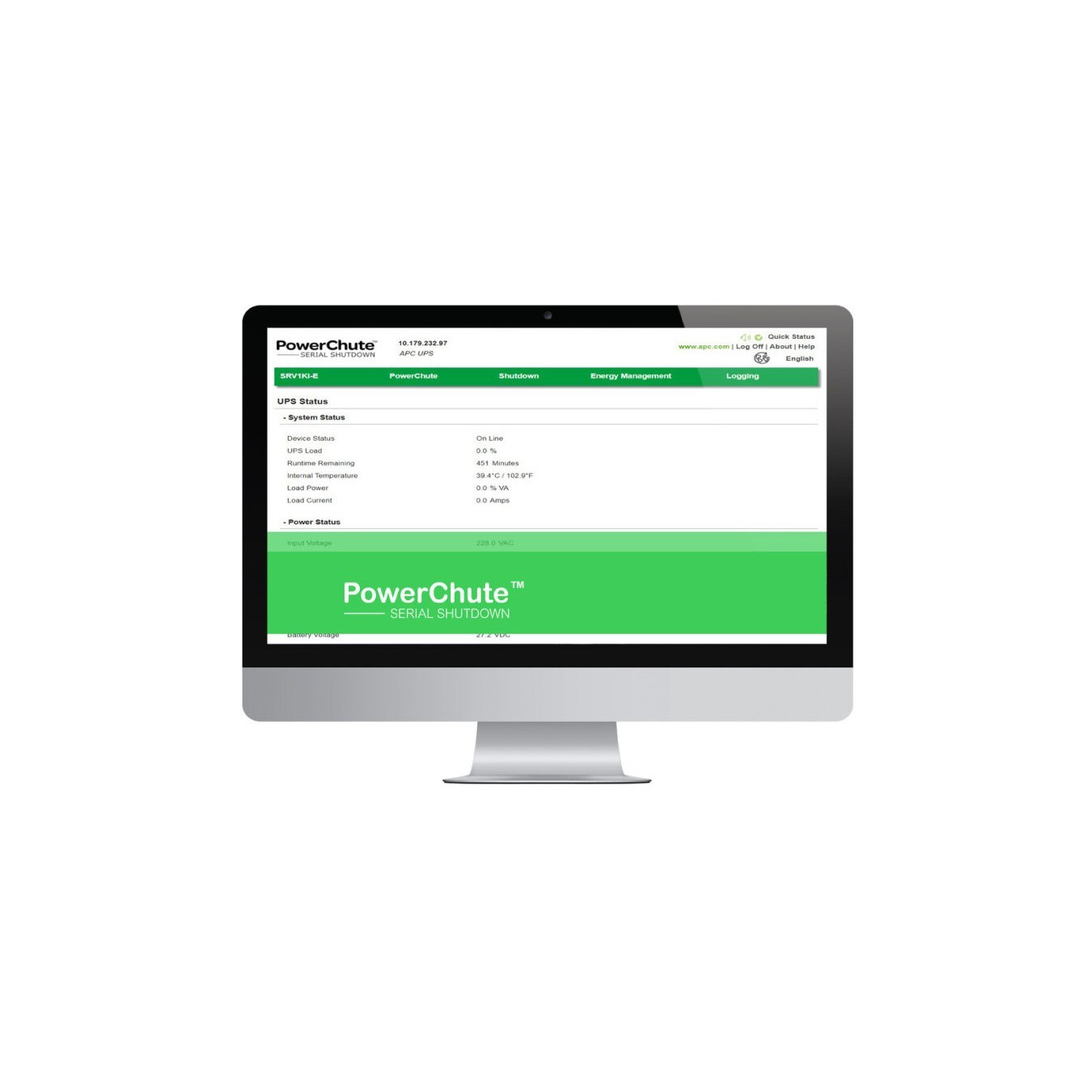

Equipped with a sealed lead-acid (VRLA) battery, it delivers approximately 1 minute at full load and 8.5 minutes at half load. Communication is via USB Type-B port for monitoring and auto-shutdown using included software. The compact black tower (14x19x39cm, 12.3kg) operates quietly at 40dB with low battery alarm.
- Topology: Line-Interactive with stepped sine wave
- Input: 230V, 50/60Hz, 1.2m cable
- Output regulation: ±10% voltage, 0.5Hz frequency
- Environmental: 0-40°C, 0-95% RH, 0-3000m altitude
- Certifications: CE, RoHS, IEC 62040
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1200 W |
| Waveform | Stepped approximation to a sinewave |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 0.5 Hz |
| Output voltage regulation | 10% |
| Surge energy rating | 273 J |
| Response time | 6 ms |
| Input power factor | 0.54 |
| Noise level | 40 dB |
| AC outlet types | C13 coupler |
| Power plug | C19 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Battery technology | Sealed Lead Acid (VRLA) |

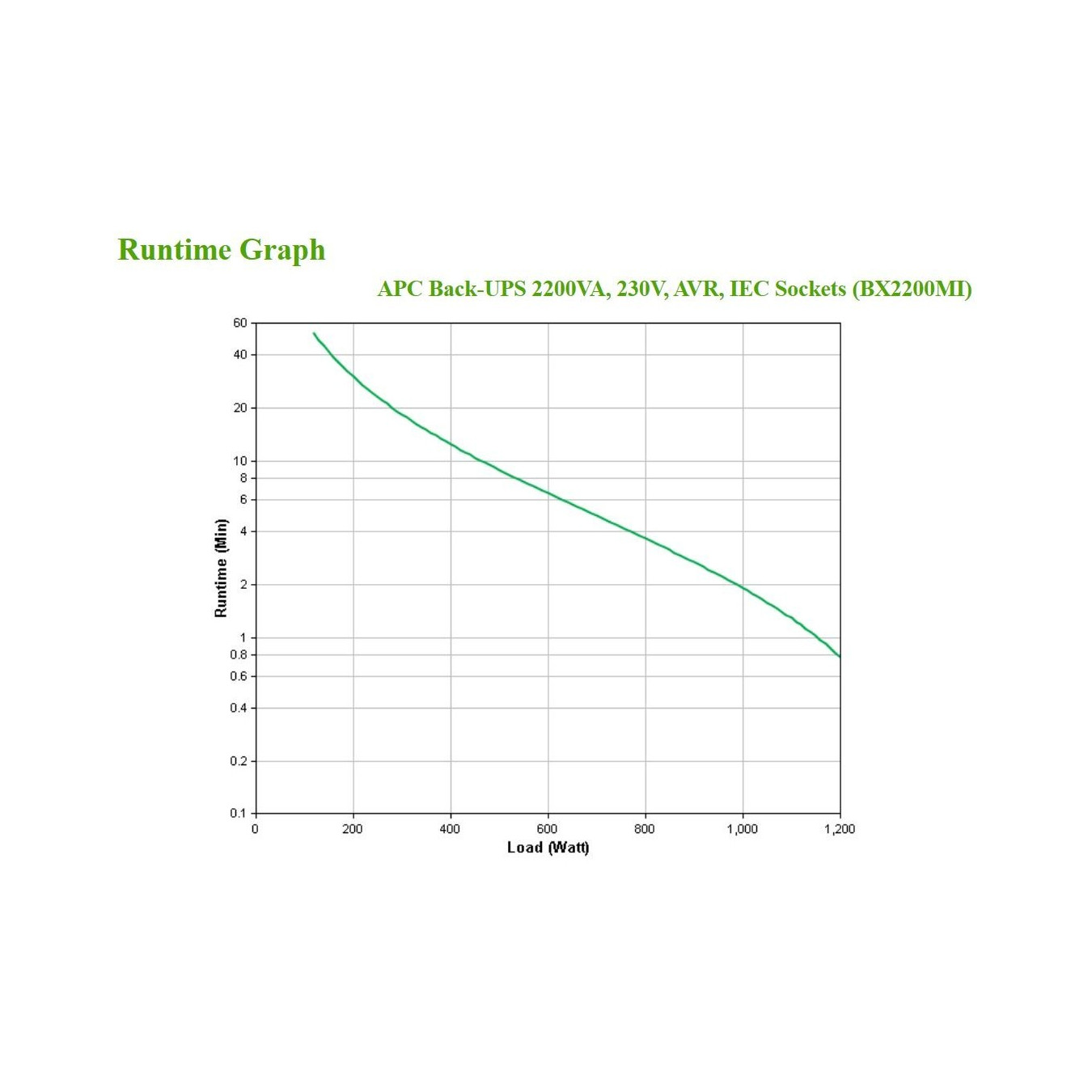

| Typical backup time at full load | 1 min |
| Typical backup time at half load | 8.5 min |
| Battery recharge time | 8 h |
| Form factor | Compact |
| Cable length | 1.2 m |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 12.3 kg |
| Package width | 235 mm |
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 13.3 kg |
