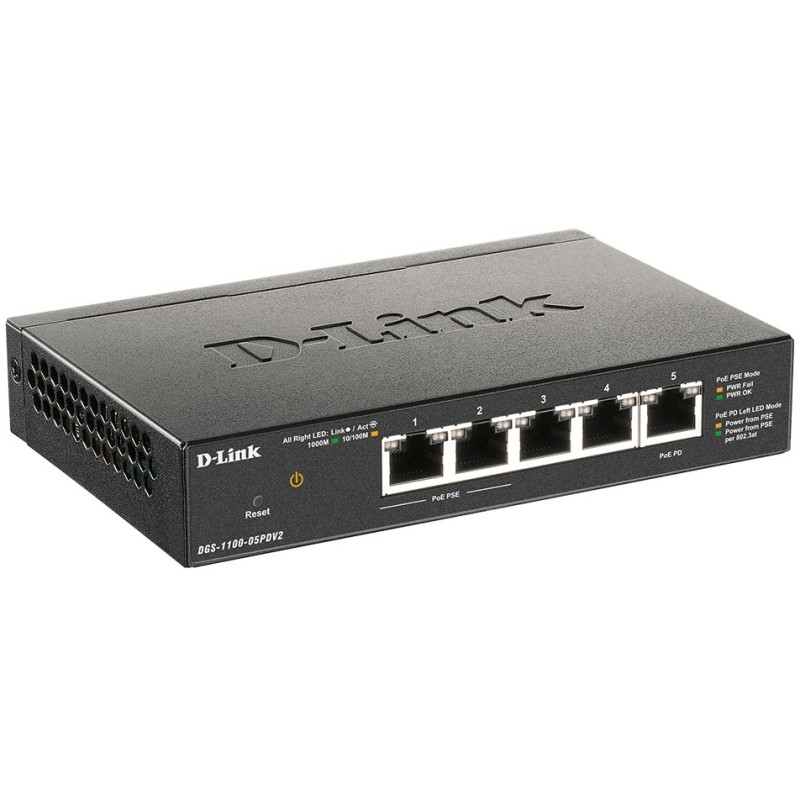

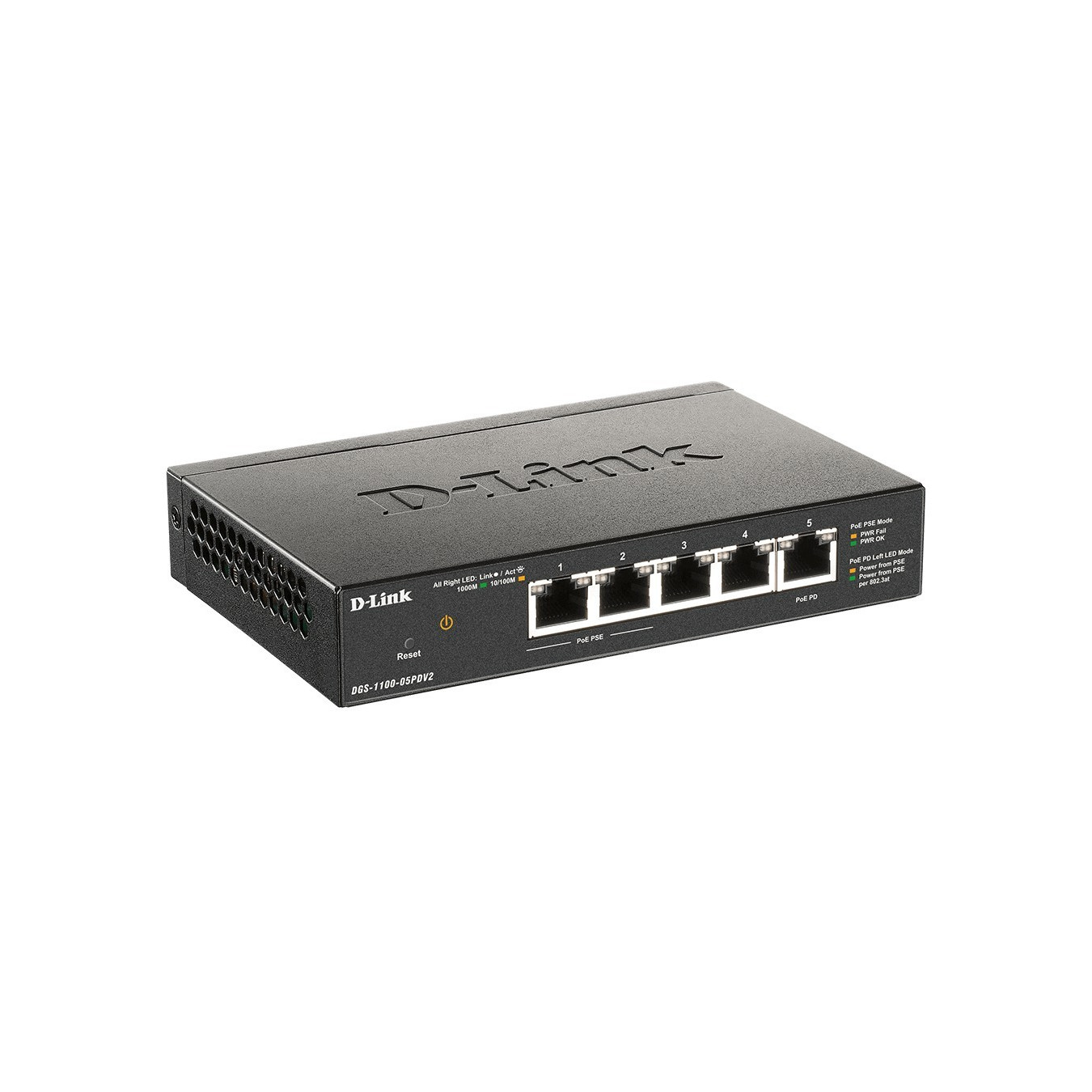

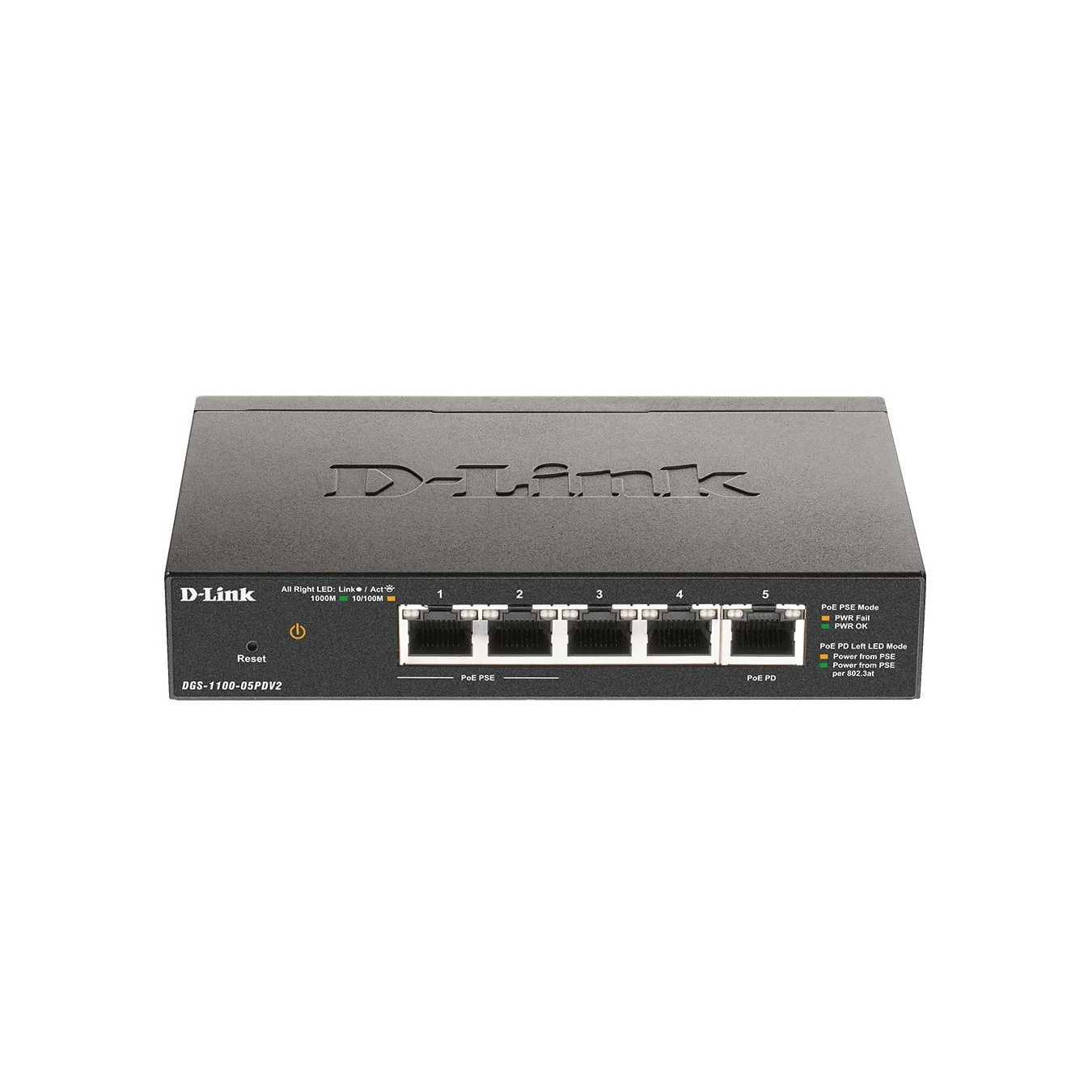

D-Link DGS-1100-05PDV2 - 5-Port Gigabit Smart PoE Switch (2 PoE ports, 18W/port) - Black
Compact 5-port Gigabit Smart (web-managed) PoE switch with 2 PoE ports (18W/port), 1 PD port, L2 features (VLAN, QoS), fanless desktop design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Smart (Web-managed) |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | less than or equal to60 W |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. Power over Ethernet (PoE)
| Switch type | Managed |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x |
| Ethernet LAN data rates | 10000 Mbit/s |
| Virtual LAN features | Management VLAN. Port-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Number of trunks | 1 |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| DHCP features | DHCP client |
| IGMP entries | 128 |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Static MAC address entries |
| Product colour | Black |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 2357475 h |
| Power source | PoE |
| Power consumption (typical) | 3.24 W |
| Power consumption (max) | 24.08 W |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) power per port | 18 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 150 mm |
| Depth | 97 mm |
| Height | 28 mm |
| Weight | 380 g |
| Compliance certificates | BSMI. CB. Federal Communications Commission (FCC). Low Voltage Directive (LVD). VCCI |
| Harmonized System (HS) code | 85176990 |
