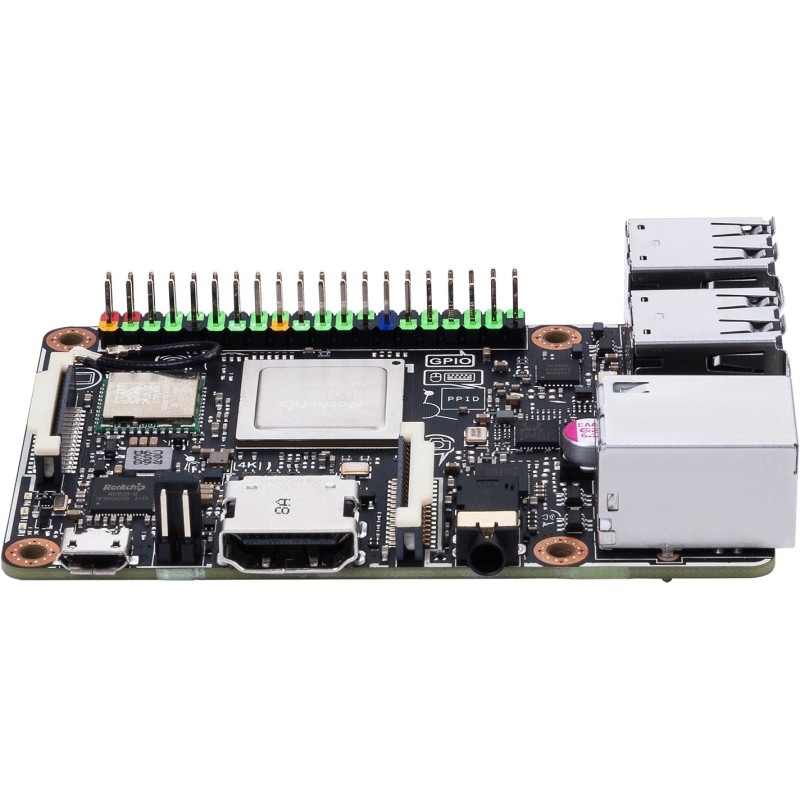

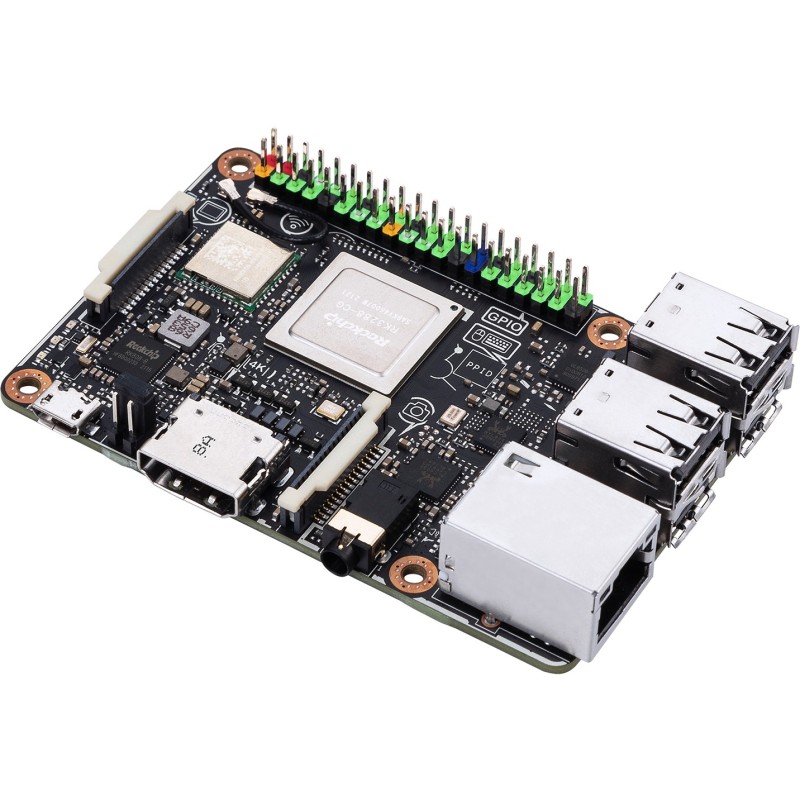

ASUS Tinker Board S R2.0 - Rockchip RK3288, 2GB DDR3, 16GB eMMC, Gigabit Ethernet, HDMI
ASUS Tinker Board S R2.0 SBC with Rockchip RK3288 quad-core CPU, 2GB DDR3 RAM, 16GB eMMC, Gigabit Ethernet, HDMI, Wi-Fi (802.11n) and Bluetooth 4.2
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Other |
|---|---|
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - Video Outputs | HDMI |
| Barebone & Mini PCs - Ethernet | 1GbE |
ASUS Tinker Board S R2.0. Processor manufacturer: Rockchip. Processor model: Rockchip RK3288. Maximum internal memory: 2 GB. Internal memory type: DDR3-SDRAM. Memory channels: Dual-channel. Wi-Fi standards: 802.11b. 802.11g. Wi-Fi 4 (802.11n). Ethernet interface type: Gigabit Ethernet. Audio port type: 3.5mm. MultiVolt I/Os: 3.3.5 V. Height: 85.5 mm. Weight: 55 g. Width: 54 mm
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3288 |
| Processor cores | 4 |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
| eMMC capacity | 16 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Feature | PCM interface |
| Wi-Fi standards | 802.11b. 802.11g. Wi-Fi 4 (802.11n) |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0 |
| USB ports quantity | 4 |
| Audio port type | 3.5mm |
| Bluetooth version | 4.2+EDR |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| MultiVolt I/Os | 3.3.5 V |
| Height | 85.5 mm |
| Weight | 55 g |
| Width | 54 mm |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
