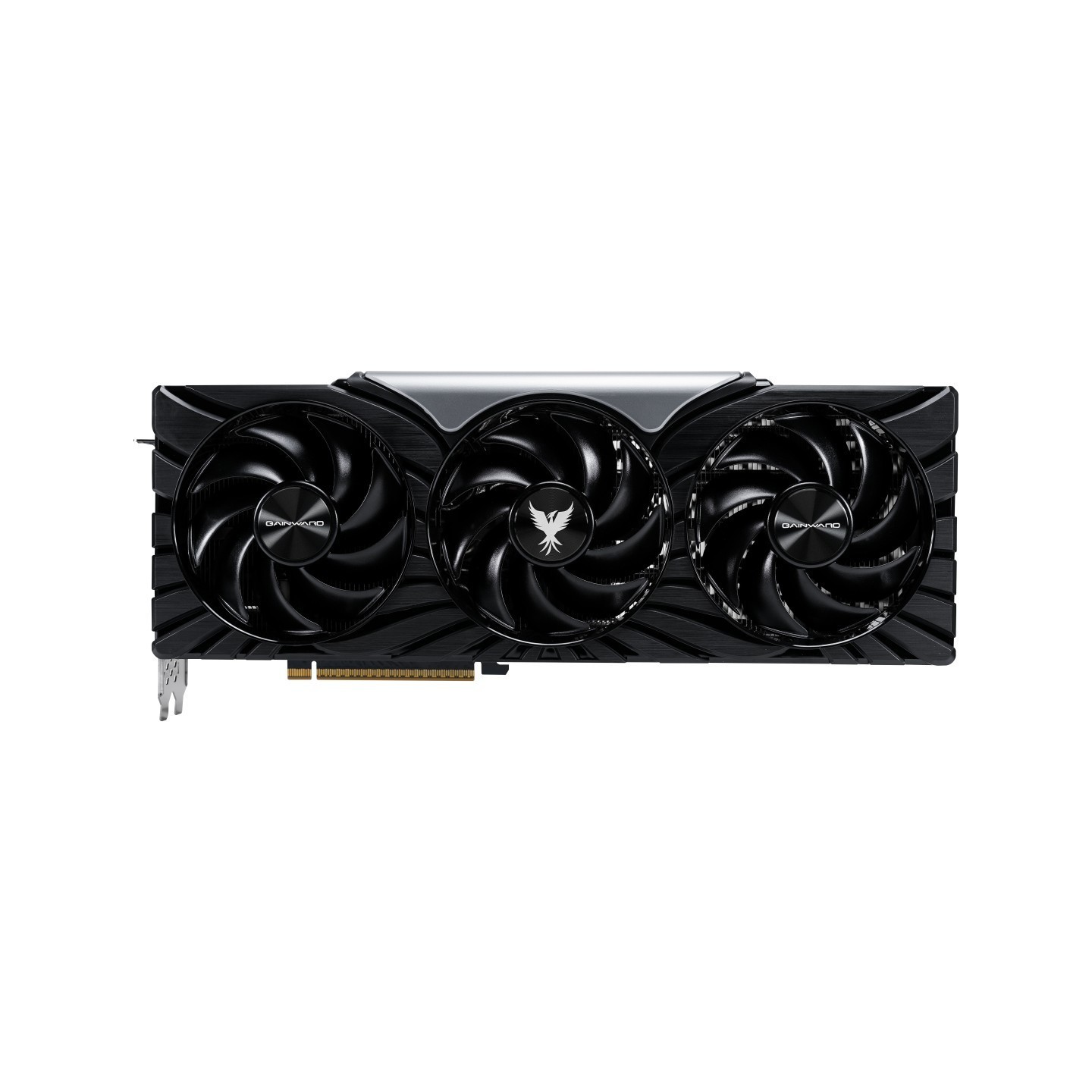

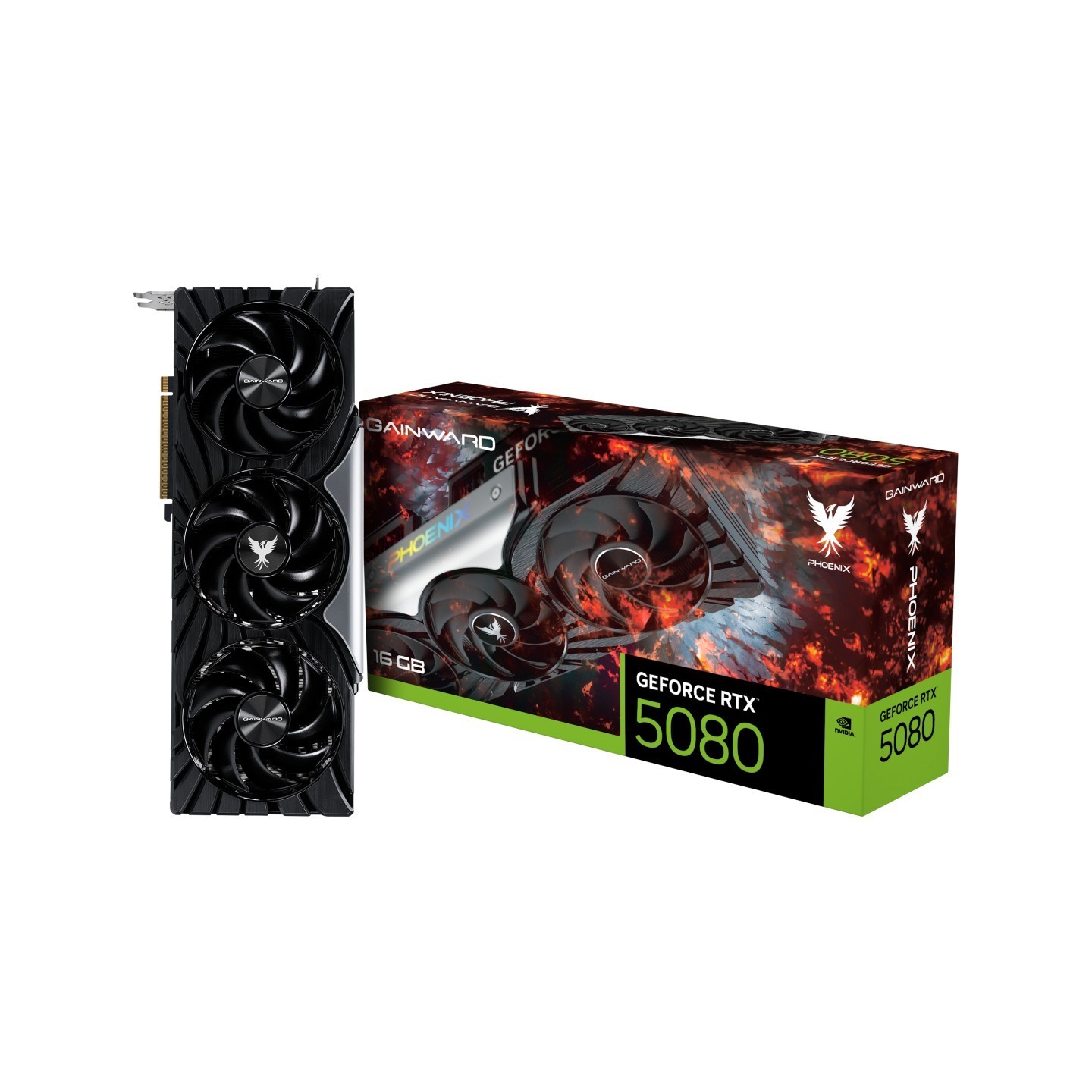

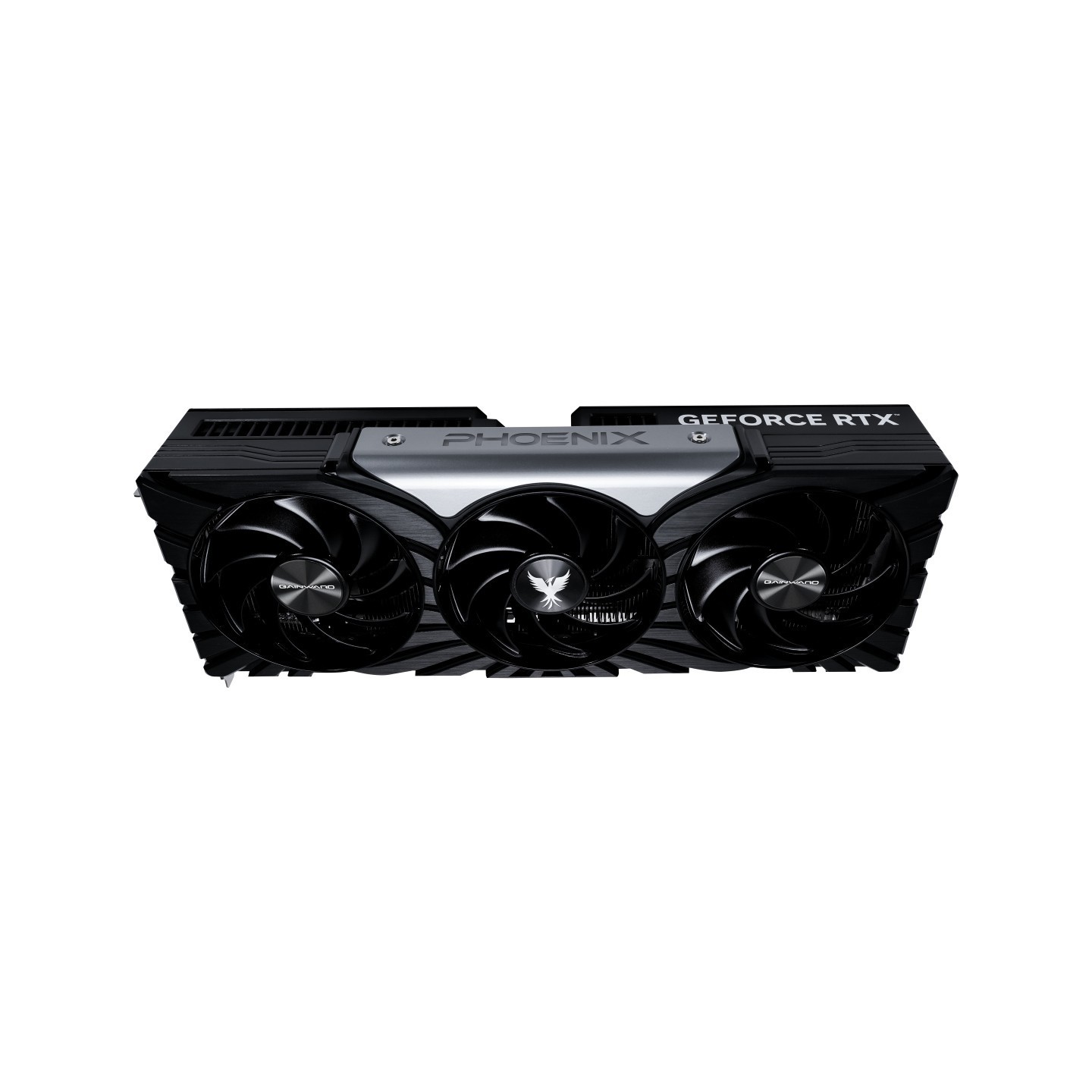

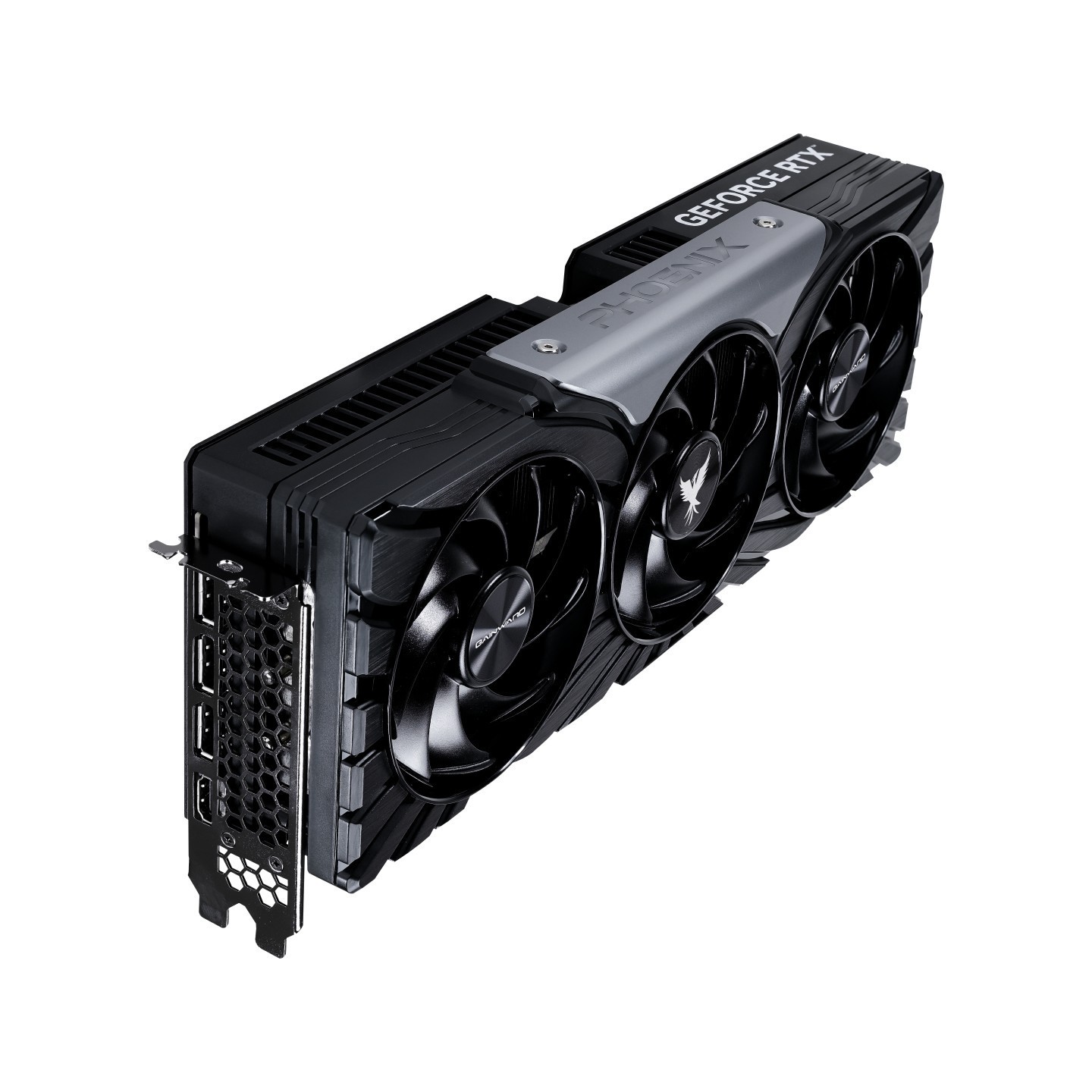

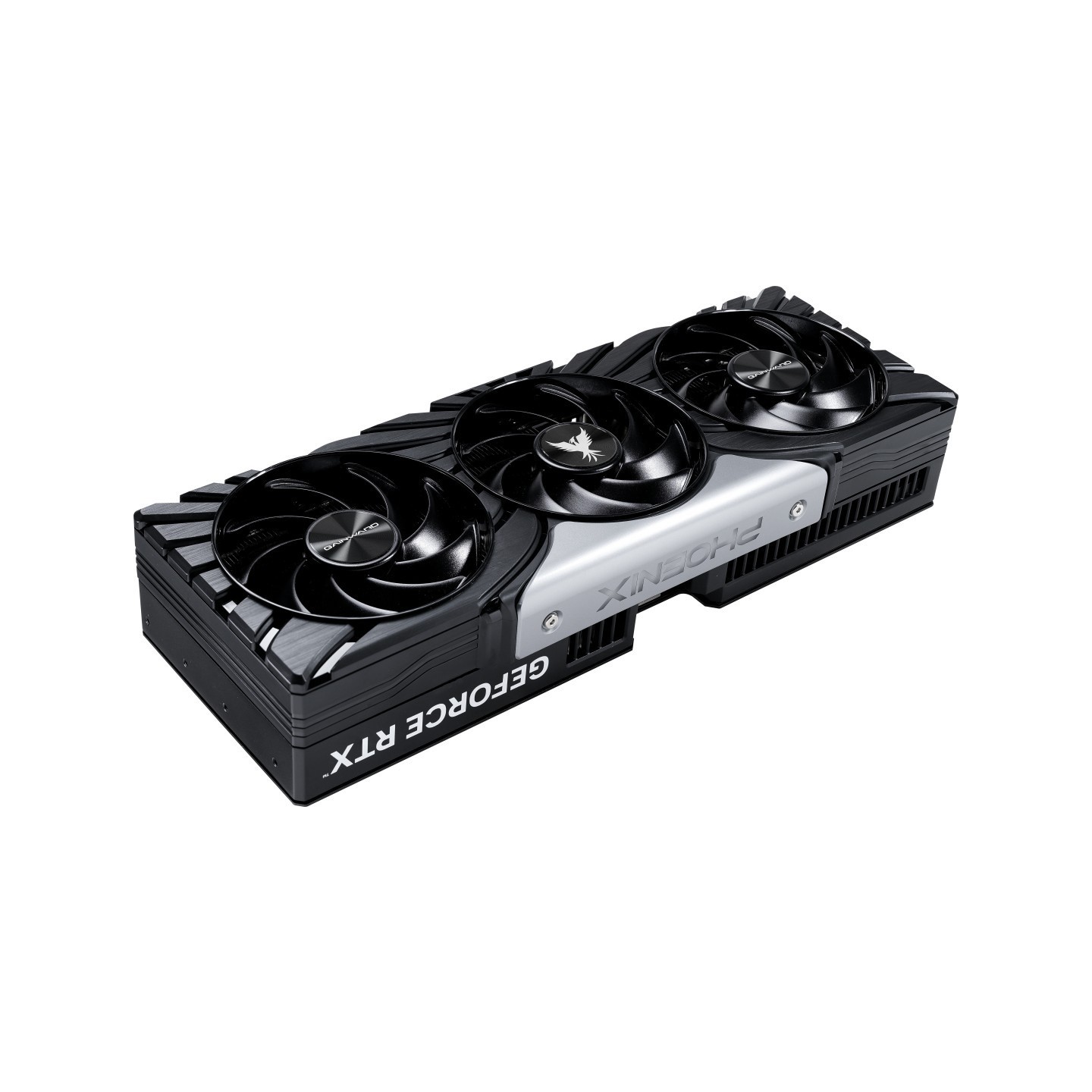

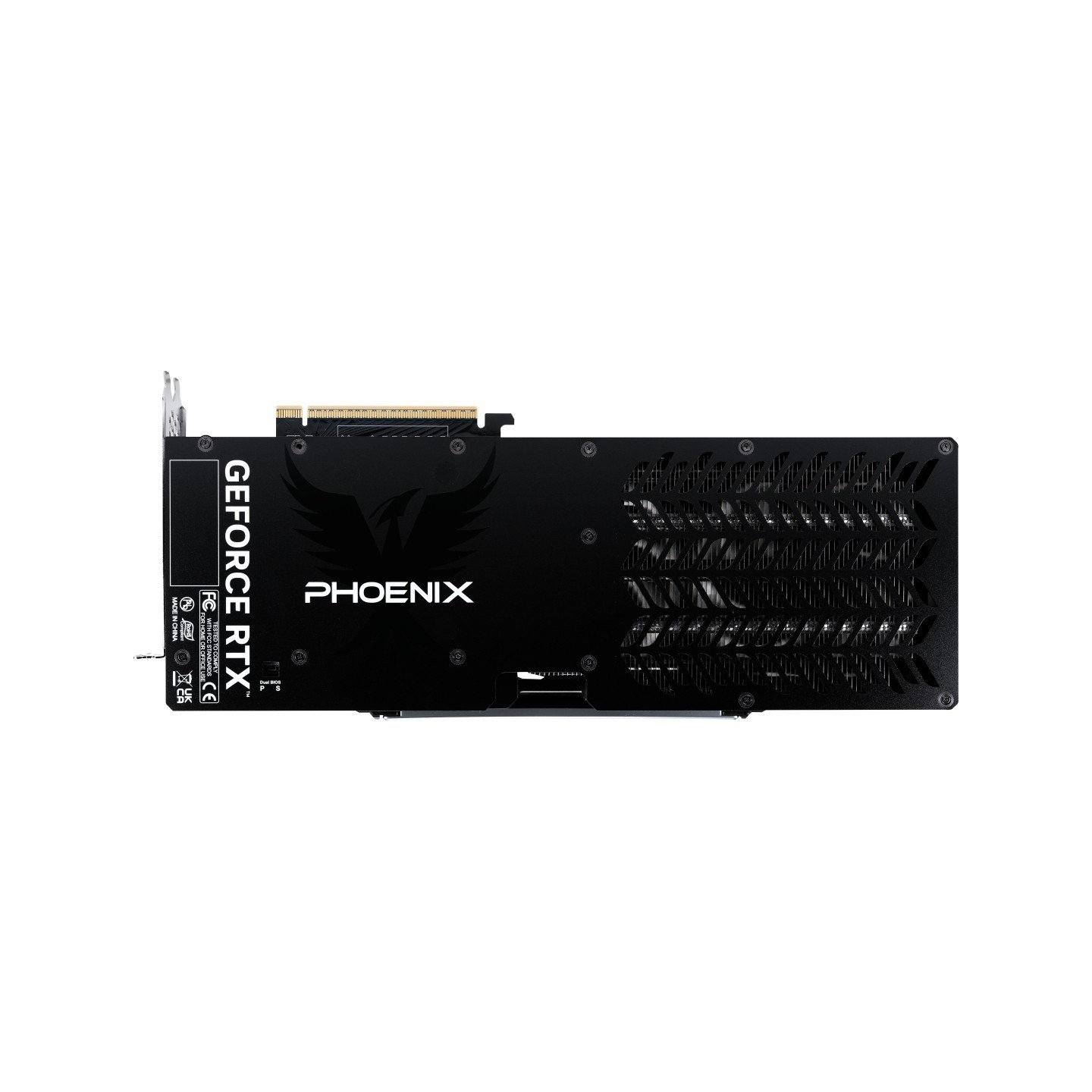

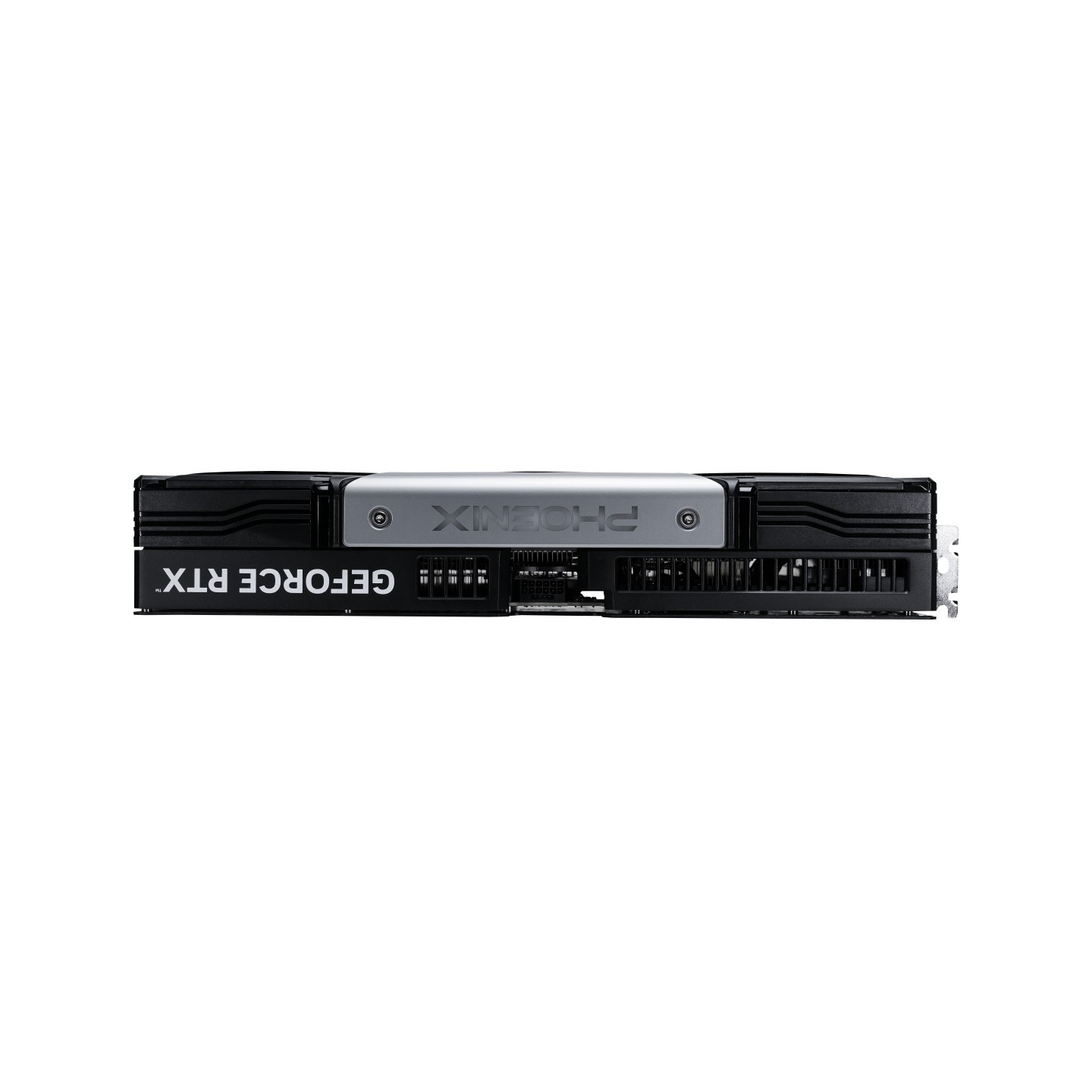

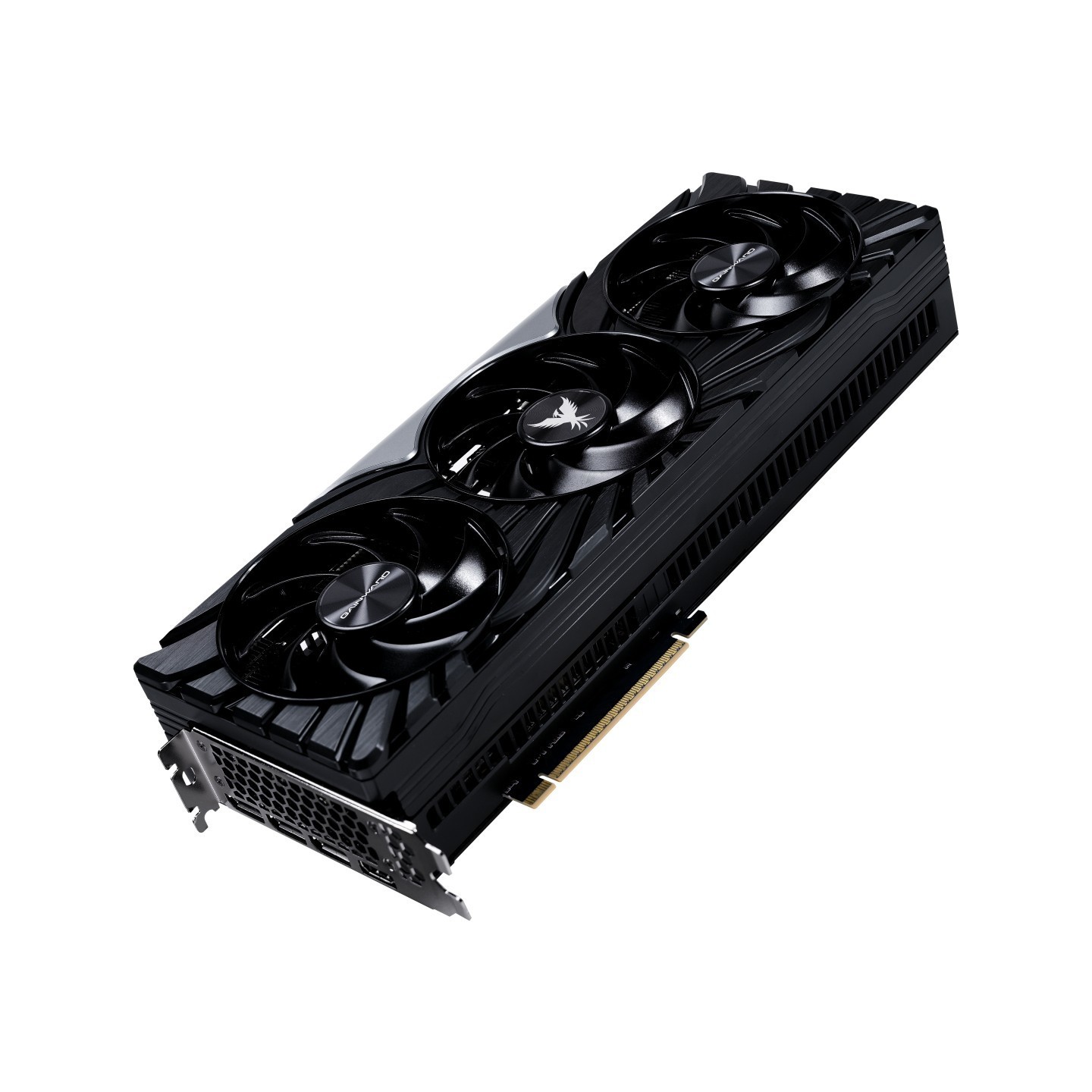

Gainward Phoenix GeForce RTX 5080 - 16GB GDDR7, 256-bit, 2617MHz Boost - PCIe 5.0, 3x Fans (Boxed)
Gainward Phoenix GeForce RTX 5080: 16GB GDDR7, 256-bit, 2617MHz boost clock, PCIe 5.0 x16. Triple axial fans for active cooling, supports 7680x4320. 1x 16-pin power, DP 2.1a x3, HDMI 2.1b. Multi-color RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Ultra (321-340 mm) |
The Gainward Phoenix GeForce RTX 5080 is a high-performance graphics card powered by NVIDIA's GeForce RTX 5080 GPU, featuring 16GB of GDDR7 memory on a 256-bit bus with 960 GB/s bandwidth. It delivers exceptional 4K gaming and content creation capabilities with DLSS 4, full ray tracing, and Reflex 2 technologies for smooth, responsive performance.

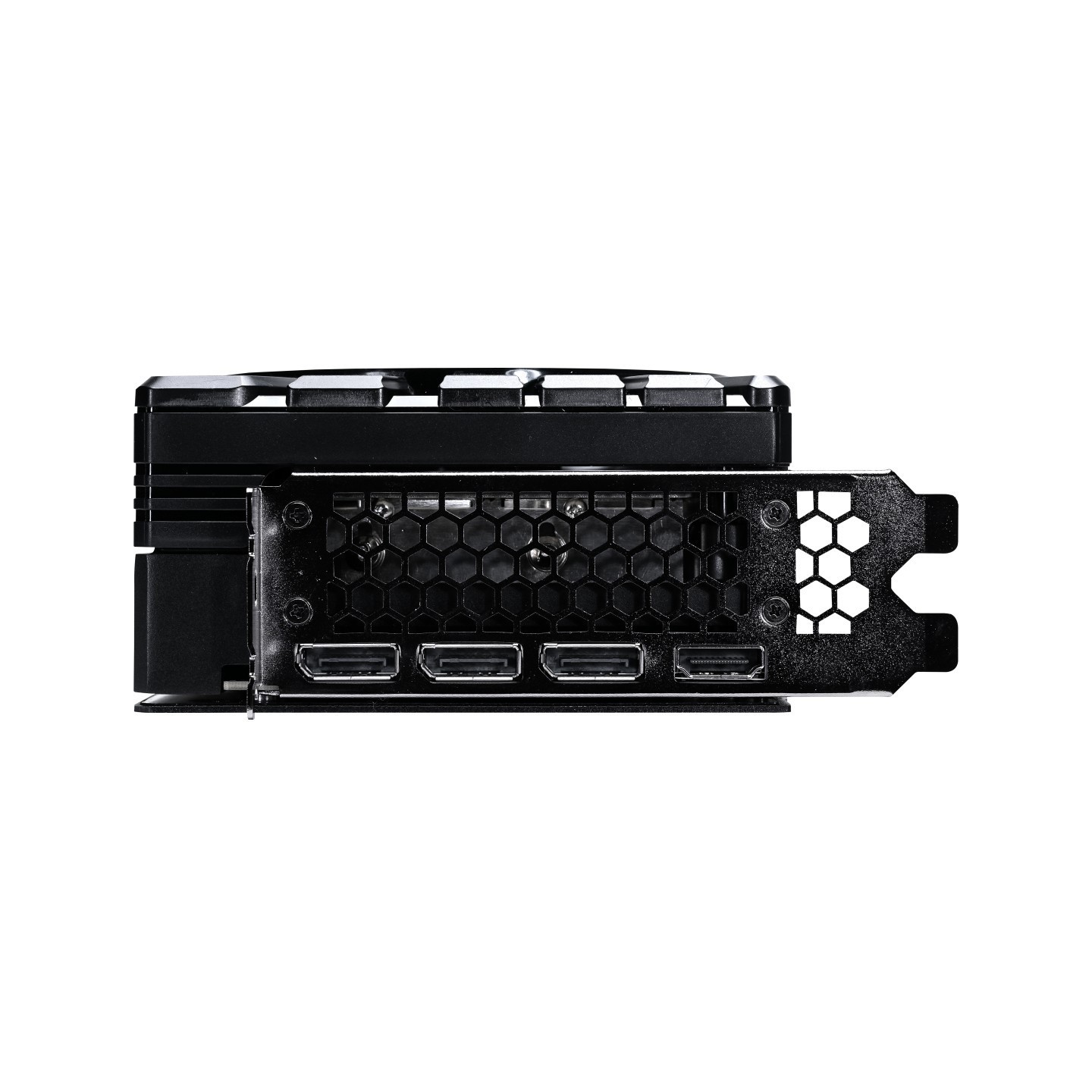

Equipped with PCIe 5.0 interface, triple axial fans for efficient active cooling, and dimensions of 331.9 x 133.1 x 60 mm, it fits in most modern cases requiring 3 slots. Connectivity includes 3x DisplayPort 2.1a and 1x HDMI 2.1b, supporting up to 7680x4320 resolution. Powered by a single 16-pin connector, it draws around 360W TBP.
- Key Features: 10752 CUDA cores, 2617 MHz boost, Multi RGB illumination, Dual BIOS (Performance/Silent modes)
- Cooling: 3 fans with 0dB idle mode
- Outputs: 3x DP 2.1a, 1x HDMI 2.1b
- Power: 1x 16-pin PCIe 5.0
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor boost clock speed | 2617 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 15000 MHz |
| Data transfer rate | 30 Gbit/s |
| Memory bandwidth (max) | 960 GB/s |
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3 |
| Illumination colour | Multi |
| Product colour | Black, Silver |
| Supplementary power connectors | 1x 16-pin |
| Length | 331.9 mm |
| Depth | 60 mm |
| Height | 133.1 mm |
| Total Board Power (TBP) | 360W |
| Dual BIOS | Yes (Performance/Silent) |
