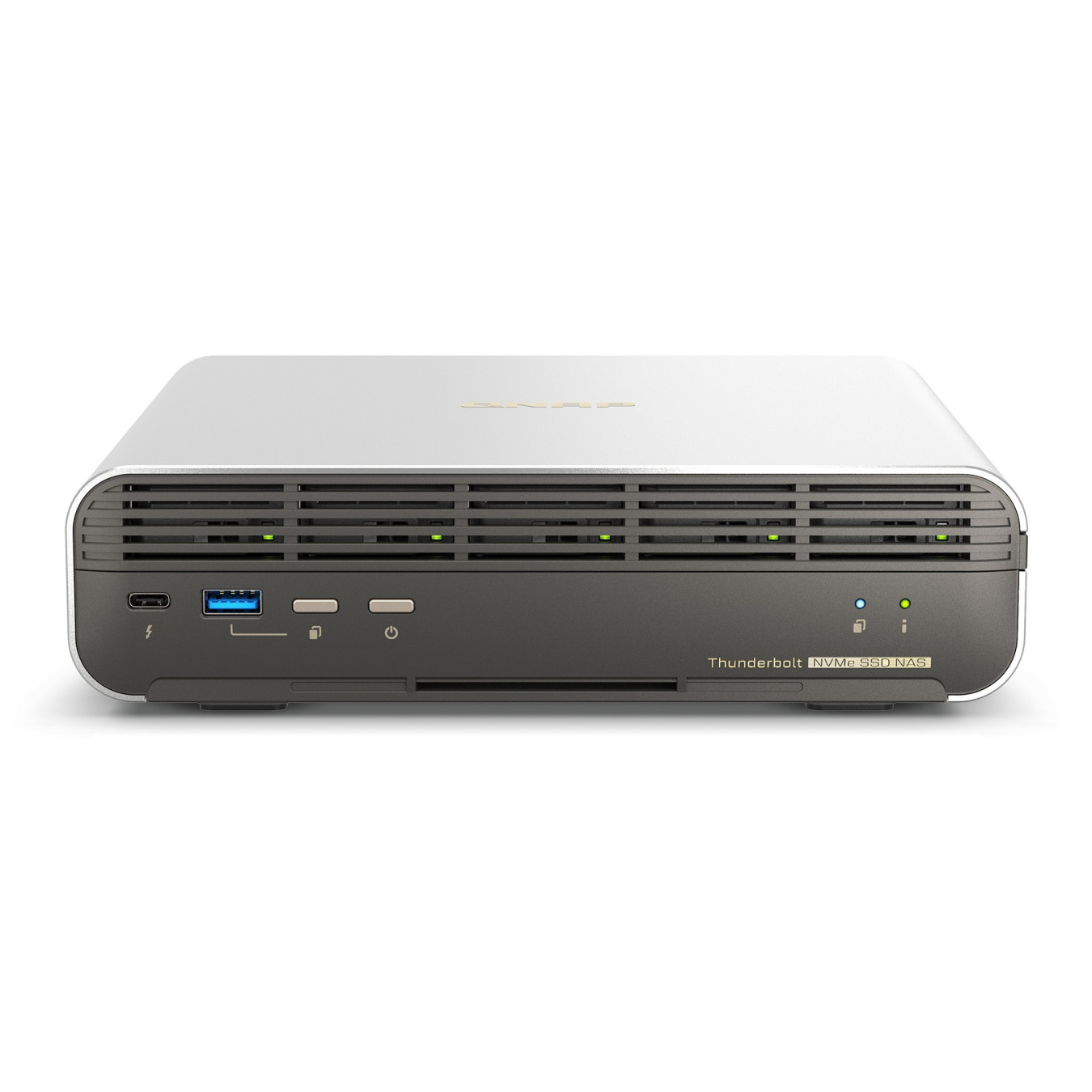

QNAP TBS-h574TX-i5-16G - 5-Bay All-Flash NASbook - Intel Core i5-1340PE 12C/16T 4.5GHz, 16GB
5-bay all-flash NASbook with Intel Core i5-1340PE (12C/16T up to 4.5GHz), onboard 16GB RAM, dual 10GbE, 2x Thunderbolt, M.2 storage, HDMI 1.4b.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 5 |
|---|---|
| NAS (Network Attached Storage) - Drive Type | M.2 NVMe (cache) |
| NAS (Network Attached Storage) - Memory (Installed) | 16 GB |
| NAS (Network Attached Storage) - LAN | 2x10GbE |
| NAS (Network Attached Storage) - USB | USB 3.0 |
QNAP TBS-H574TX-I5-16G. Type: NAS. Device class: Small & Medium Business. Processor family: Intel® Core™ i5. Processor model: i5-1340PE. Internal memory: 16 GB
| Storage drive interface | M.2 |
| Feature | Reset button |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1340PE |
| Processor boost frequency | 4.5 GHz |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor cache | 12 MB |
| On-board graphics card model | Intel Iris Xe Graphics |
| Internal memory | 16 GB |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500.5000.10000 Mbit/s |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt ports quantity | 2 |
| Number of fans | 3 fan(s) |
| LED indicators | Status. USB |
| Type | NAS |
| Device class | Small & Medium Business |
| Power supply unit (PSU) capacity | 120 W |
| Power consumption (typical) | 46 W |
| Width | 215 mm |
| Depth | 199 mm |
| Height | 60 mm |
| Weight | 2.24 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
