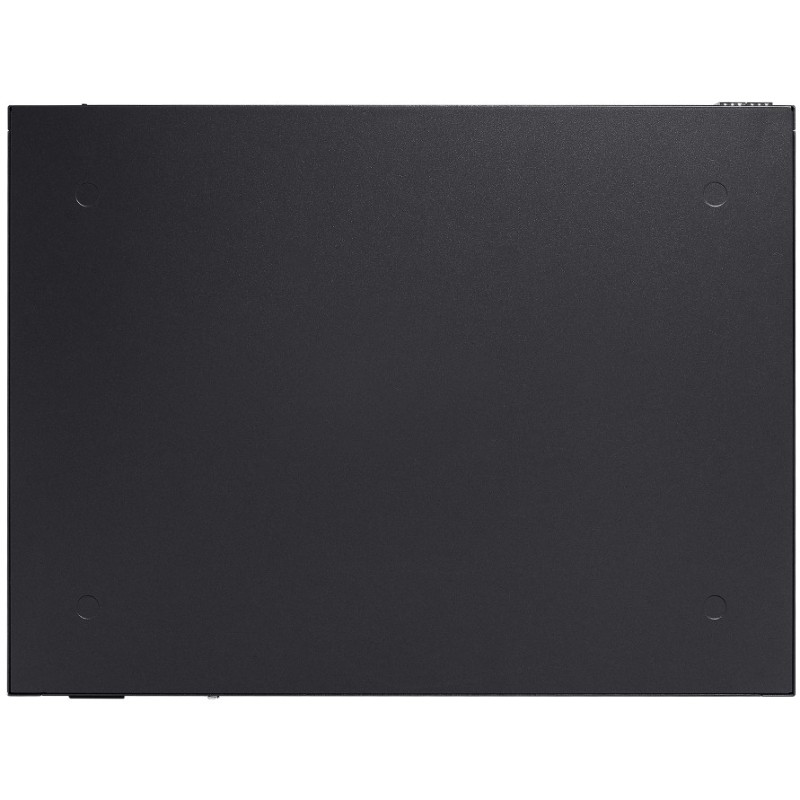

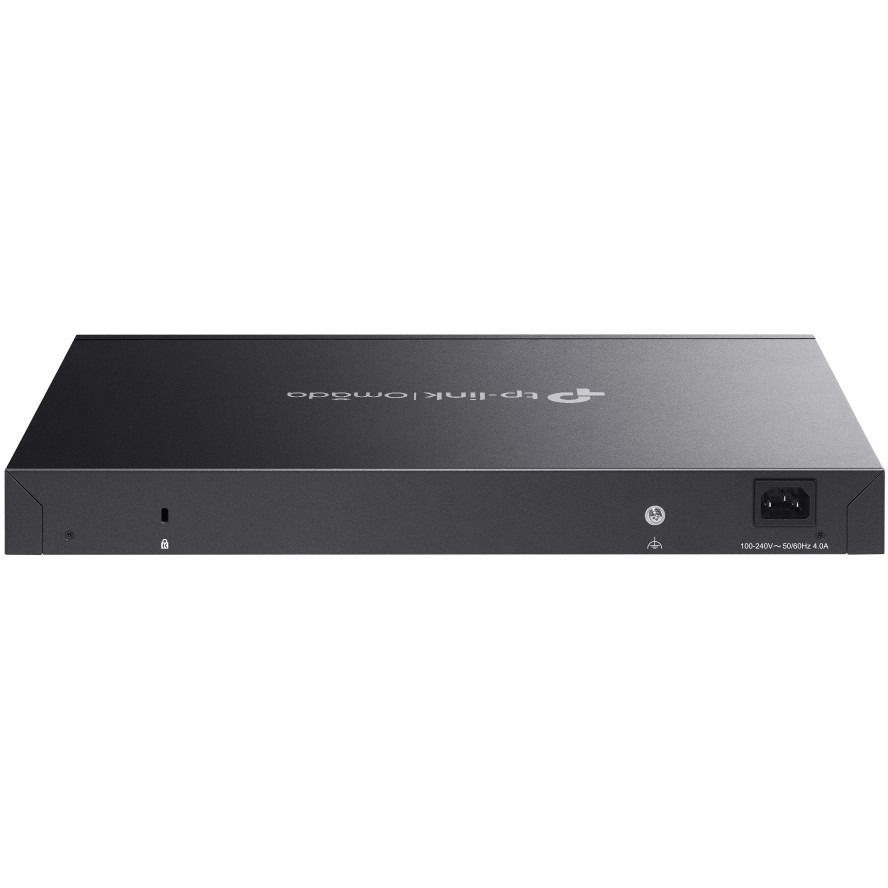

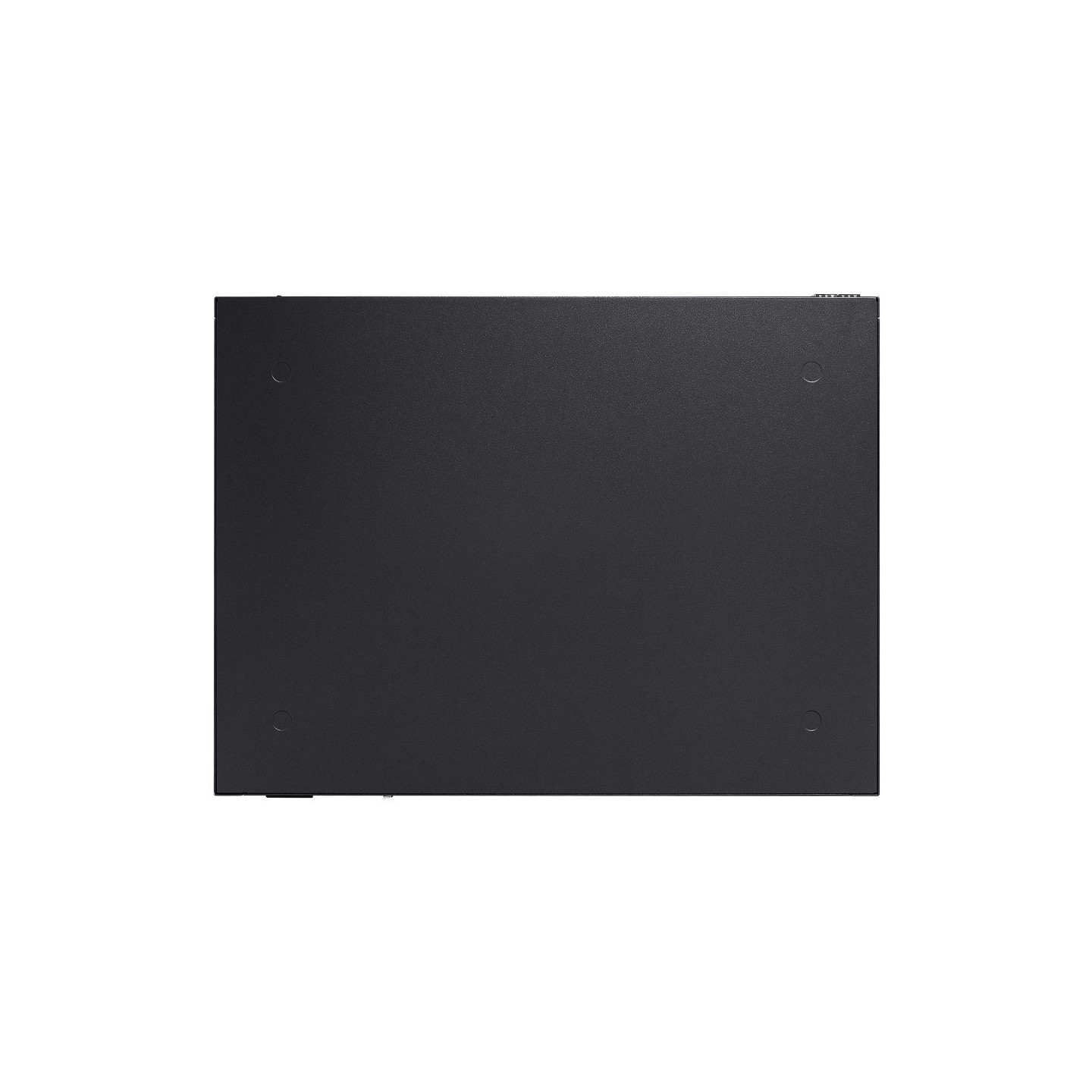

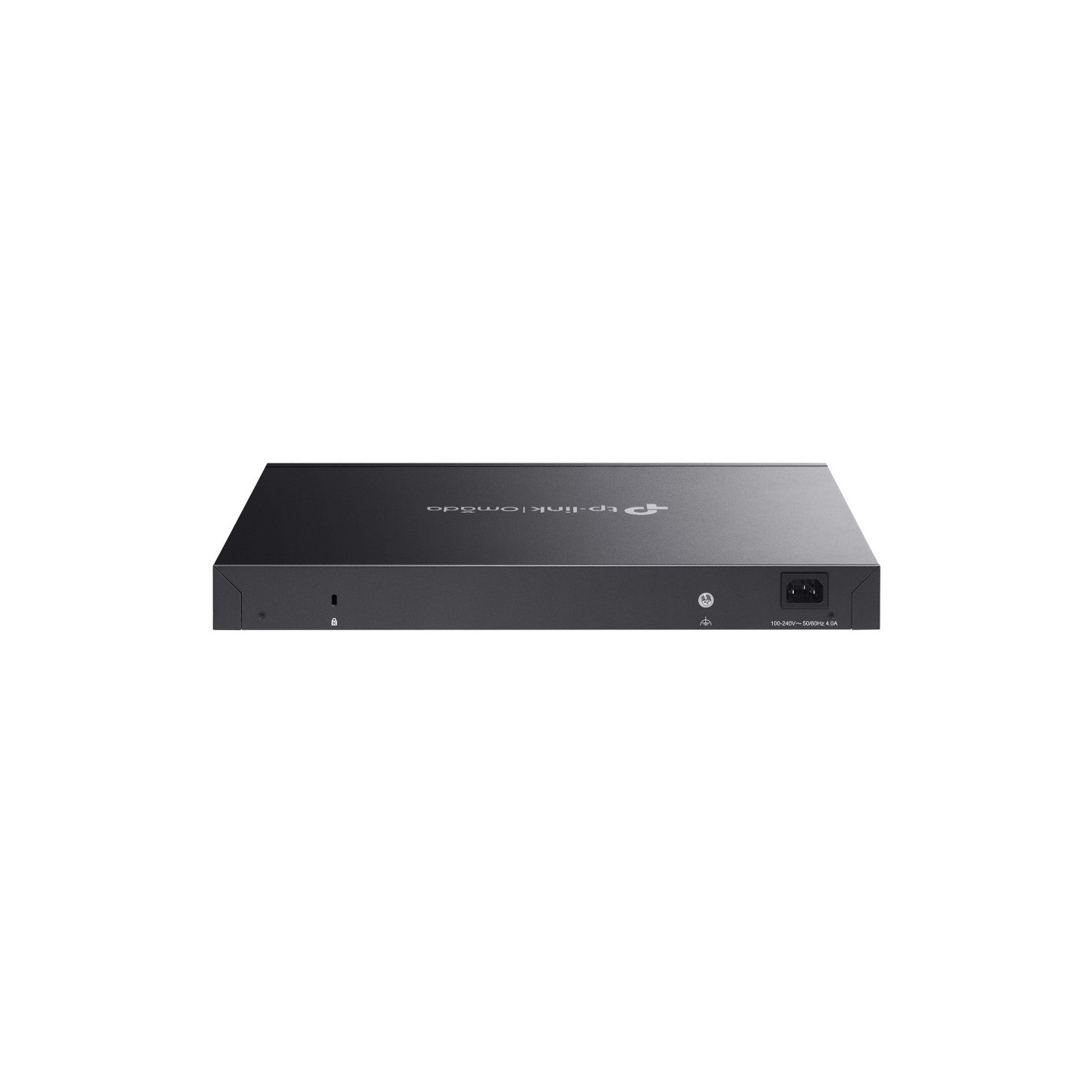

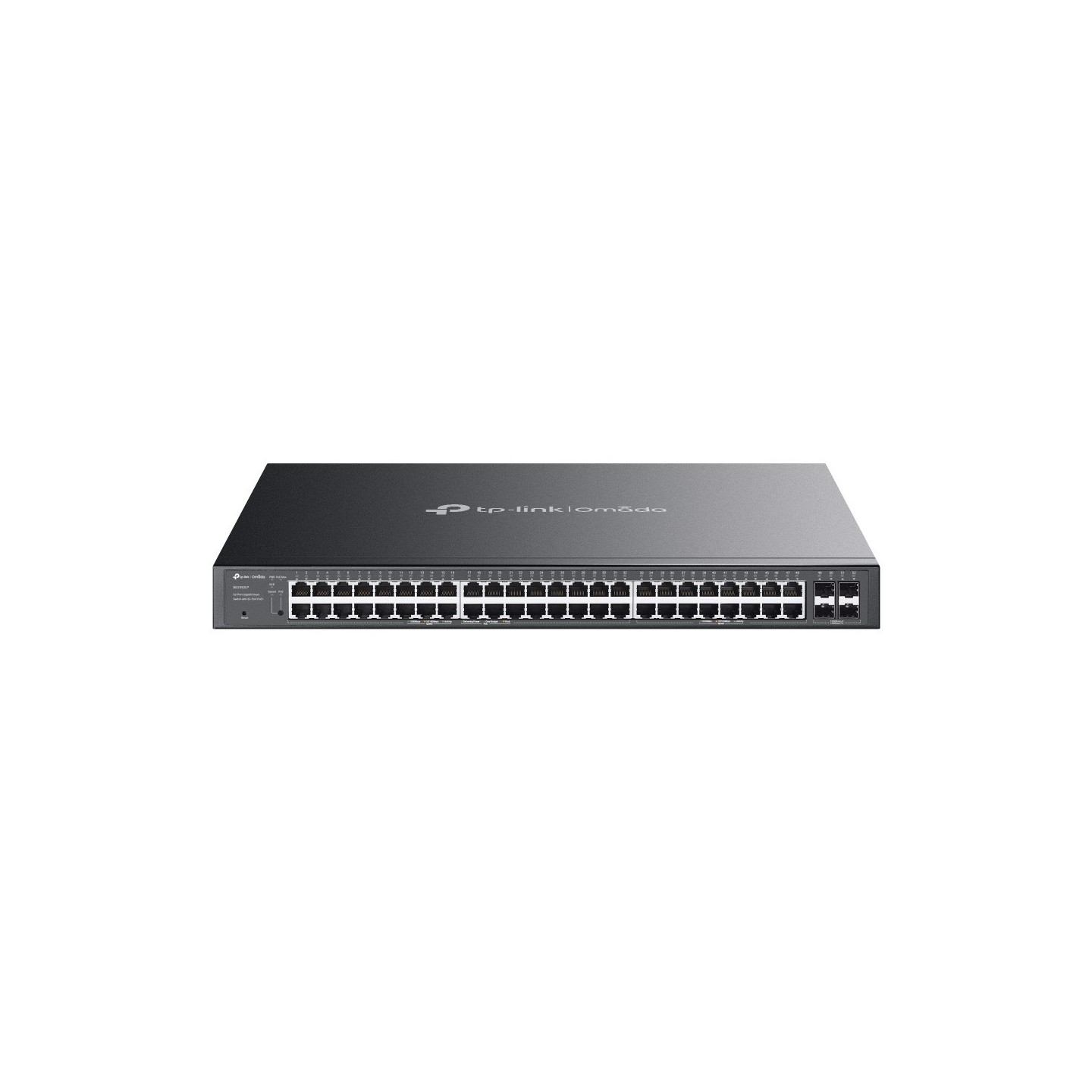

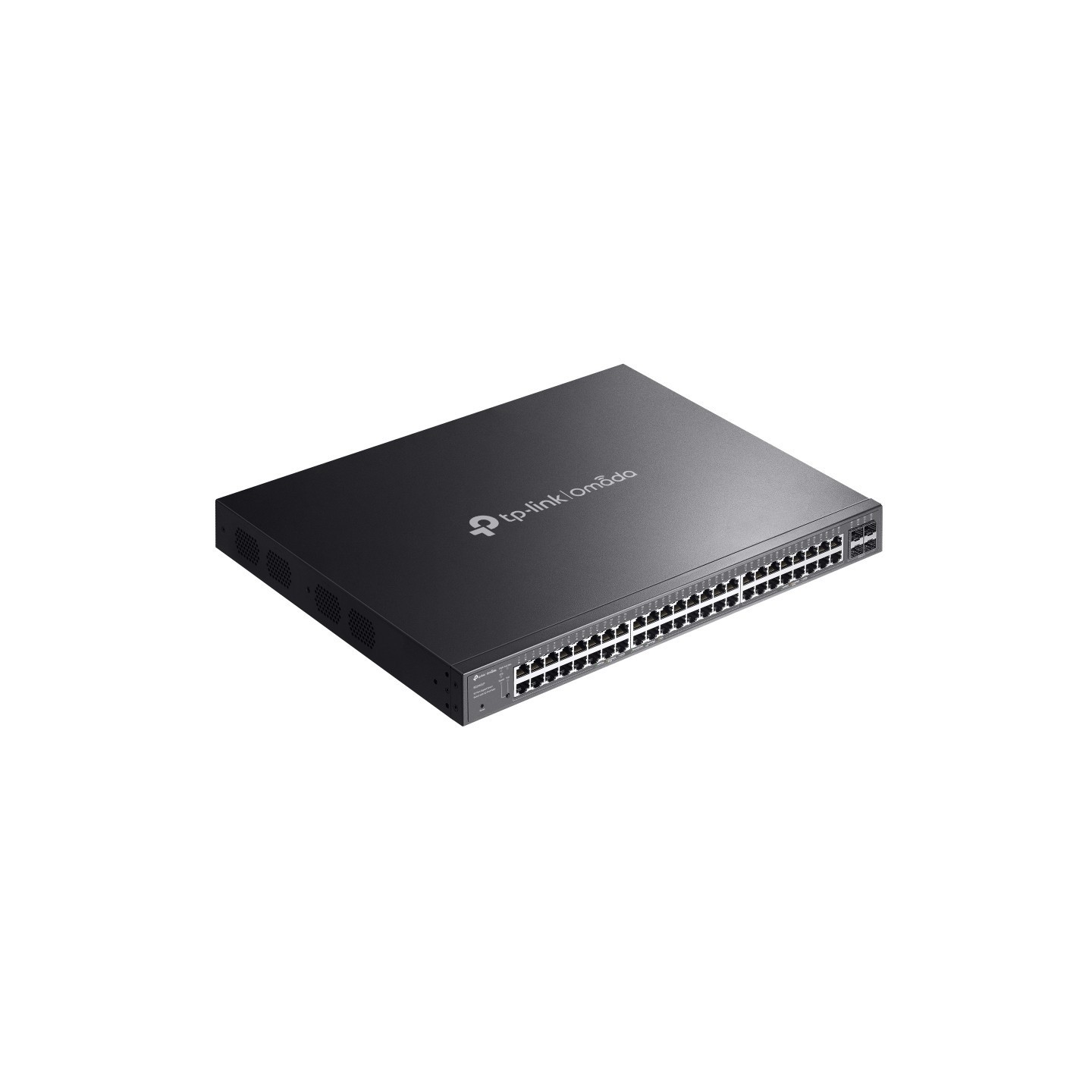

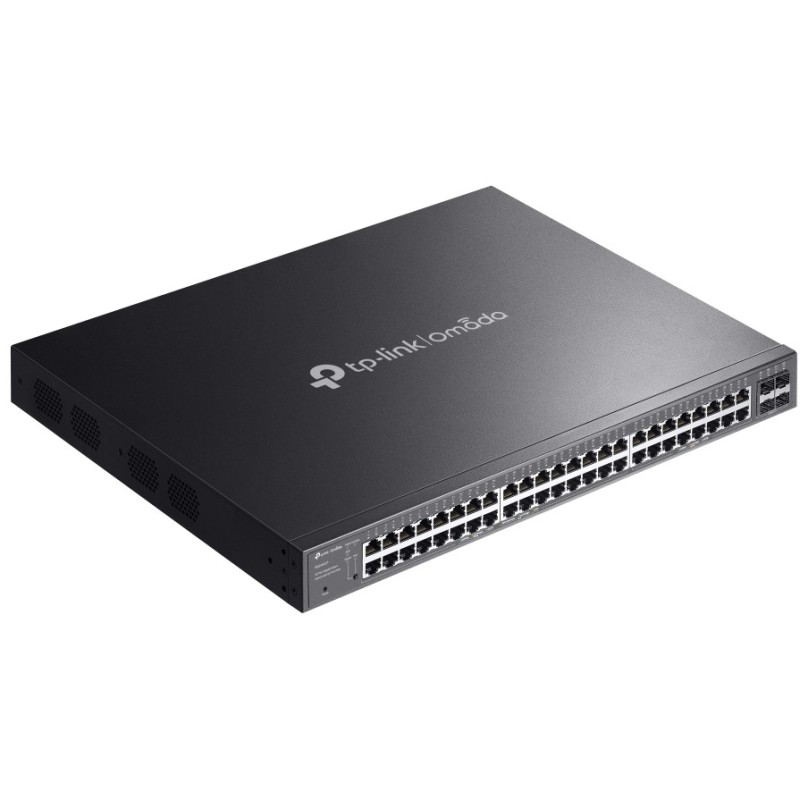

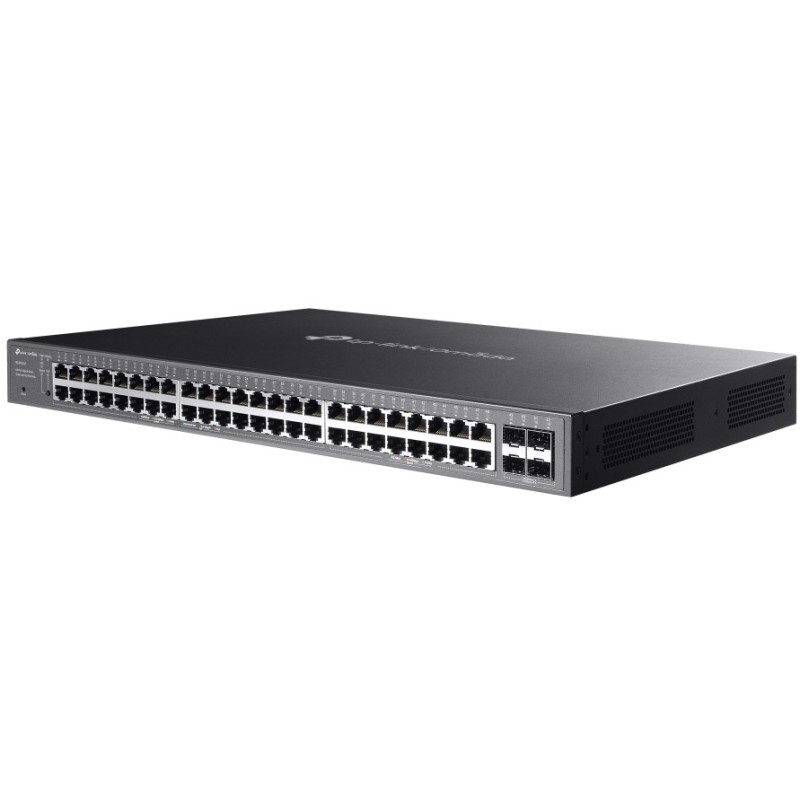

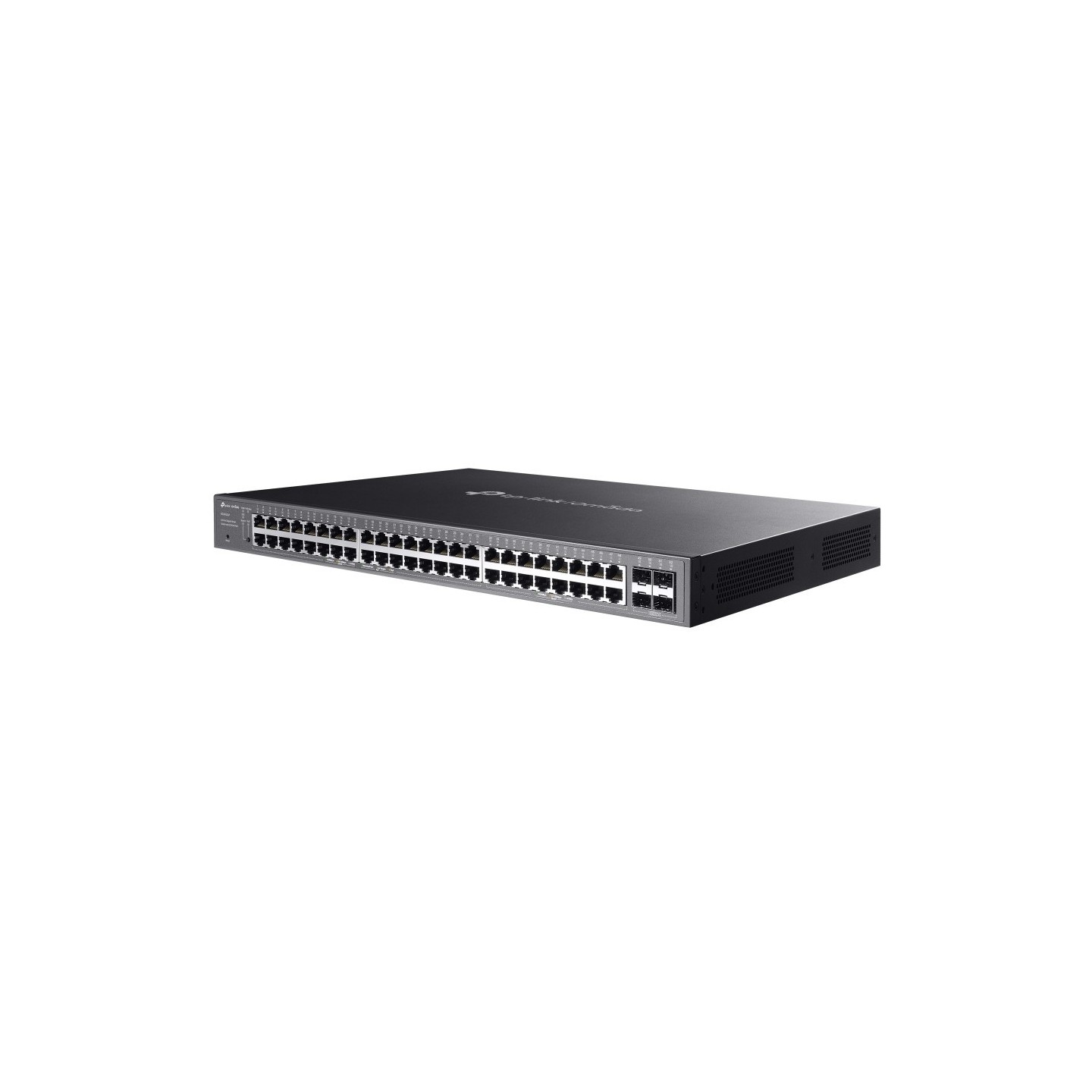

TP-Link Omada Switch SG2452LP - 52-Port Gigabit (32x PoE+) - Managed L2, 1U Rackmount, Black
52-port Gigabit smart switch (48 RJ45 + 4 SFP) with 32 PoE+ ports, 230W PoE budget, Managed L2, 10/100/1000 Mbps, 1U rackmount, AC powered.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+. Switch type: Managed. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3ab. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.37 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| DHCP features | DHCP relay. DHCP server |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Authentication type | RADIUS |
| Form factor | 1U |
| Product colour | Black |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 304.5 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1035.4 BTU/h |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
