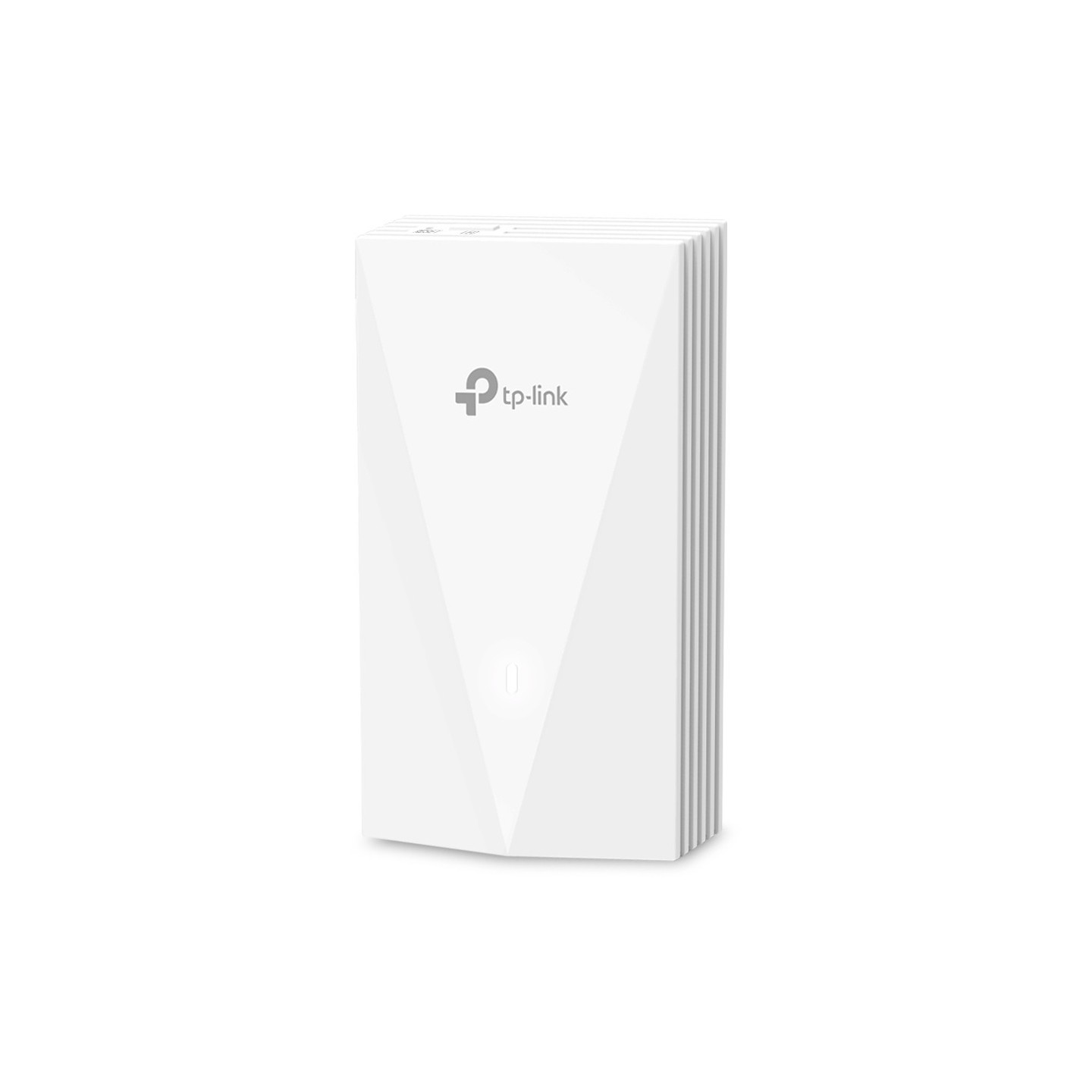

TP-Link Omada EAP655-Wall - AX3000 Wi-Fi 6 Wall-Plate AP, White, Dual-Band, 4x Gigabit LAN
AX3000 Wi‑Fi 6 wall-plate AP, dual-band 2.4/5 GHz up to 2402 Mbps, 4× Gigabit RJ45, PoE, internal antennas, WPA3-Enterprise, 16 SSIDs, up to 100 users.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Mounting | Wall |
| Access Points - Outdoor Rating | None |
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz. 5 GHz. Maximum data transfer rate: 2402 Mbit/s. Security algorithms: HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA2-Enterprise. WPA3-Enterprise. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Mounting kit |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Frequency band | 2.4. 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1x. IEEE 802.3af. IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 100 user(s) |
| Transmitting power (CE) | 20 - 23 - 26 dBm |
| Transmitting power (FCC) | 21 - 21 dBm |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA2-Enterprise. WPA3-Enterprise |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| Power consumption (typical) | 12 W |
| Placement | Wall |
| Product colour | White |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Compatible operating systems | Microsoft Windows XP. Vista. Windows 7. Windows 8. Windows10. Windows 11. Linux |
| Compliance certificates | RoHS |
| Certification | FCC. RoHS |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 42.6 mm |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 56 mm |
| Package weight | 400 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
