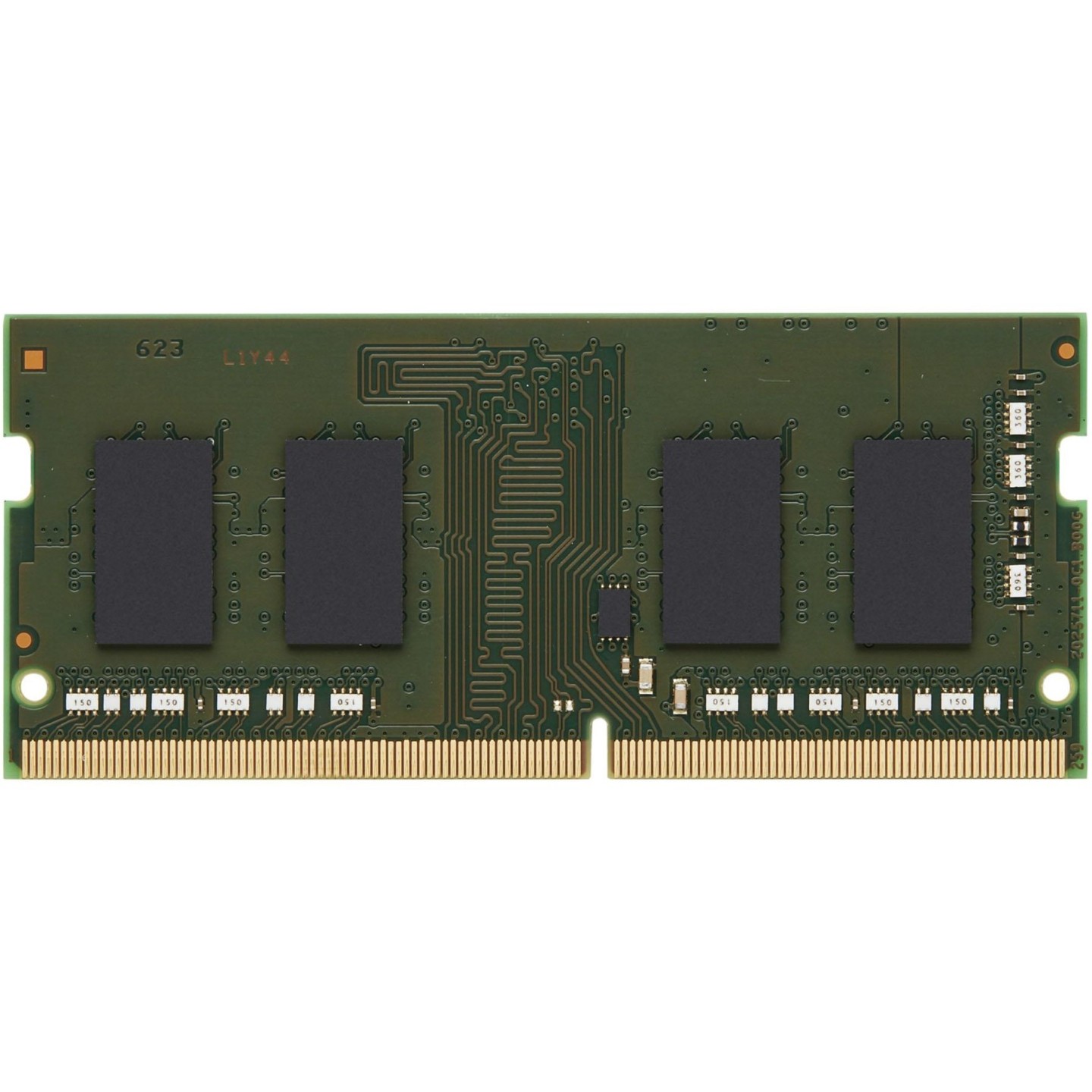

Kingston ValueRAM 16GB DDR4-3200 SO-DIMM CL22 KVR32S22S8/16 (Boxed)
Kingston ValueRAM KVR32S22S8/16 16GB DDR4-3200 SO-DIMM CL22 1Rx8. Single-rank, non-ECC unbuffered laptop memory. JEDEC 22-22-22@1.2V. Reliable upgrade for notebooks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Laptop Memory - Memory Type | DDR4 |
|---|---|
| Laptop Memory - Kit Size | 1 |
| Laptop Memory - Total Capacity | 16 GB |
| Laptop Memory - Speed (MT/s) | 3200 MT s |
| Laptop Memory - Special Features | Non-ECC Single Rank Unbuffered |
Kingston ValueRAM KVR32S22S8/16 delivers reliable 16GB DDR4-3200 performance for laptops and small form factor PCs. This 260-pin SO-DIMM module operates at JEDEC standard timings of 22-22-22 at 1.2V, ensuring compatibility with a wide range of systems.
Featuring single rank (1Rx8) configuration with eight 2G x 8-bit FBGA components, it's non-ECC and unbuffered for everyday computing needs. Gold contact fingers provide durable connectivity, while on-die features like VREFDQ calibration and data bus inversion enhance signal integrity.
- ✅ 16GB capacity (2G x 64-bit PC4-25600)
- ✅ DDR4-3200MT/s speed
- ✅ CL22 latency at 1.2V
- ✅ Single rank, non-ECC, unbuffered
- ✅ 260-pin SO-DIMM for laptops
- ✅ RoHS compliant, halogen-free
| Manufacturer Part Number | KVR32S22S8/16 |
| Memory Type | DDR4-3200 |
| Capacity | 16GB (2G x 64-bit) |
| CAS Latency (CL) | 22 |
| Timings | 22-22-22 |
| Voltage | 1.2V |
| Rank | Single Rank (1Rx8) |
| ECC | Non-ECC |
| Buffered Memory Type | Unbuffered (Unregistered) |
| Pins | 260-pin SO-DIMM |
| Component For | Laptop/Notebook |
| Width | 69.6 mm |
| Height | 30 mm |
| Country of Origin | Taiwan |
| Harmonized System Code | 84733020 |
