Chieftec Elox HC-10B-OP Black Mini-Tower PC Case ATX/mATX/ITX 380mm GPU (Boxed)
Black Chieftec HC-10B-OP mini-tower case supports ATX/mATX/Mini-ITX mobos, GPUs to 380mm (w/o HDD cage), CPU coolers to 155mm. Front: 2xUSB3.0, 2xUSB2.0, USB-C, audio. SECC steel, 7 slots. Hairbrush design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 361–400 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 151-165 mm |

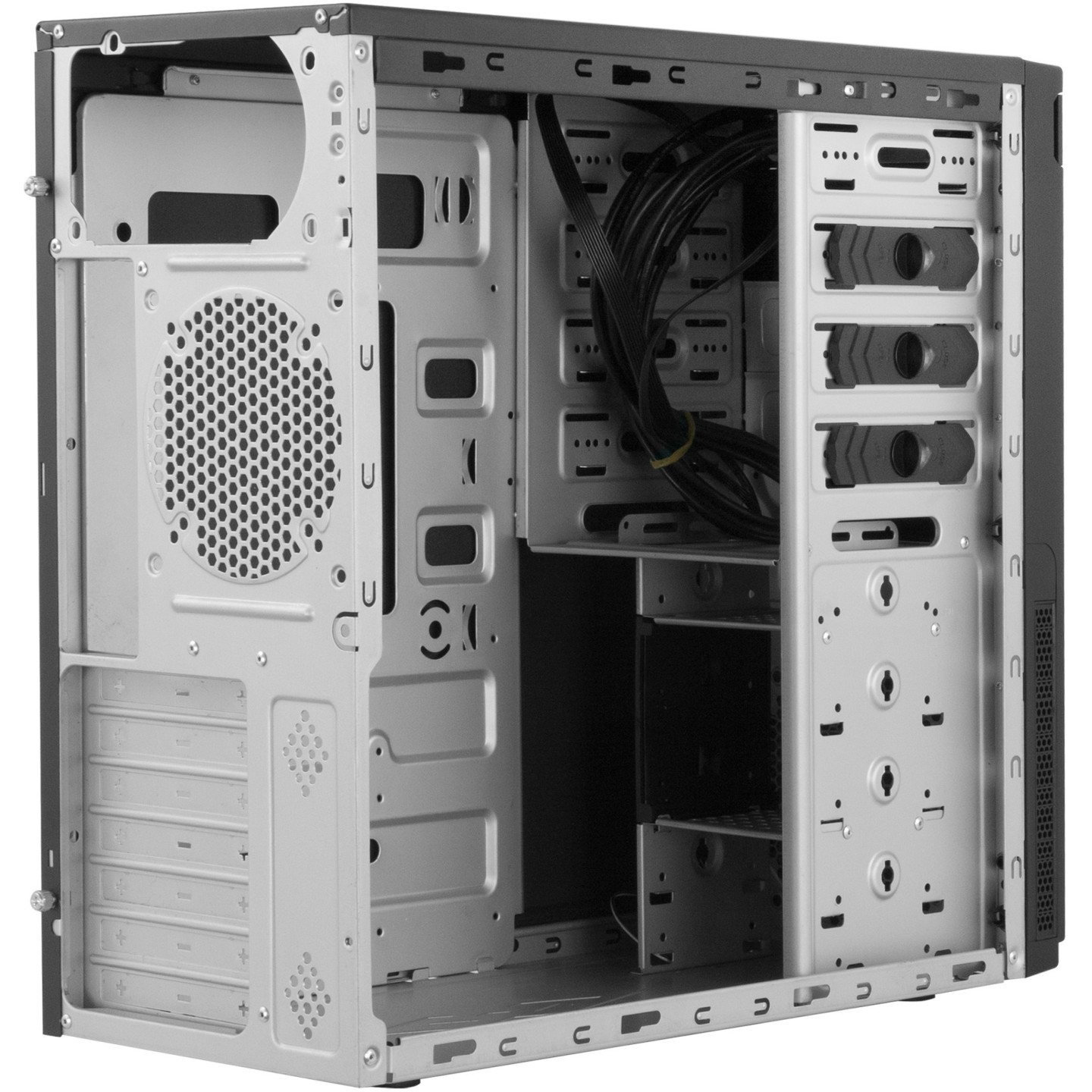

The Chieftec Elox HC-10B-OP is a sleek black mini-tower PC case designed for office and home use, featuring a modern hairbrush front panel. It supports ATX, micro-ATX, and Mini-ITX motherboards with 7 expansion slots and ample drive bays for storage expansion: 3x external 5.25", 1x external 3.5", plus internal options.

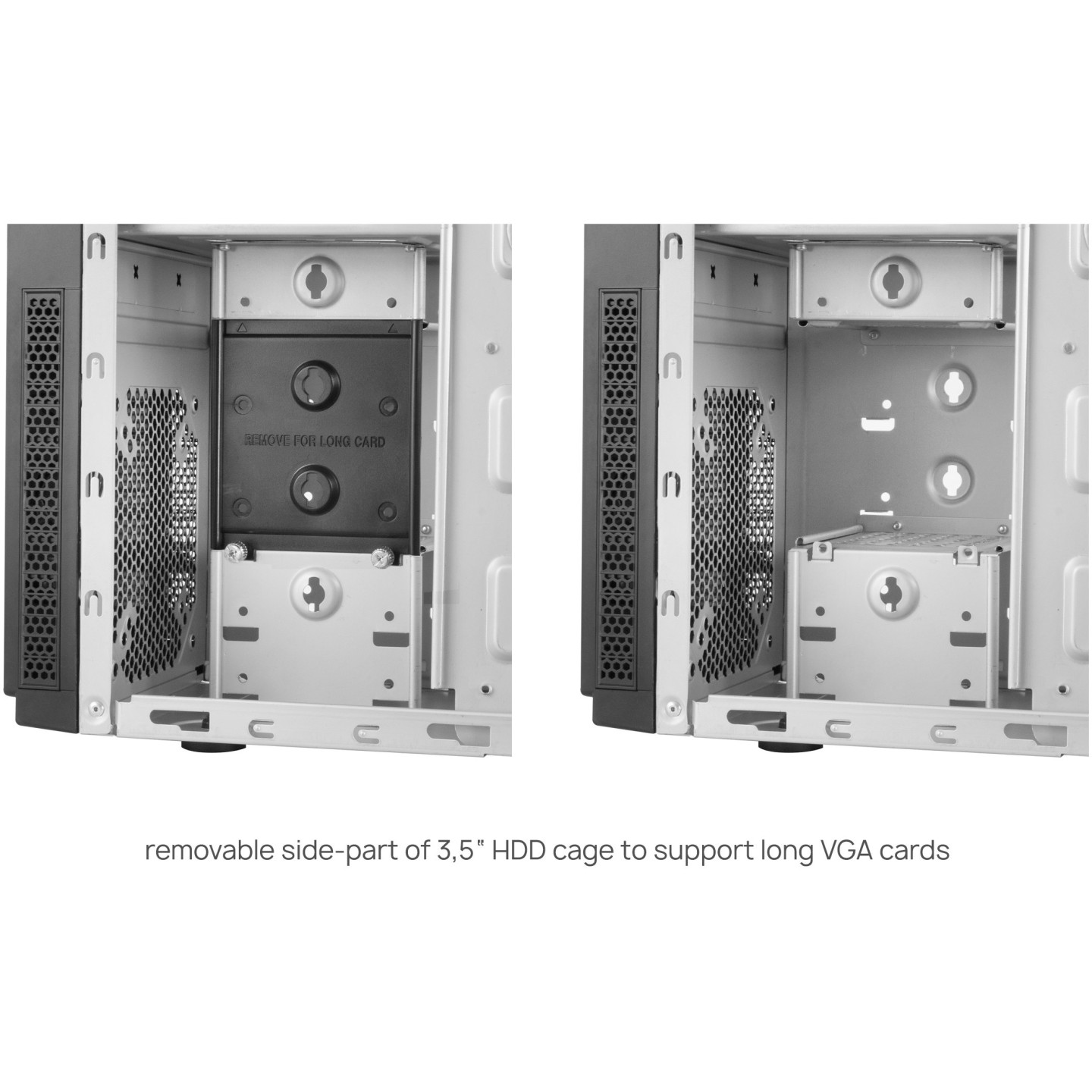

Optimized for cooling and compatibility, it accommodates CPU coolers up to 155mm, GPUs up to 380mm (by removing side part of 3.5" HDD cage) or 250mm standard, and optional ATX PSU. Front I/O includes 2x USB 3.0, 2x USB 2.0, 1x USB 2.0 Type-C (480 Mbit/s), audio out, and mic in. Fan support: 1x front/rear (80/90/120mm). Dimensions: 450x185x412mm (w/ stand), weight 4.55kg.
- Motherboard: ATX / mATX / Mini-ITX
- Drives: 3x5.25" ext, 1x3.5" ext, internal 2.5"/3.5"
- Cooling: CPU 155mm max, GPU 380mm max, 1x front/rear fan
- I/O: USB-C, USB 3.0/2.0, audio
- Material: 0.6mm SECC steel
| Article No. | HC-10B-OP |
| EAN Code | 0753263075673 |
| Color | Black (Hairbrush Design) |
| Material | 0.6mm SECC |
| Motherboard Support | ATX, mATX, Mini-ITX |
| Dimensions (DxWxH) | 450 x 185 x 412 mm (w/ stand) |
| Weight (netto/gross) | 4.55 kg / 5.36 kg |
| Drive Bays External | 3x 5.25 |
| Expansion Slots | 7 |
| Front I/O | 2x USB 3.0, 2x USB 2.0, 1x USB-C 2.0 (480 Mbit/s), Audio-out, Mic-in |
| Fan Support Front | 1x 80/90/120 mm |
| Fan Support Rear | 1x 80/90/120 mm |
| Max CPU Cooler Height | 155 mm |
| Max GPU Length | 380 mm (w/o 3.5 |
| Power Supply | ATX (optional) |
| Warranty | 24 Months |
