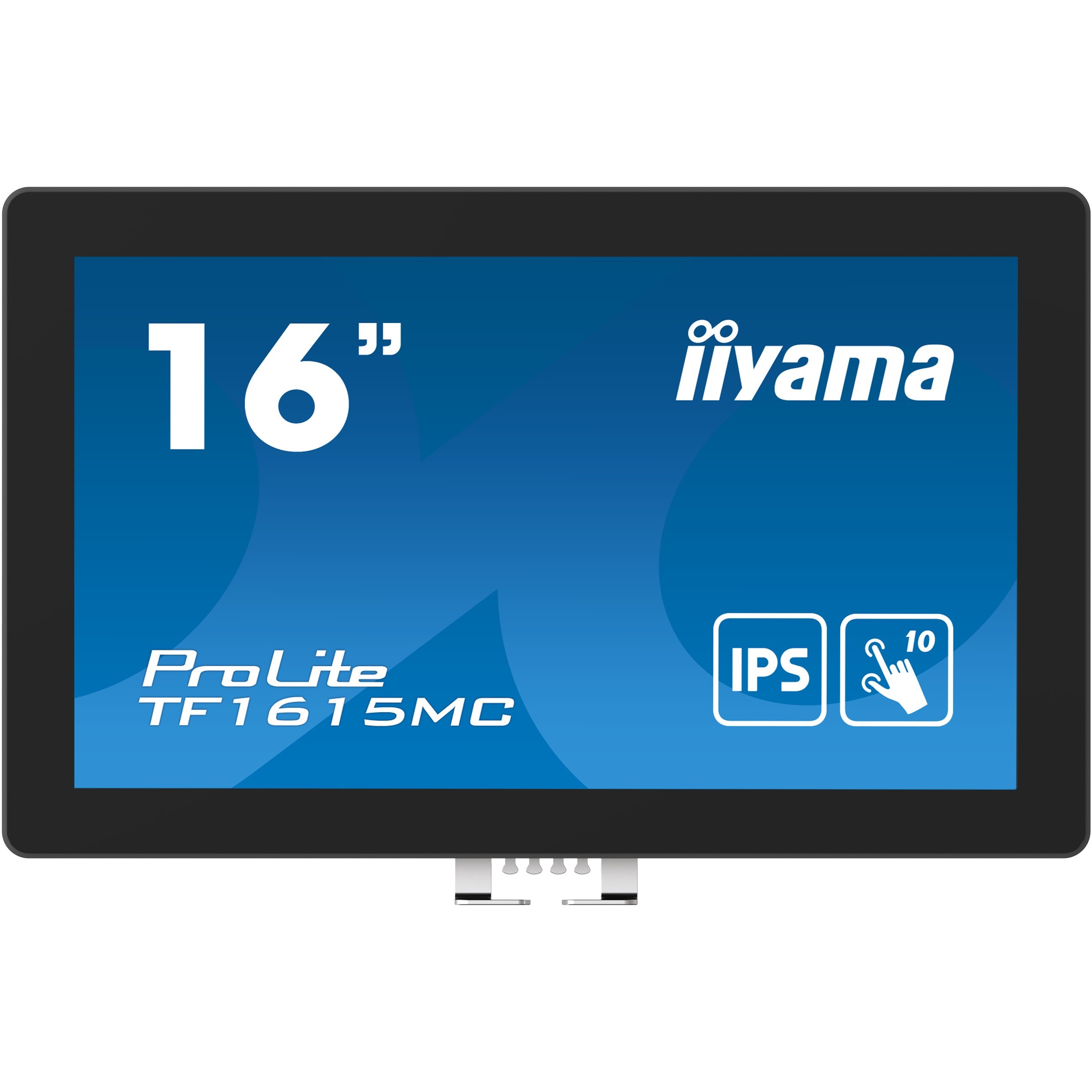

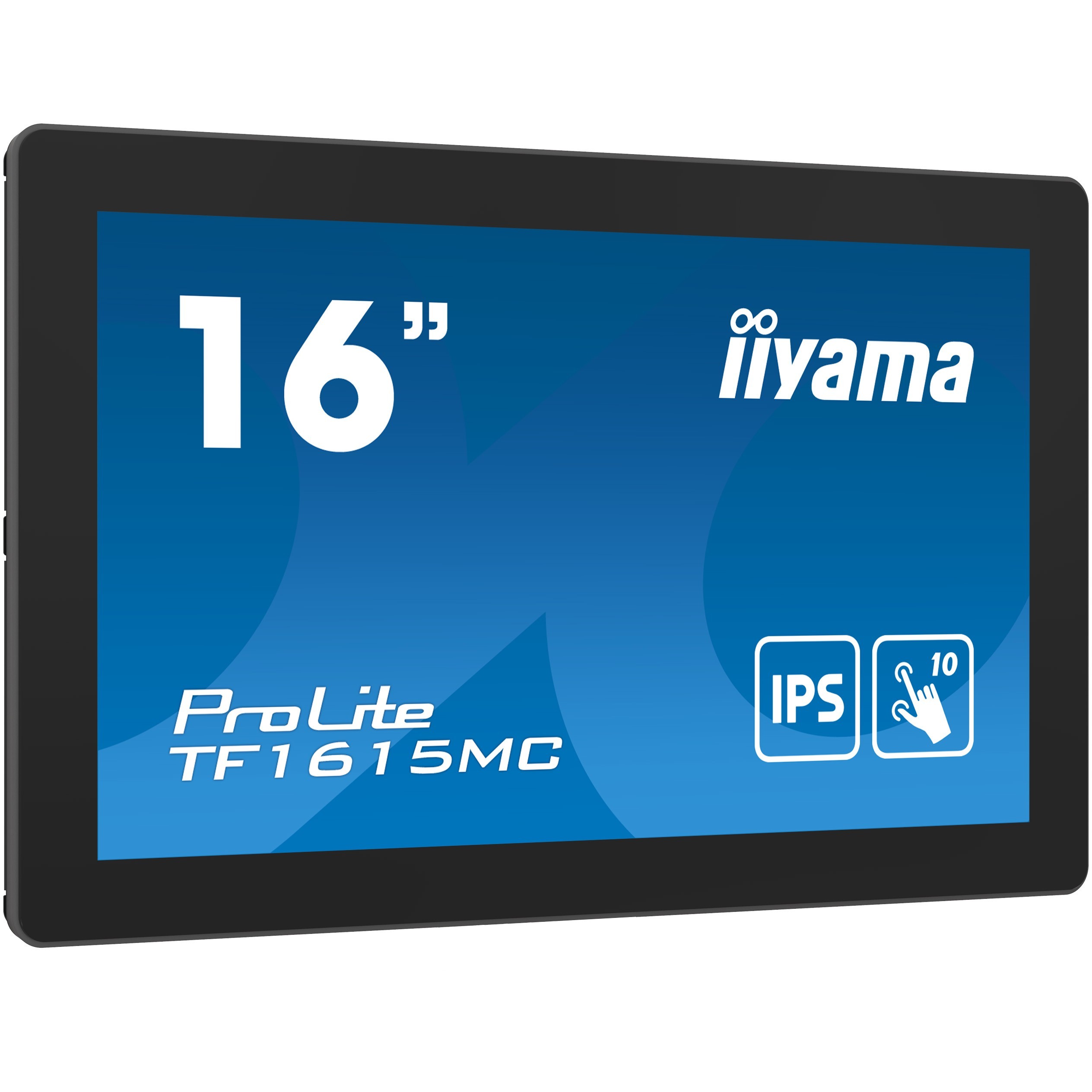

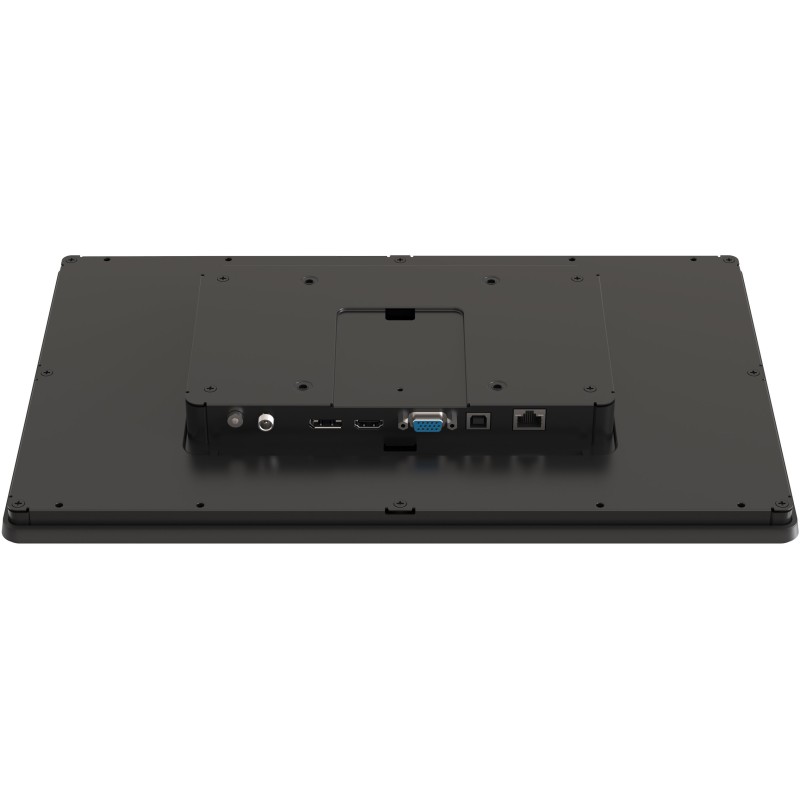

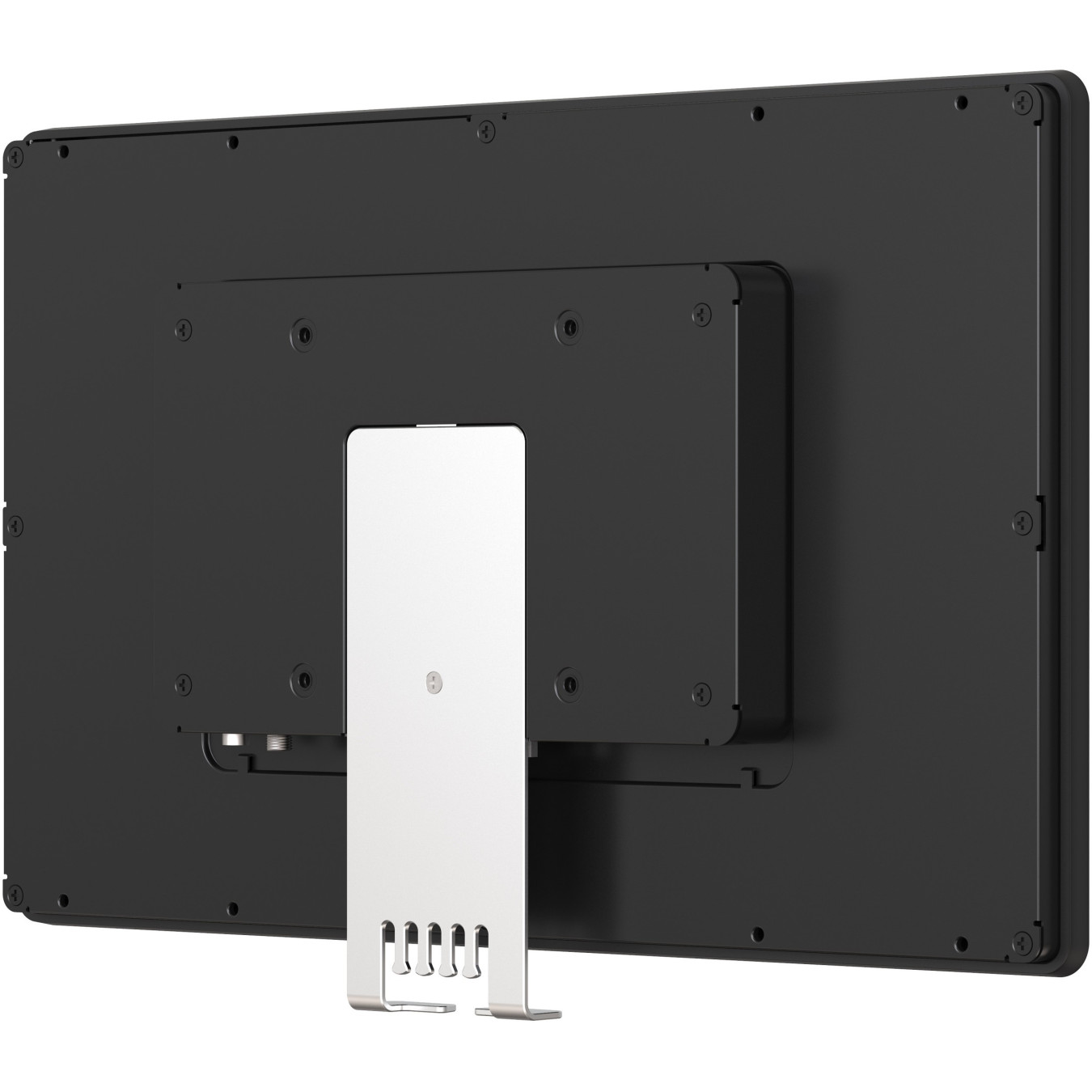

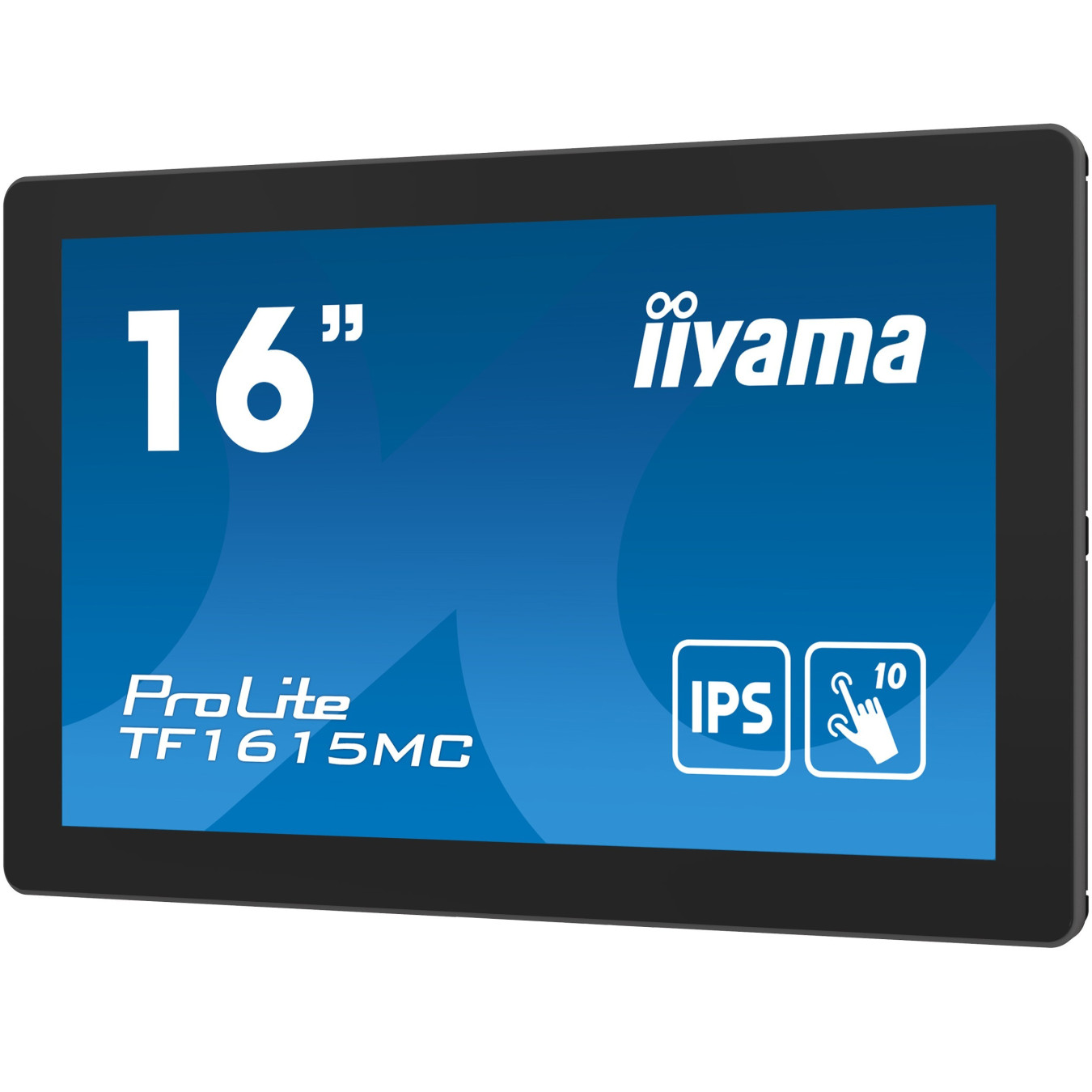

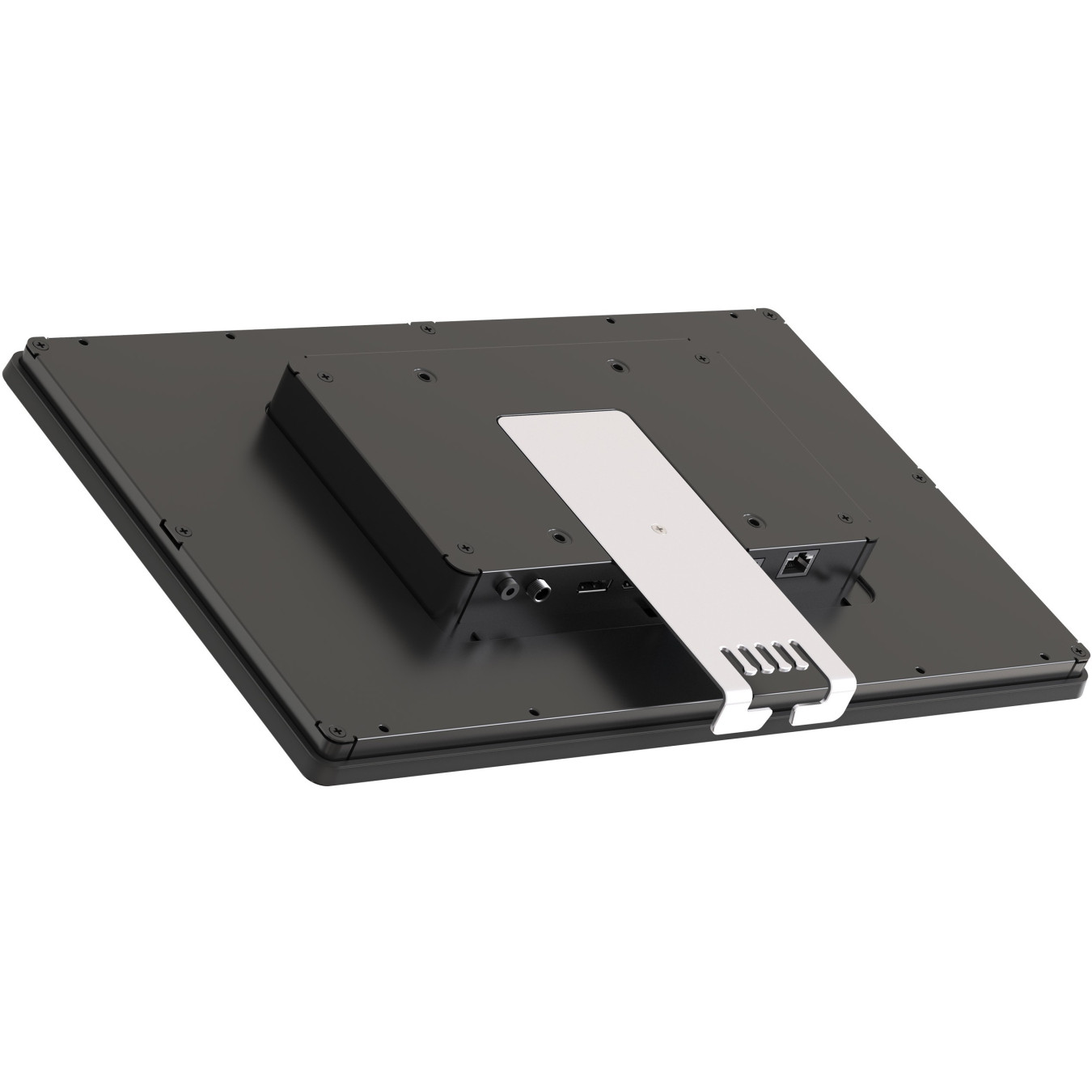

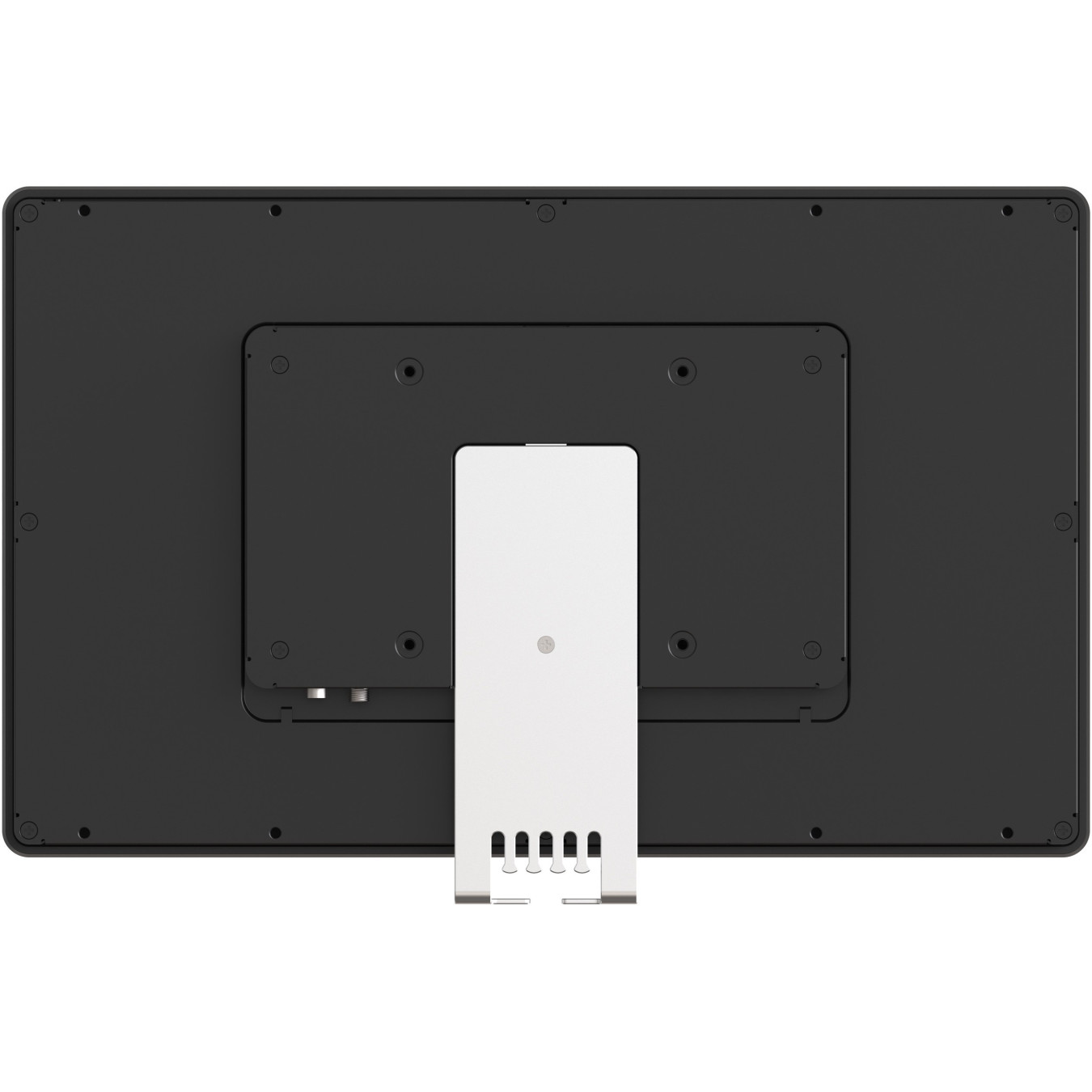

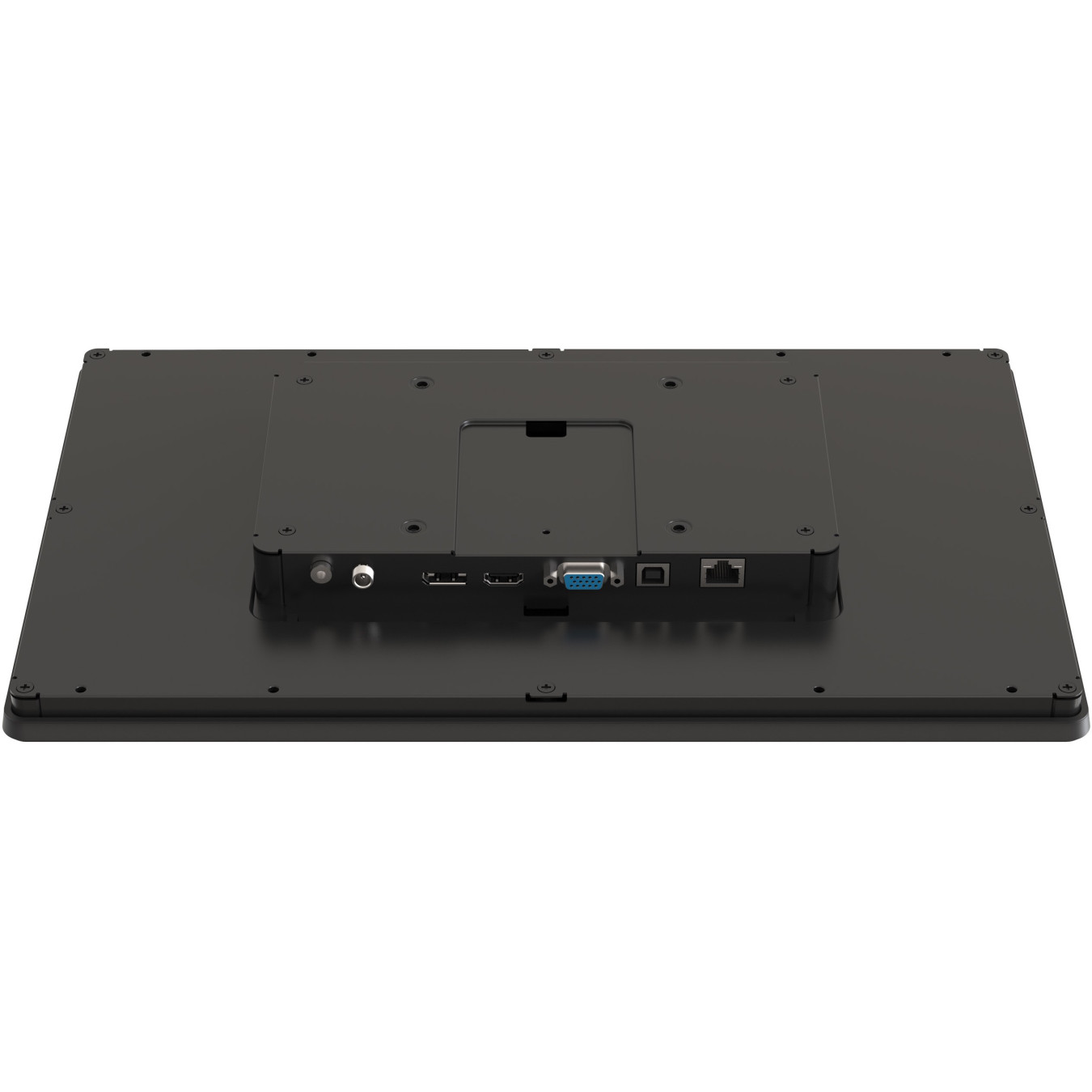

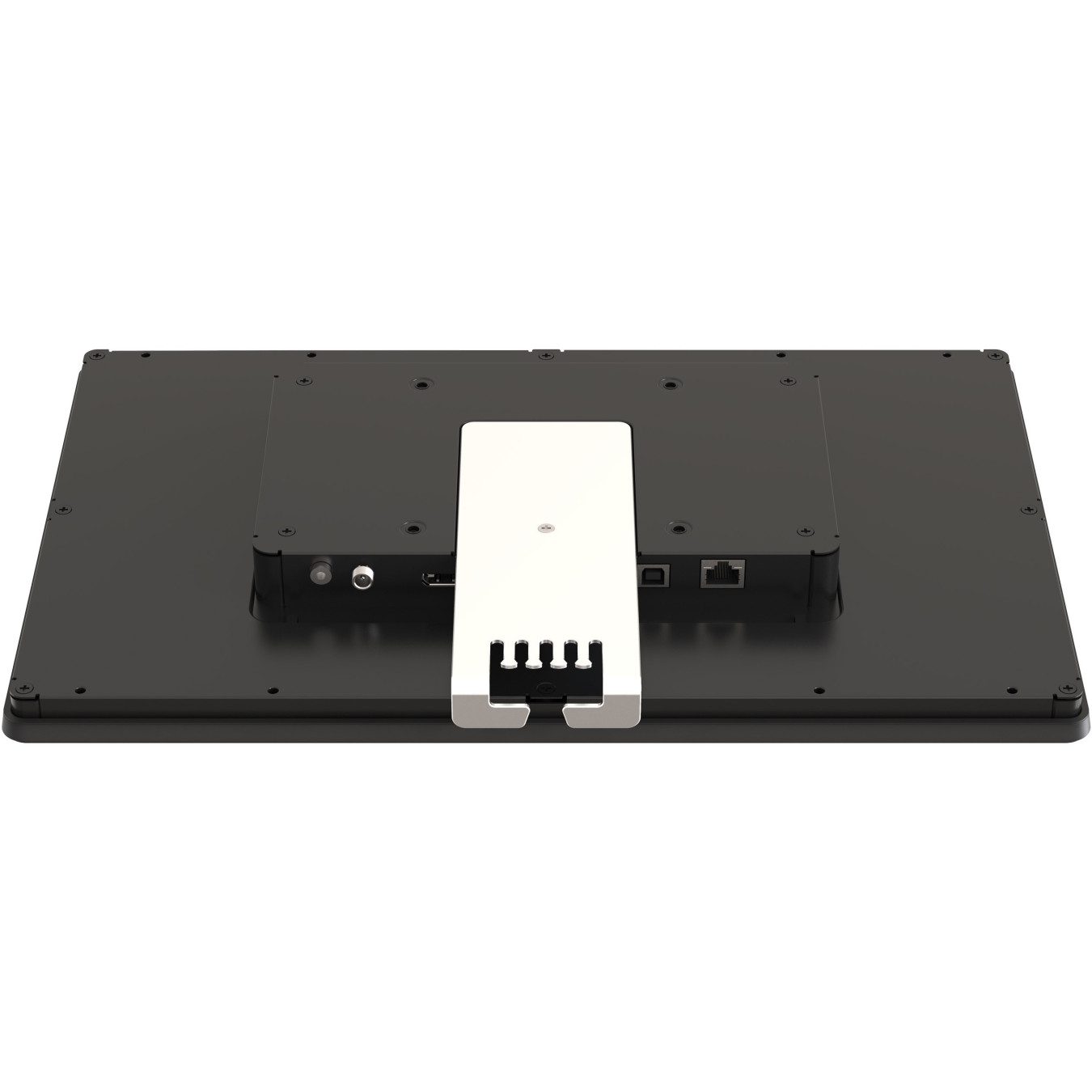

iiyama ProLite TF1615MC-B1 - 15.6" Full HD IPS PCAP 10-point Touchscreen, VGA/HDMI/DP, Black
15.6" Full HD (1920x1080) IPS open-frame PCAP touchscreen with 10 simultaneous touchpoints, touch-through-glass, 450 cd/m² peak brightness, VESA 100x100, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | IPS |
|---|---|
| Monitors - Curvature | Flat |
iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 39.6 cm (15.6"). Display resolution: 1920 x 1080 pixels. HD type: Full HD. Response time: 25 ms. Native aspect ratio: 16:9. Viewing angle. horizontal: 178°. Viewing angle. vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Feature | Quick start guide |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 450 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Display diagonal (metric) | 40 cm |
| Market positioning | Business |
| Product colour | Black |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | German. English. Spanish. French. Italian. Japanese |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1355204 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Width (without stand) | 398.5 mm |
| Depth (without stand) | 42 mm |
| Height (without stand) | 246 mm |
| Weight (without stand) | 2.5 kg |
| Package width | 470 mm |
| Package depth | 343 mm |
| Package height | 145 mm |
| Package weight | 4.3 kg |
| Package type | Box |
| Cables included | DC. DisplayPort. HDMI |
| Certification | CE. EAC. RoHS support. ErP. WEEE. cULus. REACH. UKCA |
