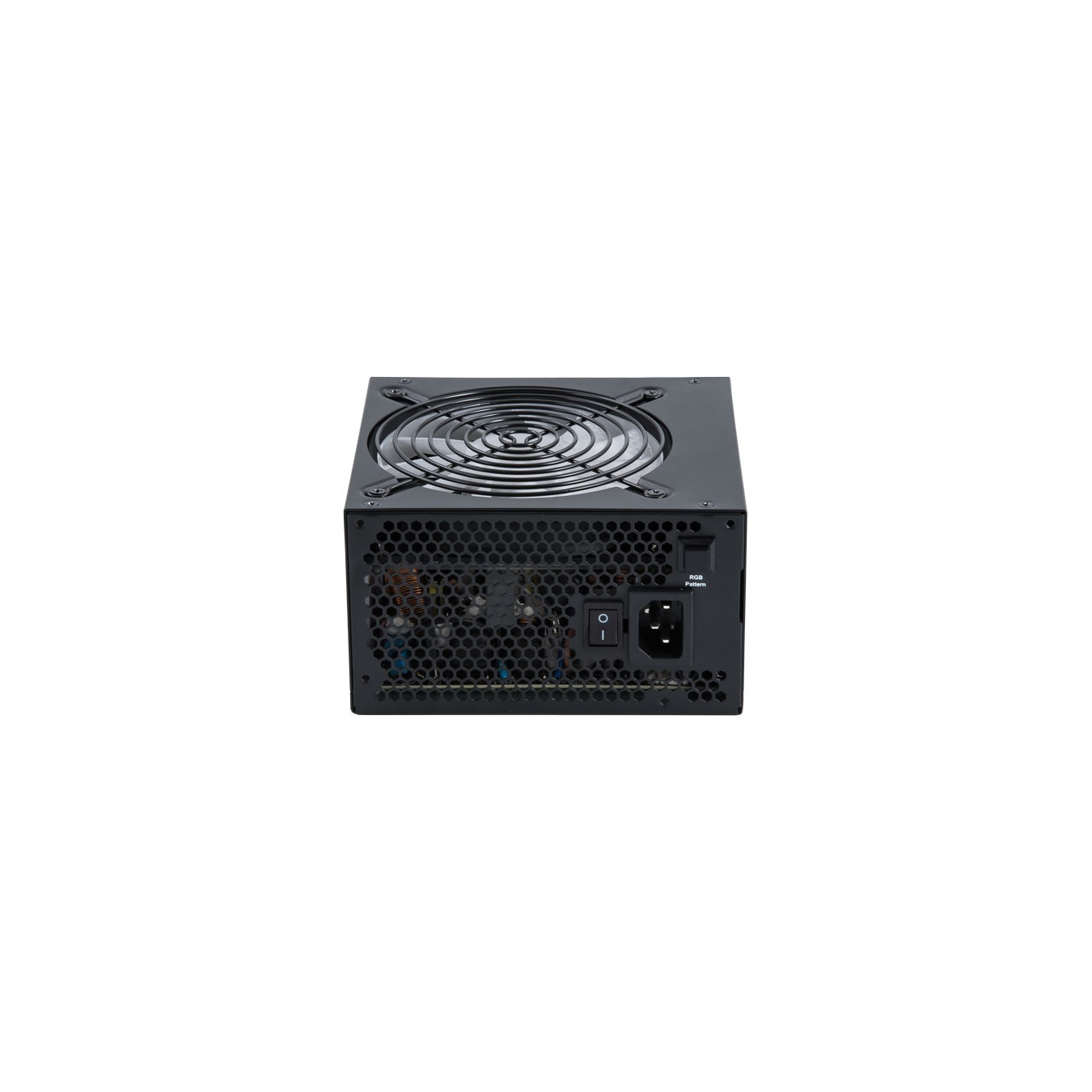

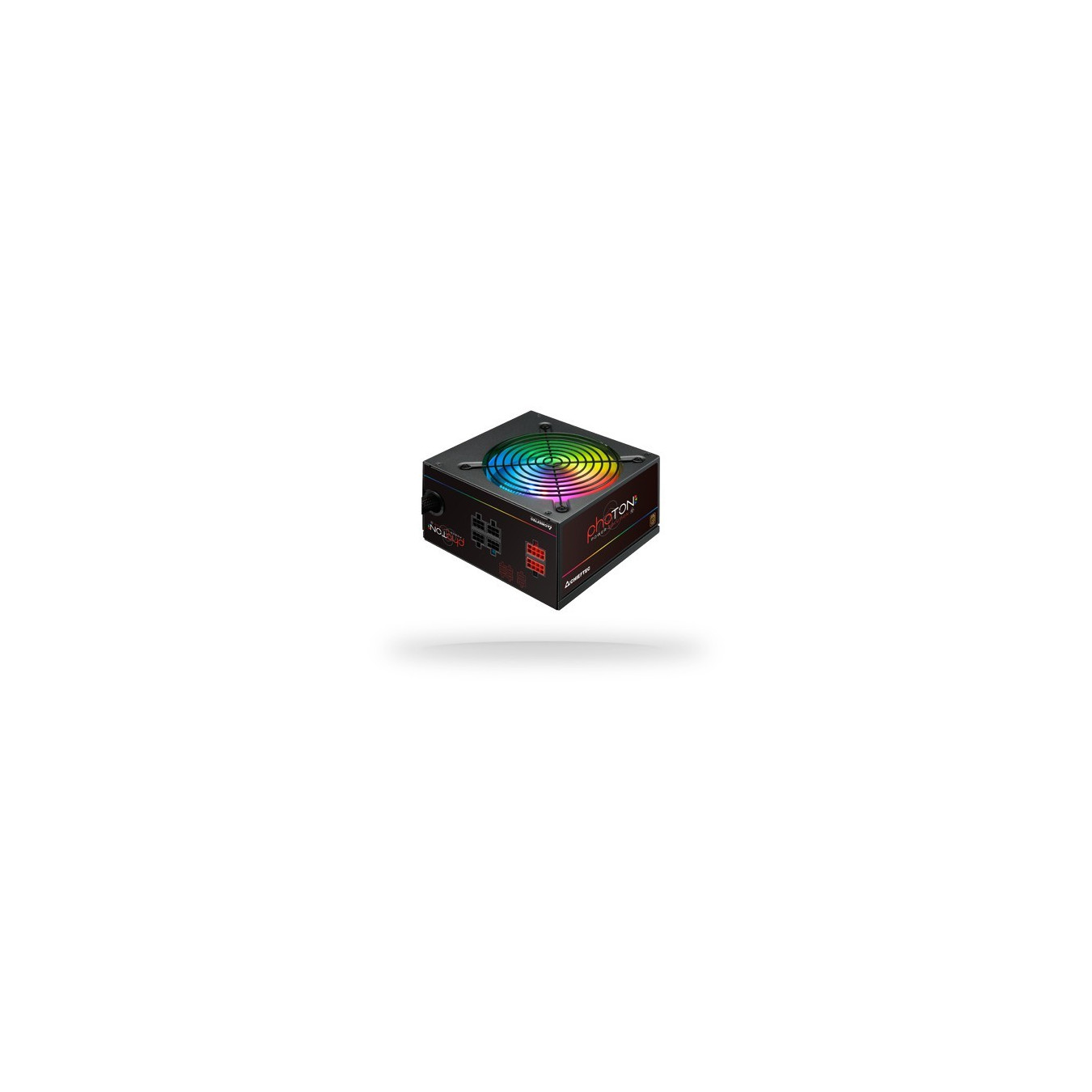

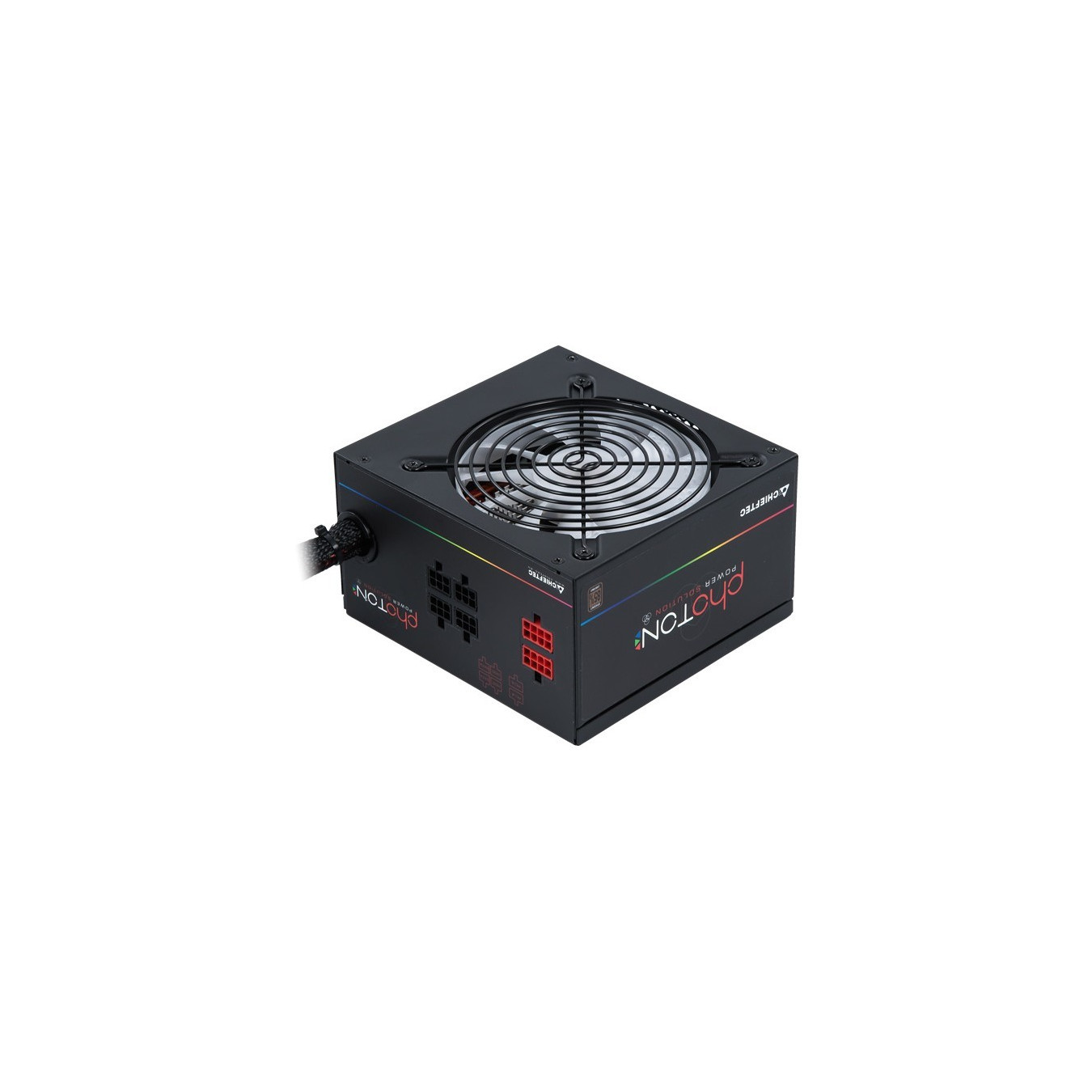

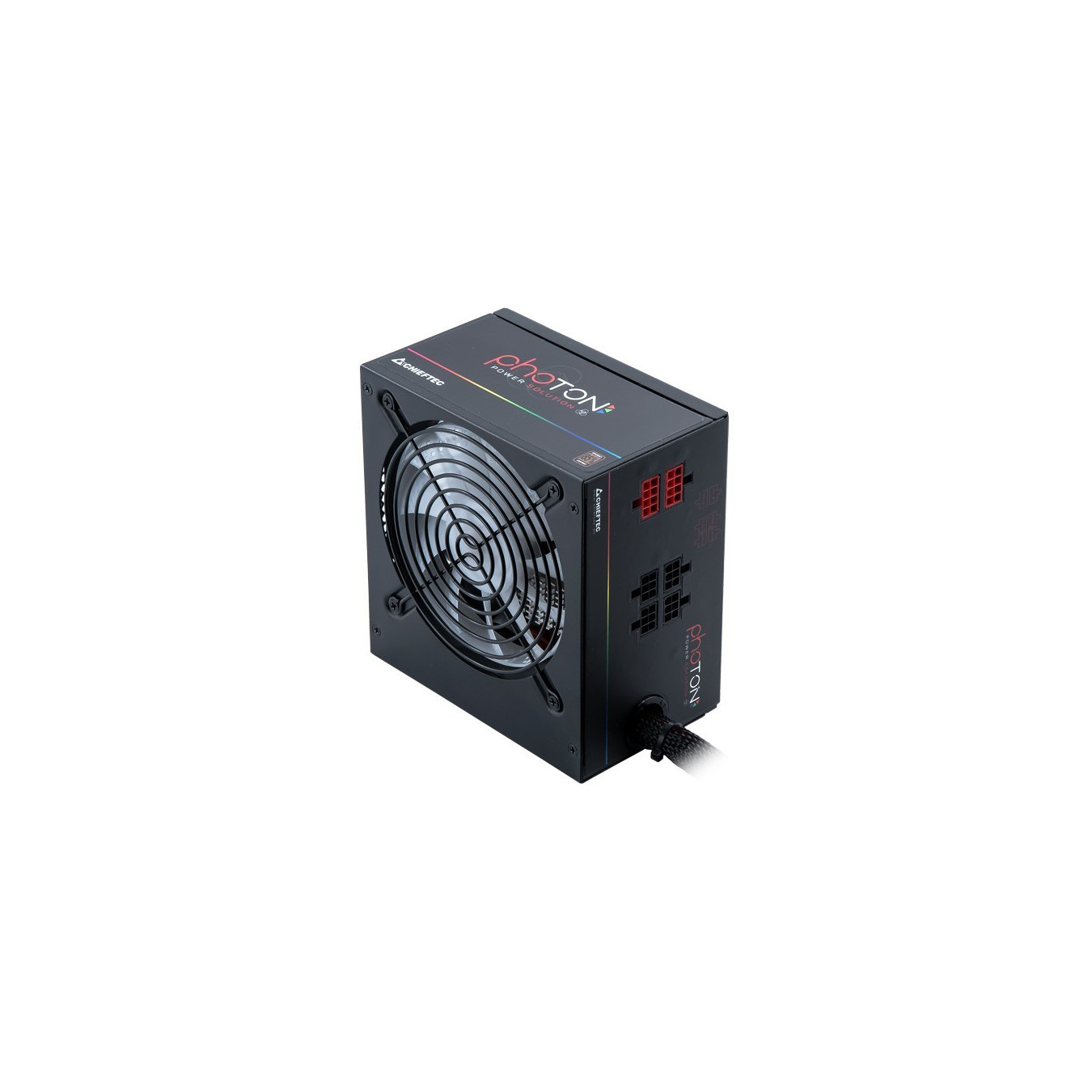

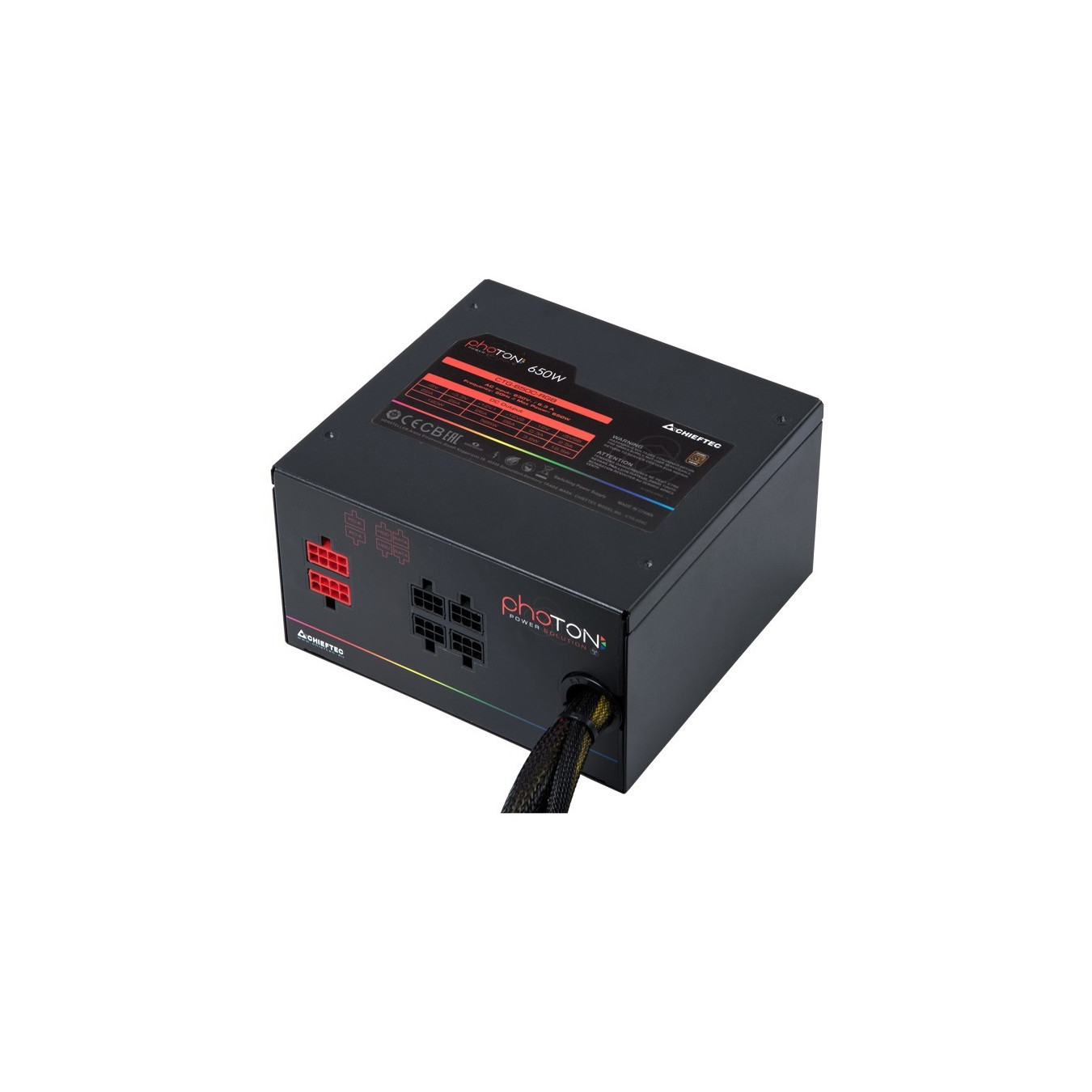

Chieftec Photon CTG-650C-RGB - 650W Semi-Modular PSU, RGB Illumination, Black
650W semi-modular PSU with RGB (Blue/Green/Red), 120mm fan, 6x SATA, 4x PCIe (6+2), 230V/50Hz, multiple protections, ~85% efficiency.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Semi-modular |
|---|---|
| PSU (Power Supplies) - Length | Up to 140 mm |
Chieftec Photon. Total power: 650 W. AC input voltage: 230 V. AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX. SATA power cable length: 150.450 mm. Peripheral (Molex) power cable length: 150.450 mm. Purpose: PC. Power supply unit (PSU) form factor: PS/2. Supported motherboard form factors: ATX. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 87 mm
| Total power | 650 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 26 A |
| Max output current (+12V2) | 26 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over voltage. Overload. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150.450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 55 cm |
| Feature | Illumination |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 2 |
| Cabling type | Semi-Modular |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 2.14 kg |
| Harmonized System (HS) code | 84733020 |
| Illumination colour | Blue. Green. Red |
