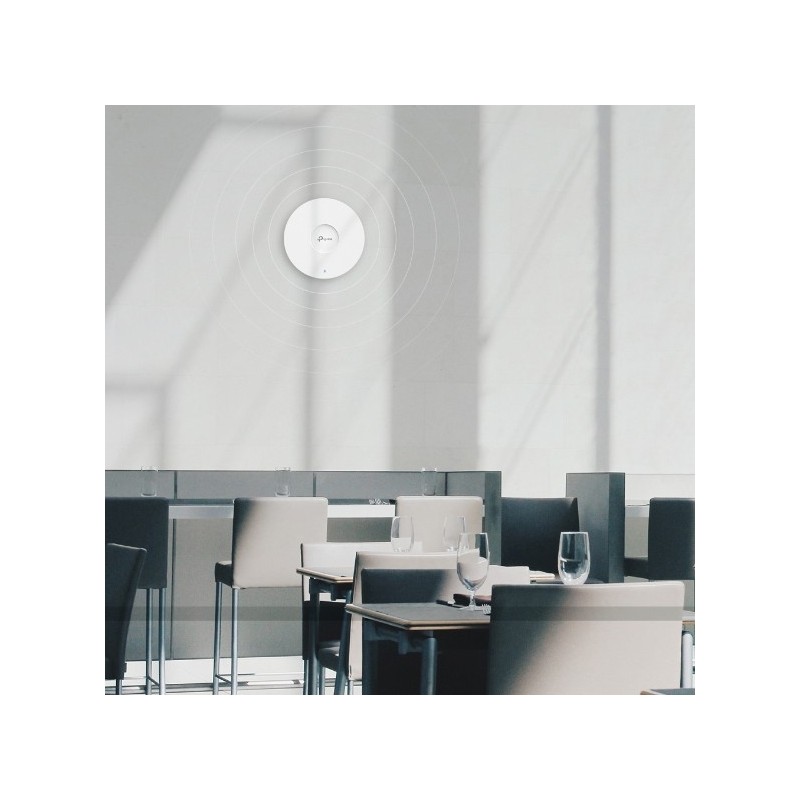

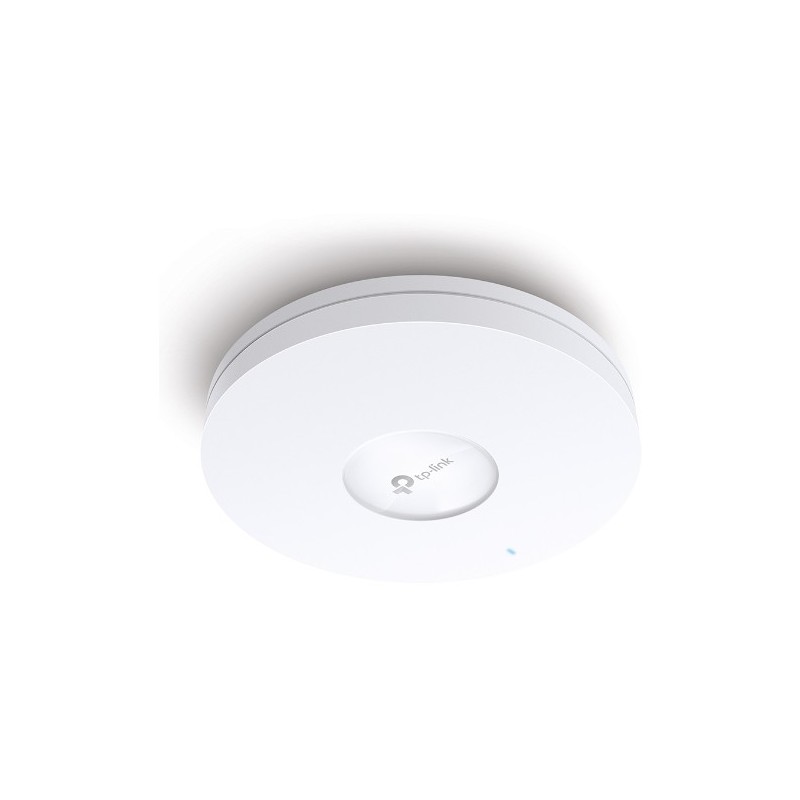

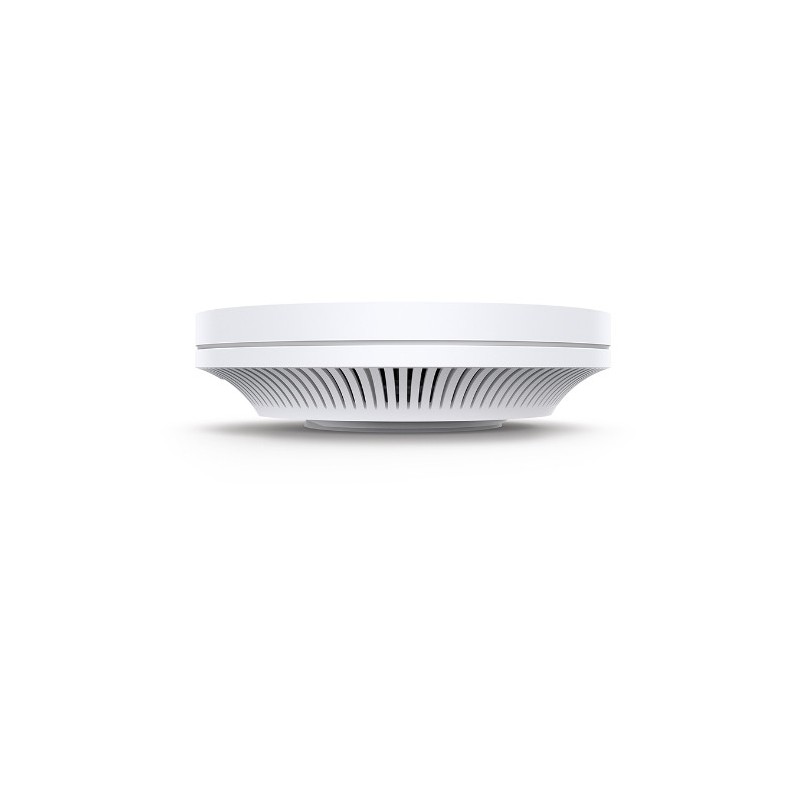

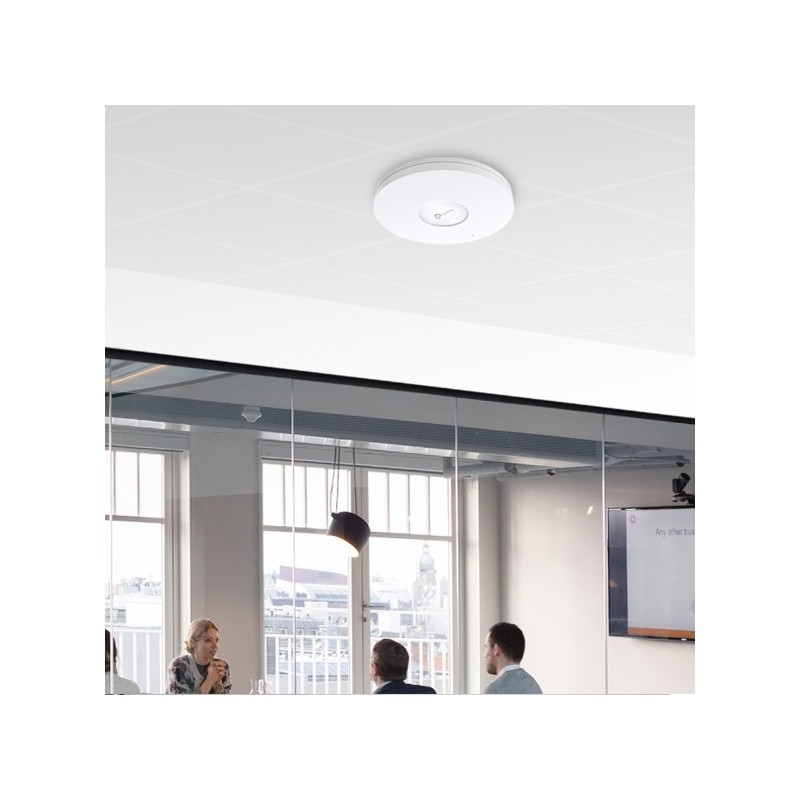

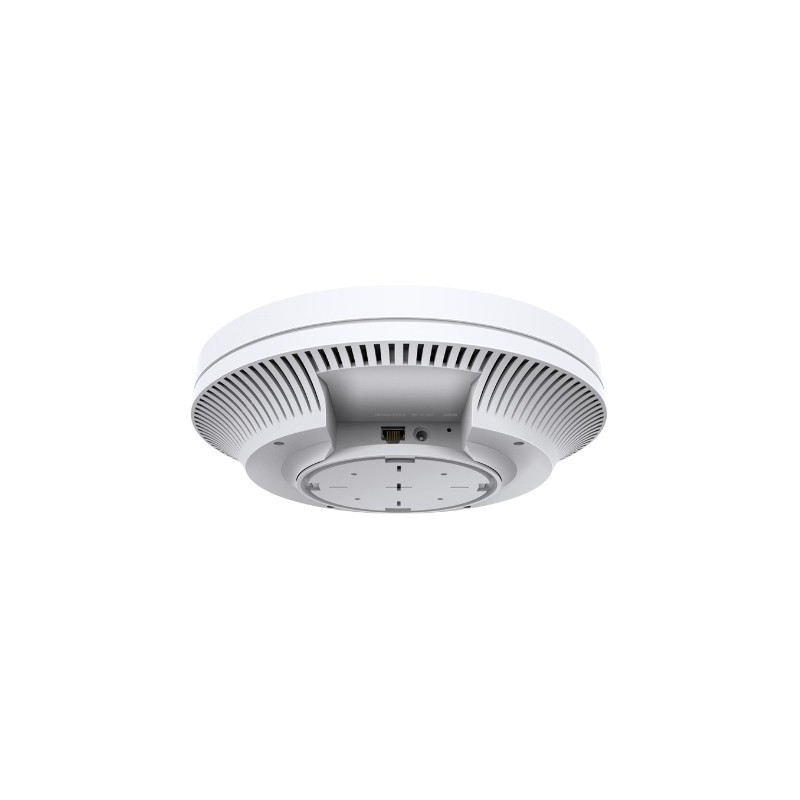

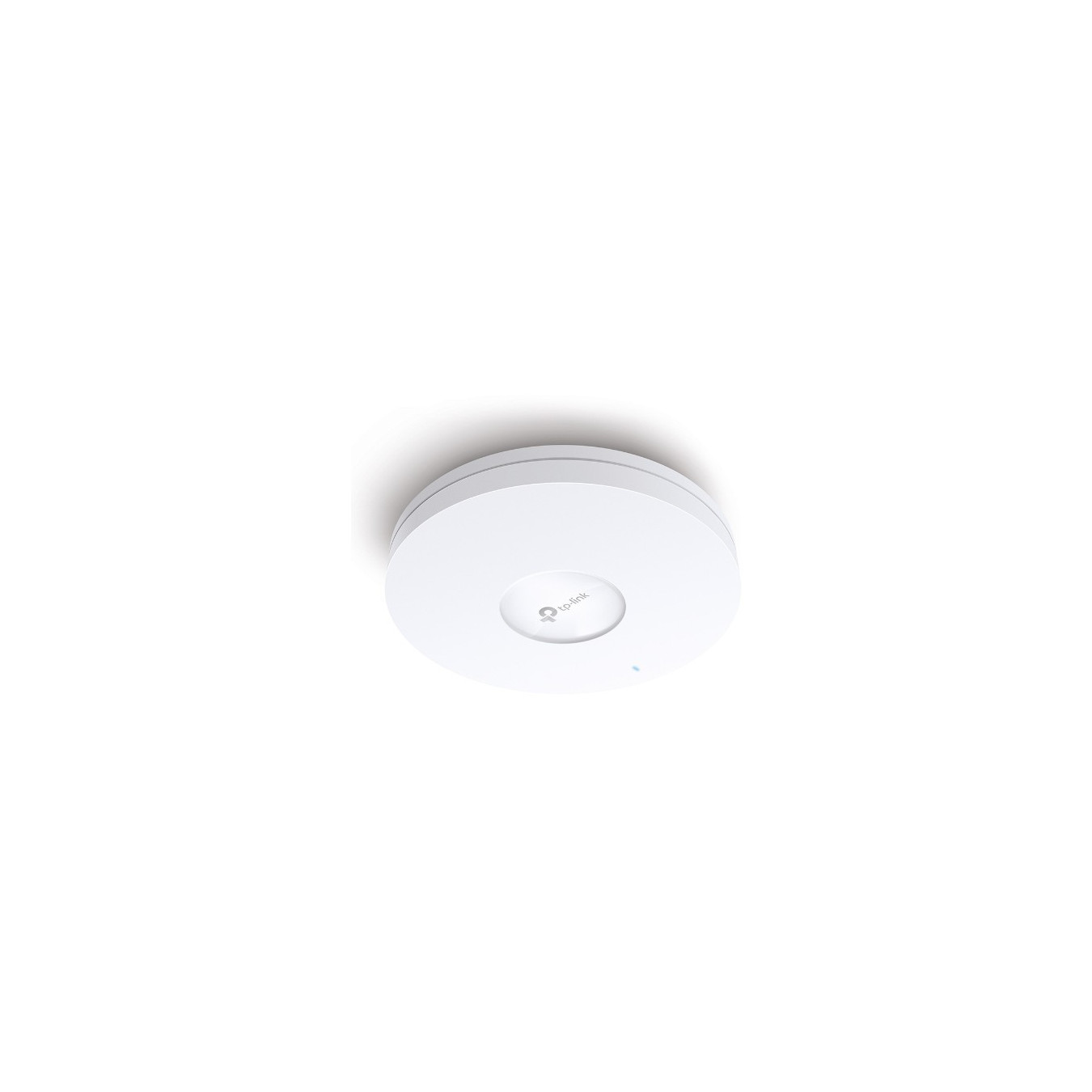

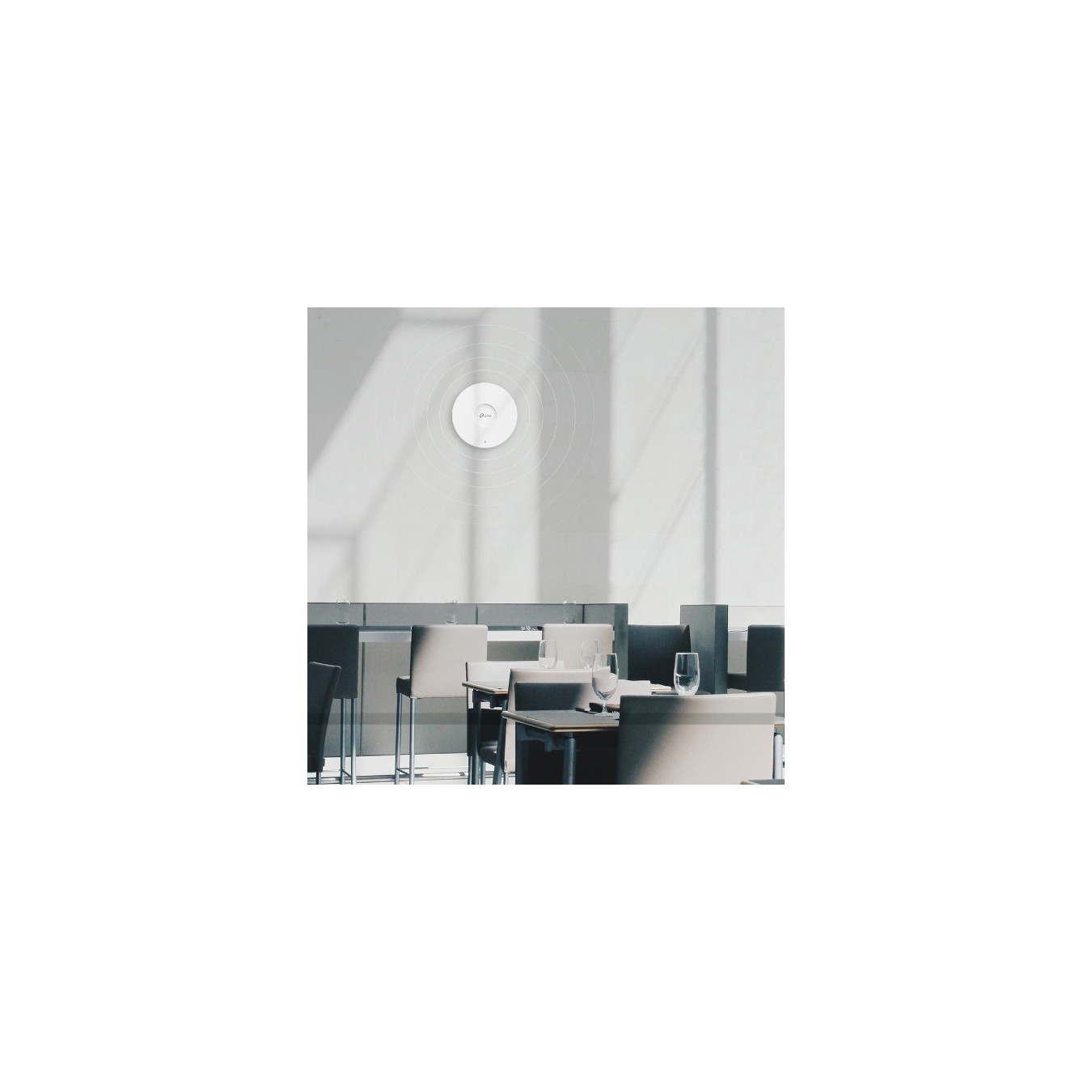

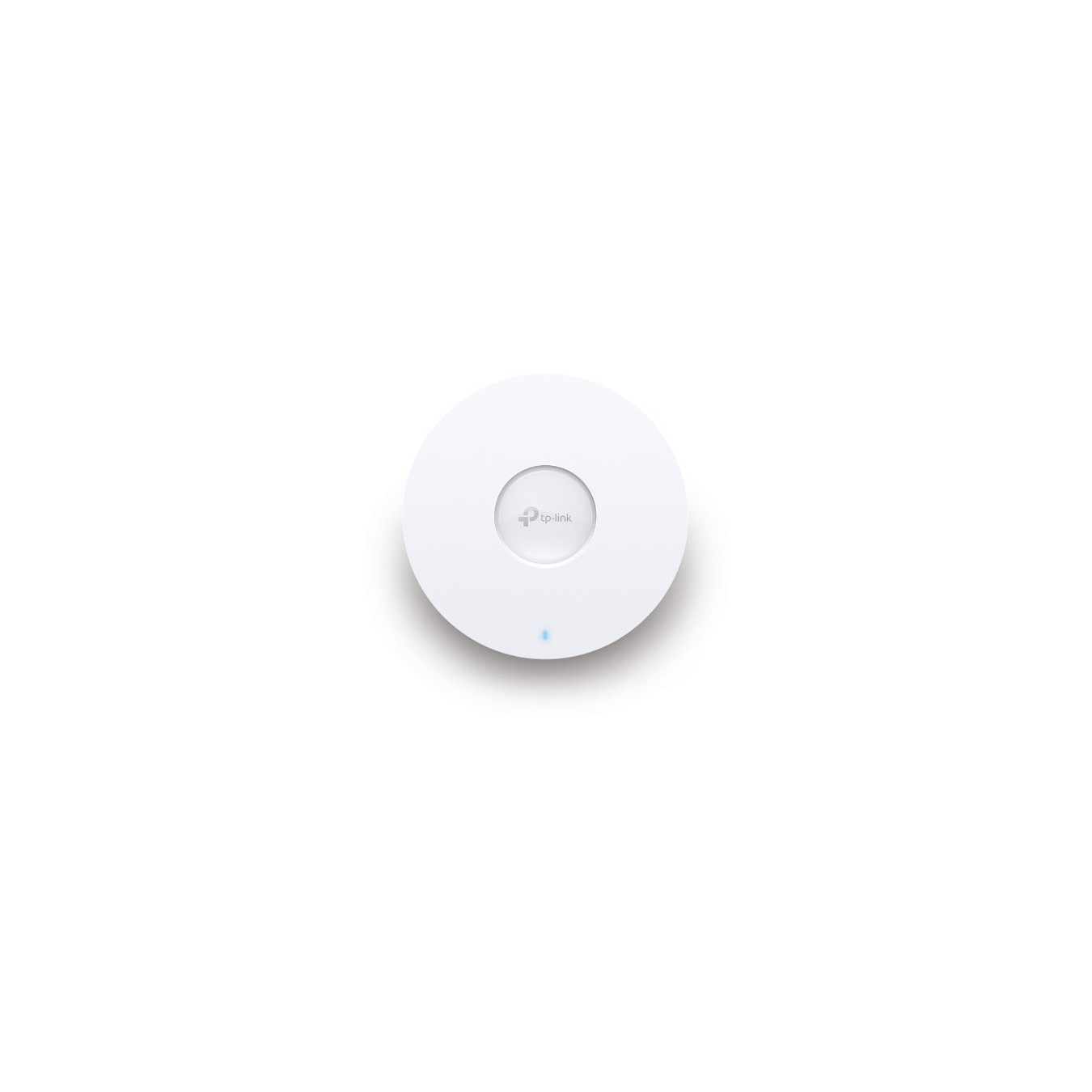

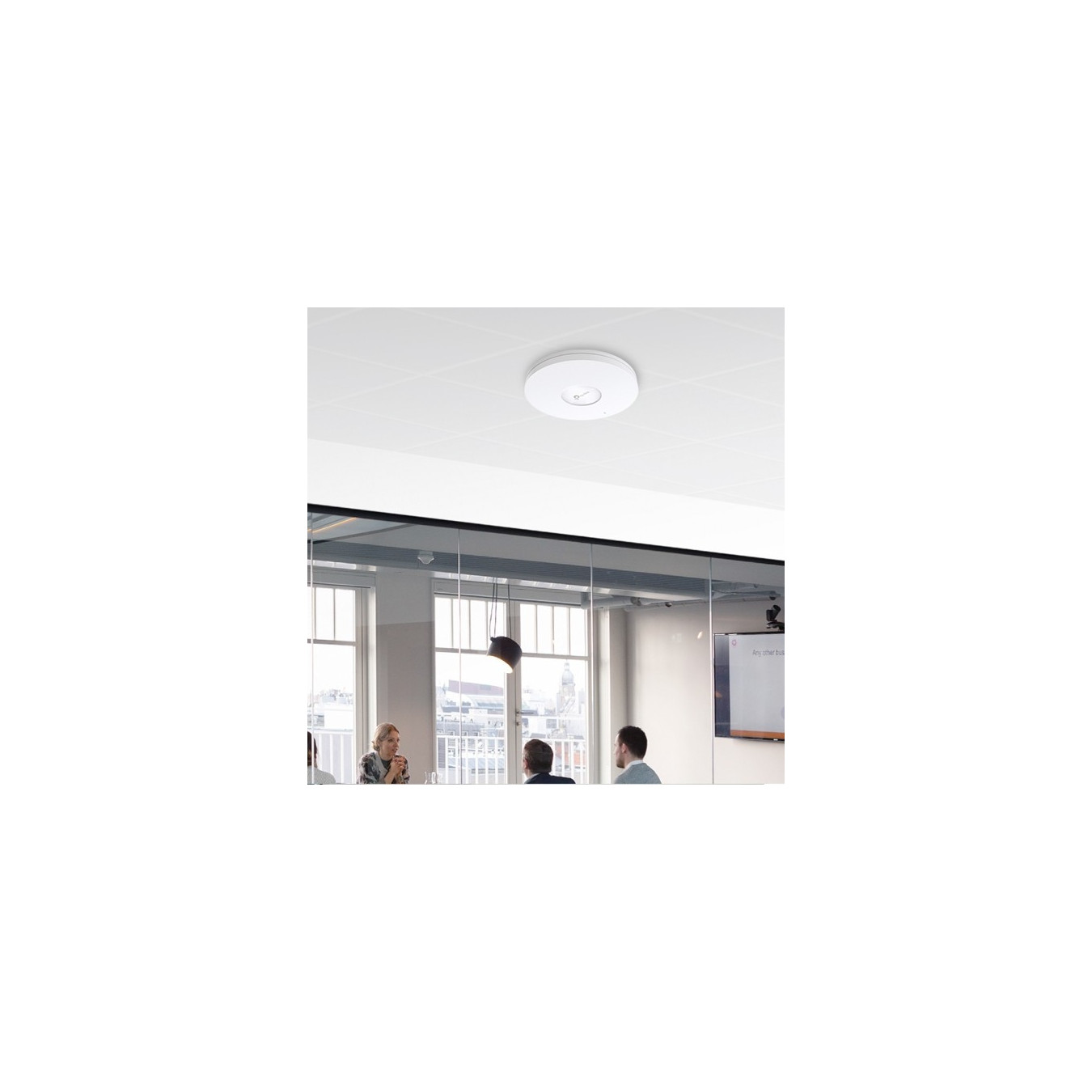

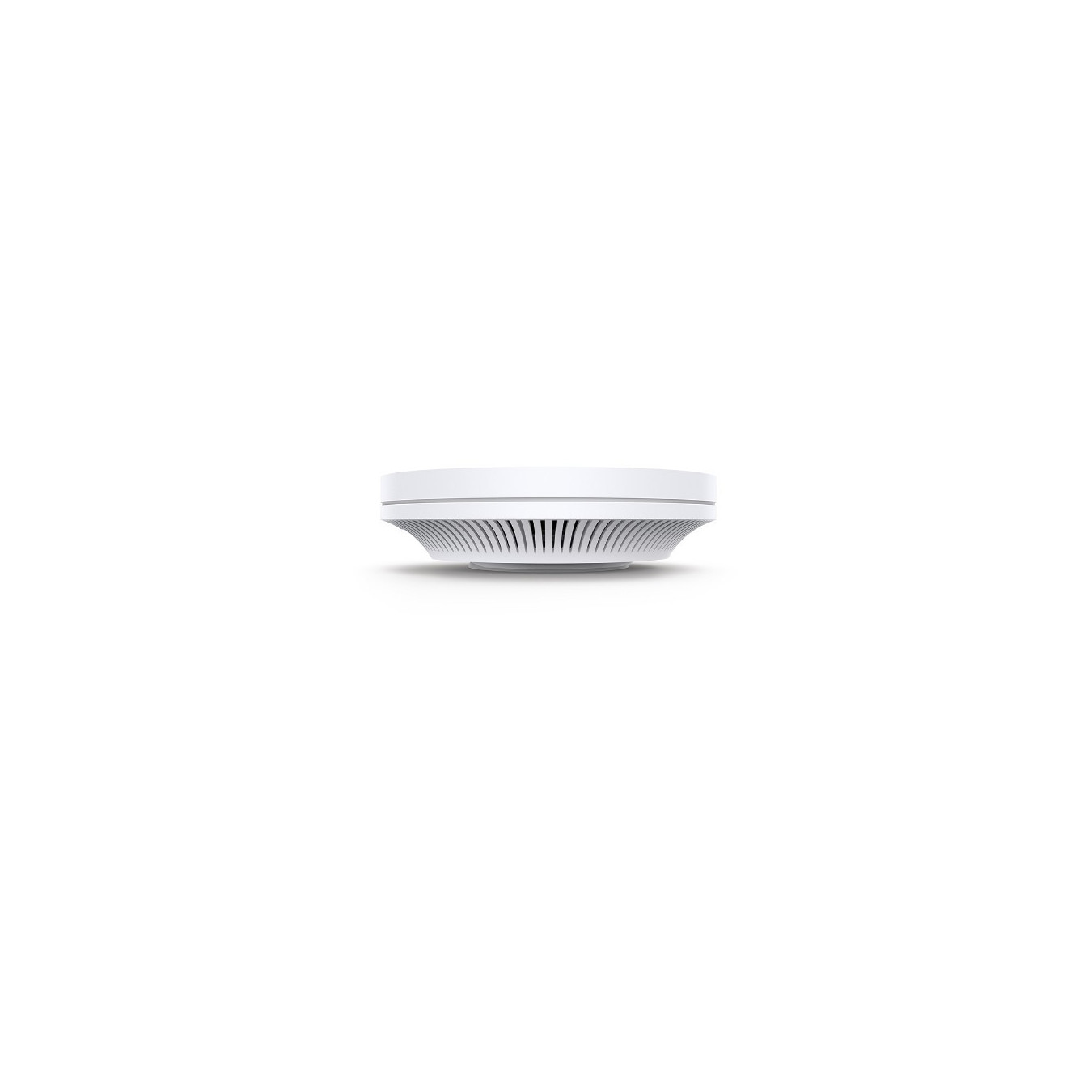

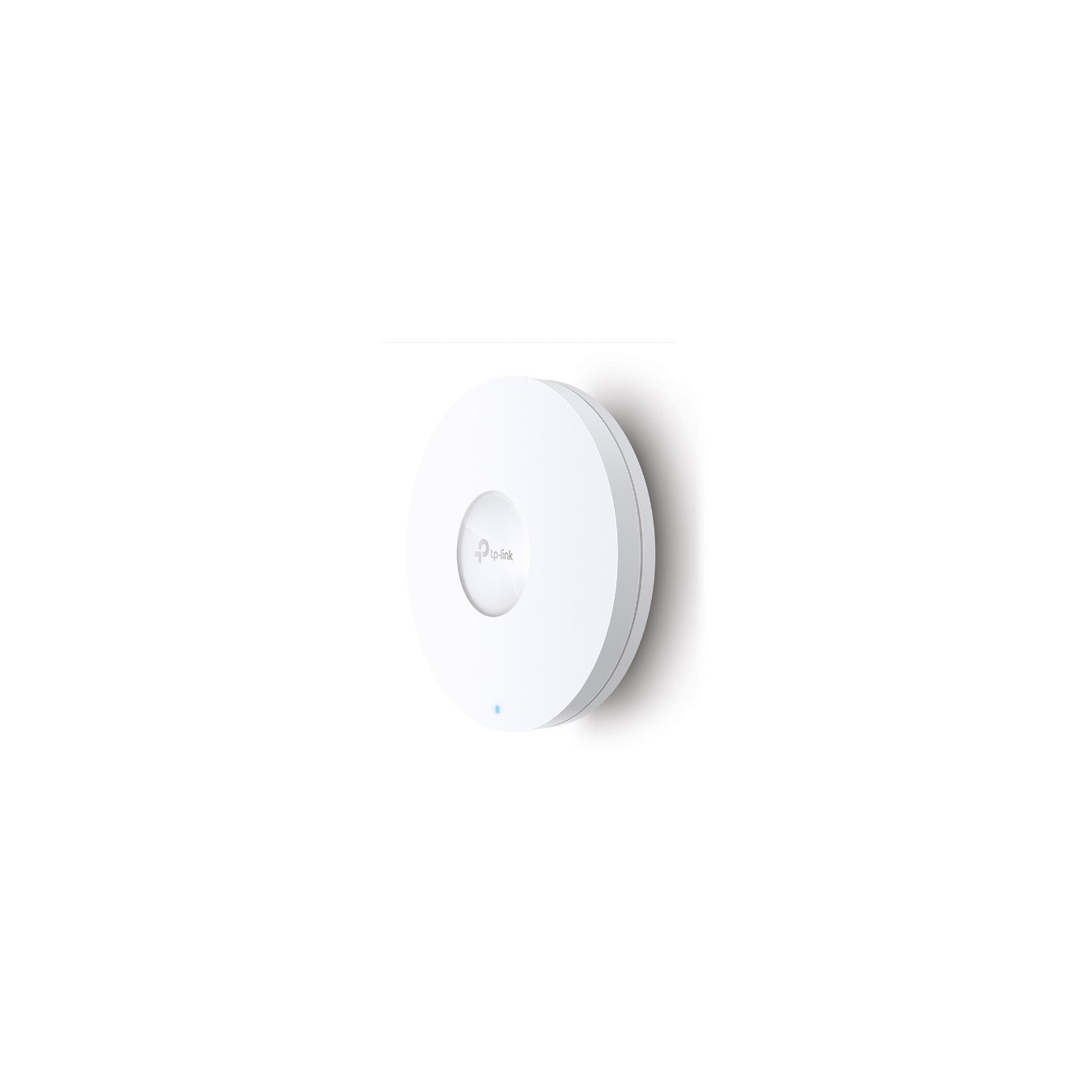

TP-Link Omada EAP670 - AX5400 Wi-Fi 6 Access Point - White, 2.5GbE, IP67
AX5400 Wi-Fi 6 dual-band AP (EAP670): 2.4/5 GHz up to 574/4804 Mbps, 2.5GbE uplink, ceiling/wall mount, IP67 outdoor-rated, supports 250 users and 16 SSIDs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Outdoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x2.5GbE |
| Access Points - Management | Controller-based |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | IP67 |
TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point. 2.4 GHz. 5 GHz. Maximum data transfer rate: 5400 Mbit/s. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | LED indicators |
| Maximum data transfer rate | 5400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| Number of users | 250 user(s) |
| MIMO type | Multi User MIMO |
| Transmitting power (CE) | <20 dBm(2.4 GHz. EIRP)| <23 dBm(5 GHz. band1 & band2. EIRP)| <30 dBm(5 GHz. band3. EIRP) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz)| <28 dBm (5 GHz) |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Input current | 1.5 A |
| Placement | Ceiling. Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 6 |
| Antenna gain level (max) | 5 dBi |
| Certification | CE. FCC. RoHS |
| Width | 243 mm |
| Depth | 243 mm |
| Height | 64 mm |
| Package width | 302 mm |
| Package depth | 304 mm |
| Package height | 82 mm |
| Package weight | 1.32 kg |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
