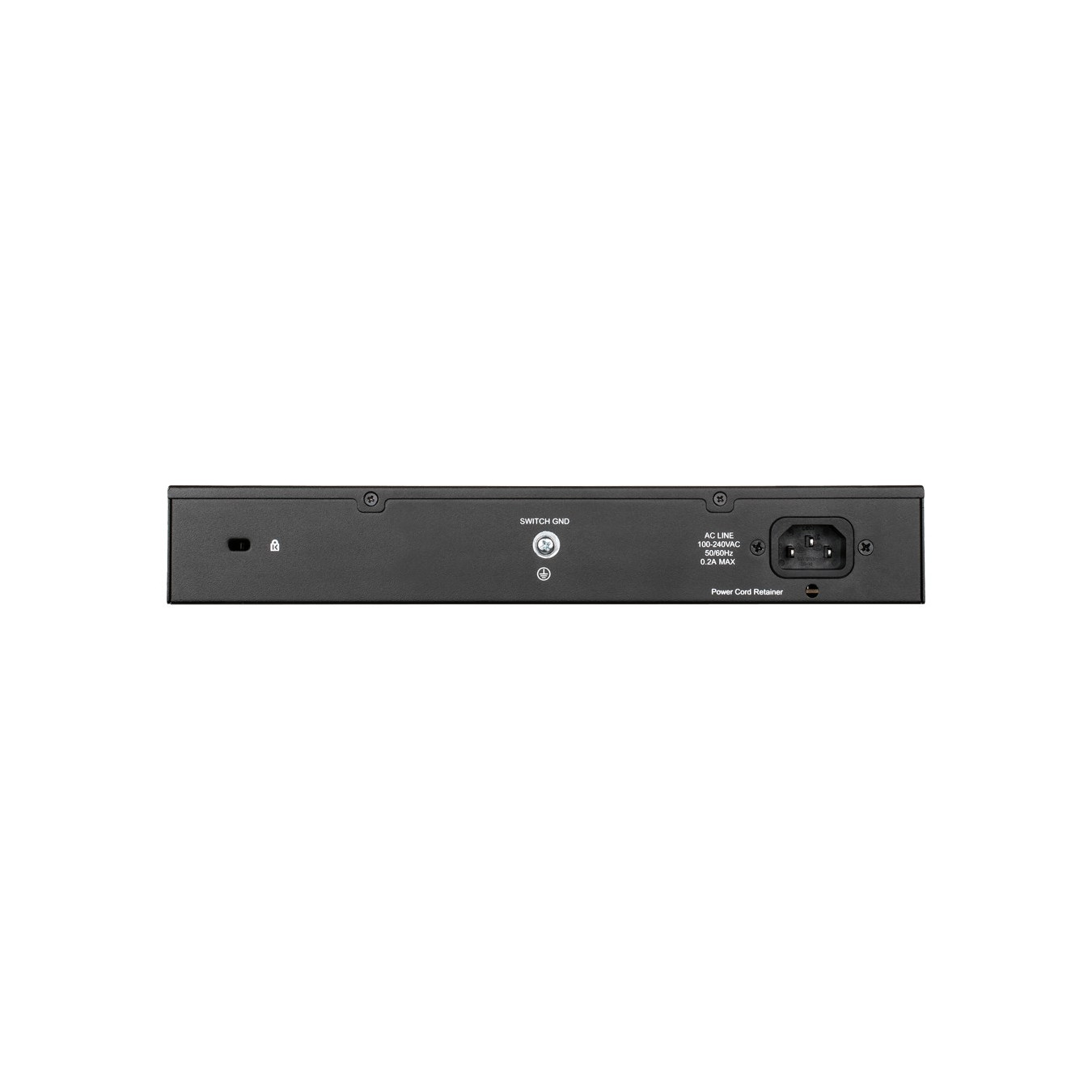

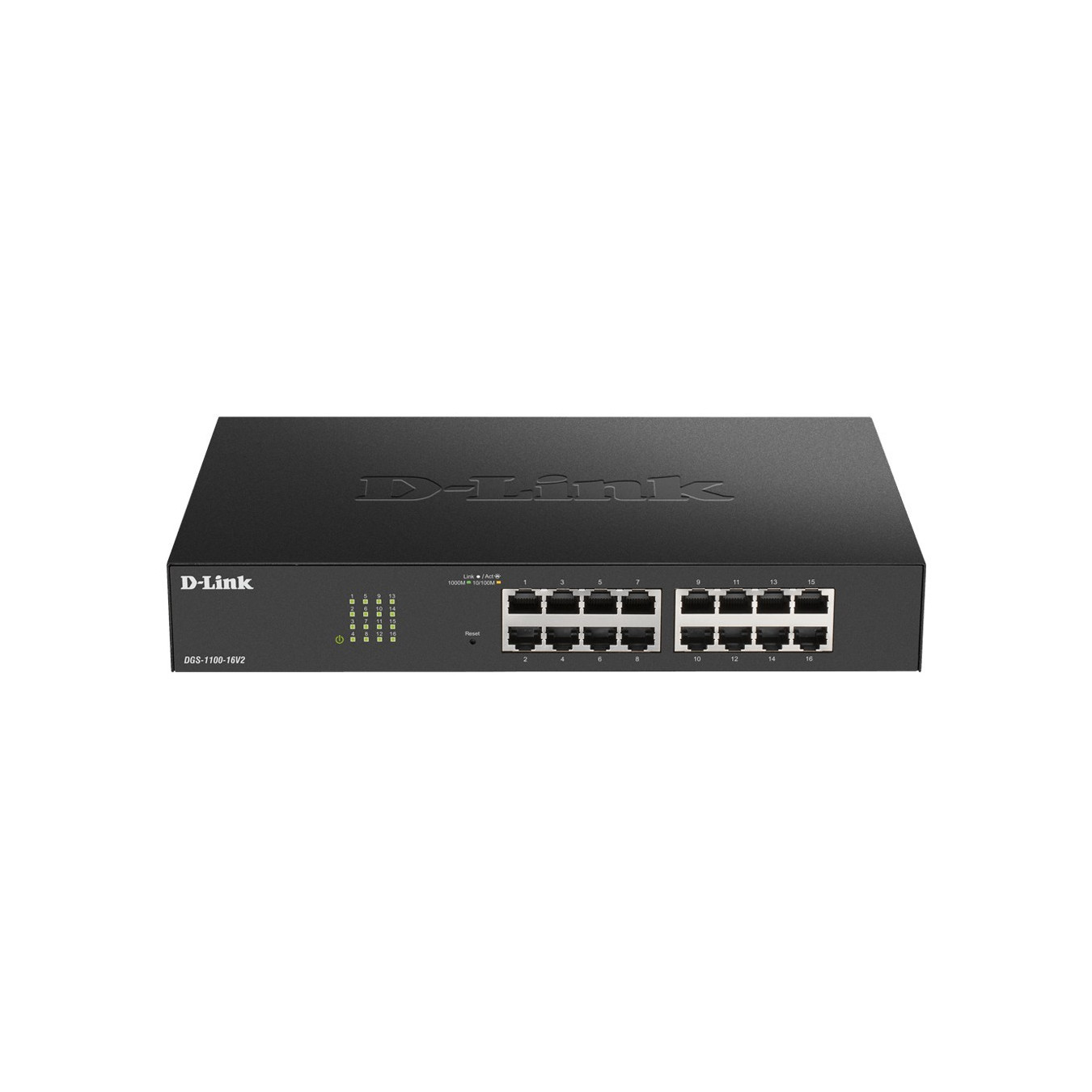

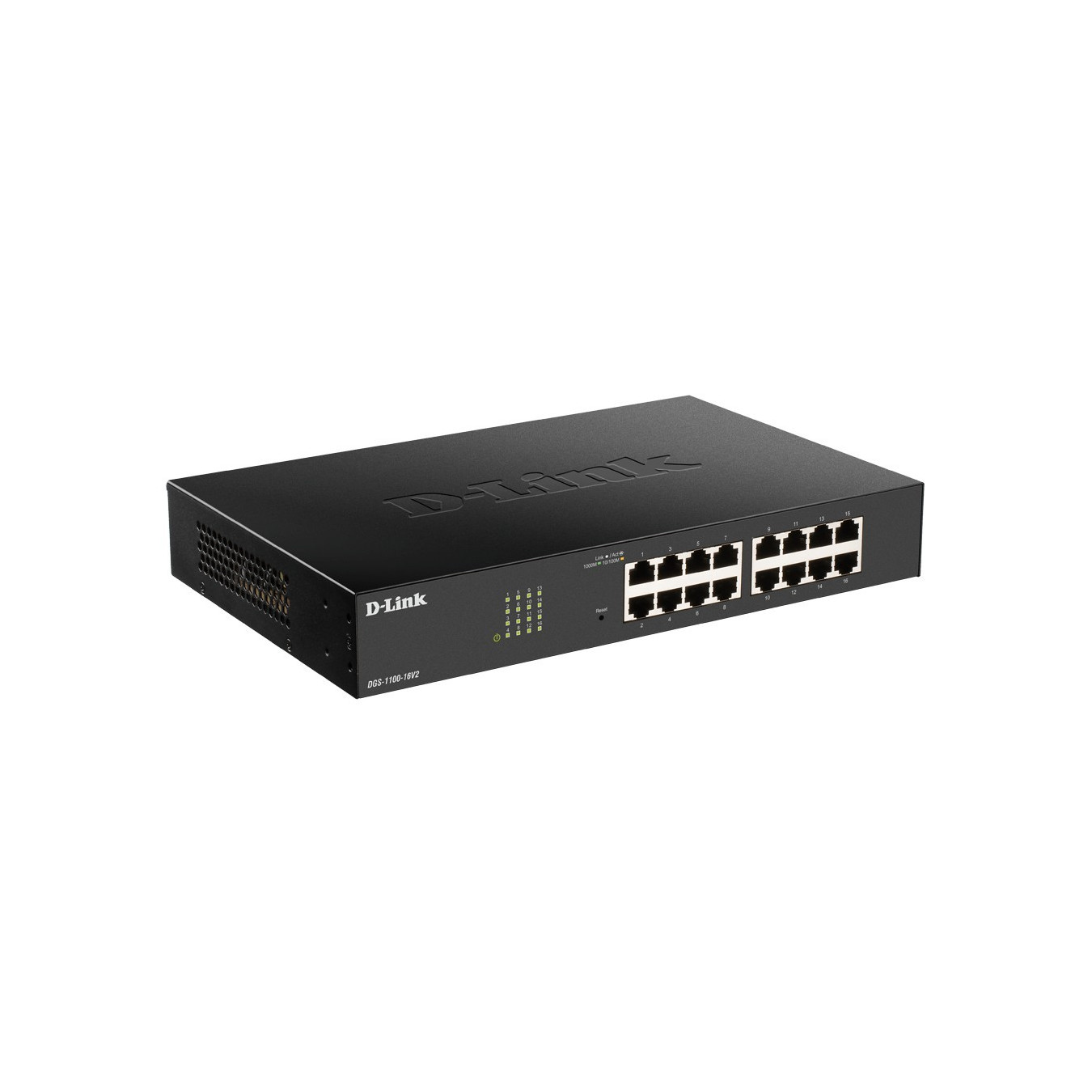

D-Link DGS-1100-16V2 - 16-Port Managed L2 Gigabit Switch - Fanless Rackmount, 125 MHz CPU, 16 MB Flash, Black
16-port managed L2 Gigabit switch (10/100/1000) — fanless rackmount design, 32 Gbps switching capacity, 23.81 Mpps, 16 MB flash, 125 MHz CPU, 10.1W max.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | Yes |
|---|
D-Link DGS-1100-16V2. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE.... Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Fanless |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T. 10BASE-TX. 1000BASE-T |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | Port-based VLAN. Voice VLAN |
| Number of VLANs | 128 |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP client |
| Security algorithms | SNMP. SSL/TLS |
| Queue scheduling algorithms | SPQ. Weighted Round Robin (WRR) |
| Product colour | Black |
| Processor frequency | 125 MHz |
| Memory type | DRAM |
| Flash memory | 16 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 710519 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 10.1 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 34.46 BTU/h |
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.27 kg |
| Certification | EMI FCC A. CE A. VCCI A. C-Tick. BSMI. CCCcUL. CE LVD. CB. BSMI. CCC |
