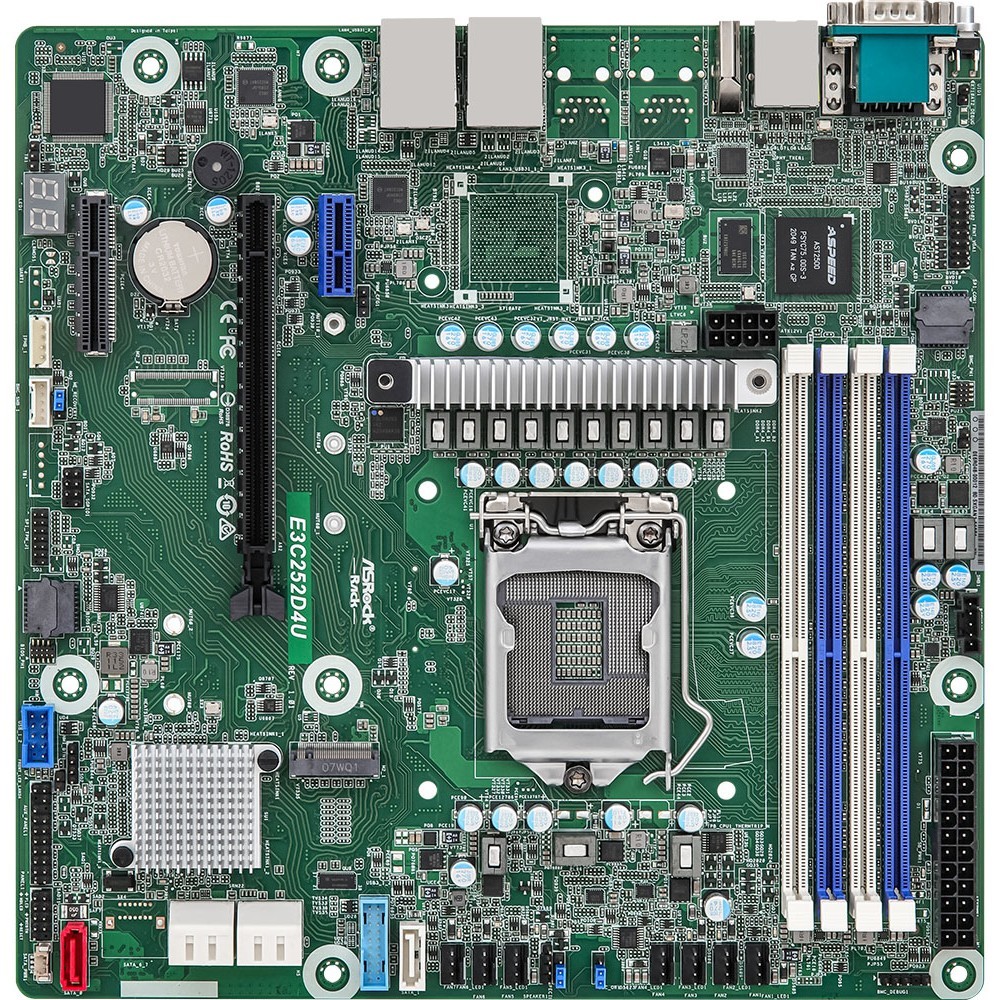

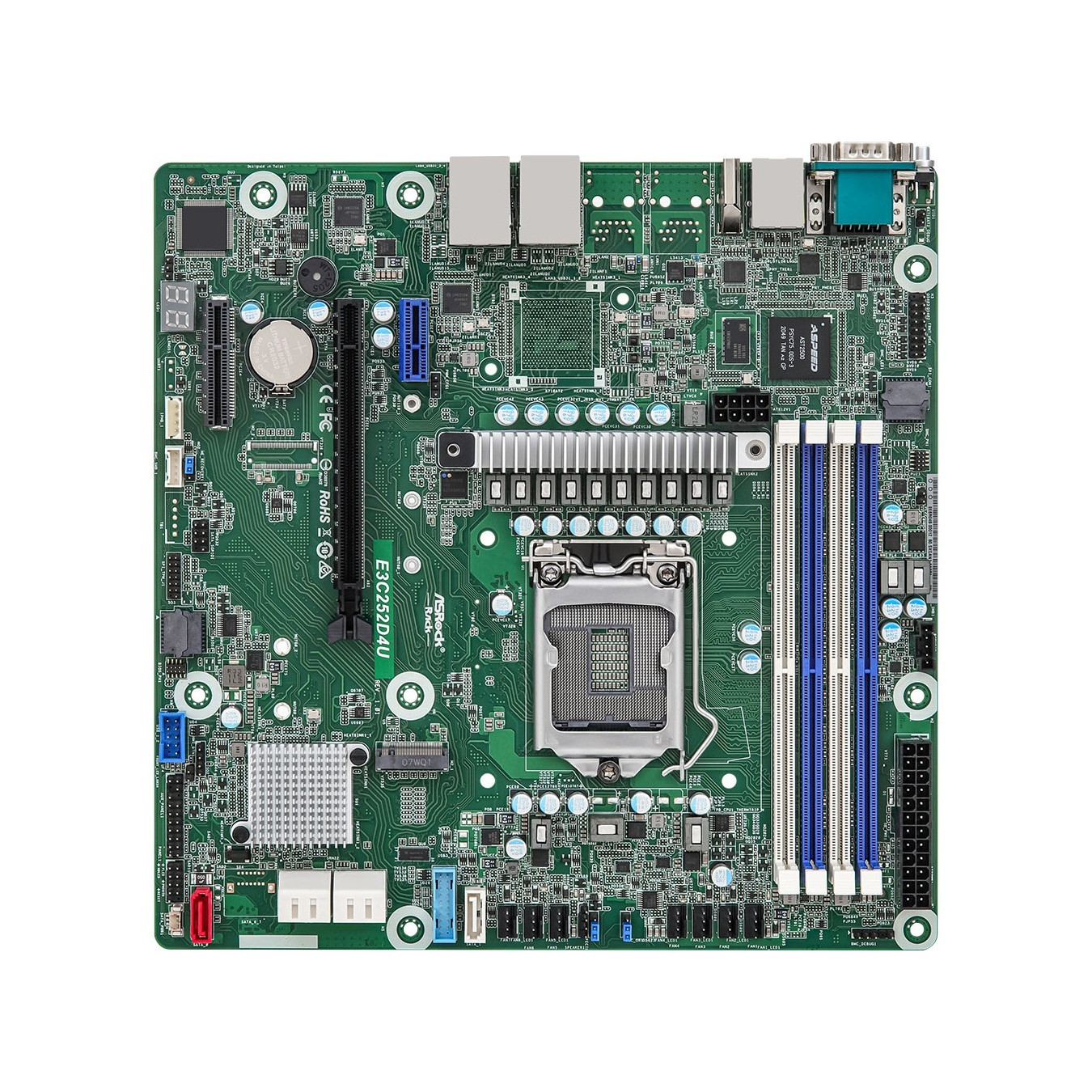

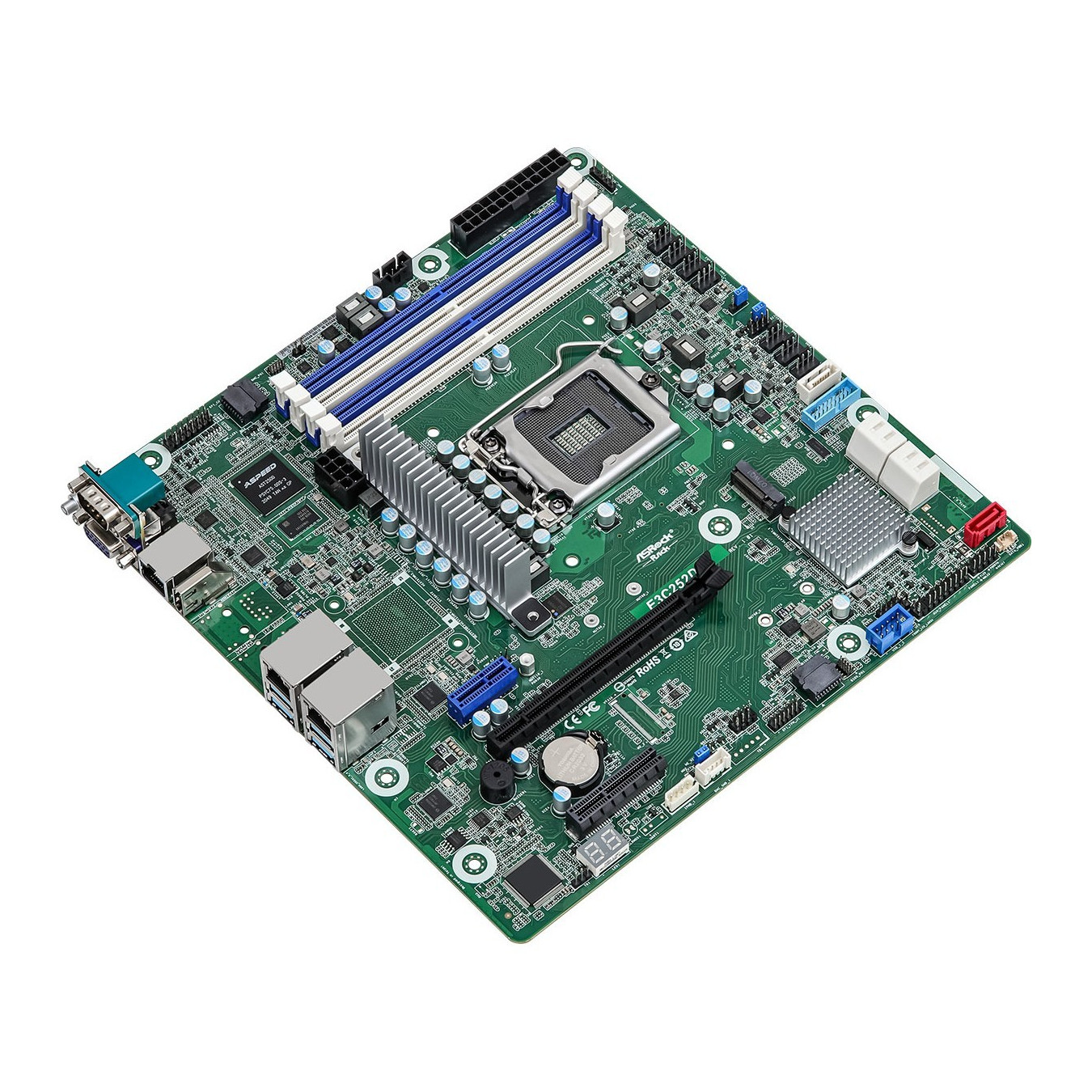

ASRock E3C252D4U - micro-ATX LGA1200 Motherboard - Intel Xeon E-2300 support, DDR4 up to 32GB, ECC, AST2500 iGPU, Intel I210 LAN
ASRock E3C252D4U micro-ATX LGA1200 motherboard for Intel Xeon E-2300. 4x DDR4 DIMM (up to 32GB, ECC & non-ECC), PCIe Gen4 x16, M.2 SATA, Intel I210 Gigabit LAN, AST2500 (256MB).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
Asrock E3C252D4U. Processor manufacturer: Intel. Processor socket: LGA 1200 (Socket H5). Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM. Maximum internal memory: 32 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA. RAID levels: 0. 1. 5. 10. Graphics card family: ASPEED. Graphics card: AST2500. On-board graphics card model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet. LAN controller: Intel I210
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E-2300 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 2666 MHz |
| Maximum internal memory | 32 GB |
| Supported storage drive interfaces | M.2. SATA |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 256 MB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Motherboard chipset | Intel C252 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS type | UEFI AMI |
| ACPI version | 6.2 |
| System Management BIOS (SMBIOS) version | 3.3 |
