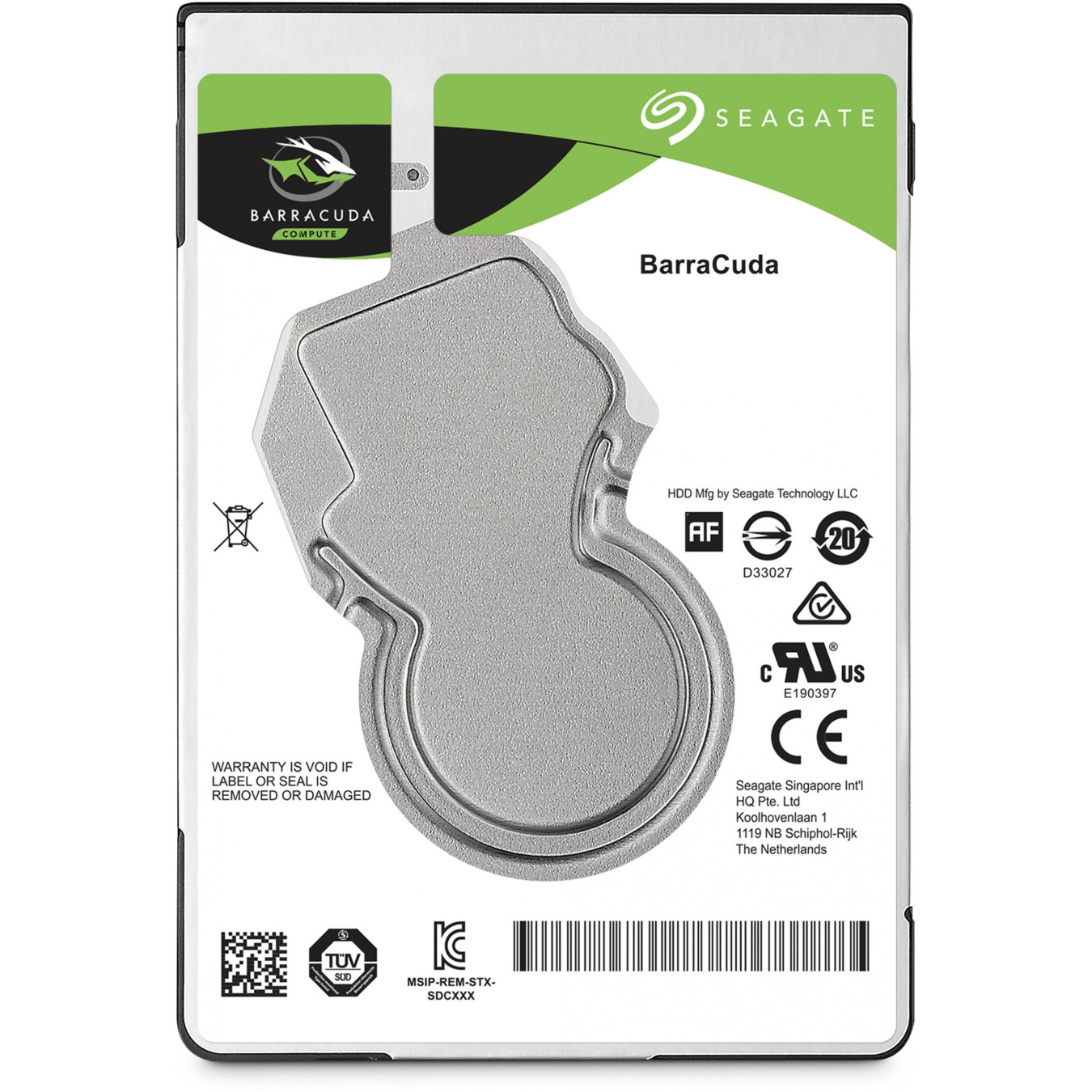

Seagate Barracuda ST5000LM000 5TB 5400RPM 128MB 2.5" SATA III HDD (Retail)
Seagate Barracuda ST5000LM000: 5TB 2.5in SATA III HDD, 5400 RPM, 128MB cache. Ideal for laptops/NAS with up to 140MB/s transfers, 15mm height, low power use. 2-year warranty, stores 1.25M songs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 4TB |
| Storage (SSD & HDD) - RPM (HDD) | 5400 RPM |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Cache (HDD) | 128MB |
| Storage (SSD & HDD) - Form Factor | 2.5 inch |
The Seagate Barracuda ST5000LM000 is a high-capacity 5TB 2.5-inch SATA III hard drive designed for mobile computing, laptops, and external enclosures. Operating at 5400 RPM with a 128MB cache, it delivers sustained transfer rates up to 140MB/s, making it suitable for large file storage and everyday use. Its 15mm z-height fits slim laptops while reducing heat and vibration.
This drive features advanced power management with low startup current (1.2A) and idle power as low as 1.1W, ideal for battery-powered devices. It uses 4096-byte sectors (Advanced Format) and supports a 55TB/year workload rating. Note potential SMR technology for higher density, which may impact random write performance in heavy workloads.
- Capacity: 5TB – stores over 1.25 million songs or 600 hours of HD video
- Interface: SATA 6Gb/s for broad compatibility
- Dimensions (bare): 100.3 x 69.8 x 15mm, 190g
- Operating temp: 0-60°C; Shock resistance: 300G operating
- Warranty: 2 years limited
| HDD capacity | 5 TB |
| HDD speed | 5400 RPM |
| Storage drive buffer size | 128 MB |
| HDD size | 2.5 |
| Interface | Serial ATA III |
| Type | HDD |
| HDD number of heads | 10 |
| Average latency | 5.6 ms |
| Bytes per sector | 4096 |
| Power consumption (read) | 1.9 W |
| Power consumption (write) | 2.1 W |
| Power consumption (idle) | 1.1 W |
| Operating voltage | 5 V |
| Start-up current | 1.2 A |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.7 G |
| Non-operating vibration | 3.52 G |
| Operating shock | 300 G |
| Non-operating shock | 650 G |
| Width | 69.8 mm |
| Height | 15 mm |
| Depth | 100.3 mm |
| Weight | 190 g |
| Harmonized System (HS) code | 84717050 |
| Compliance certificates | RoHS |
| Data transfer rate | up to 140 MB/s |
| Z-Height | 15 mm |
| Workload rating | 55 TB/year |
| Warranty | 2 years |
