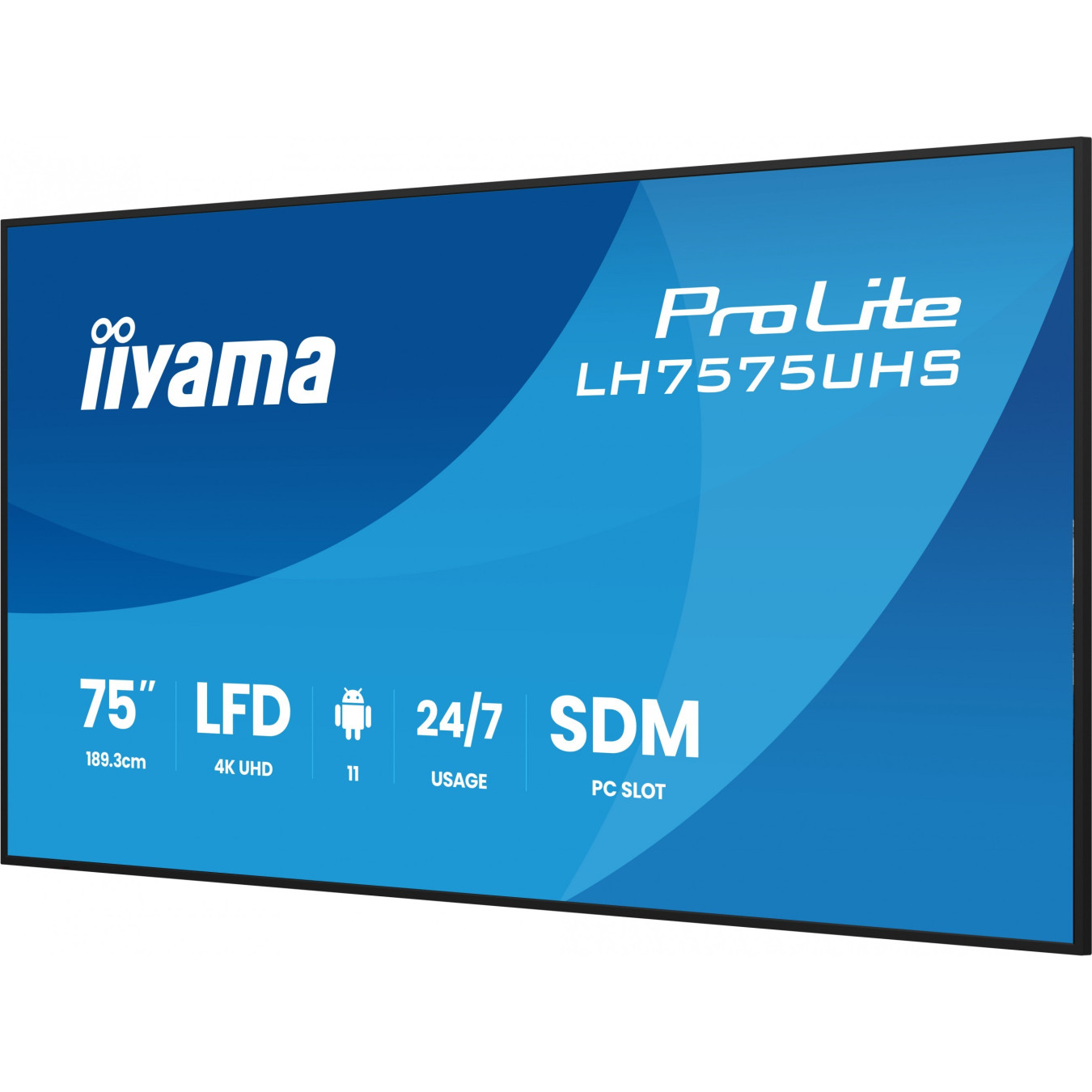

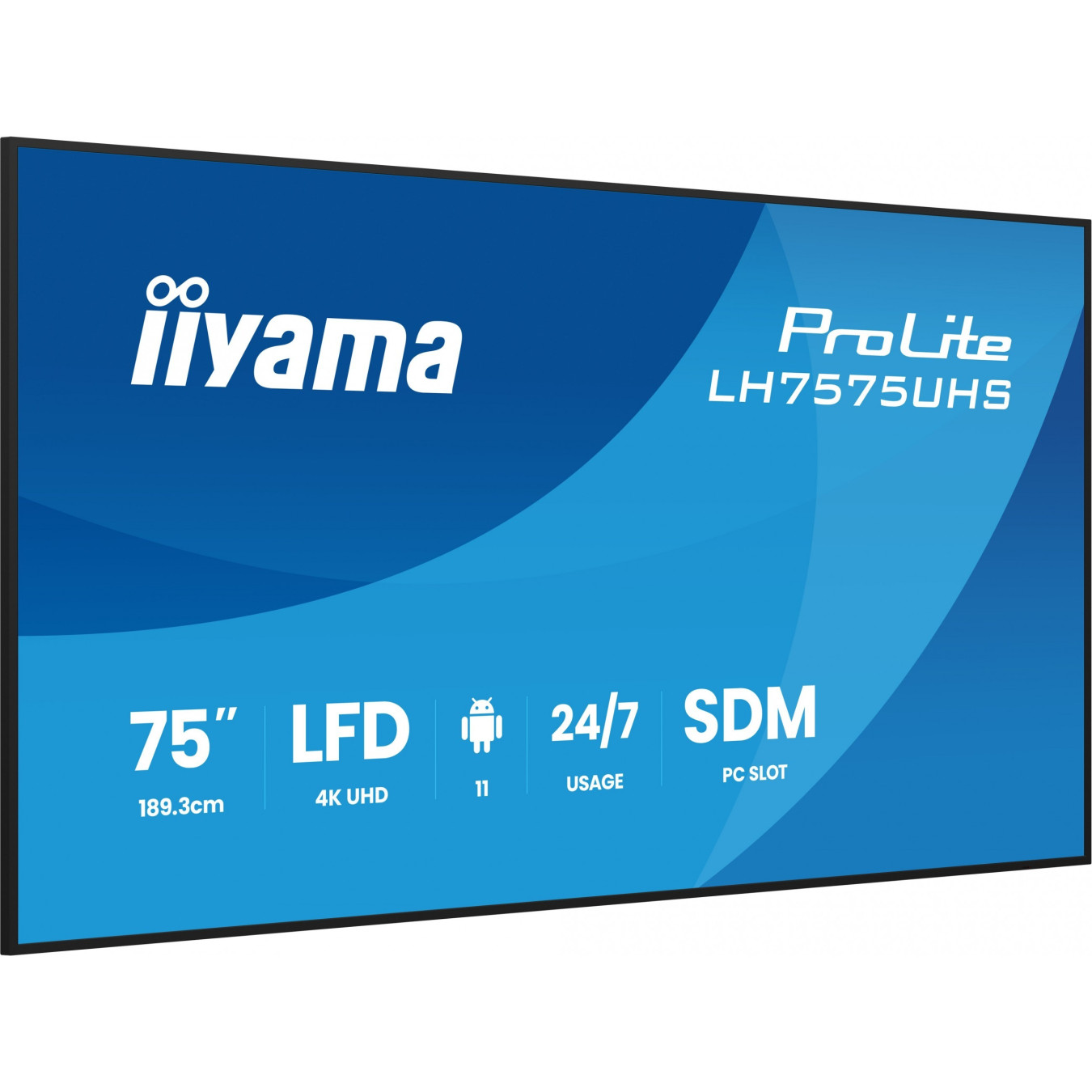

iiyama LH7575UHS-B2AG - 75" 4K UHD Digital Signage, Android 11, ARM Cortex, 4GB RAM/32GB, 3xHDMI+DP, Black
75" iiyama 4K UHD (3840x2160) IPS digital signage display, Android 11, ARM Cortex CPU, 4GB RAM/32GB storage, 3xHDMI+DP+2xUSB, Wi-Fi, 500 cd/m², 24/7
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | IPS |
|---|---|
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |

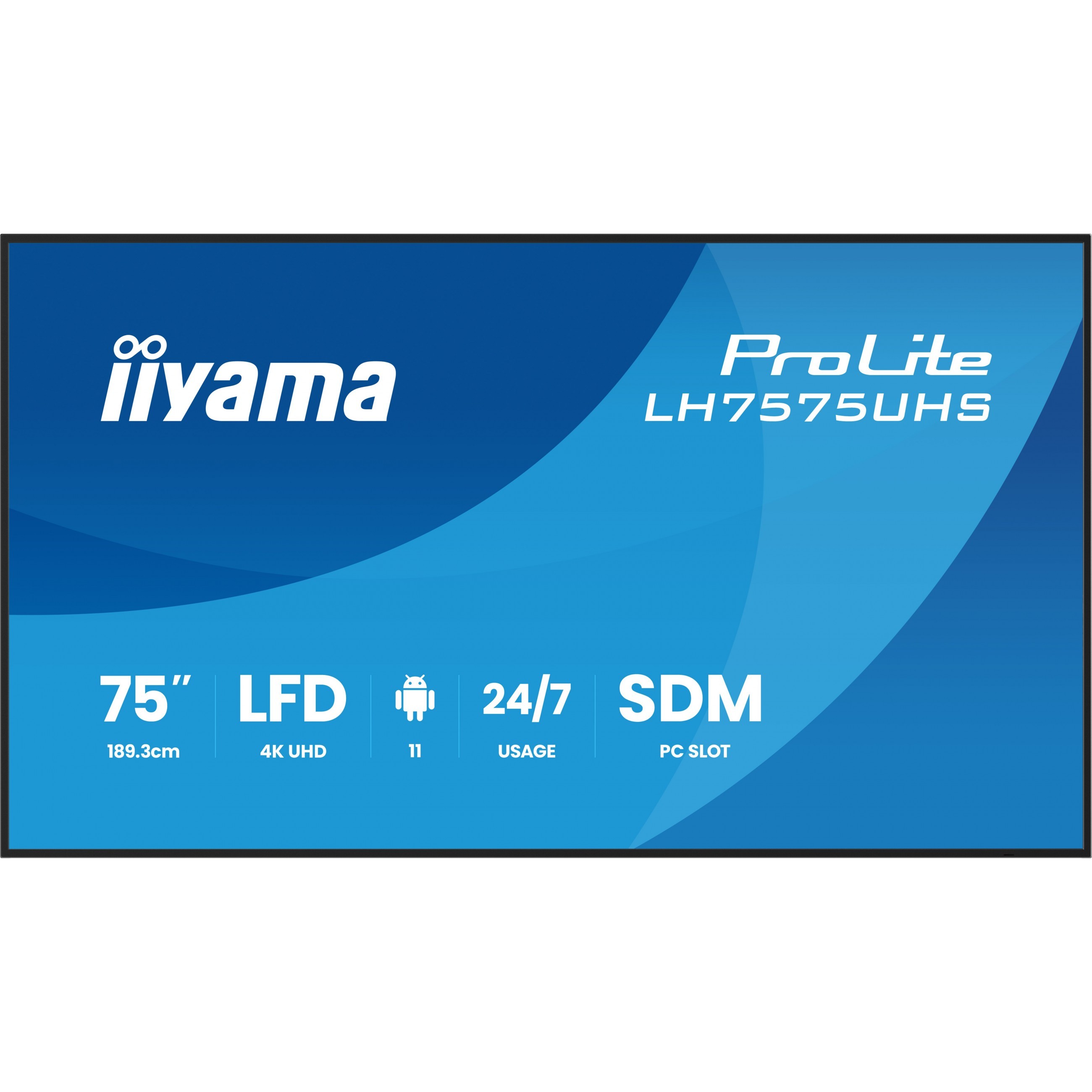

iiyama 75" 4K UHD Professional Digital Signage 24/7 display featuring Android OS. FailOver and Intel® SDM slot. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"). Display technology: LCD. Display resolution: 3840 x 2160 pixels. Display brightness: 500 cd/m². HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
| Panel type | IPS |
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.429 x 0.429 mm |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 108 cm |
| Maximum frame rate | 60 fps |
| Horizontal scan range | 28 - 160 kHz |
| Colour depth | 8 bit |
| Haze rate | 25% |
| RGB colour space | NTSC |
| Colour gamut | 72% |

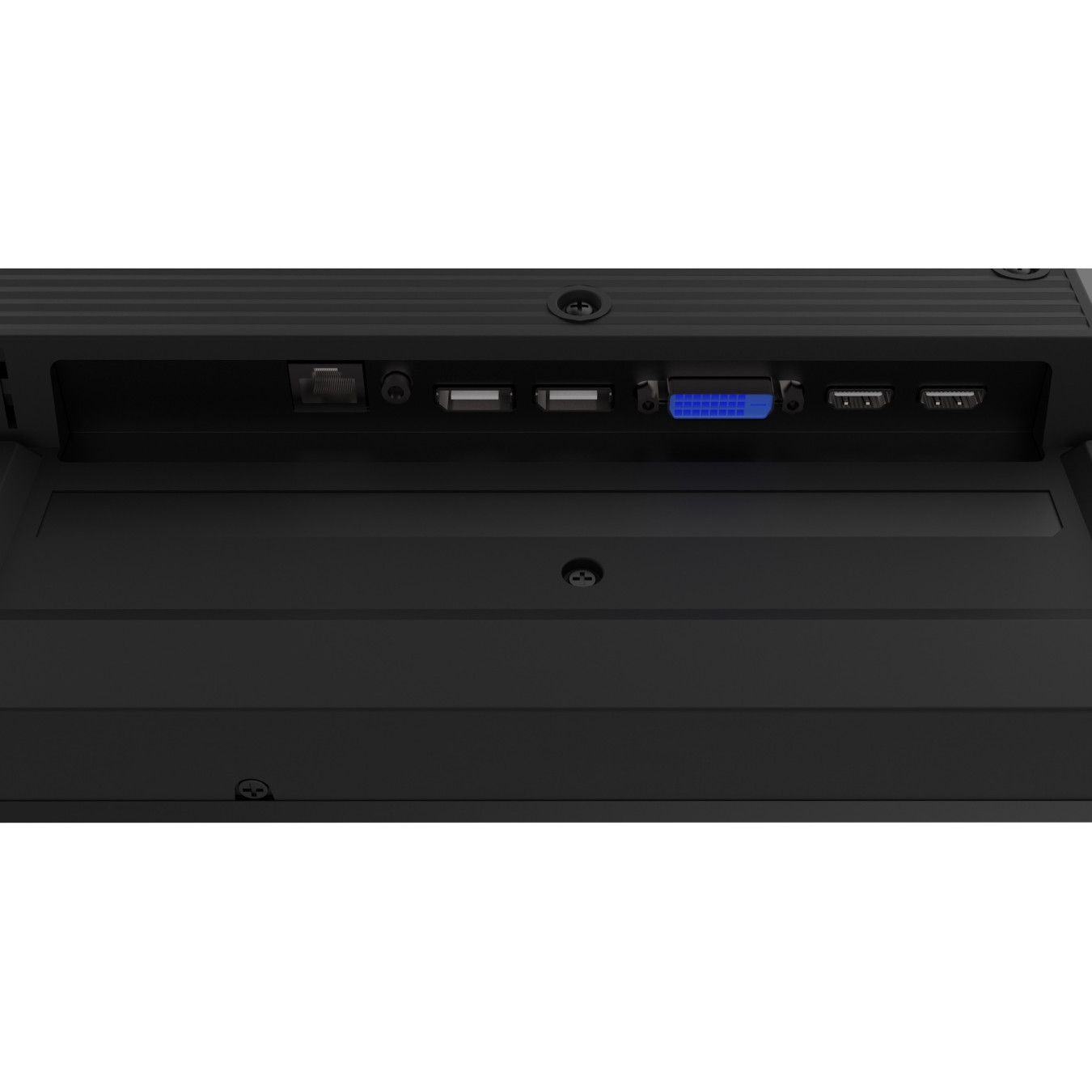

| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DisplayPort version | 1.2 |
| Feature | Plug and Play |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

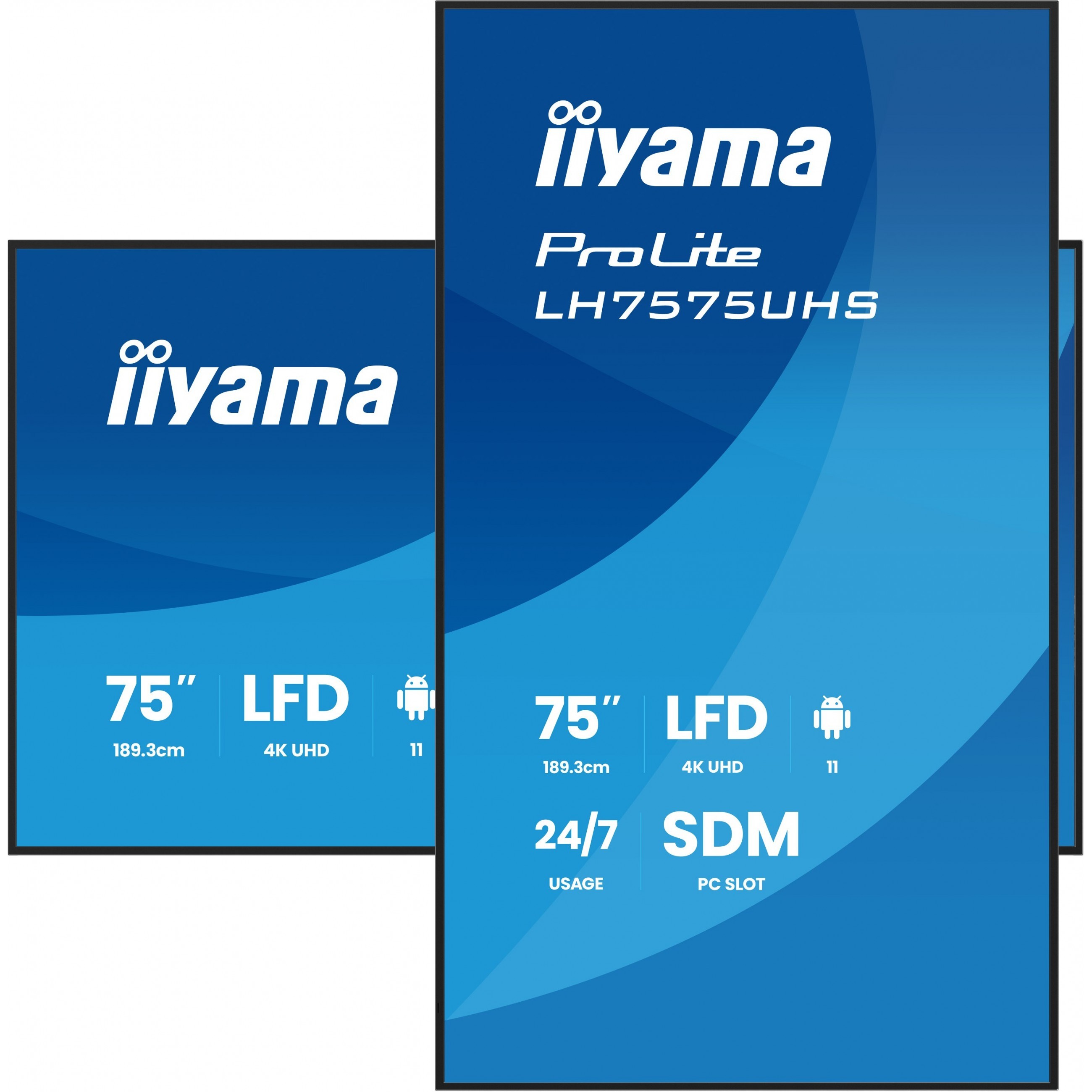

| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (top) | 1.49 cm |
| Bezel colour | Black |
| Mounting type | Wall |
| Purpose | Universal |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Simplified Chinese. Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Japanese. Polish. Russian. Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 44000 h |
| Power consumption (typical) | 187 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 187 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Display width | 1679.5 mm |
| Display depth | 55 mm |
| Display height | 958.5 mm |
| Display weight | 29.5 kg |
| Package width | 1883 mm |
| Package depth | 186 mm |
| Package height | 1140 mm |
| Package weight | 29.5 kg |

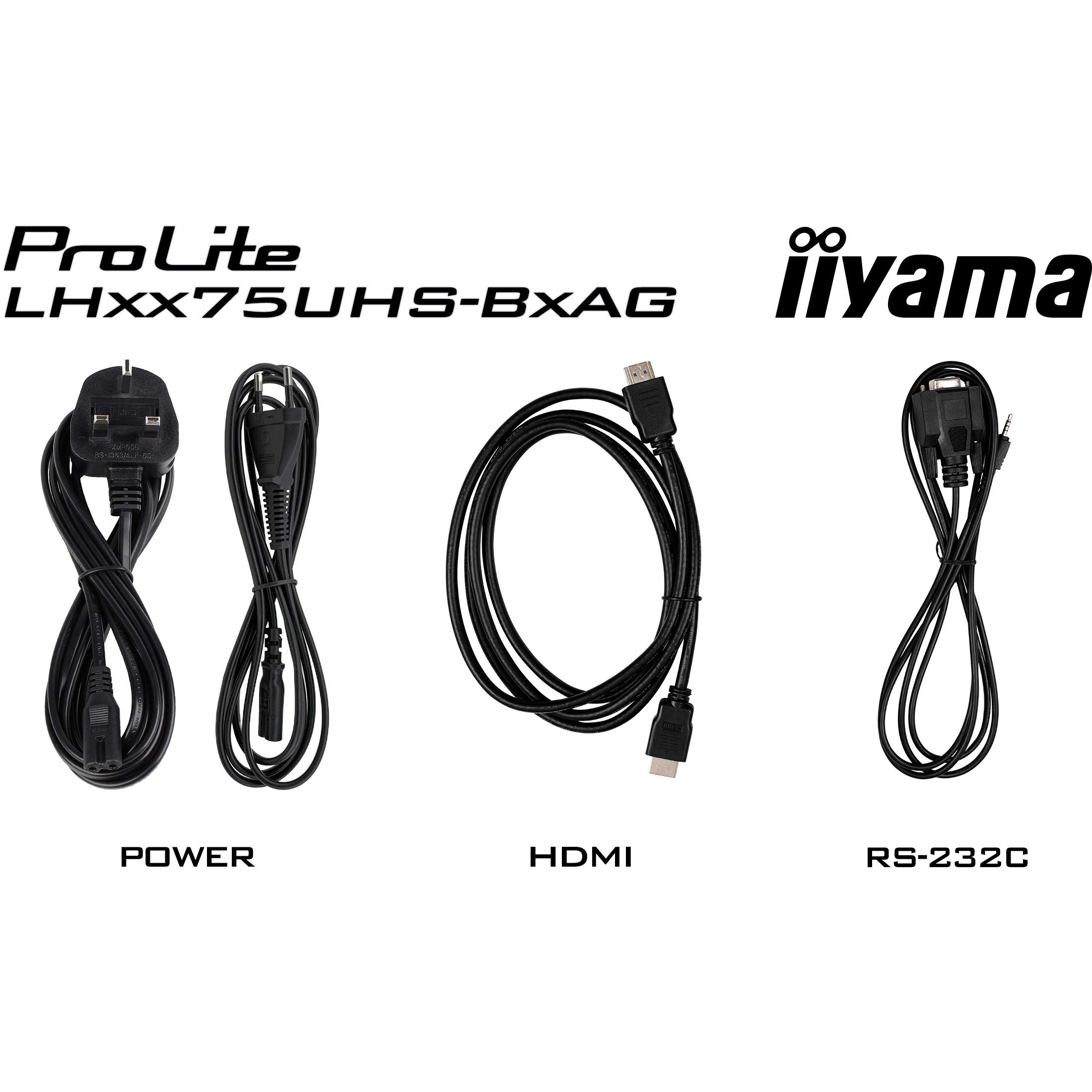

| Cables included | AC. HDMI. RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. ErP. WEEE. REACH |
| Harmonized System (HS) code | 85285210 |
| Compliance certificates | RoHS |
| Audio output | 3.5mm |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Housing material | Metal |
