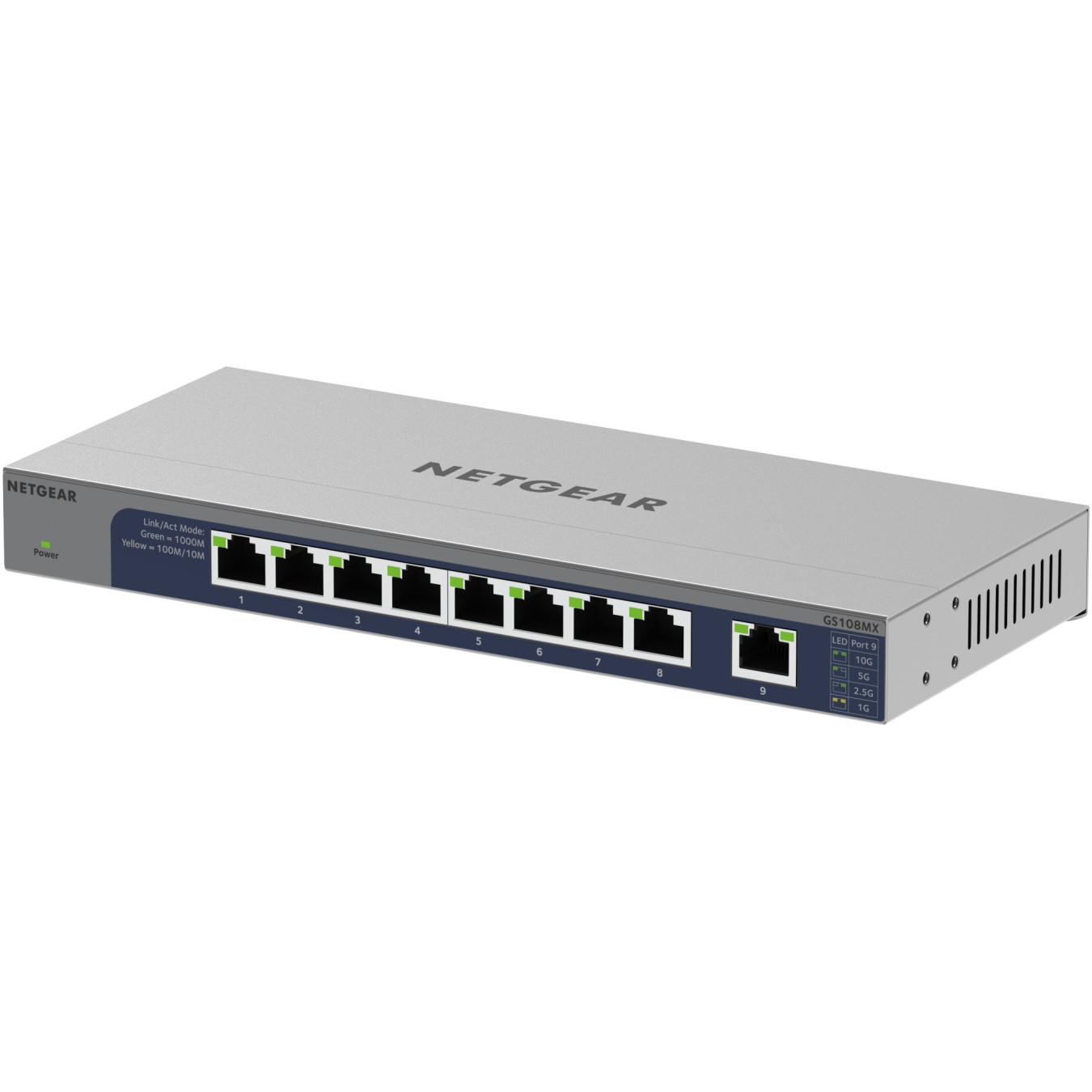

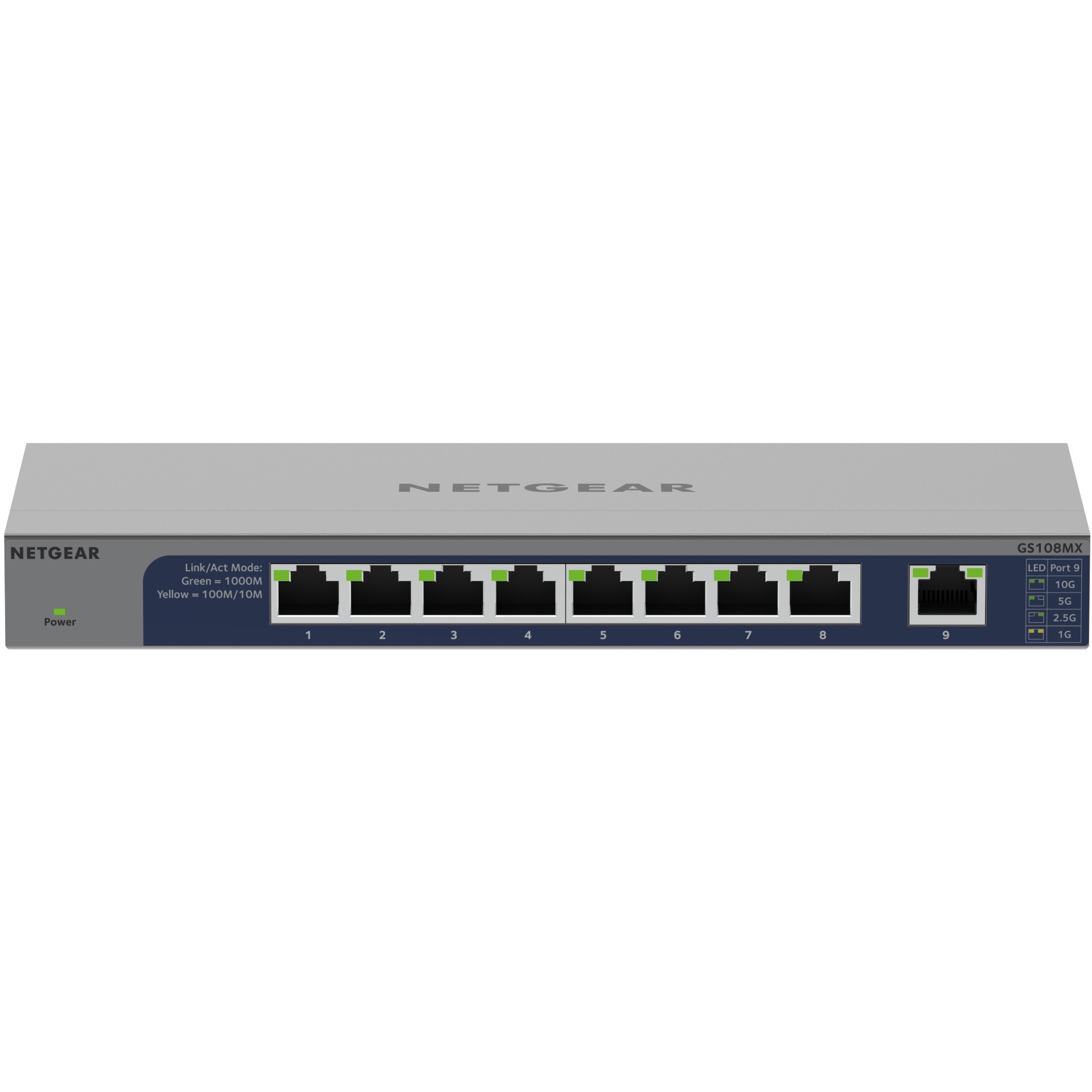

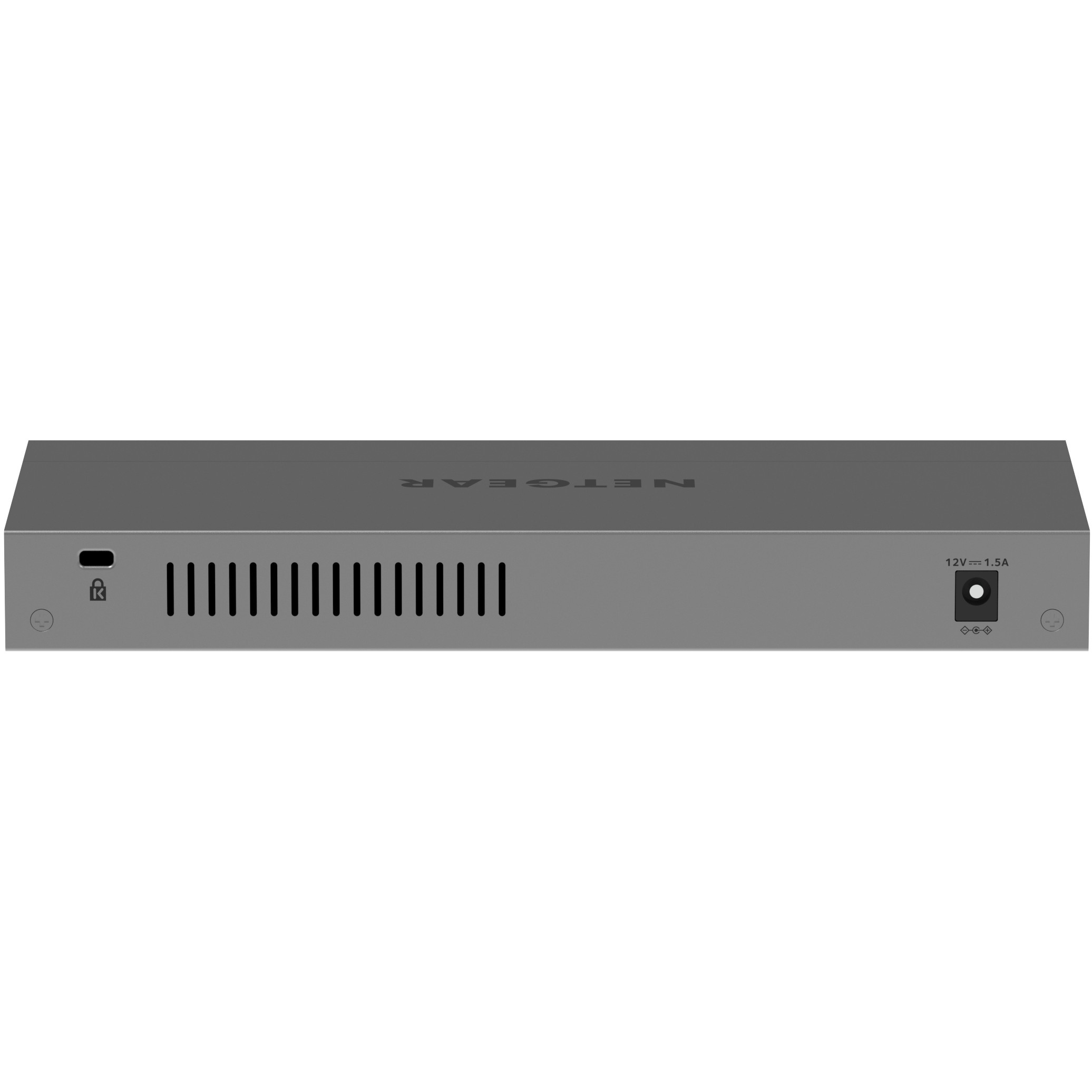

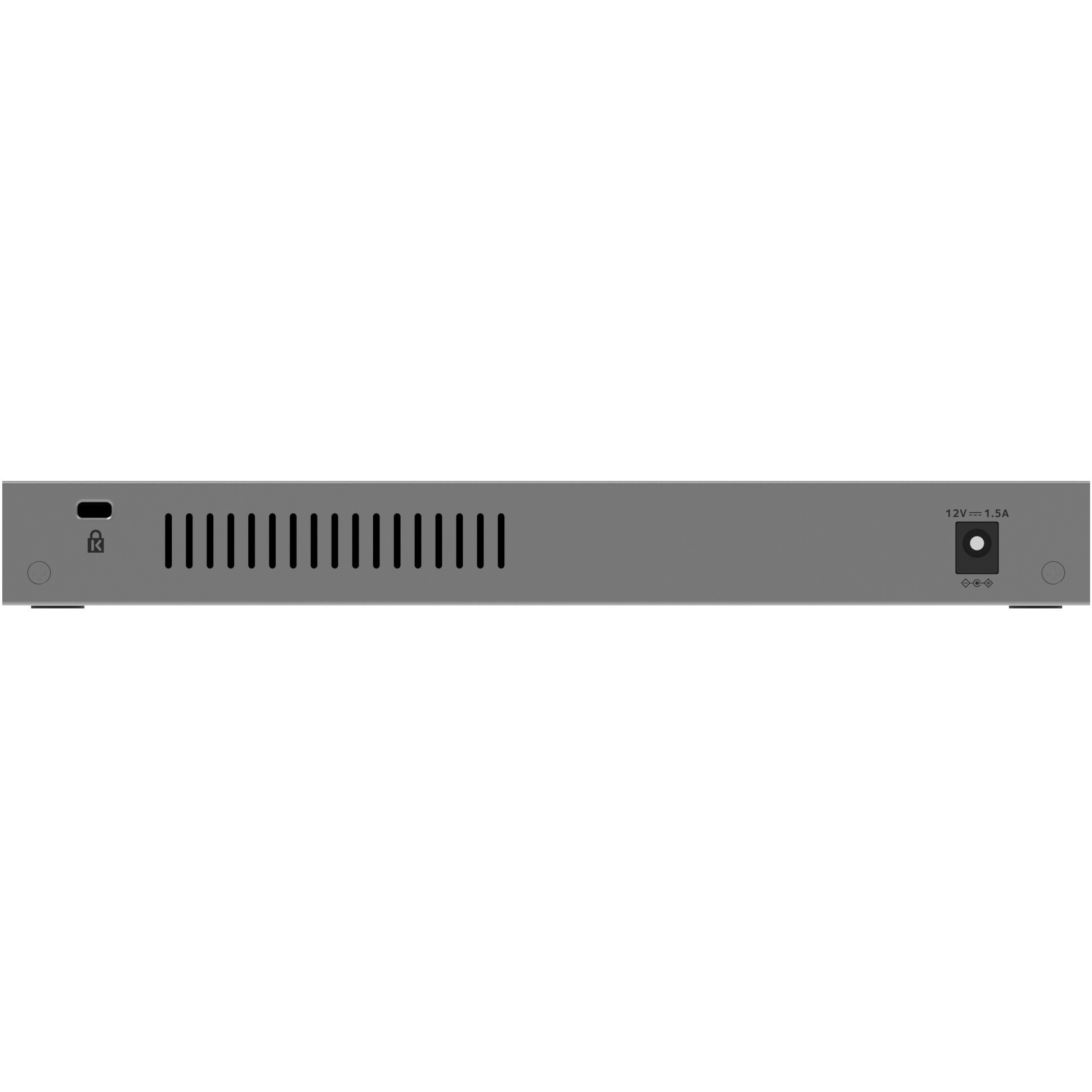

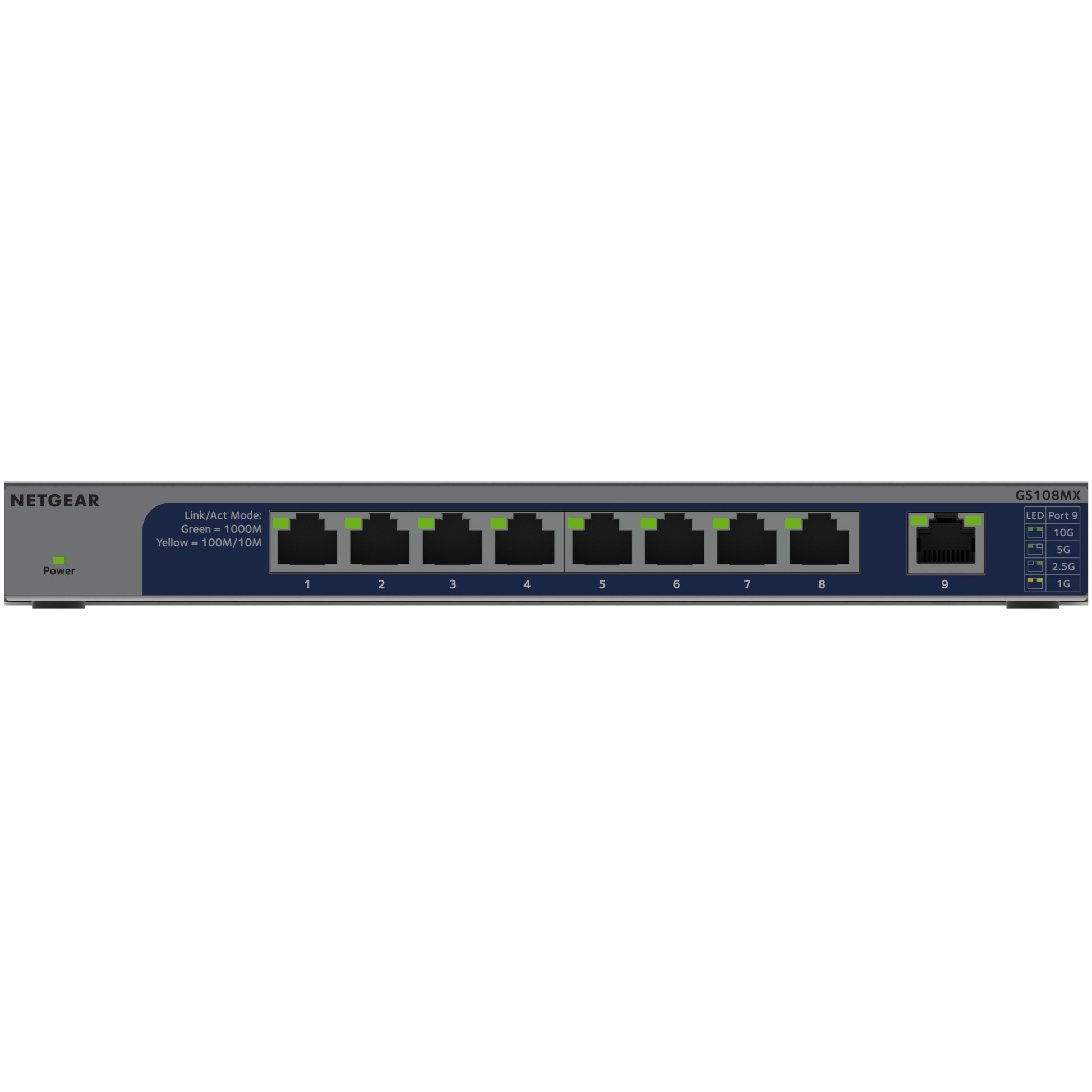

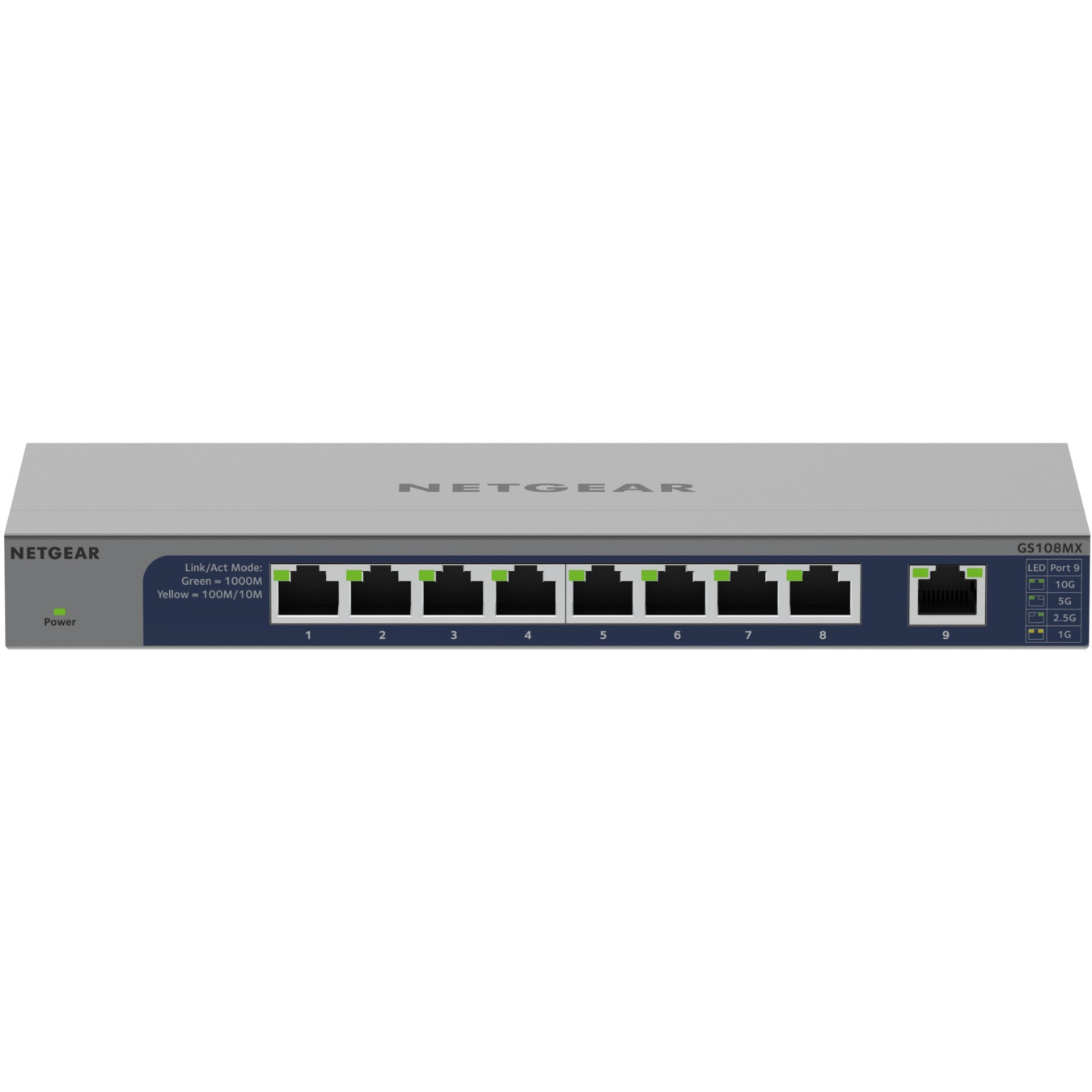

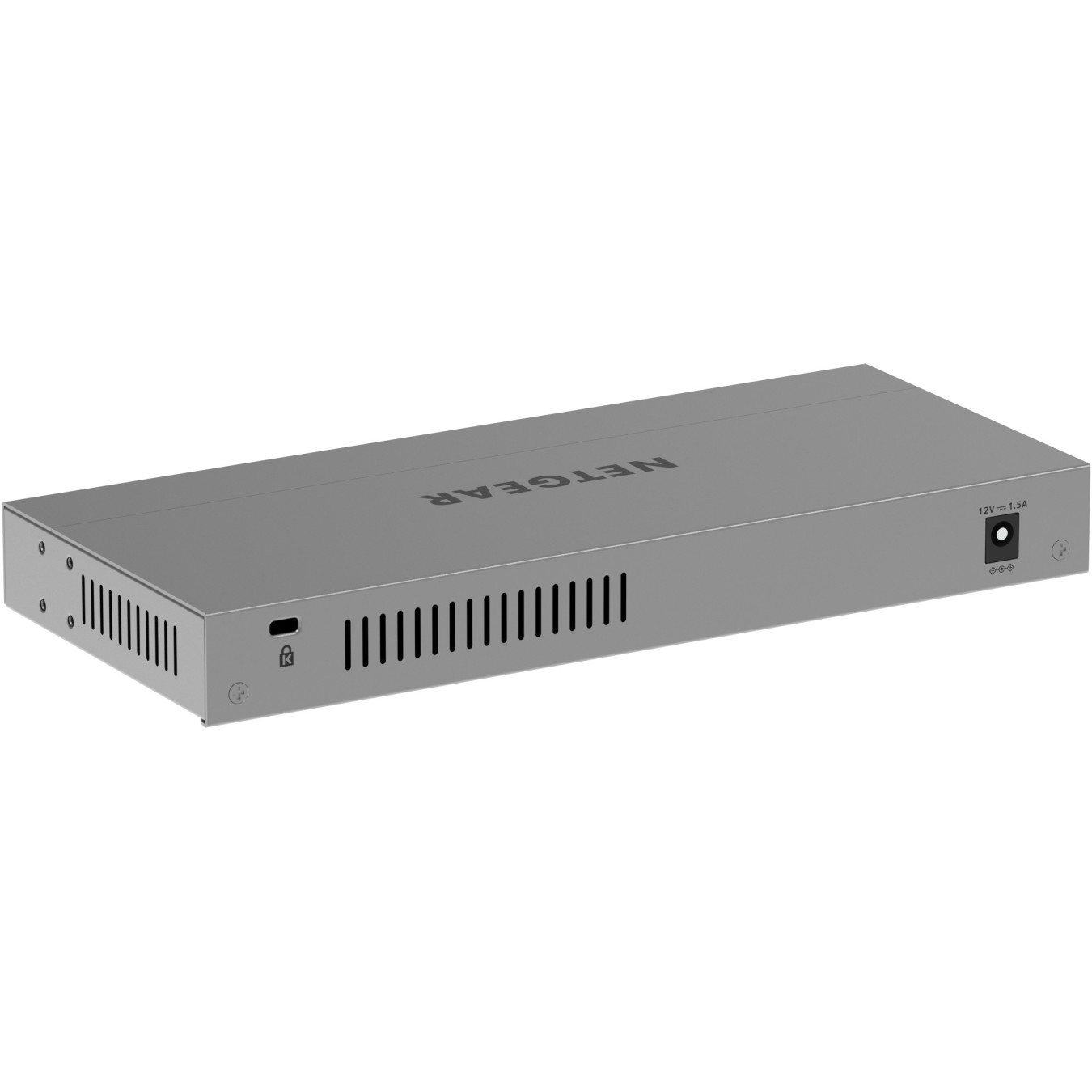

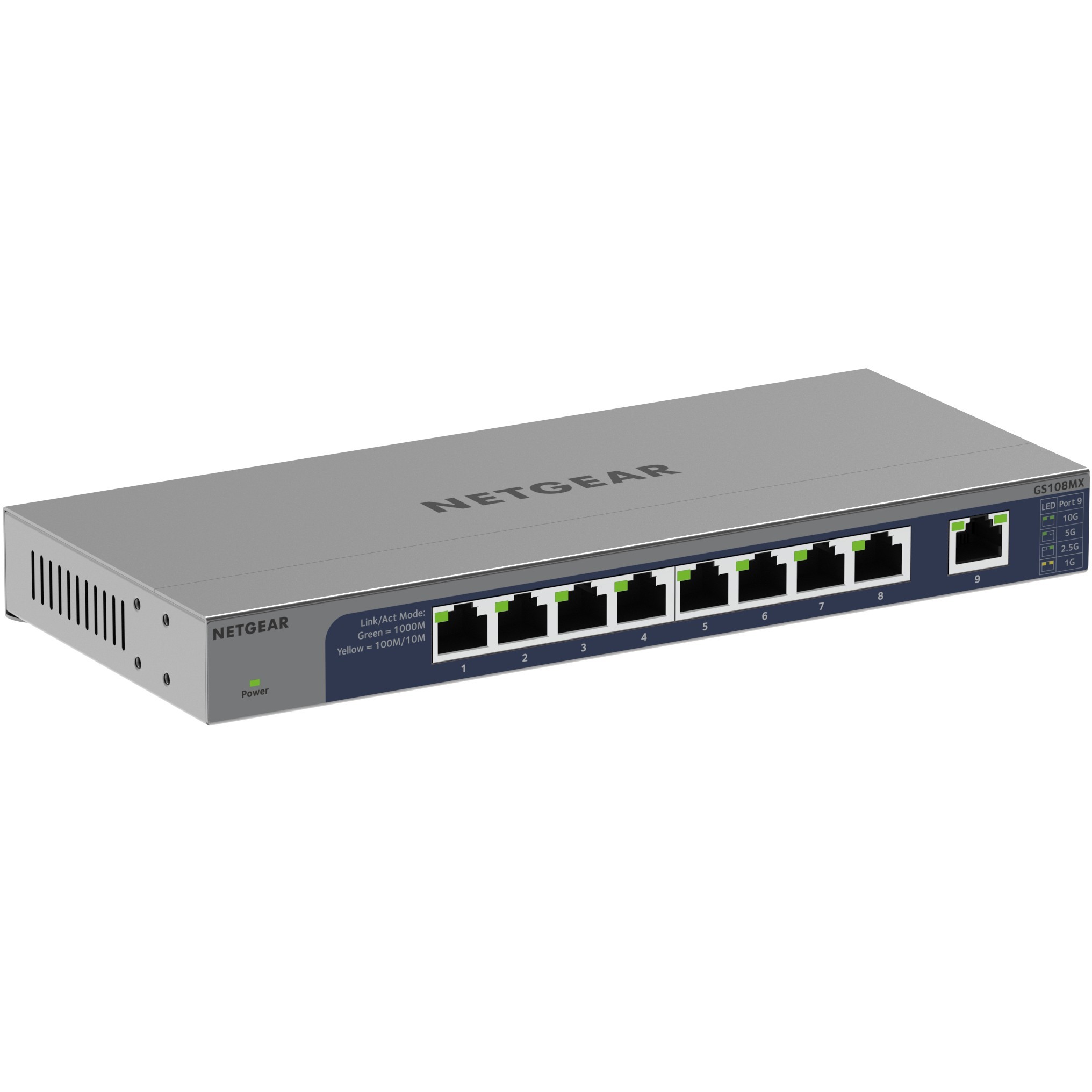

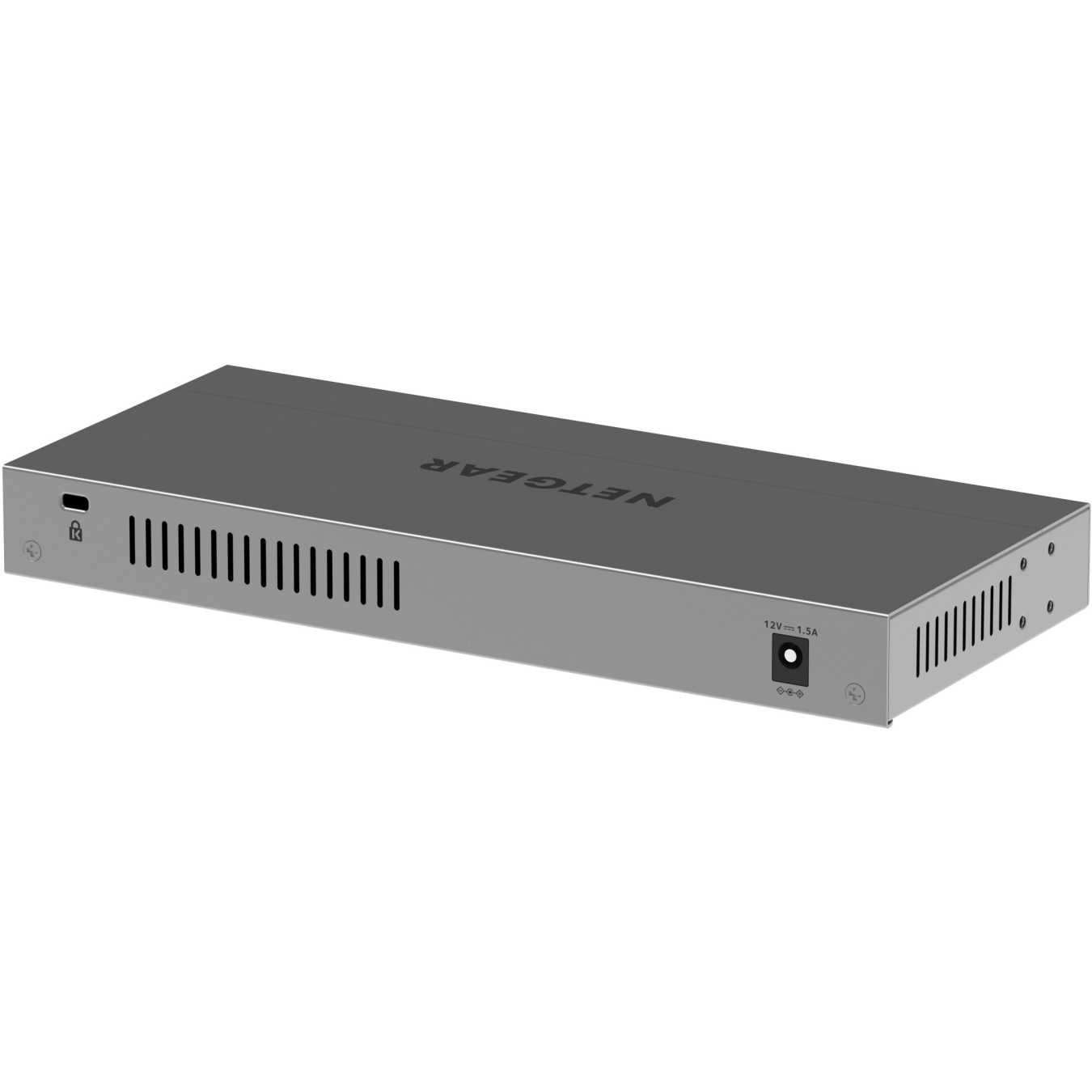

NETGEAR GS108MX - 8x Gigabit + 1x 10G Copper Unmanaged Switch - Metal, Fanless, Rackmount Capable
Unmanaged L2 NETGEAR GS108MX - 8x Gigabit RJ45 + 1x 10G RJ45, fanless metal desktop/rackmount with rack kit, 36 Gbit/s switching, 12V DC, 5.8W max.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | Yes |
|---|
NETGEAR GS108MX-100EUS. Switch type: Unmanaged. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Full duplex. MAC address table: 16000 entries. Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3az. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting. Form factor: Desktop/Wall-Mounting
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p. IEEE 802.3az |
| Feature | Rack mount kit |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 41.664 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 5 µs |
| Latency (1 Gbps) | 2 µs |
| Latency (10 Gbps) | 2 µs |
| Number of queues | 8 |
| Jumbo frames | 9728 |
| Packet buffer memory | 0.768 MB |
| Queue scheduling algorithms | Priority queuing (PQ). Weighted Round Robin (WRR) |
| Multicast MAC address table | 16000 entries |
| Form factor | Desktop/Wall-Mounting |
| Housing material | Metal |
| LED indicators | Activity. Link. Power. Speed |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | Class B |
| Mean time between failures (MTBF) | 3514690 h |
| Power source | DC |
| DC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (max) | 5.8 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 19.91 BTU/h |
| Width | 235 mm |
| Depth | 100.8 mm |
| Height | 27 mm |
| Weight | 575 g |
| Compliance certificates | BSMI. CE. Federal Communications Commission (FCC). ICES. KC. RCM. UKCA. VCCI |
