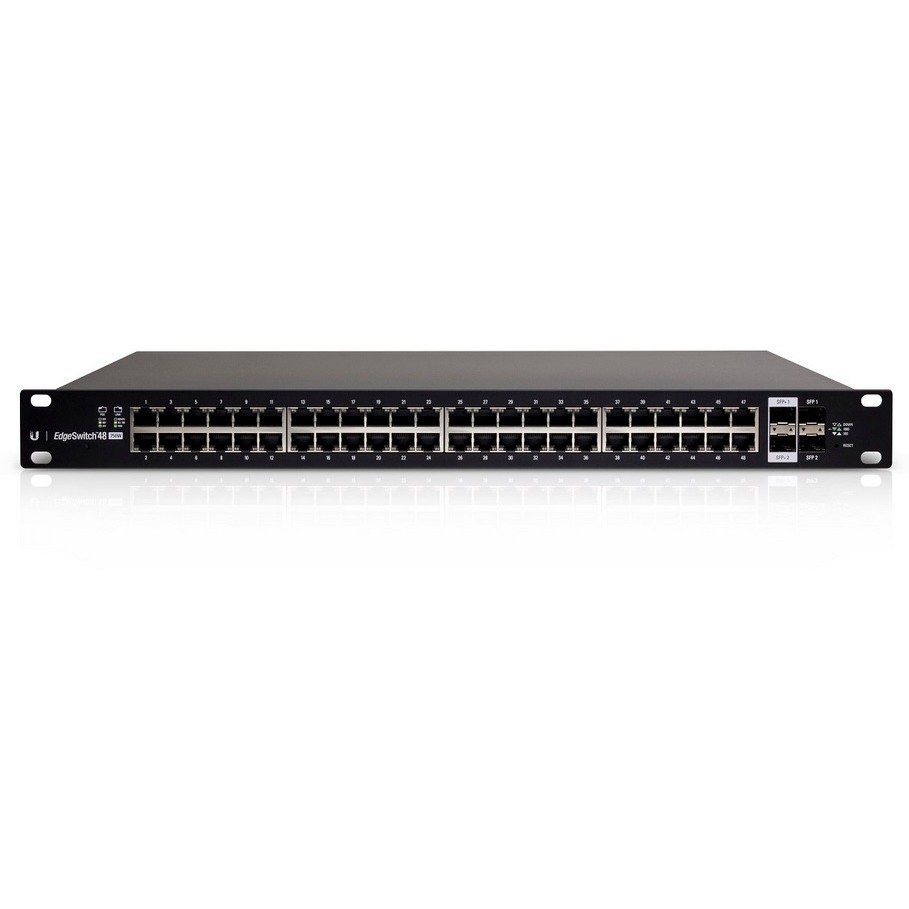

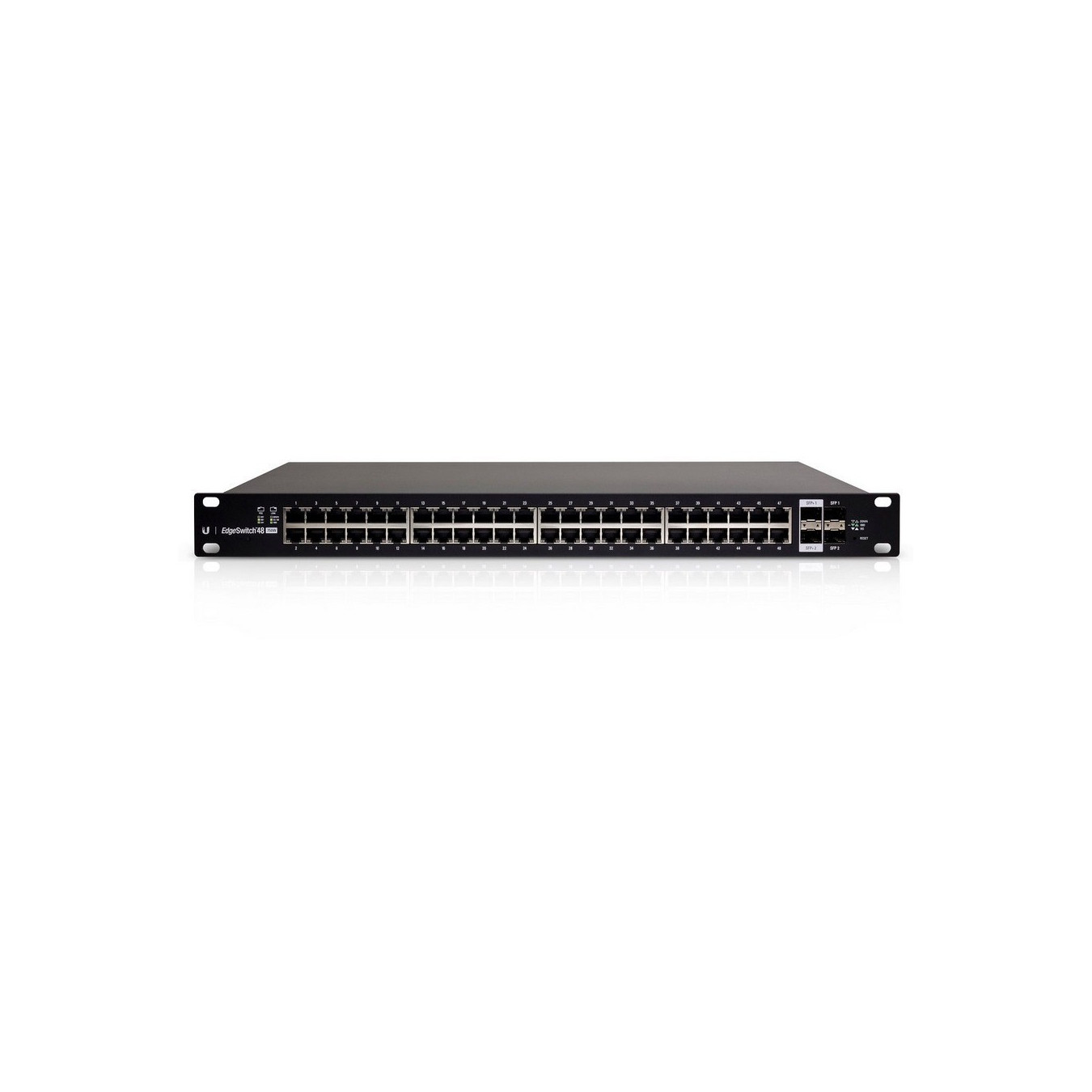

Ubiquiti EdgeSwitch ES-48-500W - 48x Gigabit + 2 SFP + 2 SFP+ | 500W PoE, Rackmount 1U, Black
Managed L2/L3 48-port Gigabit switch with 500W PoE budget, 2 SFP + 2 SFP+, RJ-45 console, 1U rackmount, SNMP v1/v2/v3 and ACL support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
Ubiquiti ES-48-500W. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Console port: RJ-45. MAC address table: 16384 entries. Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Virtual LAN features | Voice VLAN. Port-based VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 140 Gbit/s |
| Forwarding rate | 104.16 Mpps |
| MAC address table | 16384 entries |
| Number of queues | 8 |
| DHCP features | DHCP server. DHCP snooping |
| Access Control List (ACL) rules | 10 |
| Management protocols | SNMP v1. v2. v3 |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity. Link. PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 500 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 485 mm |
| Depth | 347.6 mm |
| Height | 44.5 mm |
| Weight | 5.3 kg |
| Certification | CE. FCC. IC |
| Harmonized System (HS) code | 85176990 |
