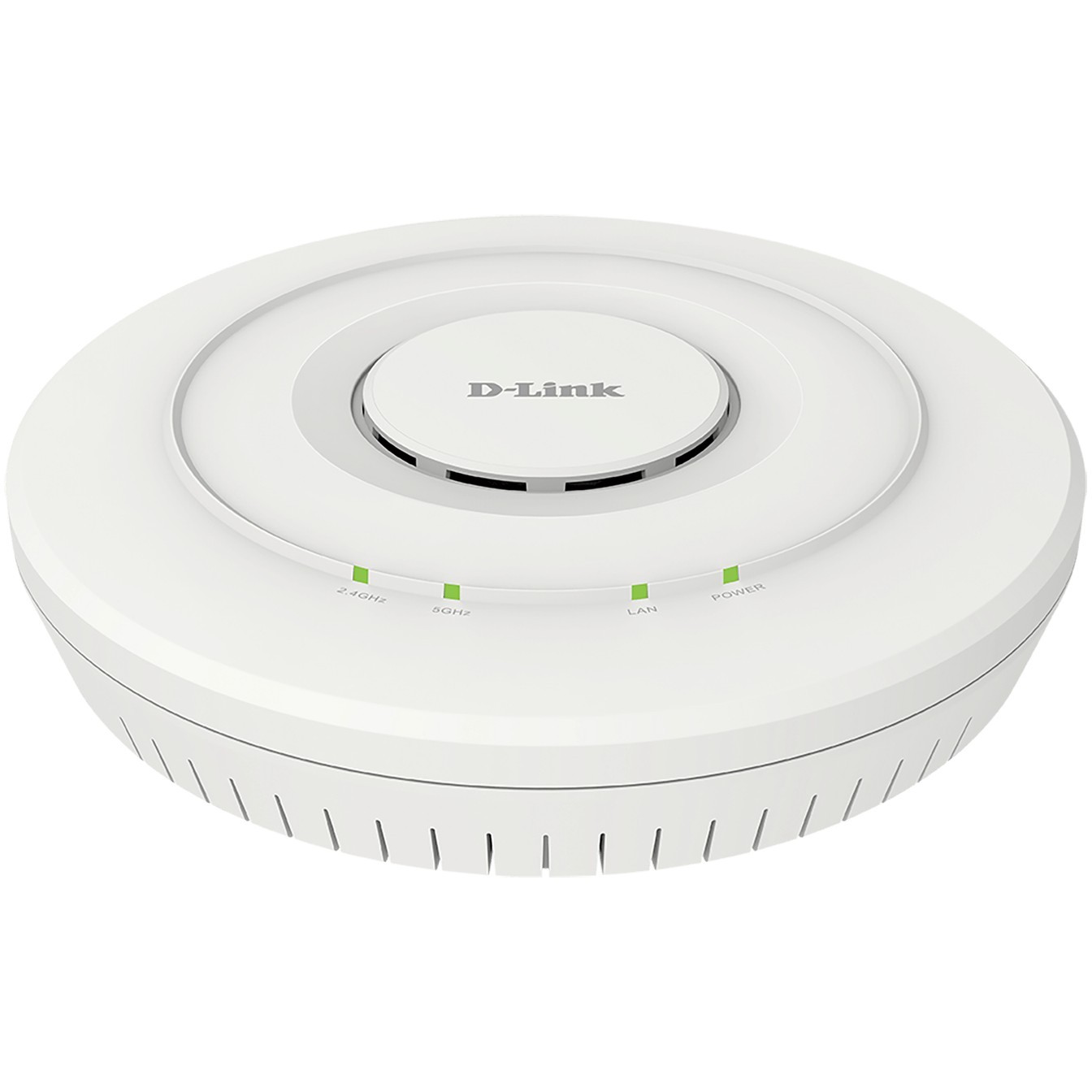

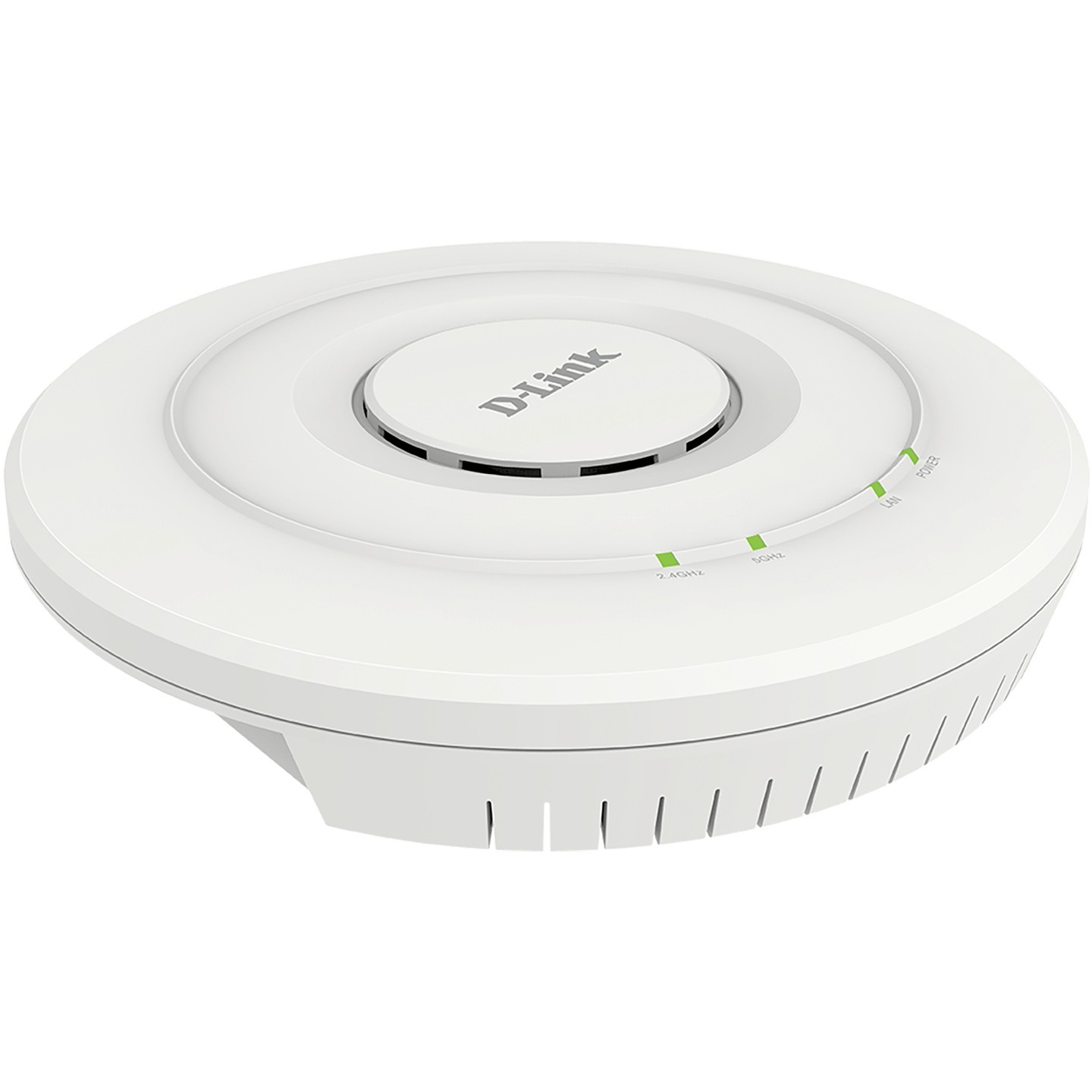

D-Link DWL-6610AP - AC1200 Dual-Band Access Point (802.11ac, 2.4/5GHz, 1x GigE, PoE+)
AC1200 dual-band access point (DWL-6610AP) up to 1200 Mbps combined, 2.4/5 GHz, 1x Gigabit Ethernet with PoE+, AES/WPA2 security and SNMP management, indoor use.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Outdoor Rating | None |
D-Link DWL-6610AP. 2.4 GHz. 5 GHz. Maximum data transfer rate: 1200 Mbit/s. Security algorithms: AES. HTTPS. SSH. TKIP. WPA. WPA2. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Power consumption (max): 16.6 W
| Feature | Reset button |
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1Q. IEEE 802.3. IEEE 802.3ab. IEEE 802.3at. IEEE 802.3u |
| Security algorithms | AES. HTTPS. SSH. TKIP. WPA. WPA2 |
| Management protocols | SNMP |

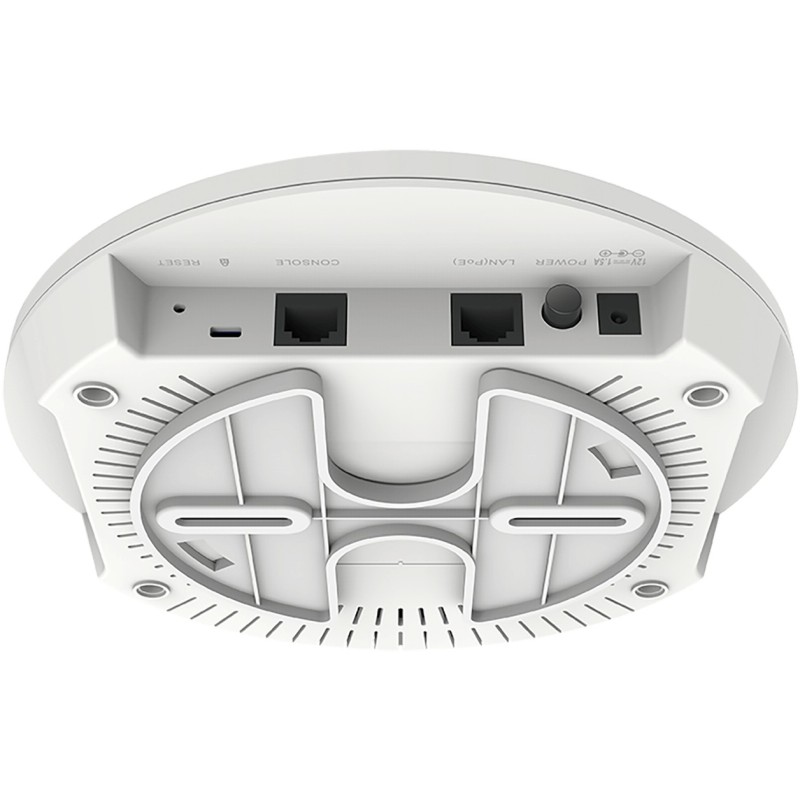

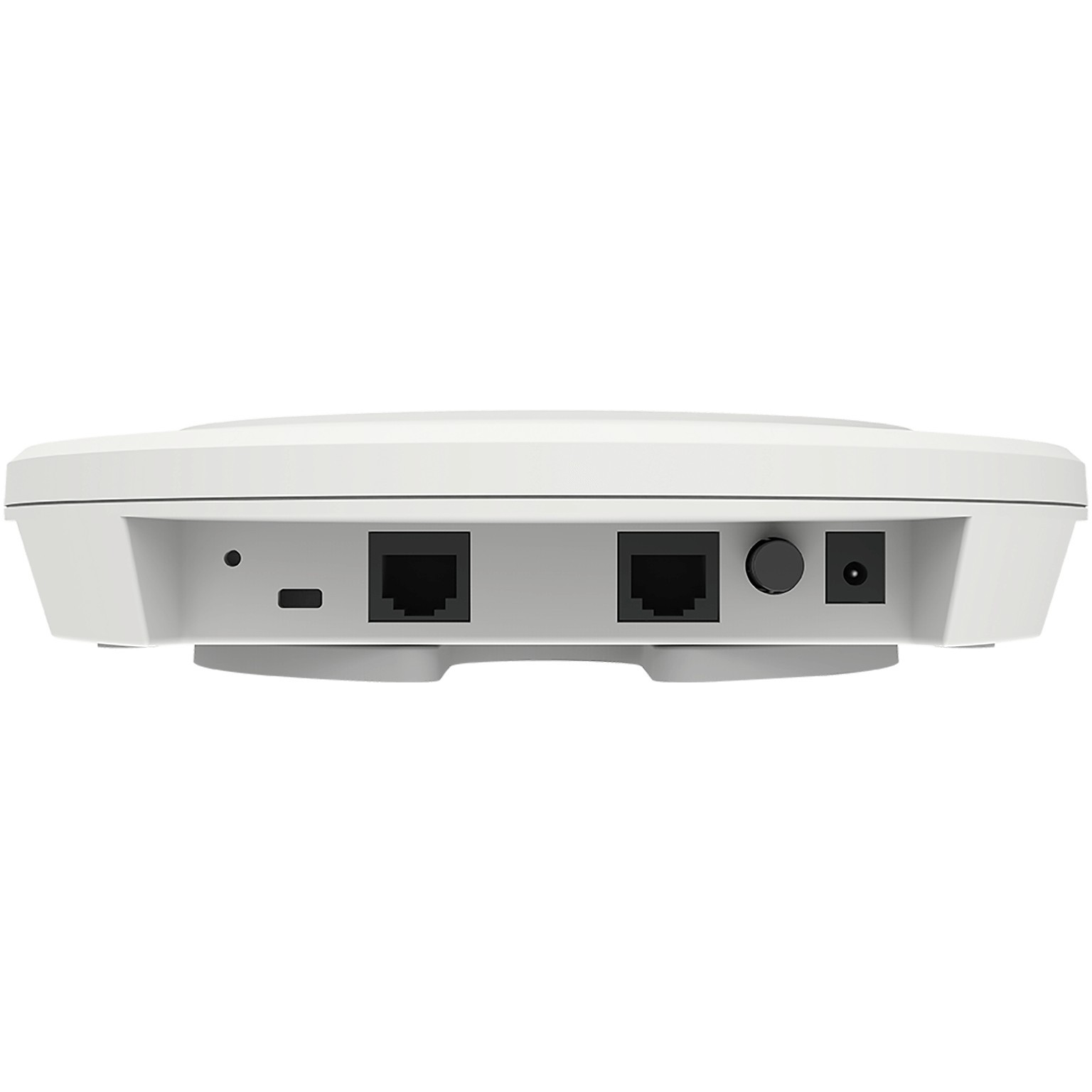

| Ethernet LAN (RJ-45) ports | 1 |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (max) | 16.6 W |
| Housing material | Plastic |
| Antenna gain level (max) | 6.5 dBi |
| Shipping (inner) case length | 56.5 cm |
| Shipping (inner) case width | 34.3 cm |
| Shipping (inner) case height | 27.5 cm |
| Shipping (inner) case net weight | 6.39 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Pallet gross weight (air) | 200.6 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 144 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 123.5 cm |
| Pallet gross weight (sea) | 332.5 kg |
| Master (outer) cases per pallet (sea) | 42 pc(s) |
| Products per pallet (sea) | 252 pc(s) |
| Pallet height (sea) | 2.06 m |
| Shipping (inner) case gross weight | 7.3 kg |
| Certification | CEEN 301 893 V1.7.1 (2012-06) (DFS/TPC)EN 300 328 V1.8.1 (2012-06)FCCICcULLVDUL2043C-TickBSMINCC |
| Width | 158.8 mm |
| Depth | 158.8 mm |
| Height | 69.4 mm |
| Weight | 500 g |
| Package width | 243 mm |
| Package depth | 235 mm |
| Package height | 90 mm |
| Package weight | 1.06 kg |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Harmonized System (HS) code | 85176990 |
