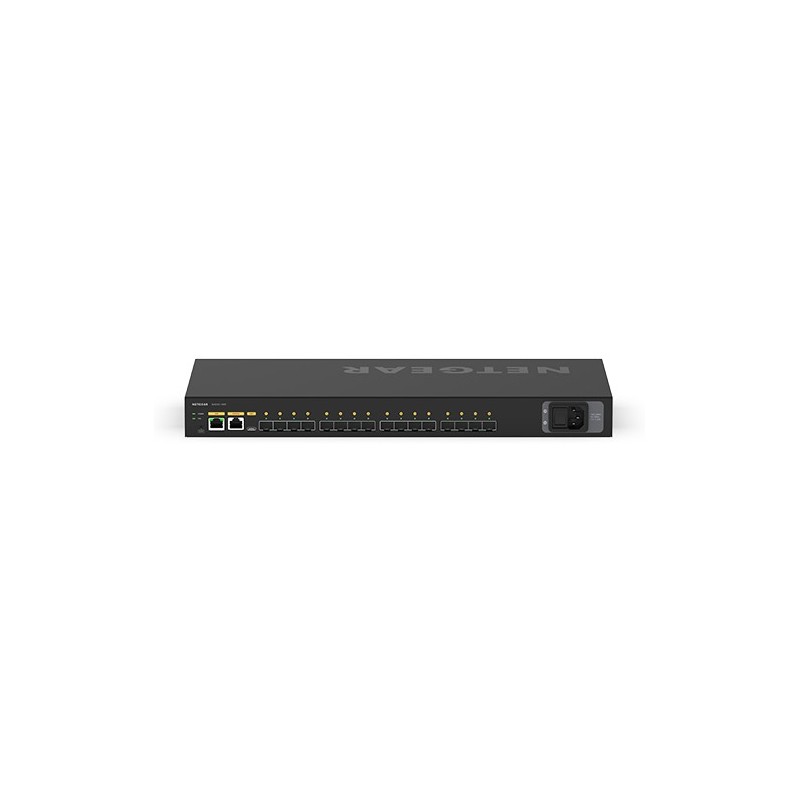

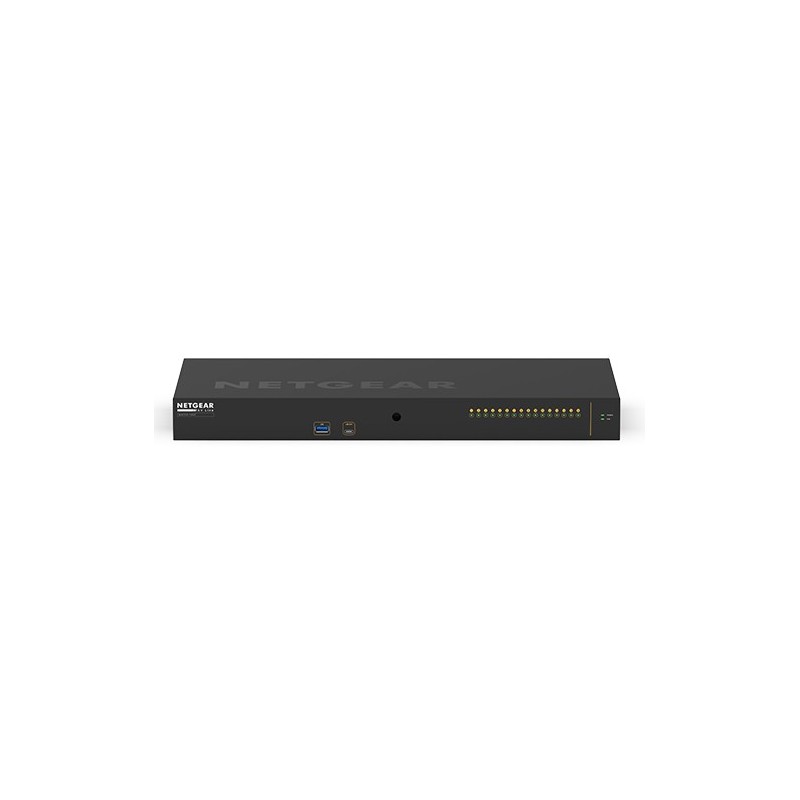

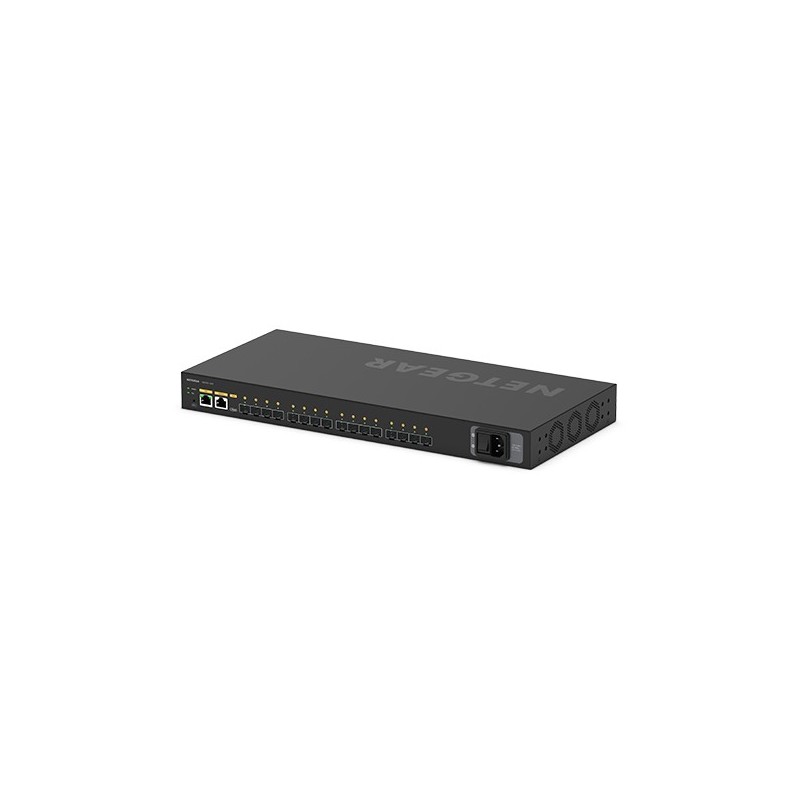

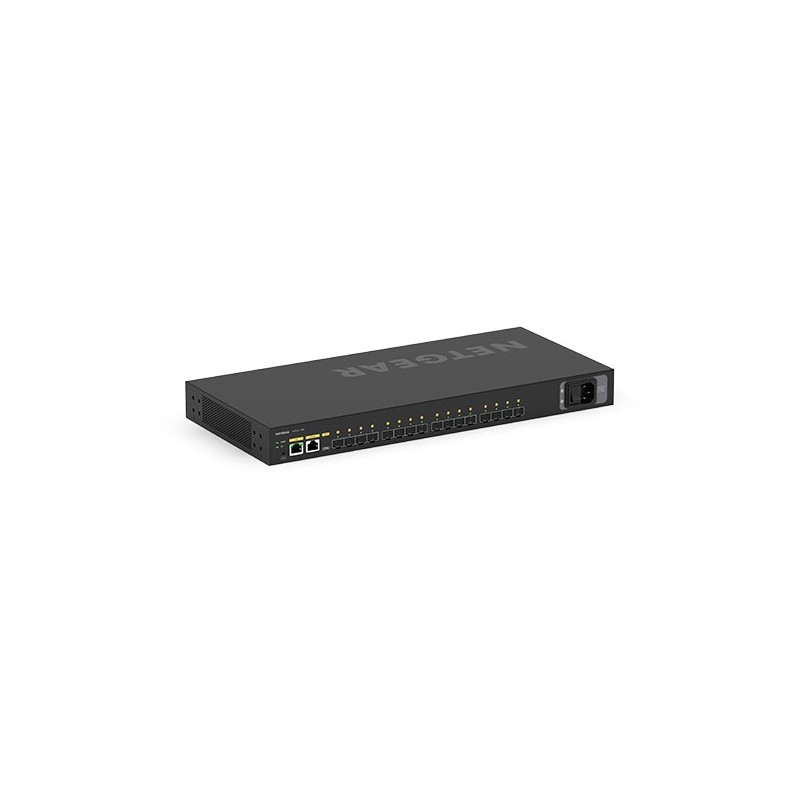

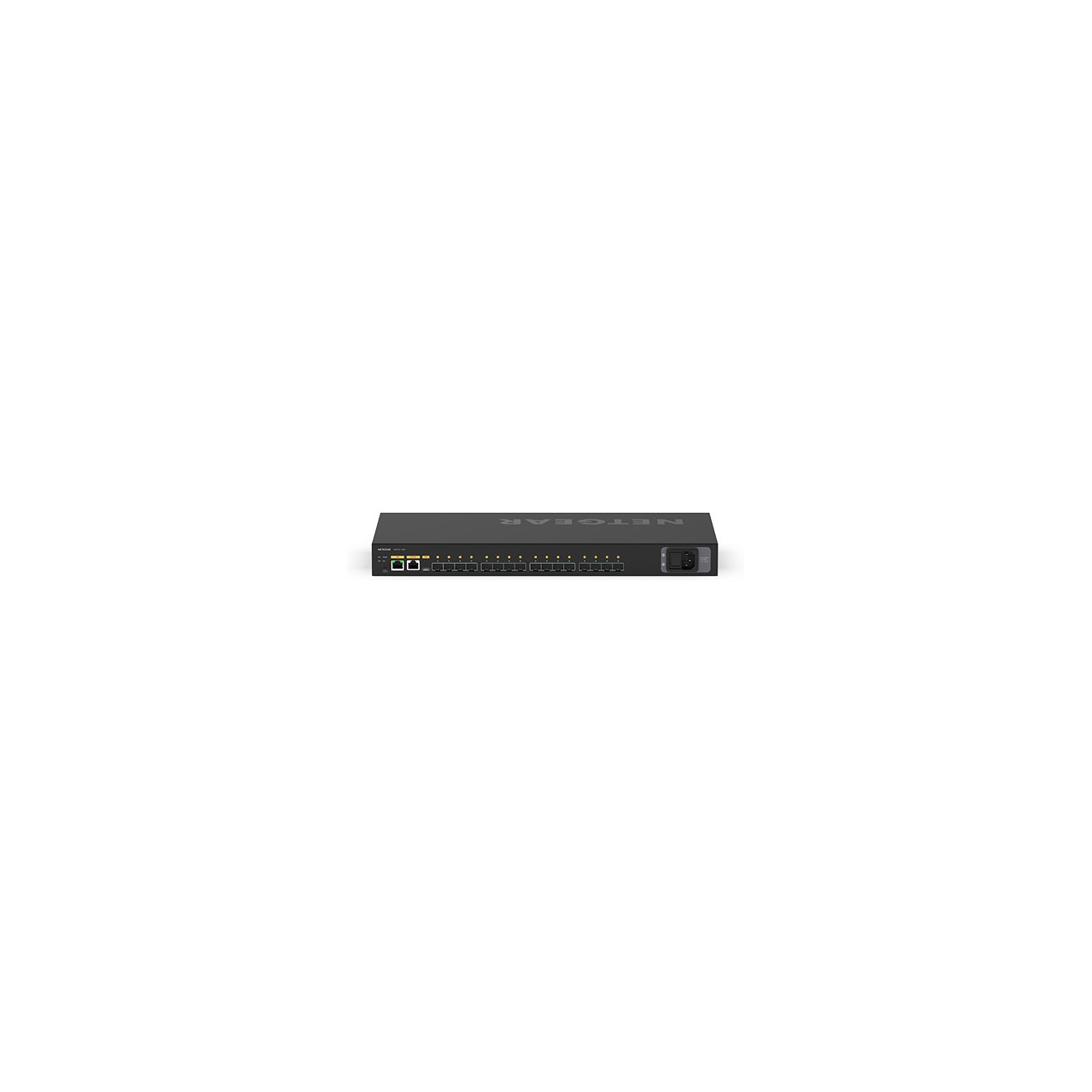

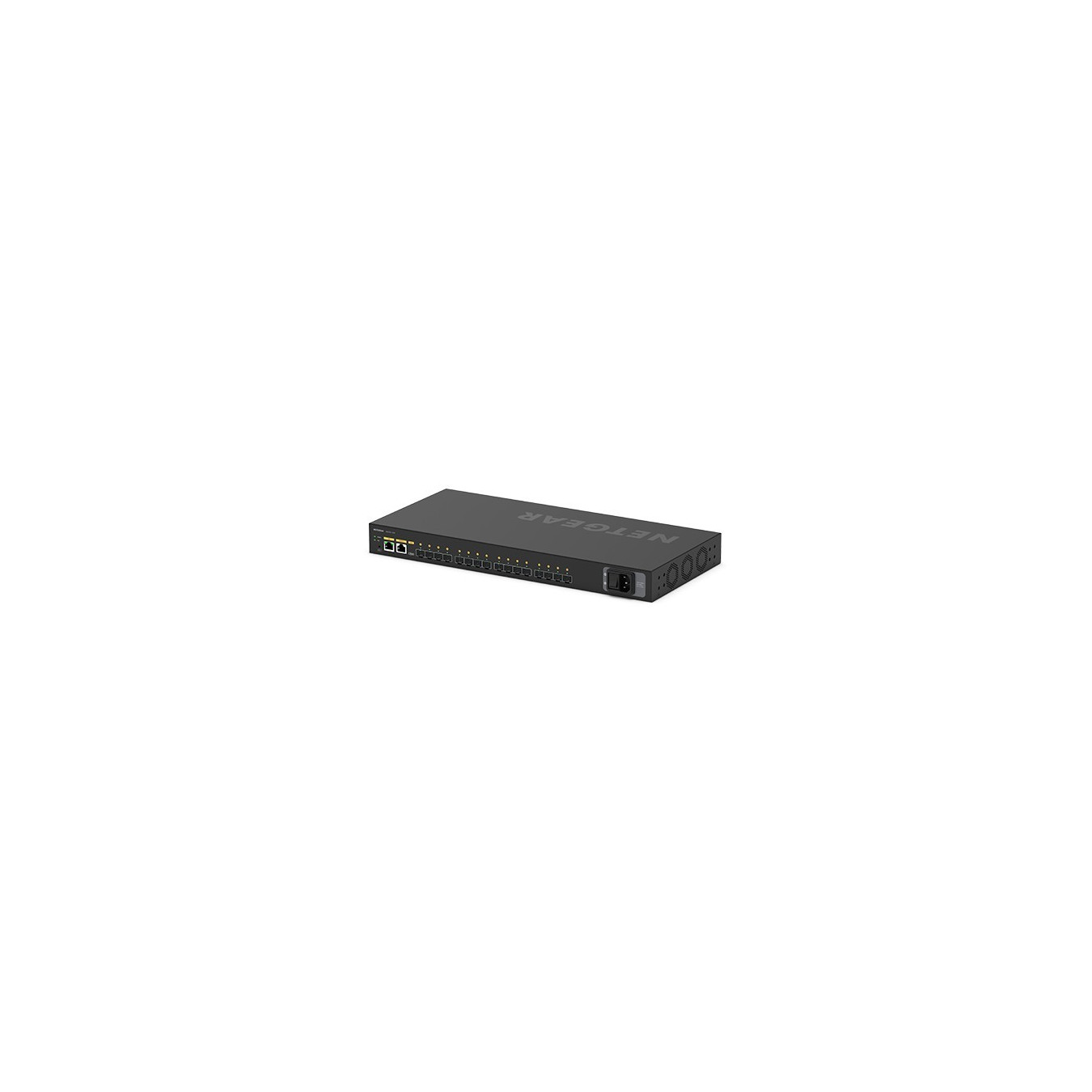

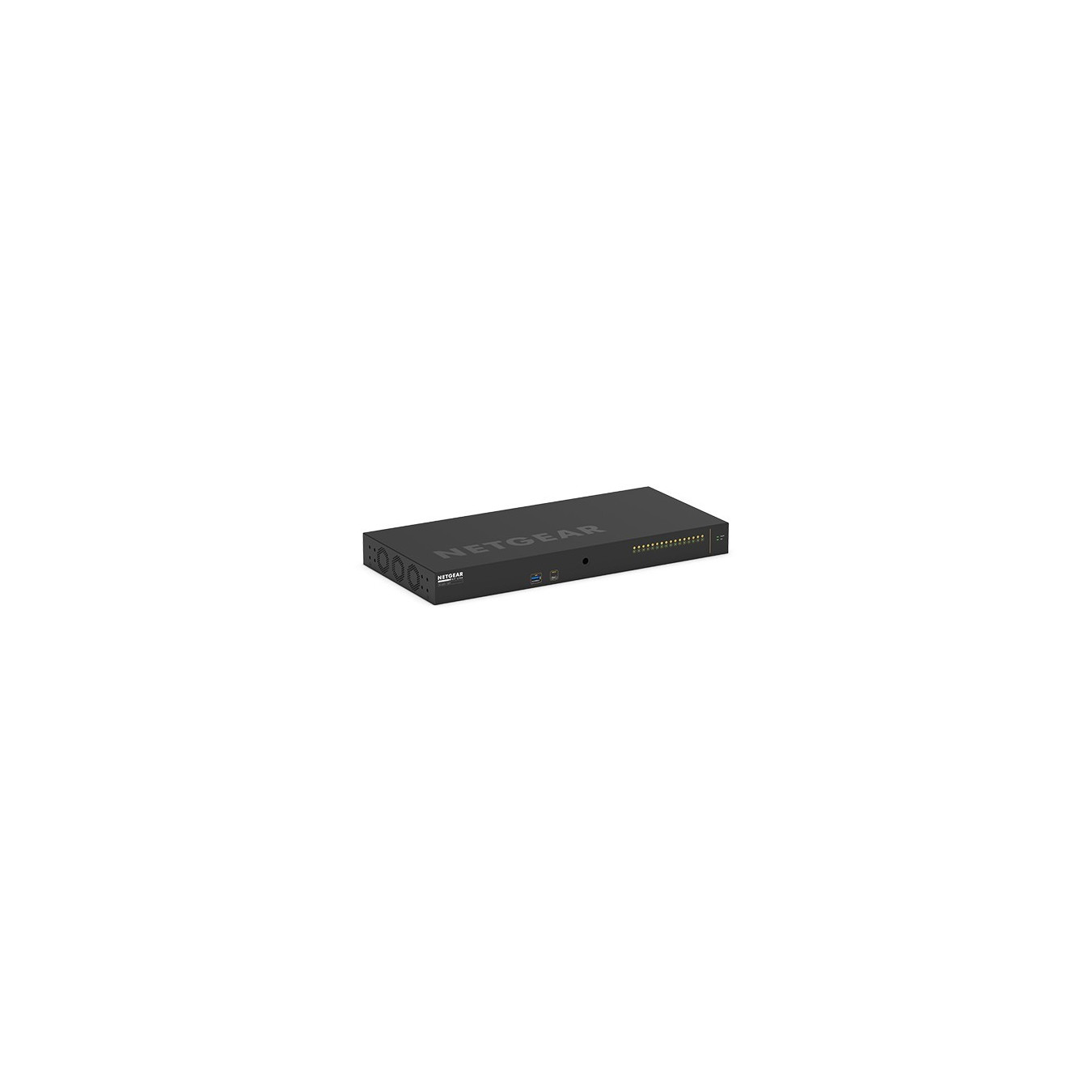

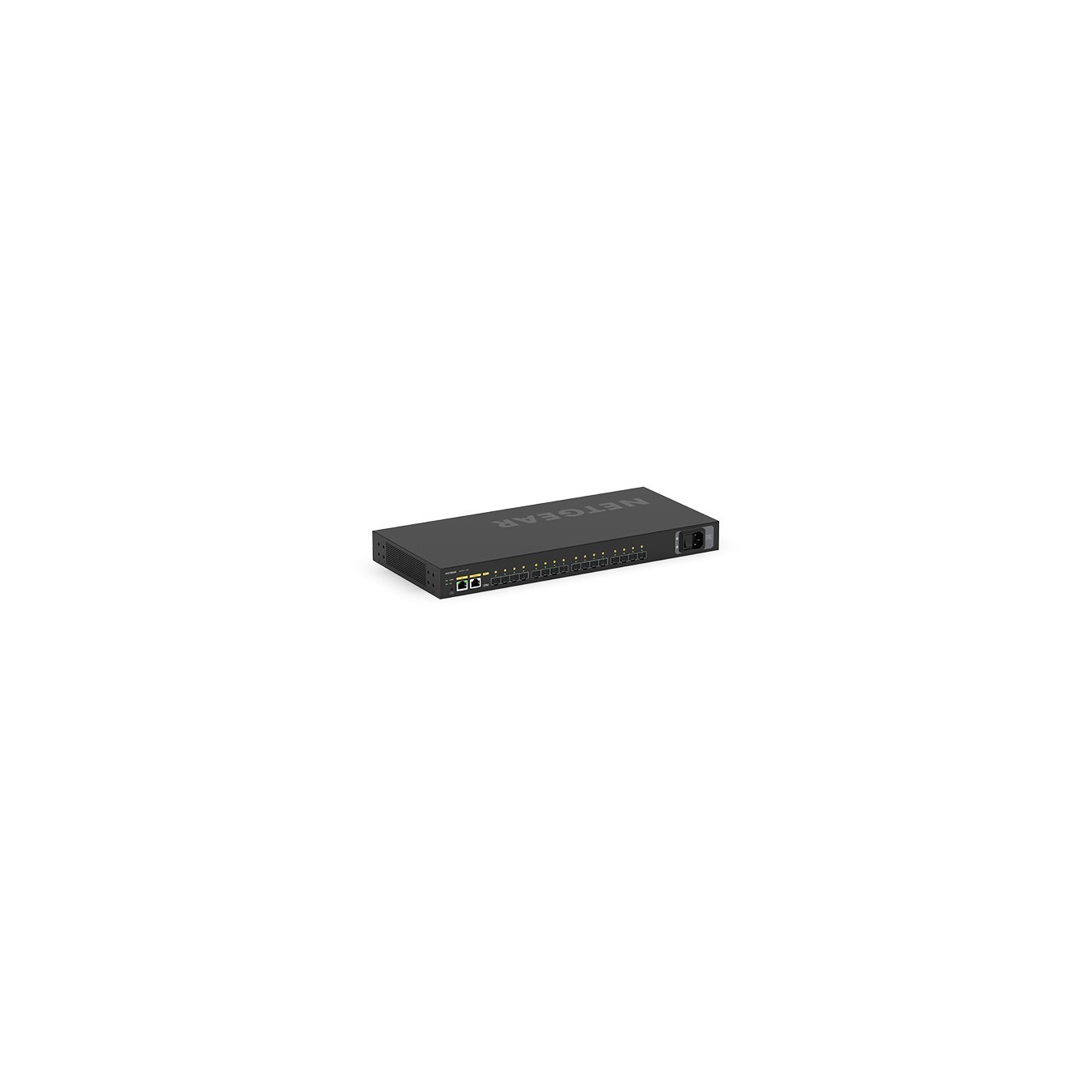

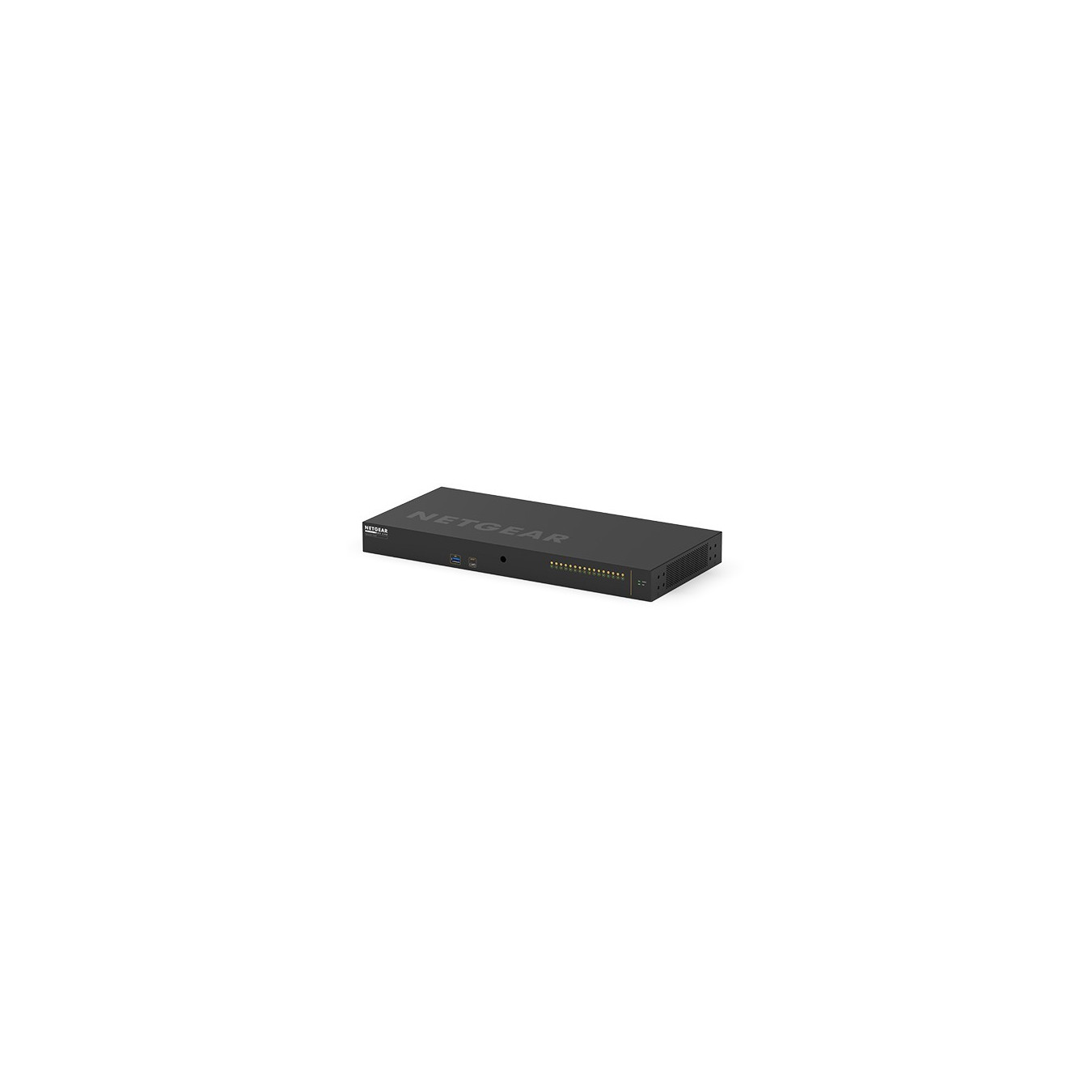

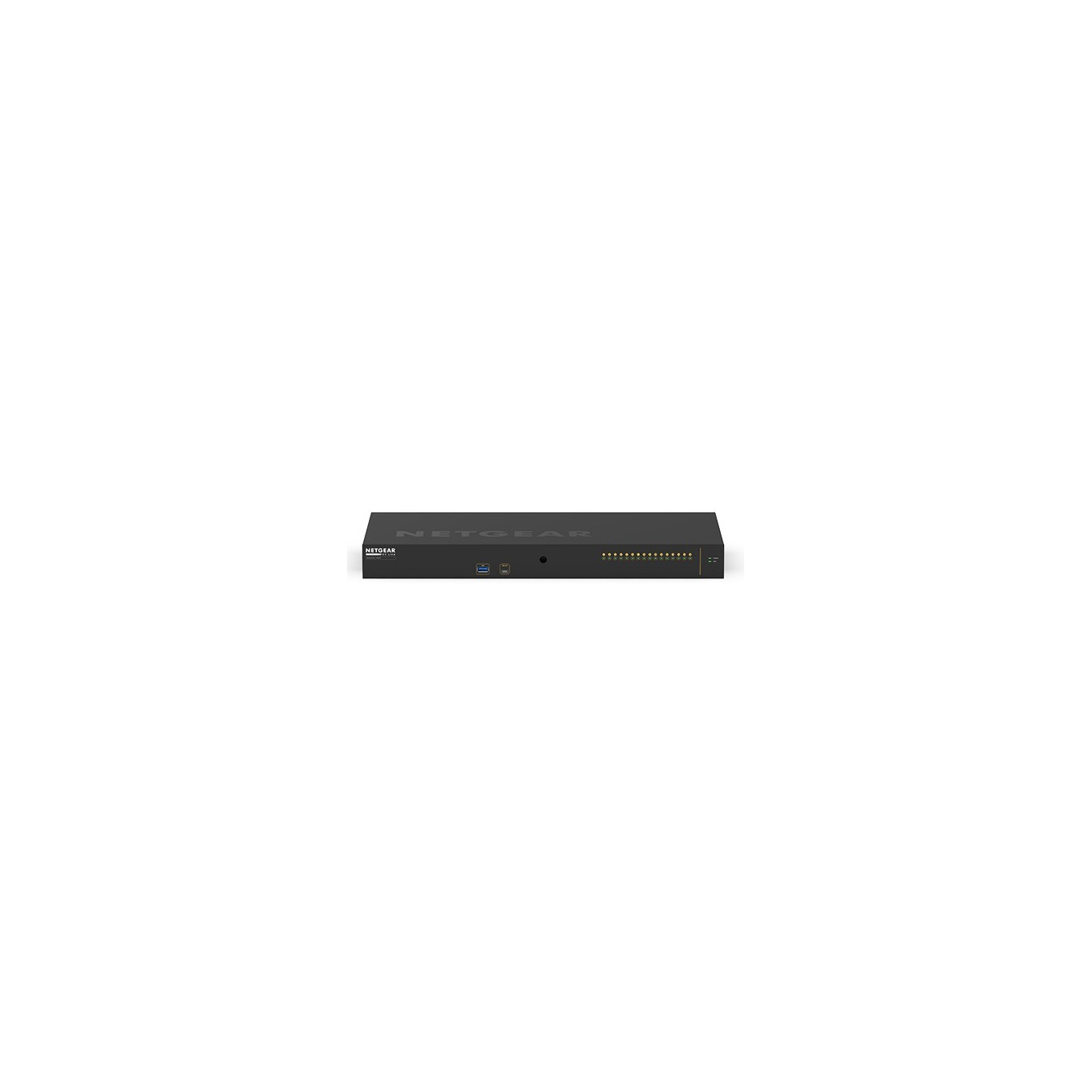

NETGEAR M4250-16XF - 16x 10G SFP+ Ports - L2/L3 Managed, 2GB RAM, ARM Cortex-A9 1.25GHz, Black, 1U
NETGEAR M4250-16XF: 16-port 10G SFP+ L2/L3 managed switch, 1U rackmount, 2GB memory, ARM Cortex-A9 1.25GHz, 320 Gbps switching, 16 MB buffer, 0–50°C
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
NETGEAR M4250-16XF. Switch type: Managed. Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16000 entries. Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE.... Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Built-in processor |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3x |
| Virtual LAN features | MAC address-based VLAN. Private VLAN. Protocol-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 320 Gbit/s |
| Throughput | 238.08 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 1.274 µs |
| Latency (10 Gbps) | 0.811 µs |
| Number of queues | 8 |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| DHCP features | DHCP Option 82. DHCP relay. DHCP server. DHCP snooping. DHCPv6 client. DHCPv6 relay. DHCPv6 server. DHCPv6 snooping |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | PoE. Power. Status |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 56.7 dB |
| Mean time between failures (MTBF) | 778769 h |
| Power consumption (typical) | 47.84 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 163.33 BTU/h |
| Width | 440 mm |
| Depth | 100 mm |
| Height | 43.2 mm |
| Weight | 1.74 kg |
| Harmonized System (HS) code | 85176990 |
