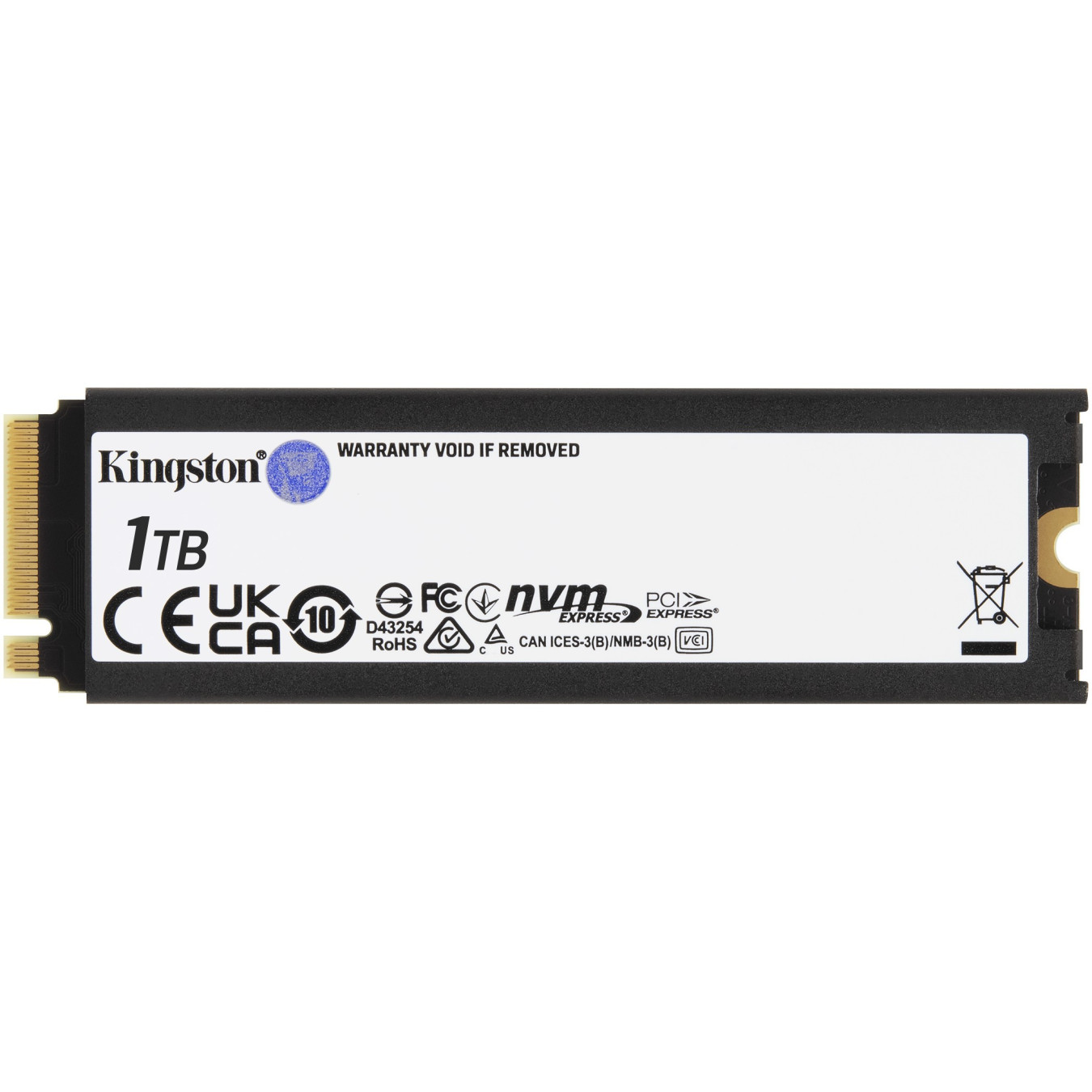

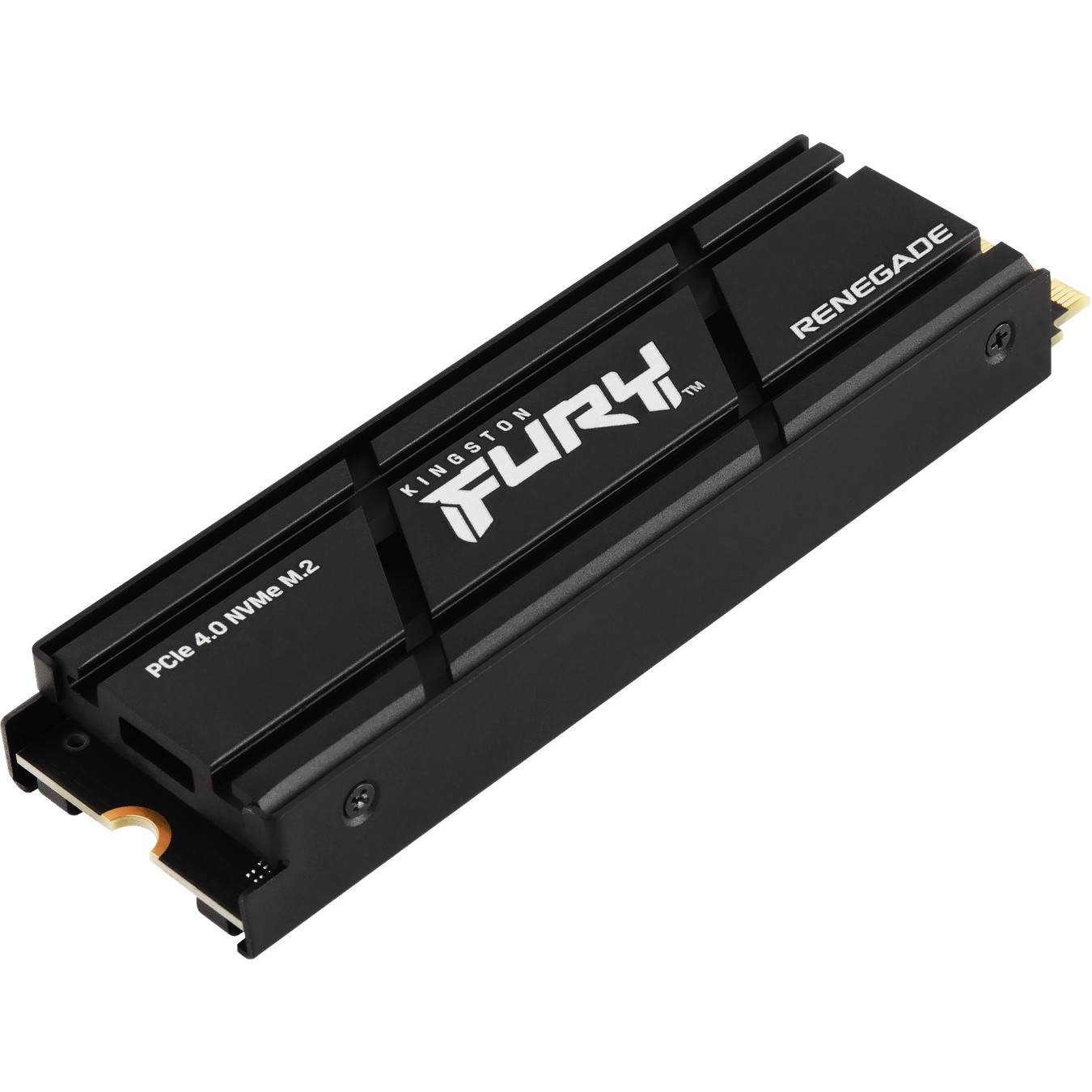

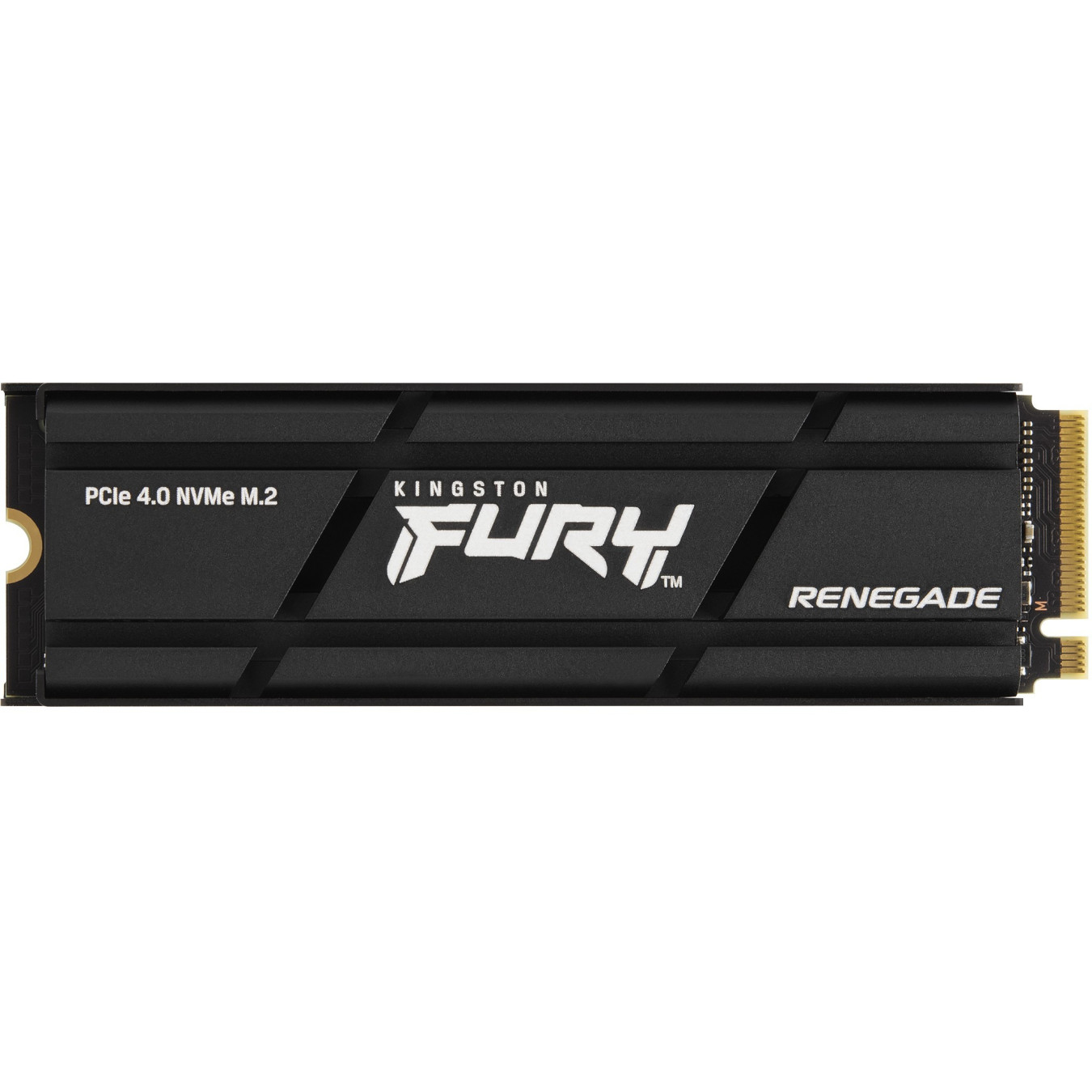

Kingston Renegade M.2 2280 NVMe PCIe 4.0 SSD - 1TB, Heatsink, 3D TLC (Phison E18)
Kingston Renegade 1TB M.2 2280 NVMe PCIe 4.0 SSD with heatsink. Phison E18 controller, 3D TLC NAND, up to 7,300 MB/s read and 6,000 MB/s write.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 1TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen4 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen4 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
| Storage (SSD & HDD) - Sequential Read (Up to) | 7000 MB/s |
| Storage (SSD & HDD) - Sequential Write (Up to) | 6500 MB/s |
| Storage (SSD & HDD) - Heatsink (SSD) | Included |
Kingston Technology 1000G RENEGADE PCIe 4.0 NVMe SSD W/ HEATSINK. SSD capacity: 1 TB. SSD form factor: M.2. Component for: PC/Laptop
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| Feature | NVMe |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Random read (4KB) | 900000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| Sequential read speed (ATTO) | 7300 MB/s |
| Sequential write speed (ATTO) | 6000 MB/s |
| Controller type | Phison E18 |
| Mean time between failures (MTBF) | 1800000 h |
| Power consumption (read) | 2.8 W |
| Power consumption (write) | 6.3 W |
| Power consumption (average) | 0.33 W |
| Power consumption (idle) | 0.05 W |
| Width | 23.7 mm |
| Depth | 80 mm |
| Height | 10.5 mm |
| Weight | 32.1 g |
| Package width | 109.2 mm |
| Package depth | 20.3 mm |
| Package height | 151.1 mm |
| Package weight | 70.53 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
| Country of origin | China. Taiwan |
| Master (outer) case width | 196.8 mm |
| Master (outer) case length | 234.9 mm |
| Master (outer) case height | 152.4 mm |
| Master (outer) case gross weight | 872 g |
| Products per master (outer) case | 10 pc(s) |
