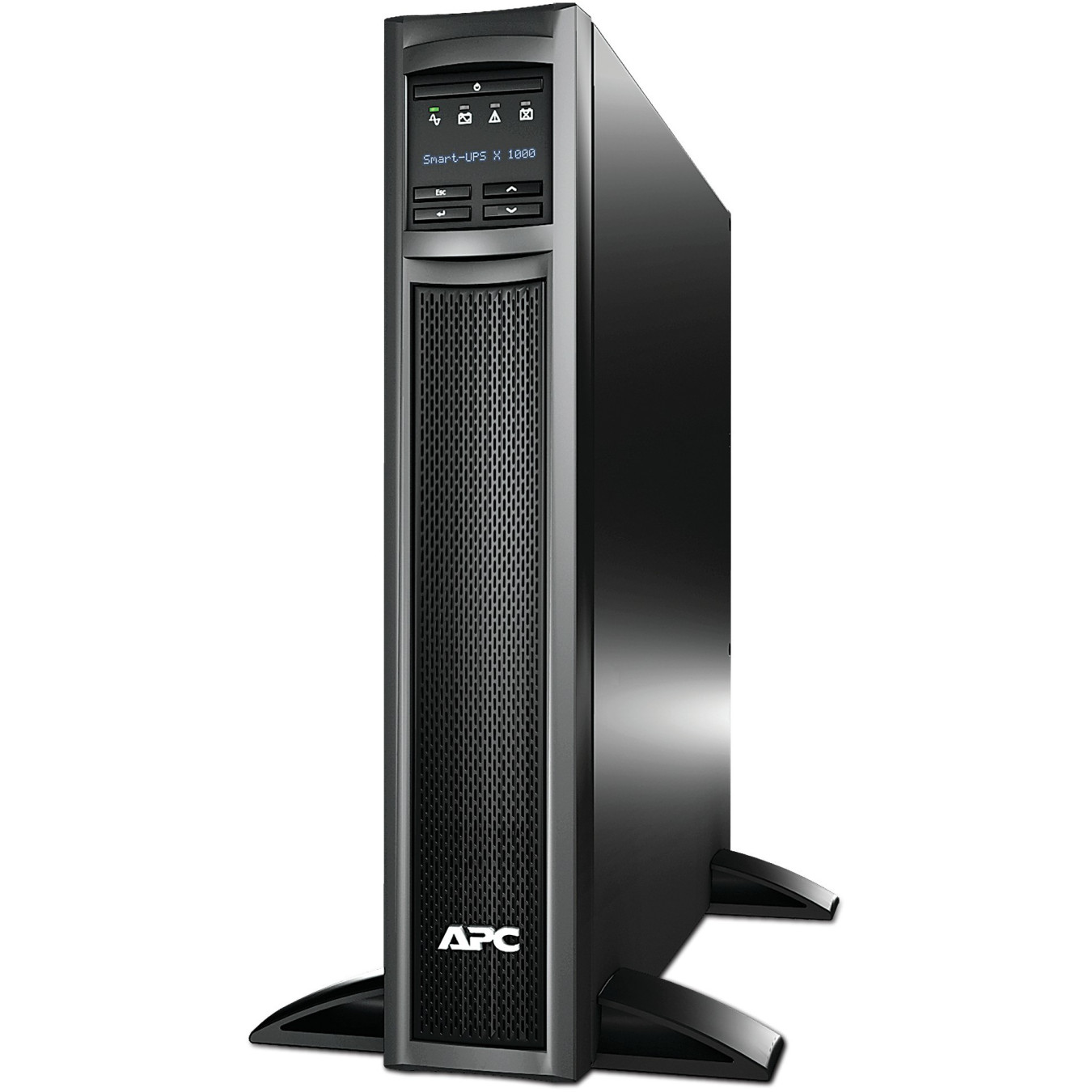

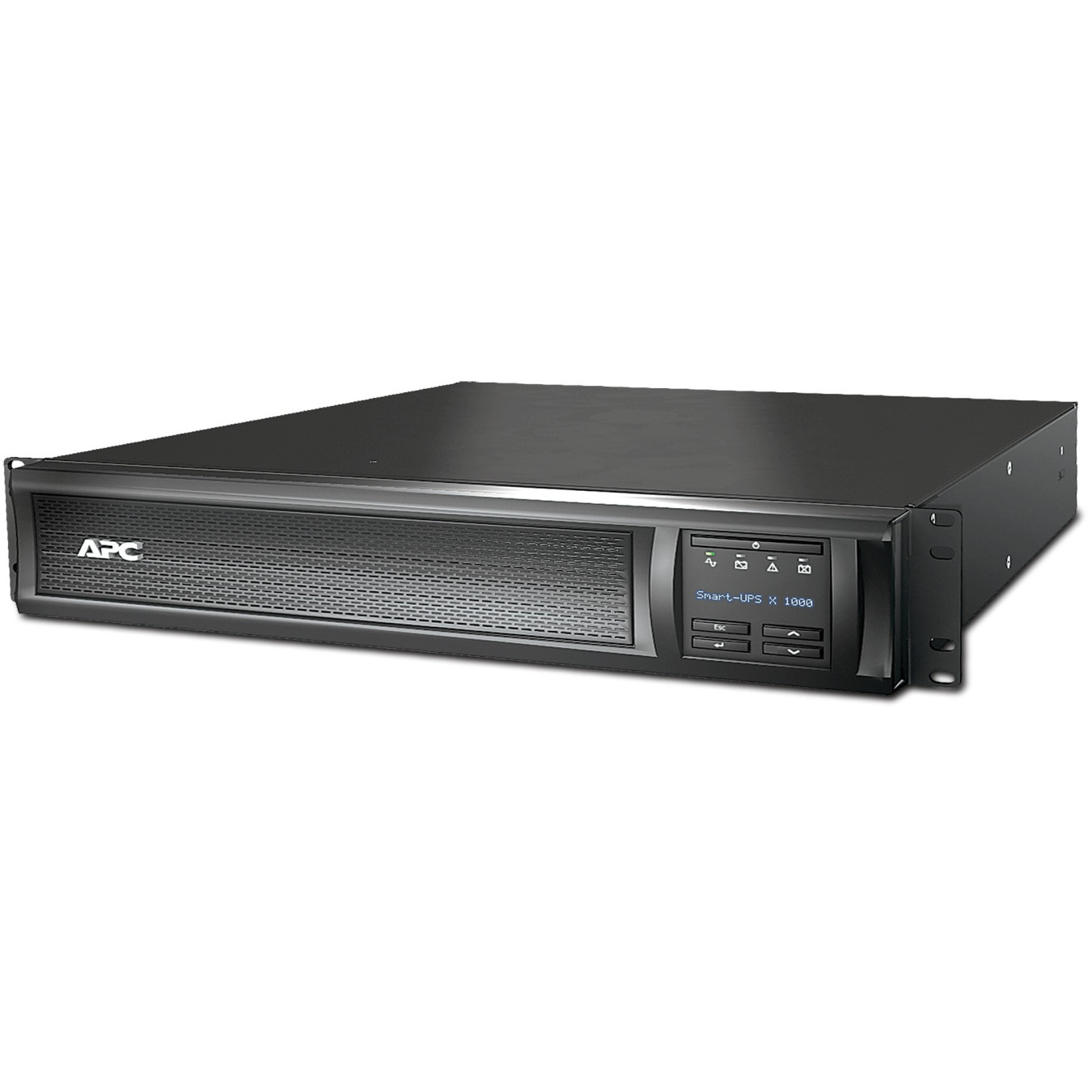

APC Smart-UPS X SMX1000I 1000VA/800W 2U Rack/Tower UPS (Boxed)
1000VA/800W line-interactive UPS with 2U rack/tower convertible form factor, 8× C13 outlets, pure sine wave output, 299 VAh battery, USB/RS-232 connectivity, and expandable runtime support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 1000 - 1999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Convertible (Rack / Tower) |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 8 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation Battery Expansion Support LCD Display Pure Sine Wave Output |
The APC Smart-UPS X SMX1000I is a professional-grade uninterruptible power supply designed for mission-critical IT infrastructure, networking equipment, and commercial applications. With 1000VA/800W capacity and line-interactive topology, it delivers reliable power protection with pure sine wave output, ensuring compatibility with sensitive electronics including servers, storage systems, routers, switches, and point-of-sale terminals.
This 2U rack/tower convertible UPS features eight C13 IEC outlets for flexible device connectivity, automatic voltage regulation (AVR) to maintain stable output within user-selectable levels, and a multi-function LCD status console for real-time monitoring. The unit includes USB and RS-232 connectivity for graceful shutdown integration, a SmartSlot interface for enhanced management capabilities, and support for up to 5 external battery packs (SMX48RMBP2U) to extend runtime beyond the standard 8.1 minutes at full load. The sealed lead-acid battery (299 VAh) provides 3-5 years of service life with a typical 3-hour recharge time.
Key specifications include 50/60 Hz auto-sensing frequency, input voltage range of 151-302V (adjustable), 600 Joules surge energy rating, full-time multi-pole noise filtering, and comprehensive safety certifications (CE, RoHS, VDE, REACH). Operating temperature range is 0-40°C with 0-95% humidity tolerance, making it suitable for diverse deployment environments.
- 1000VA/800W line-interactive pure sine wave UPS
- 2U rack/tower convertible form factor with 8× C13 outlets
- 299 VAh sealed lead-acid battery with 3-5 year lifespan
- Automatic voltage regulation and 600J surge protection
- USB, RS-232, and SmartSlot connectivity for management
- Expandable runtime with support for up to 5 external battery packs
- Multi-function LCD display with audible alarms
- Comprehensive safety certifications and green premium sustainability rating
| UPS Topology | Line-Interactive |
| Power Capacity (VA) | 1000 VA |
| Output Power (W) | 800 W |
| Waveform Type | Pure Sine Wave |
| Input Voltage (Nominal) | 230 V |
| Input Voltage Range (Operating) | 160 - 286 V |
| Input Voltage Range (Adjustable) | 151 - 302 V |
| Output Voltage (Nominal) | 230 V |
| Input Frequency | 50/60 Hz +/- 3 Hz (Auto-sensing) |
| Output Frequency | 50/60 Hz +/- 3 Hz (Sync to mains) |
| Output Voltage Distortion | Less than 5% |
| Efficiency | 98.2% |
| Battery Type | Sealed Lead-Acid (VRLA), Maintenance-free |
| Battery Capacity | 299 VAh |
| Battery Life | 3 - 5 years |
| Battery Recharge Time | 3 hours (Typical) |
| Replacement Battery Model | APCRBC116 |

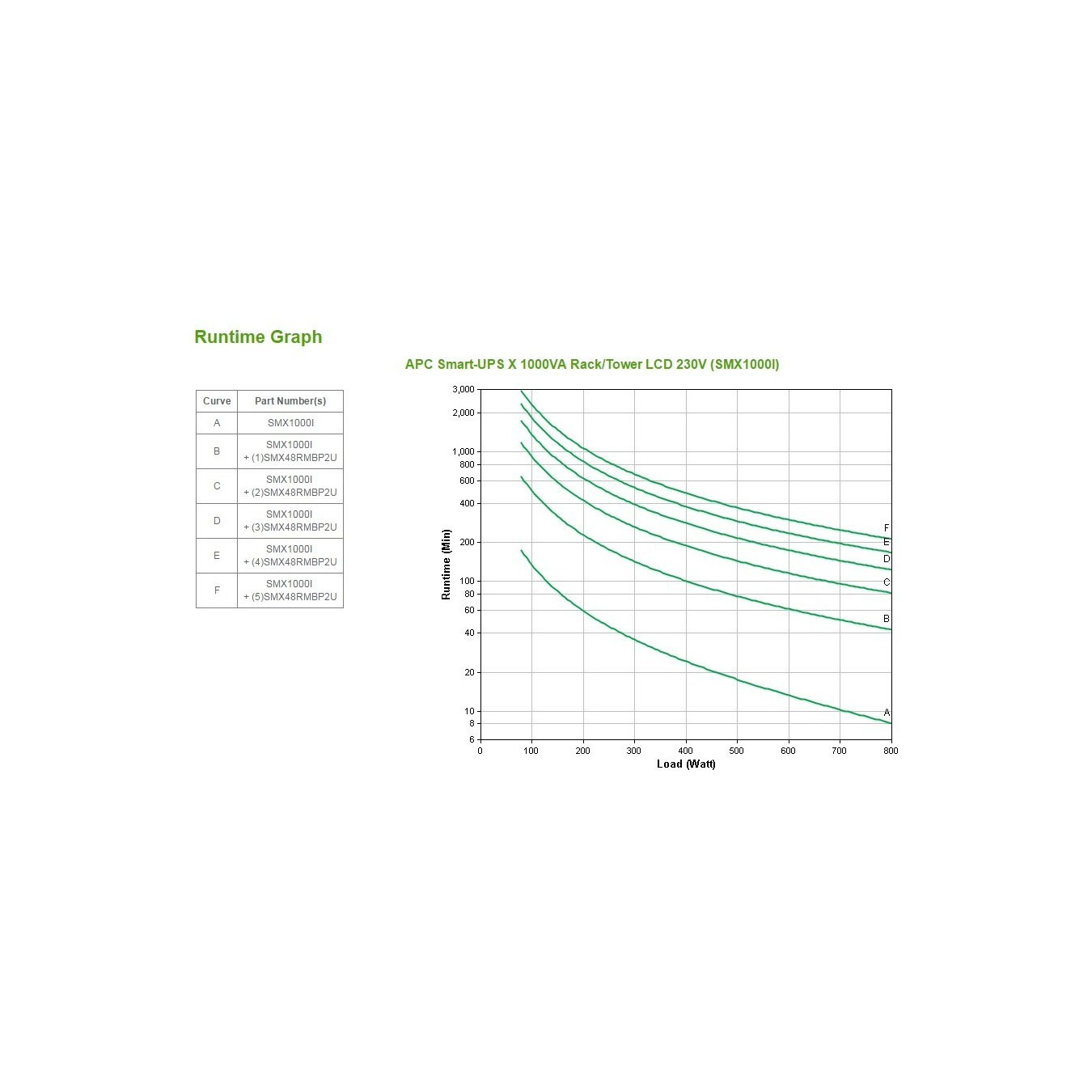

| Backup Time at Full Load | 8.1 minutes |
| Backup Time at Half Load | 24.2 minutes |
| Form Factor | Rack/Tower Convertible |
| Rack Space | 2U |
| AC Outlet Type | IEC C13 |
| AC Outlets Quantity | 8 |
| Input Connection Type | IEC 320 C14 |
| Power Cord Length | 1.83 m (6 ft) |
| Surge Energy Rating | 600 Joules |
| Surge Protection | Full-time multi-pole noise filtering, 5% IEEE surge let-through, zero clamping response time, meets UL 1449 |
| Overcurrent Protection | 60 A DC |
| Control Panel | Multi-function LCD status and control console |
| Audible Alarms | Low battery alarm, Overload continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| Interface Ports | USB, RS-232, SmartSlot |
| SmartSlot Quantity | 1 |

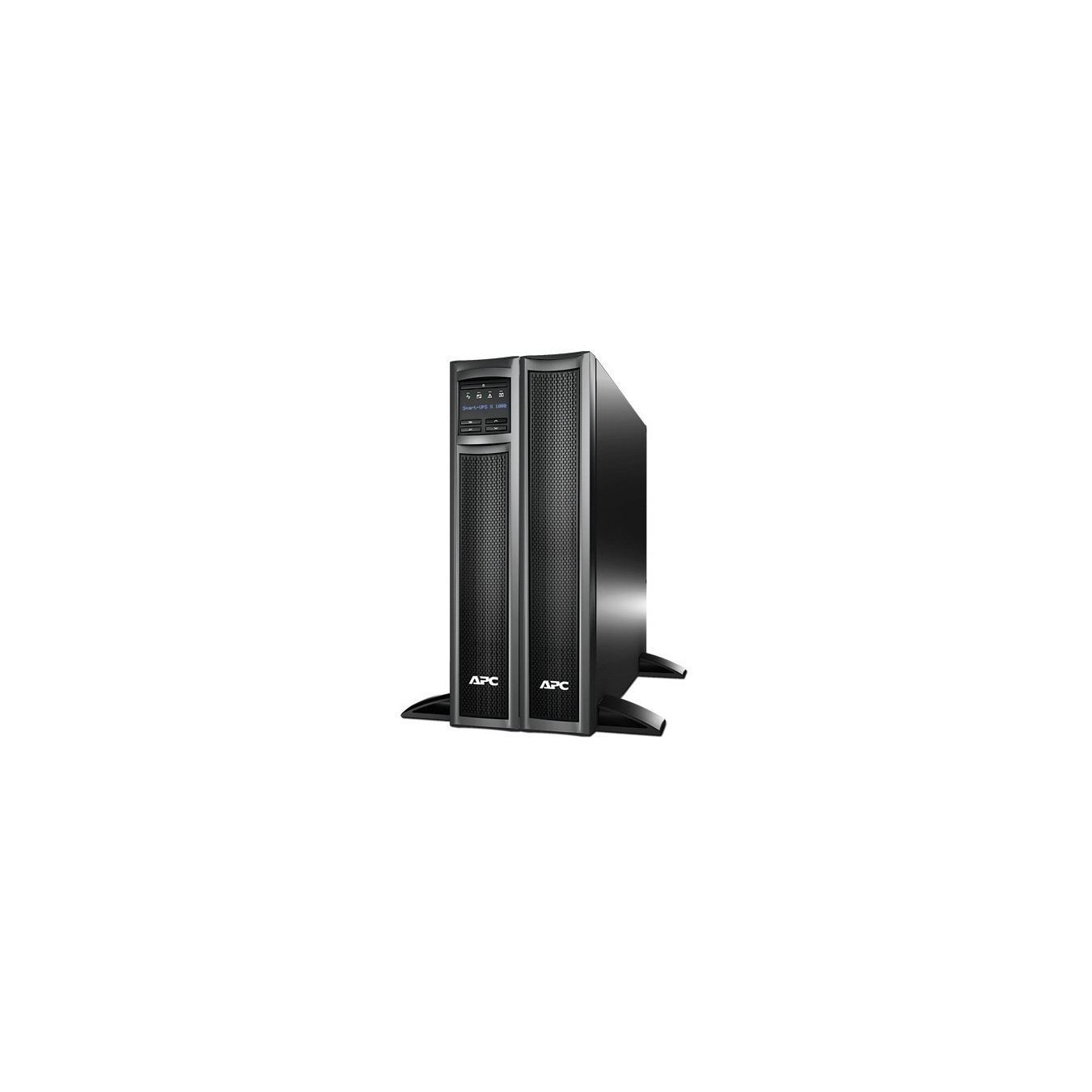

| Battery Expansion Support | Up to 5 external battery packs (SMX48RMBP2U) |
| Battery Pack Options | SMX48RMBP2U 1 (900 VAh), SMX48RMBP2U 2 (1500 VAh), SMX48RMBP2U 3 (2100 VAh) |
| Noise Level | 40 dB |
| Dimensions (Product Only) - Height | 89 mm |
| Dimensions (Product Only) - Width | 432 mm |
| Dimensions (Product Only) - Depth | 490 mm |
| Weight (Product Only) | 22.86 kg |
| Package Dimensions - Height | 246 mm |
| Package Dimensions - Width | 589 mm |
| Package Dimensions - Depth | 620 mm |
| Package Weight | 27.3 kg |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -15 - 45 °C |
| Operating Humidity | 0 - 95% (non-condensing) |
| Storage Humidity | 0 - 95% (non-condensing) |
| Operating Altitude | 0 - 3000 m |
| Non-Operating Altitude | 0 - 15000 m |
| Certifications | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, RoHS, PEP, EOLI |
| Included Accessories | Software CD, Documentation CD, Installation guide, Rack mounting brackets, RS-232 cable, USB cable |
| Color | Black |
| EAN Code | 0731304268635 |
| Manufacturer Part Number | SMX1000I |
| Total Carbon Footprint | 1124 kg CO2e |
| Sustainability | Green Premium, Packaging made with recycled cardboard |
