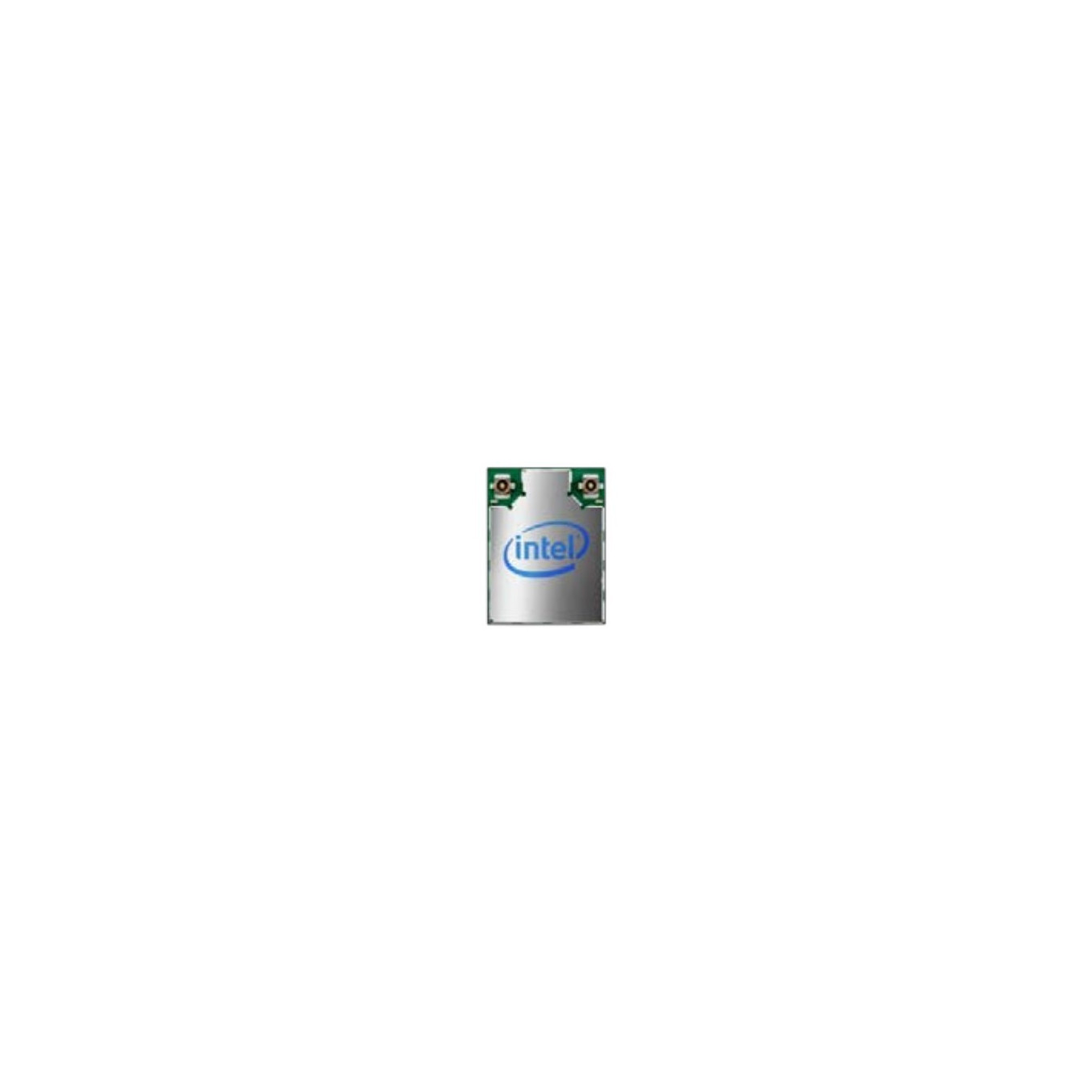

Intel Wireless-AC 9462 M.2 2230 - Dual-Band Wi-Fi 5 (802.11ac) 1x1, Bluetooth 5, CNVio, No vPro, Diversity Antenna
Internal M.2 2230 Wi-Fi card (Intel 9462): Dual-band Wi-Fi 5 (802.11ac) up to 433 Mbps, Bluetooth 5, CNVio interface. Compatible with Windows 10, Linux, ChromeOS. No vPro.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Expansion Cards - Type | Network Card (Wi-Fi) |
|---|
Intel 9462.NGWG.NV. Internal. Connectivity technology: Wireless. Host interface: M.2. Interface: WLAN. Maximum data transfer rate: 433 Mbit/s. Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: 1x1
| Connectivity technology | Wireless |
| Host interface | M.2 |
| Interface | WLAN |
| Maximum data transfer rate | 433 Mbit/s |
| Feature | Linux operating systems supported |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 433 Mbit/s |
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Bluetooth version | 5 |
| Antenna type | 1x1 |
| Form factor | M.2 2230. M.2 1216 |
| Compatible operating systems | Windows 10. 64-bit*|Linux* |
| Windows operating systems supported | Windows 10 |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 80 °C |
| Width | 22 mm |
| Depth | 30 mm |
| Height | 2.4 mm |
| Weight | 2.7 g |
| Harmonized System (HS) code | 85176990 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 80 °C |
| Interface type | M.2: CNVio |
| Launch date | Q4'17 |
| Product brief URL | https://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-9462-brief.html |
| Product type | Wireless |
| Status | Launched |
| Processor family | Intel Wireless-AC Products |
| Ethernet adapter ARK ID | 125192 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Compliance | FIPS9. FISMA |
| Product series | Intel® Wireless Products |
| Product codename | Jefferson Peak |
