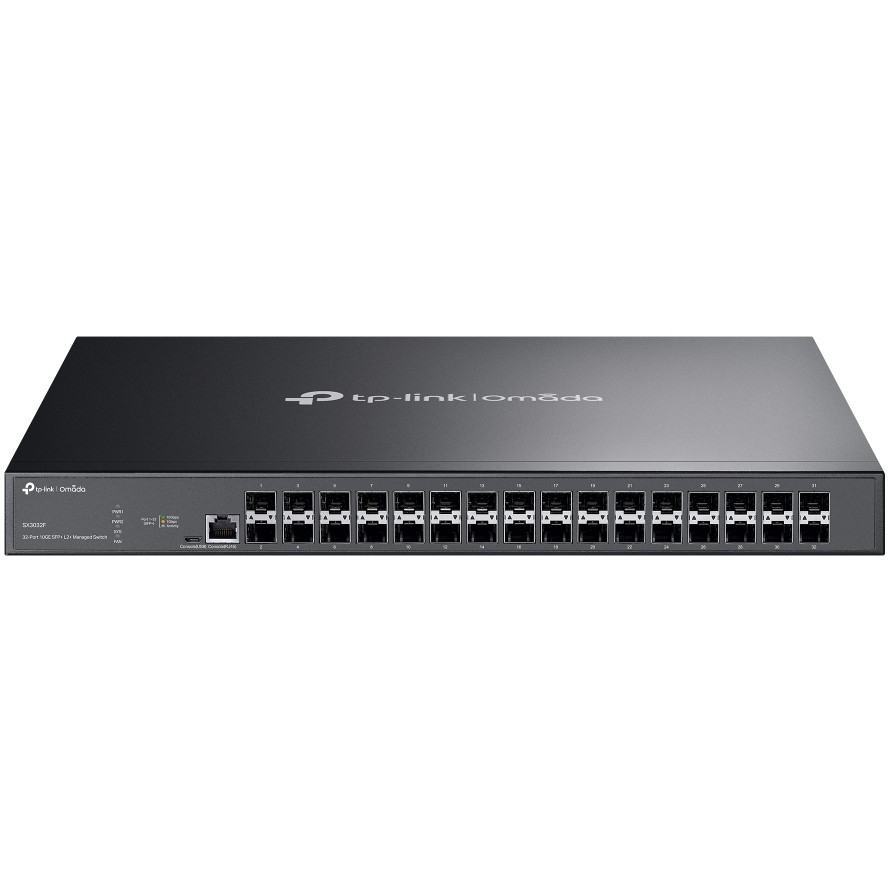

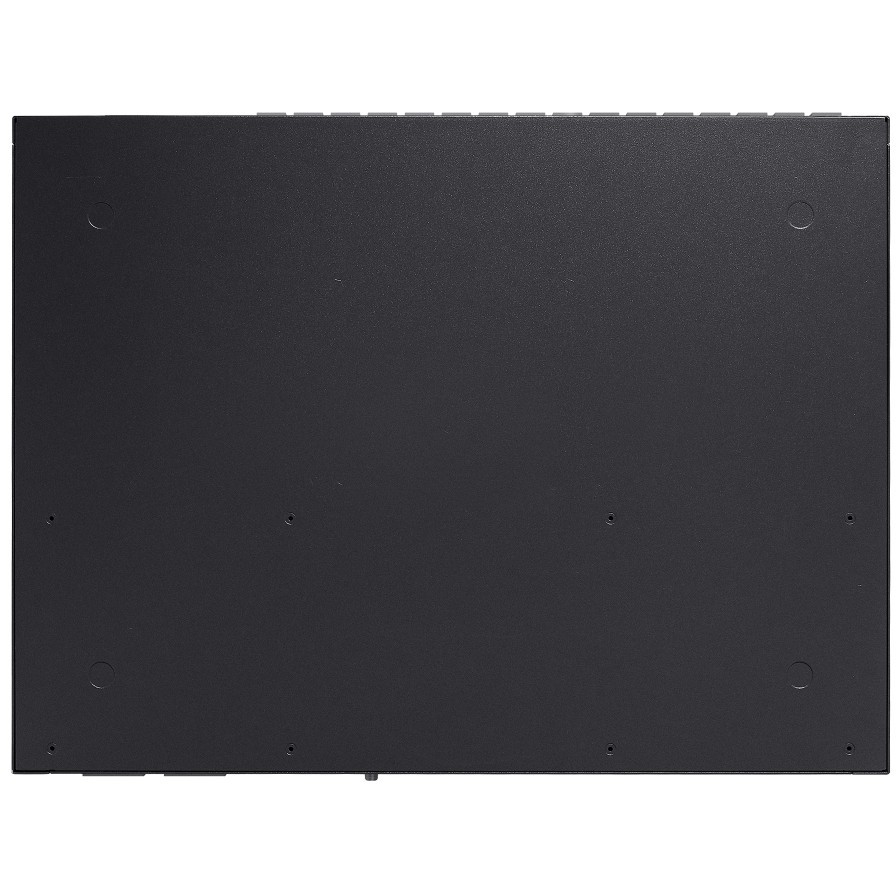

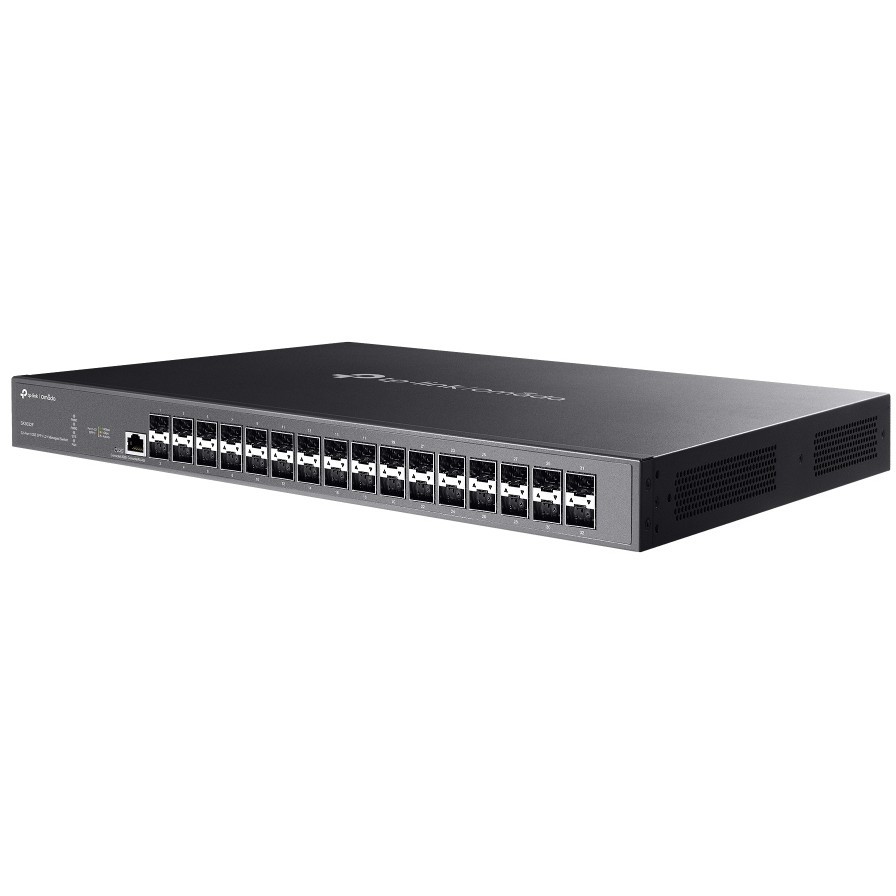

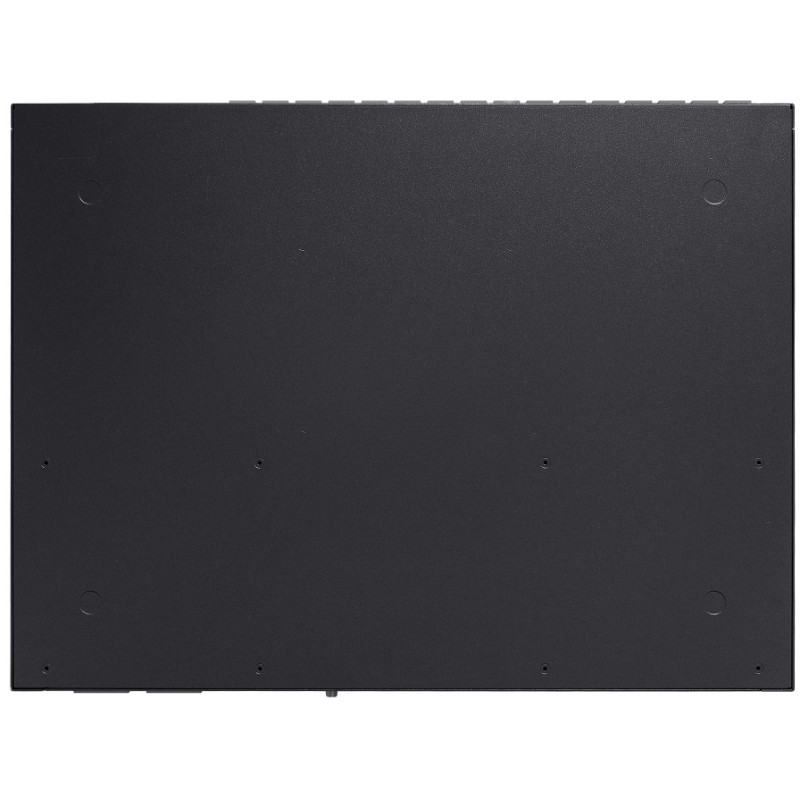

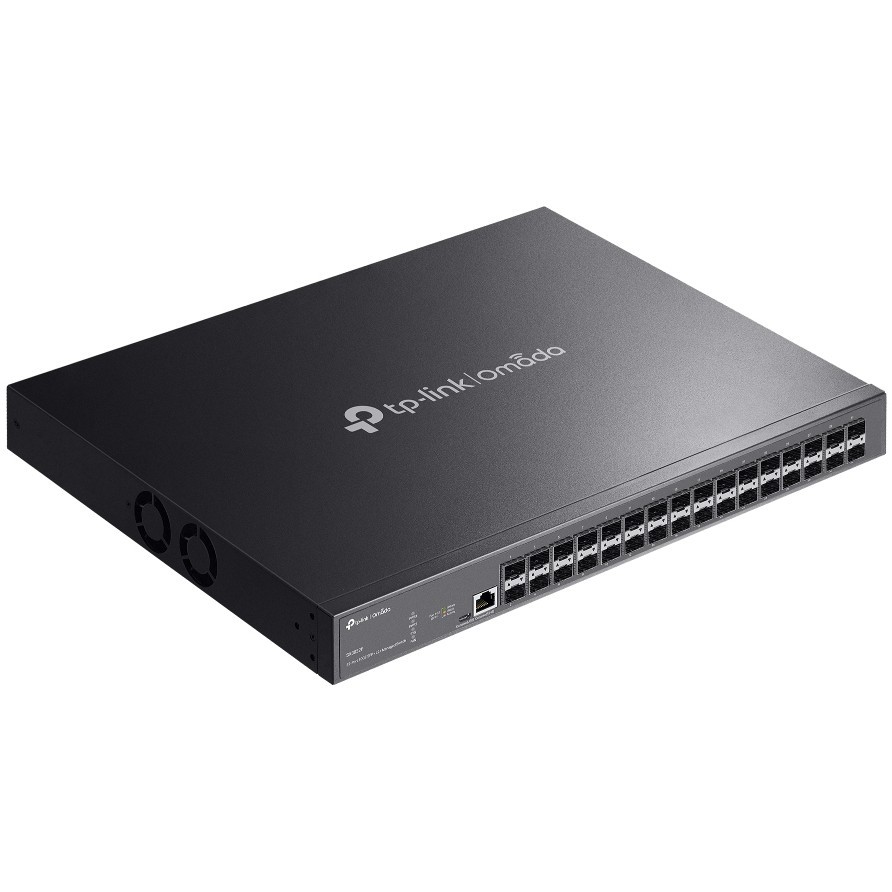

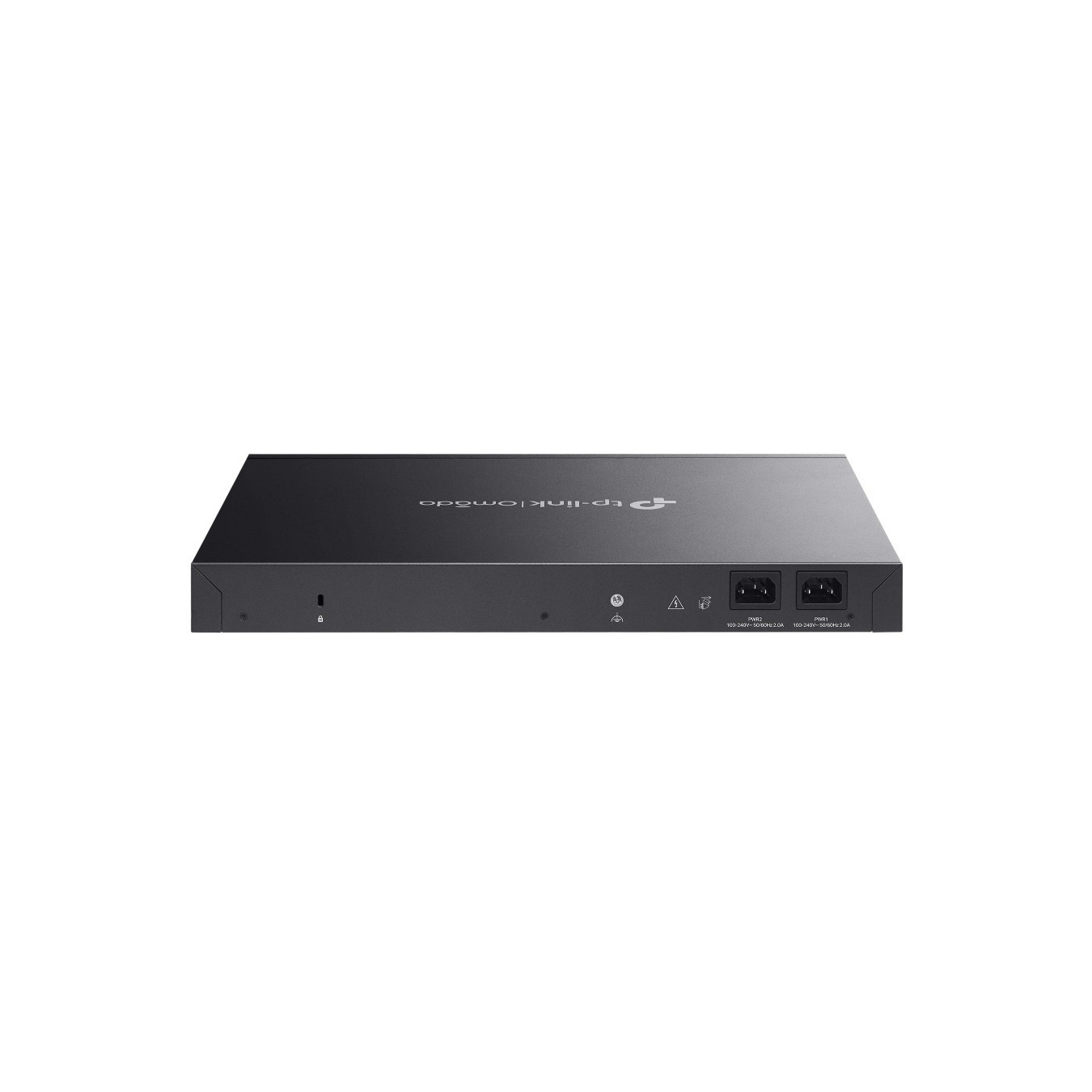

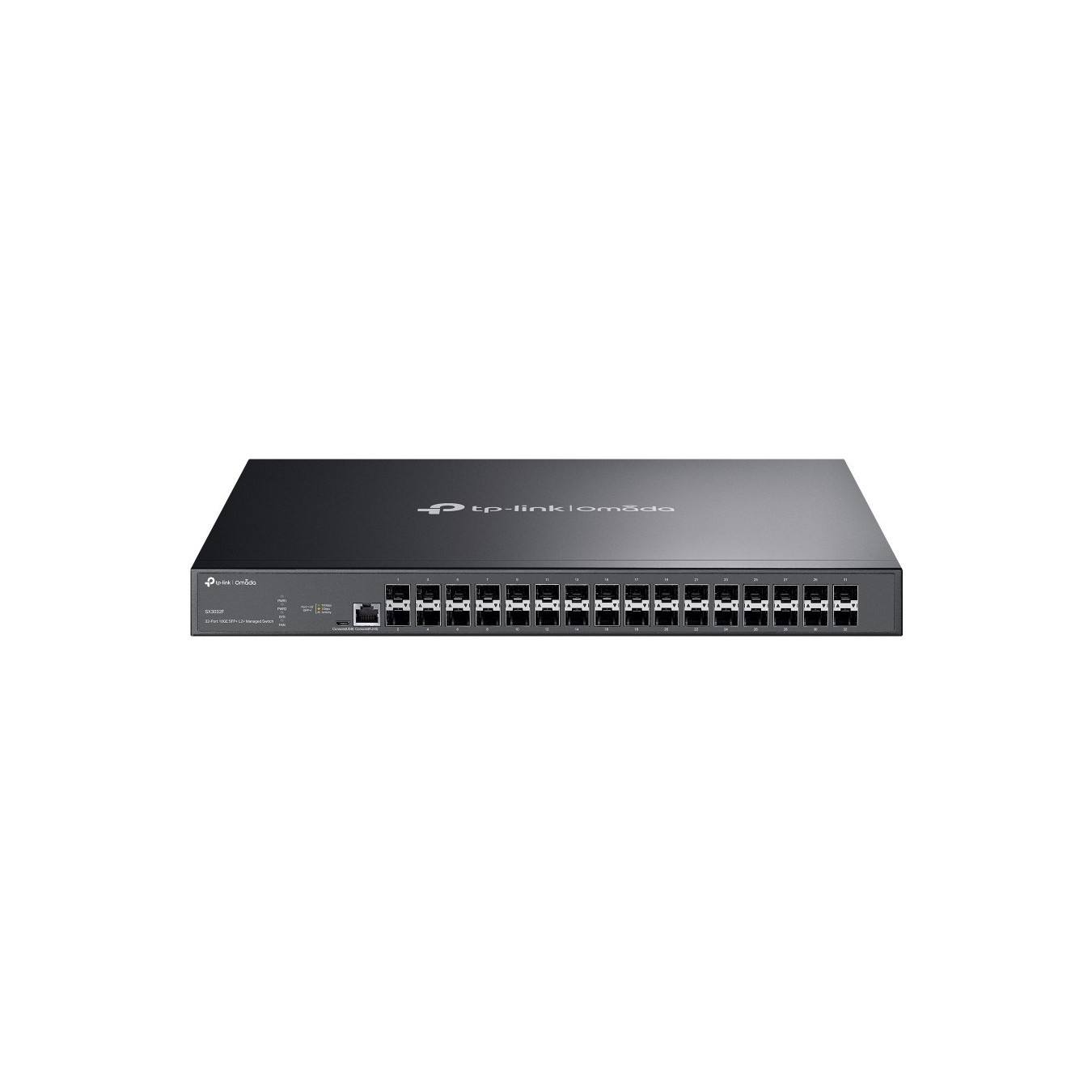

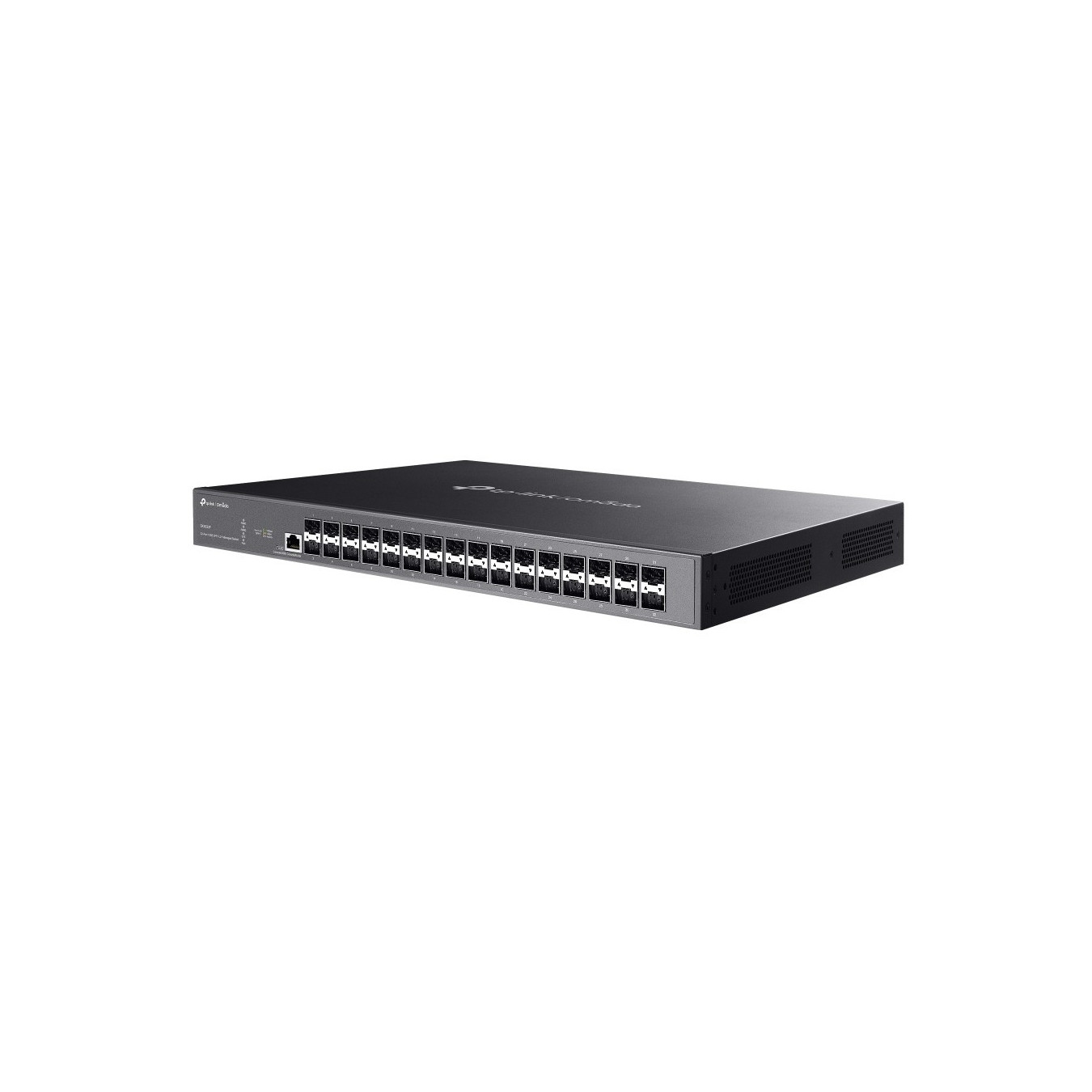

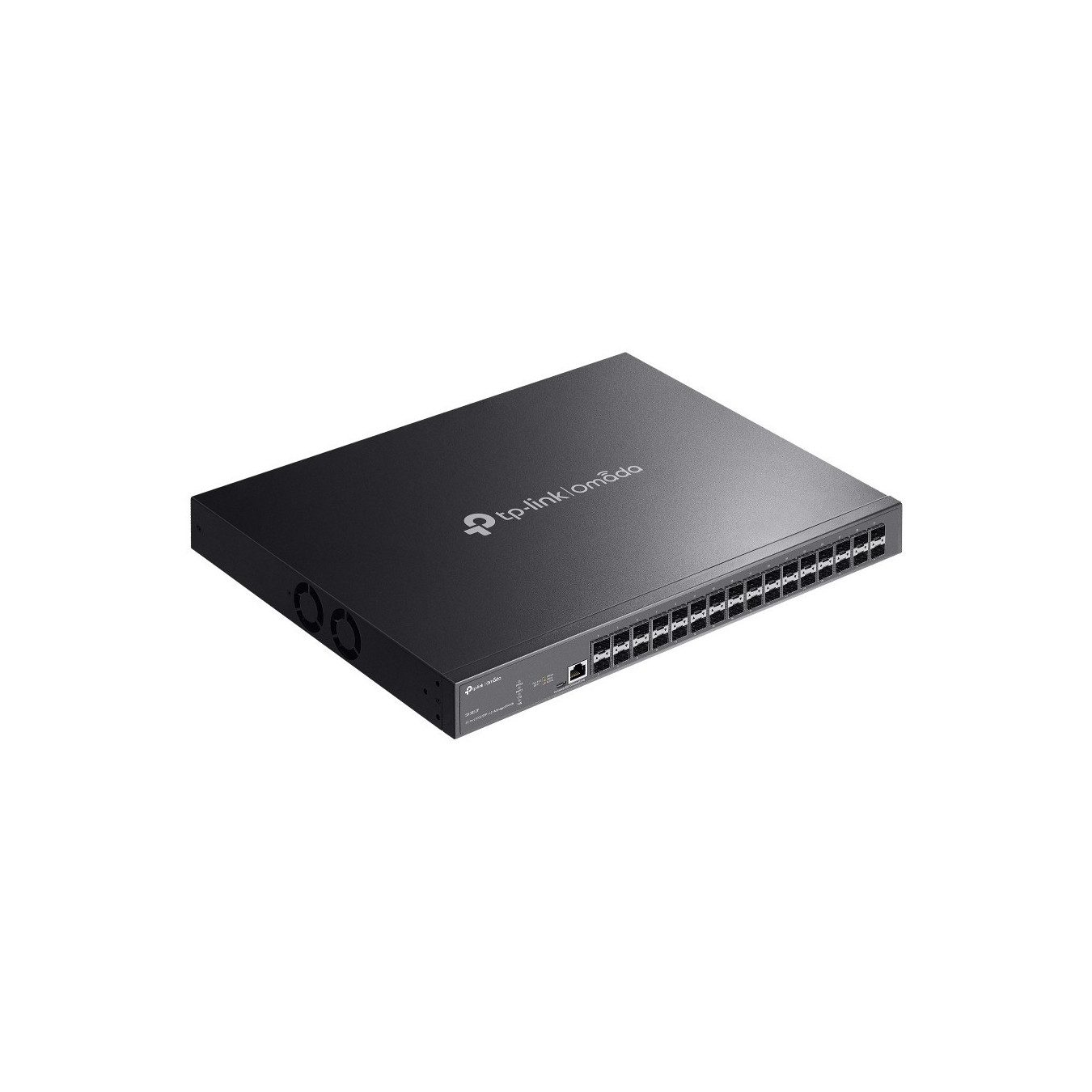

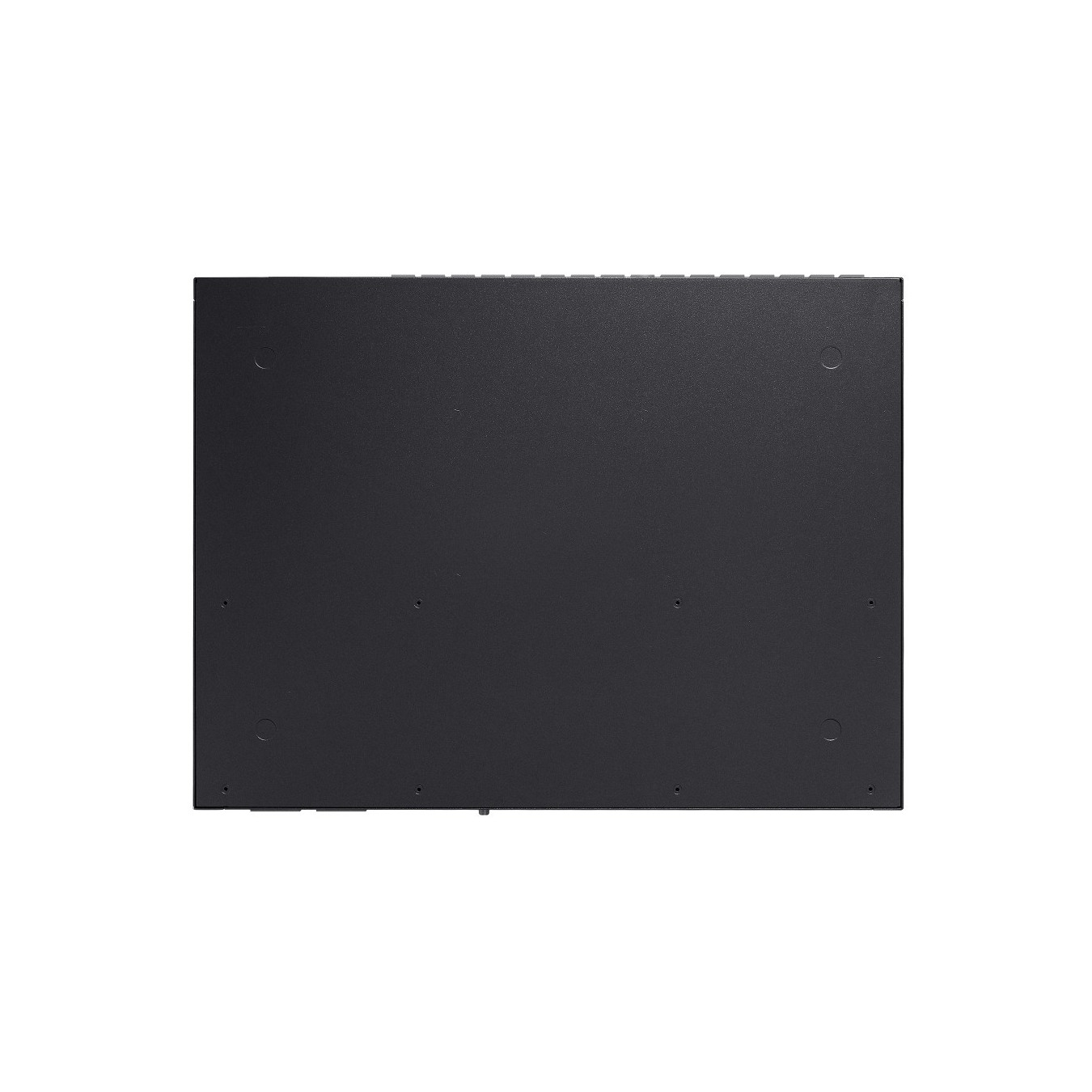

TP-Link Omada SX3032F - 32-Port 10G SFP+ L2+ Managed Rackmount Switch, Black
32-Port 10Gb SFP+ L2+ managed rackmount switch. 640 Gbit/s switching, 240 Mpps, 32 SFP+ ports, RJ-45/Micro-USB console, dual fans, 100–240V AC, max 49.4W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1. Installed SFP+ modules quantity: 32. Console port: RJ-45/Micro-USB. MAC address table: 32000 entries. Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1x. IEEE 802.3ah. IEEE 802.3x. Rack mounting
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Installed SFP+ modules quantity | 32 |
| Console port | RJ-45/Micro-USB |
| Networking standards | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1x. IEEE 802.3ah. IEEE 802.3x |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Virtual LAN features | Protocol-based VLAN. SSID-based VLAN assignment. Tagged VLAN. VLAN mapping. Voice VLAN |
| Number of VLANs | 30 |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Number of static routes | 128 |
| Number of IP interfaces | 128 |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
| DHCP features | DHCP relay. DHCP server. DHCPv6 snooping |
| Authentication | MAC-based authentication. Port-based authentication |
| Authentication type | AAA. TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ). SP. Weighted Round Robin (WRR) |
| Number of multicast groups filtered | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6. ICMPv6. IPv6 TFTP |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 49.4 W |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | 40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Cables included | Power |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
