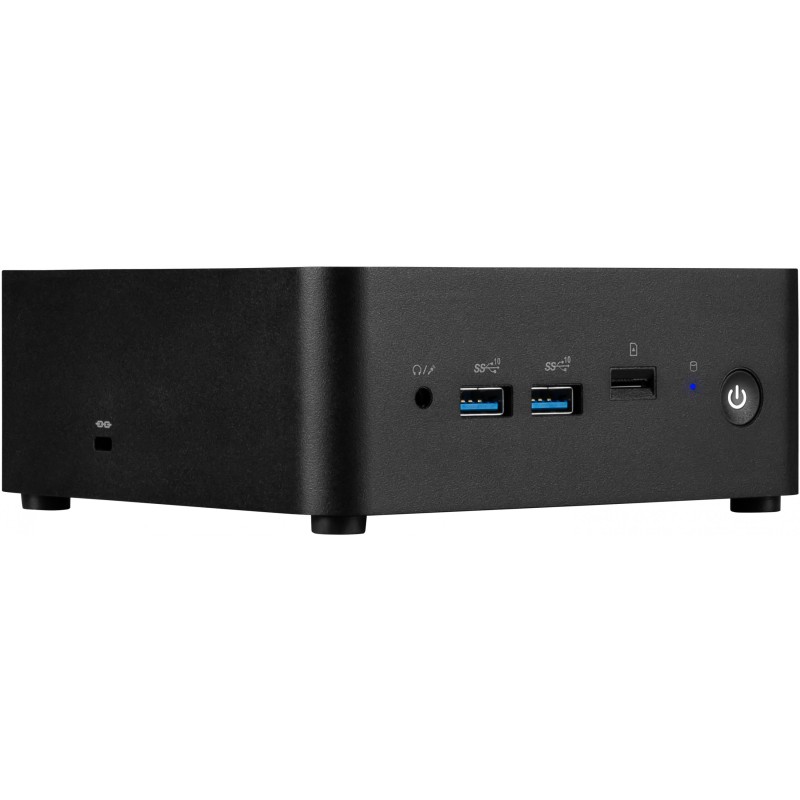

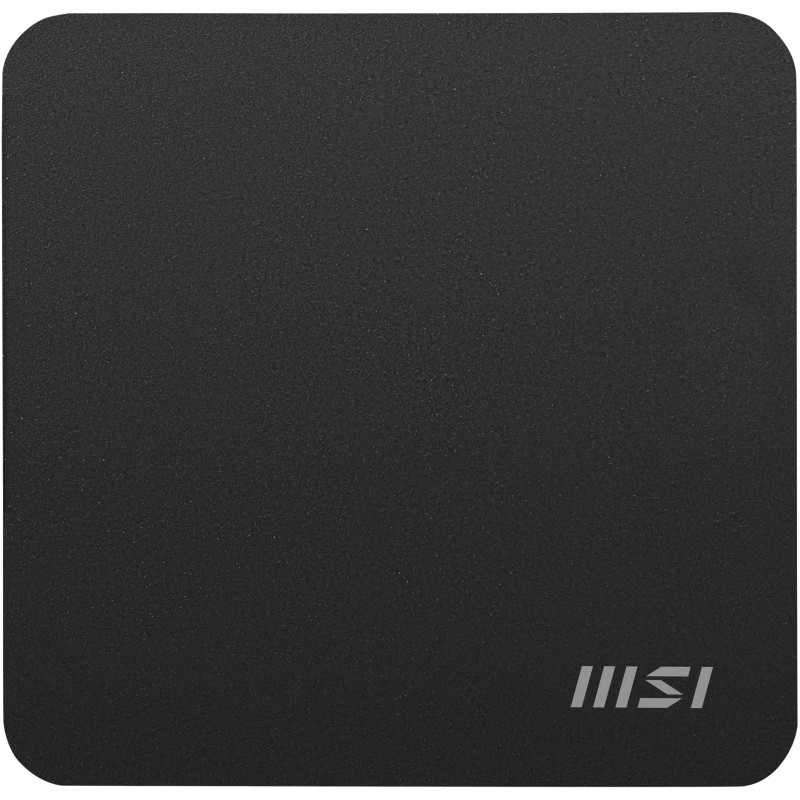

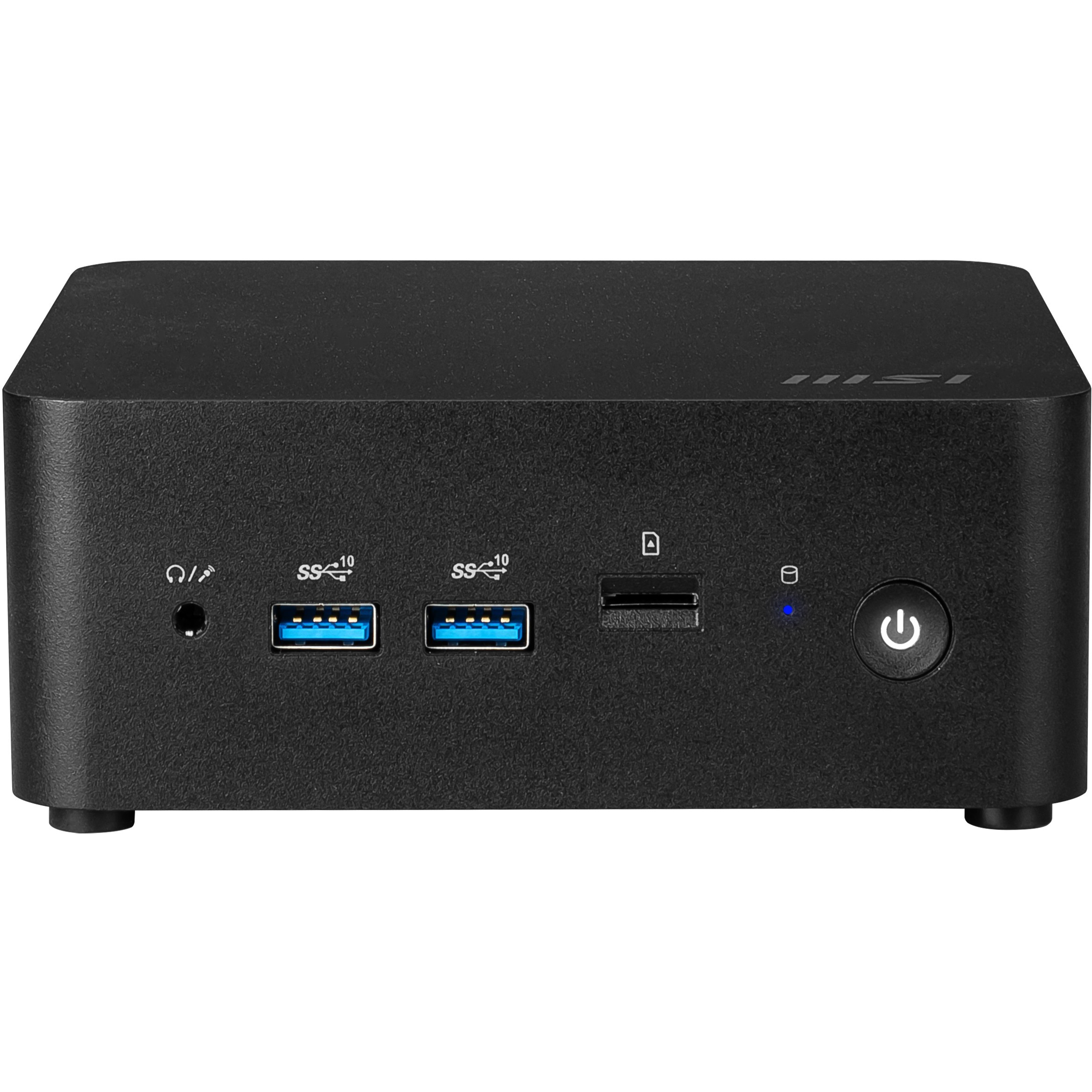

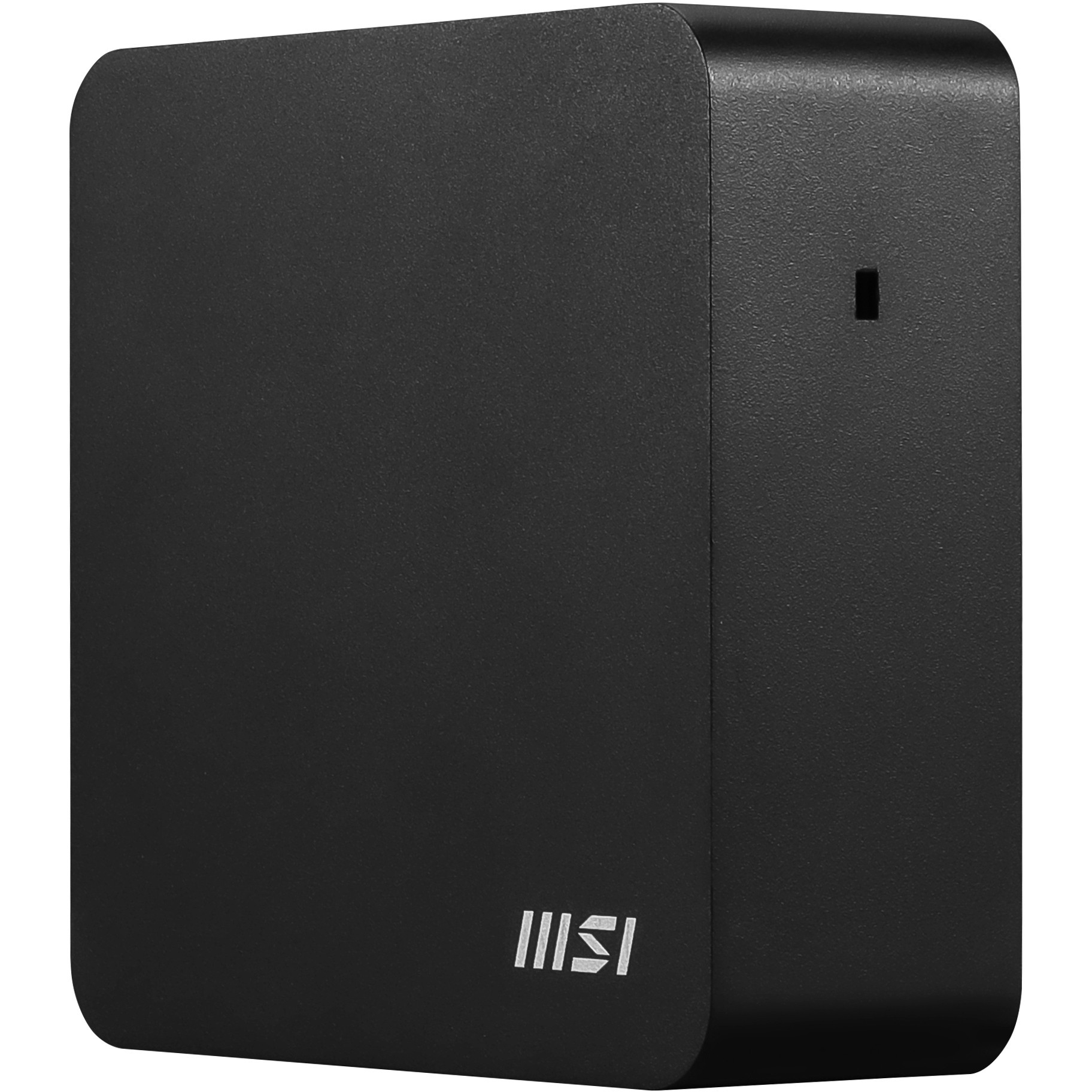

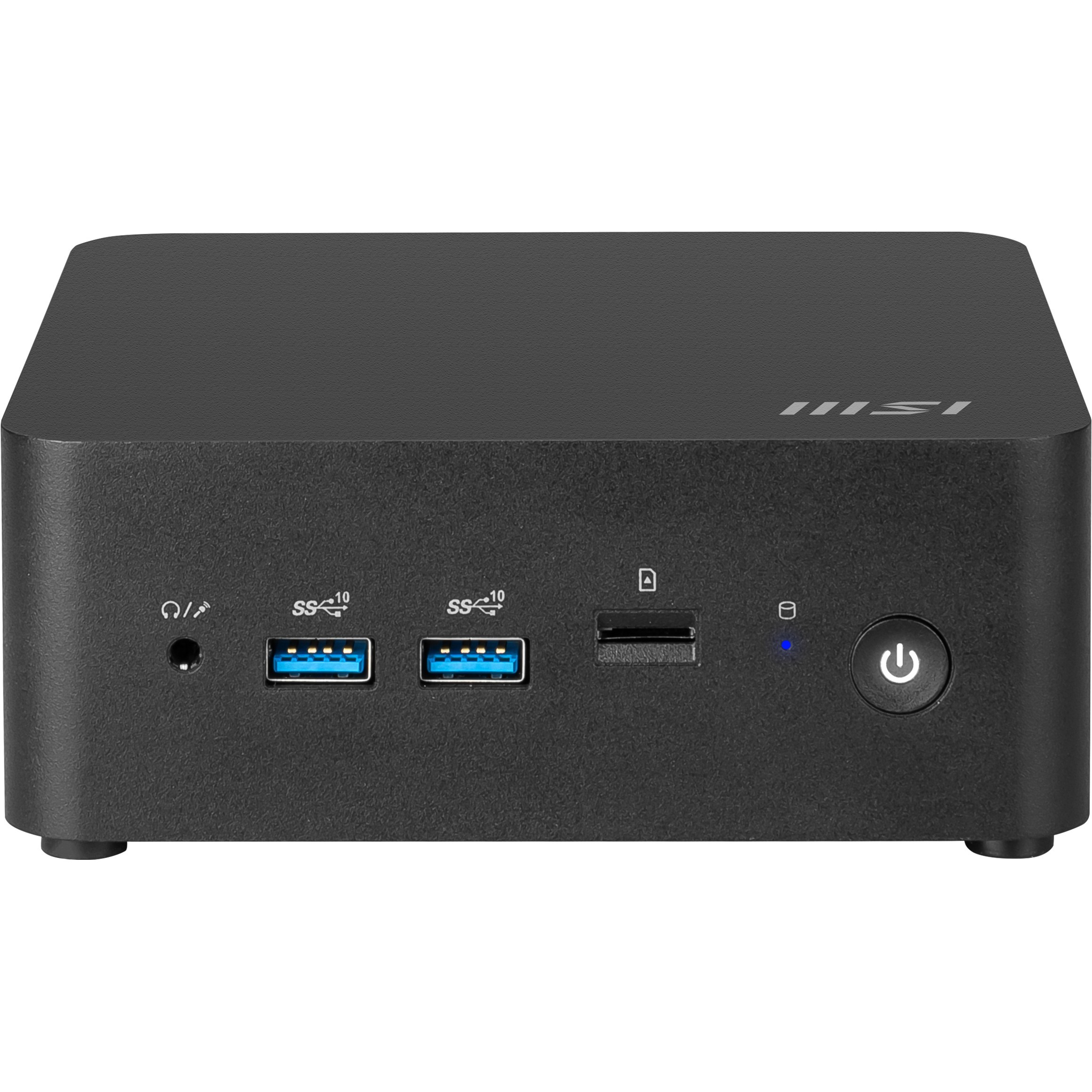

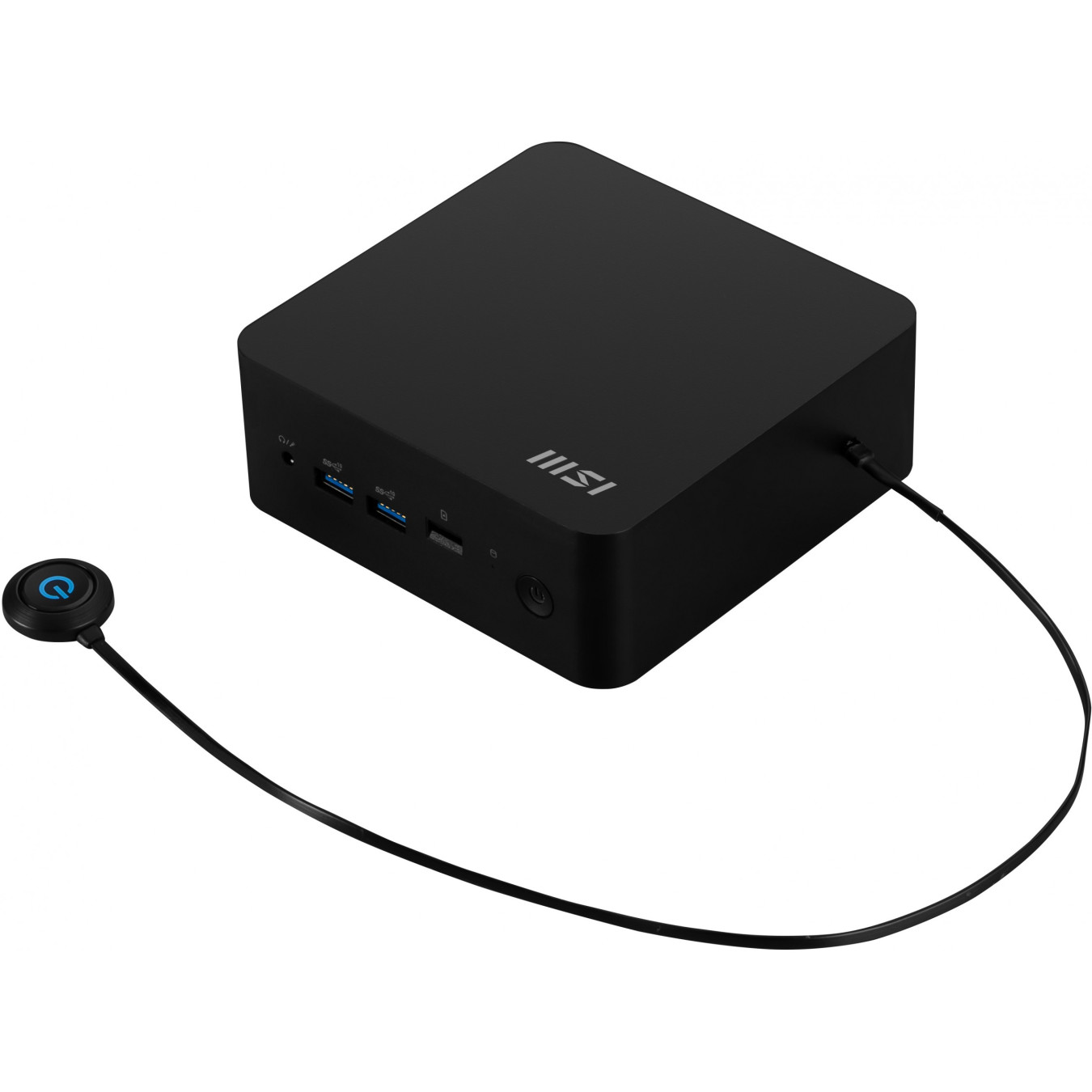

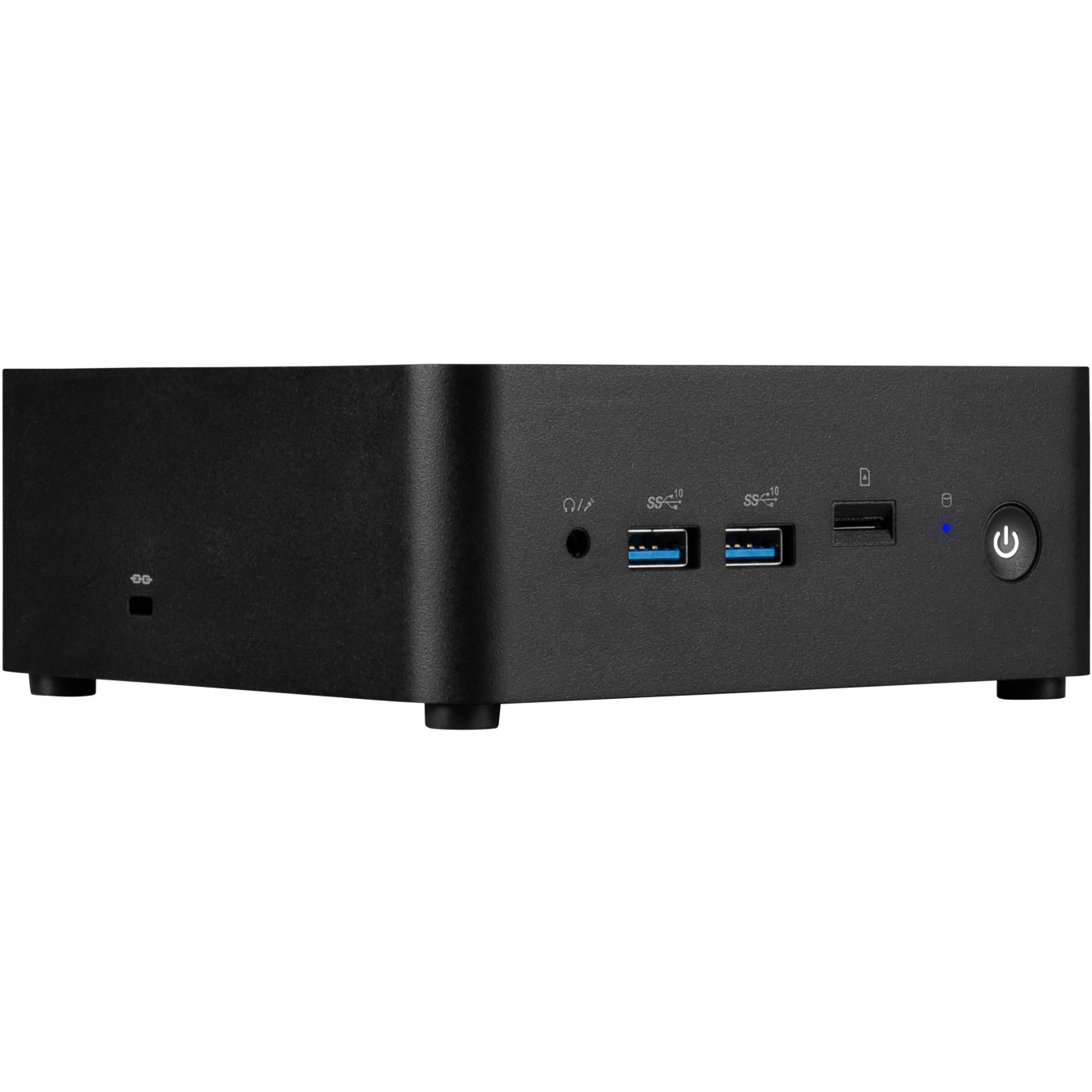

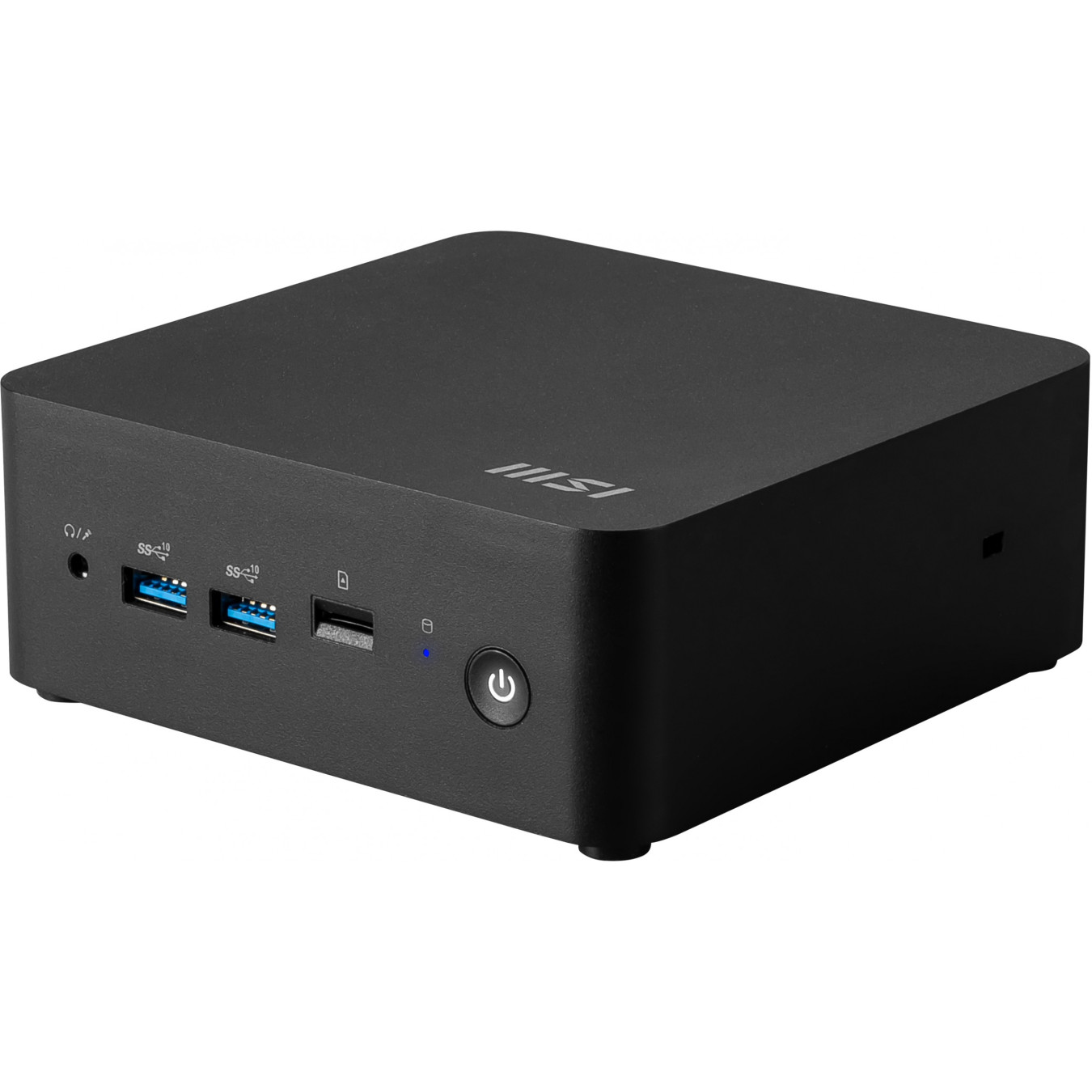

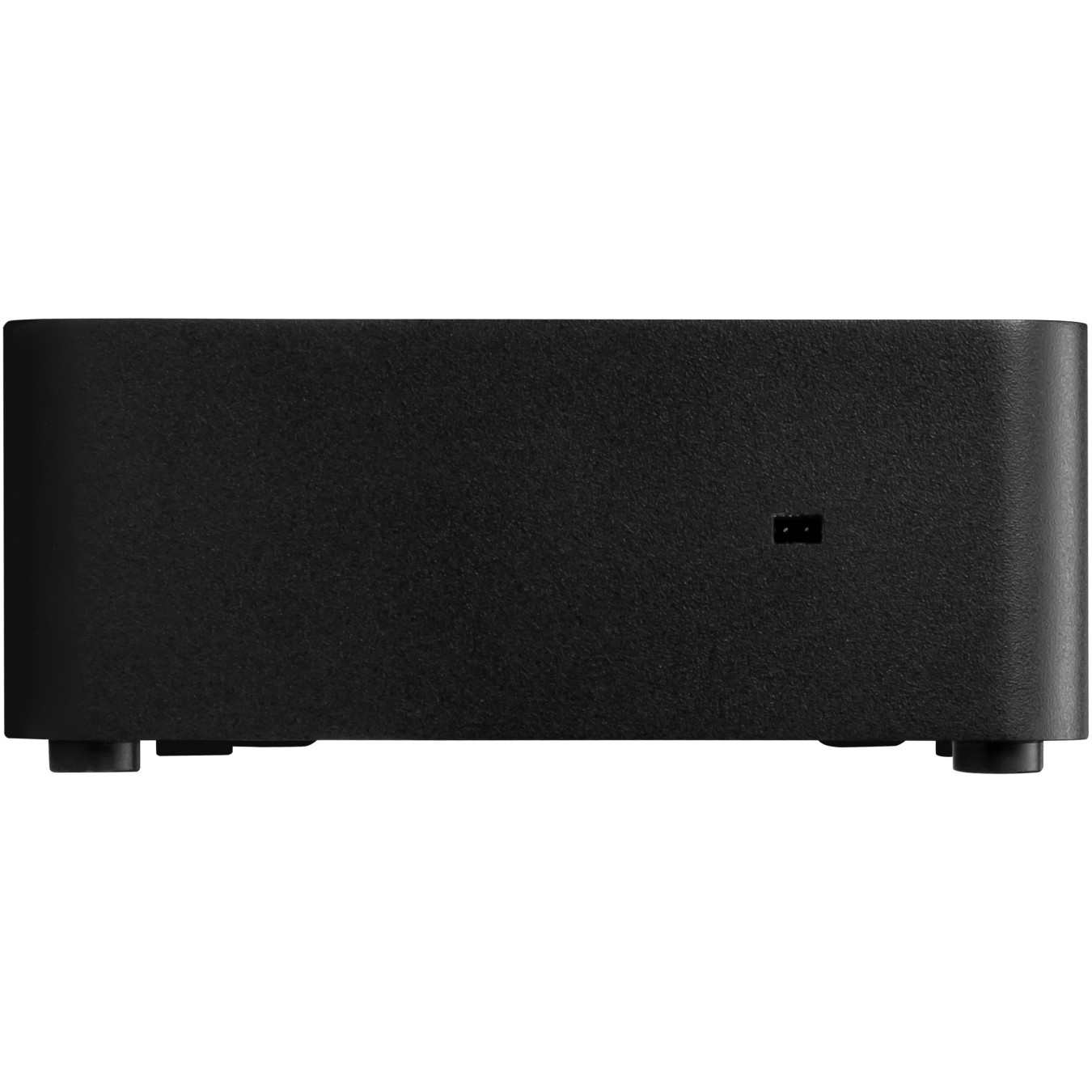

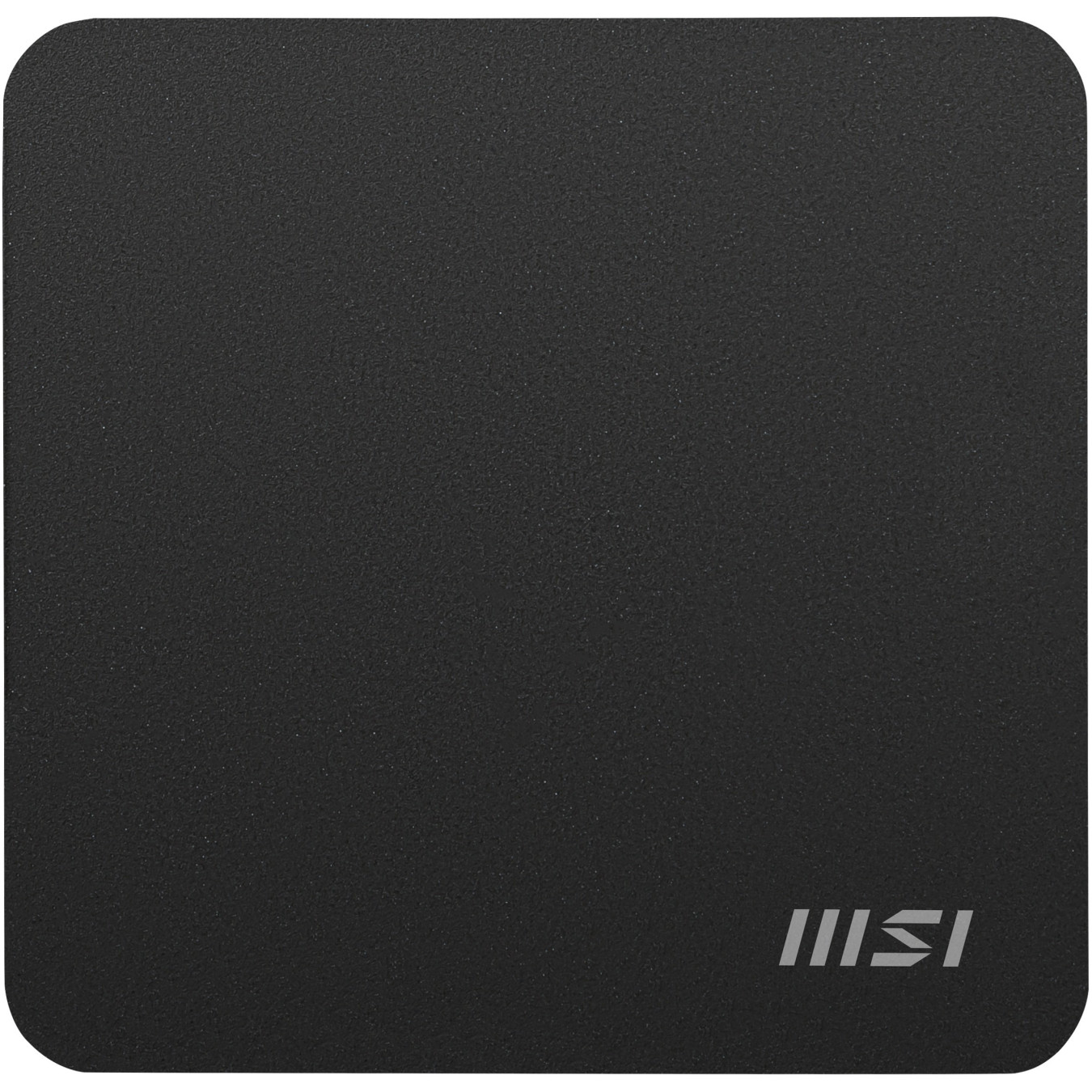

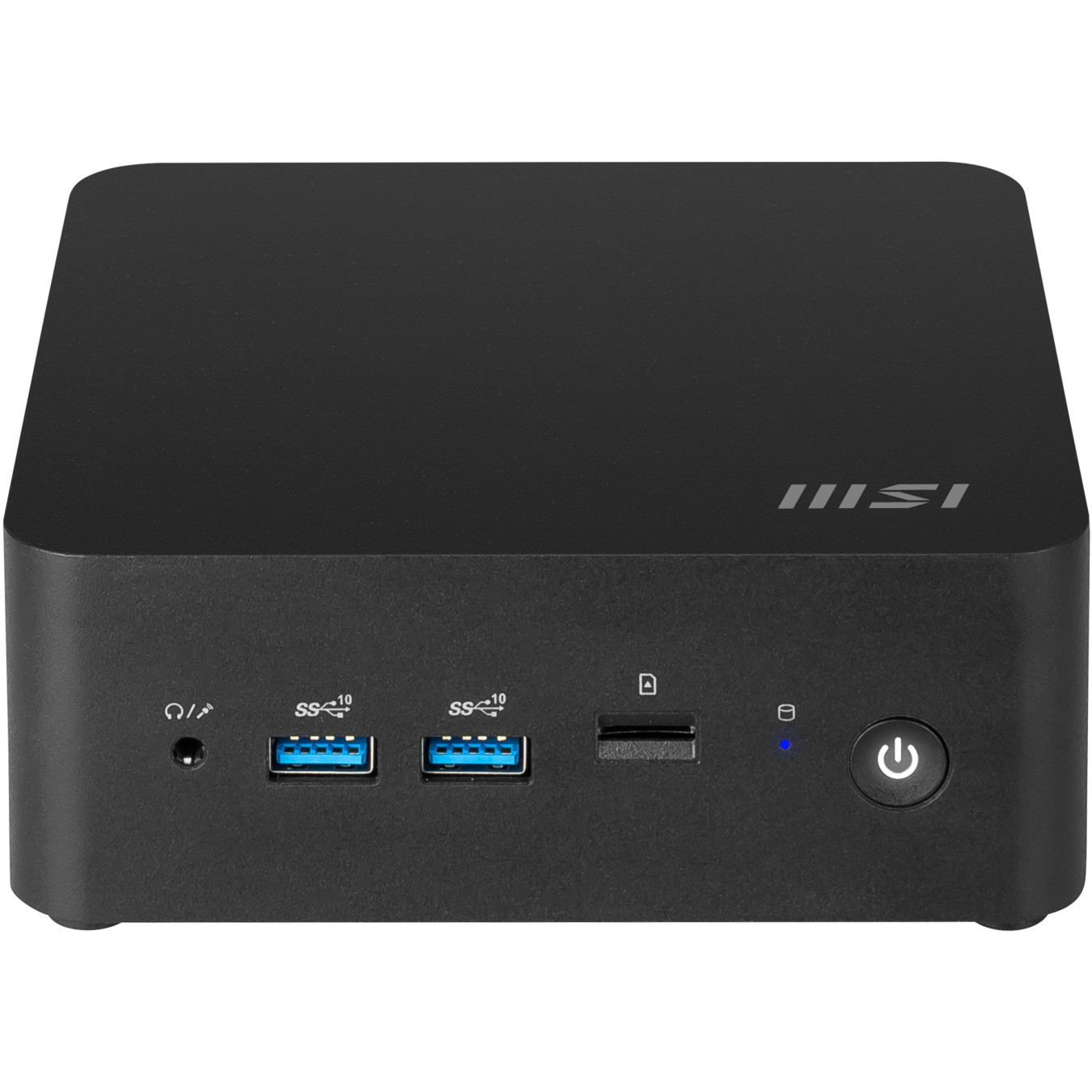

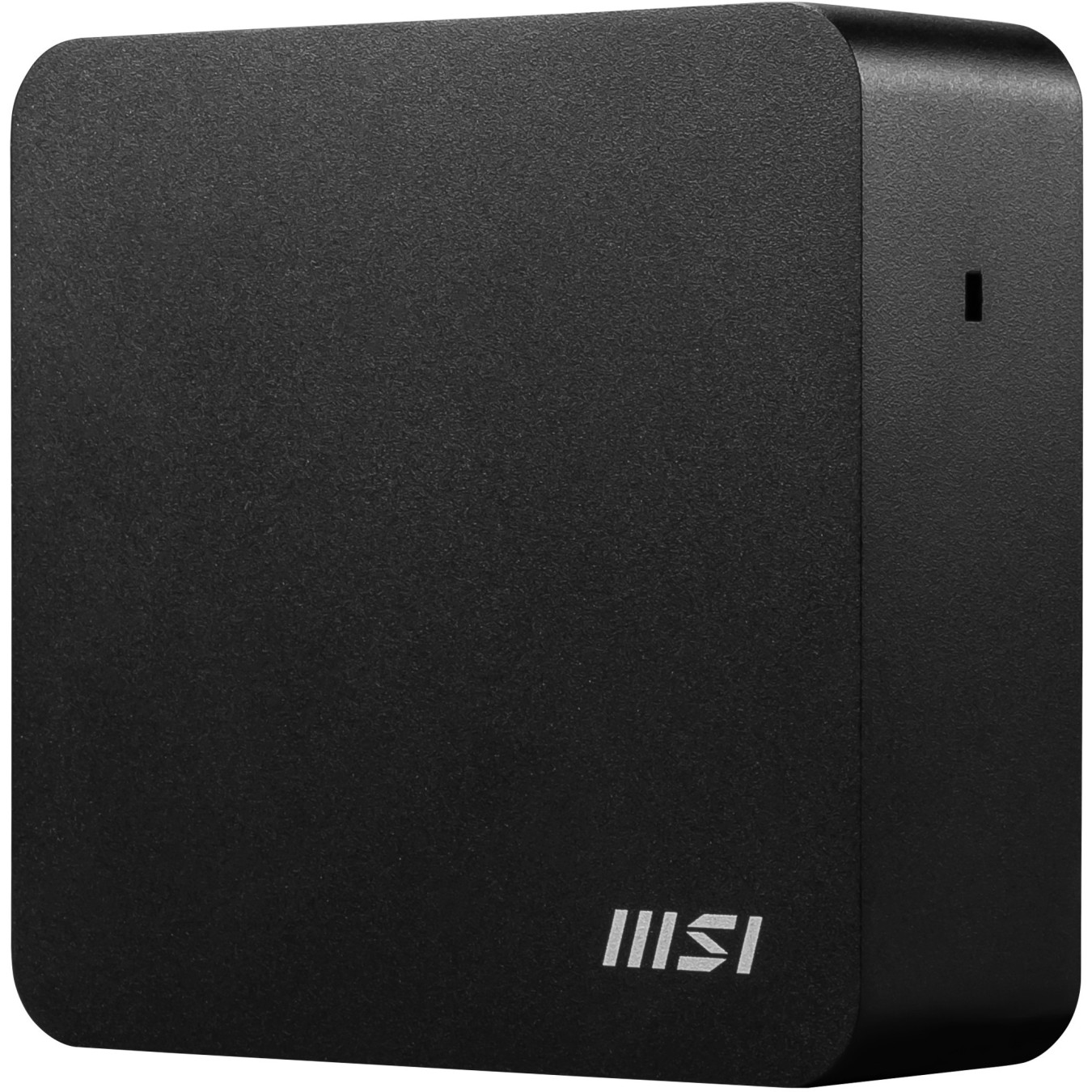

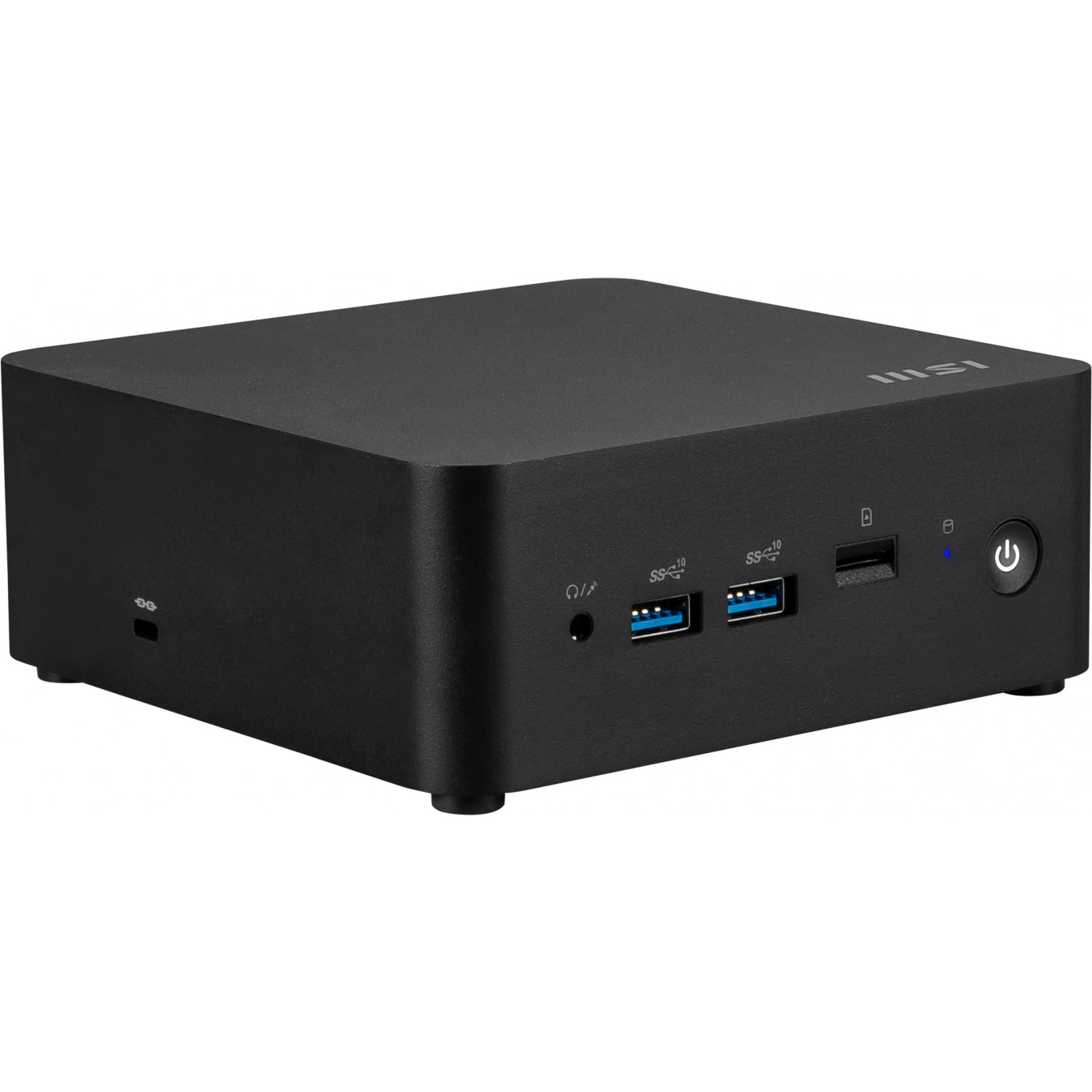

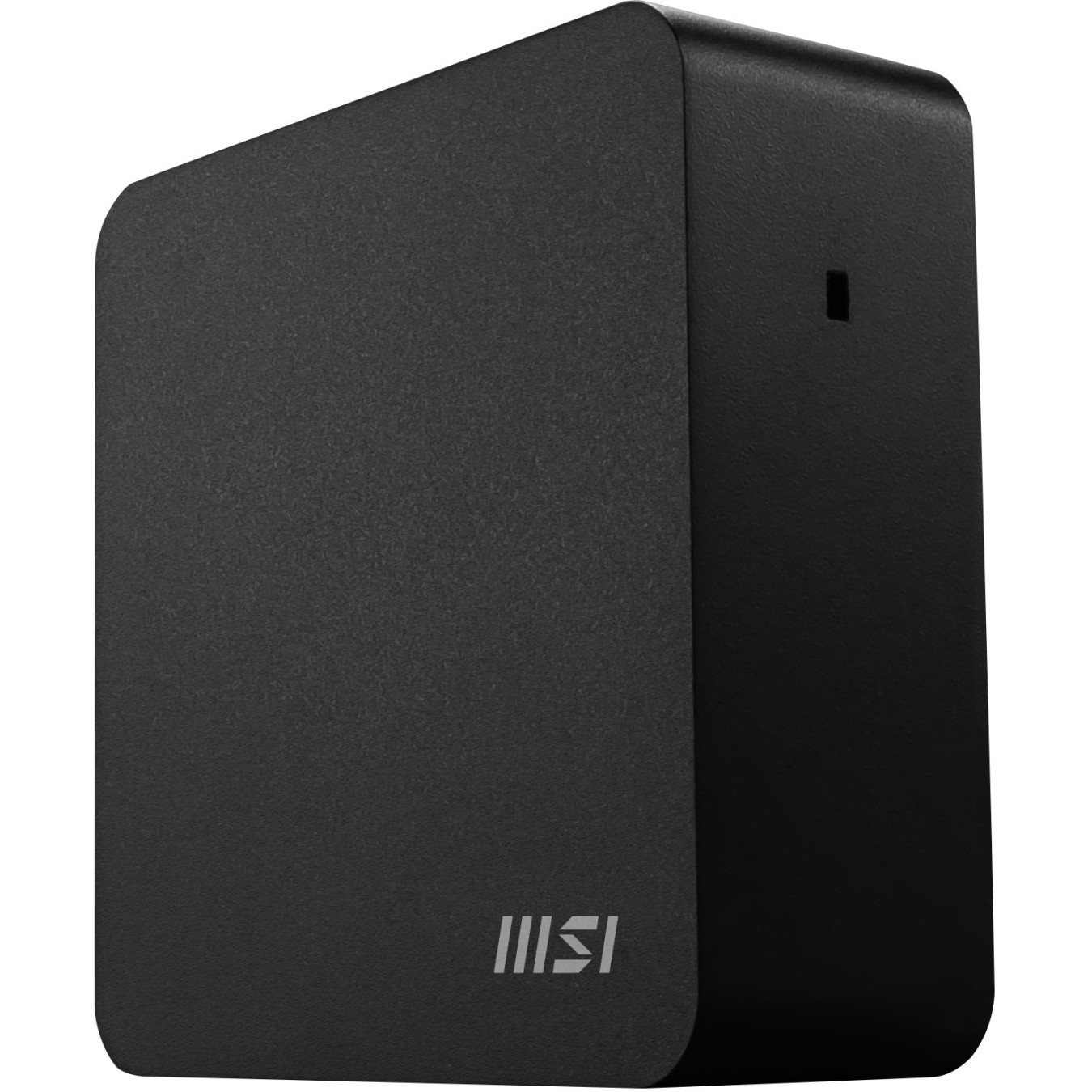

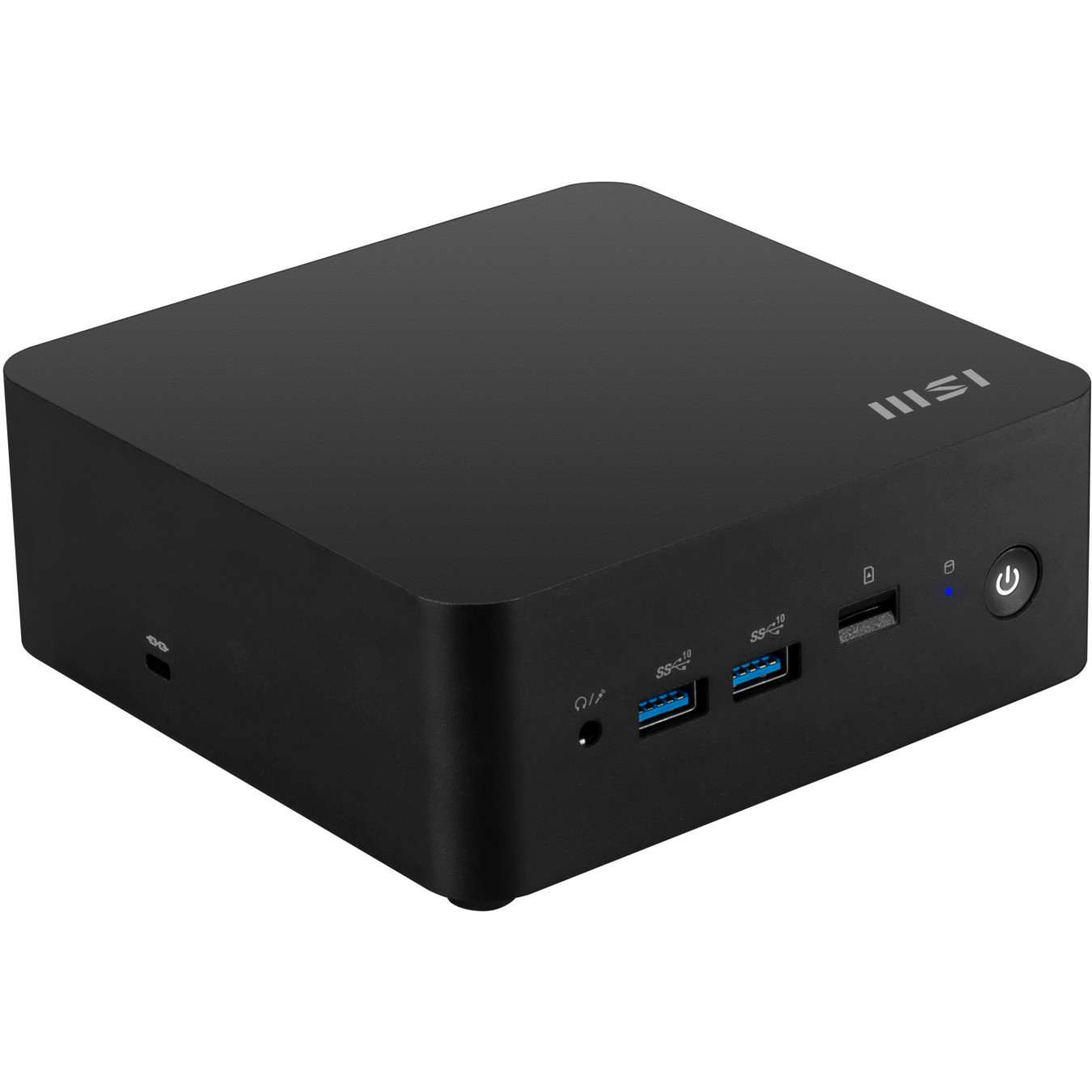

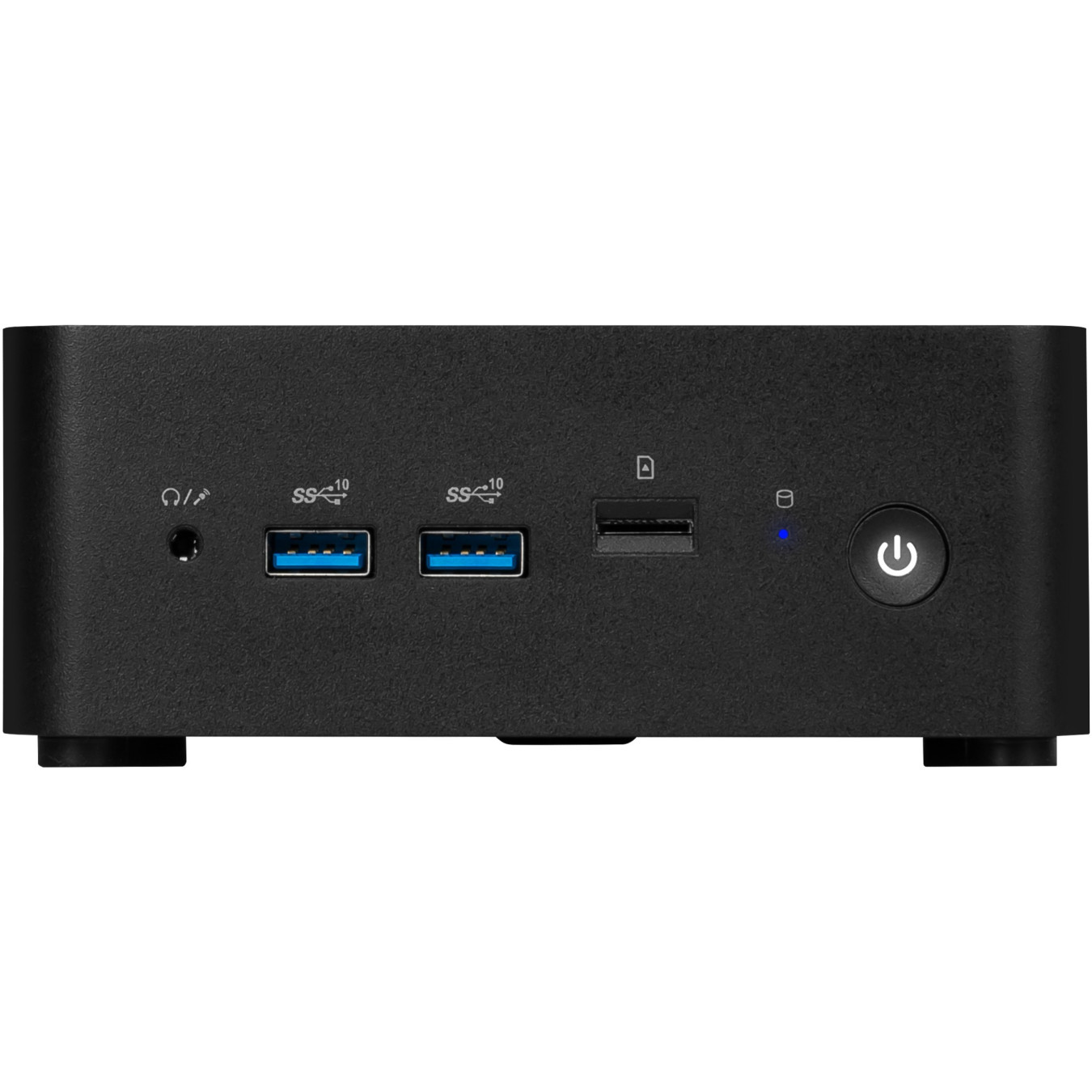

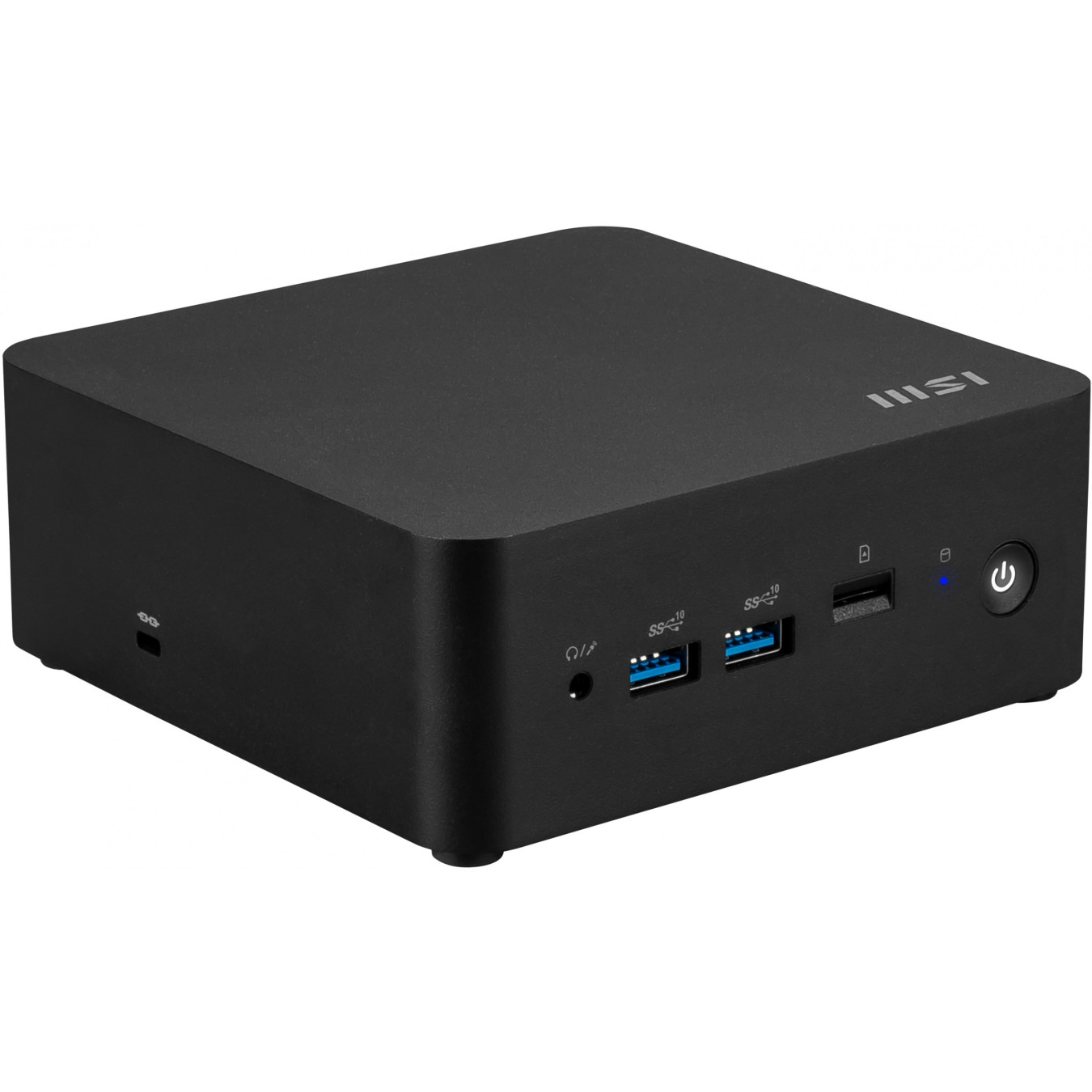

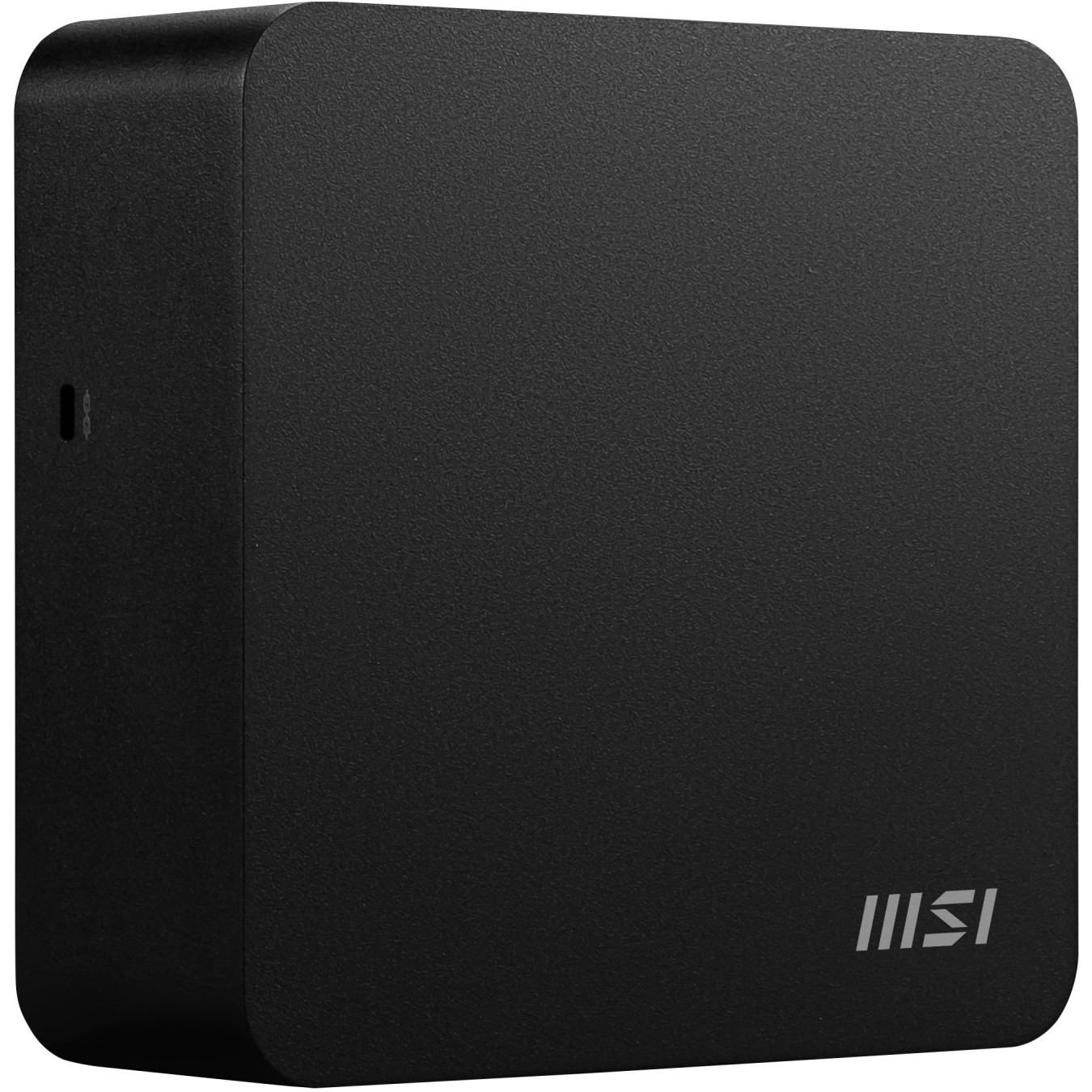

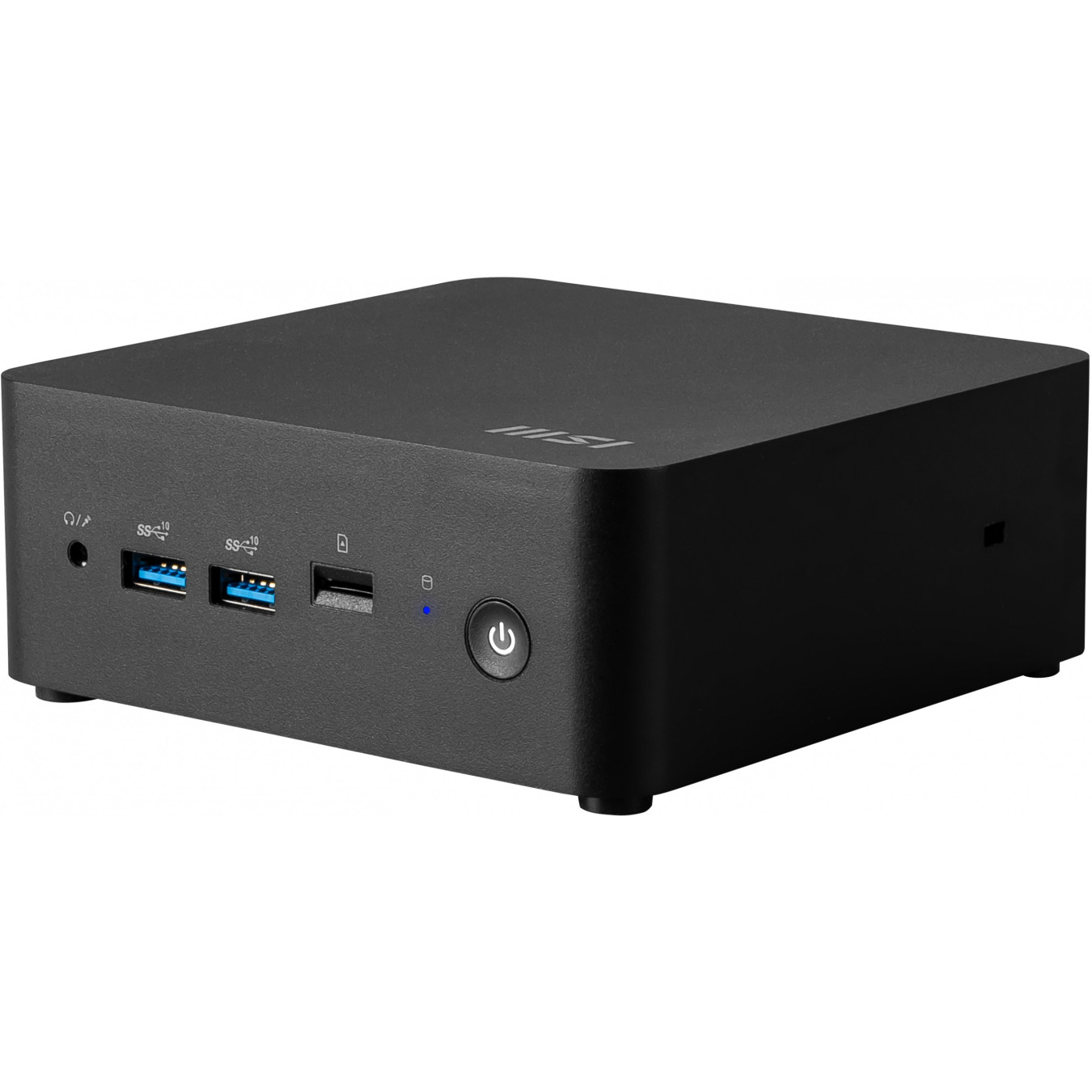

MSI Cubi NUC 1MG-007BDE - Intel Core i7-150U (up to 5.4GHz) - Black, DDR5 SO-DIMM up to 64GB, M.2 NVMe, Wi-Fi 6E
Compact MSI Cubi NUC barebone (1MG-007BDE) with Intel Core i7-150U (2P+8E, up to 5.4GHz), DDR5 SO-DIMM up to 64GB, 2x M.2, 2x HDMI, Thunderbolt 4, Wi‑Fi 6E, No OS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Barebone Kit (No RAM/SSD) |
|---|---|
| Barebone & Mini PCs - CPU Series | Intel Core i7 |
| Barebone & Mini PCs - Memory Type | DDR5 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 64 GB |
| Barebone & Mini PCs - Storage Support | M.2 NVMe |
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - Video Outputs | HDMI |
| Barebone & Mini PCs - Ethernet | Dual 2.5GbE |
| Barebone & Mini PCs - Wireless | Wi-Fi 6E |
| Barebone & Mini PCs - Bluetooth | 5.3 |

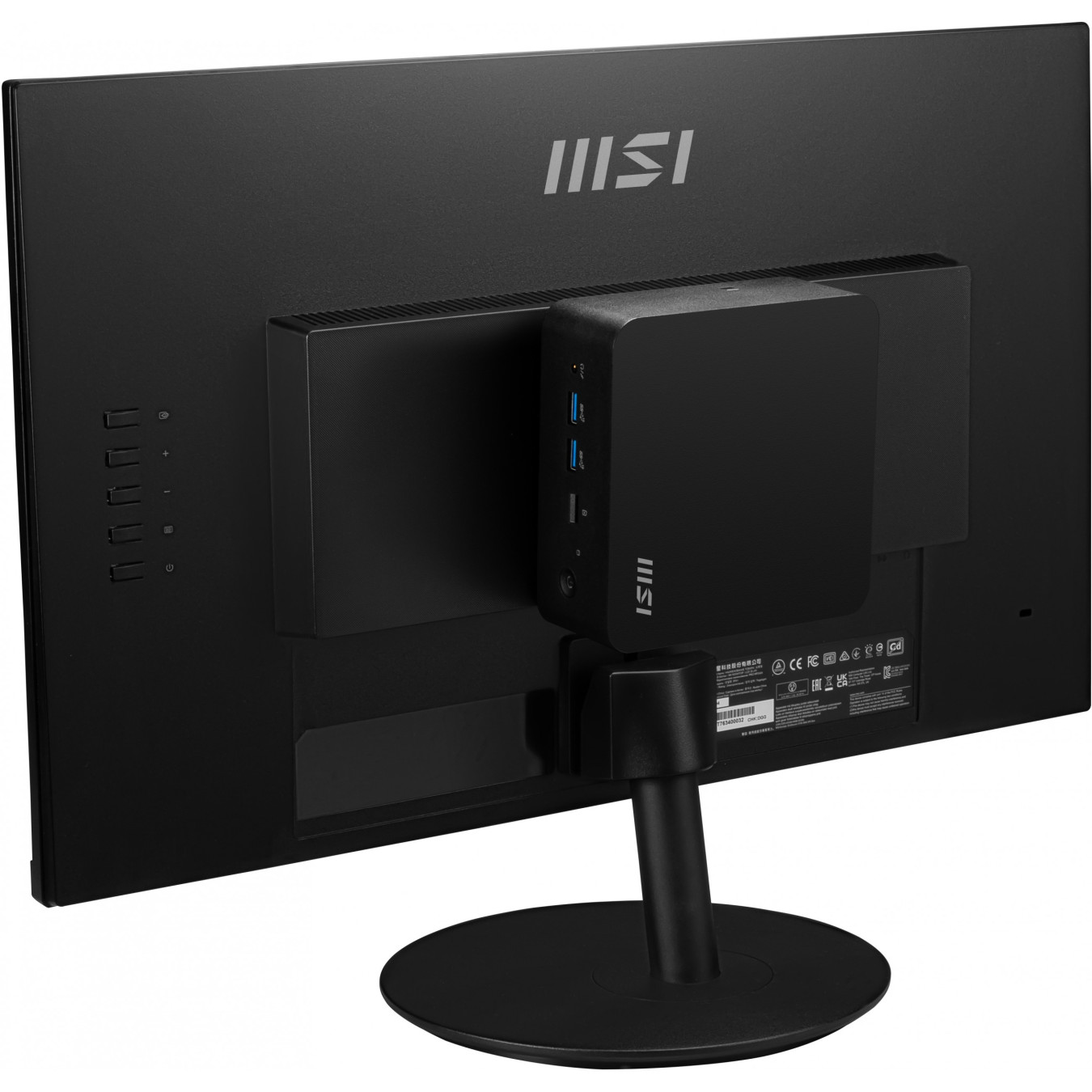

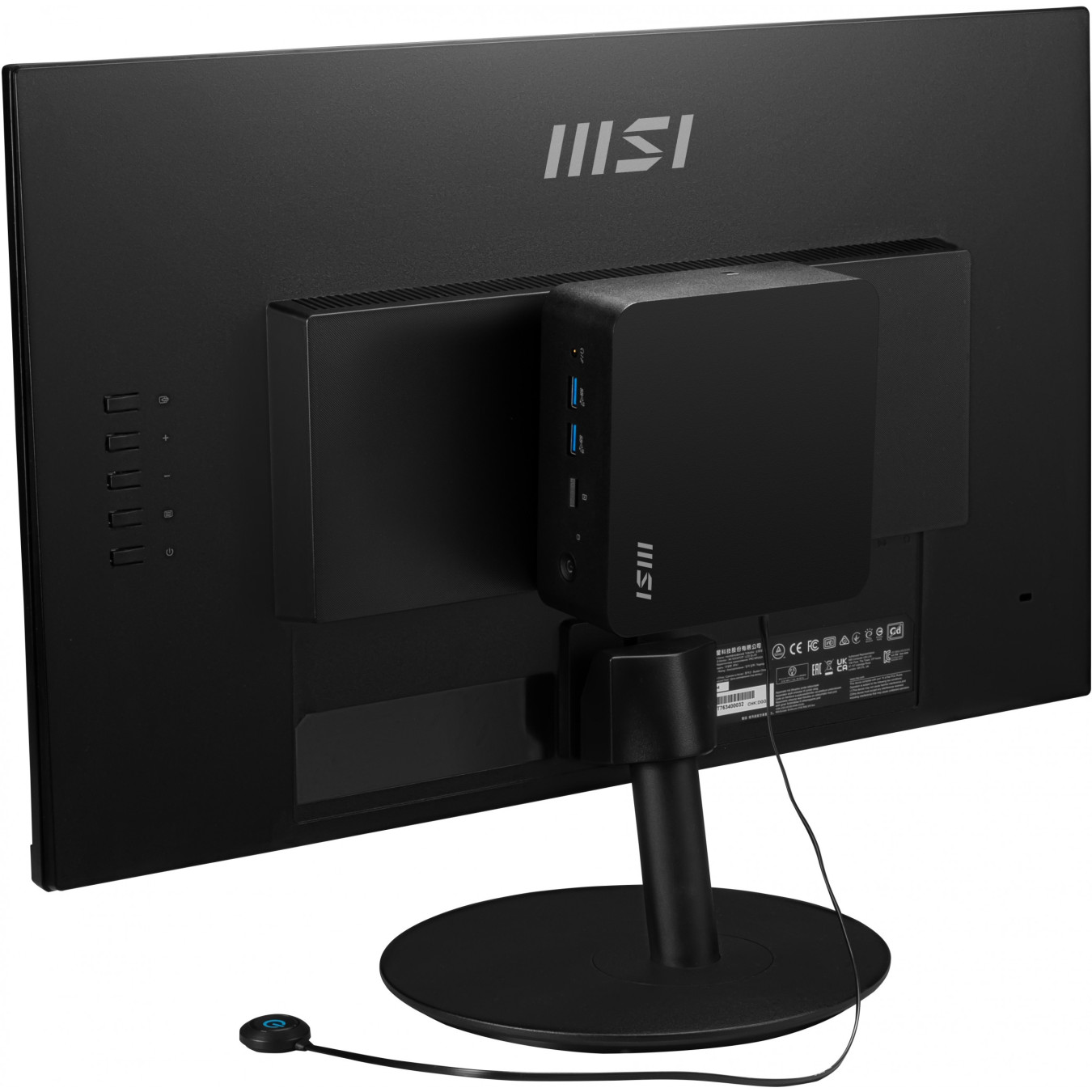

| Barebone & Mini PCs - VESA Mount | Yes |
| Barebone & Mini PCs - OS | No OS |
MSI Cubi NUC 1MG-007BDE. Chassis type: 0.84L sized PC. Product type: Mini PC barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM. Number of memory slots: 2. Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD. Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax). Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
| Processor manufacturer | Intel |
| Processor family | Intel Core 7 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 150U |
| Processor cores | 10 |
| Processor threads | 12 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core base frequency | 1.8 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Feature | Quick start guide |
| Processor cache | 12 MB |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5.M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 3 |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Number of displays supported | 4 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| LAN controller | Intel I226-V |
| Bluetooth version | 5.3 |

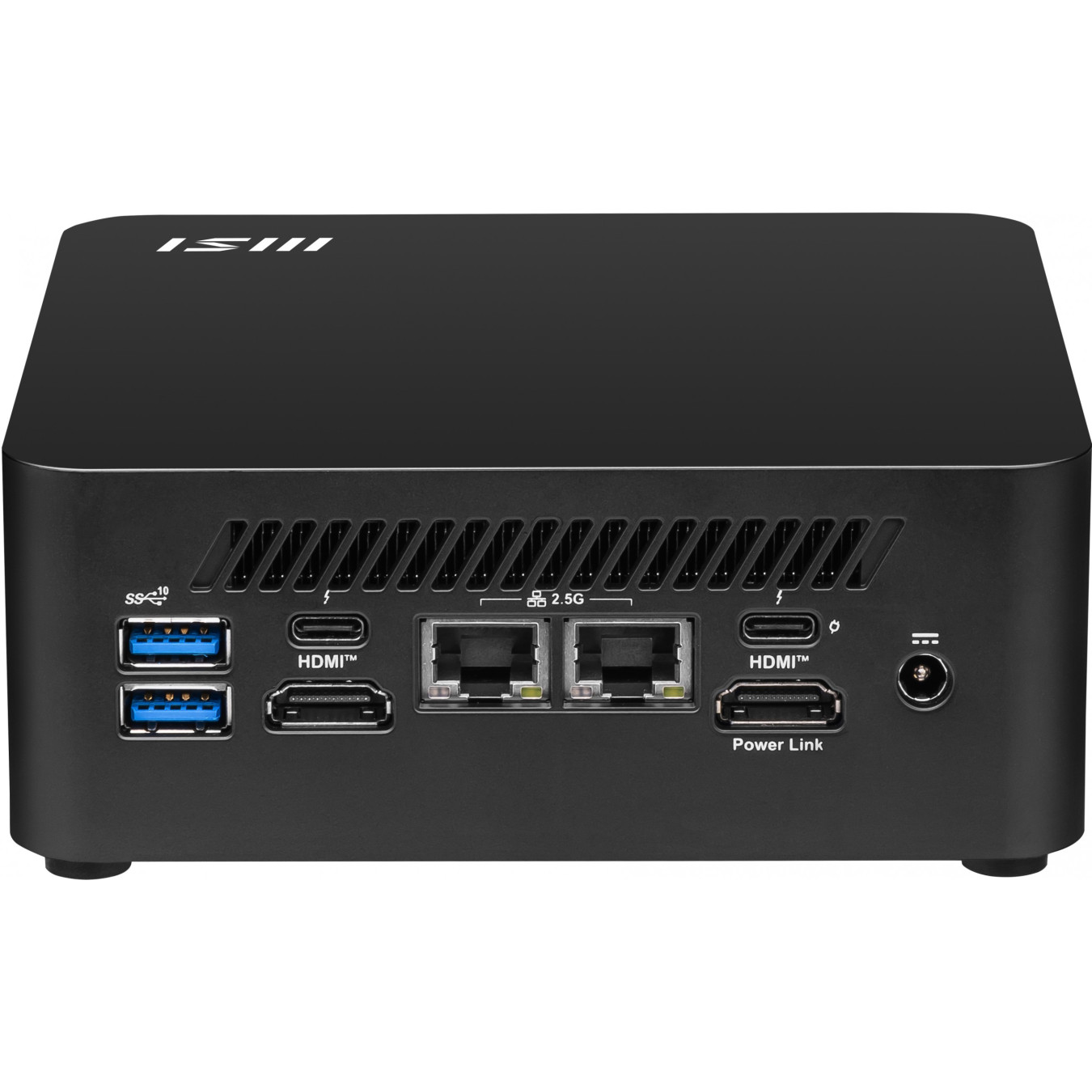

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 4 ports quantity | 2 |
| Number of M.2 (M) slots | 2 |
| Chassis type | 0.84L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Housing material | Plastic |

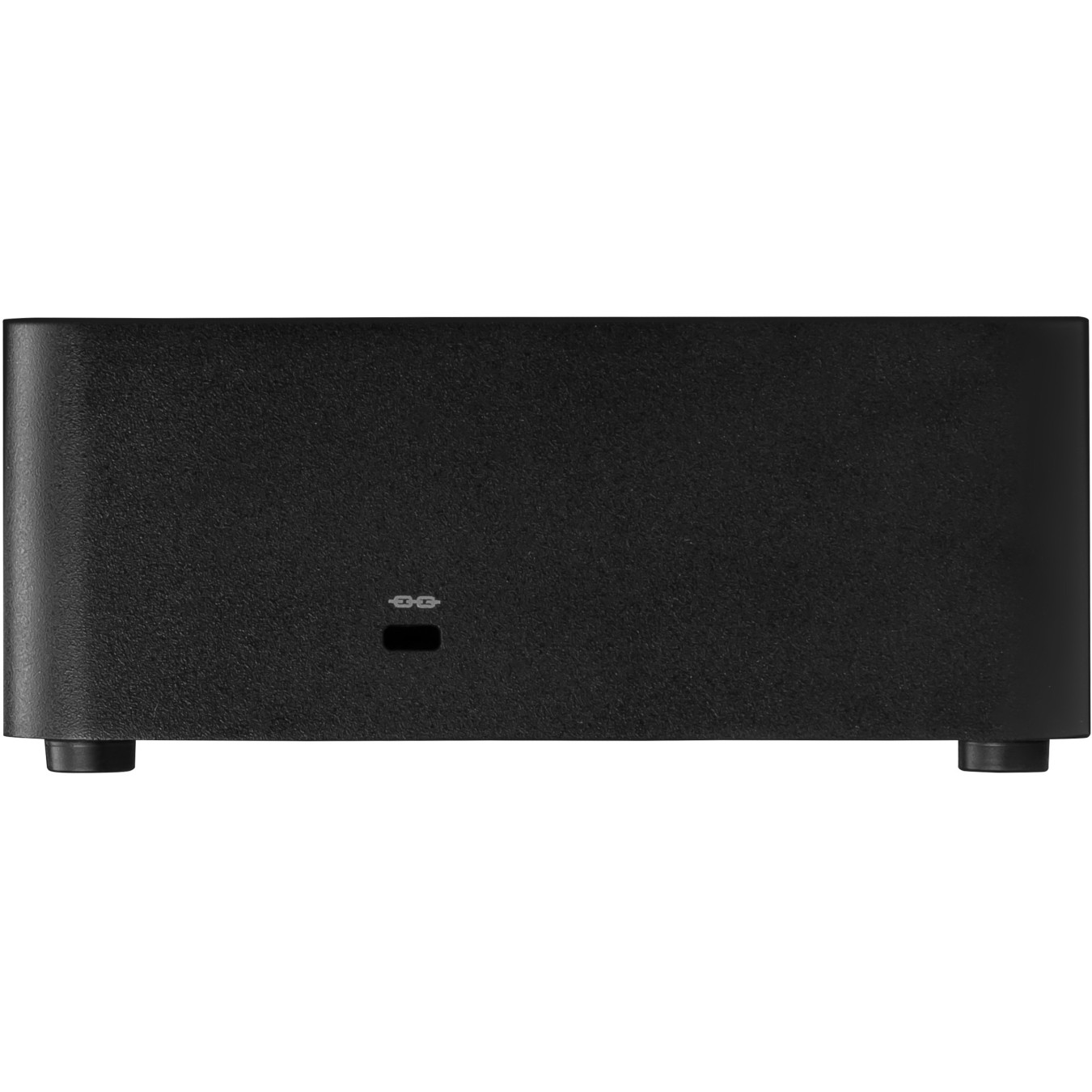

| Cable lock slot type | Kensington |

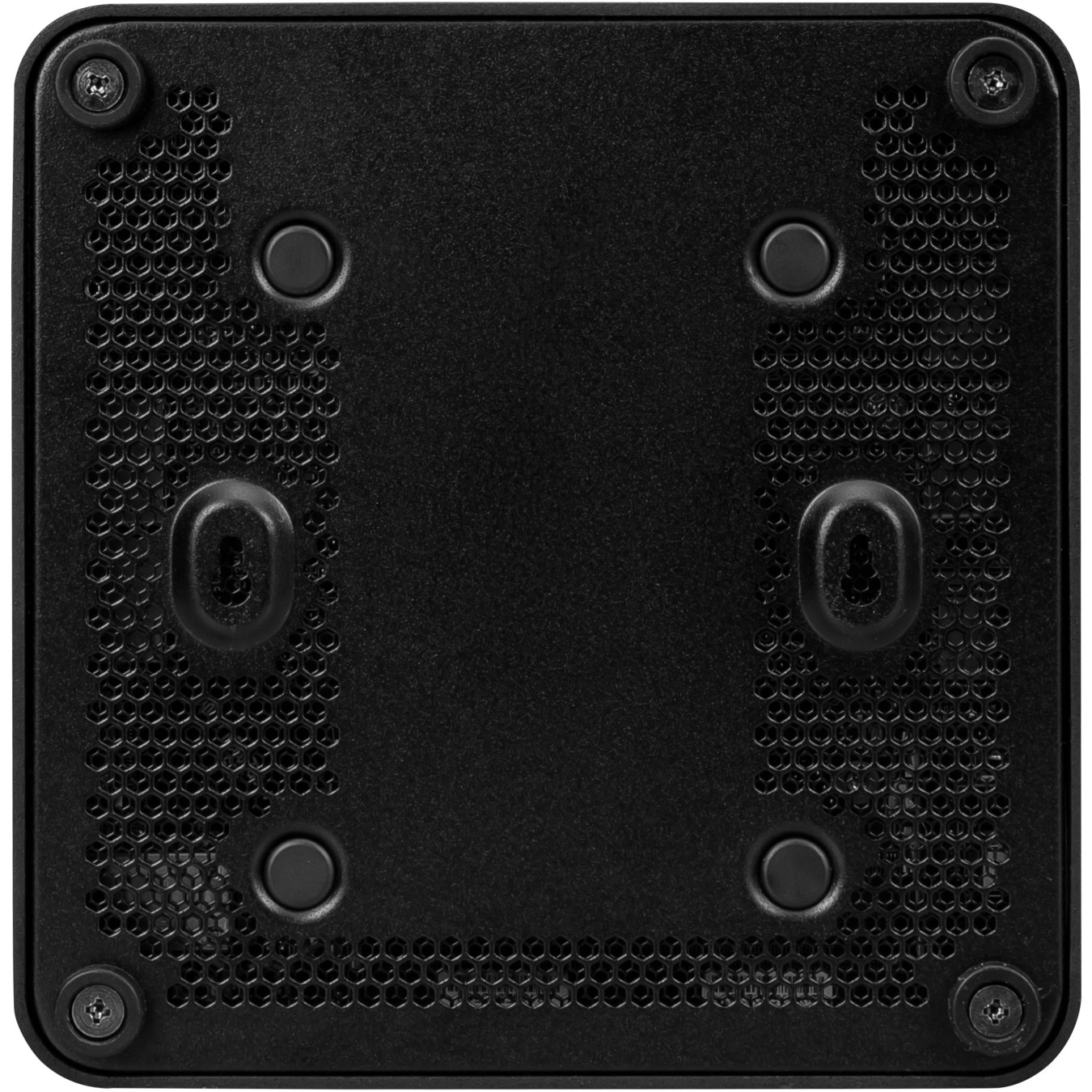

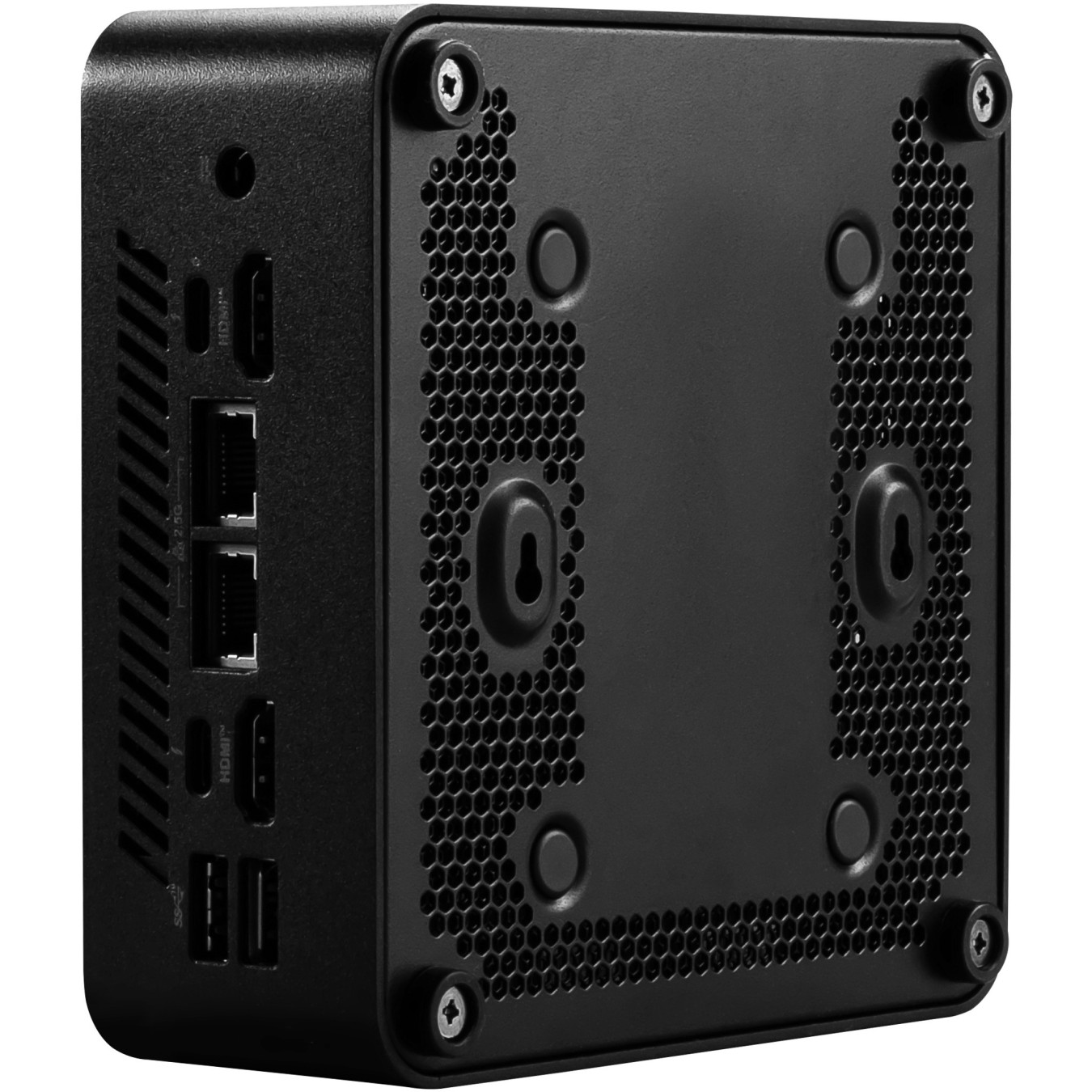

| Panel mounting interface | 75 x 75.100 x 100 mm |
| Product type | Mini PC barebone |
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) version | 2.0 |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 630 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
