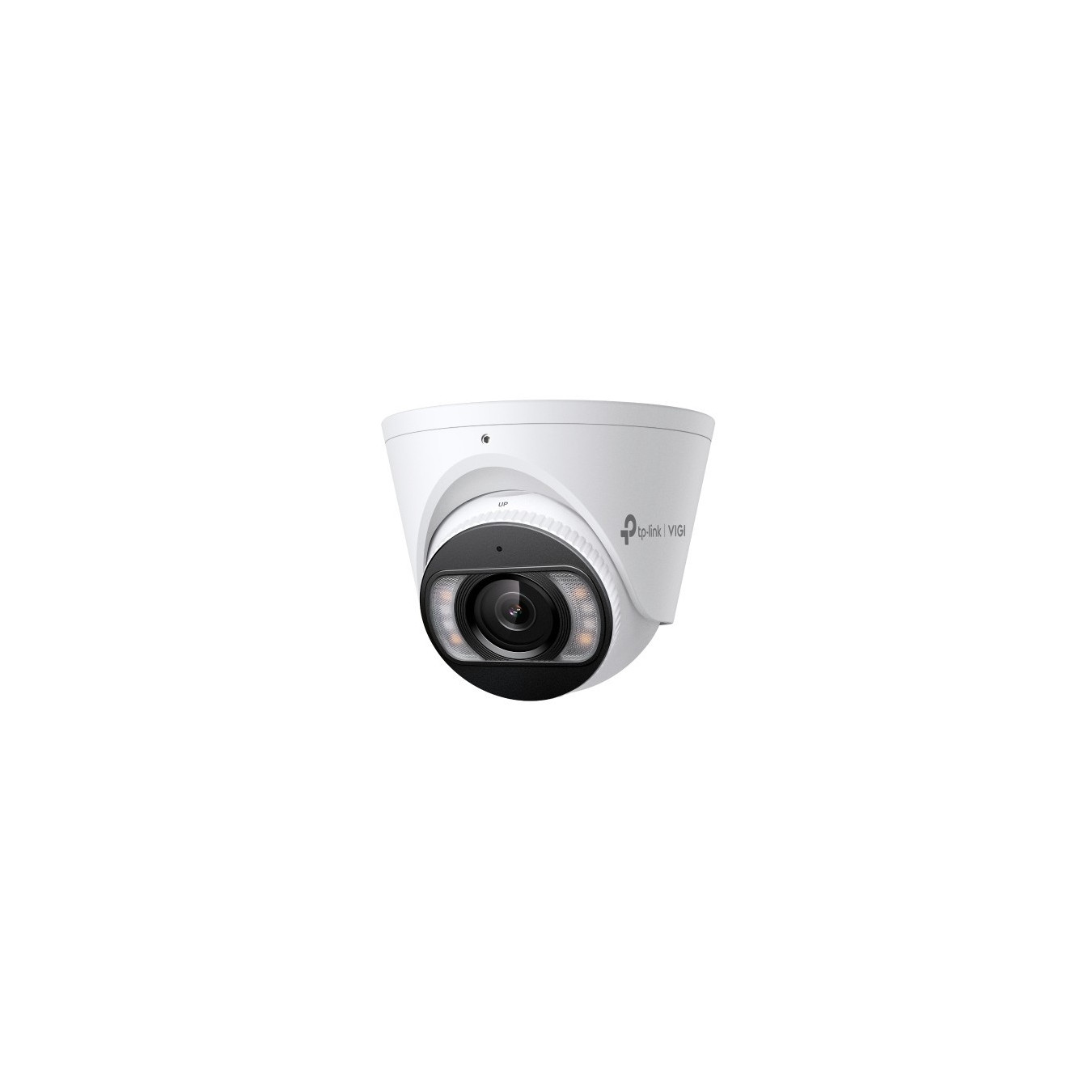

TP-Link Omada VIGI C485 (4mm) - 8MP 4K Full-Color Turret IP Camera - White, PoE, IP67, microSD
8MP (4K) full-color outdoor turret IP camera with 4mm lens, PoE wired connectivity, IP67 waterproof, 30m color night vision, 2-way audio, microSD up to 512GB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| IP Cameras - Form Factor | Turret |
|---|---|
| IP Cameras - Resolution | 8 MP (4K) |
| IP Cameras - Audio | Mic + Speaker (2-way) |
| IP Cameras - Storage | microSD |
| IP Cameras - Weather Rating | IP67 |
TP-Link VIGI C485. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Ceiling. Product colour: White. Form factor: Turret. Minimum illumination: 0.005 lx. Angle of rotation: 360°. Lens viewing angle. horizontal: 91.5°. Sensor type: CMOS. Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 107 m. Observe distance: 44 m. Recognize distance: 21 m
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Feature | Waterproof connector |
| Dynamic range | 120 dB |
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Lens viewing angle. horizontal | 91.5° |
| Lens viewing angle. vertical | 46.1° |
| Lens viewing angle. diagonal | 109.6° |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/3 to 1/10000 |
| Number of Privacy masking areas | 4 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Detect distance | 107 m |
| Observe distance | 44 m |
| Recognize distance | 21 m |
| Maximum aperture number | 1.6 |
| Identify distance | 11 m |
| Fixed focal length | 4 mm |
| Night vision distance | 30 m |
| LED type | IR/White |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 3840 x 2160 |
| Frame rate | 25 fps |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR). Variable Bit Rate (VBR) |
| Audio system | 2-way |
| Audio formats supported | G.711 |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Power source type | DC. PoE |
| Power consumption (max) | 11.5 W |
| Power consumption (Power over Ethernet (PoE)) | 12.5 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 111 mm |
| Depth | 111 mm |
| Height | 83.7 mm |
| Weight | 480 g |
| Number of cameras | 1 |
