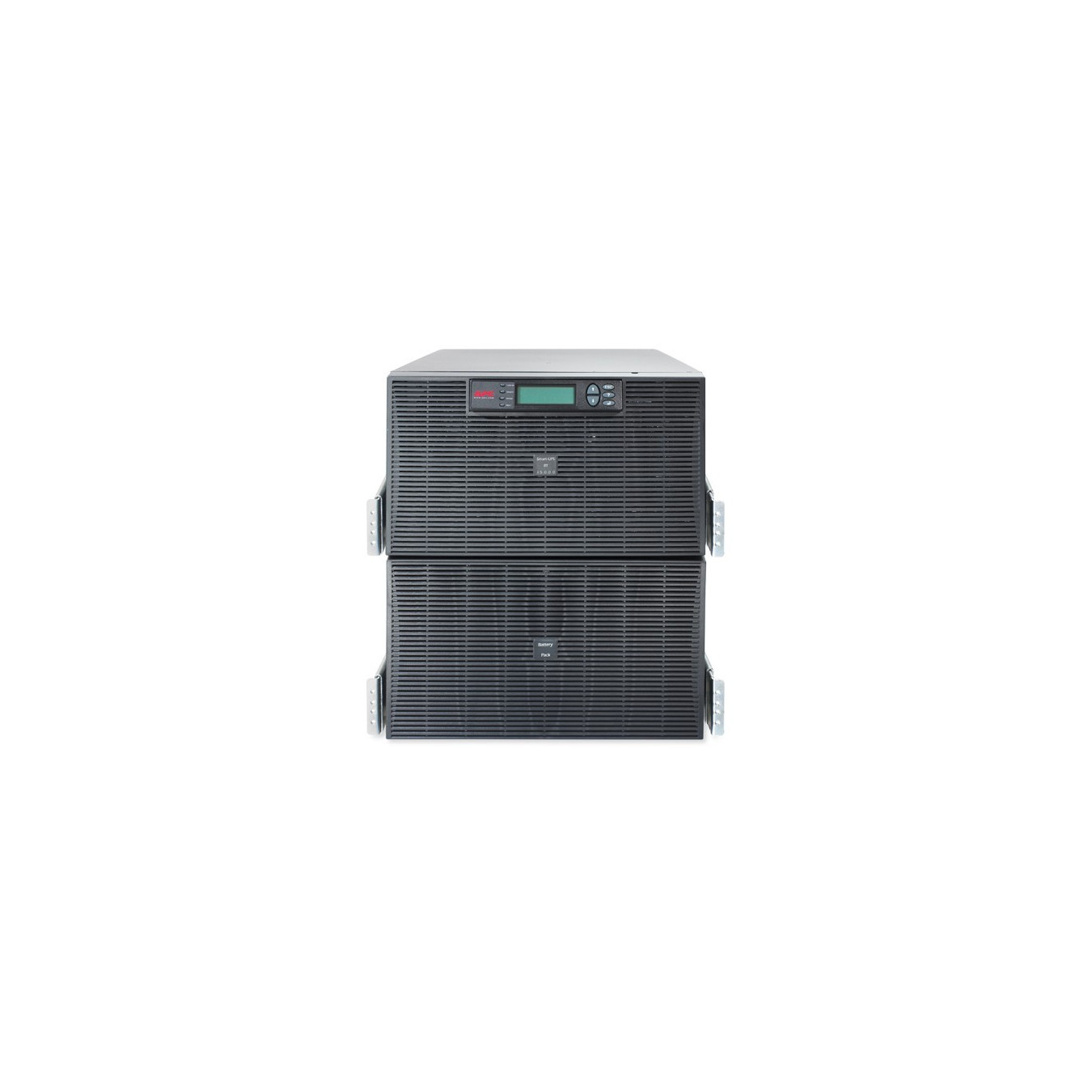

APC Smart-UPS RT SURT15KRMXLI - 15 kVA 12U Rack/Tower - Online Double-Conversion, 230/400V, 12 kW, Black
15 kVA (12 kW) online double-conversion UPS, 12U rack/tower, LCD, 8× IEC C19 outlets + 2 IEC jumpers, 230/400V, VRLA batteries (~8.3 min @ full load)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Input Plug | Hardwired |
|---|---|
| UPS & Power Backup - Output Receptacles | IEC C19 |
| UPS & Power Backup - Outlets (Qty) | 8 |
APC Smart-UPS RT 15kVA. 230/400V. LCD. rackmount. 12U. 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online). Output power capacity: 15 kVA. Output power: 12000 W. AC outlet types: C19 coupler. Power plug: Terminal. AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Battery capacity: 3840 VAh. Typical backup time at full load: 8.3 min. Form factor: Rackmount/Tower. Product colour: Black. Rack capacity: 12U. Compliance certificates: RoHS. Certification: EN/IEC 62040-2. EN/IEC 62040-1-1. VDE. PEP. EOLI
| UPS topology | Double-conversion (Online) |
| Output power capacity | 15 kVA |
| Output power | 12000 W |
| Waveform | Sine |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Maximum current | 90 A |
| Number of output phases | 1 |
| Efficiency | 95% |
| Crest factor | 3:1 |
| Feature | Software CD |
| Noise level | 50 dB |
| AC outlet types | C19 coupler |
| Power plug | Terminal |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Serial interface type | RS-232 |
| Cabling technology | 10/100Base-T |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 3840 VAh |

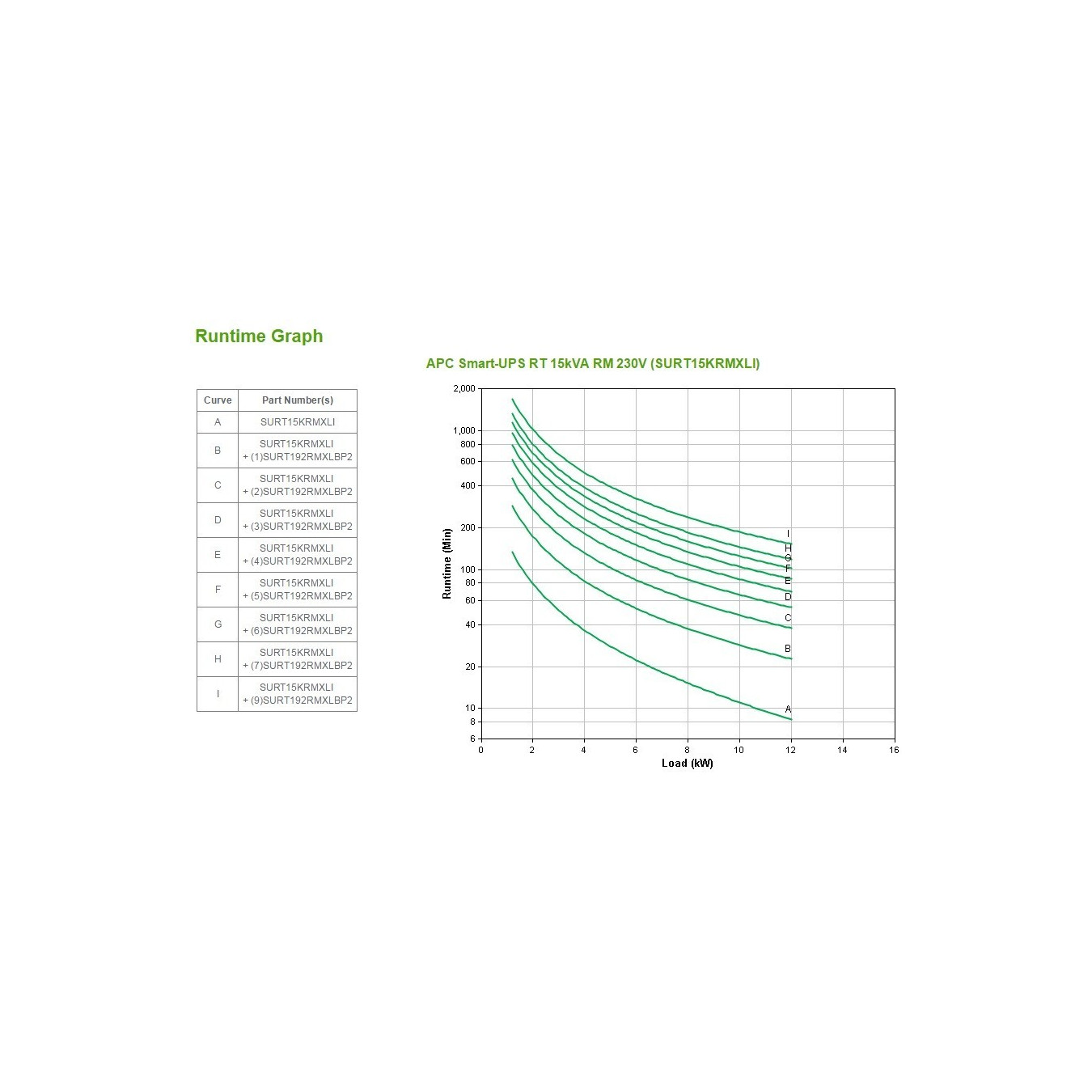

| Typical backup time at full load | 8.3 min |
| Typical backup time at half load | 22.3 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 2.5 h |
| Form factor | Rackmount/Tower |
| Rack capacity | 12U |
| Product colour | Black |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | EN/IEC 62040-2. EN/IEC 62040-1-1. VDE. PEP. EOLI |
| Cables included | RS-232 |
| Width | 432 mm |
| Depth | 773 mm |
| Height | 533 mm |
| Weight | 247.7 kg |
| Package width | 610 mm |
| Package depth | 1003 mm |
| Package height | 990 mm |
| Package weight | 314.1 kg |
| Products per pallet | 1 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 29383.71 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
