Chieftec CS-12B-300 Mesh Mini Tower Black Mini-ITX/mATX 300W PSU (Boxed)
Chieftec CS-12B-300 Mini Tower (Black): Mini-ITX/mATX, SGCC steel, 300W 80+ Bronze TFX PSU (GPF-300P), mesh front, 1x80mm fan. GPU≤19.5cm, CPU cooler≤8.5cm, bays:1x3.5+1x2.5+1x5.25". I/O:2xUSB3.2+2xUSB2+audio. 102x356x338mm, 4.75kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | None |
| PC Cases - Included Fans | 1 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | Up to 250 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | Up to 150 mm |

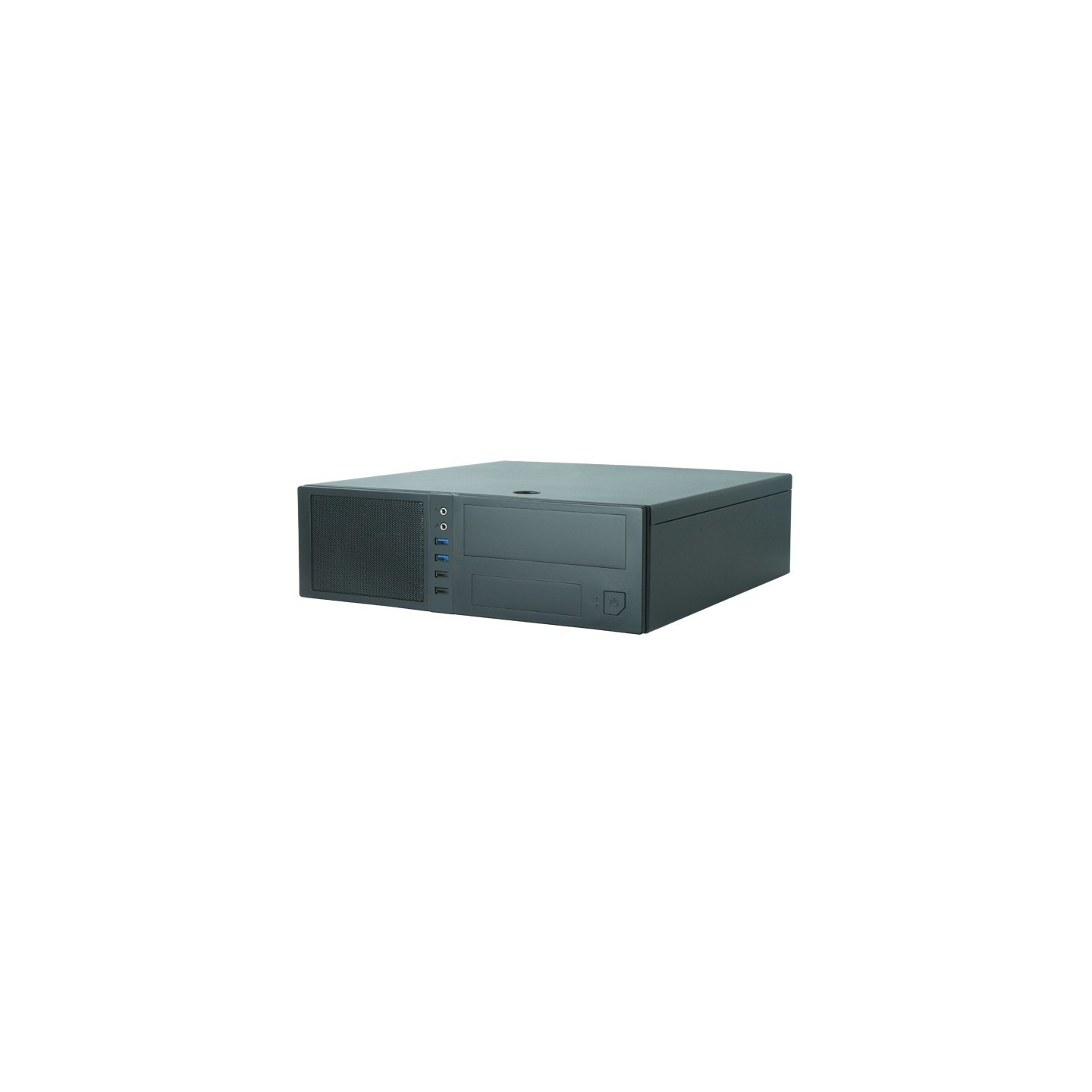

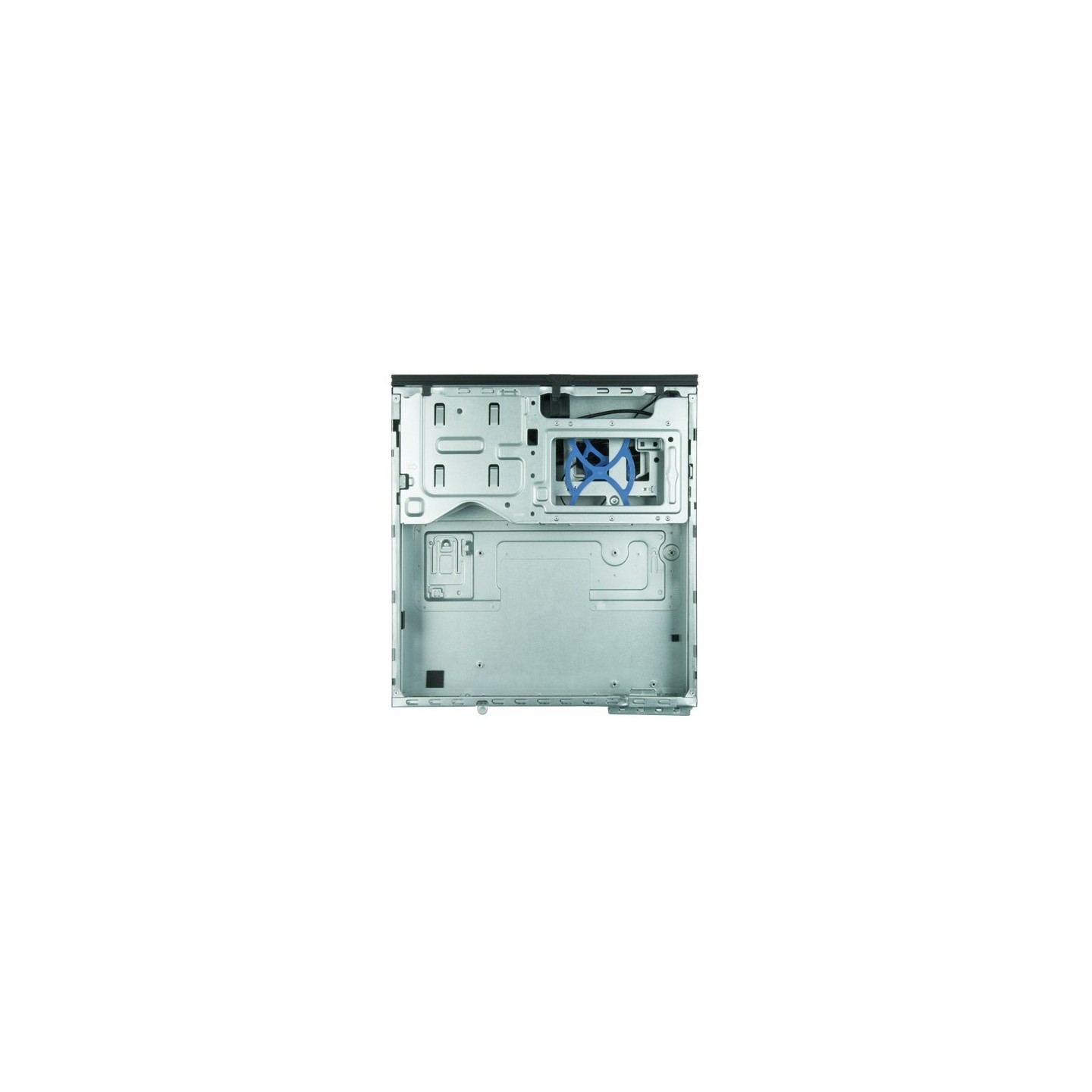

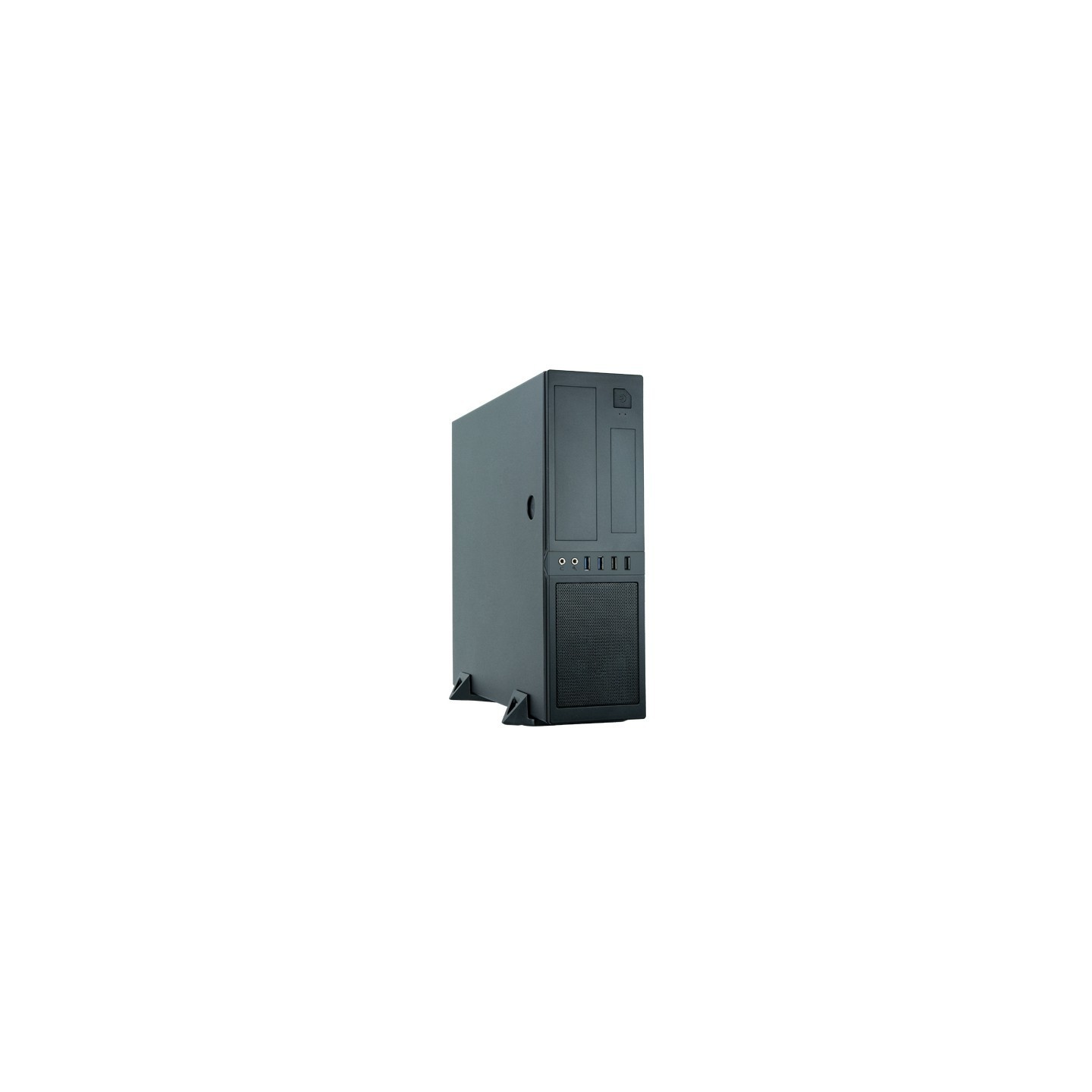

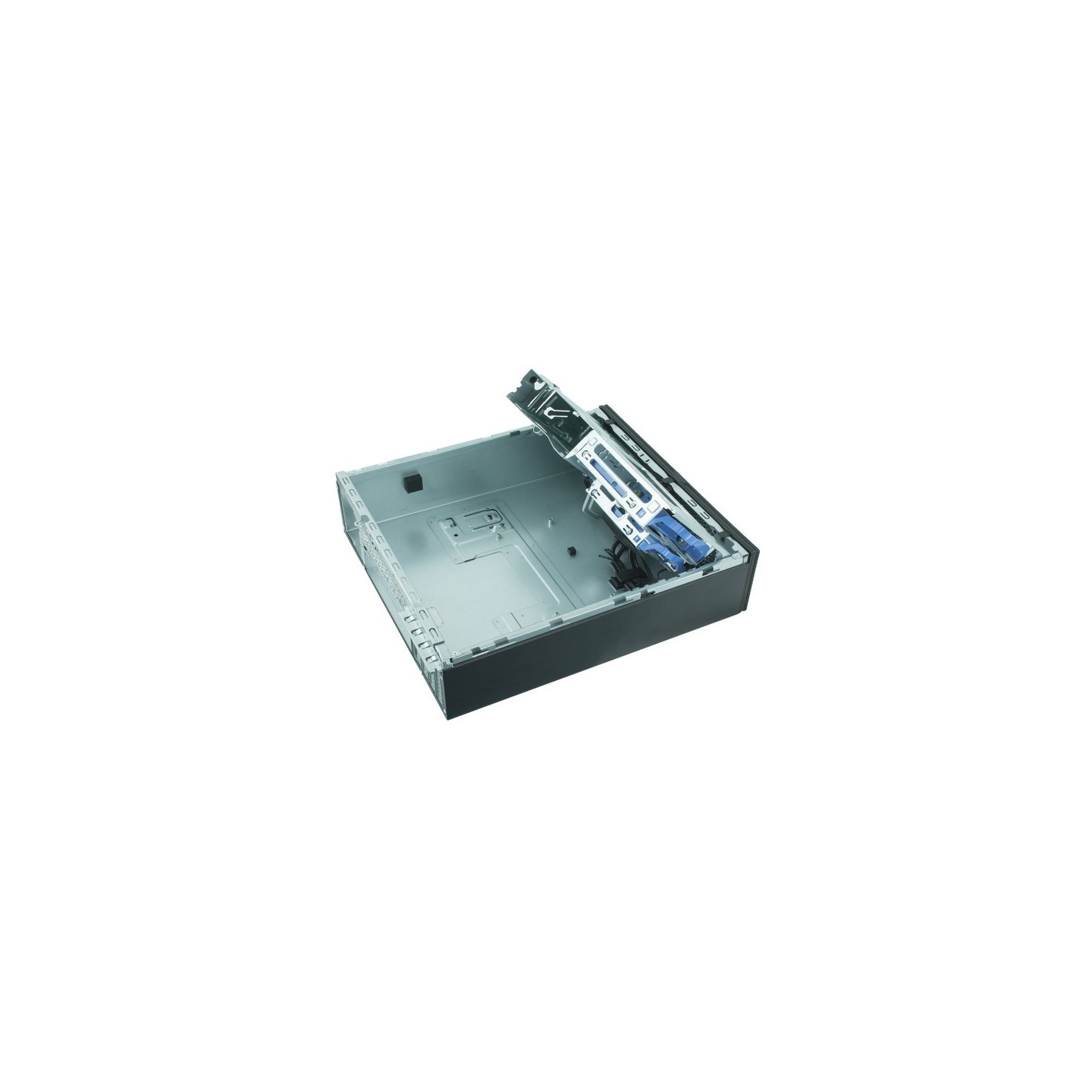

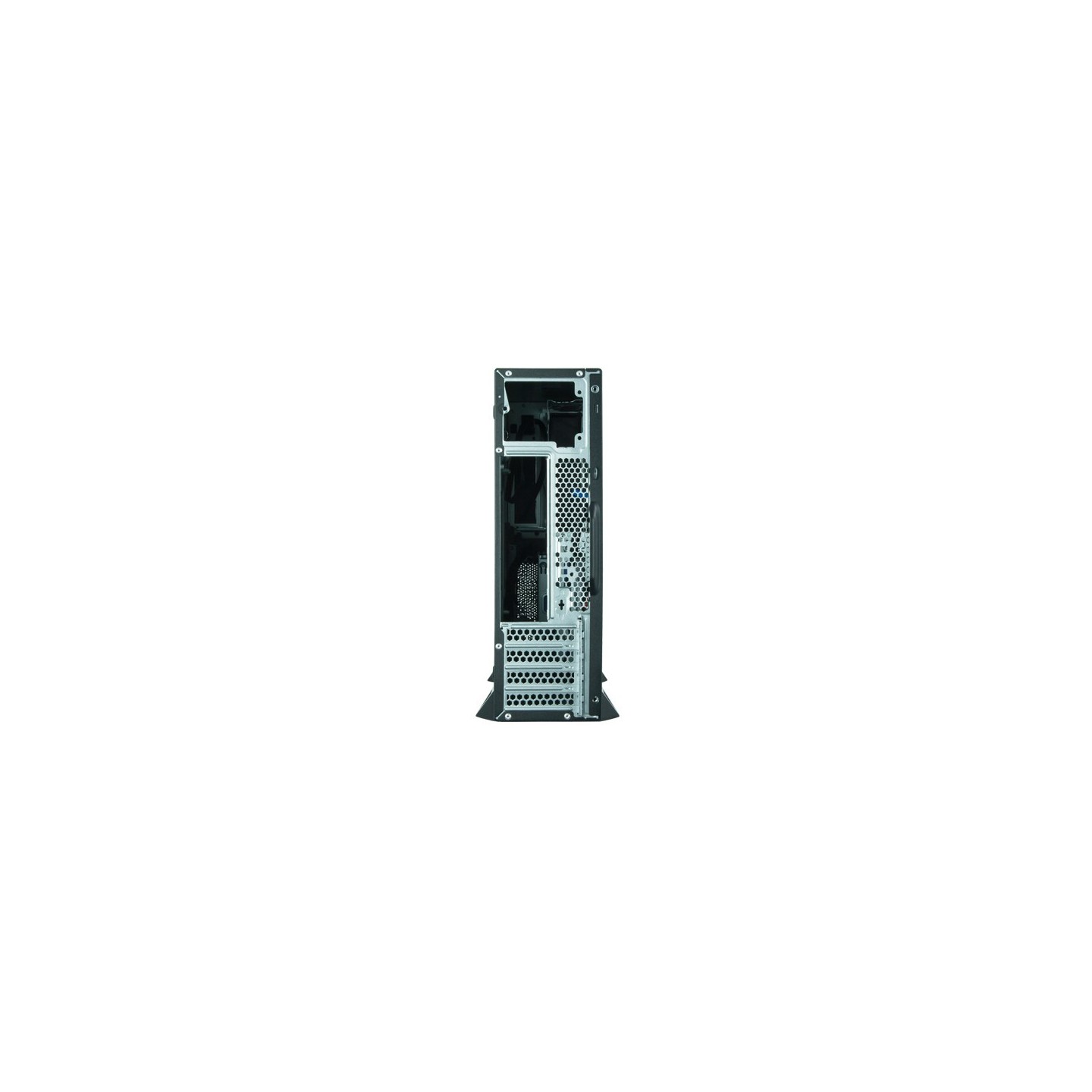

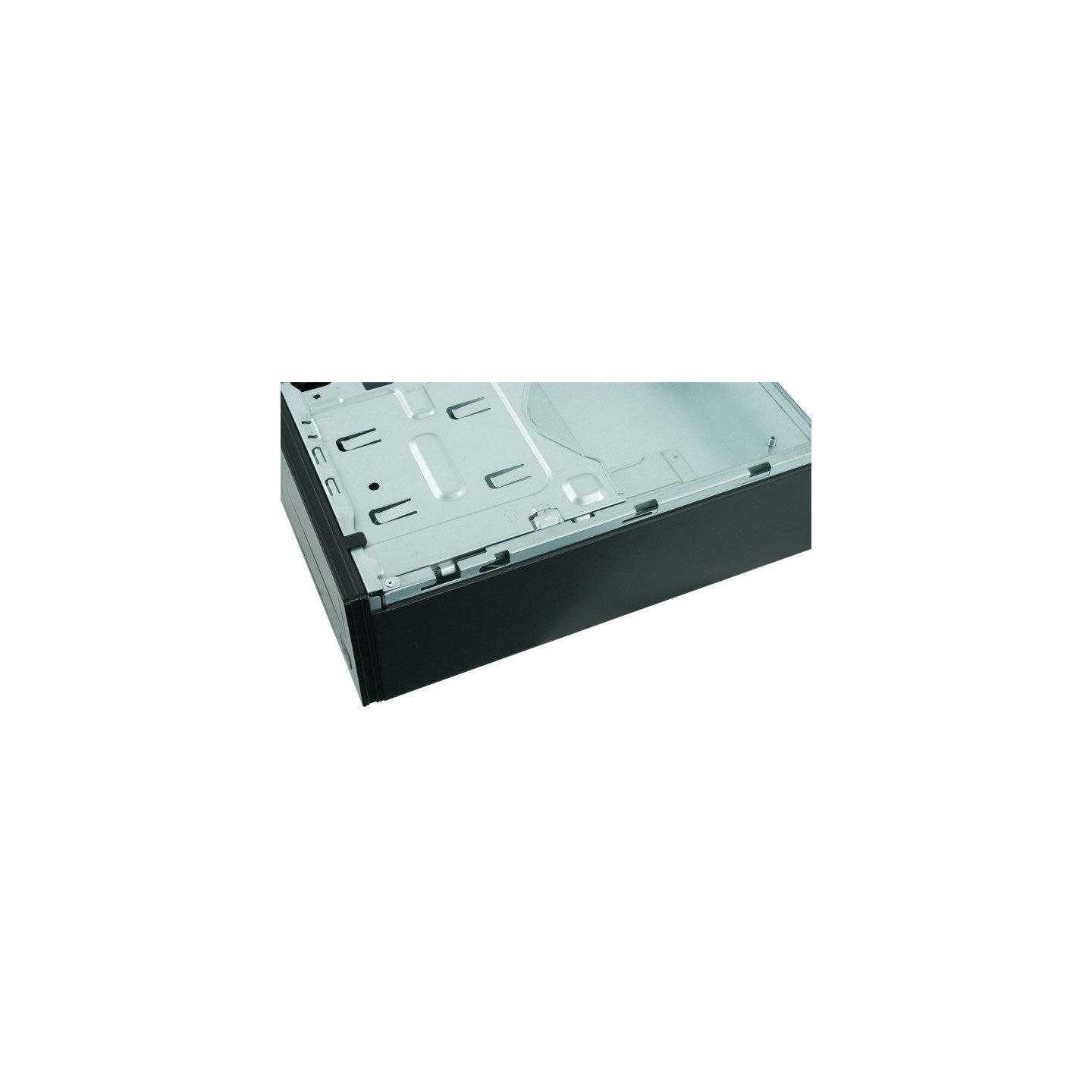

The Chieftec CS-12B-300 from the Mesh series is a compact Mini Tower PC case designed for Mini-ITX and mATX motherboards, ideal for home or office builds. Featuring a black SGCC steel chassis with 0.6mm thickness and mesh front panel for optimal airflow, it includes a pre-installed 80mm front fan. The integrated 300W TFX power supply (GPF-300P) is 80 PLUS Bronze certified for efficiency and low noise.
Supporting GPUs up to 19.5cm and CPU coolers up to 8.5cm, it offers 4 half-height expansion slots and versatile storage: 1x 5.25", 1x 3.5", 1x 2.5". Front I/O includes 2x USB 3.2 Gen1, 2x USB 2.0, audio output and microphone input. Dimensions: 102mm W x 356mm D x 338mm H; weight 4.75kg (4.81kg packaged).
- Key Features: Mesh airflow design, quick-release brackets, horizontal/vertical orientation
- PSU: 300W TFX 80+ Bronze (no modular cables, standard ATX 24-pin, 4/8-pin CPU, SATA/Molex)
- Compatibility: Mini-ITX/mATX, low-profile cards, no side window or RGB
- Included: Screw set, stand, 1x 80mm fan
| Material | SGCC |
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | Mini-ITX, mATX |
| Number of 3.5 | 1 |
| Number of 5.25 | 1 |
| Number of 2.5 | 1 |
| Number of external 5.25 | 1 |
| Number of expansion slots | 4 |
| Half-Height expansion slots | 4 |
| Suitable for | Home/Office |
| Audio output | Yes |
| Audio input | Yes |
| Maximum CPU cooler height | 8.5 cm |
| Maximum graphics card length | 19.5 cm |
| Power supply | GPF-300P TFX 300W 80 PLUS Bronze |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Front fans installed | 1x 80 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80 mm |
| Supported HDD sizes | 2.5 |
| Width | 102 mm |
| Depth | 356 mm |
| Height | 338 mm |
| Weight | 4.75 kg |
| Material thickness | 0.6 mm |
| Power supply included | Yes |
| Harmonized System (HS) code | 84733080 |
| On/off button | Yes |
| Reset button | Yes |
| Side window | No |
| Illumination | No |
