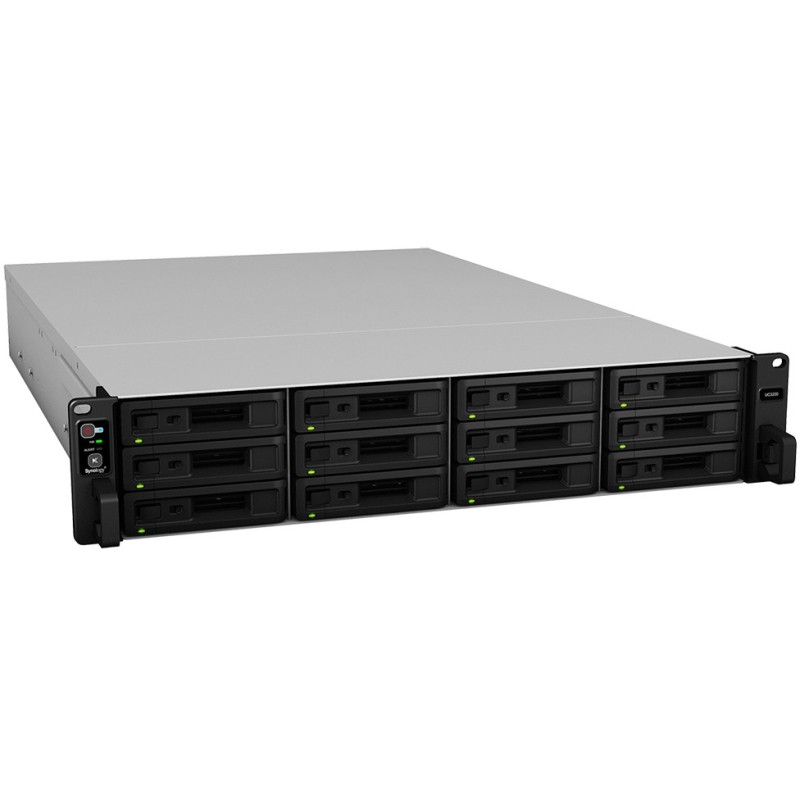

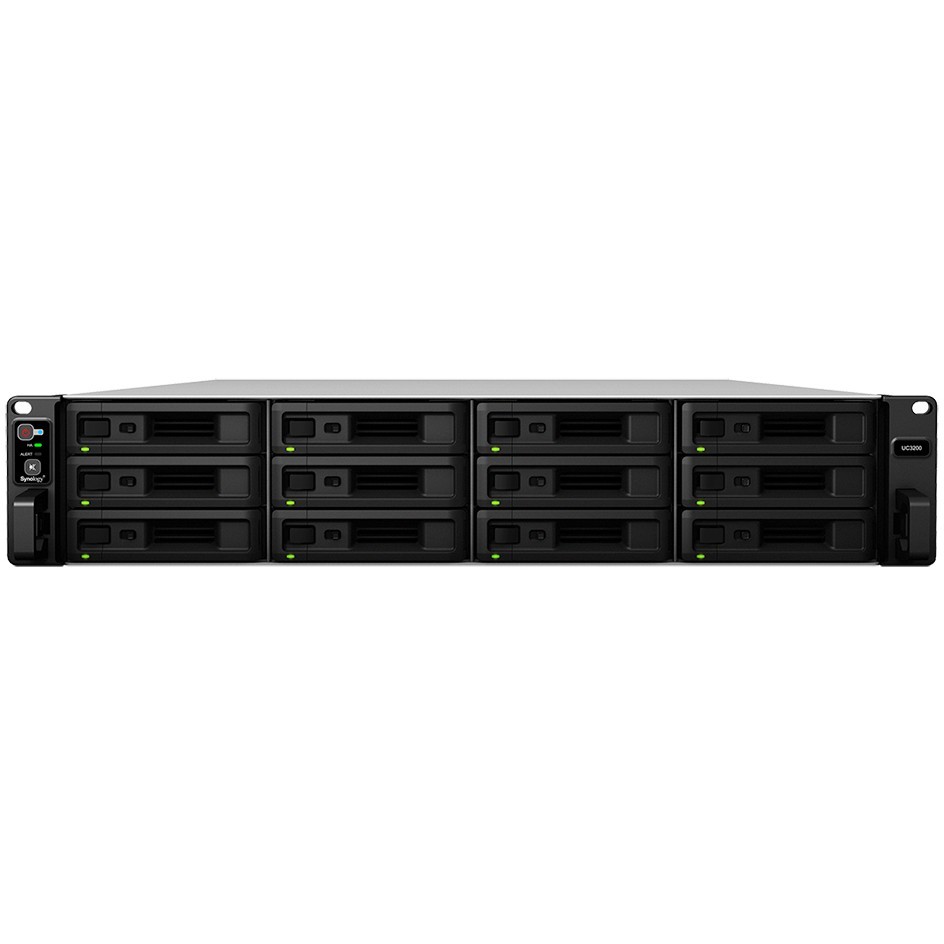

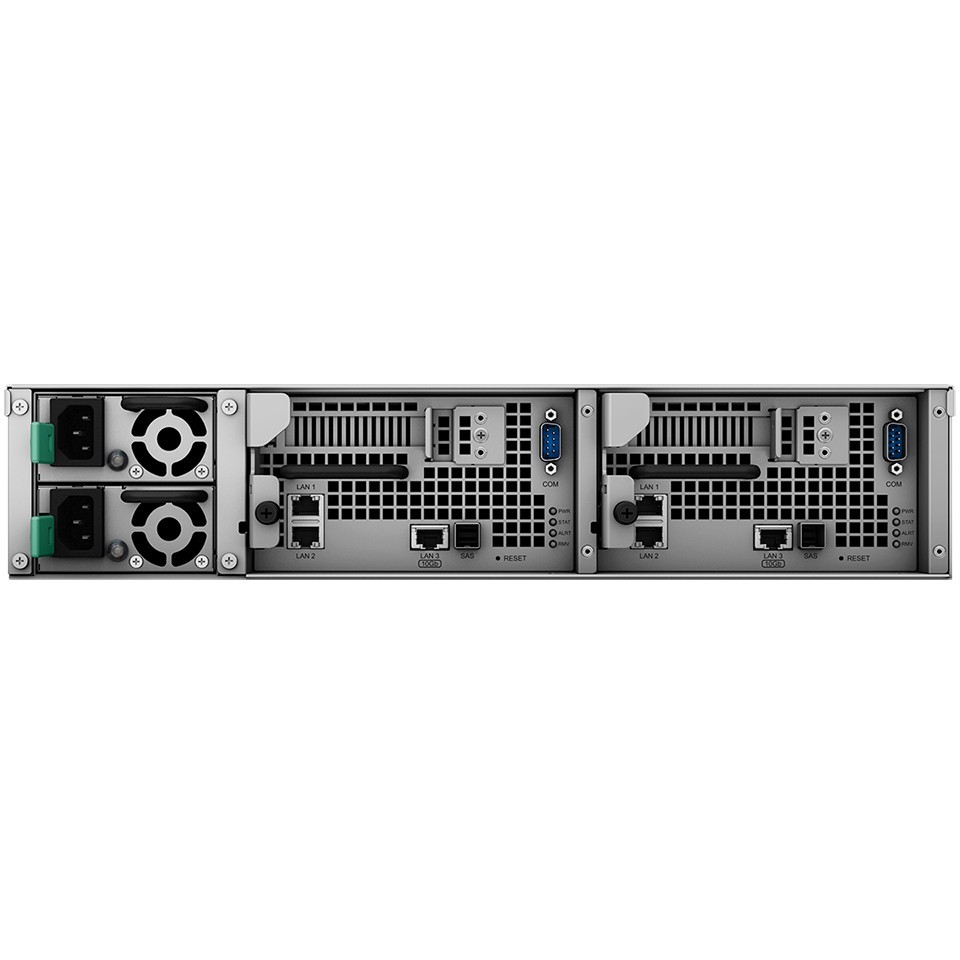

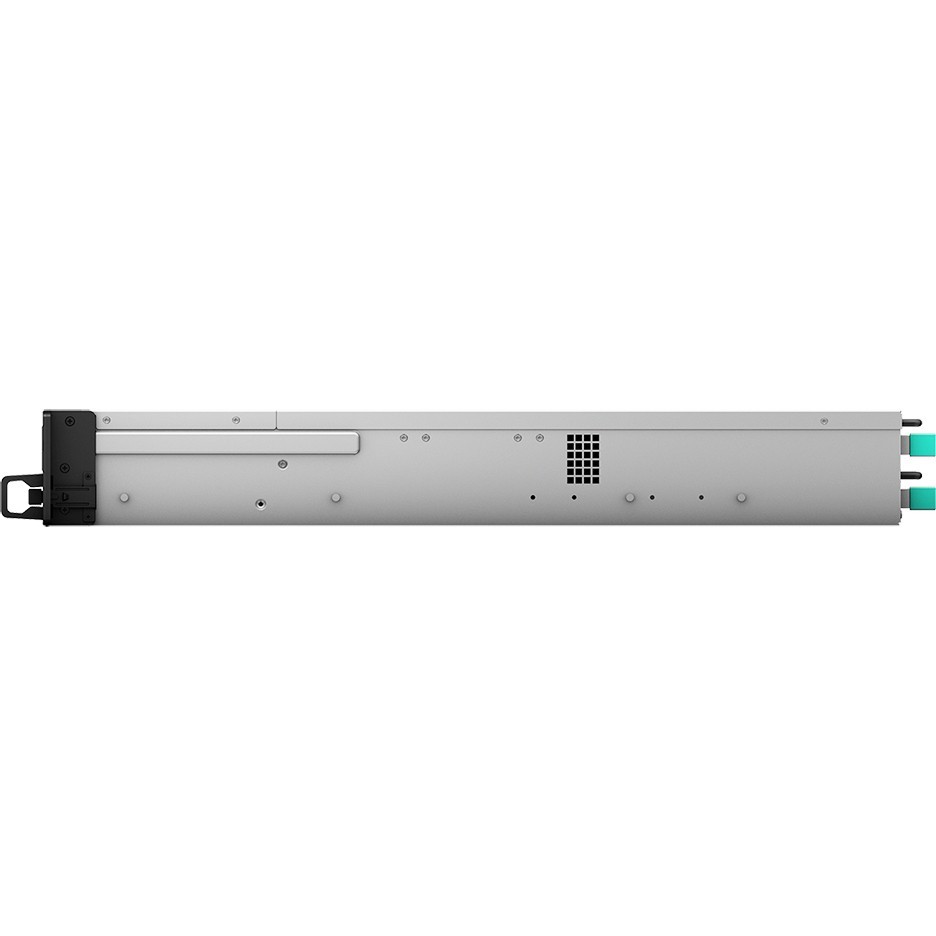

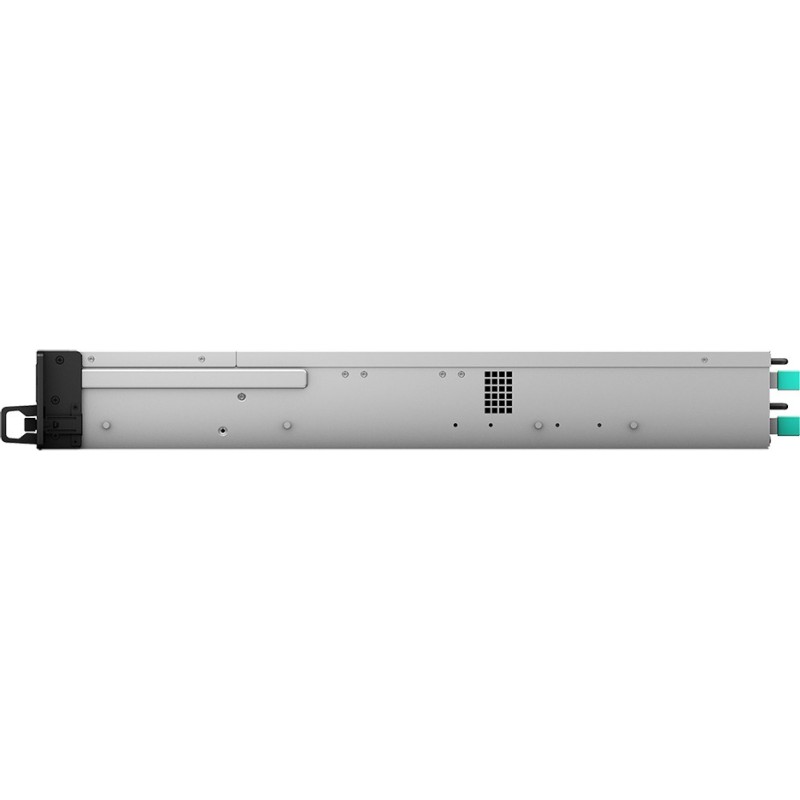

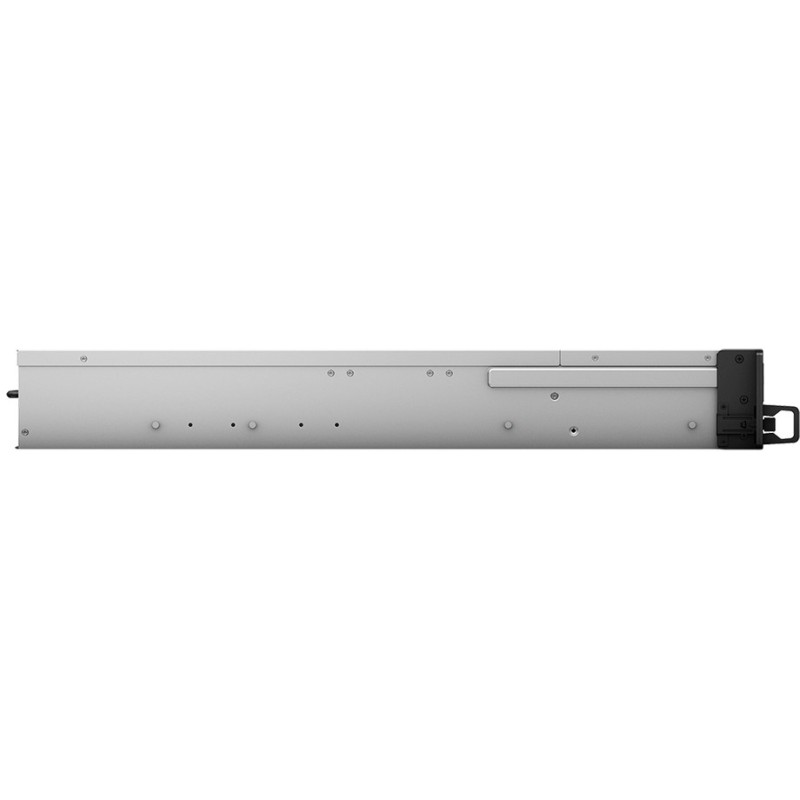

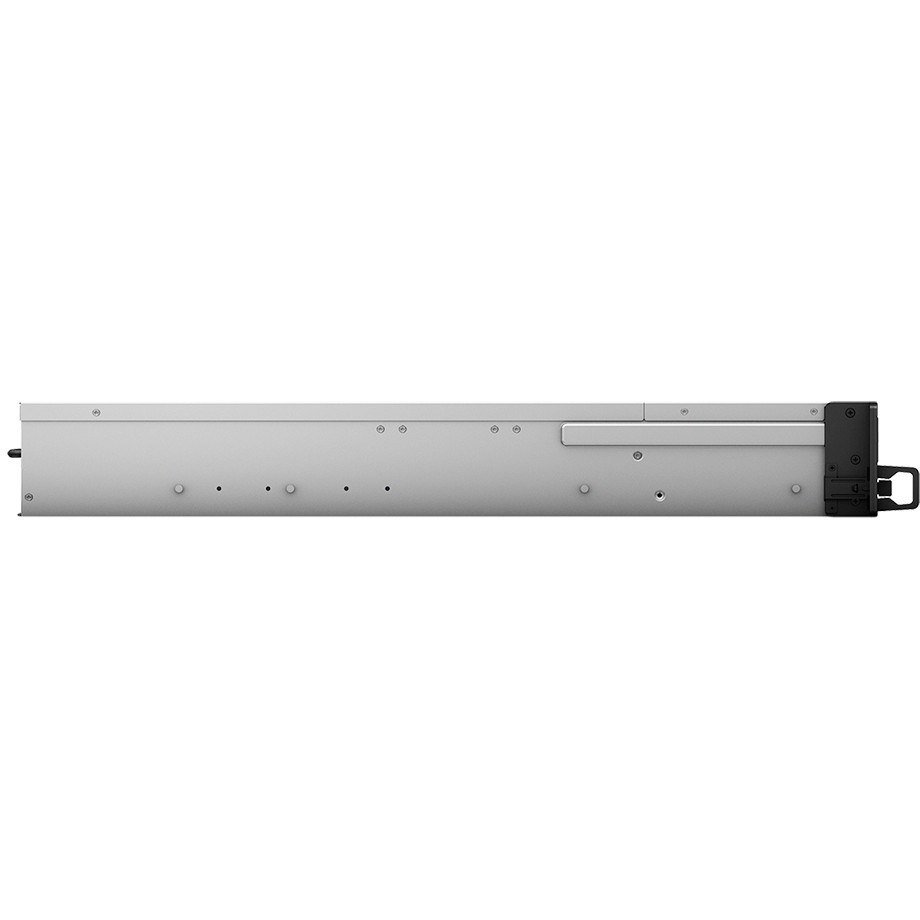

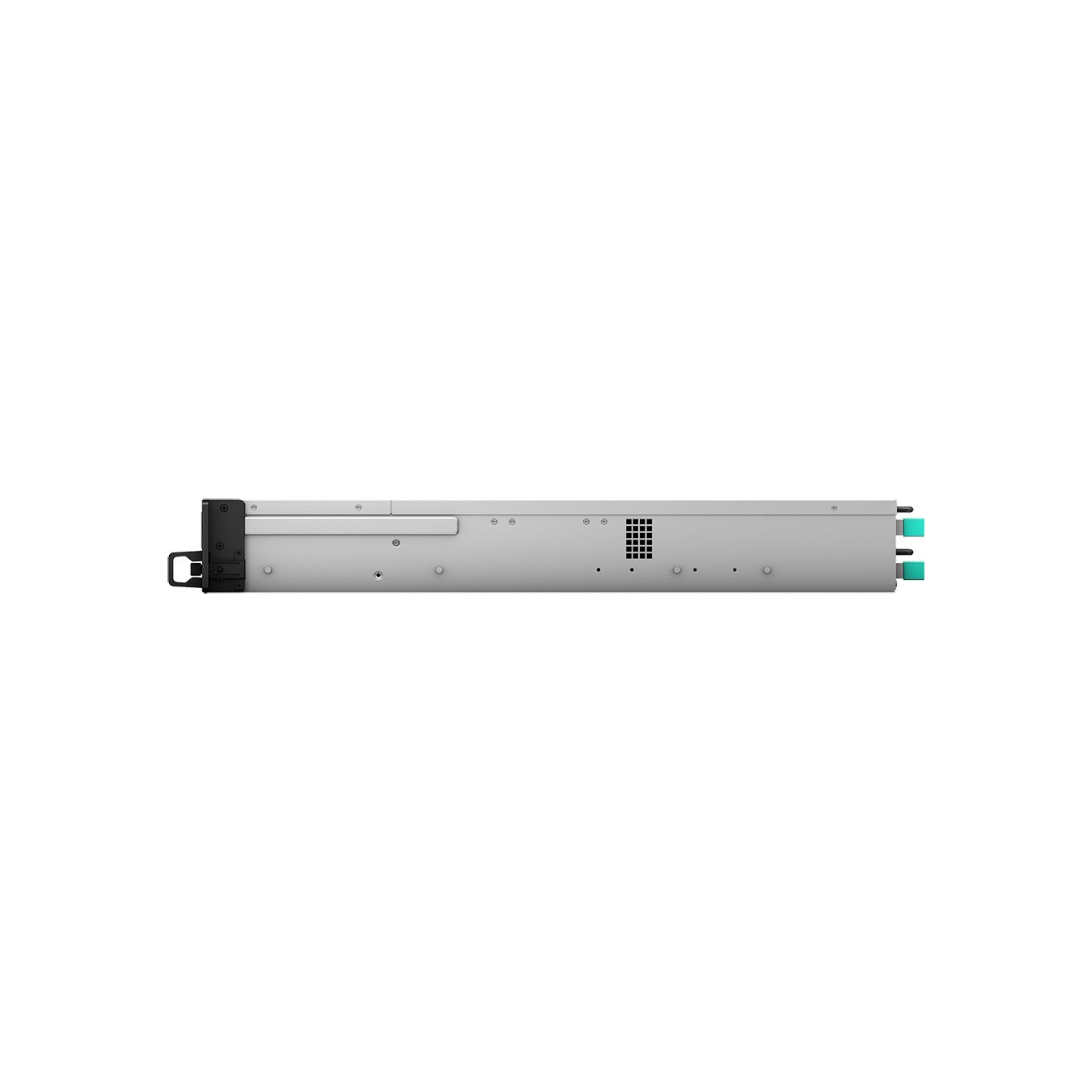

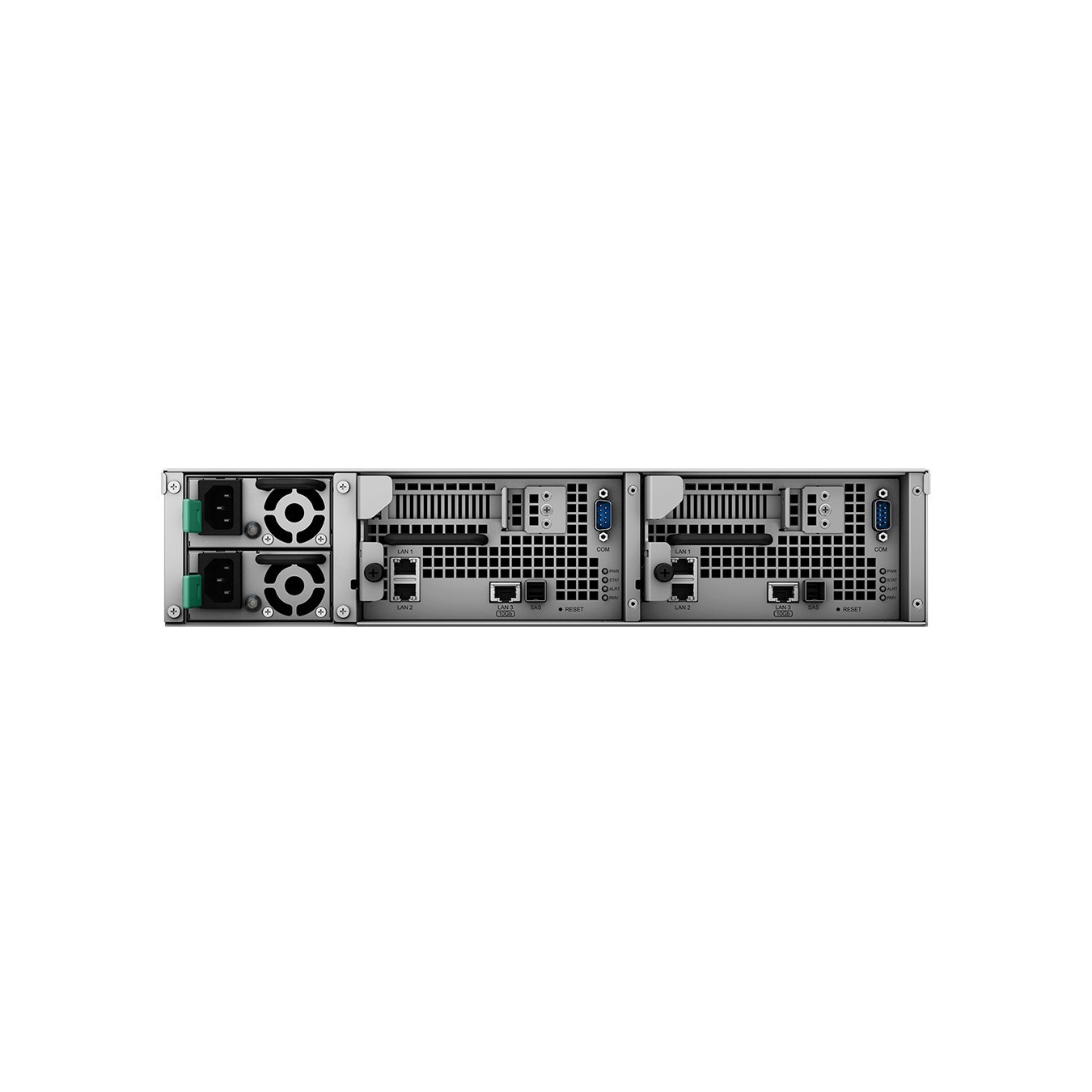

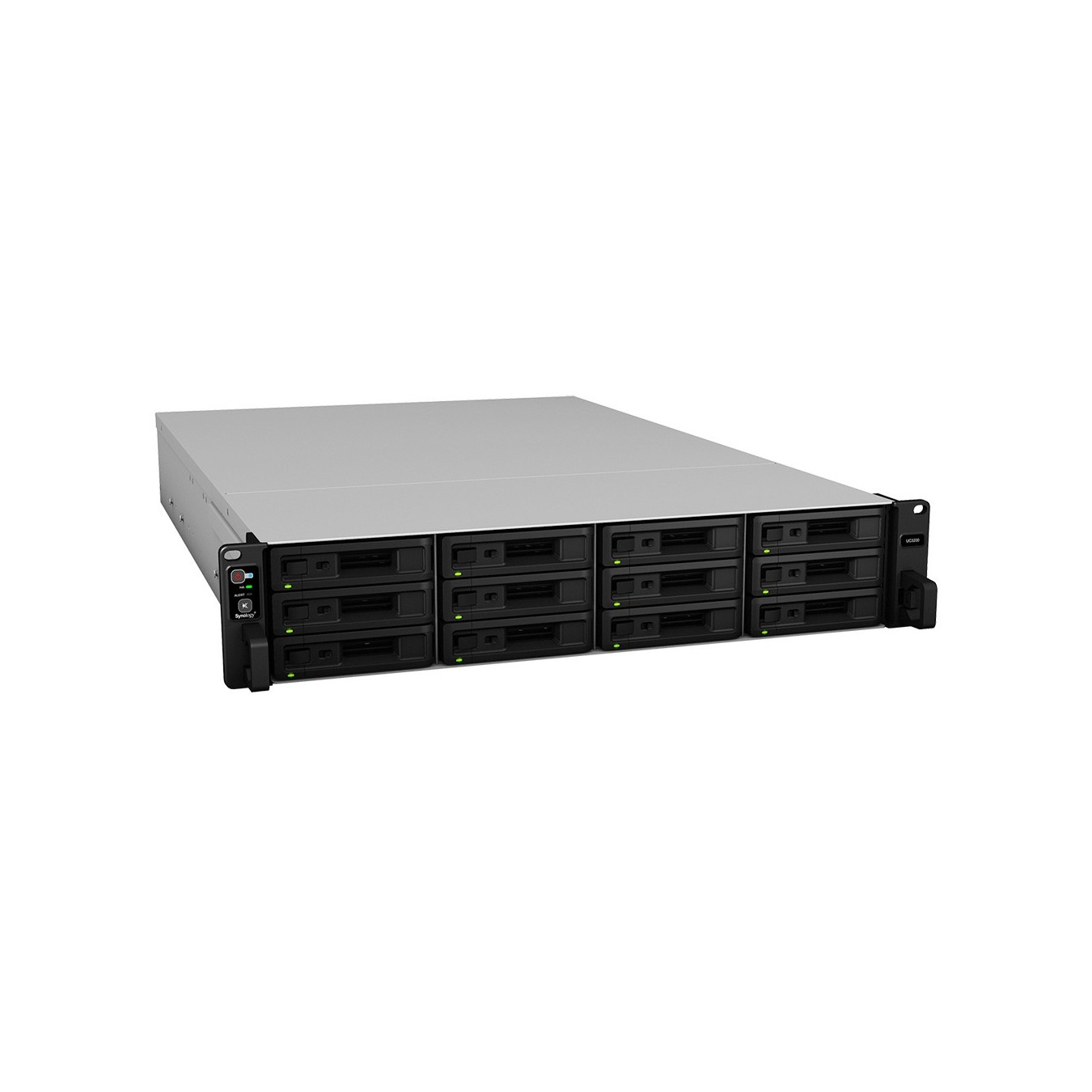

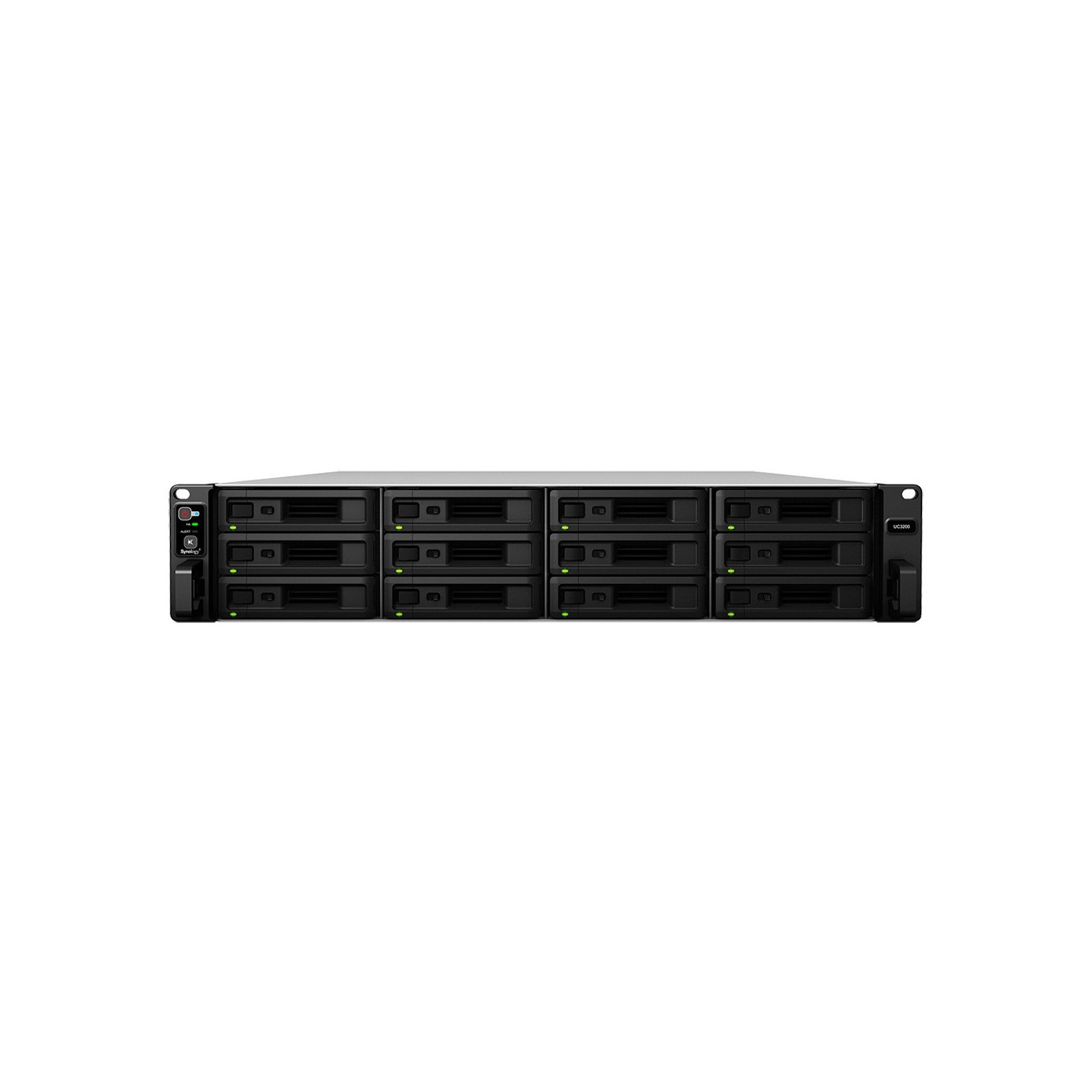

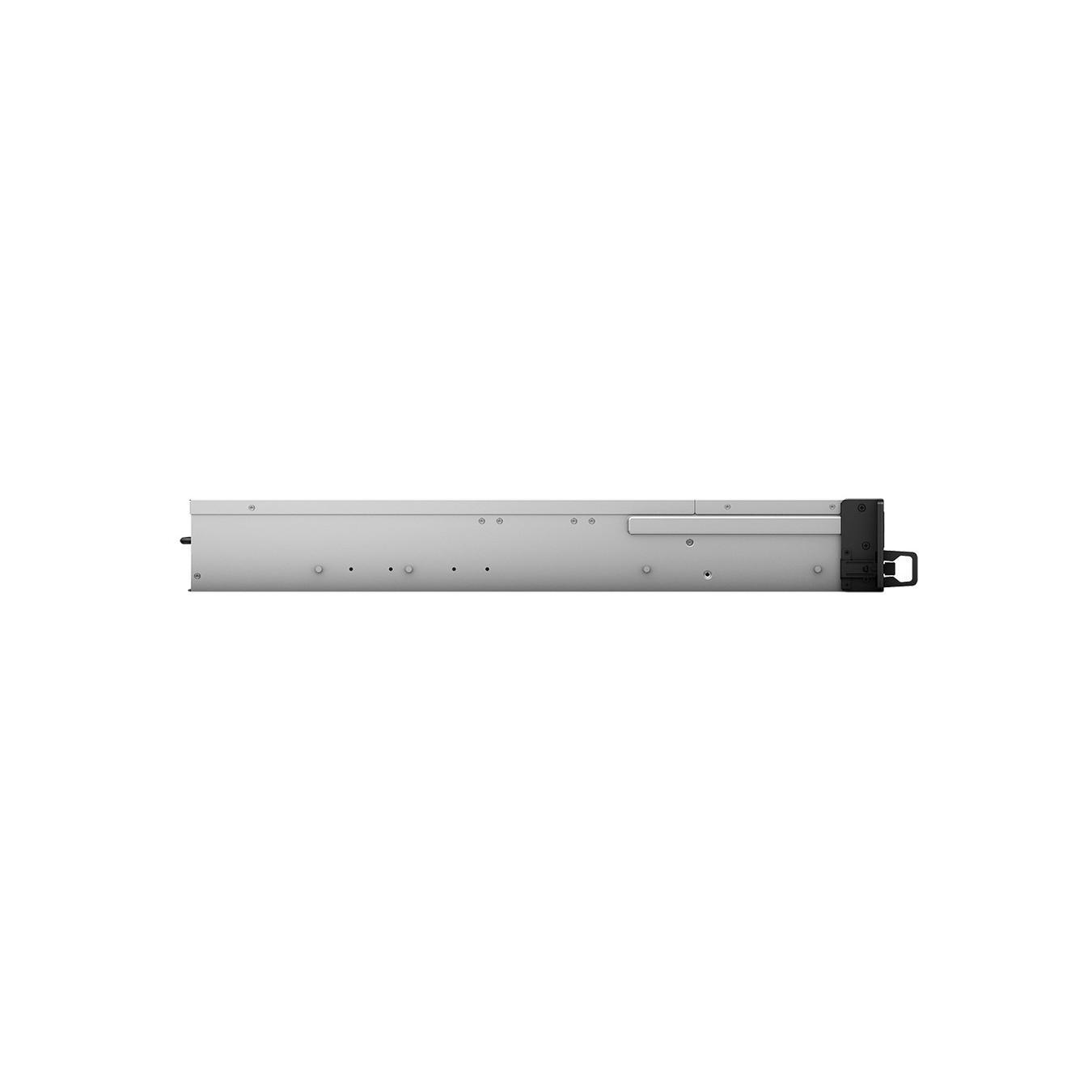

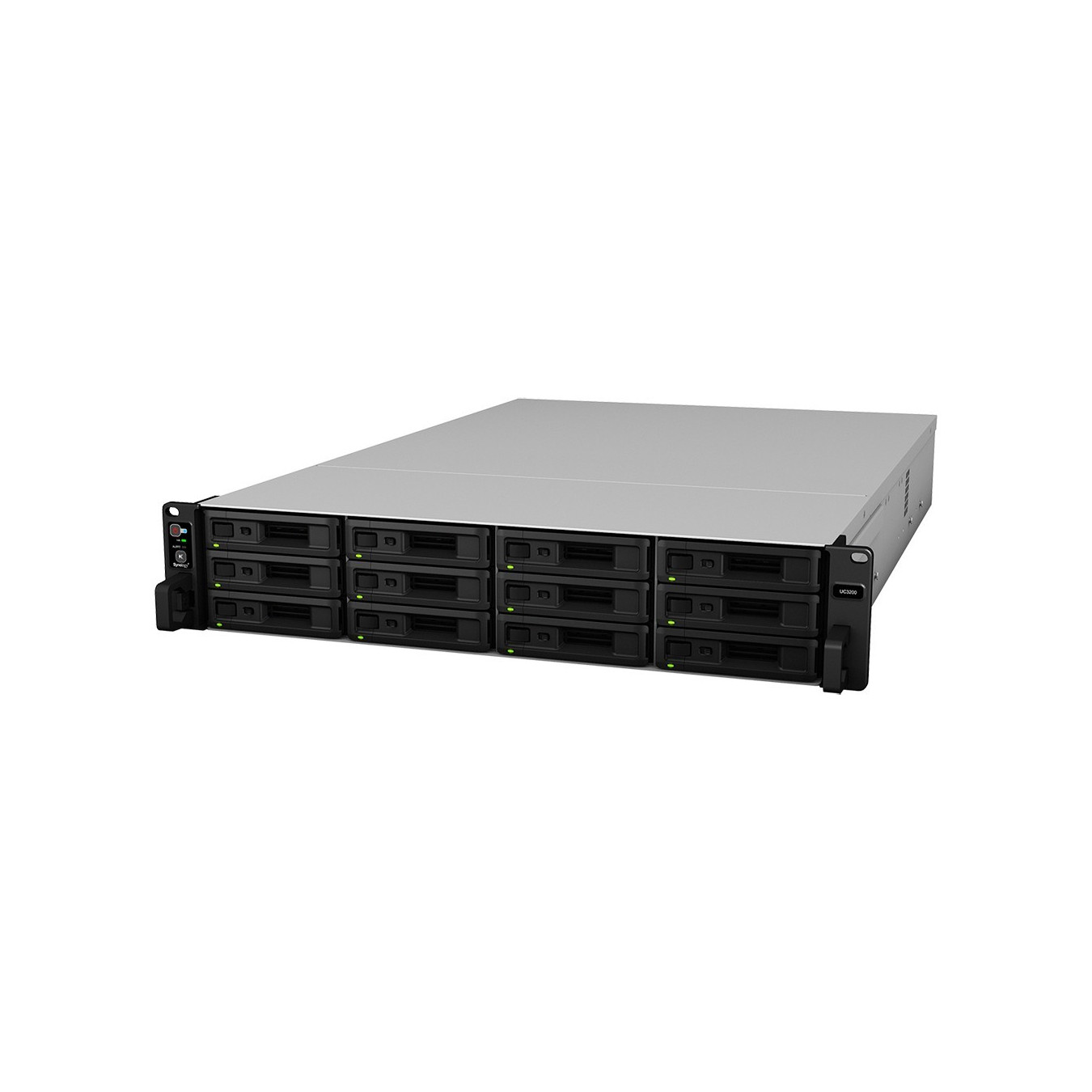

Synology Unified Controller - UC3200 - 2U Rack SAN, Intel Xeon D-1521 2.4/2.7GHz, 8GB DDR4, 12-bay SAS, Black/Grey
2U rack SAN controller with Intel Xeon D-1521 (4C/8T, 2.4–2.7GHz), 8GB DDR4, supports 12 SAS HDD/SSD bays, up to 192TB capacity, 10GbE-capable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - RAID Levels | RAID 5 |
|---|
Synology Unified Controller UC3200. Type: SAN. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D. Processor model: D-1521. Processor frequency: 2.4 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5.3.5" |
| Maximum supported storage capacity | 192 TB |
| Feature | UART |
| RAID levels | 0. 1. 5. 6. 10. F1. JBOD |
| Supported file systems | BTRFS |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1521 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x16. 1x4. 1x8 |
| PCI Express slots version | 2.0. 3.0 |
| Processor code | SR2DF |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Scalability | 1S |
| Stepping | V2 |
| Thermal Design Power (TDP) | 45 W |
| Maximum internal memory supported by processor | 128 GB |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Ethernet LAN data rates | 1000.10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Supported network protocols | iSCSI. Telnet. SSH. SNMP |
| Ethernet LAN (RJ-45) ports | 3 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black. Grey |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | Power. Status |
| Type | SAN |
| Device class | Small & Medium Business |
| Backup features | iSCSI LUN |
| Noise level | 51.3 dB |
| Browser supported | Chrome. Firefox. Edge.Internet Explorer 10+. Safari 10+. Chrome |
| Server operating systems supported | Windows Server 2008. Windows Server 2012. Windows Server 2013. Windows Server 2016 |
| Other operating systems supported | Solaris 10. Solaris 11. VMware ESX/ESXi 5.0. VMware ESX/ESXi 5.1. VMware ESX/ESXi 6.0. VMware ESX/ESXi 6.5 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 417.48 W |
| Power consumption (HDD standby) | 274.38 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 482 mm |
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 19.7 kg |
| Cables included | AC |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Memory types supported by processor | DDR3-SDRAM. DDR4-SDRAM |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Certification | EACVCCICCCRCMKCFCCCEBSMI |
| Processor ARK ID | 91202 |
