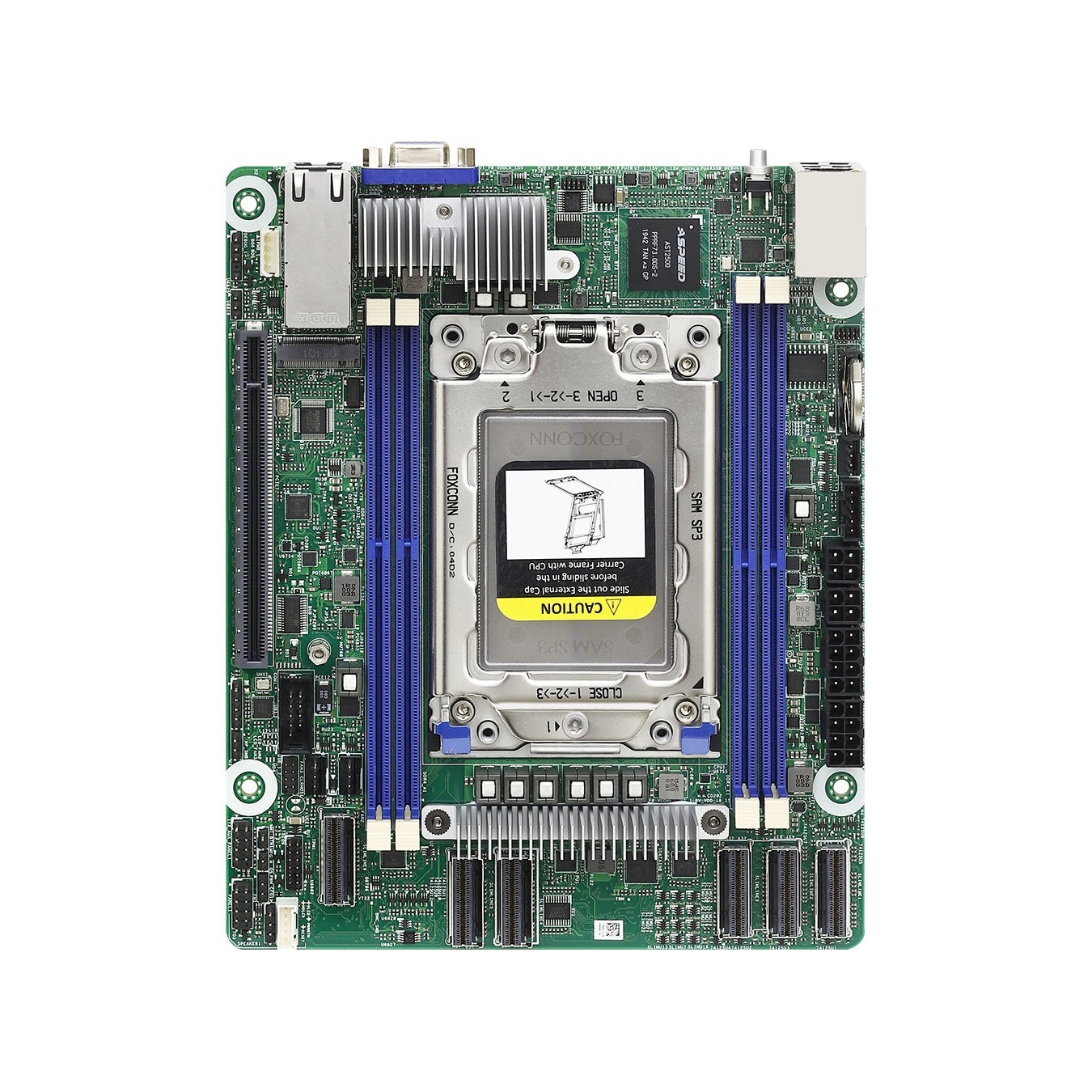

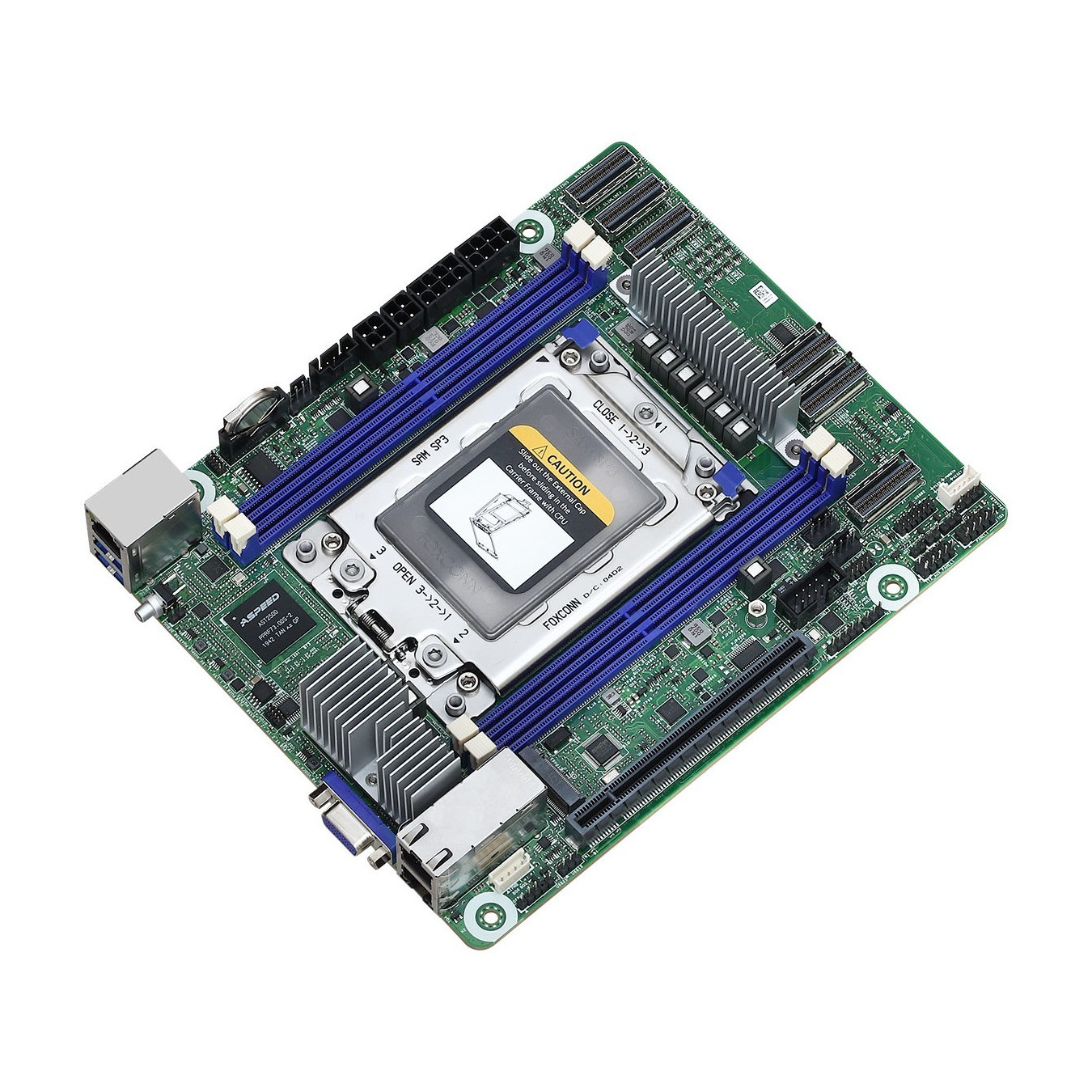

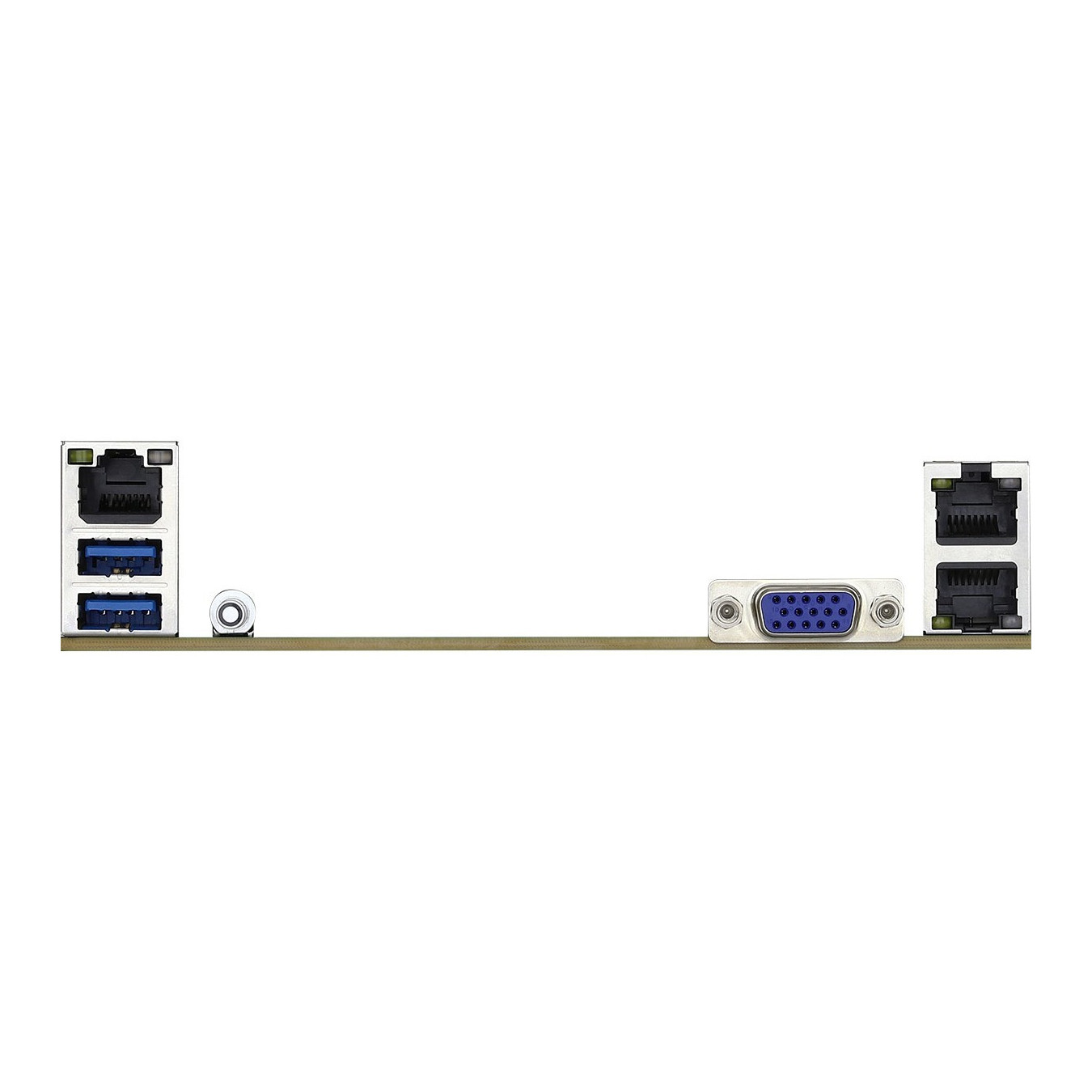

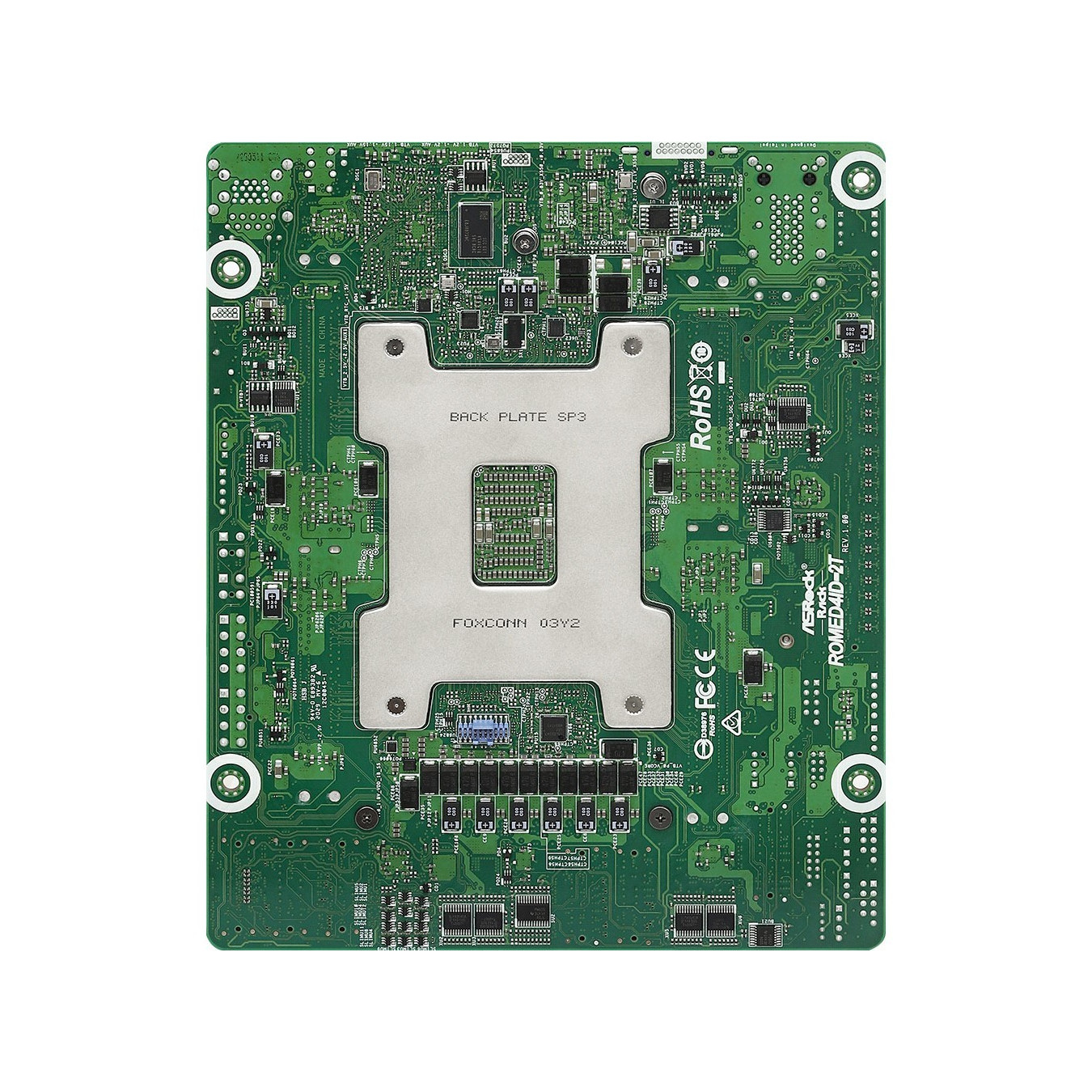

ASRock ROMED4ID-2T - mini-ITX Server Motherboard, Socket SP3 for AMD EPYC, 4x DDR4 up to 256GB, PCIe 4.0, Dual 10GbE
Mini-ITX server board for AMD EPYC (Socket SP3). 4× DIMM DDR4 (up to 256GB), PCIe 4.0 x16, 8× SATA, Dual 10GbE (Intel X550), ASPEED AST2500 BMC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - SATA Ports | 8 |
Asrock ROMED4ID-2T. Processor manufacturer: AMD. Processor socket: Socket SP3. Compatible processor series: AMD EPYC. Supported memory types: DDR4-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0. SATA. Graphics card family: ASPEED. Graphics card: AST2500. On-board graphics card model: Aspeed AST2500. LAN controller: Intel® X550-AT2. Realtek RTL8211E
| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
| Compatible processor series | AMD EPYC |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2400.2666.2933.3200 MHz |
| Maximum internal memory | 256 GB |
| Supported memory module capacities | 8GB. 16GB. 32GB. 64GB. 128GB |
| Supported storage drive interfaces | PCI Express 4.0. SATA |
| Feature | Clear CMOS button |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 8 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| LAN controller | Intel® X550-AT2. Realtek RTL8211E |
| Component for | Mini PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Harmonized System (HS) code | 84733020 |
| Width | 170.2 mm |
| Depth | 208.3 mm |
| Height | 70 mm |
| Weight | 1.13 kg |
