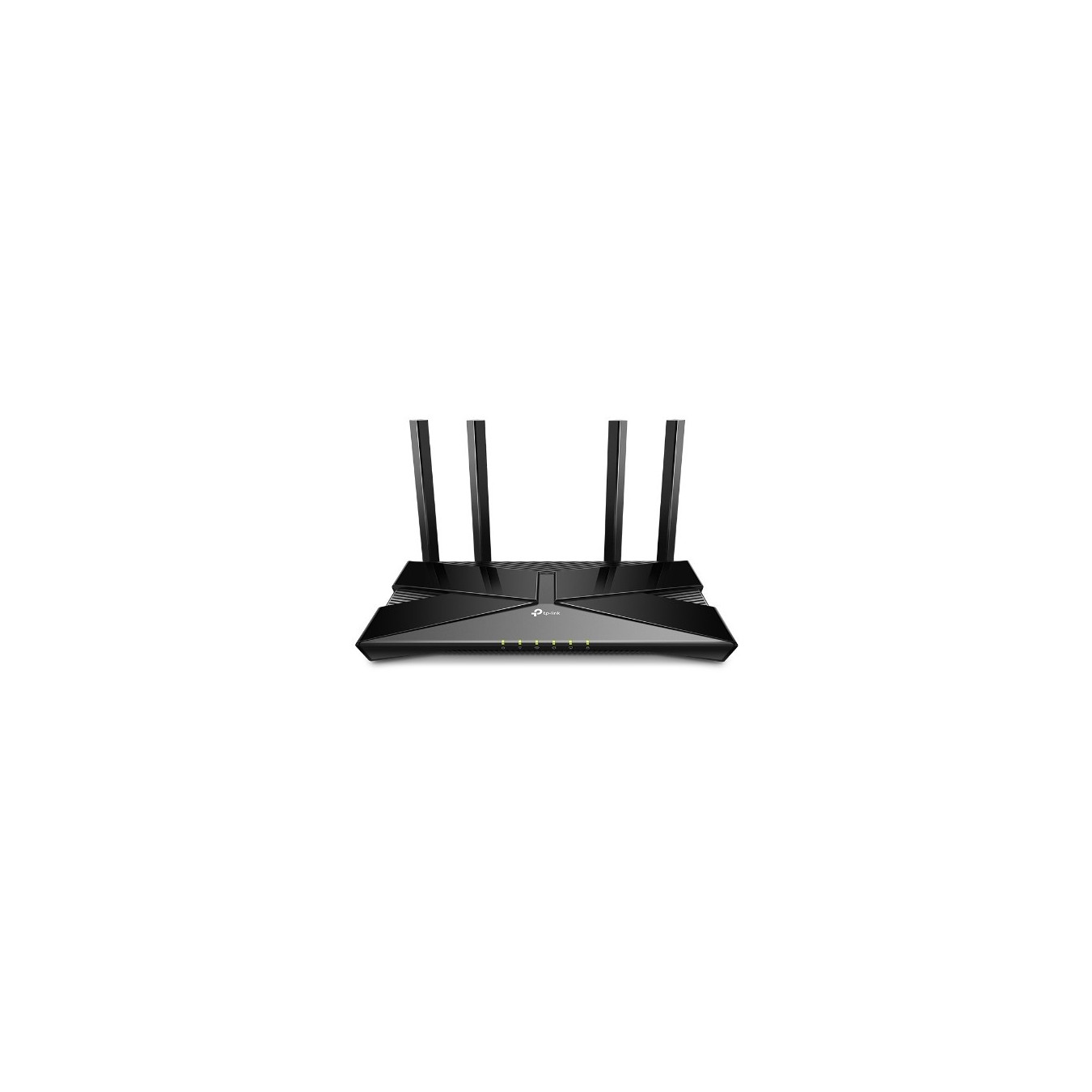

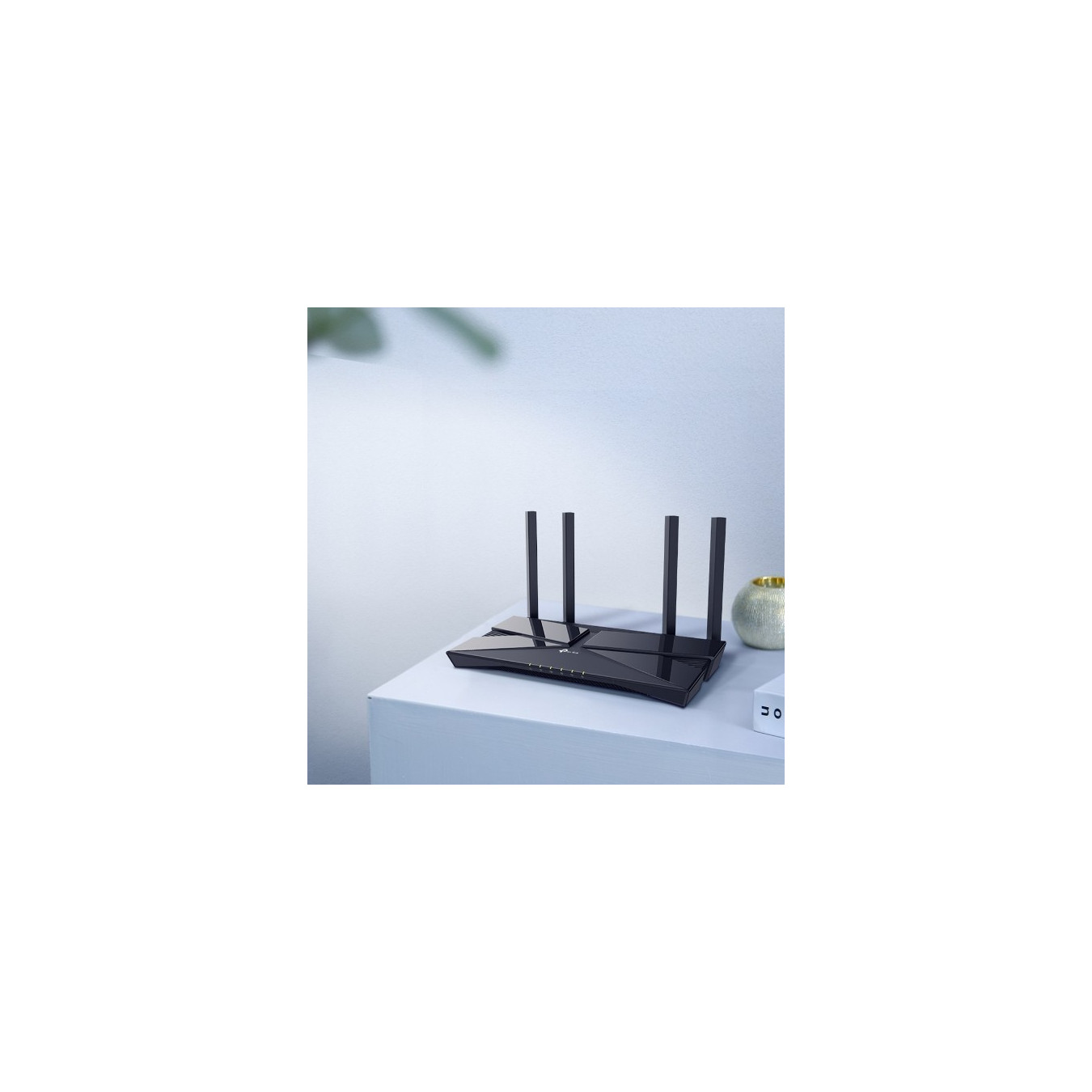

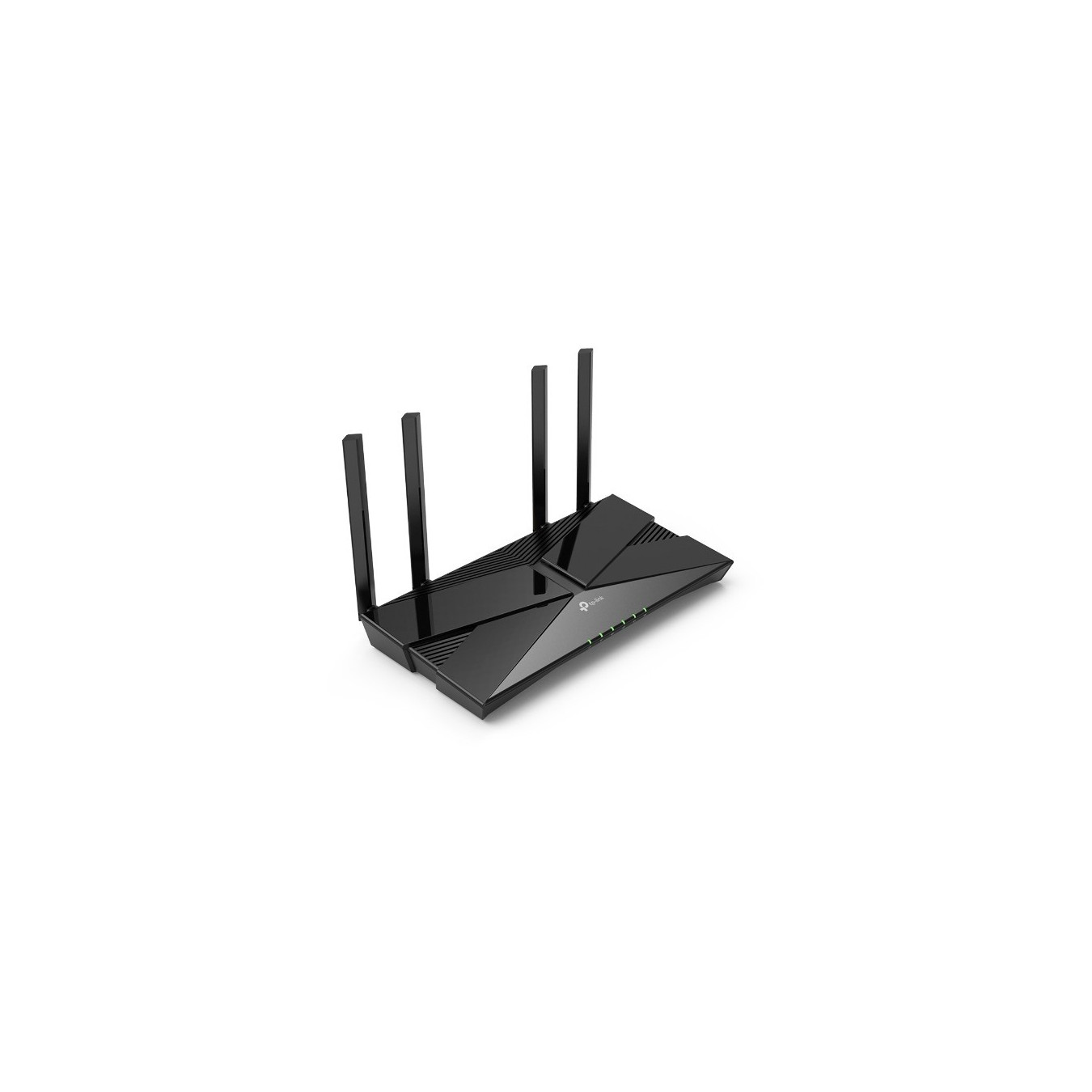

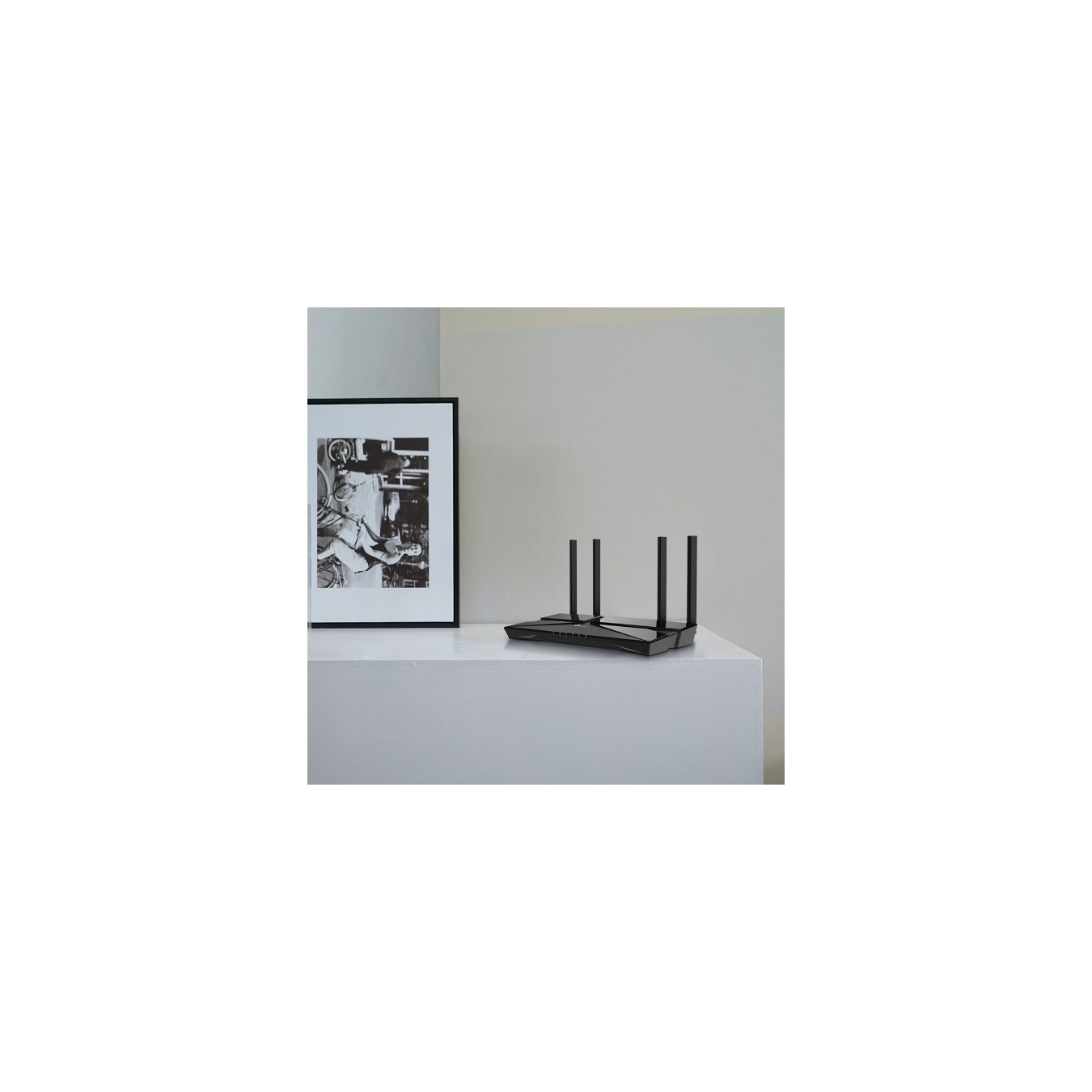

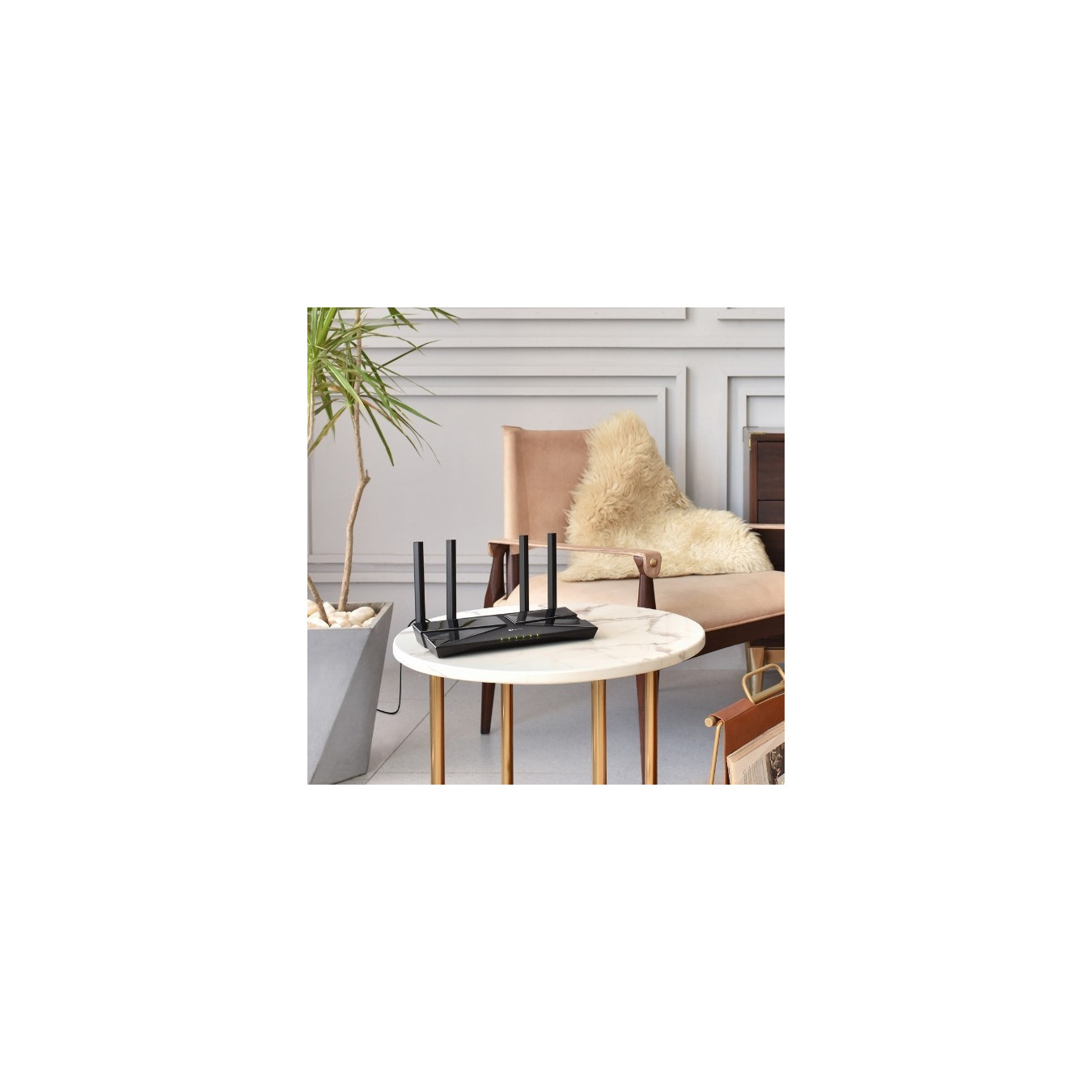

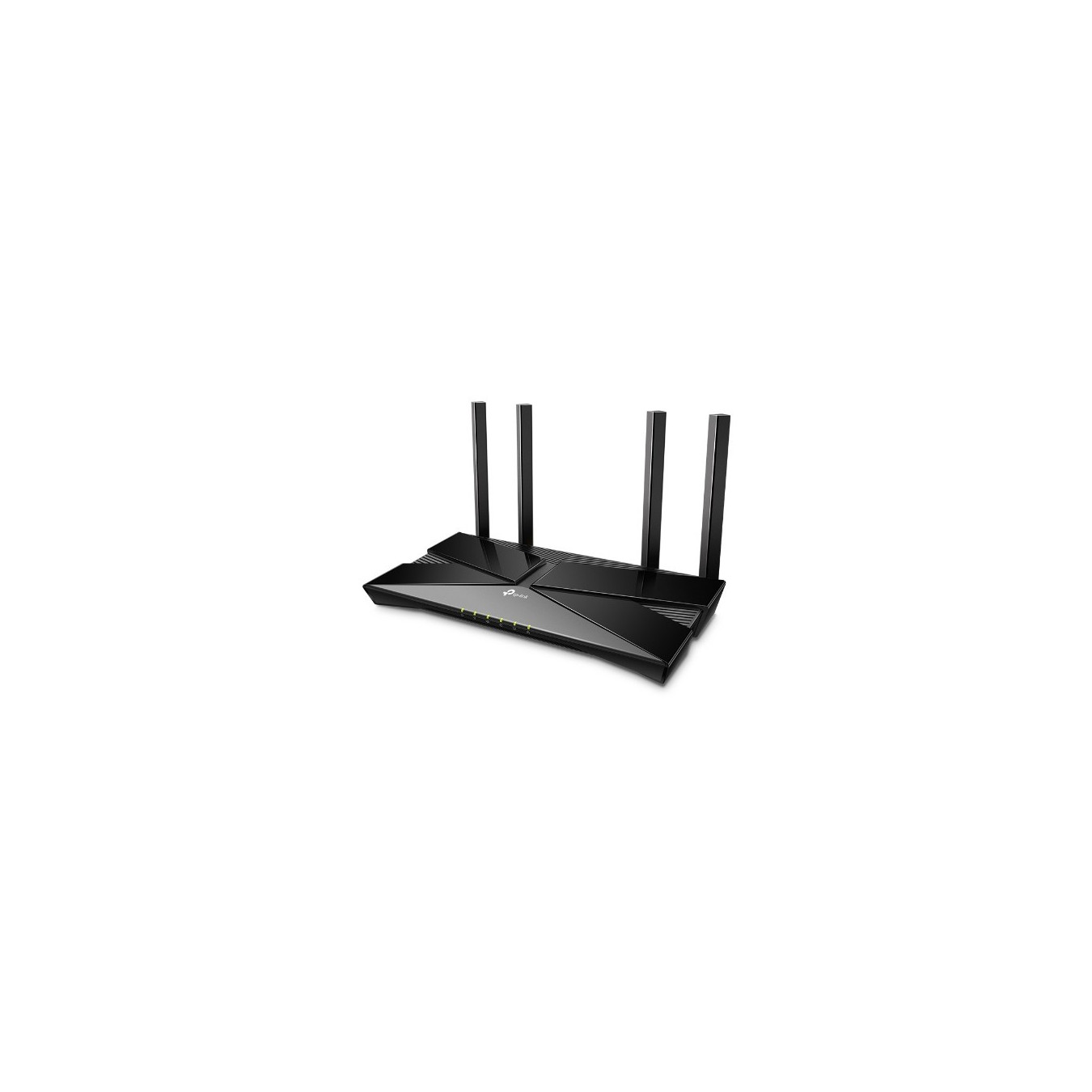

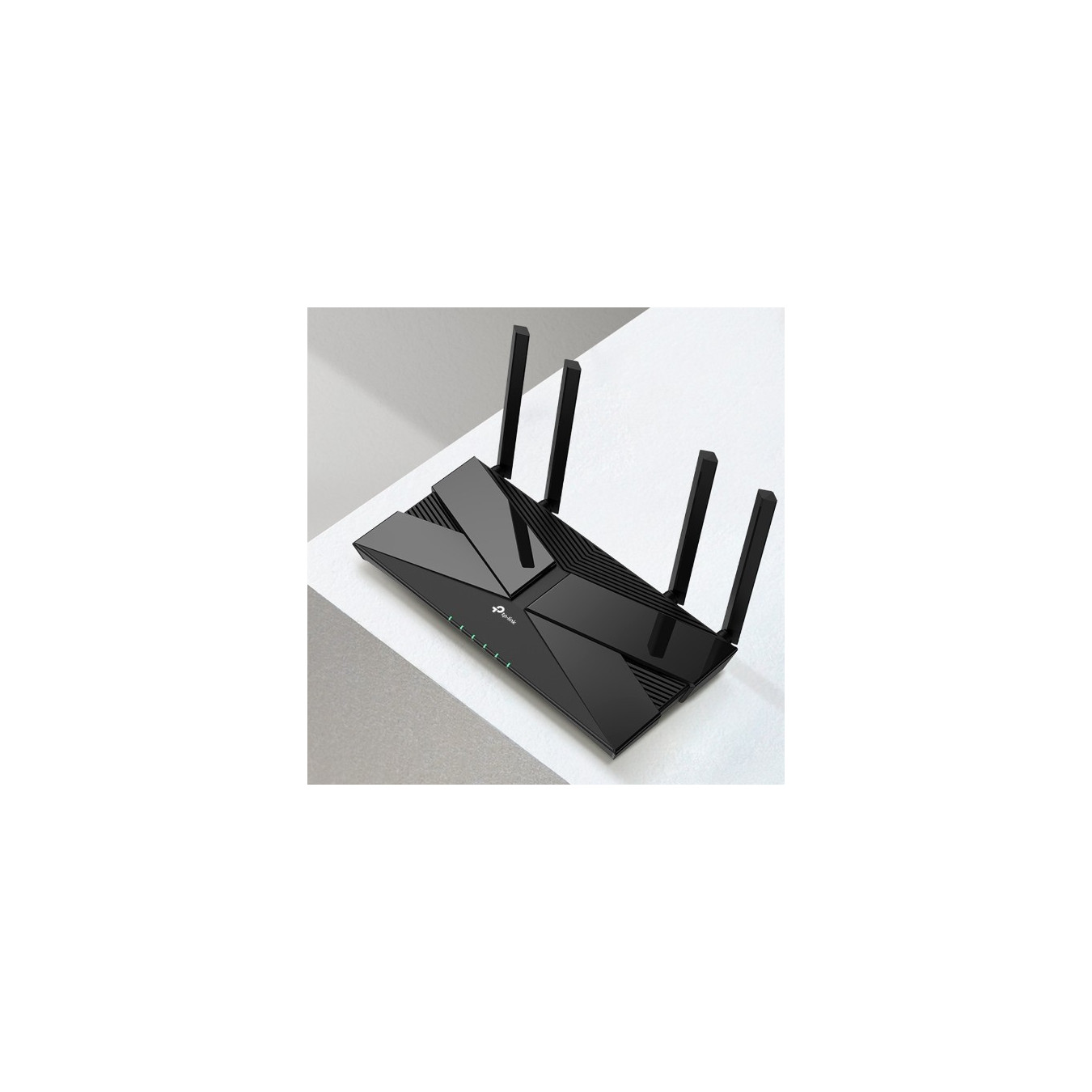

TP-Link Archer AX23 AX1800 Wi-Fi 6 Dual-Band Router (Boxed)
AX1800 dual-band Wi-Fi 6 router with 1.8 Gbps speeds, 4 Gigabit LAN ports, 4 external antennas, beamforming, OFDMA, and WPA3 security for seamless 4K streaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wireless Router |
|---|---|
| Routers - Special Features | App Control Beamforming Firewall Guest Network MU-MIMO OFDMA Parental Control QoS VLAN Support VPN Support WPA3 Security |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Routers - Bands | Dual-band (2.4+5 GHz) |
The TP-Link Archer AX23 is an AX1800 dual-band Wi-Fi 6 router designed for home networking with super-fast wireless speeds up to 1.8 Gbps total (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). Featuring Wi-Fi 6 (802.11ax) technology, this router delivers 25% improved encoding efficiency and 11% faster data rates compared to previous generations, making it ideal for 4K streaming, video conferencing, and simultaneous multi-device connectivity.
The router includes 4 Gigabit Ethernet LAN ports plus 1 Gigabit WAN port for wired connections, powered by a dual-core MediaTek processor. Advanced features include OFDMA technology for communicating with multiple Wi-Fi 6 devices simultaneously, beamforming for enhanced coverage, and 4 high-performance external antennas that provide broader signal distribution across 3+ bedroom homes. Security is reinforced with WPA3 encryption, SPI firewall, access control, and parental controls, while additional features include VPN support (OpenVPN, PPTP), VLAN support, and management via the Tether app or web interface.
- Wi-Fi 6 (802.11ax) with AX1800 speeds (1.8 Gbps combined)
- Dual-band: 5 GHz (1201 Mbps) and 2.4 GHz (574 Mbps)

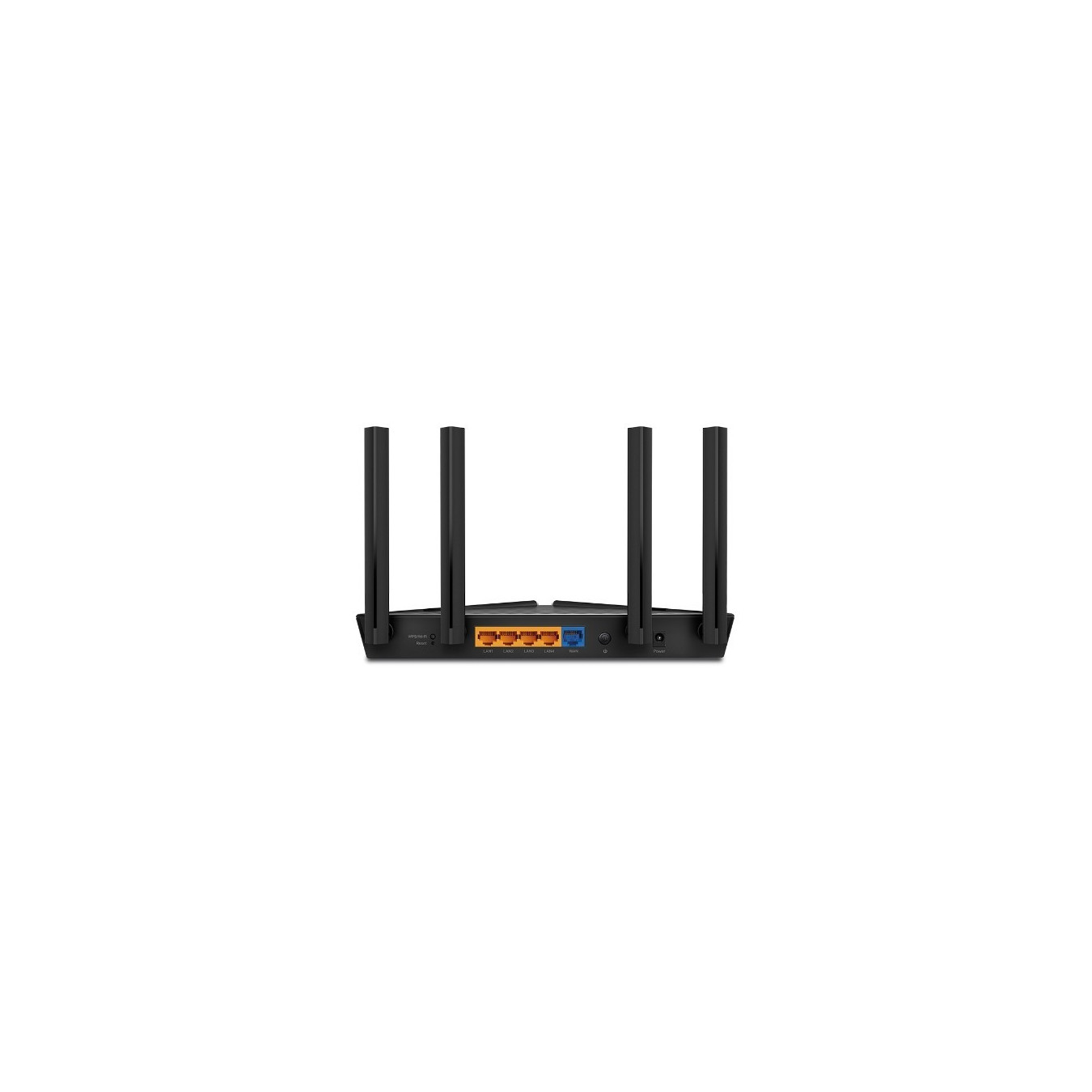

- 4 Gigabit LAN ports + 1 Gigabit WAN port
- 4 external high-performance antennas with beamforming
- OFDMA and MU-MIMO for multi-device support
- WPA3 security with firewall and parental controls
- VPN support and VLAN functionality
- Tabletop design with 12V/1A power adapter
| Device Type | Tabletop Wireless Router |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Supported Wi-Fi Standards | 802.11a, 802.11b, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), 802.11ax (Wi-Fi 6) |
| Bands | Dual-band (2.4 GHz / 5 GHz) |
| Total Wi-Fi Speed | 1800 Mbit/s (AX1800) |
| 2.4 GHz Speed | 574 Mbit/s |
| 5 GHz Speed | 1201 Mbit/s |
| Wi-Fi Coverage | 3+ bedroom houses |
| Antennas | 4 external high-performance antennas |
| Antenna Connector Type | SMA |
| Beamforming | Yes |
| OFDMA | Yes |
| MU-MIMO | Yes (2x2:2 MIMO configuration) |
| WAN Ports | 1x Gigabit Ethernet (RJ-45) |
| LAN Ports | 4x Gigabit Ethernet (RJ-45) |
| Ethernet Speed | 10/100/1000 Mbit/s |
| Operating Modes | Router Mode, Access Point Mode |
| Processor | MediaTek MT7621DAT |
| Processor Frequency | 880 MHz |
| Processor Cores | 2 cores |
| RAM | Not specified |
| Flash Memory | 16 MiB |
| Security Protocols | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x), 64-bit WEP, 128-bit WEP |
| Firewall | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| VPN Support | OpenVPN, PPTP |
| NAT Features | Port Forwarding, Port Triggering, UPnP, DMZ |
| VLAN Support | Yes (IGMP Proxy, IGMP Snooping, Bridge Tag VLAN) |
| DHCP | Address Reservation, DHCP Client List, DHCP Server |
| DDNS | TP-Link NO-IP, DynDNS |
| Management | Tether App, Web Interface |
| Parental Controls | Yes |
| Guest Network | Yes |
| Power Supply | 12V DC, 1A |
| Power Consumption | Not specified |
| Connector Type | Barrel connector |
| Buttons | WPS/Wi-Fi Button, Power On/Off Button, LED On/Off Button, Reset Button |
| Product Color | Black |
| Device Dimensions (W×D×H) | 260.2 × 135.0 × 38.6 mm |
| Device Dimensions (W×D×H) in inches | 10.2 × 5.3 × 1.5 in |
| Package Dimensions (W×D×H) | 500 × 350 × 395 mm |
| Package Weight | 730 g |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| FCC ID | 2AXJ4AX23 |
| Package Contents | Wi-Fi Router Archer AX23, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); ISP subscription |
| Supported ISP Types | PPPoE, L2TP, PPTP, Dynamic IP, Static IP |
| Harmonized System Code | 85176990 |
