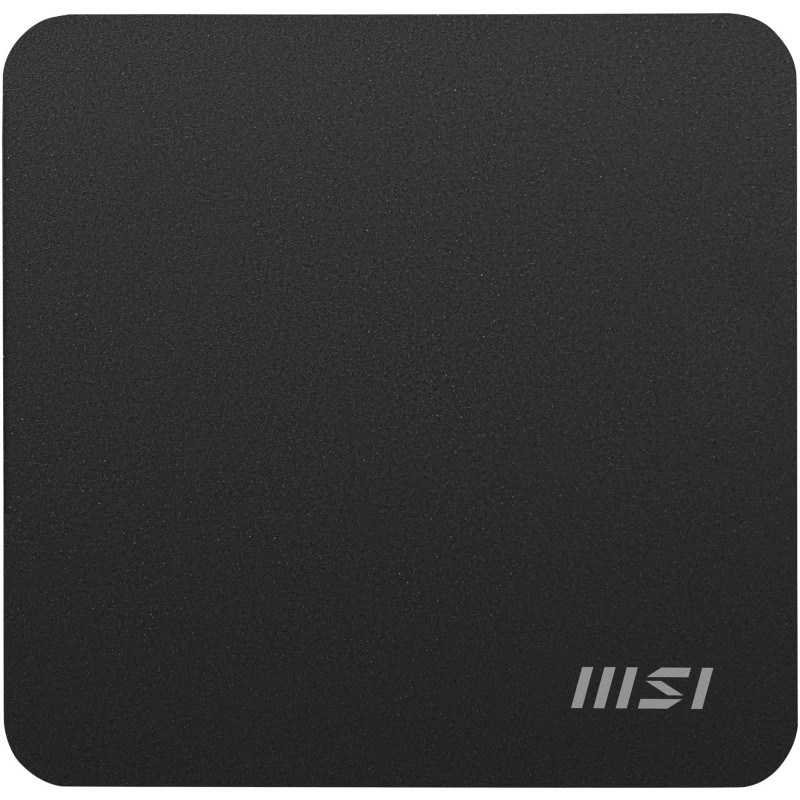

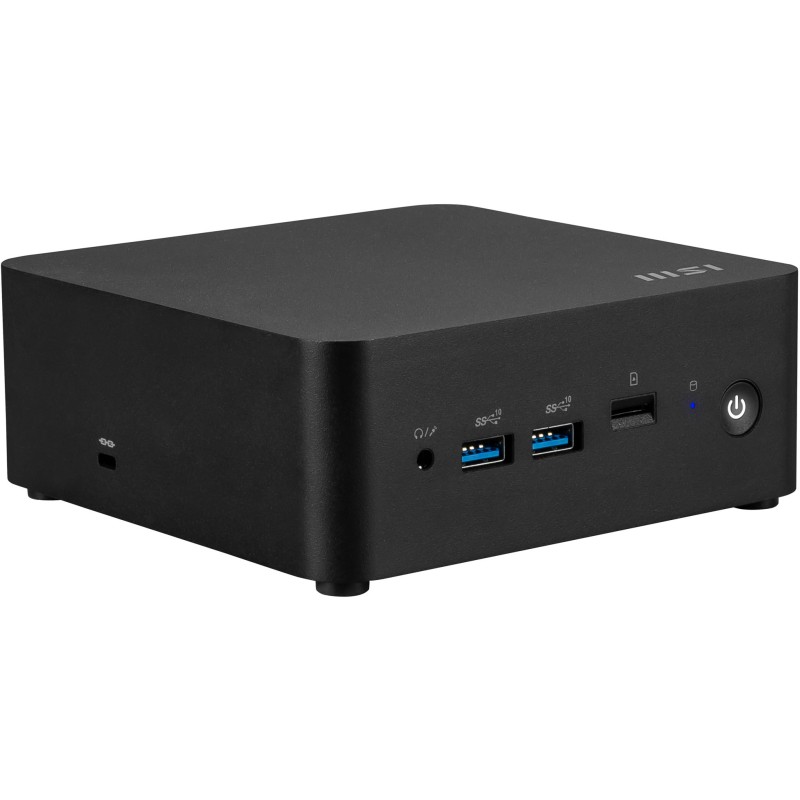

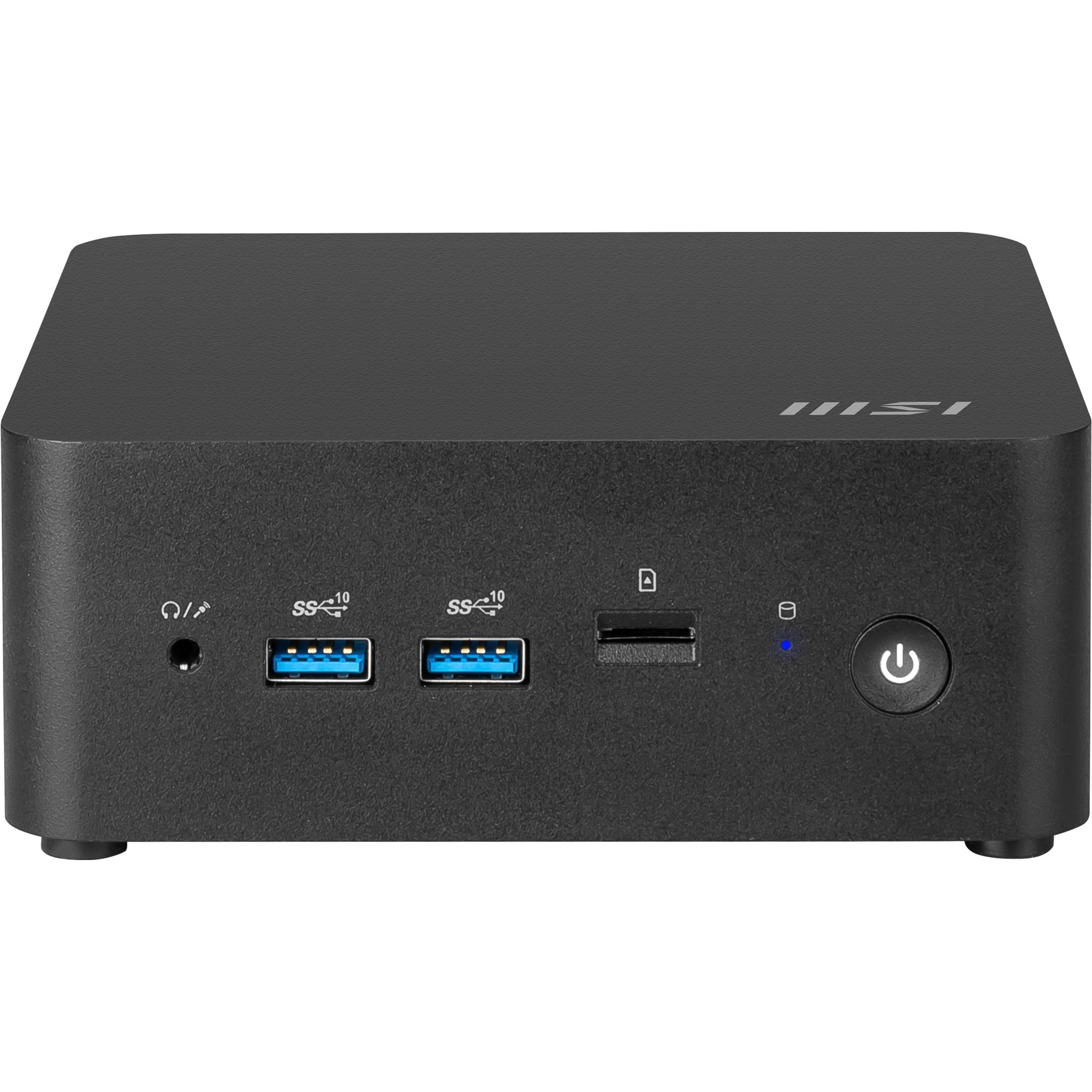

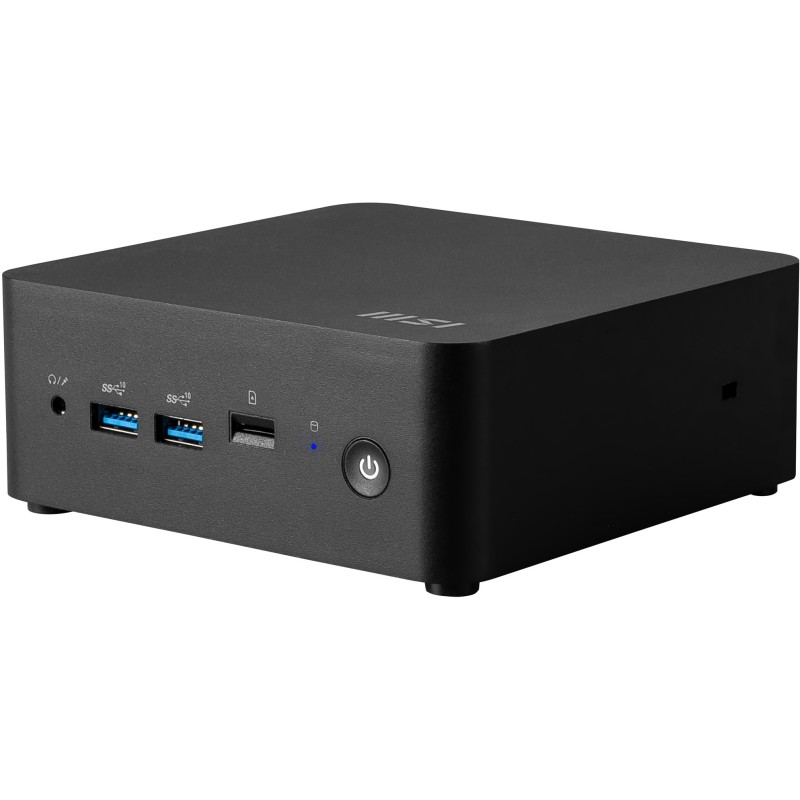

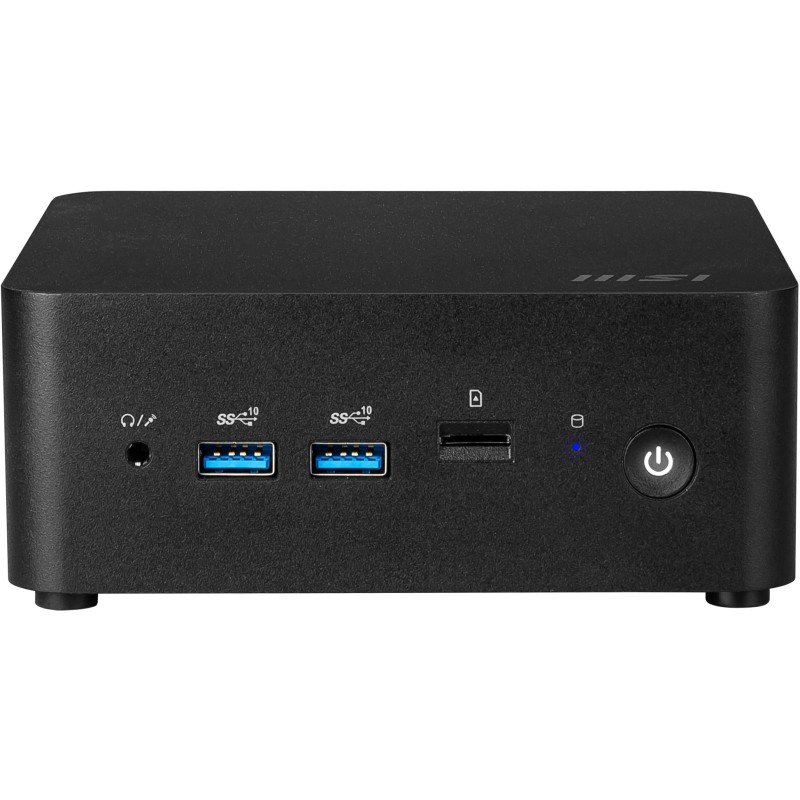

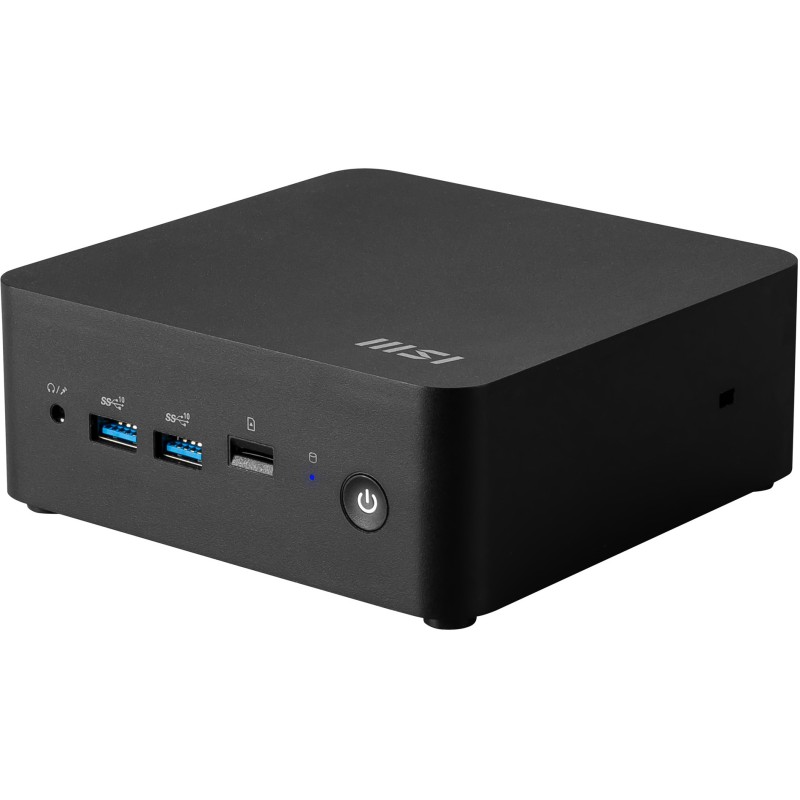

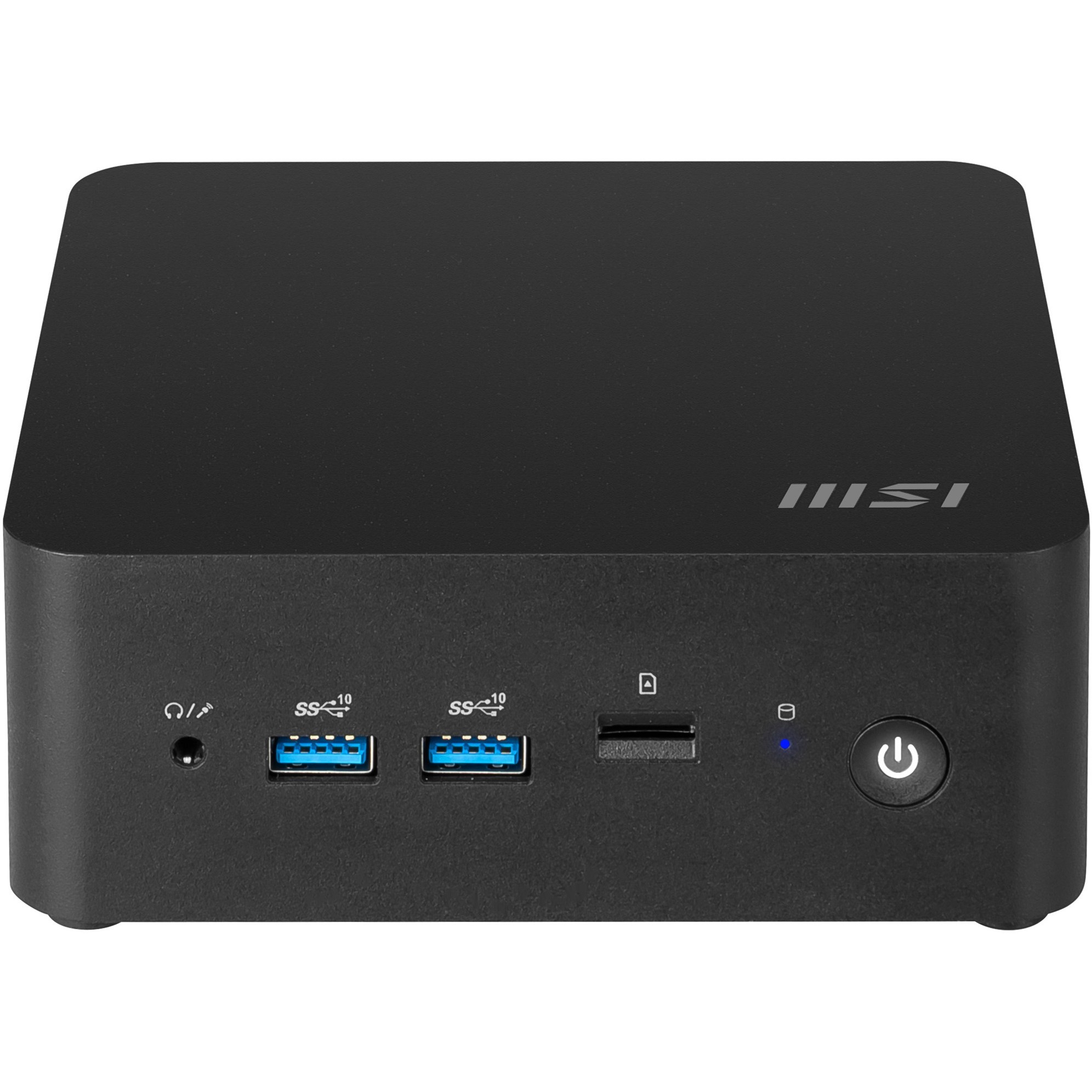

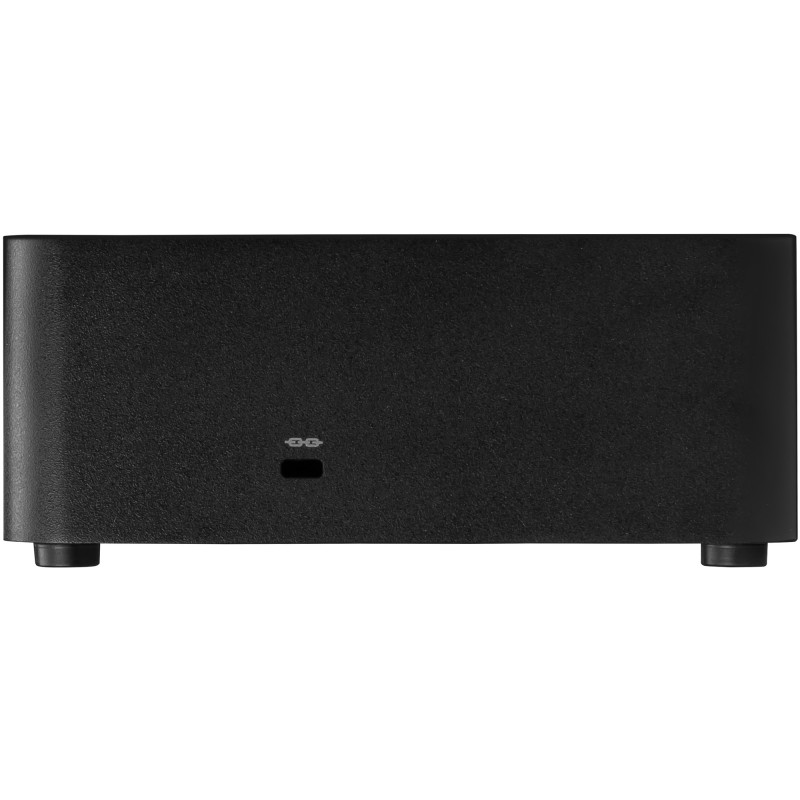

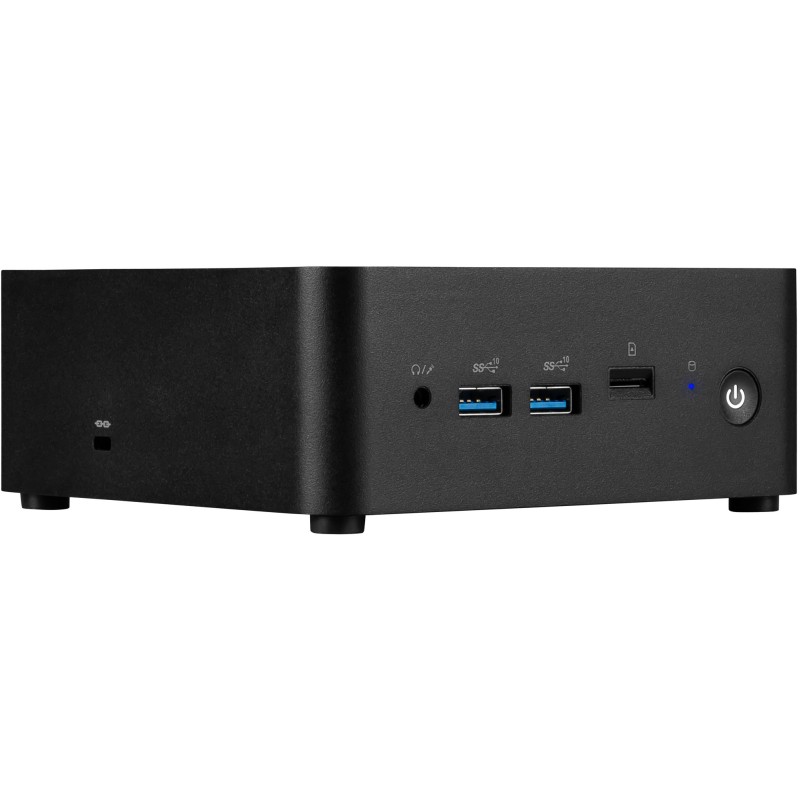

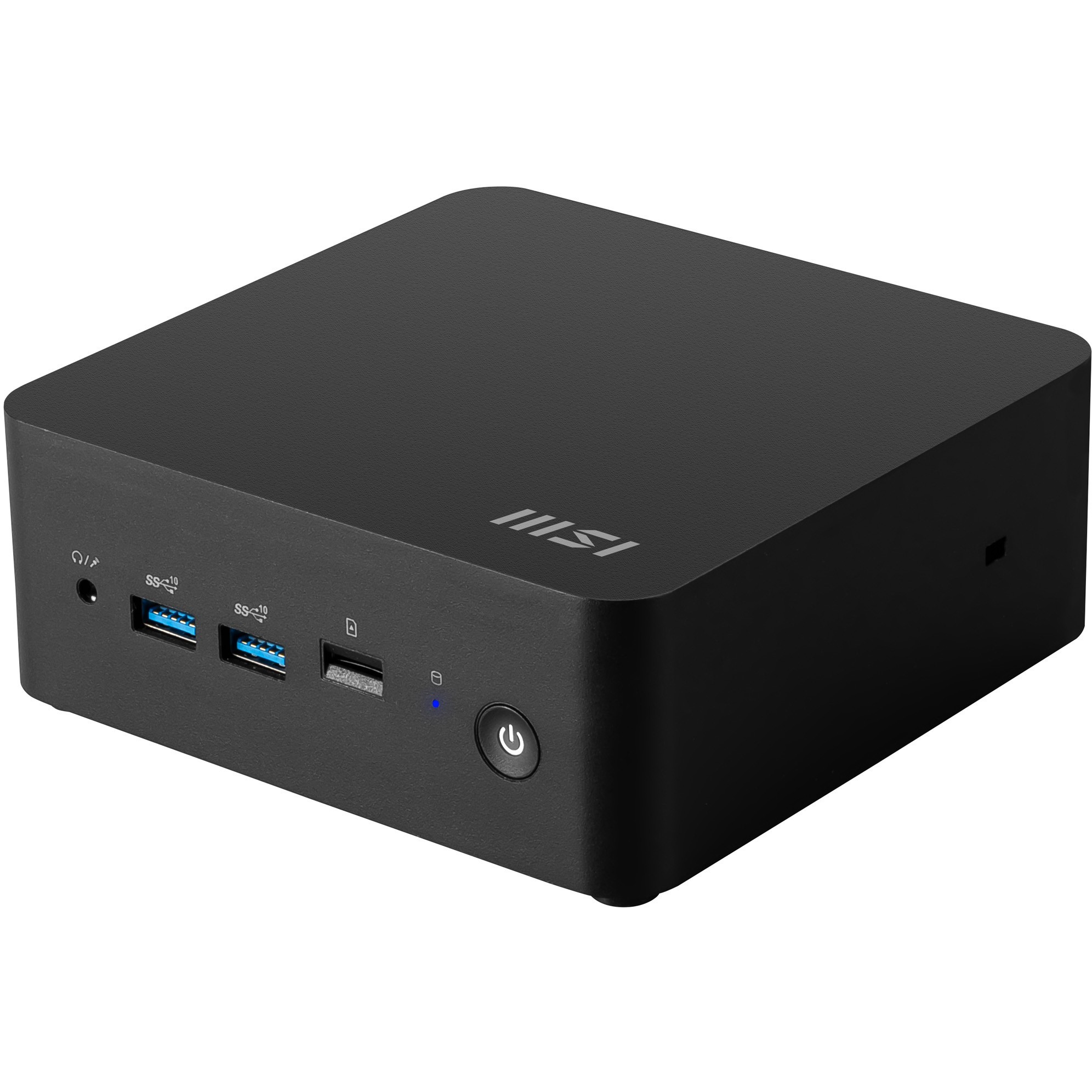

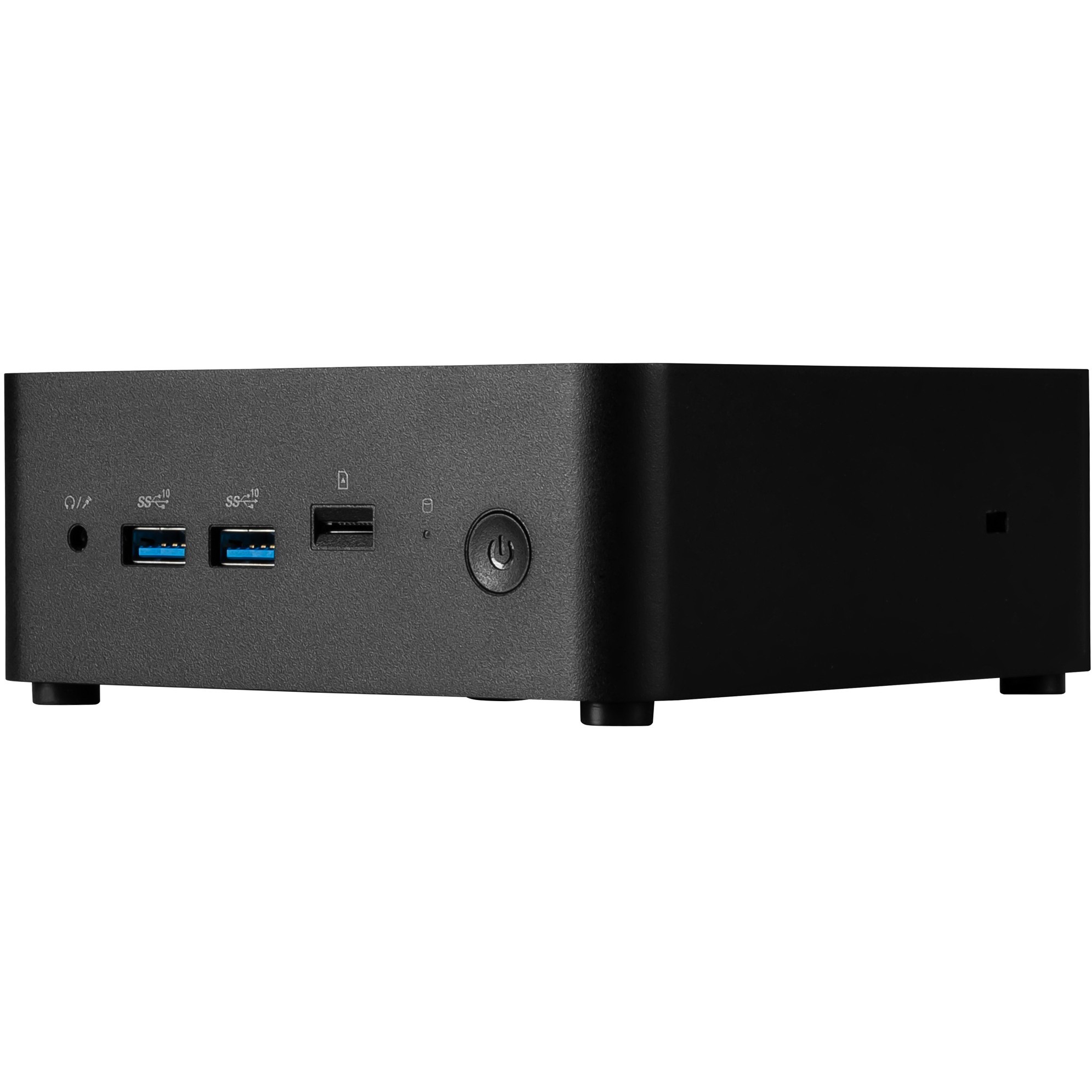

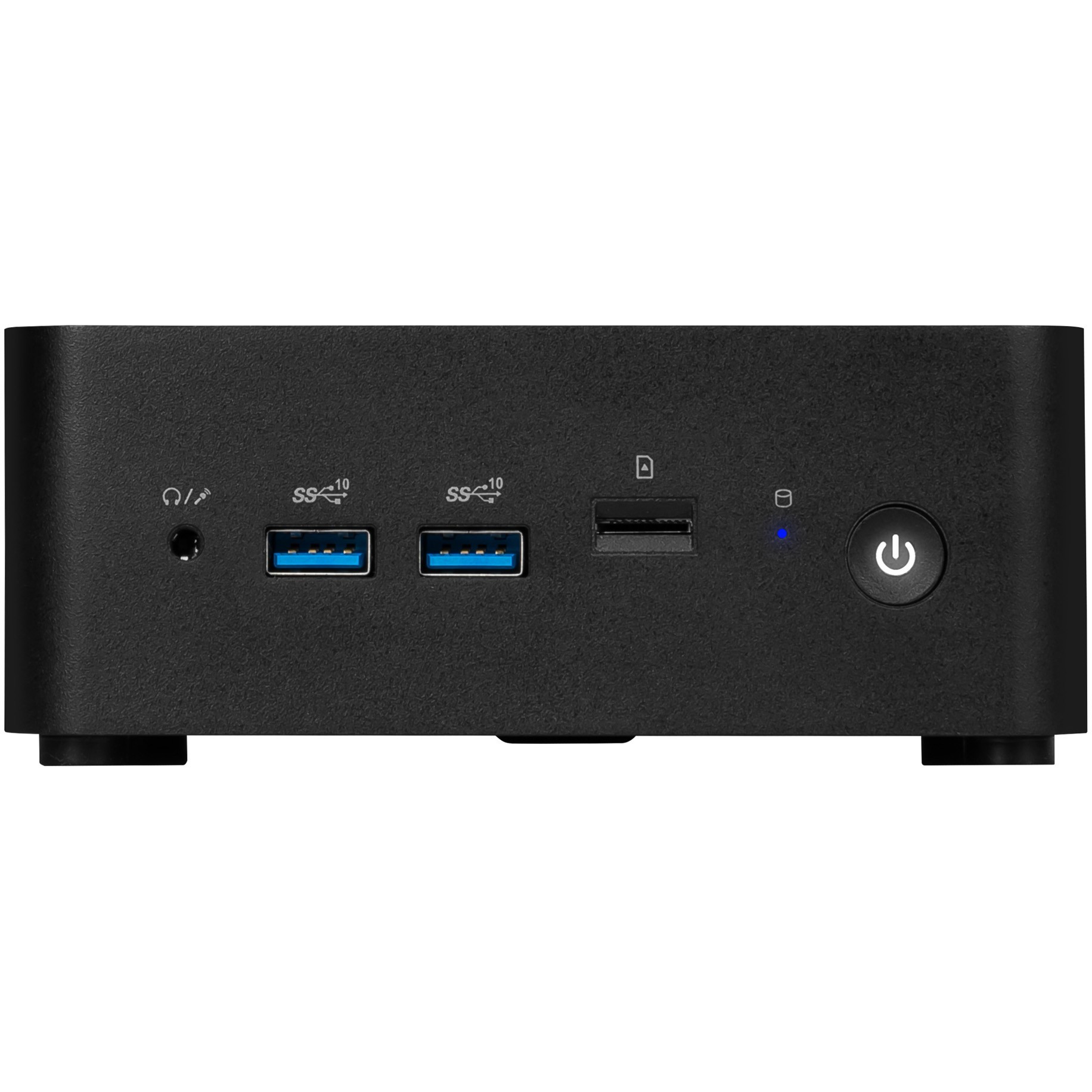

MSI Cubi NUC - 1MG-023DE - Black, i3-100U, 8GB DDR5, 256GB NVMe, Windows 11 Pro
Compact MSI Cubi NUC mini PC with Intel Core i3-100U, 8GB DDR5, 256GB PCIe NVMe, Windows 11 Pro, Wi‑Fi 6E, Bluetooth 5.3, 2x HDMI, dual 2.5GbE, external PSU
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Mini PC (Ready-to-Use) |
|---|---|
| Barebone & Mini PCs - CPU Series | Intel Core i3 |
| Barebone & Mini PCs - Memory Type | DDR5 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 64 GB |
| Barebone & Mini PCs - Storage Support | M.2 NVMe |
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - Video Outputs | HDMI |
| Barebone & Mini PCs - Ethernet | Dual 2.5GbE |
| Barebone & Mini PCs - Wireless | Wi-Fi 6E |
| Barebone & Mini PCs - Bluetooth | 5.3 |
| Barebone & Mini PCs - OS | Windows 11 Pro |
MSI Cubi NUC 1MG-023DE. Processor family: Intel Core 3. Processor model: 100U. Internal memory: 8 GB. Internal memory type: DDR5-SDRAM. Memory clock speed: 5600 MHz. Total storage capacity: 256 GB. Storage media: SSD. Card reader integrated. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 630 g. Product colour: Black
| Processor manufacturer | Intel |
| Processor family | Intel Core 3 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 100U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Number of processors supported | 1 |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| Feature | Power cord included |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |

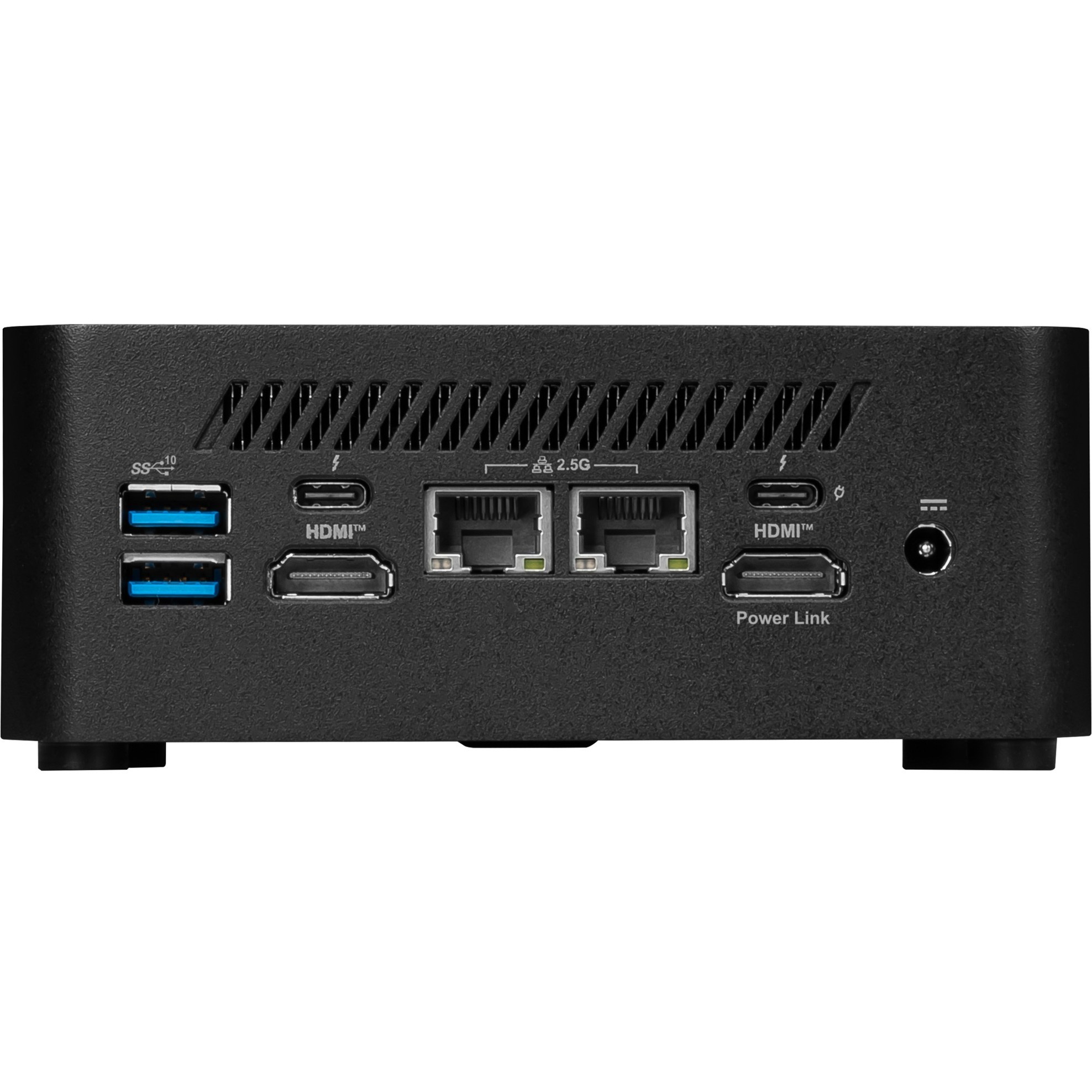

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Chassis type | Mini PC |

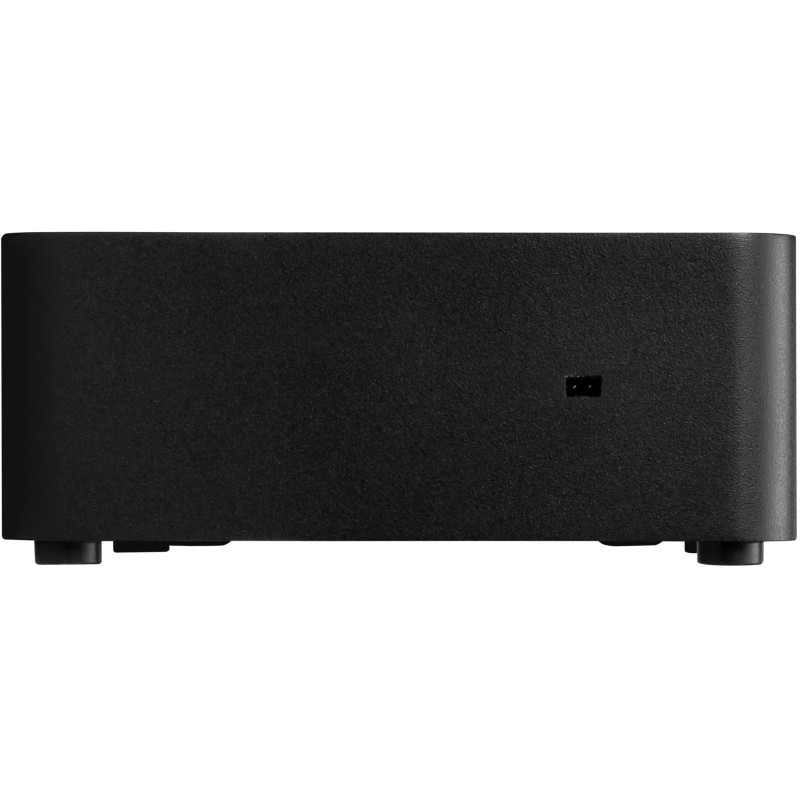

| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system installed | Windows 11 Pro |
| Power supply | 120 W |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certification | FCC(Class B). CB/CE. UL(CUL). BSMI. VCCI. RCM(C-Tick) |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 630 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
| Power supply type | External AC adapter |

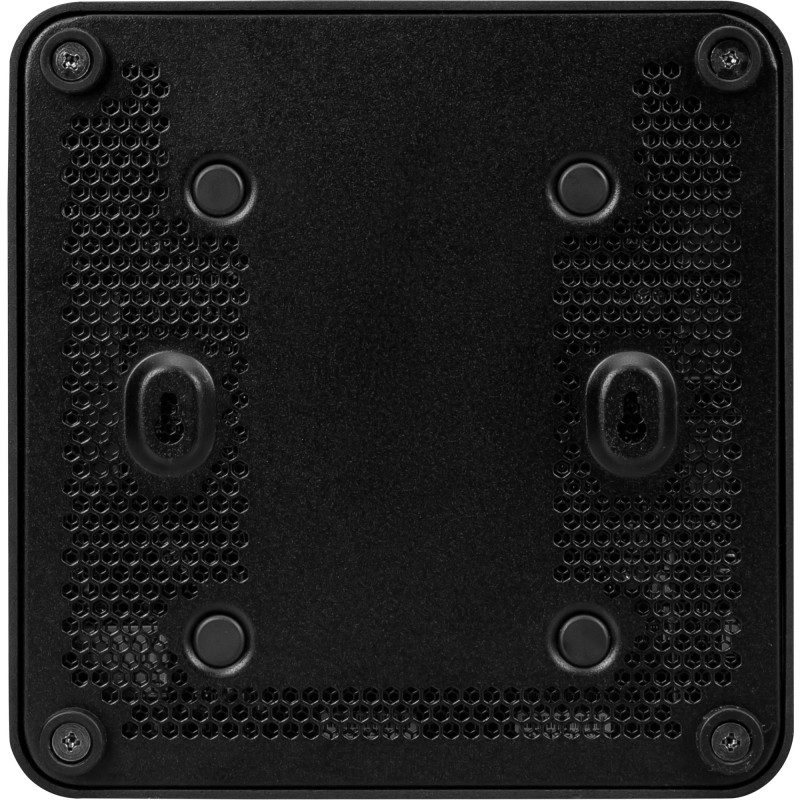

| Panel mounting interface | 100 x 100 mm |
| Graphics card family | Intel |
| Cooling type | Active |
| Number of displays supported | 4 |
| Number of M.2 (M) slots | 2 |
