MSI Cubi NUC 1MG-023DE - Intel Core 3 100U, 8GB DDR5, 256GB SSD, Windows 11 Pro (Boxed)
Compact MSI Cubi NUC mini PC with Intel Core 3 100U processor, 8GB DDR5 RAM, 256GB NVMe SSD, Windows 11 Pro, Wi-Fi 6E, Bluetooth 5.3, dual HDMI 2.1, and dual 2.5GbE Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Complete Mini PC |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core Ultra 3 |
| Barebone & Mini PC - Graphics Chipset | Intel UHD Graphics |
| Barebone & Mini PC - Operating System | Windows 11 Pro |
| Barebone & Mini PC - Installed Storage | 256 GB |
| Barebone & Mini PC - Installed Memory (RAM) | 8 GB |
The MSI Cubi NUC 1MG-023DE is an ultra-compact mini PC designed for business productivity, home entertainment, and office applications. Featuring an Intel Core 3 100U processor with 6 cores (2 performance + 4 efficient) and integrated Intel graphics, this system delivers efficient performance in a remarkably small 0.826L chassis measuring just 135.6 x 132.5 x 50.1mm. The system comes pre-configured with 8GB DDR5-5200MHz RAM and a 256GB NVMe SSD, with the flexibility to upgrade to 64GB RAM and add additional M.2 storage via two available slots.

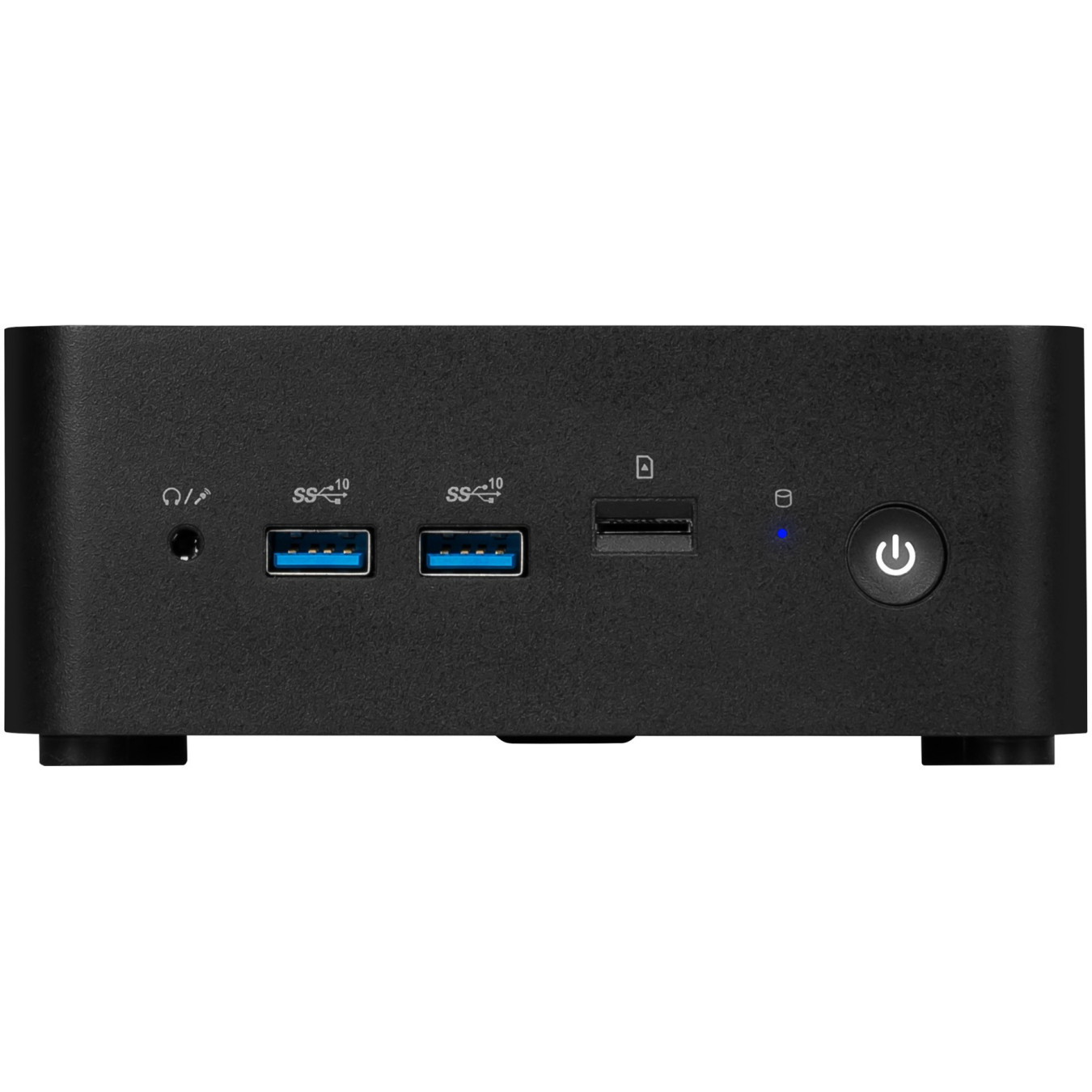

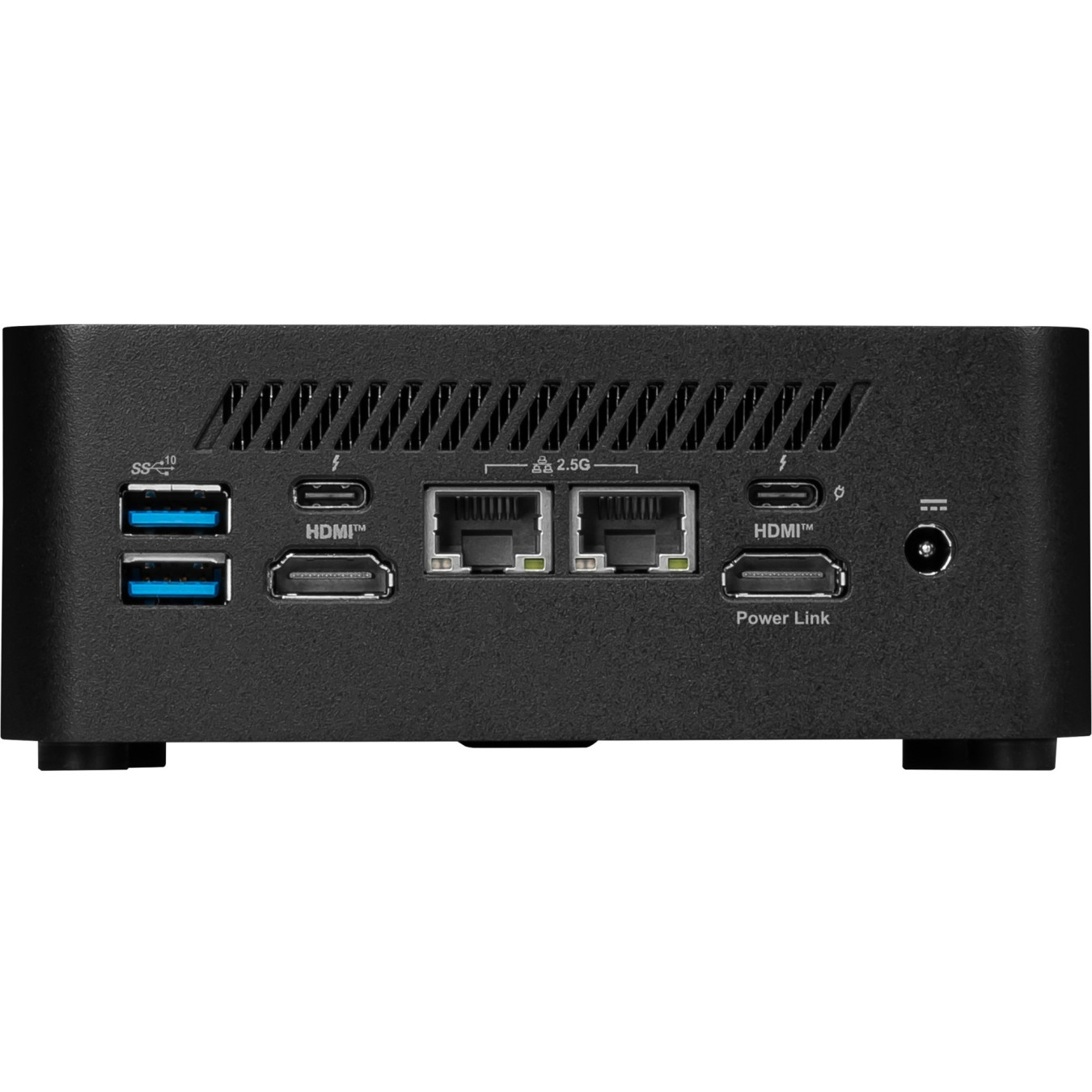

Connectivity is comprehensive for its size, featuring dual HDMI 2.1 outputs supporting up to 4 simultaneous displays, dual 2.5GbE Ethernet ports, Wi-Fi 6E (802.11ax), and Bluetooth 5.3. The system includes 4x USB 3.2 Gen 1 Type-A ports, 2x USB 3.2 Gen 2 Type-A ports, 2x Thunderbolt 4 ports, a 3.5mm audio jack, and an integrated card reader. Powered by a 120W external AC adapter with active cooling, the Cubi NUC operates reliably between 0-35°C and includes Kensington cable lock support for security. Windows 11 Pro comes pre-installed, and the system is VESA-mountable for flexible deployment options.
- Intel Core 3 100U processor (6 cores, 10MB cache, up to 4.7GHz turbo)
- 8GB DDR5-5200MHz RAM (expandable to 64GB via 2x SO-DIMM slots)
- 256GB NVMe SSD (PCIe Gen 4 x4, with 1 additional M.2 slot available)
- Dual HDMI 2.1 outputs with support for 4 simultaneous displays
- Wi-Fi 6E and Bluetooth 5.3 connectivity
- Dual 2.5GbE Ethernet ports for network redundancy
- 120W external power supply with active cooling
- Windows 11 Pro pre-installed with TPM 2.0
| Processor Manufacturer | Intel |
| Processor Family | Intel Core 3 |
| Processor Model | 100U |
| Processor Cores | 6 (2 Performance + 4 Efficient) |
| Processor Threads | 8 |
| Processor Cache | 10 MB Smart Cache |
| Performance-core Base Frequency | 1.2 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Base Frequency | 0.9 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor Base Power | 15 W |
| Maximum Turbo Power | 55 W |
| Internal Memory | 8 GB |
| Maximum Internal Memory | 64 GB |
| Internal Memory Type | DDR5-SDRAM |
| Memory Slots | 2x SO-DIMM |
| Memory Clock Speed | 5200 MHz |
| Total Storage Capacity | 256 GB |
| Storage Media | SSD |
| SSD Interface | PCIe Gen 4 x4 |
| SSD Form Factor | M.2 |
| Number of M.2 Slots | 2 |
| Number of 2.5 | 1 |
| Card Reader | Yes (MicroSD/TransFlash) |
| Graphics Type | Integrated |
| On-board GPU Manufacturer | Intel |
| On-board Graphics Card Family | Intel Graphics |
| Discrete Graphics Card | No |
| Chipset | Intel SoC |
| LAN Controller | Intel I226-V |
| Ethernet Ports | 2x 2.5GbE (RJ-45) |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi Controller | Intel Wi-Fi 6E AX211 |
| Bluetooth Version | 5.3 |
| HDMI Ports | 2x HDMI 2.1 |
| USB 3.2 Gen 1 Type-A Ports | 4 |
| USB 3.2 Gen 2 Type-A Ports | 2 |
| Thunderbolt 4 Ports | 2 |
| Audio Jack | 1x 3.5mm Mic-in/Headphone-out Combo |
| Number of Displays Supported | 4 |
| Operating System | Windows 11 Pro |
| TPM Version | 2.0 |
| Power Supply | 120 W External AC Adapter |
| Cooling Type | Active |
| Chassis Type | Mini PC |
| Chassis Volume | 0.826 L |
| Product Dimensions (W x D x H) | 135.6 x 132.5 x 50.1 mm |
| Product Weight | 630 g |
| Product Color | Black |
| Housing Material | Plastic |

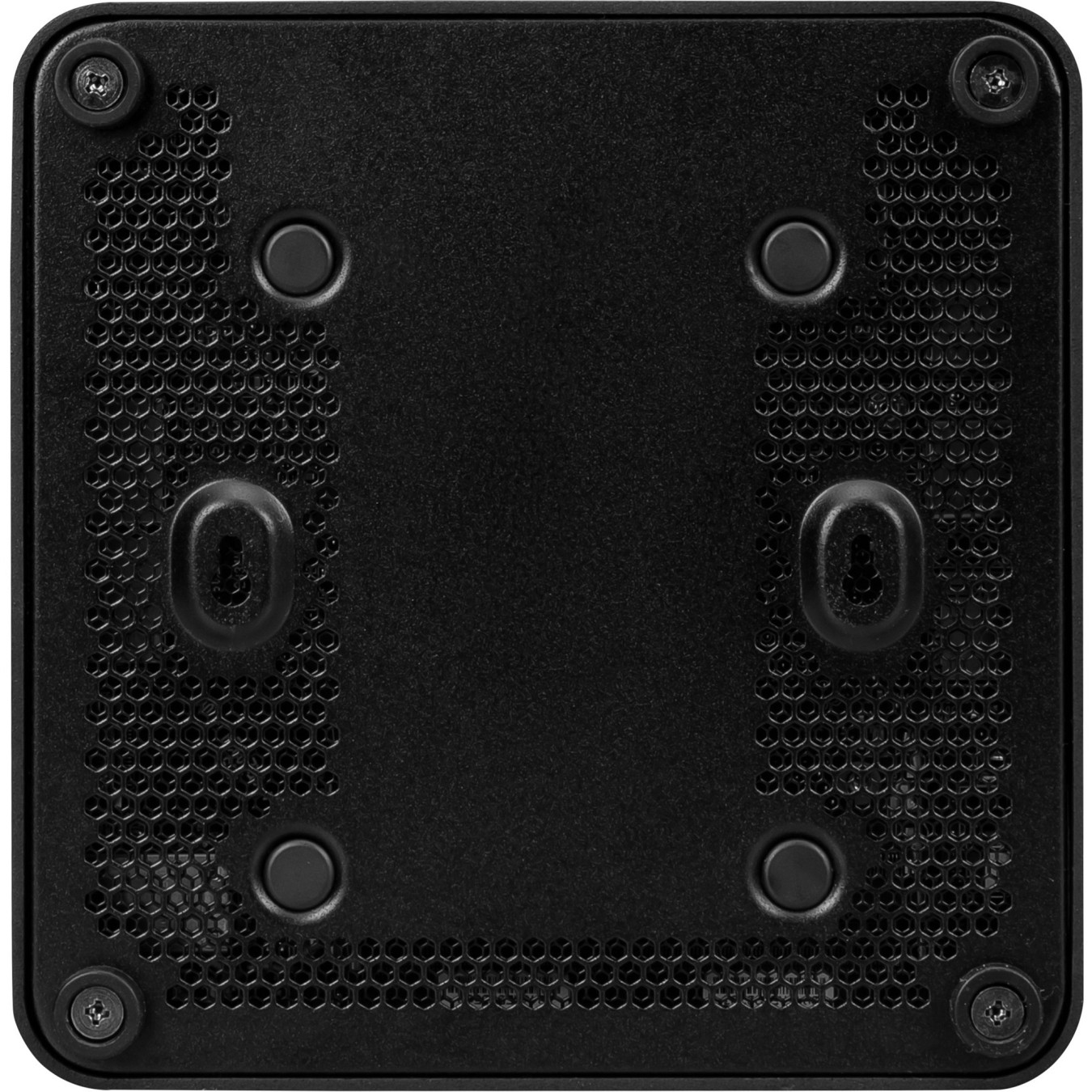

| VESA Mounting | Yes (100 x 100 mm) |

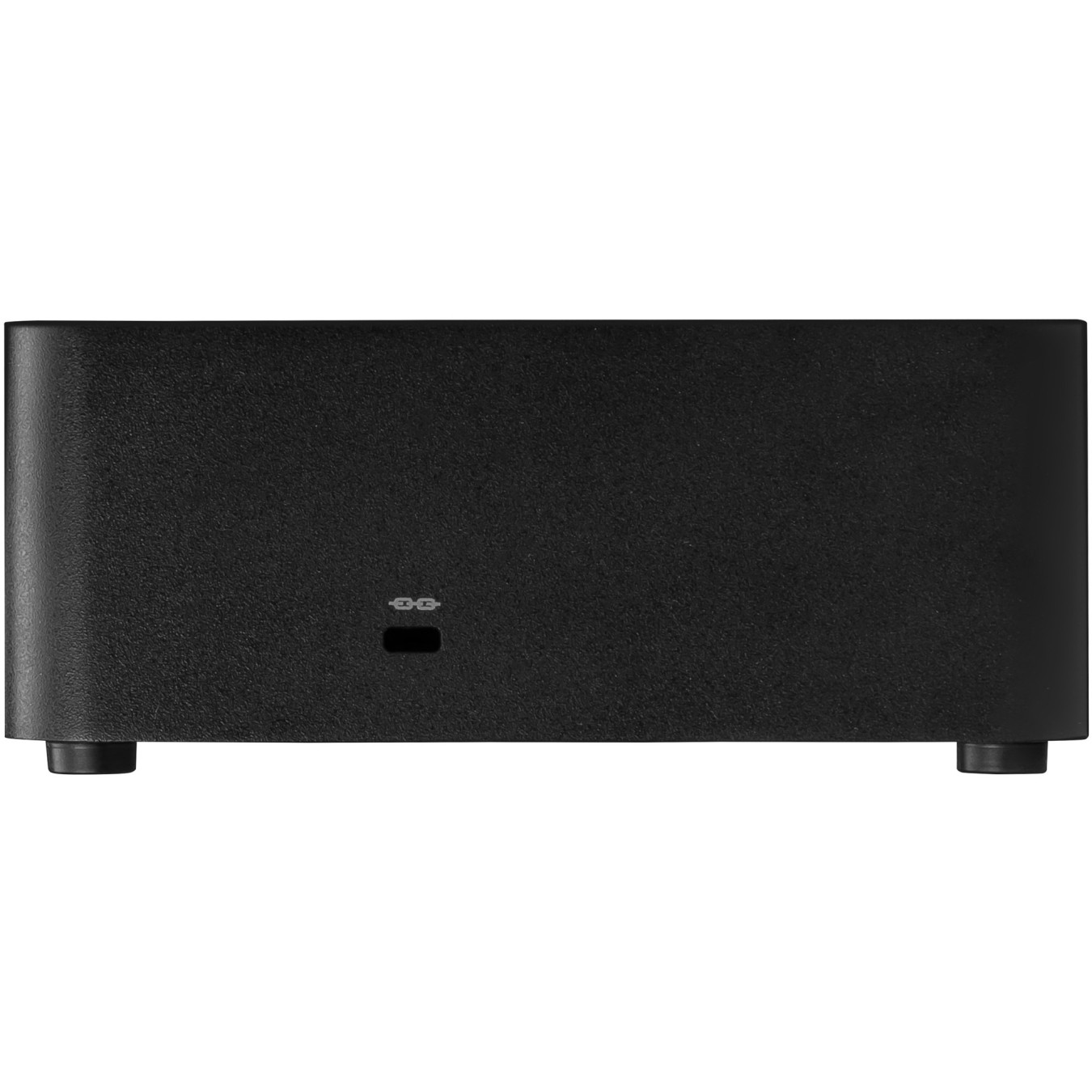

| Cable Lock Slot | Yes (Kensington) |
| Operating Temperature | 0 - 35 °C |
| Storage Temperature | -20 - 60 °C |
| Operating Relative Humidity | 0 - 85% |
| Storage Relative Humidity | 0 - 90% |
| Certifications | FCC (Class B), CB/CE, UL (CUL), BSMI, VCCI, RCM (C-Tick) |
| Package Dimensions (W x D x H) | 205 x 220 x 94 mm |
| Package Weight | 1.38 kg |
| EAN13 | 4711377230339 |
